BMW 7269531 Lear 532384808 BIX TFL TMS Headlight Driver Module

Xenons4U is the leading high quality and affordable car parts provider in UK. We offer BMW 7269531 Lear 532384808 BIX TFL TMS Headlight Driver Module. It is Factory fitted on 5 Series F10 F11 Pre-Facelift and F07 GT with Xenon Headlamps and D1S HID bulbs for main beam. For more information visit our website.<br><br>

Albertpeter
Download Presentation

BMW 7269531 Lear 532384808 BIX TFL TMS Headlight Driver Module

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BMW 7269531 LEAR 532384808 BIX TFL TMS HEADLIGHT DRIVER MODULE

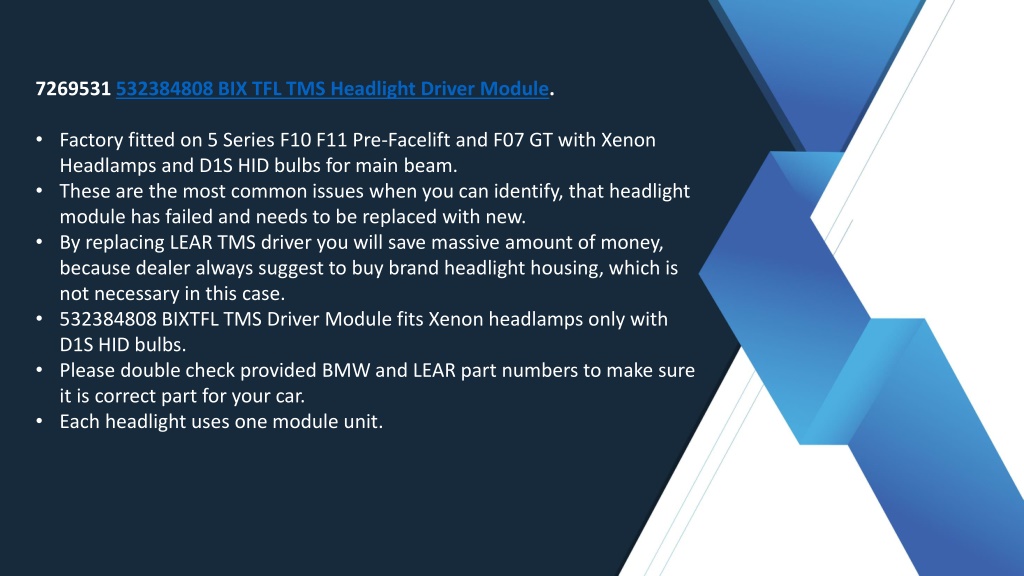

  2. 7269531 532384808 BIX TFL TMS Headlight Driver Module. • Factory fitted on 5 Series F10 F11 Pre-Facelift and F07 GT with Xenon Headlamps and D1S HID bulbs for main beam. • These are the most common issues when you can identify, that headlight module has failed and needs to be replaced with new. • By replacing LEAR TMS driver you will save massive amount of money, because dealer always suggest to buy brand headlight housing, which is not necessary in this case. • 532384808 BIXTFL TMS Driver Module fits Xenon headlamps only with D1S HID bulbs. • Please double check provided BMW and LEAR part numbers to make sure it is correct part for your car. • Each headlight uses one module unit.

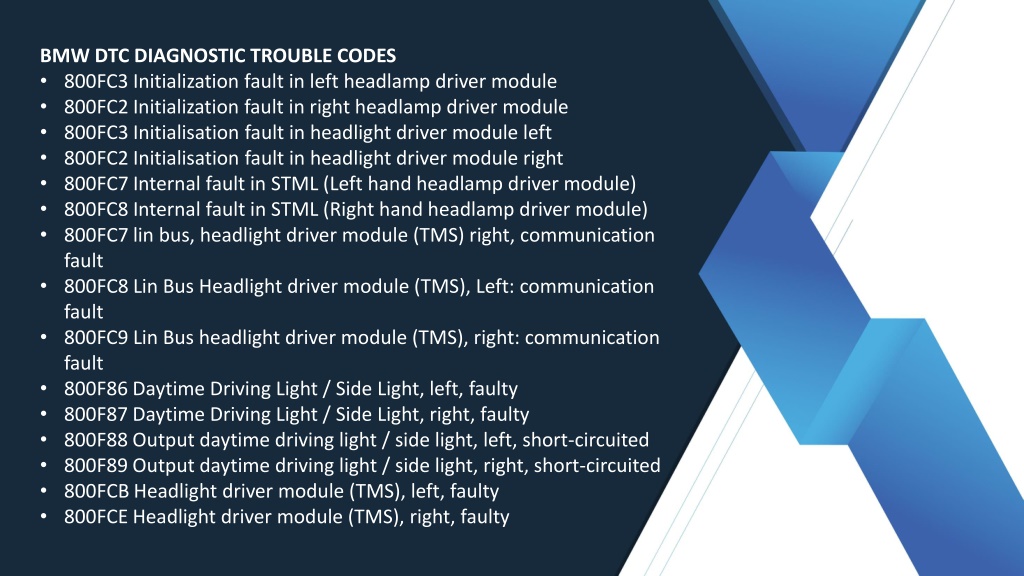

  3. BMW DTC DIAGNOSTIC TROUBLE CODES • 800FC3 Initialization fault in left headlamp driver module • 800FC2 Initialization fault in right headlamp driver module • 800FC3 Initialisation fault in headlight driver module left • 800FC2 Initialisation fault in headlight driver module right • 800FC7 Internal fault in STML (Left hand headlamp driver module) • 800FC8 Internal fault in STML (Right hand headlamp driver module) • 800FC7 lin bus, headlight driver module (TMS) right, communication fault • 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault • 800FC9 Lin Bus headlight driver module (TMS), right: communication fault • 800F86 Daytime Driving Light / Side Light, left, faulty • 800F87 Daytime Driving Light / Side Light, right, faulty • 800F88 Output daytime driving light / side light, left, short-circuited • 800F89 Output daytime driving light / side light, right, short-circuited • 800FCB Headlight driver module (TMS), left, faulty • 800FCE Headlight driver module (TMS), right, faulty

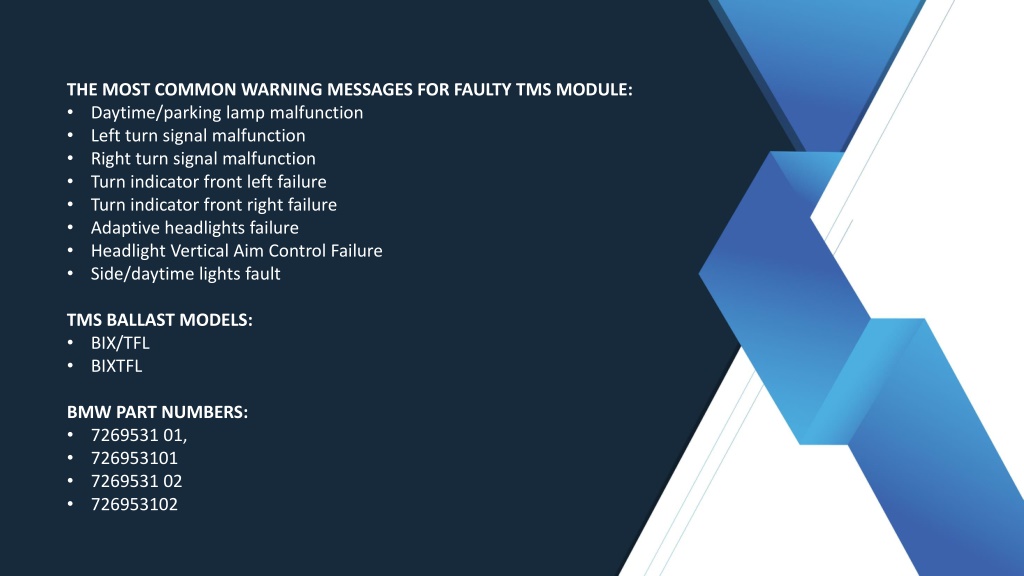

  4. THE MOST COMMON WARNING MESSAGES FOR FAULTY TMS MODULE: • Daytime/parking lamp malfunction • Left turn signal malfunction • Right turn signal malfunction • Turn indicator front left failure • Turn indicator front right failure • Adaptive headlights failure • Headlight Vertical Aim Control Failure • Side/daytime lights fault • TMS BALLAST MODELS: • BIX/TFL • BIXTFL • BMW PART NUMBERS: • 7269531 01, • 726953101 • 7269531 02 • 726953102

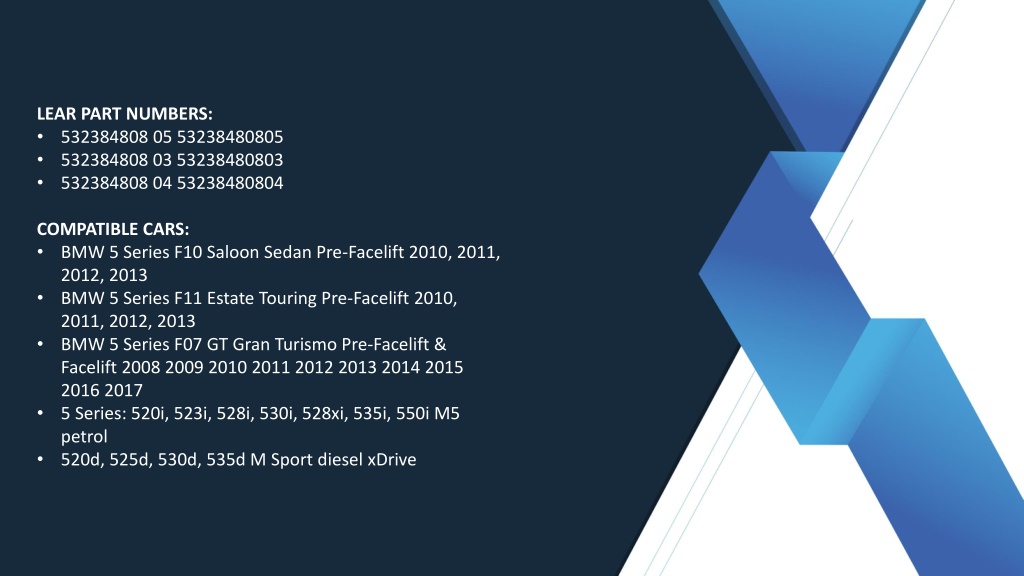

  5. LEAR PART NUMBERS: • 532384808 05 53238480805 • 532384808 03 53238480803 • 532384808 04 53238480804 • COMPATIBLE CARS: • BMW 5 Series F10 Saloon Sedan Pre-Facelift 2010, 2011, 2012, 2013 • BMW 5 Series F11 Estate Touring Pre-Facelift 2010, 2011, 2012, 2013 • BMW 5 Series F07 GT Gran Turismo Pre-Facelift & Facelift 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 • 5 Series: 520i, 523i, 528i, 530i, 528xi, 535i, 550i M5 petrol • 520d, 525d, 530d, 535d M Sport diesel xDrive

  6. CONTACT US info@xenons4u.co.uk www.xenons4u.co.uk
