slide1

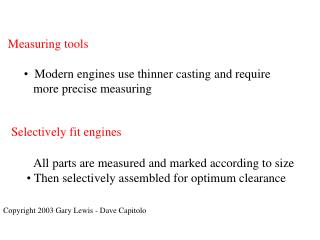

Measuring tools

    • Modern engines use thinner casting and require
    • more precise measuring

Selectively fit engines

  • All parts are measured and marked according to size
  • Then selectively assembled for optimum clearance

Copyright 2003 Gary Lewis - Dave Capitolo

slide2

Tolerance limits

  • The minimum and maximum allowable diameters
  • Specified clearance
  • Difference in diameters for
  • mating parts
  • Specified clearance of
  • replacement part should
  • be used
slide3

Example of tolerance limits for crankshaft and housing bore

    • Standard shaft size 1.9995/2.0005 in.
    • Housing bore diameter 2.1245/2.1250 in.
  • Clearances
    • Difference between shaft OD and bearing ID
    • Minimums and maximums
slide4

Maximum bearing inside diameter

    • Maximum housing bore +2.1250 in.
    • Bearing thickness -.0615 in.
    • Bearing thickness -.0615 in.
    • Max bearing inside diameter 2.0020 in.
  • Minimum bearing inside diameter
    • Minimum housing bore +2.1245 in.
    • Bearing thickness -.0615 in.
    • Bearing thickness -.0615 in.
    • Min bearing inside diameter 2.0015 in.
slide5

Minimum bearing clearance

    • Minimum bearing ID +2.0015 in.
    • Maximum crankshaft diameter - 2.0005 in.
    • Minimum bearing clearance .001 in.
  • Maximum bearing clearance
    • Maximum bearing ID +2.0020 in.
    • Minimum crankshaft diameter - 1.9995 in.
    • Maximum bearing clearance .0025 in.
slide6

Example of valve stem clearance

    • Valve stem diameter .3405 - .3415 in.
    • Stem-to-guide clearance .0015 - .0025 in.
  • To find valve guide diameter
    • Minimum clearance .0015 in.
    • Maximum stem diameter +.3415 in.
    • Valve guide diameter .3430 in.
  • Or…
    • Maximum clearance .0025 in.
    • Minimum stem diameter +.3405 in.
    • Valve guide diameter .3430 in.
slide7

Thermal expansion

    • Engines are assembled at room temperature
    • An error at room temperature may cause problems at
    • operating temperature
  • Coefficient of thermal expansion
    • Iron and steel .000006 in.

Aluminum .000012 in.

slide8

Example from book

    • Pin diameter .9000”
    • Pin bore diameter .9005”
    • Clearance at room temp .0005”
    • Pin diameter with 250° F change .9013”
    • Pin bore with 250° F change .9032
    • Clearance with 250° F change .0019”

Heat during machining

Rough and finish machining

Measuring tools at room temperature

slide9

Units of measure for linear measurement

  • 1 mm = .03937”
    • .1 mm = .003937”
    • .01 mm = .0003937”
    • .001 mm = .00003937”

To convert inches to millimeters

Inches times 25.4 or

Inches divided by .03937

  • To convert millimeters to inches
      • Millimeters divided by 25.4 or
      • Millimeters times .03937
slide10

Measuring tools

    • Outside micrometer
  • Inside micrometer
  • Depth micrometer
  • Telescoping gauge
  • Split ball gauge
  • Dial indicator
  • Dial bore gauge
  • Calipers
slide11

Outside micrometer

  • Screw pitch of 1/40” or .025” for inch micrometer
  • Screw pitch of .50 mm for metric micrometers
  • One inch of travel
  • Resolution limit of .0001” for inch micrometers
  • Resolution limit of up to .001 mm for metric
  • Calibrated with standards or gauge blocks
slide12

Depth micrometer

  • Used for measuring deck clearance, stepped flywheels
  • Screw pitches same as outside micrometer
  • One inch of travel
  • Resolution limit of .001” for inch micrometers
  • Scales are read in reverse order
  • Calibrated with gauge blocks and surface plate
slide13

Inside micrometer

  • Used for measuring cylinder bores, housing bores
  • Screw pitches same as outside micrometer
  • One inch of travel
  • Used more often with ‘transfer’ measurements
slide14

Transfer measurement

  • Adjust inside micrometer to size
  • Measure with an outside micrometer
  • Other tools include telescoping and split ball gauges
slide15

Dial indicators

  • Resolution limits printed on dial face
  • Used for checking straightness of cams and cranks
  • Read TIR (total indicator reading)
  • Check out-of-roundness first
slide16

Dial bore gauge

  • Used for cylinder bores and main bores
  • Uses ‘comparative’ measurement
  • Set up in a setting fixture or outside micrometer
  • Measure differences in the size that was set
slide17

Calipers

  • Dial and digital calipers
  • Lack of rigidity limits accuracy to .002”
  • Easy to read
slide18

Surface finish

  • Crank journals 10 AA micro inches
  • Head and block deck surfaces 20–60 AA micro inches
  • Cylinder bores 10-15 AA for moly rings
  • 25-30 AA for iron and chrome
slide19

Fastener terminology

Major diameter - Largest thread diameter

Minor diameter - Smallest thread diameter

Pitch - Distance between threads

Threads per inch - Number of thread in a linear inch

Grade - A system of grading fastener strength

slide20

Threaded fasteners

  • Bolts, machine screws, and capscrews stretch
  • when tightened
  • Fasteners have an elastic limit, then fracture occurs
  • Below elastic limit, fasteners can be tightened repeatedly
slide21

Necked down bolt

  • Example of a bolt that has been necked down. Tightening
  • past its elastic limit
slide22

Fastener strength

    • Cross section of threads
    • Minor diameter effects strength
    • As pitch increases on external threads, crossection
    • decreases
    • As pitch increases on internal threads, crossection
    • increases
slide23

Fastener strength

Heat treatment

  • Low strength fasteners are made of low carbon mild steel
  • High strength fasteners have added carbon for heat treating
  • SAE fasteners have marks for strength
  • Metric fasteners have numbers for strength
slide24

Thread identification

  • Outside diameter of the threads with a micrometer
  • Measure pitch with thread pitch gauge (threads per inch)
  • For the machine screw 10-32
  • Diameter: 10 x .013 + .060 = .190 in.
  • Pitch: 32 threads per inch = .031 in.
