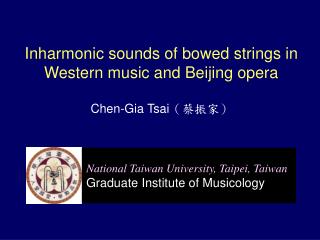

Inharmonic sounds of bowed strings in Western music and Beijing opera Chen-Gia Tsai ????? PowerPoint Presentation
Download Presentation
Inharmonic sounds of bowed strings in Western music and Beijing opera Chen-Gia Tsai ?????

Loading in 2 Seconds...

play fullscreen
1 / 25

Inharmonic sounds of bowed strings in Western music and Beijing opera Chen-Gia Tsai ????? - PowerPoint PPT Presentation


  • 610 Views
  • Uploaded on

National Taiwan University, Taipei, Taiwan Graduate Institute of Musicology Inharmonic sounds of bowed strings in Western music and Beijing opera Chen-Gia Tsai (蔡振家) Talk outline Chinese fiddle family phylogeny bow hair tension The jinghu (京胡) Inharmonic sound musical uses

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Inharmonic sounds of bowed strings in Western music and Beijing opera Chen-Gia Tsai ?????' - Albert_Lan


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
talk outline
Talk outline
  • Chinese fiddle family
    • phylogeny
    • bow hair tension
  • The jinghu (京胡)
  • Inharmonic sound
    • musical uses
    • experiment on finger-string interaction
  • Discussion
  • Conclusions
the origin of chinese fiddles
The origin of Chinese fiddles
  • The xiqin (奚琴)
    • mid-8th century
  • Subsequently introduced to both Korea and Japan
divergent evolution
Divergent evolution

Erxian二弦

Xiqin奚琴

innovation higher bow hair tension
Innovation: higher bow hair tension
  • Low bow hair tension
    • Early instruments
    • Erxian(二弦)
    • Very soft, long notes
  • High bow hair tension
    • Modern instruments
    • Loud, rapid, staccato notes
bow hair tension western music
Bow hair tension: Western music
  • The Italian bow
    • slim and light
    • a high hair tension
  • The German bow
    • highly arched
    • a low hair tension
german bow chord playing
German bow: chord playing
  • The player could tighten or relax the bow hair tension at will
    • high tension: playing on a single string
    • low tension: playing on two or more strings simultaneously

www.baroquemusic.org/barvlnbo.html

talk outline8
Talk outline
  • Chinese fiddle family
    • phylogeny
    • bow hair tension
  • The jinghu (京胡)
  • Inharmonic sound
    • musical uses
    • experiment on finger-string interaction
  • Discussion
  • Conclusions
history
History
  • Low bow hair tension(軟弓)
  • High bow hair tension(硬弓)
    • Since 19th century
timbre playing
Timbre & playing
  • Loud, sharp and piercing
  • Large-amplitude vibration of snakeskin
    • Mobility of snakeskin
    • Heavy use of rosin
    • Forceful bowing
  • Large-amplitude vibration of strings
    • Production of noise-rich sound
talk outline11
Talk outline
  • Chinese fiddle family
    • phylogeny
    • bow hair tension
  • The jinghu (京胡)
  • Inharmonic sound
    • musical uses
    • experiment on finger-string interaction
  • Discussion
  • Conclusions
digitally bowed cello string
Digitally bowed cello string

Muller & Lauterborn. Acustica 82 (4): 657-664, 1996.

inharmonic sound bow speed
Inharmonic sound & bow speed
  • D = 2.4, 2.0, 2.0, 1.2
    • Torus-like attractor
    • The bow speed is at the upper limit of bow speeds used for most musical purposes and beyond.
  • High bow speeds
    • staccato or sforzando
jinghu s inharmonic sound
Jinghu’s inharmonic sound
  • Descriptions
    • blossoming tone, tiger tone, overtone, artificial noise...
  • High-pass noise
    • fcutoff ~ 1.6 kHz.
finger string collision
Finger-string collision
  • Touch technique of the left hand
  • Nonlinear boundary condition with unilateral constraints
  • Sitar, tanpura & biwa
experiment on finger string interaction
Experiment on finger-string interaction
  • Aims
    • How frequently do they contact?
  • Method
    • Electrical circuit
    • Sampling rate: 100 kHz
experiment on finger string interaction19
Experiment on finger-string interaction
  • Materials
    • Finger
    • Wire
  • Aim
    • How the finger curvature affects noise production
slide20

no touch

no touch

touch

touch

slide21

no touch

no touch

touch

touch

talk outline22
Talk outline
  • Chinese fiddle family
    • phylogeny
    • bow hair tension
  • The jinghu (京胡)
  • Inharmonic sound
    • musical uses
    • experiment on finger-string interaction
  • Discussion
  • Conclusions
noise control or well controlled noise
Noise control or well-controlled noise?
  • Blossoming tones of the jinhu
  • Electrical guitar (distortion)
    • Dry & Gabrielsson (1997) Emotional expression in guitar band performance.
  • Growl singing
    • Rock music
    • Psychological effect: aggression
why is a loud noise rich sound aggressive
Why is a loud, noise-rich sound aggressive?
  • Growl voice as a by-product of spine stabilization
    • A raise in intra-abdominal pressure enhances spine stability in preparation for suddenly applied loads (weight lifting, attack...)
    • Because of this association of sound with action, the aggressive meaning of growling voices and loud, noisy sounds is universally recognized (the electrical guitar, the jinghu...)
    • Cholewicki et al. (1999) Lumbar spine stability can be augmented with an abdominal belt and/or increased intra-abdominal pressure.
future direction
Future direction
  • To measure and to model the collision between the string and the curved wall
    • Jinghu
    • Indian & Japanese plucked strings
