analytical modeling of kinematic linkages

Analytical Modeling of Kinematic Linkages

Vector Chain Analysis

ME 3230

R. R. Lindeke, Ph.D.

topics of discussion
Topics of Discussion
  • The fundamental Models of closure
    • Position
    • Velocity
    • Acceleration
  • Applications to Various “Simple Systems”
    • 4-Bar Linkages
    • Slider–Cranks and their Inversion
    • RPRP systems
    • RRPP systems
  • Application to “Complex Systems”
    • Multi-loop mechanisms
    • Higher Order Joint Types

ME 3230

representing a chain of points as a set of vectors for a mechanism

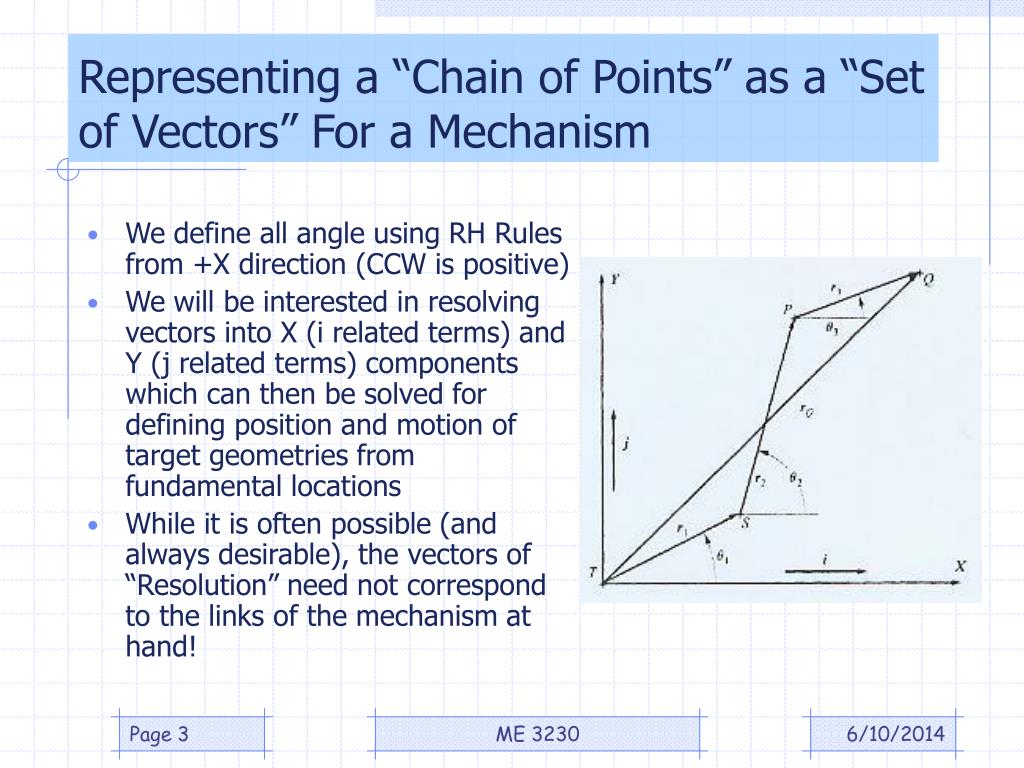

Representing a “Chain of Points” as a “Set of Vectors” For a Mechanism
  • We define all angle using RH Rules from +X direction (CCW is positive)
  • We will be interested in resolving vectors into X (i related terms) and Y (j related terms) components which can then be solved for defining position and motion of target geometries from fundamental locations
  • While it is often possible (and always desirable), the vectors of “Resolution” need not correspond to the links of the mechanism at hand!

ME 3230

referring to the image of vector sets

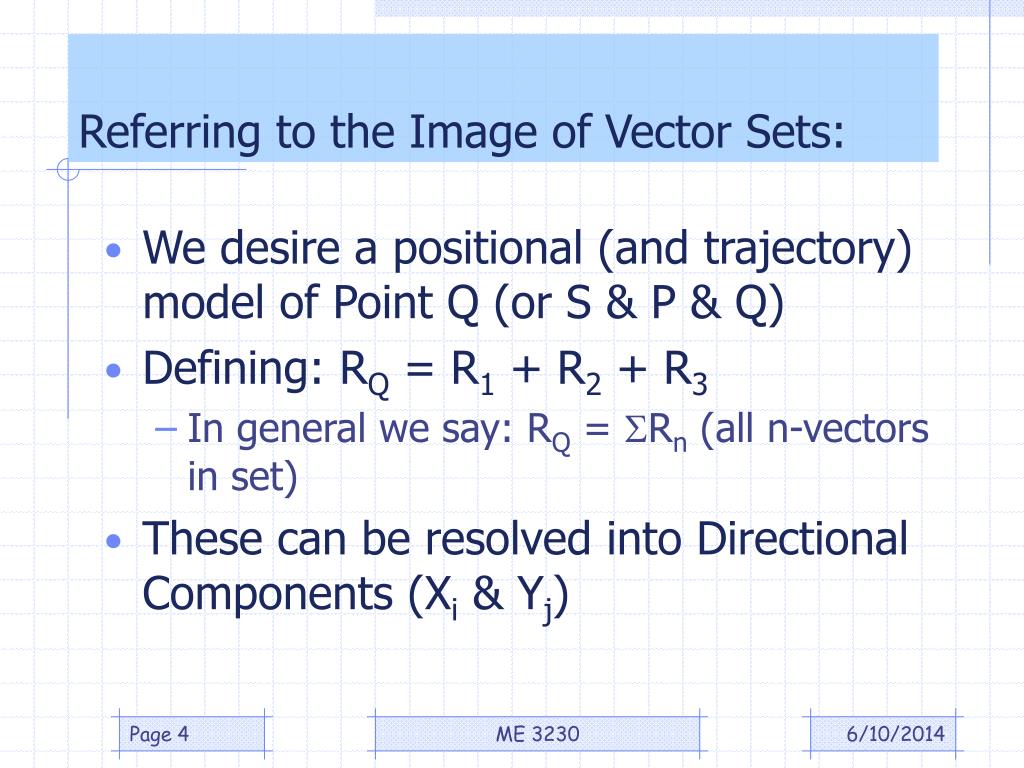

Referring to the Image of Vector Sets:
  • We desire a positional (and trajectory) model of Point Q (or S & P & Q)
  • Defining: RQ = R1 + R2 + R3
    • In general we say: RQ = Rn (all n-vectors in set)

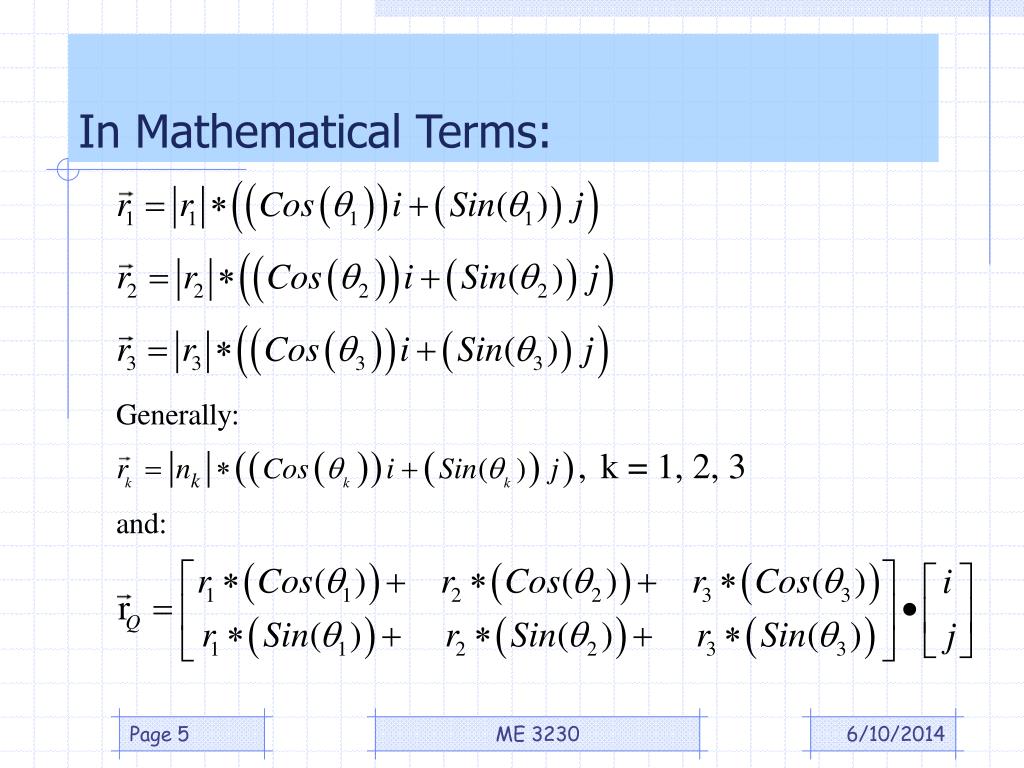

  • These can be resolved into Directional Components (Xi & Yj)

ME 3230

considering velocity

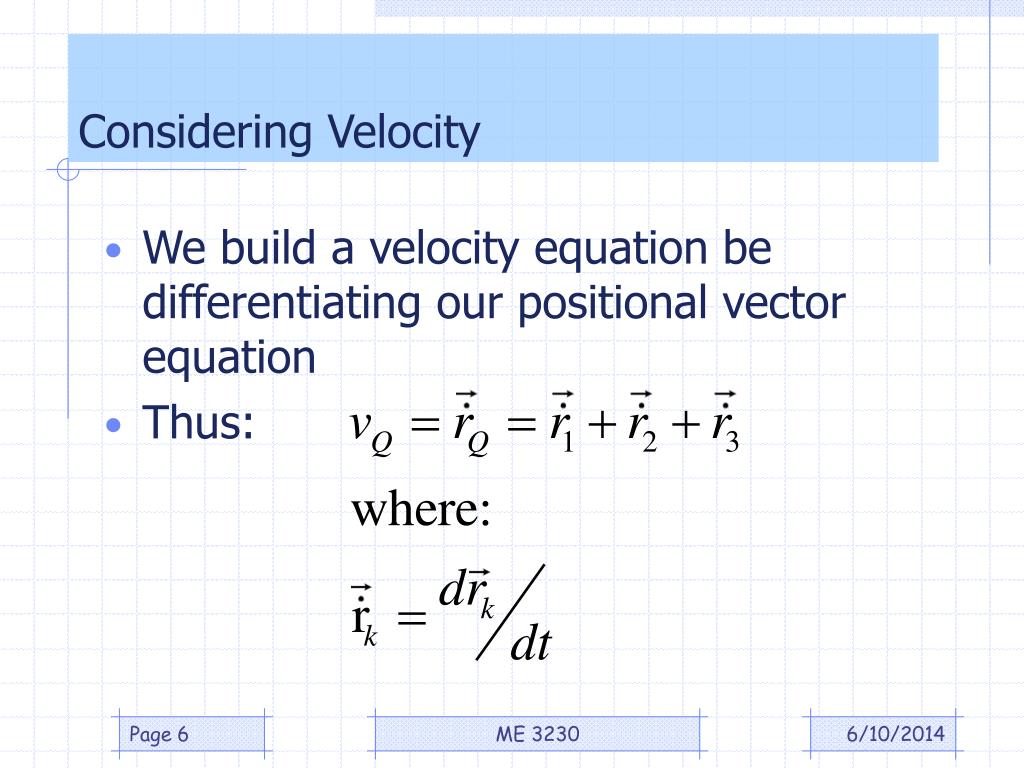

Considering Velocity
  • We build a velocity equation be differentiating our positional vector equation
  • Thus:

ME 3230

closely examining these ideas

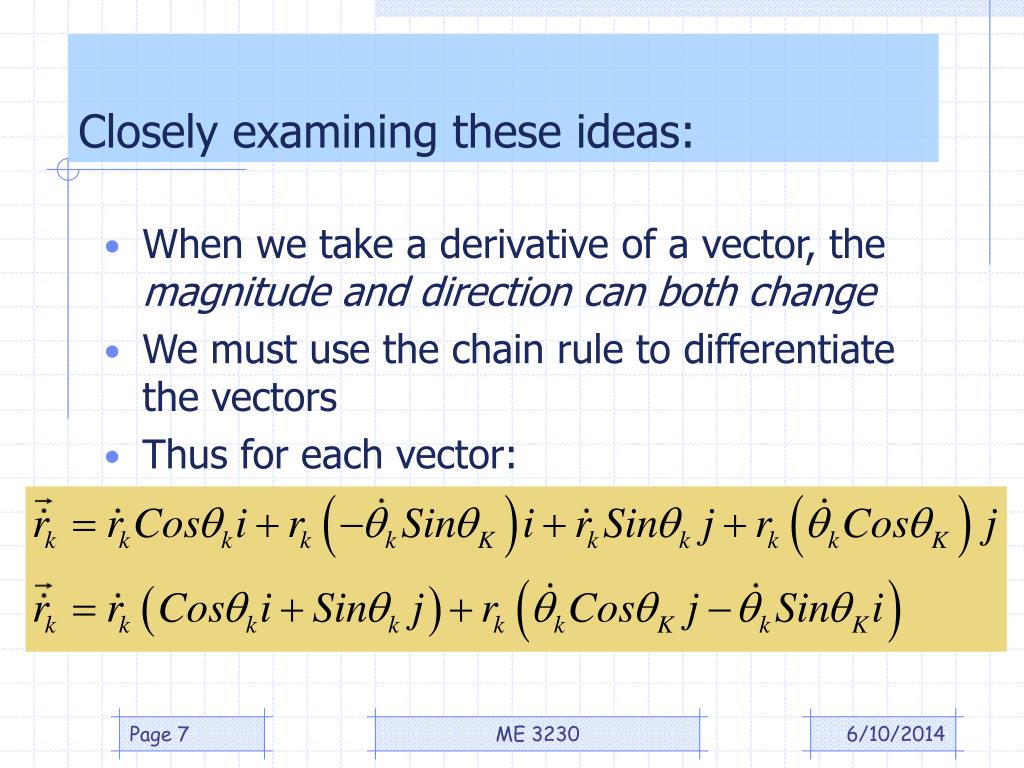

Closely examining these ideas:
  • When we take a derivative of a vector, the magnitude and direction can both change
  • We must use the chain rule to differentiate the vectors
  • Thus for each vector:

ME 3230

putting these into x and y component models and generalizing

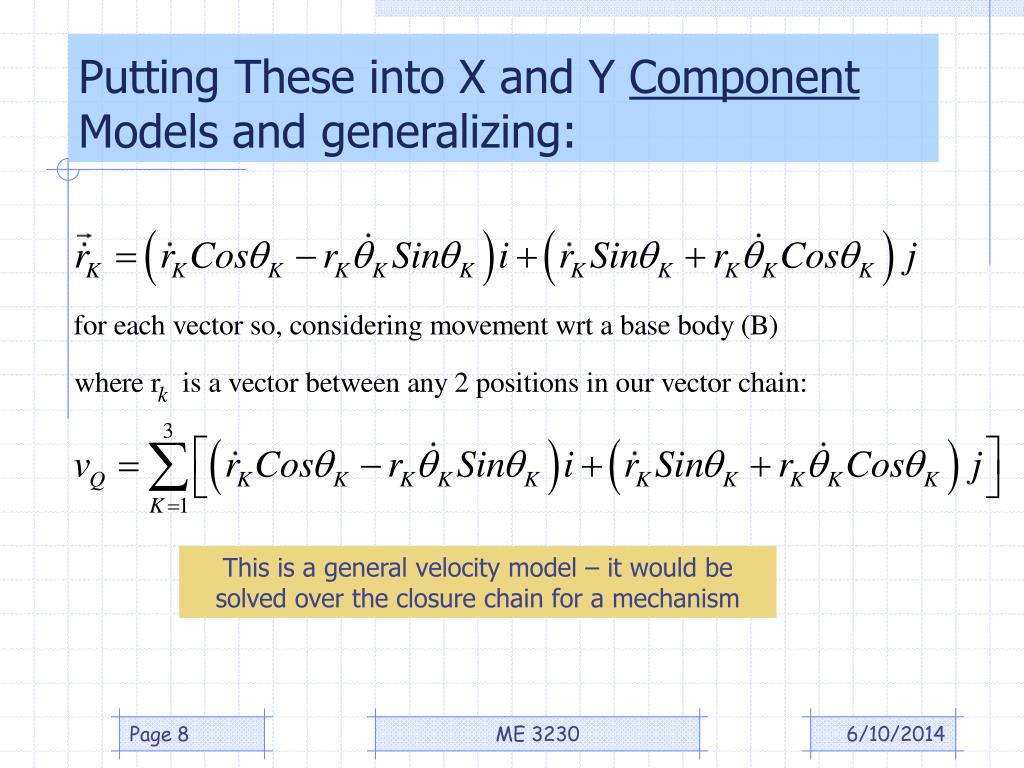

Putting These into X and Y Component Models and generalizing:

This is a general velocity model – it would be solved over the closure chain for a mechanism

ME 3230

stepping over to acceleration

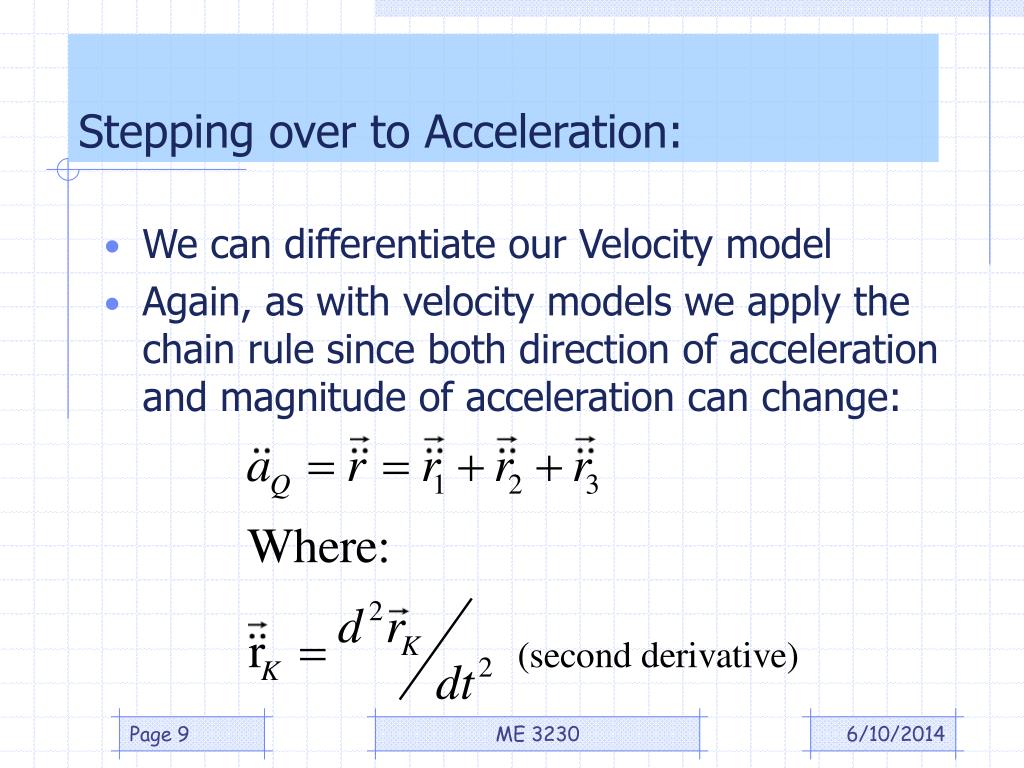

Stepping over to Acceleration:
  • We can differentiate our Velocity model
  • Again, as with velocity models we apply the chain rule since both direction of acceleration and magnitude of acceleration can change:

ME 3230

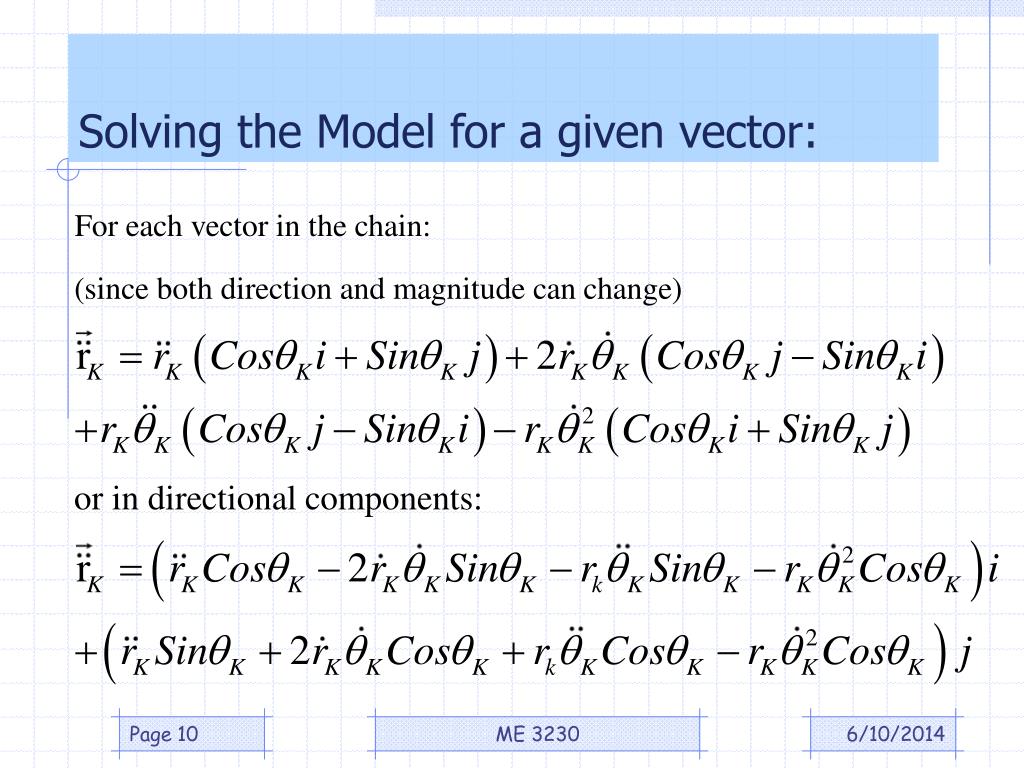

using these 3 general models we can analysis any linkage

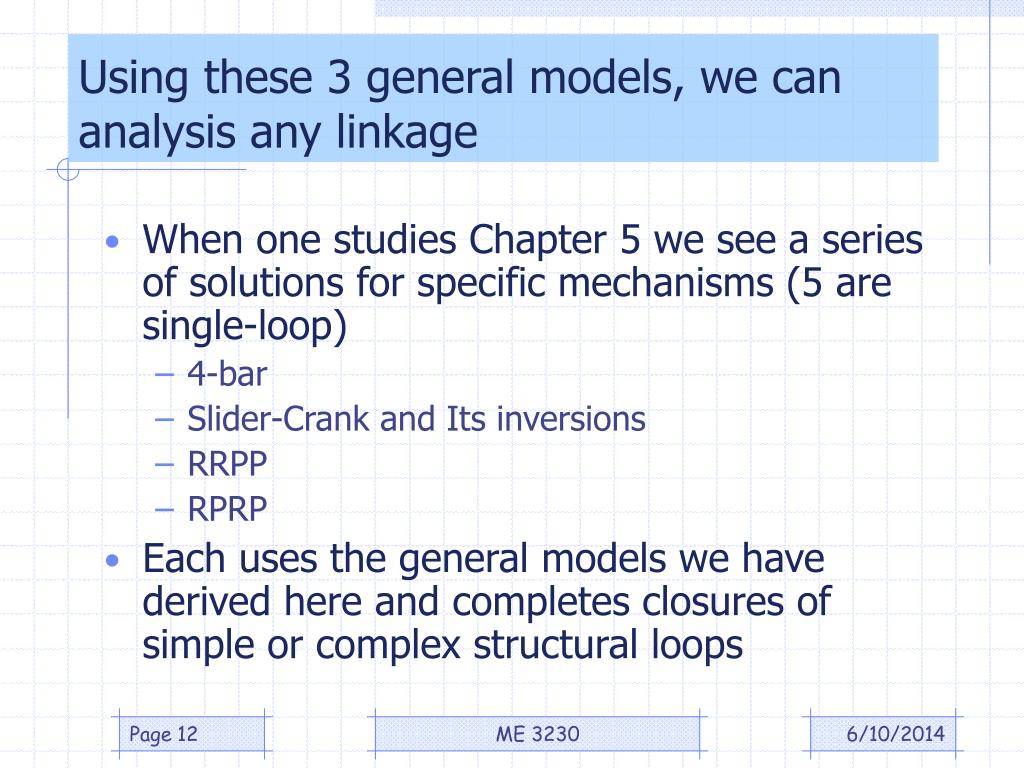

Using these 3 general models, we can analysis any linkage
  • When one studies Chapter 5 we see a series of solutions for specific mechanisms (5 are single-loop)
    • 4-bar
    • Slider-Crank and Its inversions
    • RRPP
    • RPRP
  • Each uses the general models we have derived here and completes closures of simple or complex structural loops

ME 3230

4 bar linkage done analytically

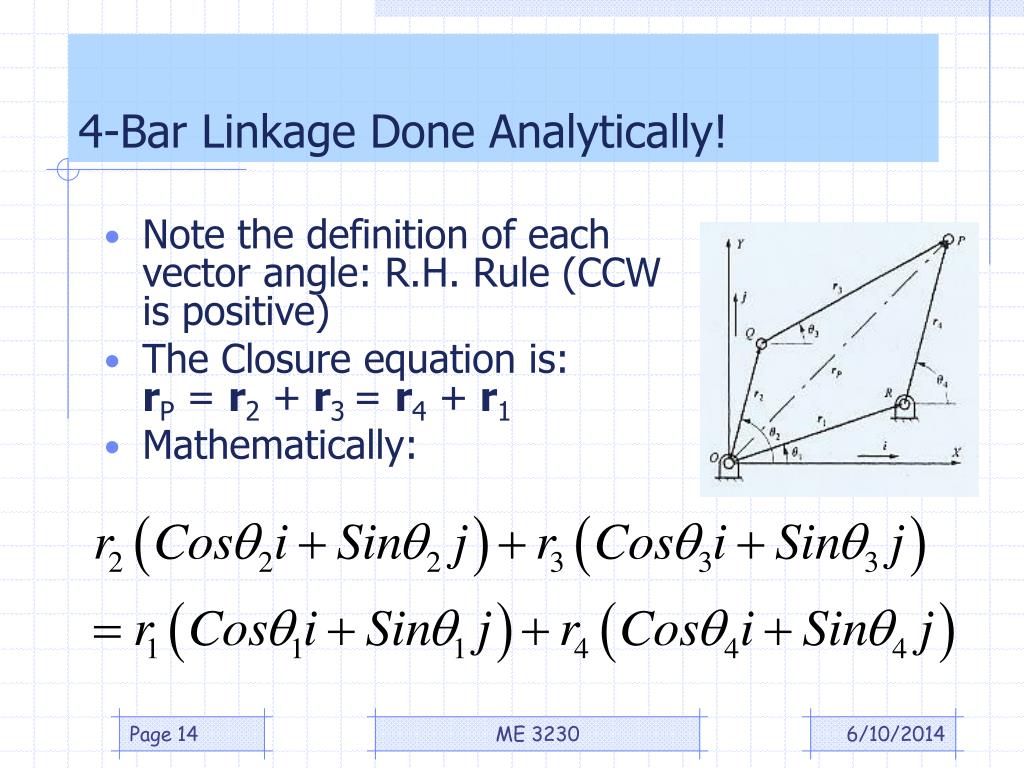

4-Bar Linkage Done Analytically!
  • Note the definition of each vector angle: R.H. Rule (CCW is positive)
  • The Closure equation is:rP = r2 + r3 = r4 + r1
  • Mathematically:

ME 3230

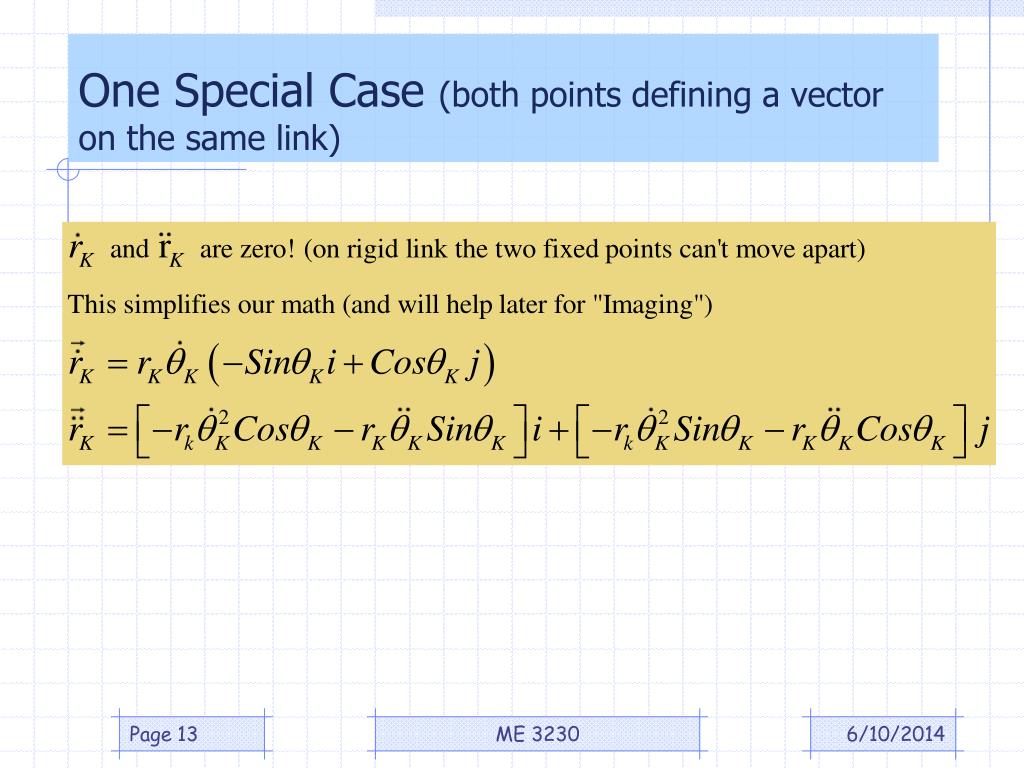

by components
By Components:
  • These closure Equations must be satisfied throughout the motion of the linkage
  • The Base Vector is constant (r1 & 1 are constant)
  • Depending on which link is the input, we solve the above “component equations” for the other two angles (their position, Vel. and Accel.) recognizing that the vectors lengths are not changing so the ‘ri-dot’ terms in the general equations will be zero

ME 3230

focusing on the case when link 2 is input 2 and its derivatives are known throughout motion
Focusing on the Case when Link 2 is Input: 2, and its derivatives, are known throughout motion
  • Follow along in the text … we see that we isolate 3 by movingthe 2 terms to the RHS of our component equations (2 and 1 known's)
  • Square the two component equations, add them together and eliminate 3 by using Sin2X + Cos2X = 1

ME 3230

leads to
Leads to:

ME 3230

a couple more ideas
A couple more ideas:
  • Because of the “Square root” in 4 solution we may find a complex solution – this is a configuration that can’t be assembled (Type 2 Grashof linkages at certain geometries)
  • Dealing with the Inverse tangent:
    • Over time a ‘special function’ has been developed to give us absolute angle using quadrant identity
    • This is the ATAN2(Numerator, Denominator) model *but be careful when entering the numbers*
    • Using this function, the SIGN of the Numerator and Denominator functions are maintained and we solve the angle as a specific quadrant value
    • If we find ATAN2(+,+) it is in the 1st quadrant
    • If ATAN2(+,-) it is 2nd quadrant – actual angle is 180 - tan-1(ratio)
    • If ATAN2(-,-) 3rd quadrant –actual angle is 180 + tan-1(ratio)
    • If ATAN2(-,+) it is 4th Quadrant – angle is 360 - tan-1(ratio)
      • Note (ratio) considered without signs!

ME 3230

solving for 3 back substitute 4 in component equation
Solving for 3 – Back Substitute 4 in Component Equation
  • Then divide Y-component by X-component to get: Tan(3)={Sin3/Cos3}

*** Be Very Careful of the software you are using – the original ATAN2 function used AcrTan[Denominator, Numerator] rather than (Numerator, Denominator) to define the “ratio” ***

ME 3230

since these equation are only in terms of two unknowns and we can solve them

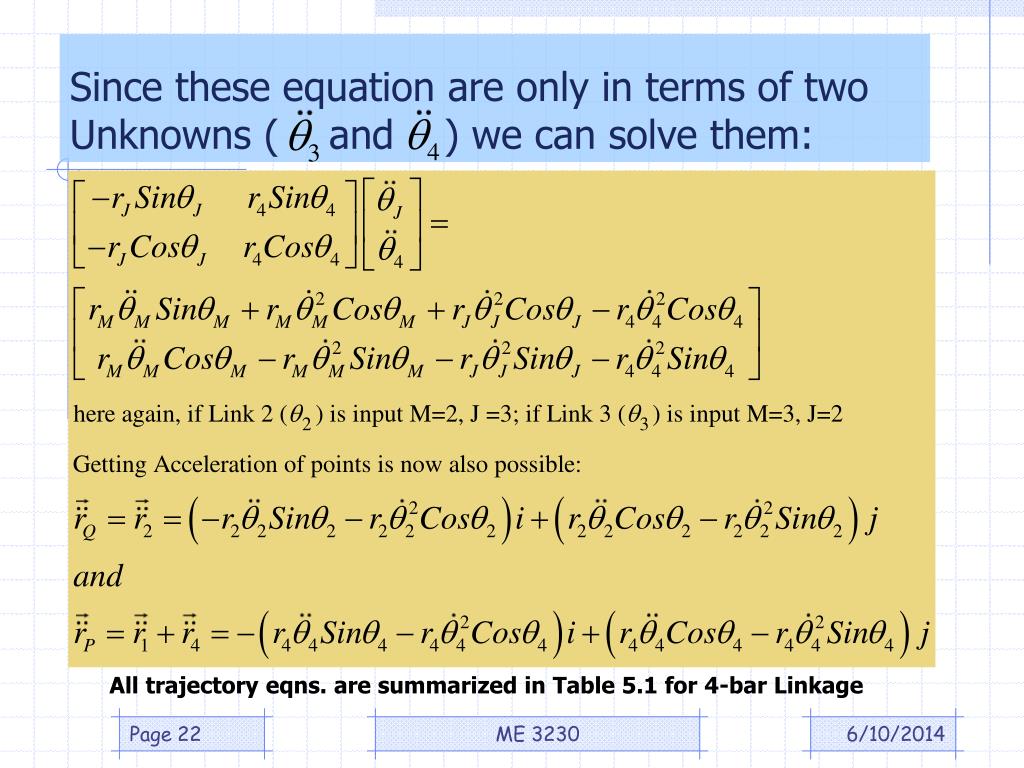

Since these equation are only in terms of two Unknowns ( and ) we can solve them:

All trajectory eqns. are summarized in Table 5.1 for 4-bar Linkage

ME 3230

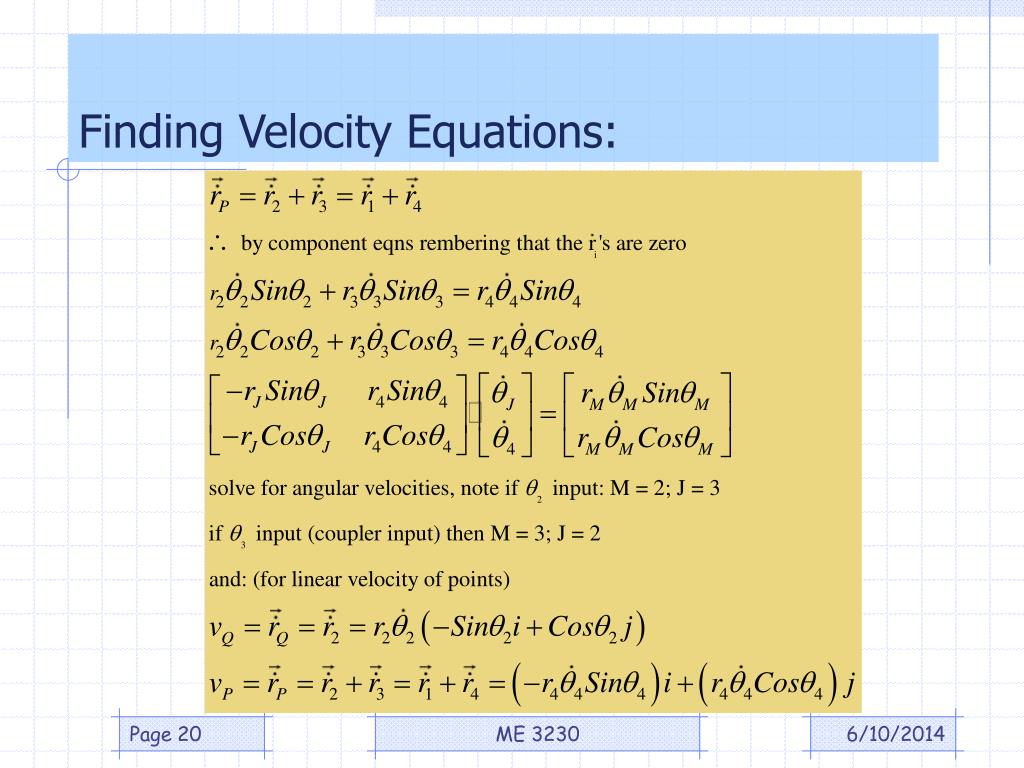

application try problem 5 23

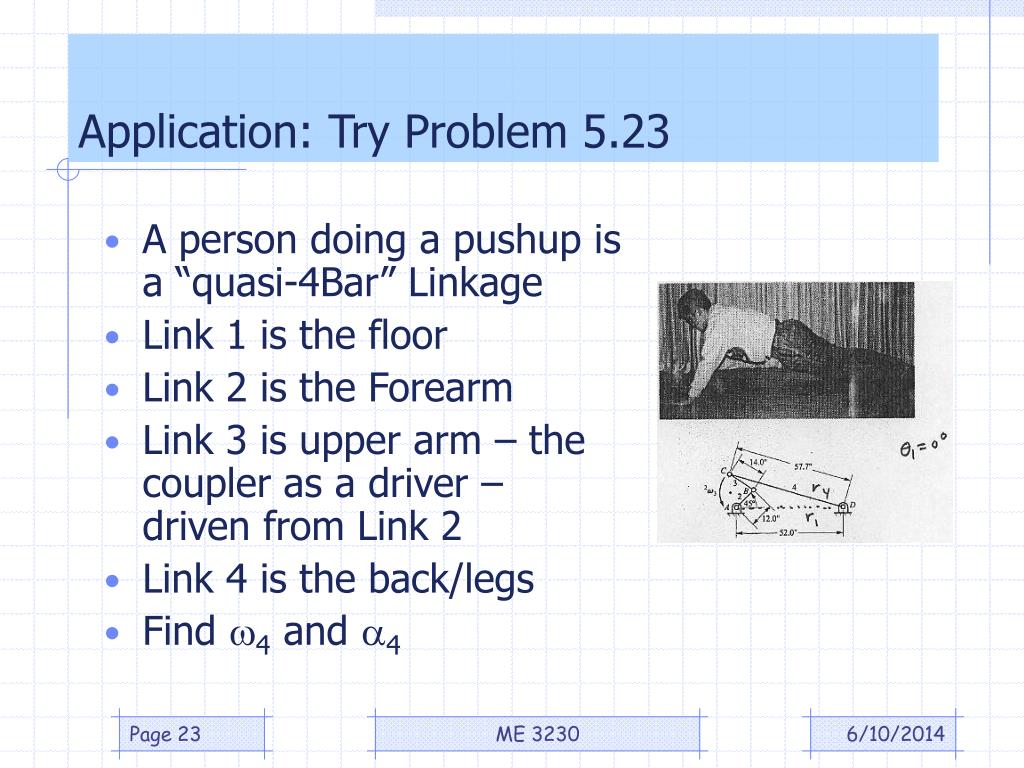

Application: Try Problem 5.23
  • A person doing a pushup is a “quasi-4Bar” Linkage
  • Link 1 is the floor
  • Link 2 is the Forearm
  • Link 3 is upper arm – the coupler as a driver – driven from Link 2
  • Link 4 is the back/legs
  • Find 4 and 4

ME 3230

we can solve the table 5 1 equations
We Can solve the Table 5.1 Equations:
  • I used ‘Mathematica’ for Position:

ME 3230

and continuing with values
And Continuing with Values:

Note:  is set to -1 for the correct assembly

ME 3230

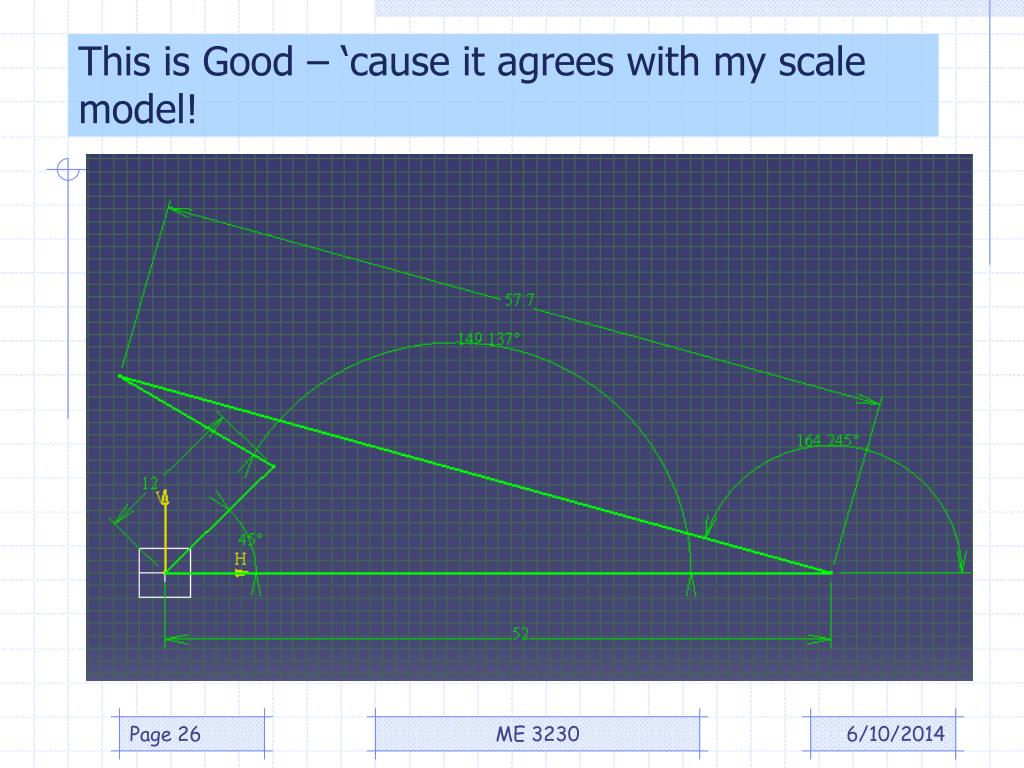

attacking velocity

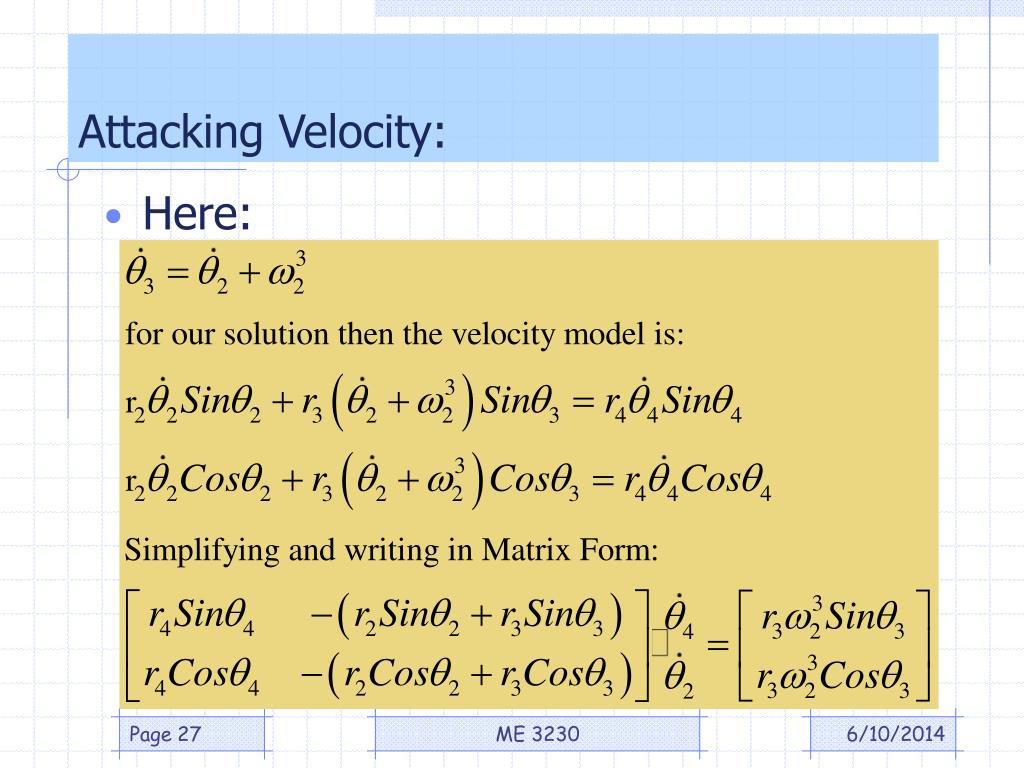

Attacking Velocity:
  • Here:

ME 3230

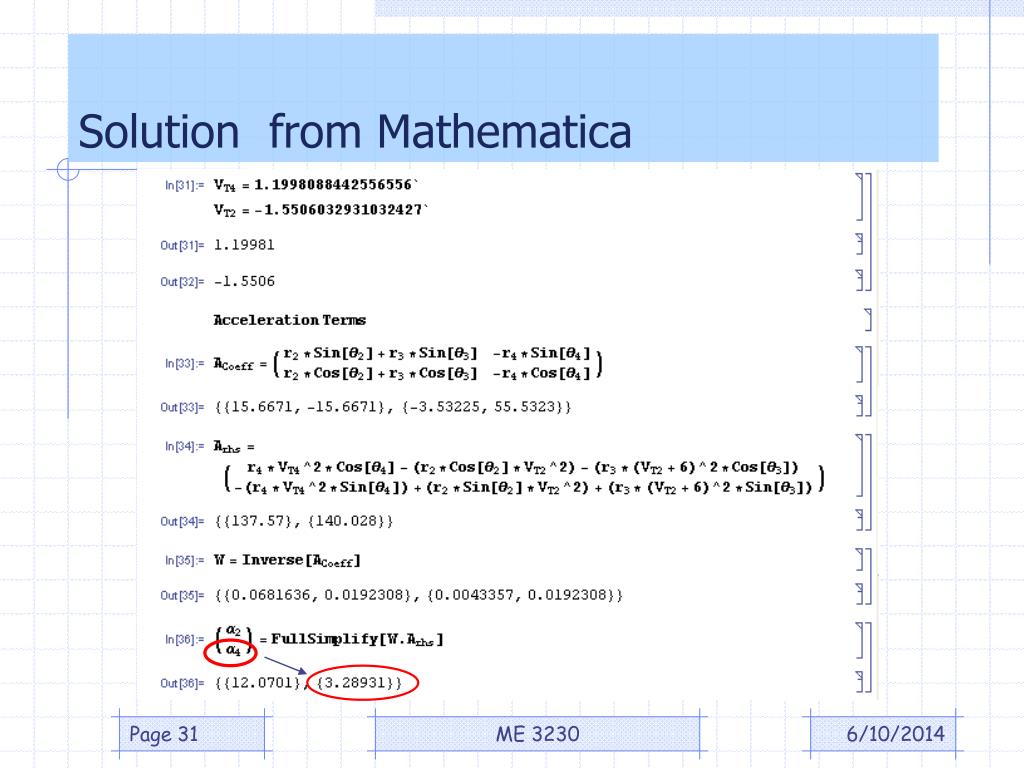

solving in mathematica
Solving in Mathematica:

1st term is 4 ‘dot’ in rad/sec

ME 3230

simplifying and into matrix form

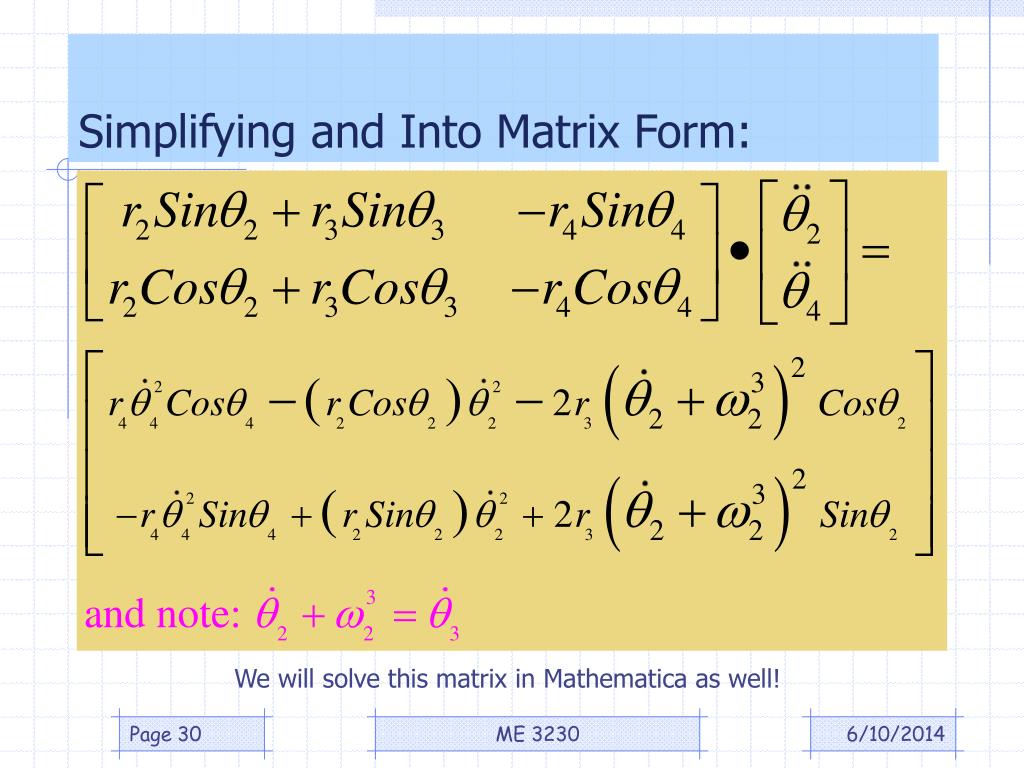

Simplifying and Into Matrix Form:

We will solve this matrix in Mathematica as well!

ME 3230

getting information about other points on a rigid body

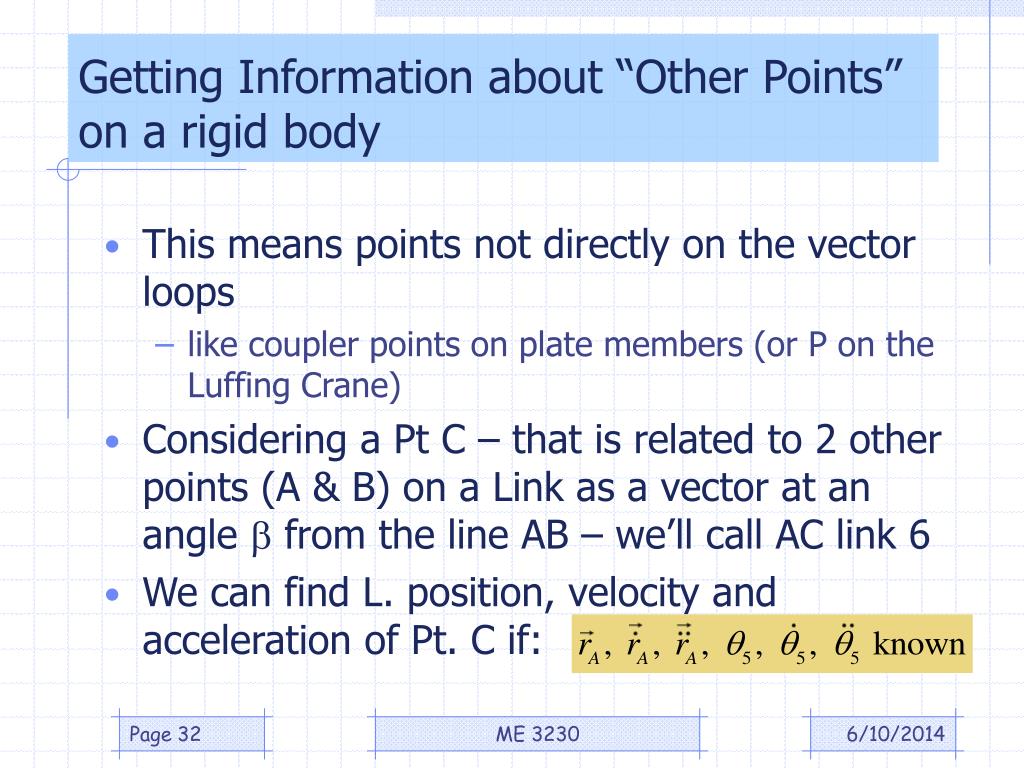

Getting Information about “Other Points” on a rigid body
  • This means points not directly on the vector loops
    • like coupler points on plate members (or P on the Luffing Crane)
  • Considering a Pt C – that is related to 2 other points (A & B) on a Link as a vector at an angle  from the line AB – we’ll call AC link 6
  • We can find L. position, velocity and acceleration of Pt. C if:

ME 3230

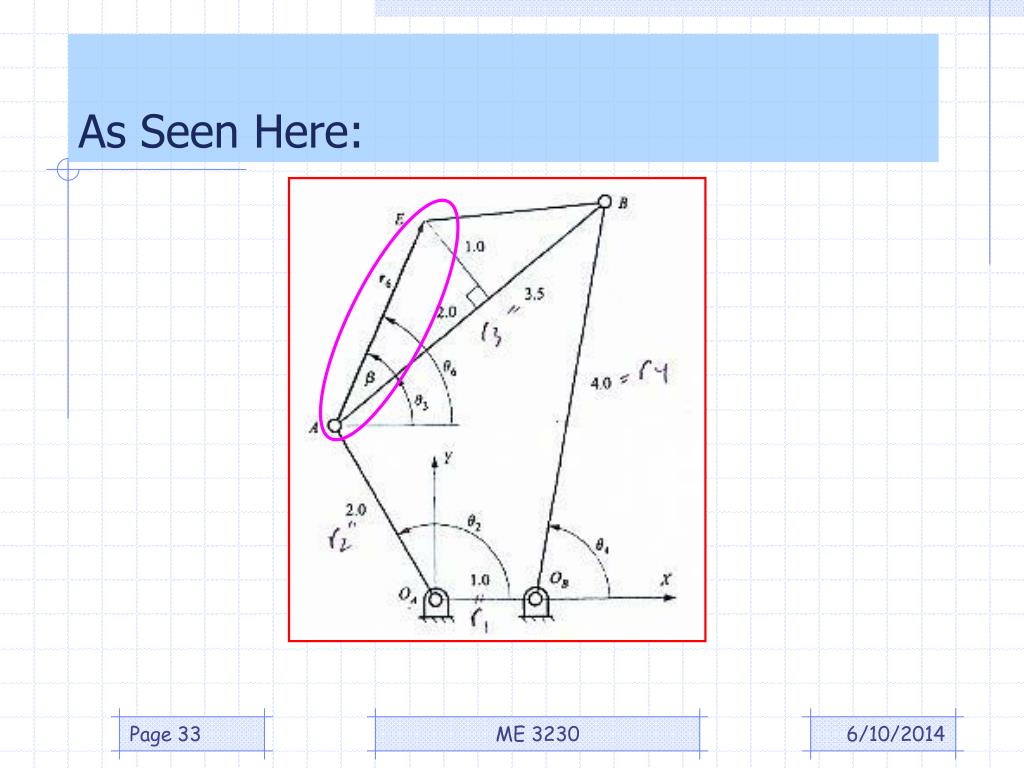

mathematically

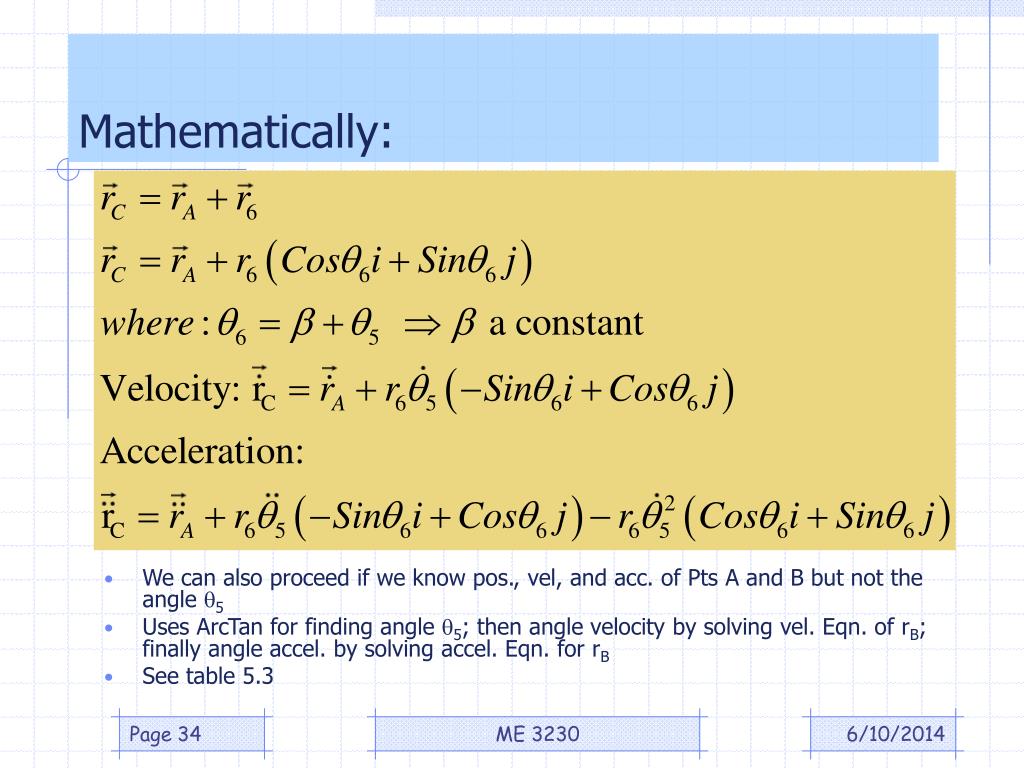

Mathematically:
  • We can also proceed if we know pos., vel, and acc. of Pts A and B but not the angle 5
  • Uses ArcTan for finding angle 5; then angle velocity by solving vel. Eqn. of rB; finally angle accel. by solving accel. Eqn. for rB
  • See table 5.3

ME 3230
