Lathe Machine Controller

Meteor CNC controller range is the best lathe machine controllers in the market available today. The MeteorCNC 4T series is a 4 axis woodworking lathe machine controller that includes a control card. In addition to firmware and UI capabilities for use with a turning or lathe machine.

Accelus
Download Presentation

Lathe Machine Controller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

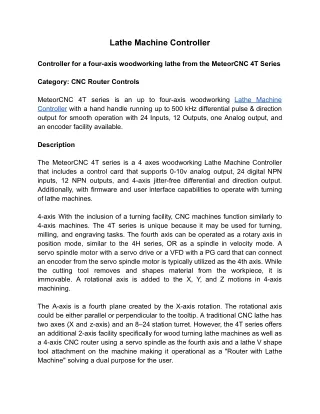

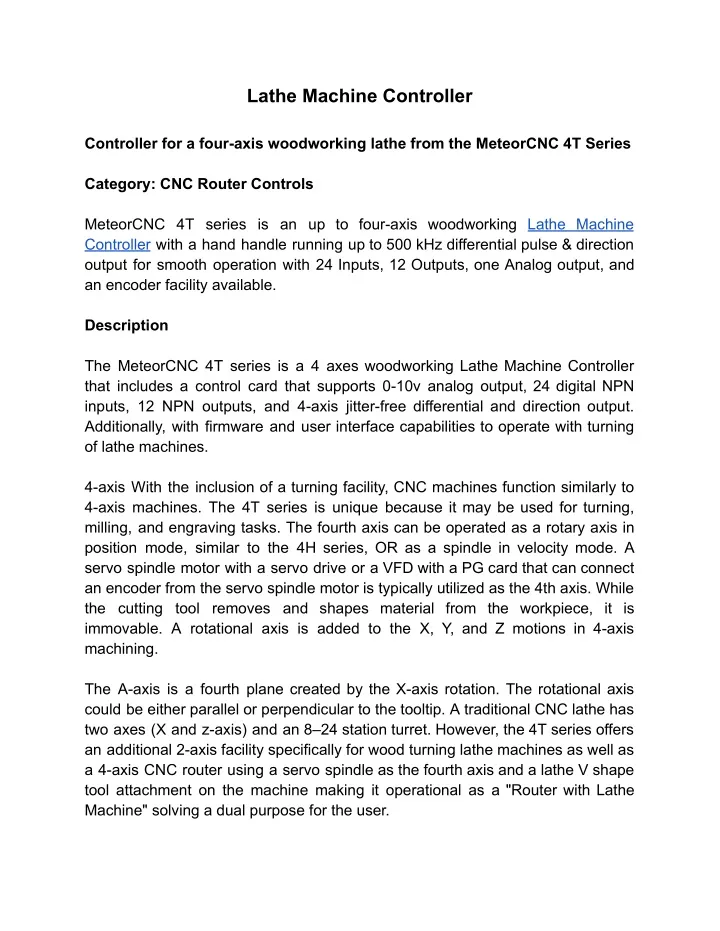

  1. Lathe Machine Controller Controller for a four-axis woodworking lathe from the MeteorCNC 4T Series Category: CNC Router Controls MeteorCNC 4T series is an up to four-axis woodworking Lathe Machine Controller with a hand handle running up to 500 kHz differential pulse & direction output for smooth operation with 24 Inputs, 12 Outputs, one Analog output, and an encoder facility available. Description The MeteorCNC 4T series is a 4 axes woodworking Lathe Machine Controller that includes a control card that supports 0-10v analog output, 24 digital NPN inputs, 12 NPN outputs, and 4-axis jitter-free differential and direction output. Additionally, with firmware and user interface capabilities to operate with turning of lathe machines. 4-axis With the inclusion of a turning facility, CNC machines function similarly to 4-axis machines. The 4T series is unique because it may be used for turning, milling, and engraving tasks. The fourth axis can be operated as a rotary axis in position mode, similar to the 4H series, OR as a spindle in velocity mode. A servo spindle motor with a servo drive or a VFD with a PG card that can connect an encoder from the servo spindle motor is typically utilized as the 4th axis. While the cutting tool removes and shapes material from the workpiece, it is immovable. A rotational axis is added to the X, Y, and Z motions in 4-axis machining. The A-axis is a fourth plane created by the X-axis rotation. The rotational axis could be either parallel or perpendicular to the tooltip. A traditional CNC lathe has two axes (X and z-axis) and an 8–24 station turret. However, the 4T series offers an additional 2-axis facility specifically for wood turning lathe machines as well as a 4-axis CNC router using a servo spindle as the fourth axis and a lathe V shape tool attachment on the machine making it operational as a "Router with Lathe Machine" solving a dual purpose for the user.

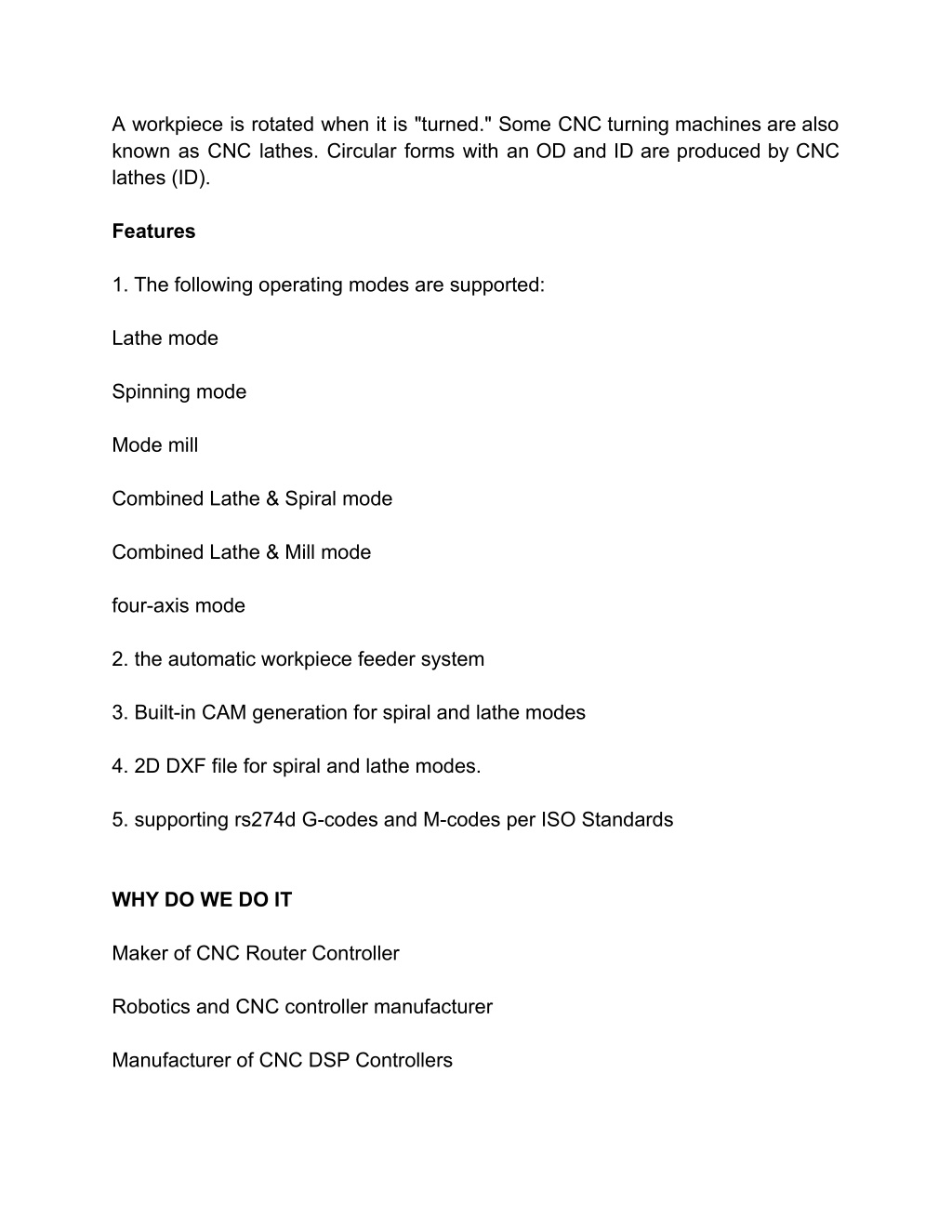

  2. A workpiece is rotated when it is "turned." Some CNC turning machines are also known as CNC lathes. Circular forms with an OD and ID are produced by CNC lathes (ID). Features 1. The following operating modes are supported: Lathe mode Spinning mode Mode mill Combined Lathe & Spiral mode Combined Lathe & Mill mode four-axis mode 2. the automatic workpiece feeder system 3. Built-in CAM generation for spiral and lathe modes 4. 2D DXF file for spiral and lathe modes. 5. supporting rs274d G-codes and M-codes per ISO Standards WHY DO WE DO IT Maker of CNC Router Controller Robotics and CNC controller manufacturer Manufacturer of CNC DSP Controllers

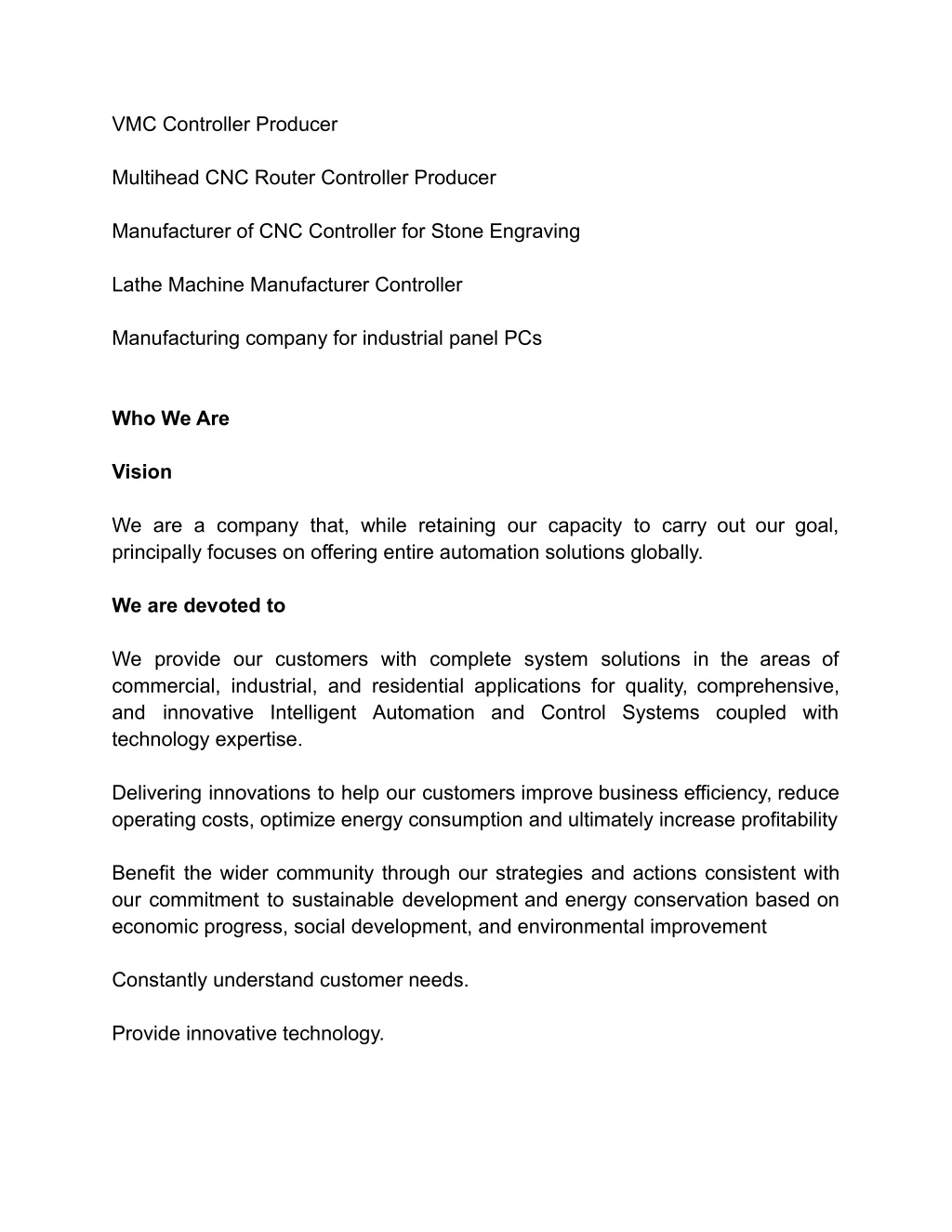

  3. VMC Controller Producer Multihead CNC Router Controller Producer Manufacturer of CNC Controller for Stone Engraving Lathe Machine Manufacturer Controller Manufacturing company for industrial panel PCs Who We Are Vision We are a company that, while retaining our capacity to carry out our goal, principally focuses on offering entire automation solutions globally. We are devoted to We provide our customers with complete system solutions in the areas of commercial, industrial, and residential applications for quality, comprehensive, and innovative Intelligent Automation and Control Systems coupled with technology expertise. Delivering innovations to help our customers improve business efficiency, reduce operating costs, optimize energy consumption and ultimately increase profitability Benefit the wider community through our strategies and actions consistent with our commitment to sustainable development and energy conservation based on economic progress, social development, and environmental improvement Constantly understand customer needs. Provide innovative technology.

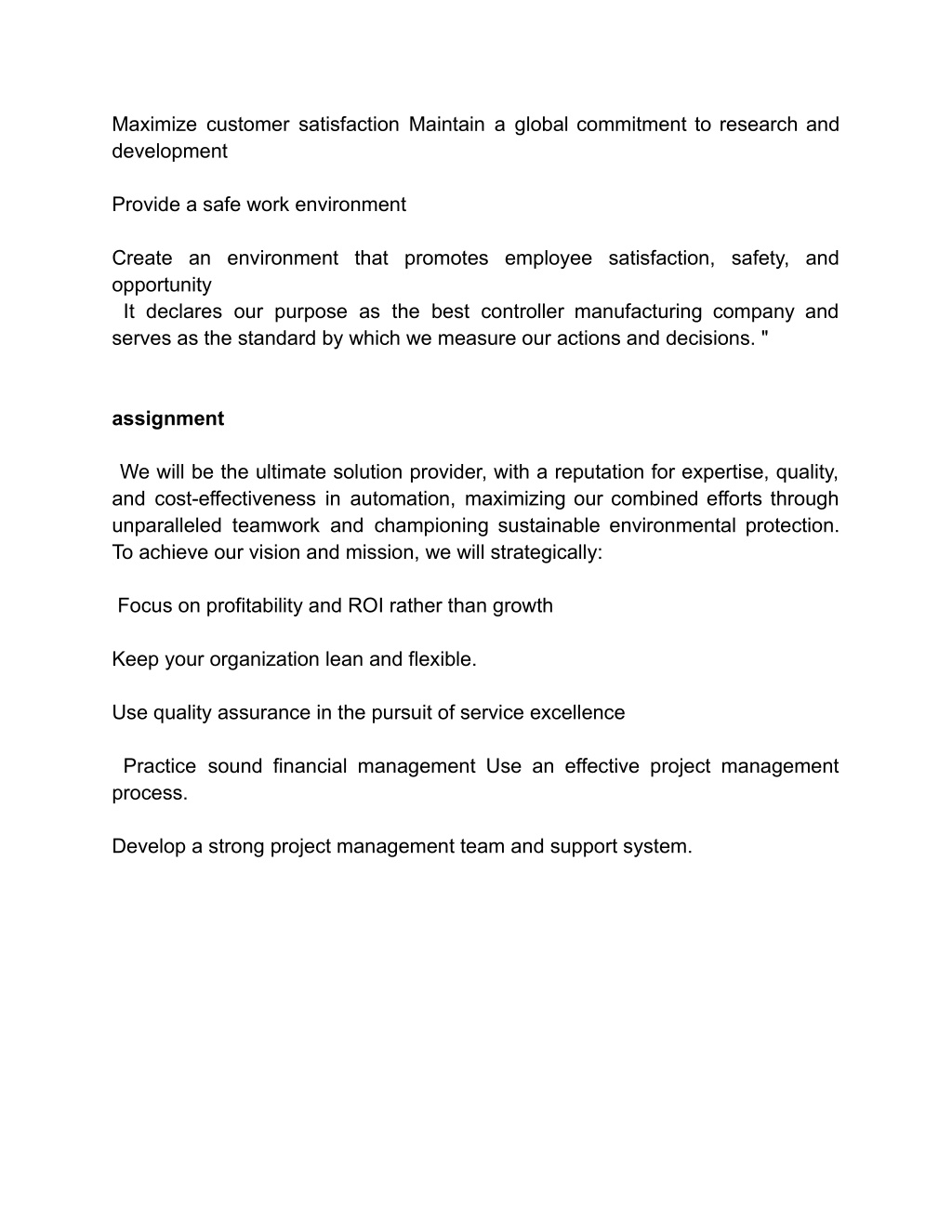

  4. Maximize customer satisfaction Maintain a global commitment to research and development Provide a safe work environment Create an environment that promotes employee satisfaction, safety, and opportunity It declares our purpose as the best controller manufacturing company and serves as the standard by which we measure our actions and decisions. " assignment We will be the ultimate solution provider, with a reputation for expertise, quality, and cost-effectiveness in automation, maximizing our combined efforts through unparalleled teamwork and championing sustainable environmental protection. To achieve our vision and mission, we will strategically: Focus on profitability and ROI rather than growth Keep your organization lean and flexible. Use quality assurance in the pursuit of service excellence Practice sound financial management Use an effective project management process. Develop a strong project management team and support system.
