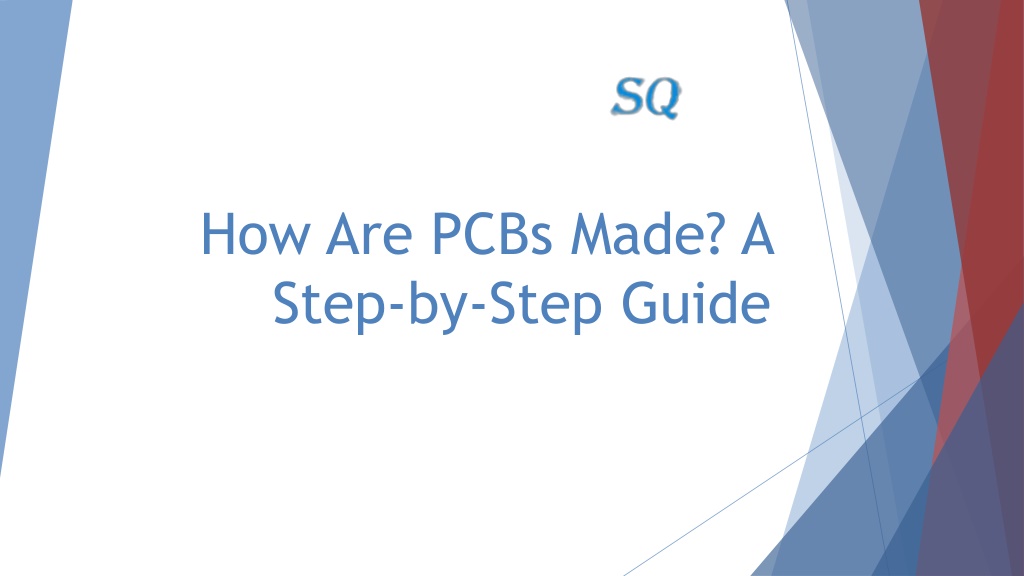

  1. How Are PCBs Made? A Step-by-Step Guide

  2. Designing the PCB Layout The process begins with designing the PCB layout using specialized software like Eagle, Altium Designer, or KiCad. The design specifies the circuit's schematic, layer configurations, and routing paths. Once finalized, the design is converted into Gerber files, which serve as a blueprint for manufacturing.

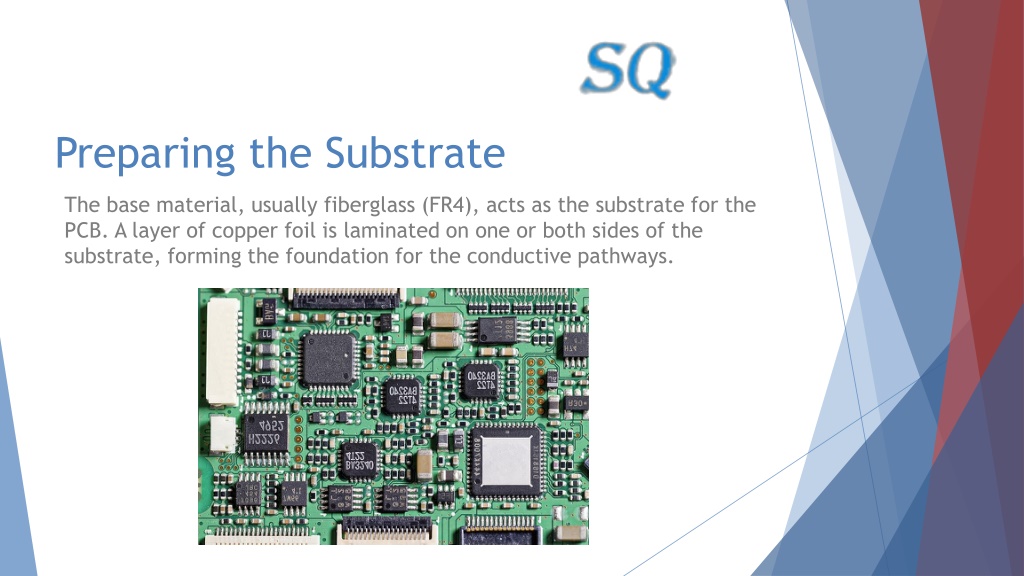

  3. Preparing the Substrate The base material, usually fiberglass (FR4), acts as the substrate for the PCB. A layer of copper foil is laminated on one or both sides of the substrate, forming the foundation for the conductive pathways.

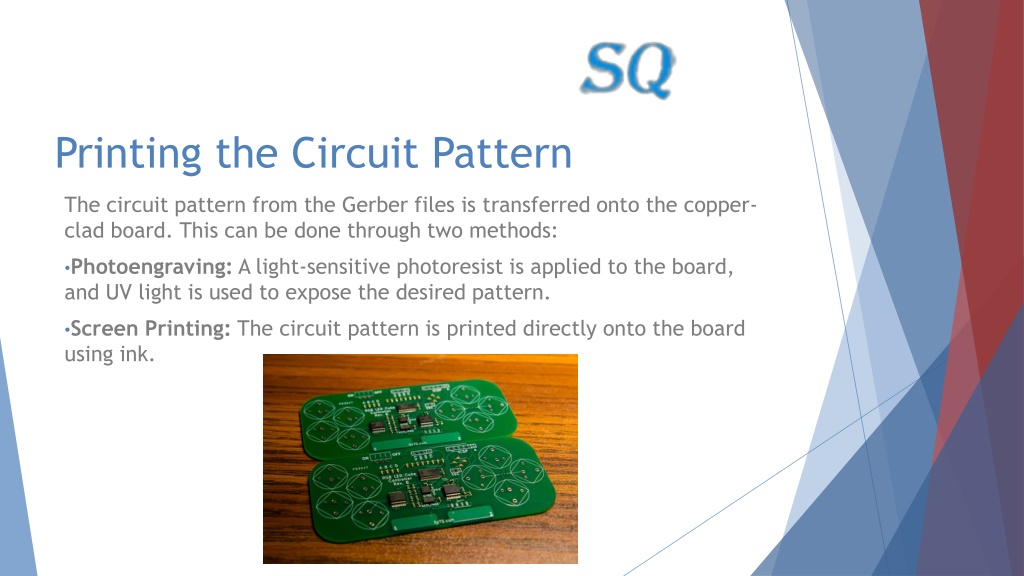

  4. Printing the Circuit Pattern The circuit pattern from the Gerber files is transferred onto the copper-clad board. This can be done through two methods: Photoengraving: A light-sensitive photoresist is applied to the board, and UV light is used to expose the desired pattern. Screen Printing: The circuit pattern is printed directly onto the board using ink.

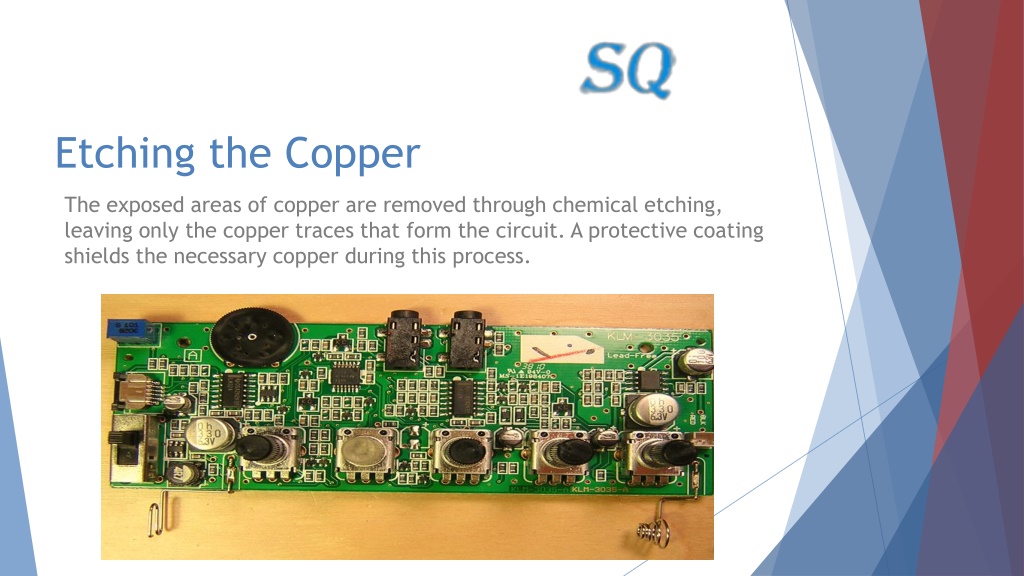

  5. Etching the Copper The exposed areas of copper are removed through chemical etching, leaving only the copper traces that form the circuit. A protective coating shields the necessary copper during this process.

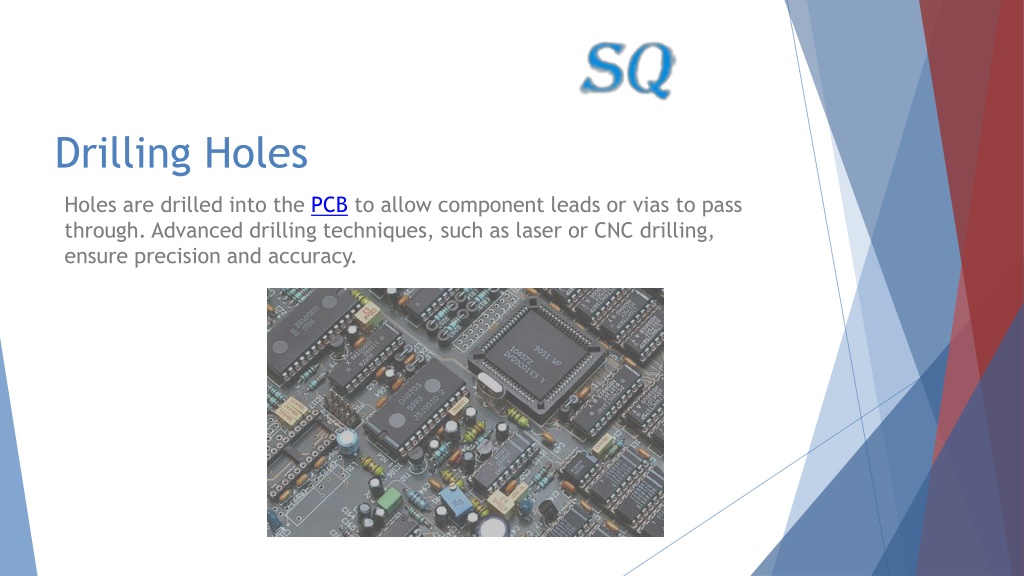

  6. Drilling Holes Holes are drilled into the PCB to allow component leads or vias to pass through. Advanced drilling techniques, such as laser or CNC drilling, ensure precision and accuracy.

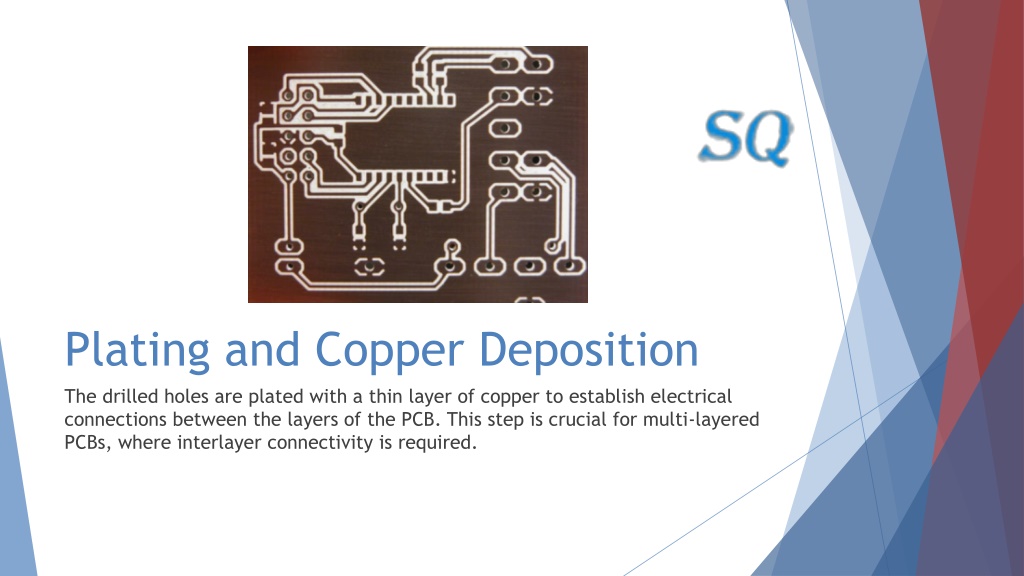

  7. Plating and Copper Deposition The drilled holes are plated with a thin layer of copper to establish electrical connections between the layers of the PCB. This step is crucial for multi-layered PCBs, where interlayer connectivity is required.

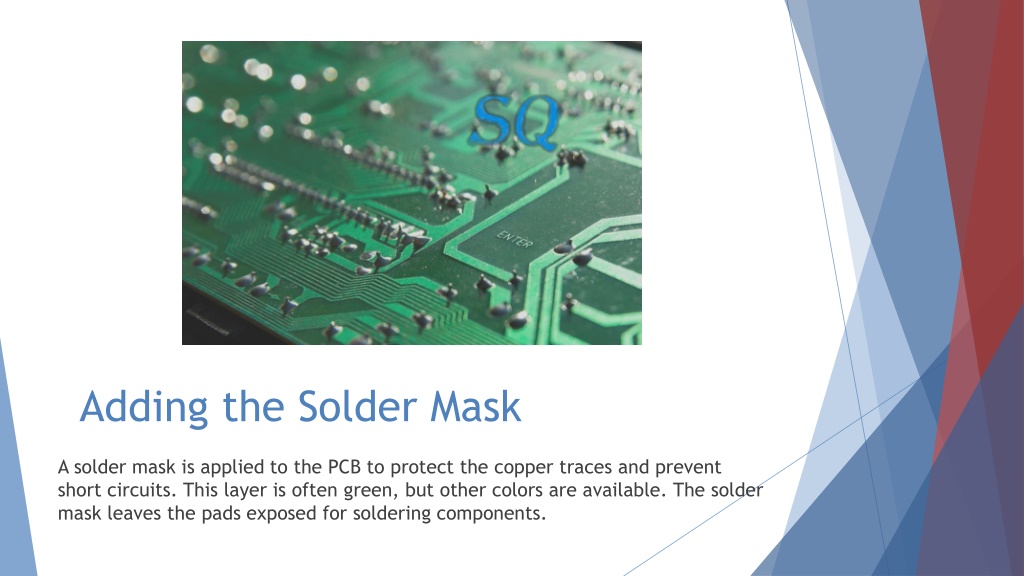

  8. Adding the Solder Mask A solder mask is applied to the PCB to protect the copper traces and prevent short circuits. This layer is often green, but other colors are available. The solder mask leaves the pads exposed for soldering components.

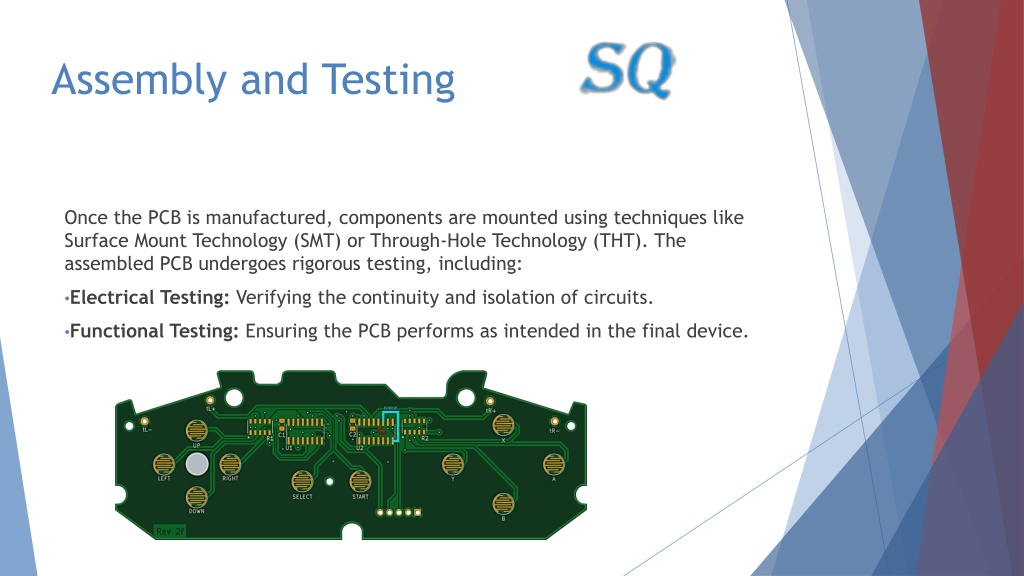

  9. Assembly and Testing Once the PCB is manufactured, components are mounted using techniques like Surface Mount Technology (SMT) or Through-Hole Technology (THT). The assembled PCB undergoes rigorous testing, including: Electrical Testing: Verifying the continuity and isolation of circuits. Functional Testing: Ensuring the PCB performs as intended in the final device.

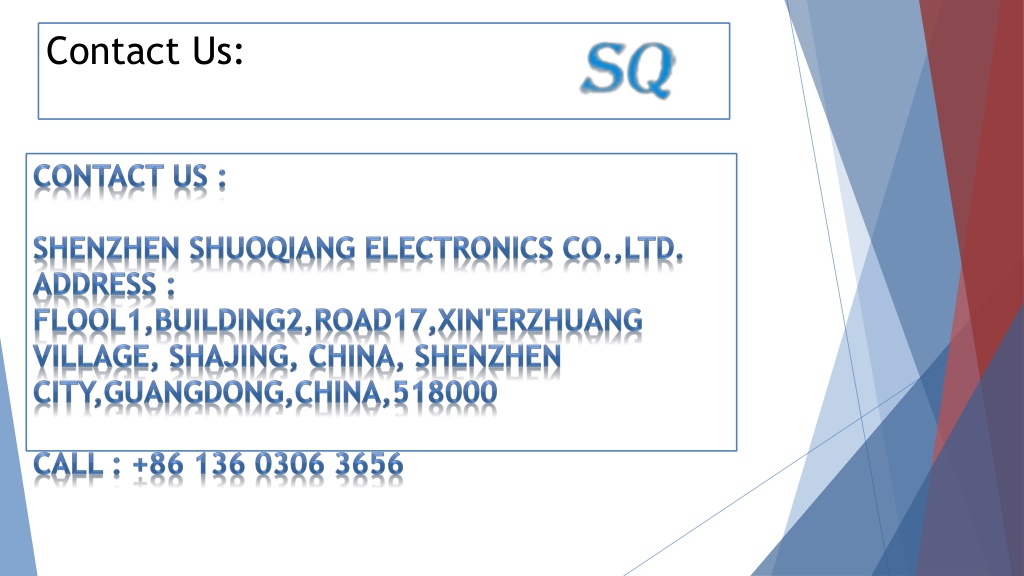

  10. Contact Us: Contact Us : Shenzhen Shuoqiang Electronics Co.,Ltd. Address : Flool1,Building2,Road17,Xin'erzhuang village, Shajing, China, Shenzhen city,Guangdong,China,518000 Call : +86 136 0306 3656
