Testing and Certification Process of Fire Rated Doors

Fire rated doors are critical components of a building's passive fire protection system. These specialized doors are designed to withstand fire exposure for a specified period, preventing the spread of flames, smoke, and toxic gases. The testing and certification process ensures these doors perform as intended during emergencies<br>

ASTRAL
Download Presentation

Testing and Certification Process of Fire Rated Doors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Testing and Certification Process of Fire Rated Doors

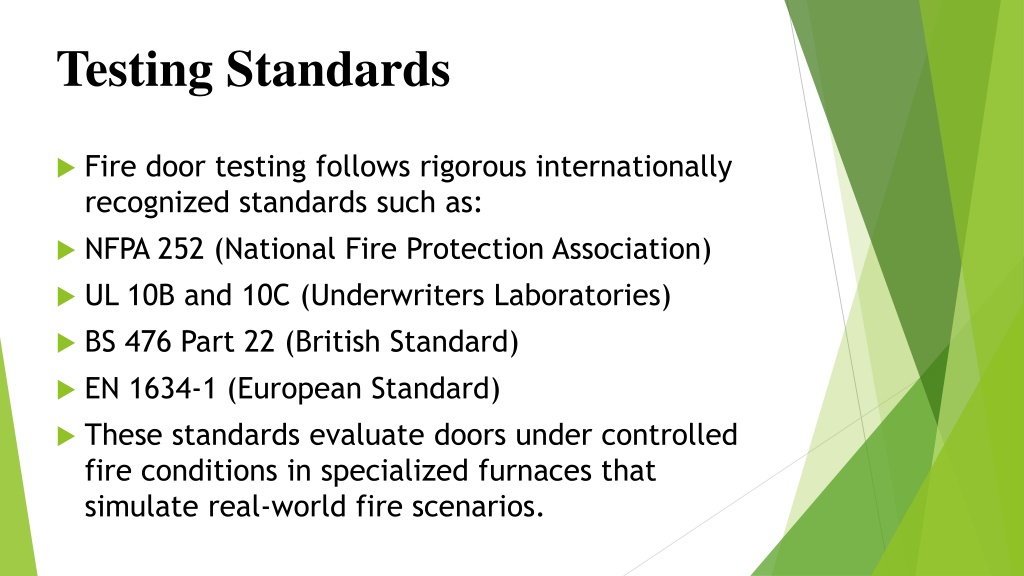

  2. Testing Standards • Fire door testing follows rigorous internationally recognized standards such as: • NFPA 252 (National Fire Protection Association) • UL 10B and 10C (Underwriters Laboratories) • BS 476 Part 22 (British Standard) • EN 1634-1 (European Standard) • These standards evaluate doors under controlled fire conditions in specialized furnaces that simulate real-world fire scenarios.

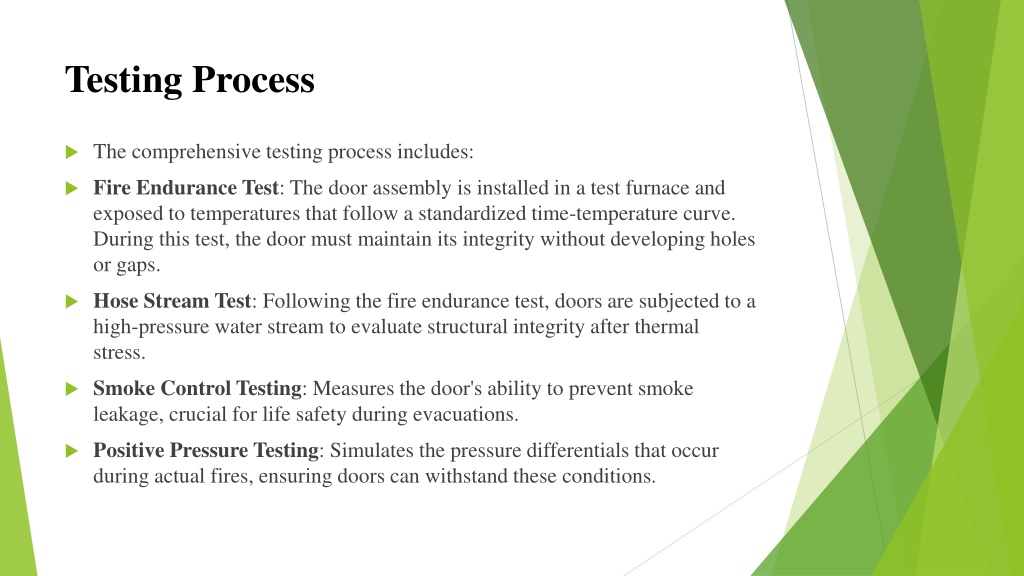

  3. Testing Process • The comprehensive testing process includes: • Fire Endurance Test: The door assembly is installed in a test furnace and exposed to temperatures that follow a standardized time-temperature curve. During this test, the door must maintain its integrity without developing holes or gaps. • Hose Stream Test: Following the fire endurance test, doors are subjected to a high-pressure water stream to evaluate structural integrity after thermal stress. • Smoke Control Testing: Measures the door's ability to prevent smoke leakage, crucial for life safety during evacuations. • Positive Pressure Testing: Simulates the pressure differentials that occur during actual fires, ensuring doors can withstand these conditions.

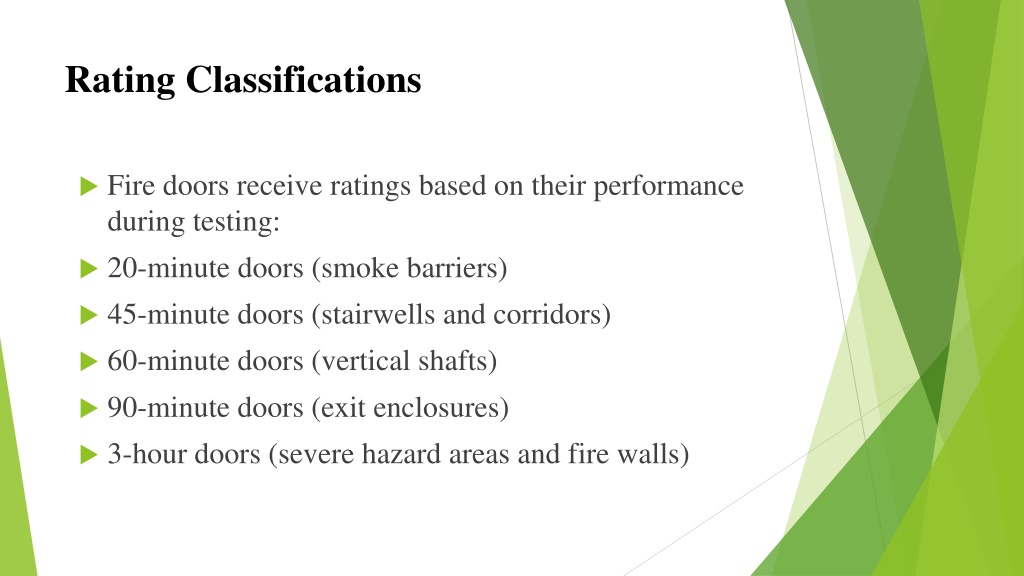

  4. Rating Classifications • Fire doors receive ratings based on their performance during testing: • 20-minute doors (smoke barriers) • 45-minute doors (stairwells and corridors) • 60-minute doors (vertical shafts) • 90-minute doors (exit enclosures) • 3-hour doors (severe hazard areas and fire walls)

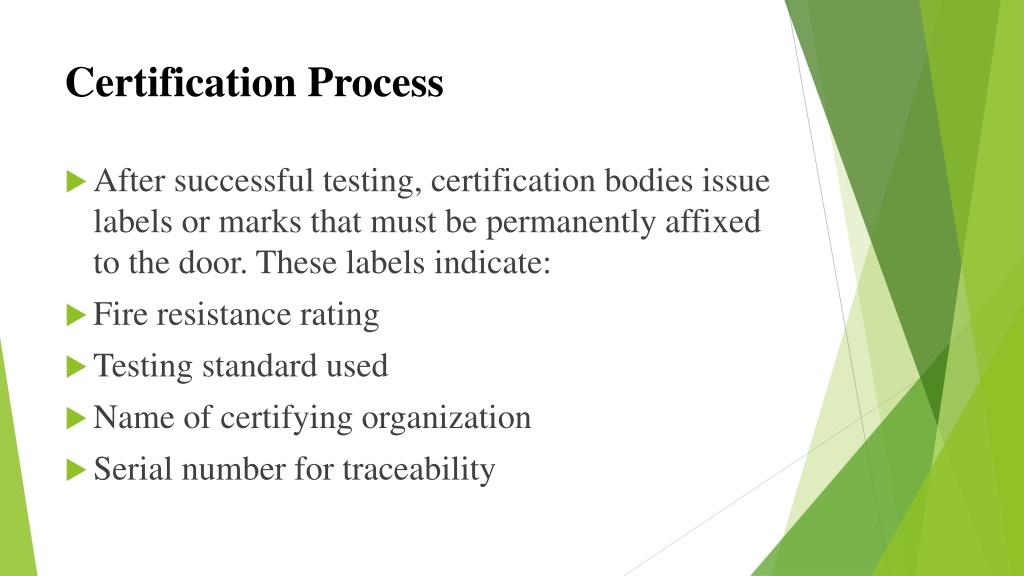

  5. Certification Process • After successful testing, certification bodies issue labels or marks that must be permanently affixed to the door. These labels indicate: • Fire resistance rating • Testing standard used • Name of certifying organization • Serial number for traceability

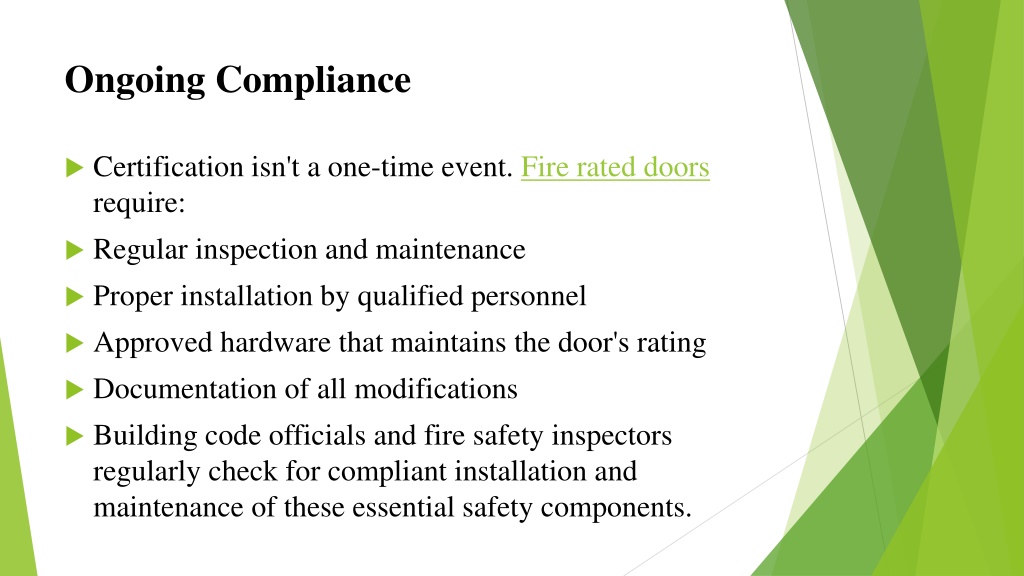

  6. Ongoing Compliance • Certification isn't a one-time event. Fire rated doors require: • Regular inspection and maintenance • Proper installation by qualified personnel • Approved hardware that maintains the door's rating • Documentation of all modifications • Building code officials and fire safety inspectors regularly check for compliant installation and maintenance of these essential safety components.

  7. No. 10/4, 1st Floor, Kumara Krupa Road, Diagonally Opposite to Karnataka Chitrakala Parishath, Bengaluru -560001Opp: Chitrakala ParishantMarketing Team: +91-98452 63298Email: bng.mkt@astralwindoors.com
