Contact points - Northern Gauge

Northern Gauge manufactures all sizes of contact points with a tungsten carbide ball #4 40 UN thread. Contact sales for your application.

6302
Download Presentation

Contact points - Northern Gauge

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

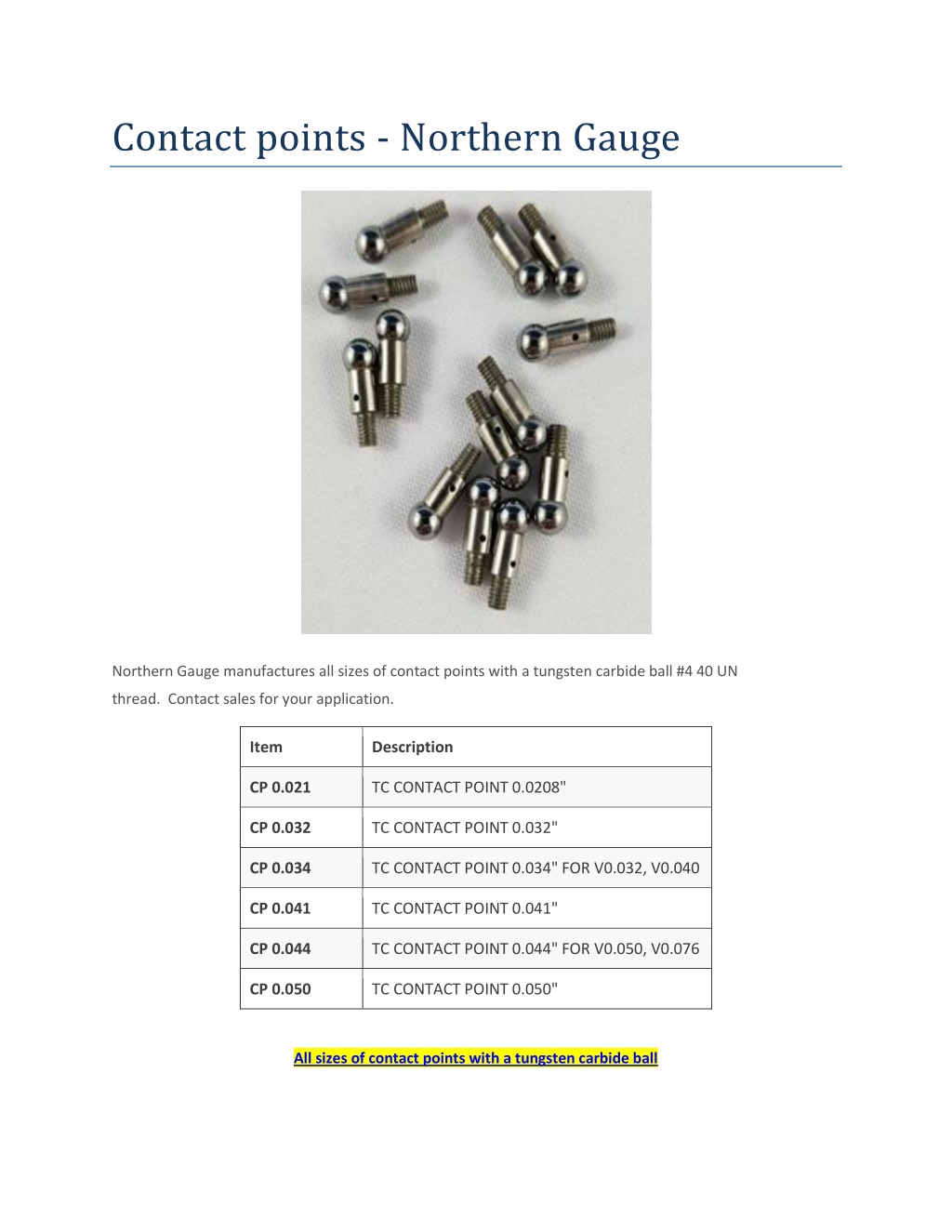

  1. Contact points - Northern Gauge Northern Gauge manufactures all sizes of contact points with a tungsten carbide ball #4 40 UN thread. Contact sales for your application. Item Description CP 0.021 TC CONTACT POINT 0.0208" CP 0.032 TC CONTACT POINT 0.032" CP 0.034 TC CONTACT POINT 0.034" FOR V0.032, V0.040 CP 0.041 TC CONTACT POINT 0.041" CP 0.044 TC CONTACT POINT 0.044" FOR V0.050, V0.076 CP 0.050 TC CONTACT POINT 0.050" All sizes of contact points with a tungsten carbide ball

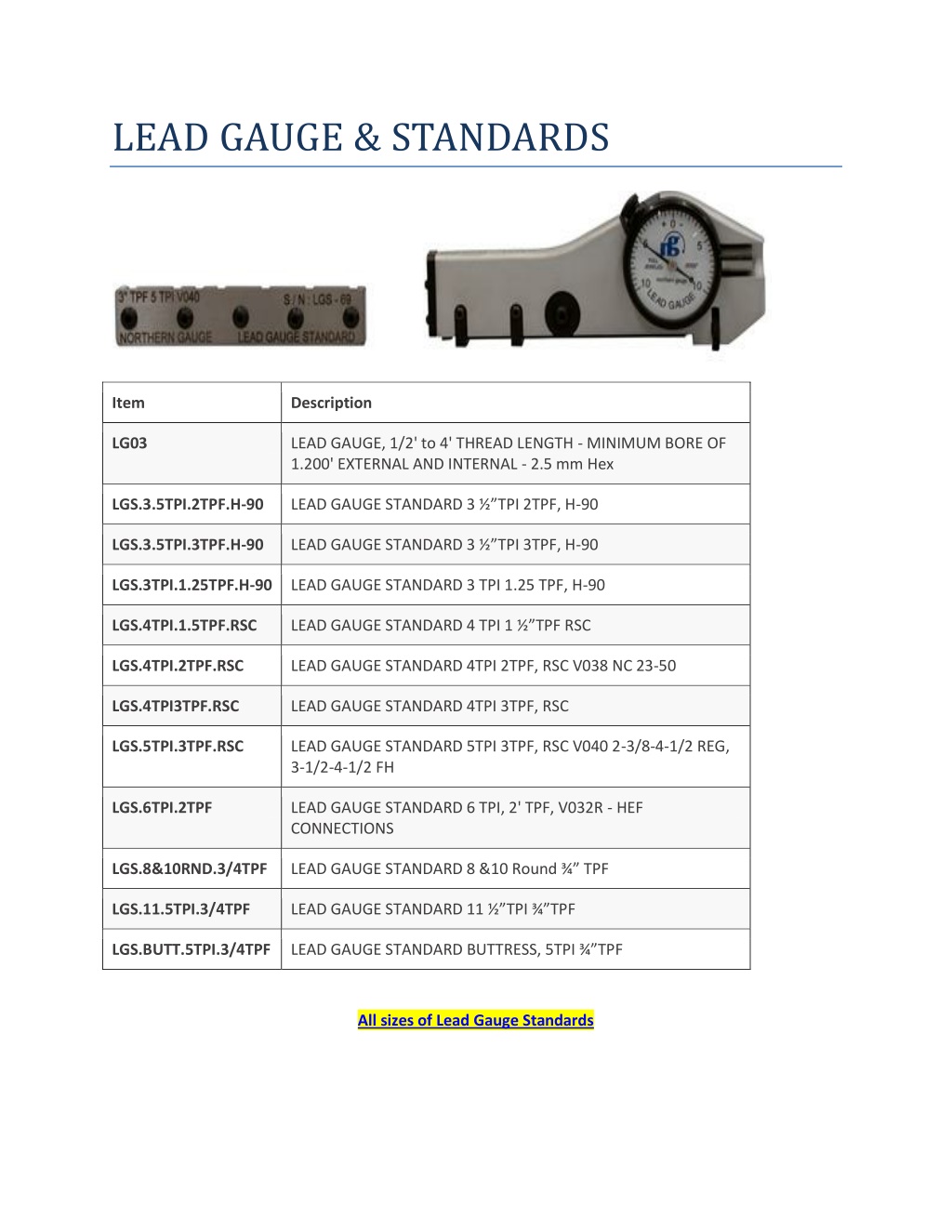

  2. LEAD GAUGE & STANDARDS Item Description LG03 LEAD GAUGE, 1/2' to 4' THREAD LENGTH - MINIMUM BORE OF 1.200' EXTERNAL AND INTERNAL - 2.5 mm Hex LGS.3.5TPI.2TPF.H-90 LEAD GAUGE STANDARD 3 ½”TPI 2TPF, H-90 LGS.3.5TPI.3TPF.H-90 LEAD GAUGE STANDARD 3 ½”TPI 3TPF, H-90 LGS.3TPI.1.25TPF.H-90 LEAD GAUGE STANDARD 3 TPI 1.25 TPF, H-90 LGS.4TPI.1.5TPF.RSC LEAD GAUGE STANDARD 4 TPI 1 ½”TPF RSC LGS.4TPI.2TPF.RSC LEAD GAUGE STANDARD 4TPI 2TPF, RSC V038 NC 23-50 LGS.4TPI3TPF.RSC LEAD GAUGE STANDARD 4TPI 3TPF, RSC LGS.5TPI.3TPF.RSC LEAD GAUGE STANDARD 5TPI 3TPF, RSC V040 2-3/8-4-1/2 REG, 3-1/2-4-1/2 FH LGS.6TPI.2TPF LEAD GAUGE STANDARD 6 TPI, 2' TPF, V032R - HEF CONNECTIONS LGS.8&10RND.3/4TPF LEAD GAUGE STANDARD 8 &10 Round ¾” TPF LGS.11.5TPI.3/4TPF LEAD GAUGE STANDARD 11 ½”TPI ¾”TPF LGS.BUTT.5TPI.3/4TPF LEAD GAUGE STANDARD BUTTRESS, 5TPI ¾”TPF All sizes of Lead Gauge Standards

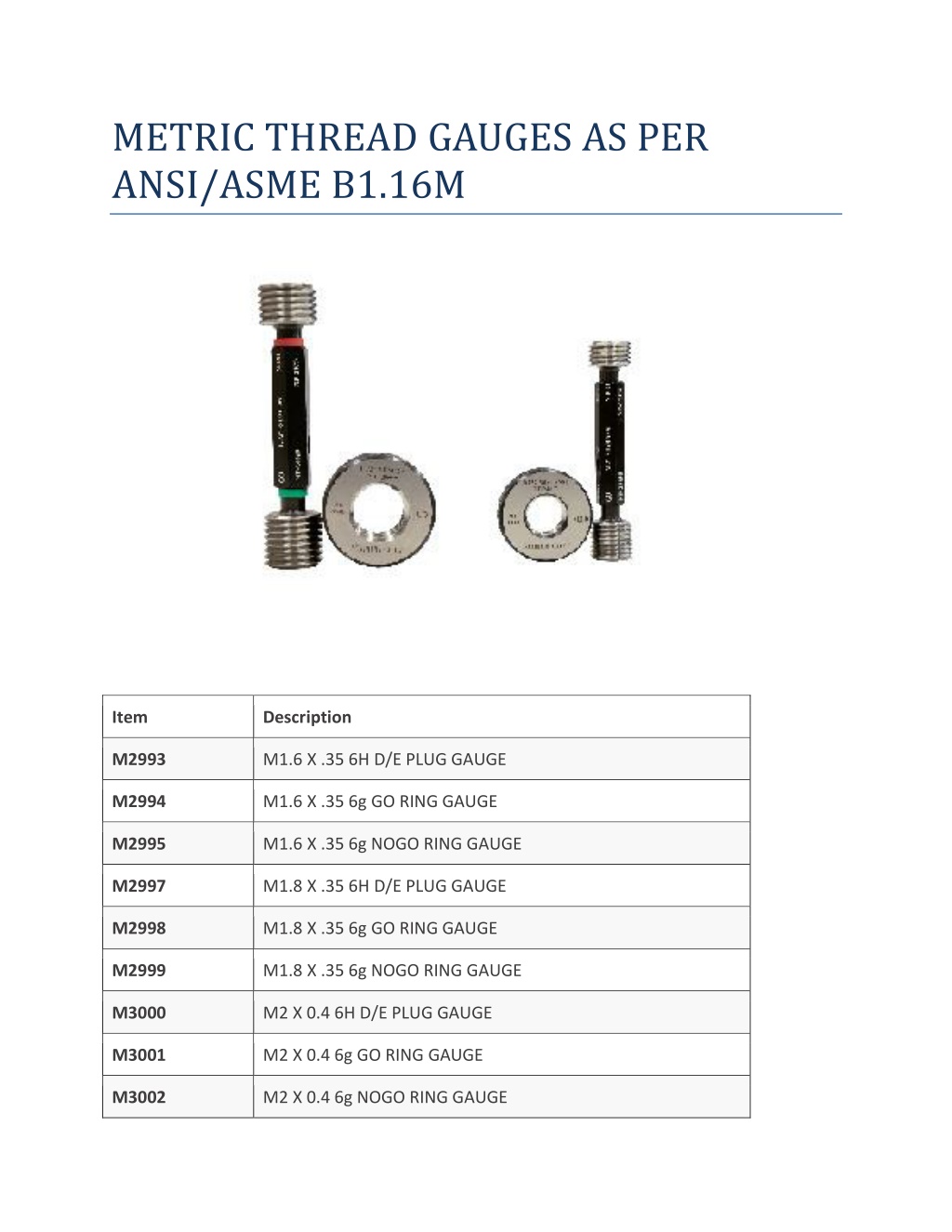

  3. METRIC THREAD GAUGES AS PER ANSI/ASME B1.16M Item Description M2993 M1.6 X .35 6H D/E PLUG GAUGE M2994 M1.6 X .35 6g GO RING GAUGE M2995 M1.6 X .35 6g NOGO RING GAUGE M2997 M1.8 X .35 6H D/E PLUG GAUGE M2998 M1.8 X .35 6g GO RING GAUGE M2999 M1.8 X .35 6g NOGO RING GAUGE M3000 M2 X 0.4 6H D/E PLUG GAUGE M3001 M2 X 0.4 6g GO RING GAUGE M3002 M2 X 0.4 6g NOGO RING GAUGE

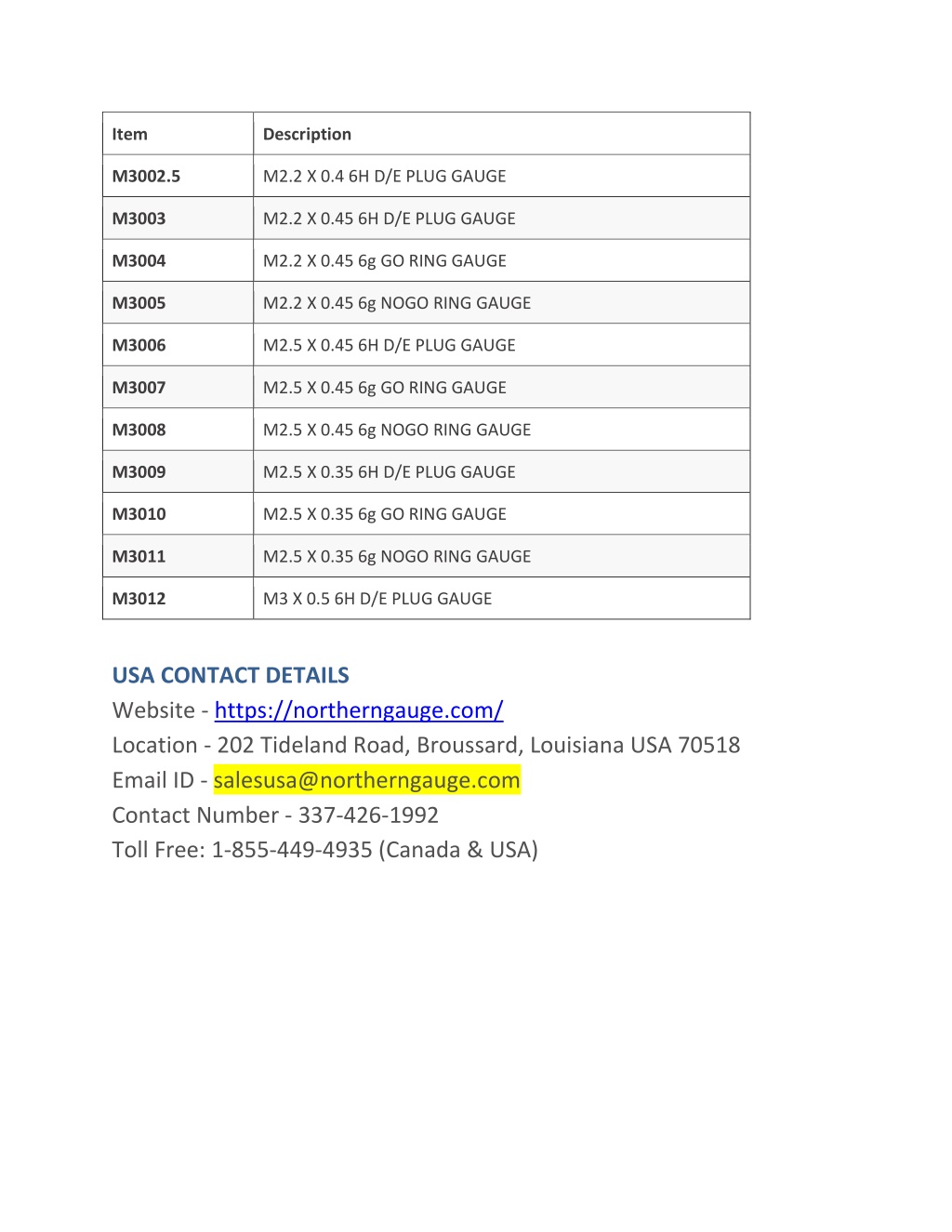

  4. Item Description M3002.5 M2.2 X 0.4 6H D/E PLUG GAUGE M3003 M2.2 X 0.45 6H D/E PLUG GAUGE M3004 M2.2 X 0.45 6g GO RING GAUGE M3005 M2.2 X 0.45 6g NOGO RING GAUGE M3006 M2.5 X 0.45 6H D/E PLUG GAUGE M3007 M2.5 X 0.45 6g GO RING GAUGE M3008 M2.5 X 0.45 6g NOGO RING GAUGE M3009 M2.5 X 0.35 6H D/E PLUG GAUGE M3010 M2.5 X 0.35 6g GO RING GAUGE M3011 M2.5 X 0.35 6g NOGO RING GAUGE M3012 M3 X 0.5 6H D/E PLUG GAUGE USA CONTACT DETAILS Website - https://northerngauge.com/ Location - 202 Tideland Road, Broussard, Louisiana USA 70518 Email ID - salesusa@northerngauge.com Contact Number - 337-426-1992 Toll Free: 1-855-449-4935 (Canada & USA)
