  1. BLOW ROOM & CARDING MAINTENANCE Presented by Nimra Ahmed

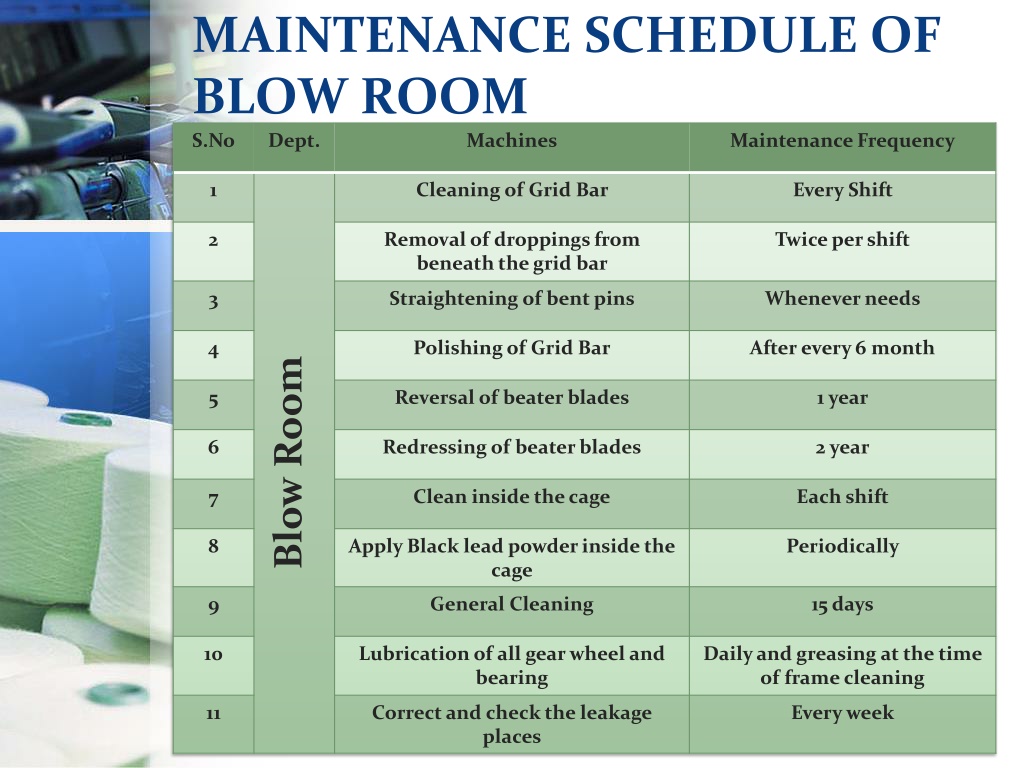

  2. MAINTENANCE SCHEDULE OF BLOW ROOM

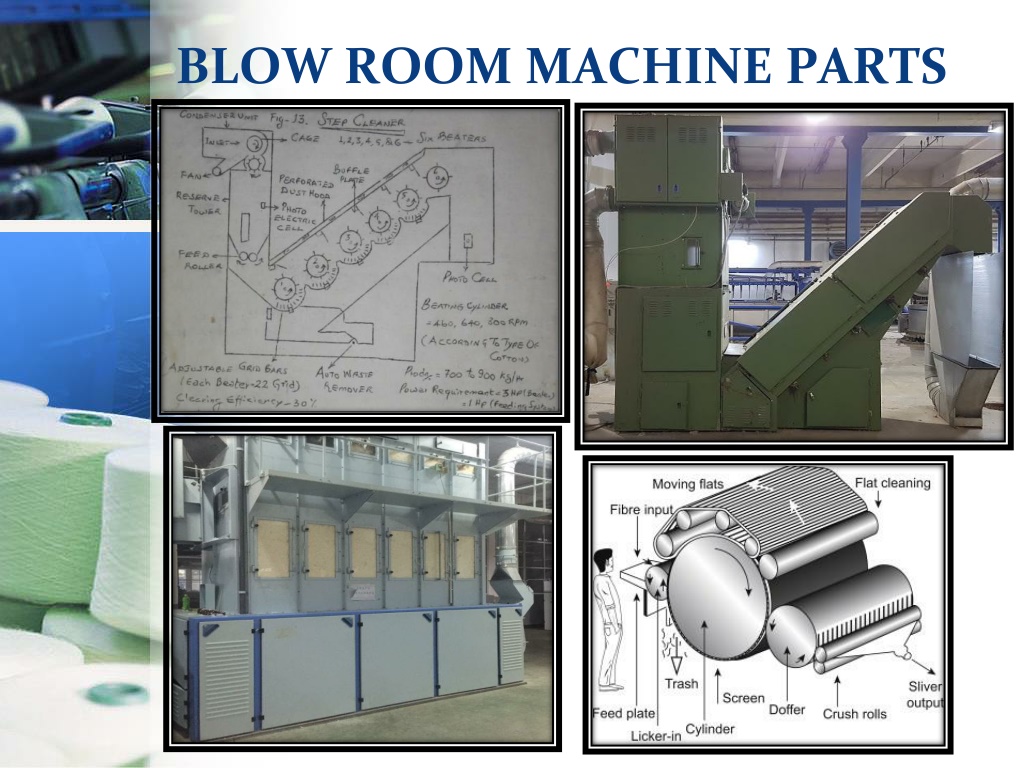

  3. BLOW ROOM MACHINE PARTS

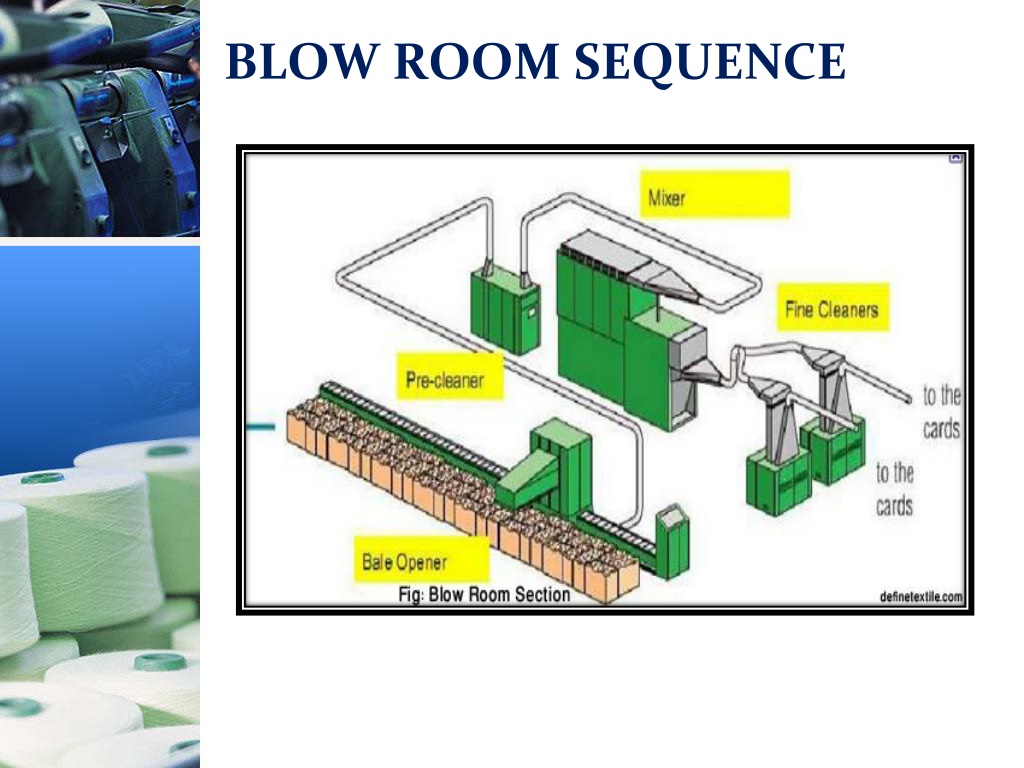

  4. BLOW ROOM SEQUENCE

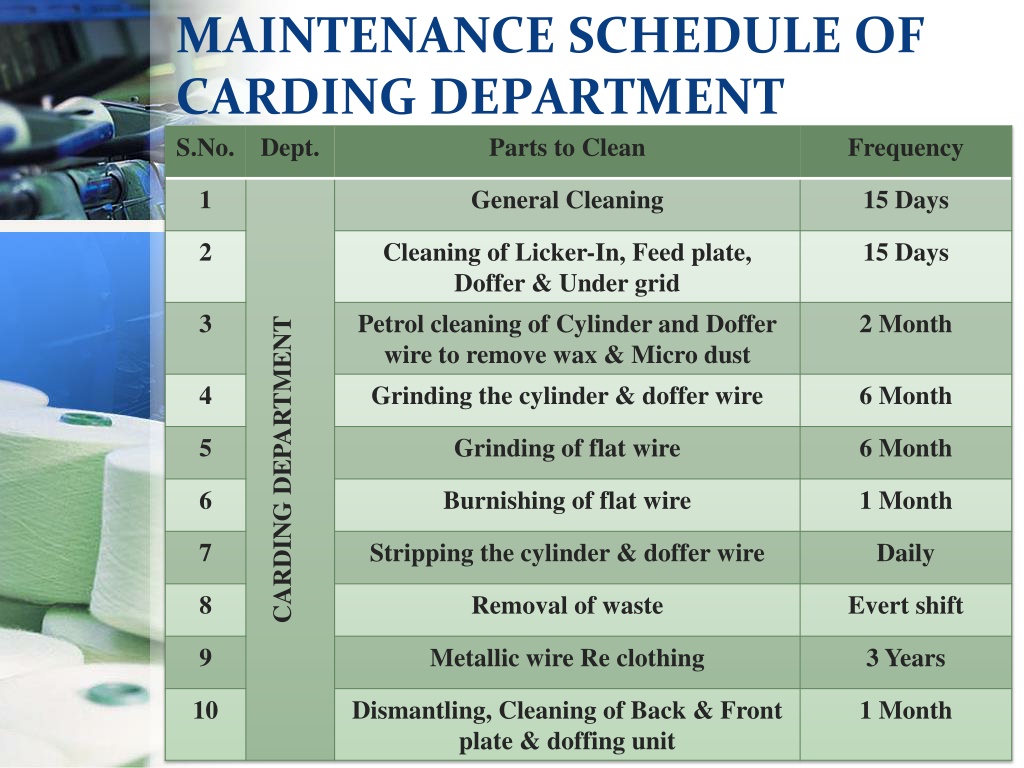

  5. MAINTENANCE SCHEDULE OF CARDING DEPARTMENT

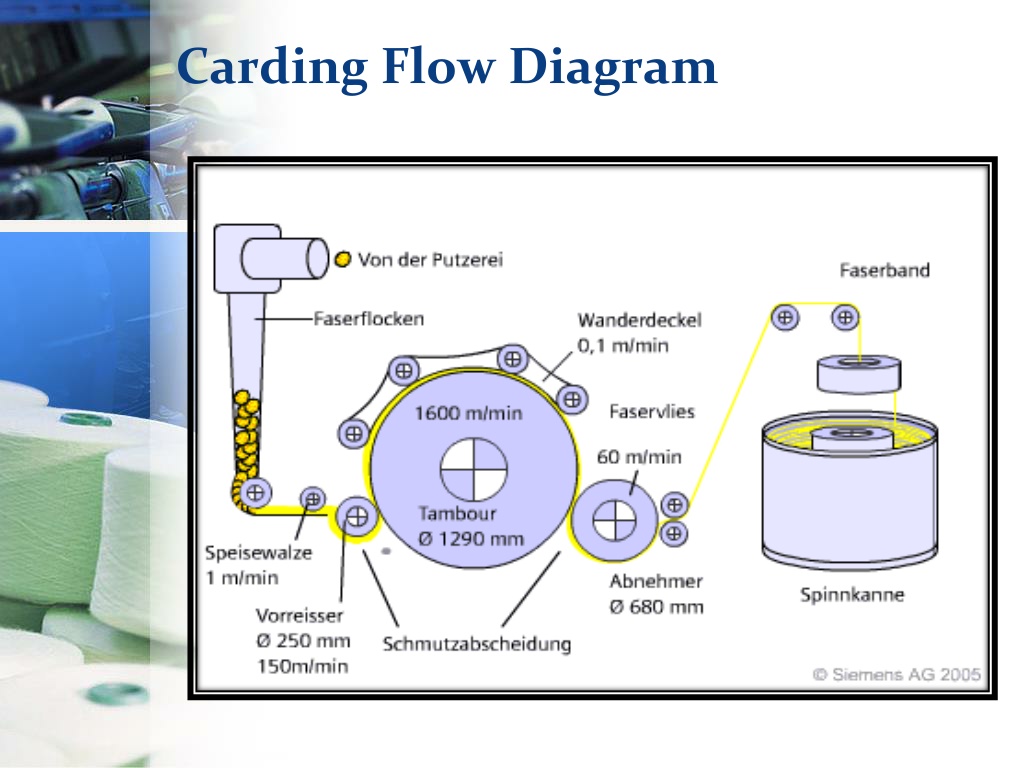

  6. Carding Flow Diagram

  7. How to identify the area under Maintenance?

  8. Worker’s Dress up in Spinning Unit
