The Tool Geeks Boring vs Drilling

1. THE TOOL GEEKS BORING VS DRILLING

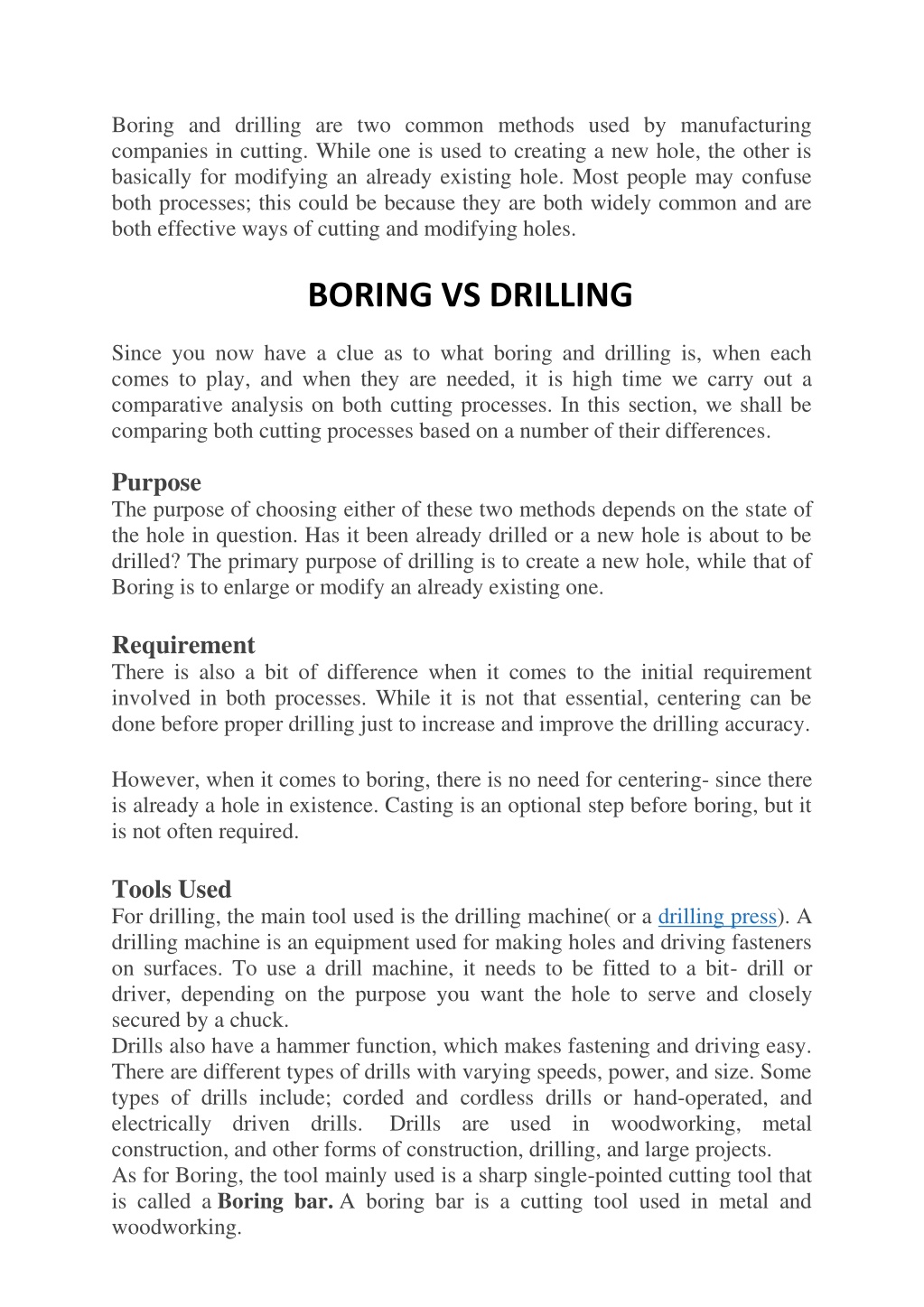

2. Boring and drilling are two common methods used by manufacturing companies in cutting. While one is used to creating a new hole, the other is basically for modifying an already existing hole. Most people may confuse both processes; this could be because they are both widely common and are both effective ways of cutting and modifying holes. BORING VS DRILLING Since you now have a clue as to what boring and drilling is, when each comes to play, and when they are needed, it is high time we carry out a comparative analysis on both cutting processes. In this section, we shall be comparing both cutting processes based on a number of their differences. Purpose The purpose of choosing either of these two methods depends on the state of the hole in question. Has it been already drilled or a new hole is about to be drilled? The primary purpose of drilling is to create a new hole, while that of Boring is to enlarge or modify an already existing one. Requirement There is also a bit of difference when it comes to the initial requirement involved in both processes. While it is not that essential, centering can be done before proper drilling just to increase and improve the drilling accuracy. However, when it comes to boring, there is no need for centering- since there is already a hole in existence. Casting is an optional step before boring, but it is not often required. Tools Used For drilling, the main tool used is the drilling machine( or a drilling press). A drilling machine is an equipment used for making holes and driving fasteners on surfaces. To use a drill machine, it needs to be fitted to a bit- drill or driver, depending on the purpose you want the hole to serve and closely secured by a chuck. Drills also have a hammer function, which makes fastening and driving easy. There are different types of drills with varying speeds, power, and size. Some types of drills include; corded and cordless drills or hand-operated, and electrically driven drills. Drills are used in woodworking, metal construction, and other forms of construction, drilling, and large projects. As for Boring, the tool mainly used is a sharp single-pointed cutting tool that is called a Boring bar. A boring bar is a cutting tool used in metal and woodworking.

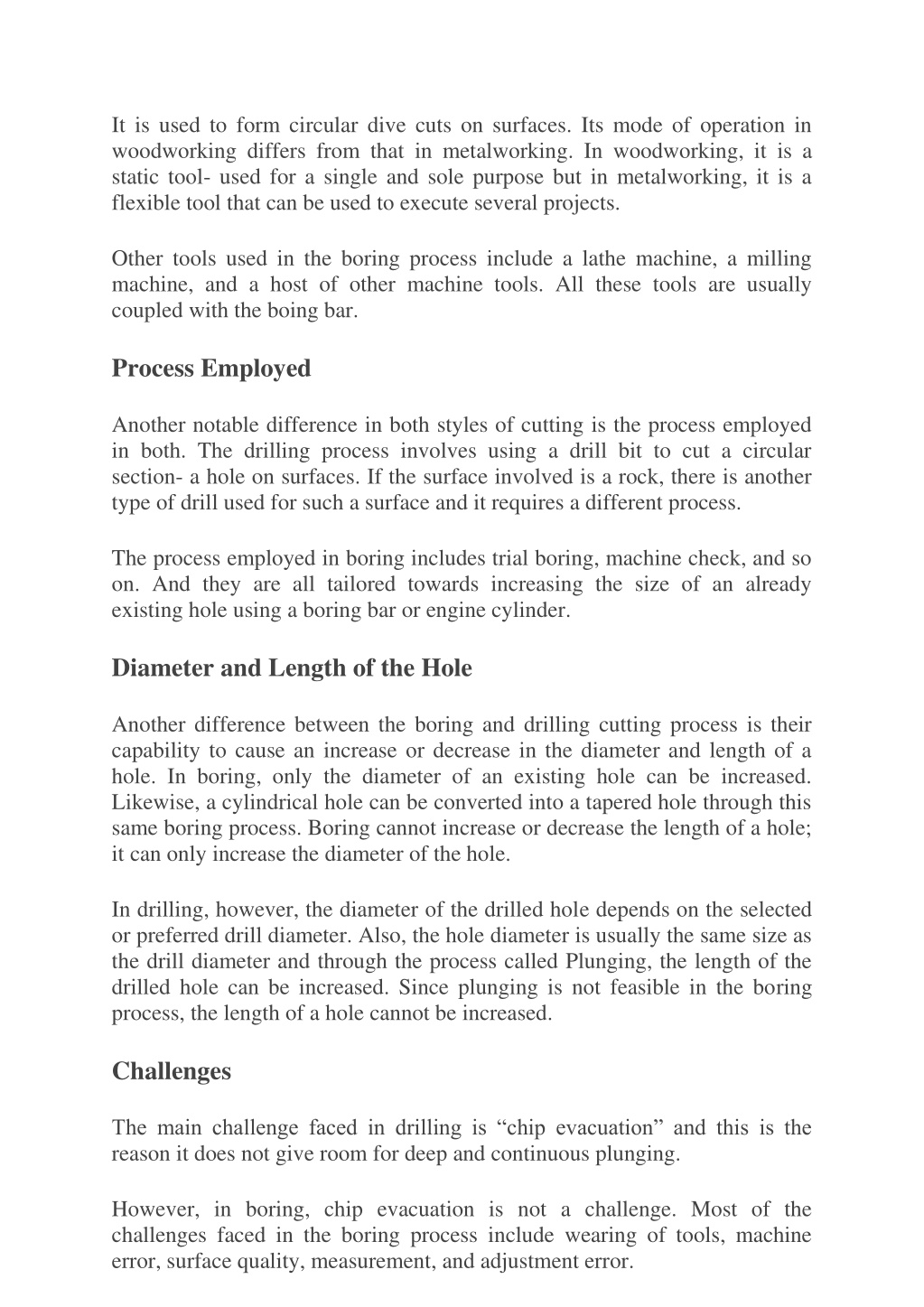

3. It is used to form circular dive cuts on surfaces. Its mode of operation in woodworking differs from that in metalworking. In woodworking, it is a static tool- used for a single and sole purpose but in metalworking, it is a flexible tool that can be used to execute several projects. Other tools used in the boring process include a lathe machine, a milling machine, and a host of other machine tools. All these tools are usually coupled with the boing bar. Process Employed Another notable difference in both styles of cutting is the process employed in both. The drilling process involves using a drill bit to cut a circular section- a hole on surfaces. If the surface involved is a rock, there is another type of drill used for such a surface and it requires a different process. The process employed in boring includes trial boring, machine check, and so on. And they are all tailored towards increasing the size of an already existing hole using a boring bar or engine cylinder. Diameter and Length of the Hole Another difference between the boring and drilling cutting process is their capability to cause an increase or decrease in the diameter and length of a hole. In boring, only the diameter of an existing hole can be increased. Likewise, a cylindrical hole can be converted into a tapered hole through this same boring process. Boring cannot increase or decrease the length of a hole; it can only increase the diameter of the hole. In drilling, however, the diameter of the drilled hole depends on the selected or preferred drill diameter. Also, the hole diameter is usually the same size as the drill diameter and through the process called Plunging, the length of the drilled hole can be increased. Since plunging is not feasible in the boring process, the length of a hole cannot be increased. Challenges The main challenge faced in drilling is “chip evacuation” and this is the reason it does not give room for deep and continuous plunging. However, in boring, chip evacuation is not a challenge. Most of the challenges faced in the boring process include wearing of tools, machine error, surface quality, measurement, and adjustment error.

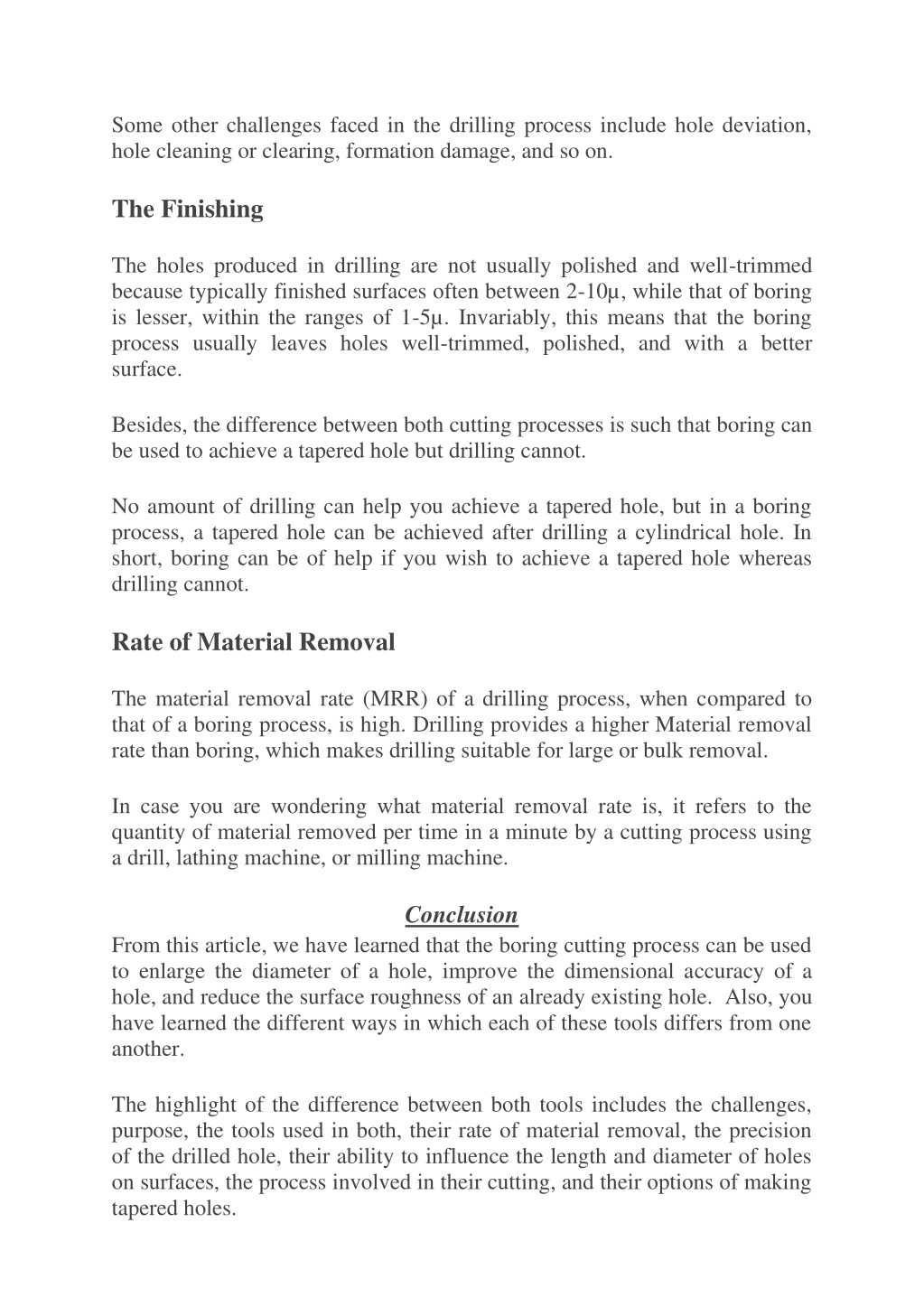

4. Some other challenges faced in the drilling process include hole deviation, hole cleaning or clearing, formation damage, and so on. The Finishing The holes produced in drilling are not usually polished and well-trimmed because typically finished surfaces often between 2-10µ, while that of boring is lesser, within the ranges of 1-5µ. Invariably, this means that the boring process usually leaves holes well-trimmed, polished, and with a better surface. Besides, the difference between both cutting processes is such that boring can be used to achieve a tapered hole but drilling cannot. No amount of drilling can help you achieve a tapered hole, but in a boring process, a tapered hole can be achieved after drilling a cylindrical hole. In short, boring can be of help if you wish to achieve a tapered hole whereas drilling cannot. Rate of Material Removal The material removal rate (MRR) of a drilling process, when compared to that of a boring process, is high. Drilling provides a higher Material removal rate than boring, which makes drilling suitable for large or bulk removal. In case you are wondering what material removal rate is, it refers to the quantity of material removed per time in a minute by a cutting process using a drill, lathing machine, or milling machine. Conclusion From this article, we have learned that the boring cutting process can be used to enlarge the diameter of a hole, improve the dimensional accuracy of a hole, and reduce the surface roughness of an already existing hole. Also, you have learned the different ways in which each of these tools differs from one another. The highlight of the difference between both tools includes the challenges, purpose, the tools used in both, their rate of material removal, the precision of the drilled hole, their ability to influence the length and diameter of holes on surfaces, the process involved in their cutting, and their options of making tapered holes.

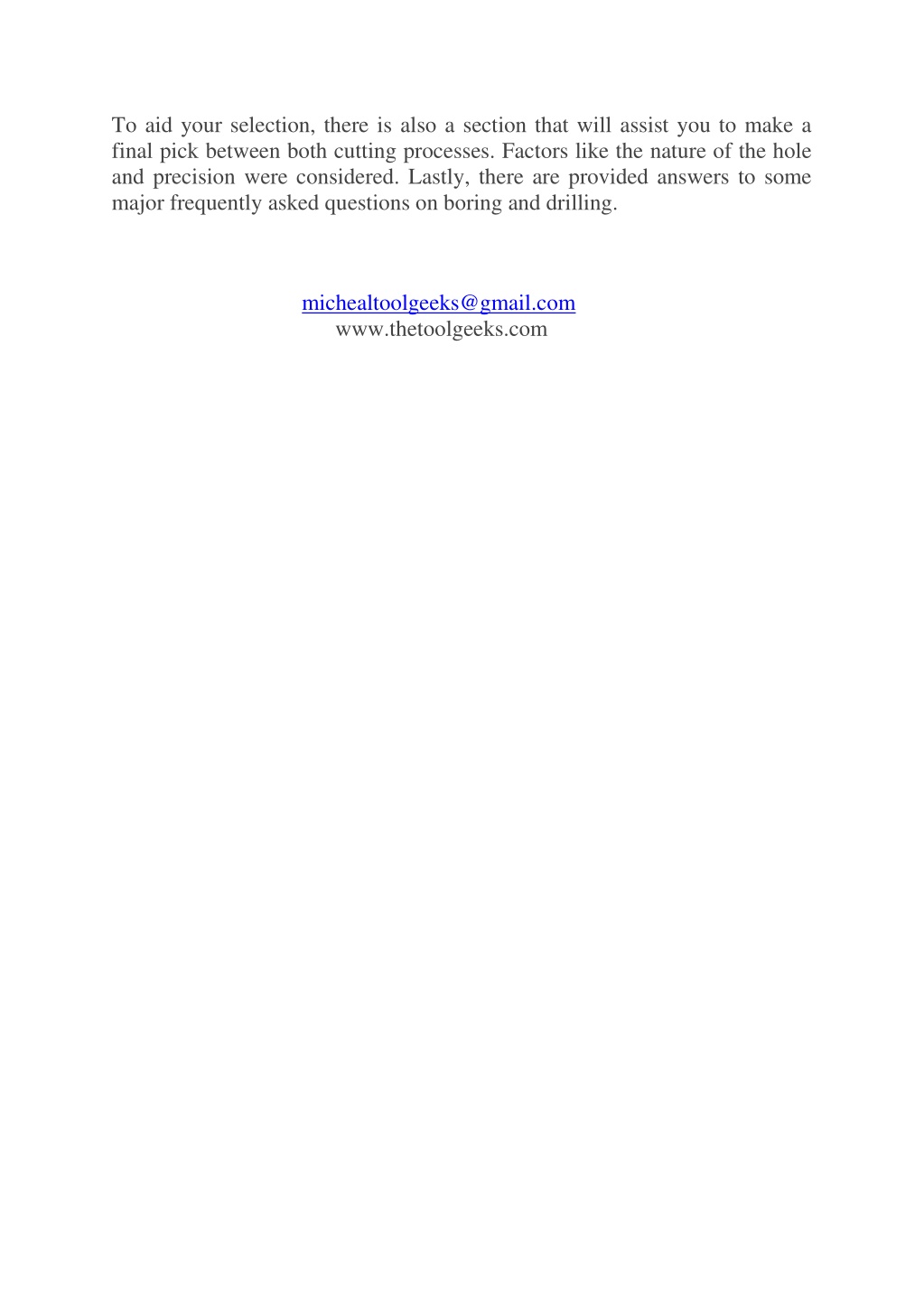

5. To aid your selection, there is also a section that will assist you to make a final pick between both cutting processes. Factors like the nature of the hole and precision were considered. Lastly, there are provided answers to some major frequently asked questions on boring and drilling. michealtoolgeeks@gmail.com www.thetoolgeeks.com
