Innovative Metal Face Seals for Tractor Application

SAP Partsu2122 Pvt. Ltd. is a leading manufacturer and exporter of Metal Face Seals world-wide. Established in Pune, India we have been working with major OEM's and international companies since 2009. Visit us - https://www.sapparts.com/mechanical-face-seal.html

34383
Download Presentation

Innovative Metal Face Seals for Tractor Application

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Innovative Metal Face Seals for Tractor Application

  2. SAP Parts Metal Face Seals are designed to offer the highest dependable leakage free Sealing performance in the tough farming environments, for the Axle & the transmission system of agriculture tractors and implements, comes with the engineered and proprietary processes, materials & elastomers. www.sapparts.com

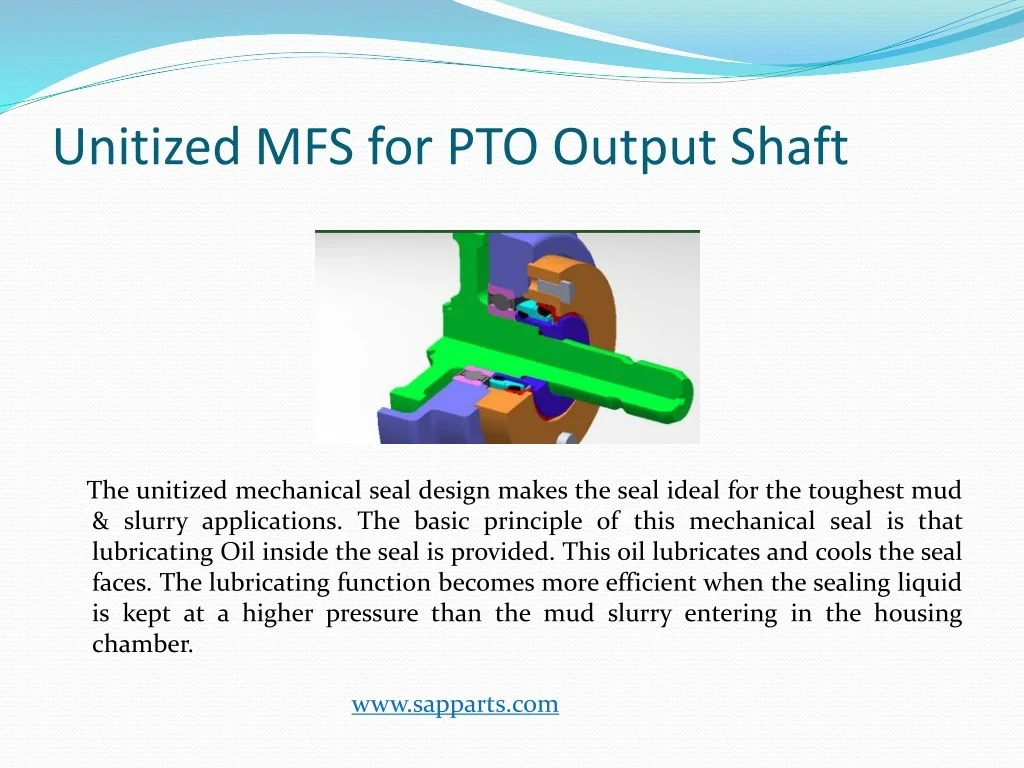

  3. Unitized MFS for PTO Output Shaft The unitized mechanical seal design makes the seal ideal for the toughest mud & slurry applications. The basic principle of this mechanical seal is that lubricating Oil inside the seal is provided. This oil lubricates and cools the seal faces. The lubricating function becomes more efficient when the sealing liquid is kept at a higher pressure than the mud slurry entering in the housing chamber. www.sapparts.com

  4. Unitized MFS for Rear Axle A Special—unitized - mechanical face seal for Tractor Rear Axle application is a higher version of simple mechanical face seal. This Face Seal Assembly consist of HDDF Type seal fitted in specially developed adapter housing and counter sleeve. This seal also have sacrificial sealing arrangement to protect the dust entry. www.sapparts.com

  5. MFS for Front Axles — Wheel Hub Sealing Mechanical Face Seal consist of two metallic seal rings. They are mounted in separate housing face to face. The elastomeric elements (Rubber O ring) center the seal in the housing. At installation, the O-rings are compressed between the tapered contact surfaces of the seal ring and housing. The O-rings undergo a calculated compression which is critical for proper operation of the sealing system. www.sapparts.com

  6. MFS for Front Axles — Swivel End Sealing This mechanical face seal assembly is higher version of simple mechanical face seal. This development relates to seals, and more specifically to metal face seals for Swivel joint of tractors. This seal has unique sacrificial sealing arrangement to protect the entry of dirt, dust, fine clay ,paddy straw etc. One end of Rubber seal is bonded on Counter ring and another is rested on housing with positive compression load. This compression load help to make secondary leak proof contact. www.sapparts.com

  7. Contact us Addree – Gat.No.1087/04,Pune-Nagar-Pimple Jagtap Road, Sanaswadi, Tal.Shirur, Maharashtra 412208, INDIA. Ph.No. – 9225546956 Email Id –sales@sapparts.com Website - https://www.sapparts.com/

  8. Thank You..
