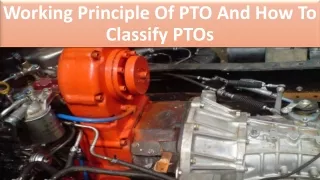

  1. Working Principle Of PTO And How To Classify PTOs

  2. As you know, nowadays tractors are being used for many farming operations. But earlier tractors were used only for ploughing and haulage. Other farm operations like irrigation, crop care, harvesting was all done with the help of laborers. But these days you can do all these operations with the help of a tractor, which will increase your productivity and reduce the cost. • Now let's talk about the PTO on a tractor. With the help of a PTO, you can operate multiple types of equipment through the tractor such as Rotary Tiller, Power Harrow, Ratoon Manager, Baler, Potato Digger, Post Hole Digger, Mulcher, Shredder, Water Pump Generator, Thresher for various purposes. Hydraulic shops offer different PTO gear pumps.

  3. Now Let's See What PTOs Stand For? • PTOs stand for Power Take-Off Unit because a PTO transfers power from your vehicle's engine to an outboard implement or on a PTO gear pump. • History of PTO (Power Take-Off Unit) • PTOs were first developed in the agricultural world as tractors needed some power. The many different implements they worked with like cutting blades, spreaders, Cedars, and many more. That's one of the advantages of a PTO. • You have one power hook-up that can power many different things. The earliest PTOs were sold to the public back in 1918 by International Harvester, so these things have been around for a long time. • Today in the world of pickup trucks, PTOs run off the vehicle's transmission, and they allow fitters to use already powerful engines to send their power to a range of implements and gear like cranes, Chevy, pickers, dump beds, and much more. • There are different styles of PTO. Most modern pickup trucks like the Chevy use a hydraulic pump hooked onto a PTO gear pumps, and of course, the hydraulics can be used for a range of different things. Many tractors, however, use a driveshaft style PTO which hooks a little more directly onto an implement.

  4. What is a PTO? • Power take-off unit means there's an auxiliary port on the transmission unit to operate other apparatus or other equipment. For example, on a tow truck, and that's where they use the power of the engine, and it goes through the beginning part of the transmission to operate a gear train that's on the side of the unit. Now, most of these ports on the transmission are on big heavy-duty units. • Some heavy units happen to be a 5R110 Ford unit, but it's also available on most of the Allisons, and they have ports on both sides of the case, and that's to operate heavy units. • This particular unit is an actual PTO unit, and this unit here has gear trains, and this gear train will operate off the driven gear and the transmission. So they use hydraulic pressure and the switching system on the vehicle to engage the actual gear train, which will activate the PTO gear pump. • For example, on a tow truck, lifting the tailgate to lift the back of the tow truck or lifting the lifting apparatus of that and it controls on the side of the tow truck to operate this equipment. • When technicians or mechanics ask you 'Does your vehicle have PTO' that's usually determining whether or not you have the panel. Now some are PTO units, but there's no auxiliary unit on the case. • Instead, you will have a cover that will look like a closed one so that the transmission will appear like a compact structure. And this is important to know if you have this type of unit with the gear train to where you have access to operating this extra equipment.

  5. Working of Power Take-Off (PTO) Unit • The power generation of a Power take-off or PTO unit is generated with the help of Hydraulic engine Rotation. Here, initially, the power generated is because of engine rotation that changes to hydraulic. Hydraulic pressure is a technique or means that can lift heavy objects by using slight or limited power. • The energy transmission medium used in hydraulic pressure is a fluid called Hydraulic fluid. It has a unique feature of working fastly and efficiently because once the power button is switched on for operation, it immediately starts to work or operate. And the force is also adjustable when compared to other units. • The PTO unit contains two procedures for activation, and they are switch type and lever type. Some PTO units require Clutch operation for activation in Lever-type methods. It also requires a PTO shaft during the conversion of engine energy to hydraulic pressure. Thus, PTO shafts work on heavy loads; they frequently require good maintenance and daily inspection of their work. • It requires regular inspection and maintenance because any damage in the PTO shaft can cause damage to the PTO itself. The PTO shaft is too heavy even to maintain.

  6. Types of Power Take-Off (PTO) Units • The main types of PTO units are of three categories. • 1.Transmission PTO (Power take-off) • They have made it easy to understand what transmission PTO (Power take-off) is from the name itself. The transmission side of the PTO attaches Transmission PTO (Power take-off). You can begin this transmission PTO only when you stop the vehicle. Crane vehicles or Aerial work platforms install these kinds of PTOs. • 2. Flywheel PTO (Power take-off) • Since the engine directly attaches to Flywheel PTO (Power take-off). You can start or run Flywheel PTO either it is stopped or it is running. While driving, the mixer trucks instruct the drum inside it to rotate in Flywheel PTO (Power take-off). Frozen and refrigerated vehicles use Flywheel PTO to adjust to the required temperature, either stopped or running. • 3. Full power PTO (Power take-off) • Between the engine and transmission, inventors have installed Full power PTO. When the vehicle is stopped, Full power PTO (Power take-off) extracts the engine's full power. Due to this purpose, designers of PTOs have installed these full-power PTOs in enormous power extracting vehicles.

  7. Conclusion • Thus, in this article, we have discussed the working principle and classification of PTOs. We hope you will have understood the basics of PTO. Hence, trucks, tractors use various PTOs to extract power.
