Backup flanges

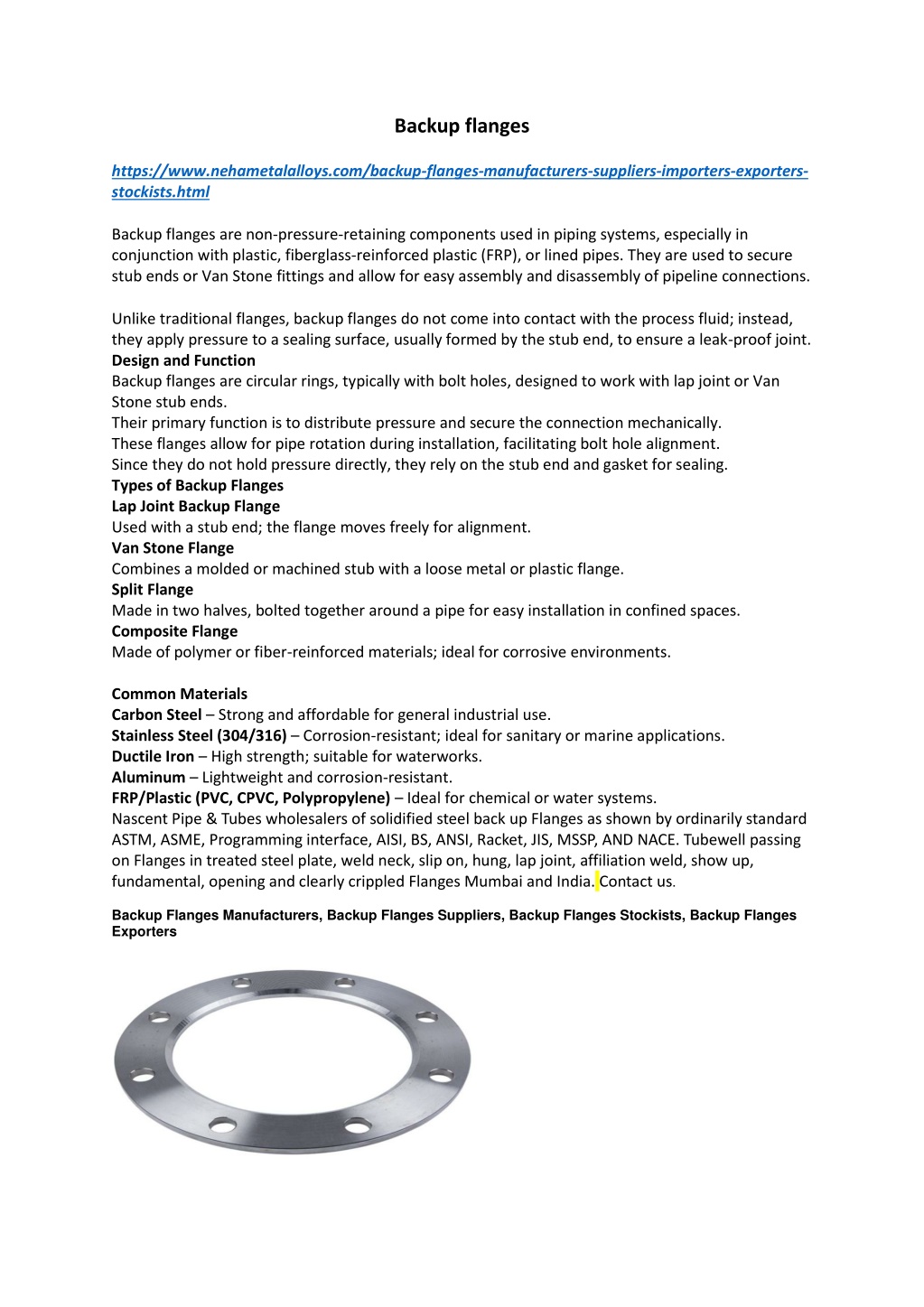

1. Backup flanges https://www.nehametalalloys.com/backup-flanges-manufacturers-suppliers-importers-exporters- stockists.html Backup flanges are non-pressure-retaining components used in piping systems, especially in conjunction with plastic, fiberglass-reinforced plastic (FRP), or lined pipes. They are used to secure stub ends or Van Stone fittings and allow for easy assembly and disassembly of pipeline connections. Unlike traditional flanges, backup flanges do not come into contact with the process fluid; instead, they apply pressure to a sealing surface, usually formed by the stub end, to ensure a leak-proof joint. Design and Function Backup flanges are circular rings, typically with bolt holes, designed to work with lap joint or Van Stone stub ends. Their primary function is to distribute pressure and secure the connection mechanically. These flanges allow for pipe rotation during installation, facilitating bolt hole alignment. Since they do not hold pressure directly, they rely on the stub end and gasket for sealing. Types of Backup Flanges Lap Joint Backup Flange Used with a stub end; the flange moves freely for alignment. Van Stone Flange Combines a molded or machined stub with a loose metal or plastic flange. Split Flange Made in two halves, bolted together around a pipe for easy installation in confined spaces. Composite Flange Made of polymer or fiber-reinforced materials; ideal for corrosive environments. Common Materials Carbon Steel– Strong and affordable for general industrial use. Stainless Steel (304/316)– Corrosion-resistant; ideal for sanitary or marine applications. Ductile Iron– High strength; suitable for waterworks. Aluminum– Lightweight and corrosion-resistant. FRP/Plastic (PVC, CPVC, Polypropylene)– Ideal for chemical or water systems. Nascent Pipe & Tubes wholesalers of solidified steel back up Flanges as shown by ordinarily standard ASTM, ASME, Programming interface, AISI, BS, ANSI, Racket, JIS, MSSP, AND NACE. Tubewell passing on Flanges in treated steel plate, weld neck, slip on, hung, lap joint, affiliation weld, show up, fundamental, opening and clearly crippled Flanges Mumbai and India. Contact us. Backup Flanges Manufacturers, Backup Flanges Suppliers, Backup Flanges Stockists, Backup Flanges Exporters

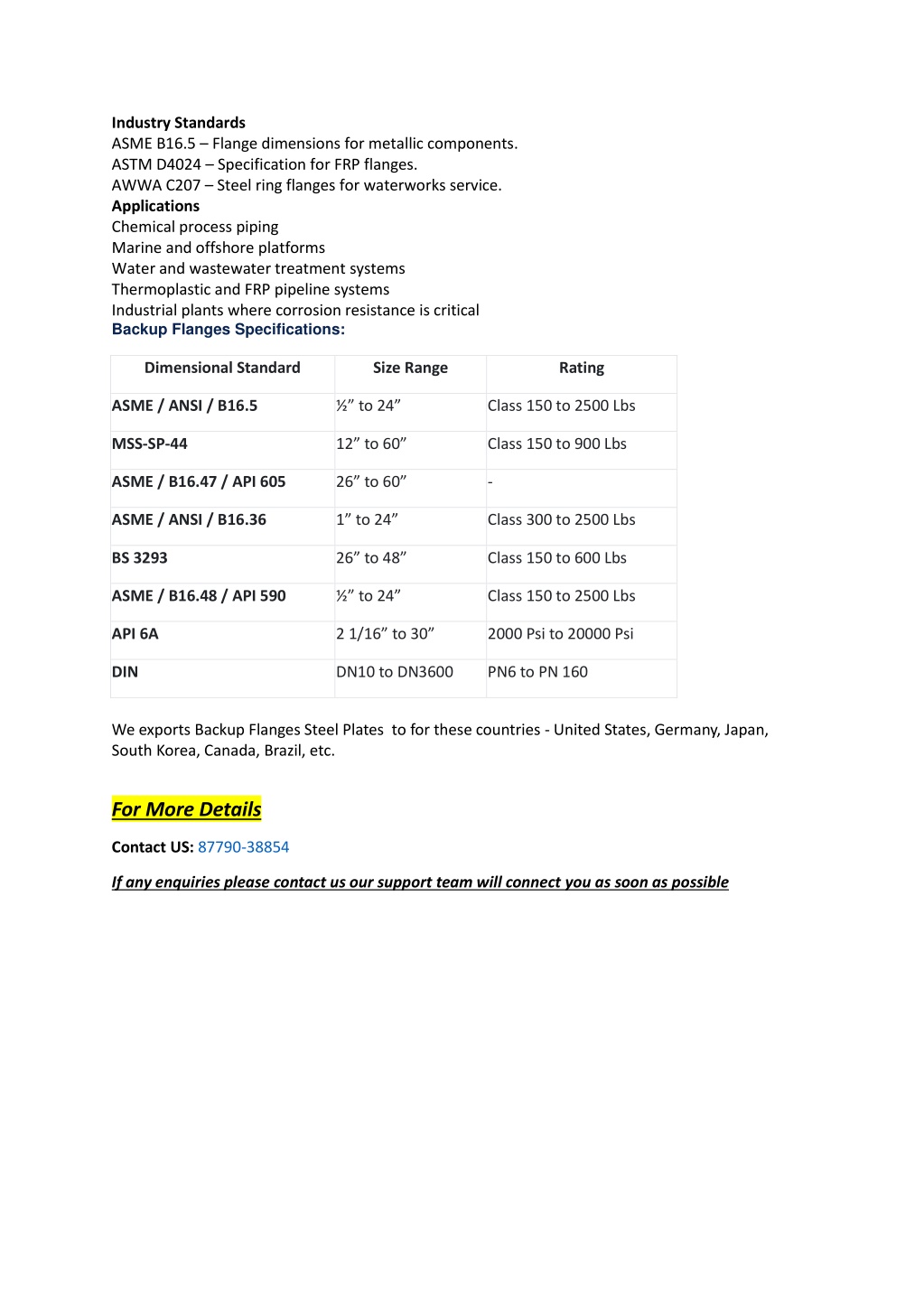

2. Industry Standards ASME B16.5 – Flange dimensions for metallic components. ASTM D4024 – Specification for FRP flanges. AWWA C207 – Steel ring flanges for waterworks service. Applications Chemical process piping Marine and offshore platforms Water and wastewater treatment systems Thermoplastic and FRP pipeline systems Industrial plants where corrosion resistance is critical Backup Flanges Specifications: Dimensional Standard Size Range Rating ASME / ANSI / B16.5 ½” to 24” Class 150 to 2500 Lbs MSS-SP-44 12” to 60” Class 150 to 900 Lbs ASME / B16.47 / API 605 26” to 60” - ASME / ANSI / B16.36 1” to 24” Class 300 to 2500 Lbs BS 3293 26” to 48” Class 150 to 600 Lbs ASME / B16.48 / API 590 ½” to 24” Class 150 to 2500 Lbs API 6A 2 1/16” to 30” 2000 Psi to 20000 Psi DIN DN10 to DN3600 PN6 to PN 160 We exports Backup Flanges Steel Plates to for these countries - United States, Germany, Japan, South Korea, Canada, Brazil, etc. For More Details Contact US: 87790-38854 If any enquiries please contact us our support team will connect you as soon as possible
