CLR-SWG-L328P POE Switch

CLR Networks CLR-SWG-L328P Endu00fcstriyel POE Switch GelecekBT'de

23322
Download Presentation

CLR-SWG-L328P POE Switch

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

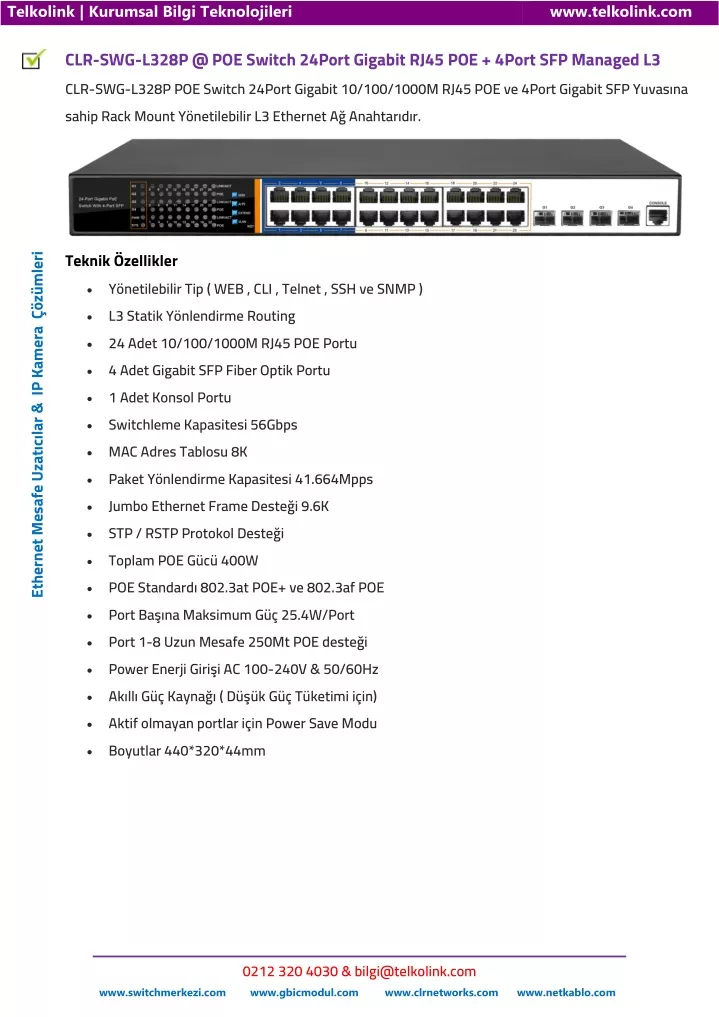

  1. Telkolink | Kurumsal Bilgi Teknolojileri CLR-SWG-L328P @ POE Switch 24Port Gigabit RJ45 POE + 4Port SFP Managed L3 CLR-SWG-L328P POE Switch 24Port Gigabit 10/100/1000M RJ45 POE ve 4Port Gigabit SFP Yuvasına sahip Rack Mount Yönetilebilir L3 Ethernet Ağ Anahtarıdır. www.telkolink.com Ethernet Mesafe Uzatıcılar & IP Kamera Çözümleri Teknik Özellikler •Yönetilebilir Tip ( WEB , CLI , Telnet , SSH ve SNMP ) •L3 Statik Yönlendirme Routing •24 Adet 10/100/1000M RJ45 POE Portu •4 Adet Gigabit SFP Fiber Optik Portu •1 Adet Konsol Portu •Switchleme Kapasitesi 56Gbps •MAC Adres Tablosu 8K •Paket Yönlendirme Kapasitesi 41.664Mpps •Jumbo Ethernet Frame Desteği 9.6K •STP / RSTP Protokol Desteği •Toplam POE Gücü 400W •POE Standardı 802.3at POE+ ve 802.3af POE •Port Başına Maksimum Güç 25.4W/Port •Port 1-8 Uzun Mesafe 250Mt POE desteği •Power Enerji Girişi AC 100-240V & 50/60Hz •Akıllı Güç Kaynağı ( Düşük Güç Tüketimi için) •Aktif olmayan portlar için Power Save Modu •Boyutlar 440*320*44mm 0212 320 4030 & bilgi@telkolink.com www.gbicmodul.com www.switchmerkezi.com www.clrnetworks.com www.netkablo.com
