Pneumatic Actuated Ball Valve

Proline Industrial Valves is one of the biggest manufacturers of high-quality Industrial Valves in wide ranges and Electrical & Pneumatic Control Type AUTOMATION Valves. We are one of the leading valve manufacturers in India offering various kinds of valves ranging from manual valves to automatic.

22391
Download Presentation

Pneumatic Actuated Ball Valve

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

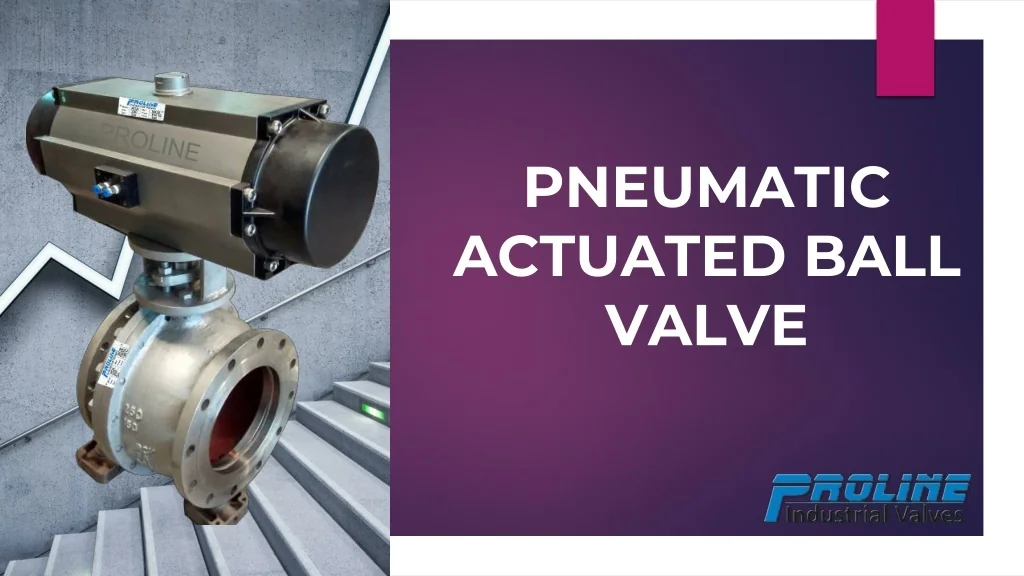

  1. PNEUMATIC ACTUATED BALL VALVE

  2. What are Ball ValvesA ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. The shut position 1/4 turn could be in either CW or CCW direction. (S = SHUT, O = OPEN)

  3. Features of our pneumatic acute ball valvePneumatic actuator ball valves give greater flows, wider media compatibility.Ball valves has both side seals covered of internal ball, and can give tight shut off after years of cycle operation.Body extruded aluminum hard anodized for corrosion protection & wear resistance.Actuator compact modular design provides direct mounting on ball valves.Quick opening & closing, long life in working cycleactuators have high bore finished and are factory lubricated for good life cycle in normal conditions.

  4. Material Option Of Our Pneumatic Ball Valve Flow Pattern: 2 Way, 3 Way, 4 Way & 5 Way 2. Size: 15 Mm To 500 Mm – ½ “- 20” 3. Body: Wcb, Cf8, Cf8M, P.P, Upvc, Lined valves, Forged 4. Ball: Cf8, Cf8M, P.P, Upvc, Lined 5. Shaft: Aisi 304, 316, Monel 6. Seat: Rptfe, Teflon, Peek,Gft, Metal To Metal

  5. 7. Pressure Rating: Ansi 125 #, 150 #, 300 #, 600 #, 800# 8. Ends: Screwed Type, Socket Weld Type, Flanged Type, Tc End 9. Leakage: Tight Shut-Off To Class Vi 10. Manual Operation: Can Be Provided As An Additional Feature as Mor Gear Box with Clutch & De clutch arrangement. 11. Accessories: Air Lock Relay, Pneumatic To Pneumatic Valve Positioner, Electro 12.Pneumatic Valve Positioner With In Build Position transmitter optional with Indicator, Rotary Limit Switches, Proximity Switches Solenoid Valves, Air filter Regulator etc. Material Option Of Our Pneumatic Ball Valve

  6. PROLINE INDUSTRIAL VALVESManufacturer & suppliers pneumatic rotary air actuators operated ball valves. Pneumatic actuators are widely used among actuators. As these are simple in construction, have less maintenance and low cost effective in valves automation industries.Proline industrial valve pneumatic actuator is available in double acting type or single acting type. Double acting pneumatic actuator ball valve uses air to open and air to close. Where single acting air actuator ball valves uses air pressure to open and springs to close the valve. (Failsafe) closed condition.We manufacture, supply and export in anywhere India, UAE & African Countries with fastest delivery option.

  7. Proline Industrail Valves, Valve Manufacturer IndiaProline Industrial Valves is one of the biggest manufacturer of high quality Industrial Valves in wide ranges and Electrical & Pneumatic Control Type AUTOMATION Valves. We are one of the leading valve manufacture India offering various kinds of valve ranging from manual valve to automatic.These valves are fabricated using high grade quality materials and according to the international quality standards. We offer these to our clients at competitive prices in the industry.

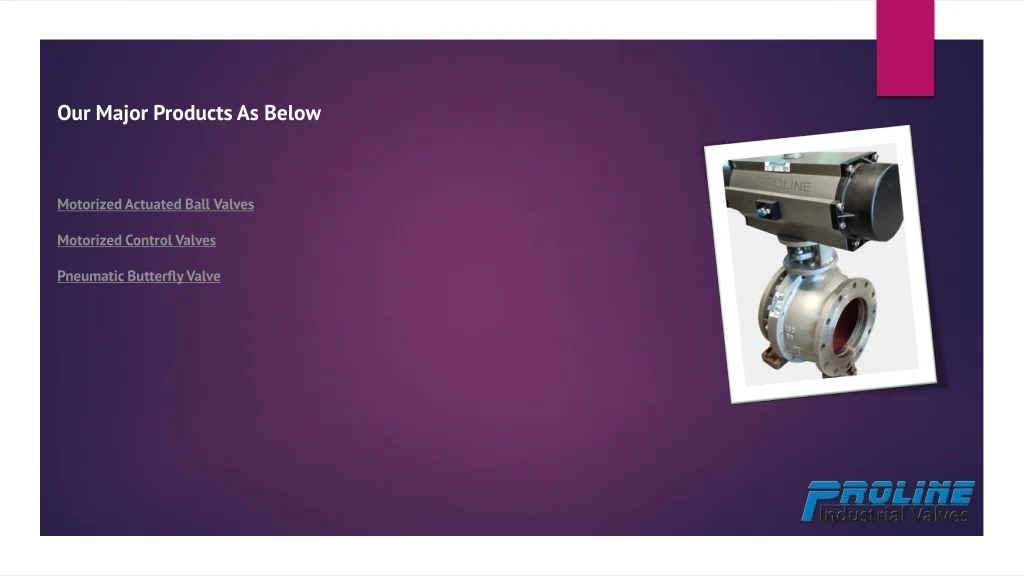

  8. Motorized Actuated Ball Valves Motorized Control Valves Pneumatic Butterfly Valve Our Major Products As Below

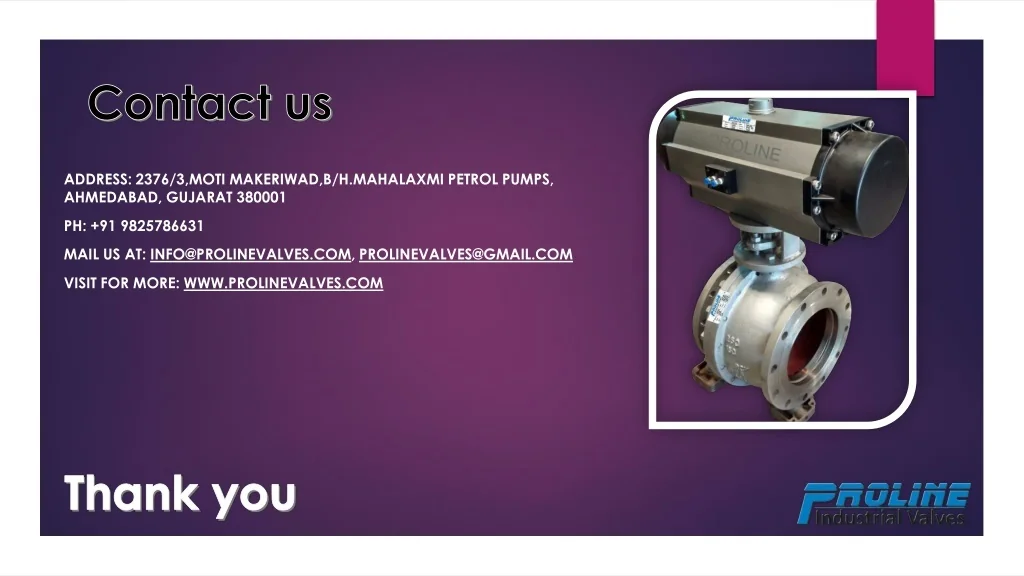

  9. Contact us Address: 2376/3,Moti Makeriwad,B/h.Mahalaxmi Petrol Pumps, Ahmedabad, Gujarat 380001 Ph: +91 9825786631 Mail us at: info@prolinevalves.COM, PROLINEVALVES@GMAIL.COM Visit for more: www.prolinevalves.com Thank you
