labtron equipment.

Portable Explosives Drug Detector LEPD-A10u00a0uses IMS (Ion Mobility Spectrometry) technology to detect explosives at a trace stage. It detects explosives at the nanogram stage in a test sample, due to its enhanced sensitivity. Black Powder, Ammonium Nitrate (AN), TNT, PETN, RDX, nitro-glycerine, Octo, Tetra, Dinitrotoluene (DNT), C4, Semtex, TATP, and other explosives can all be detected. It is highly efficient due to features such as an audio and visual warning system, a password lock option, a touch screen display, and results displayed in a matter of seconds. it is used in research labs and industries

15709
Download Presentation

labtron equipment.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

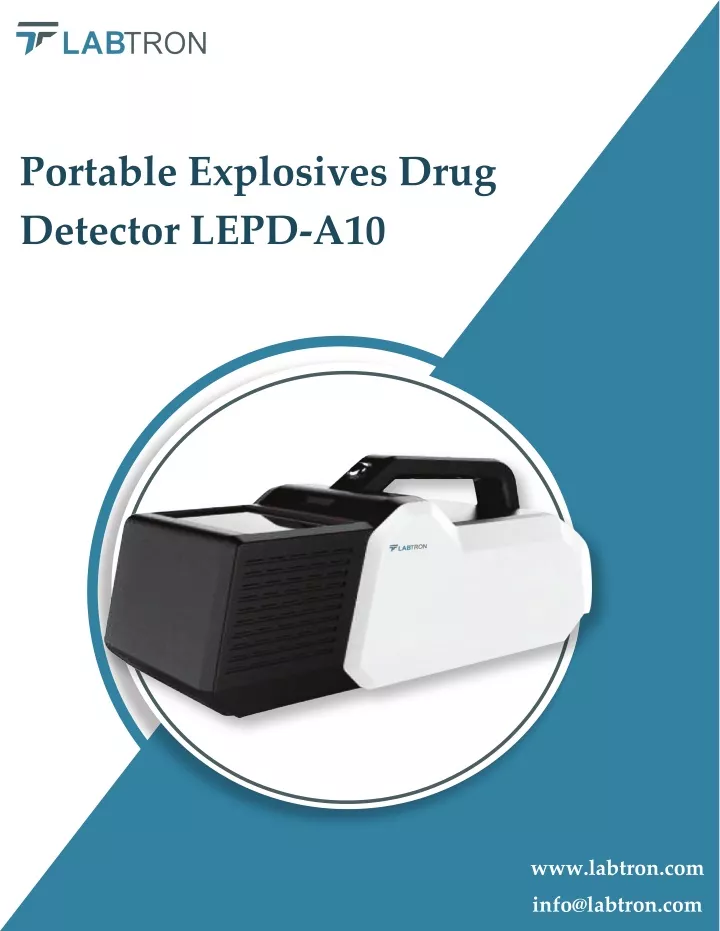

  1. Portable Explosives Drug Detector LEPD-A10 www.labtron.com info@labtron.com

  2. Portable Explosives Drug Detector LEPD-A10 Portable Explosives Drug Detector LEPD-A10 uses IMS (Ion Mobility Spectrometry) technology to detect trace level of explosives. With higher sensitivity it detects explosive present in nano- gram level in a test sample. Various explosives like Black Powder, Ammonium Nitrate (AN), TNT, PETN, RDX, nitro-glycerine, Octo, Tetra, Dinitrotoluene (DNT), C4, Semtex, TATP, etc. can be detected. Features like audio and visual alert system, password lock option, touch screen display, results displayed in few seconds etc. makes it highly efficient. It has wide applications in investigation department, research labs and industries. Features • Adopts IMS Technology • Displays location map • Detection within few seconds • Remote operation available • Option to add new samples by users • Self-diagnosis of the sample • Audio and visual alert system • 5 inch touch screen to view and pre-set parameters • Battery last up to 4 to 5 hours • Light weight, ergonomic design, user friendly interface • Handle provided for better grip Applications It is widely used in Airport, police, railways security department, research labs etc. to detect traces of explosives.

  3. Specifications Model No LEPD-A10 Black Powder, Ammonium Nitrate(AN),TNT, PETN, Detectable explosives RDX, nitro-glycerine,Octo, Tetra, Dinitrotoluene (DNT), C4, Semtex, TATP, etc. built-in diagnostics, power-on self-test Self-diagnosis function nanogram Sensitivity voice + information display Alarm mode < 5 s Analysis time ≥ 99% Detection rate ≤ 1% False positive rate < 3 kg Machine weight ≤ 10 min Warm-up time -15°C to 50°C Working environment 5 inch high-definition touch display Display screen graphic display of battery usage Battery display function > 5 hours Standby time 338 ×148 ×175 mm Product Dimension (L×W×H) 220 V AC 50-60 Hz / Lithium battery powered Power input 220 V / AC 50-60 Hz; output 16 V / DC Power adapter < 3 kg Weight
