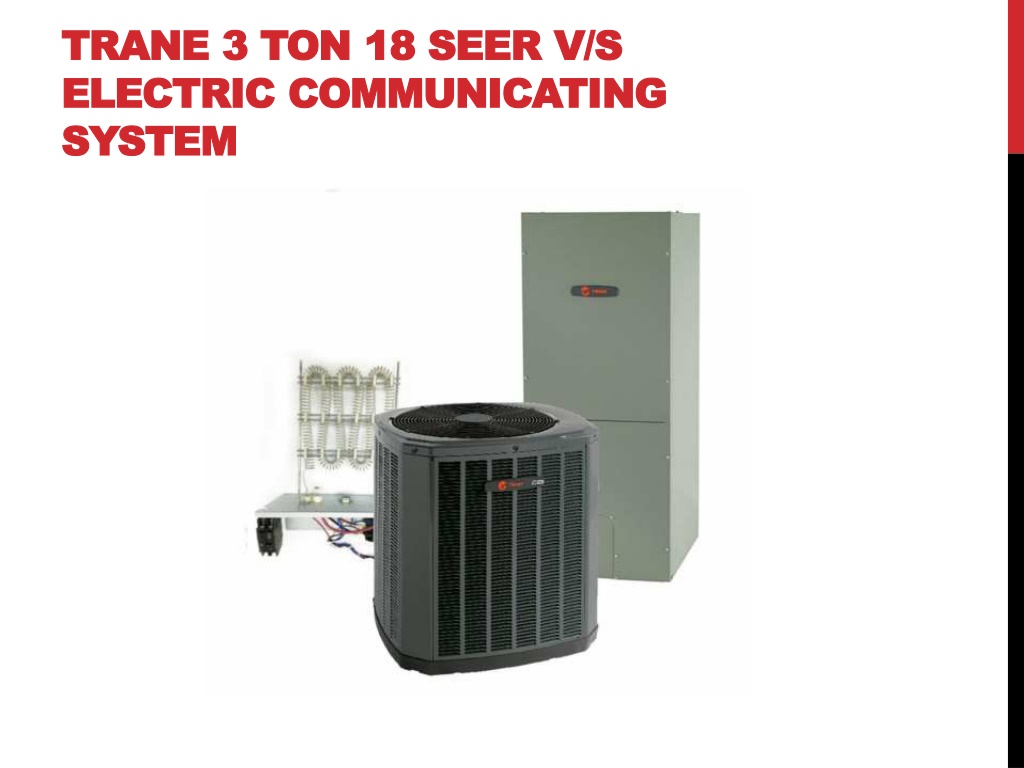

For your home heating and air conditioning system, Traneu2019s 3 Ton 18 SEER 35000 BTU Split System Variable Speed Electric Communicating System is a solid option. This variable speed (V/S) Electric Communicating system has 3 major HVAC components u2013 (1) Trane 3 Ton 18 SEER XV18 36000 BTU Variable Speed Air Conditioner Condenser 4TTV8036A1000B, (2) Trane Hyperion 3 Ton 30000 BTU Convertible Communicating Air Handler TAM9A0B30V31DA and (3) Trane 10 kW (7.2 u2013 9.6 kW) 34121 BTU Electric Heat Strip BAYEAAC10BK1BA

1100
Download Presentation

Trane Speed (V/S) Electric Communicating system

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

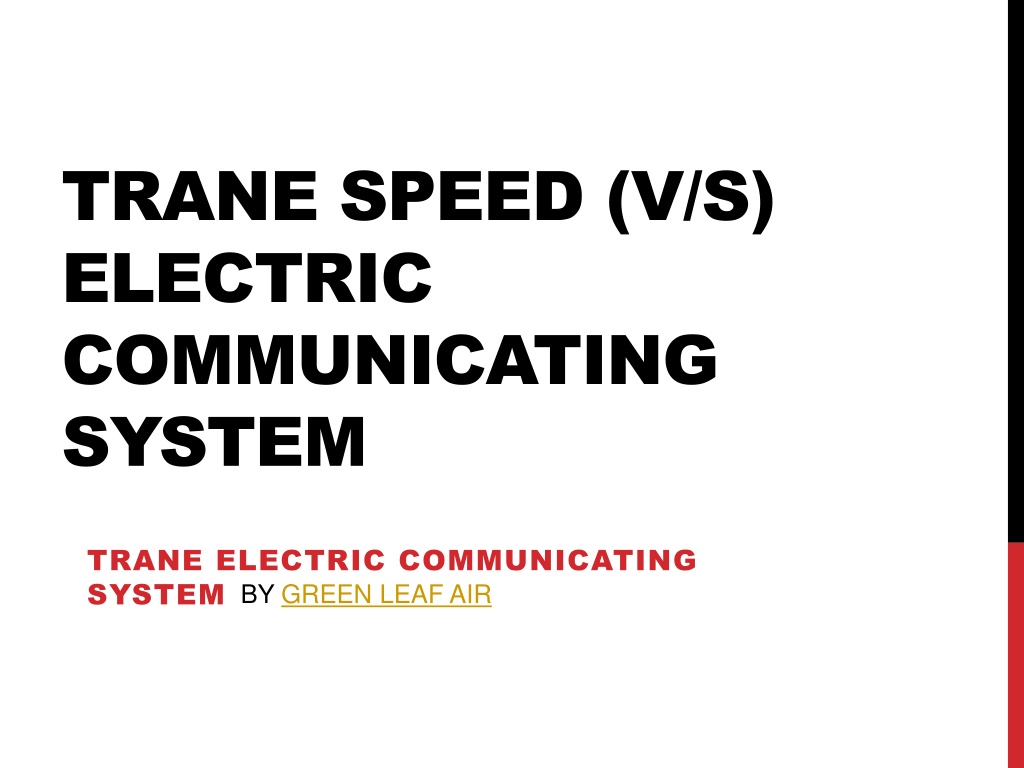

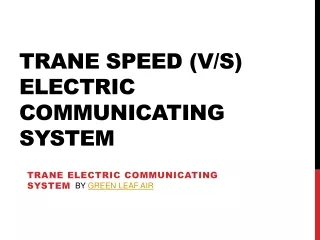

  1. TRANE SPEED (V/S) ELECTRIC COMMUNICATING SYSTEM TRANE ELECTRIC COMMUNICATING SYSTEM BY GREEN LEAF AIR

  2. TRANE 3 TON 18 SEER V/S TRANE 3 TON 18 SEER V/S ELECTRIC COMMUNICATING ELECTRIC COMMUNICATING SYSTEM SYSTEM

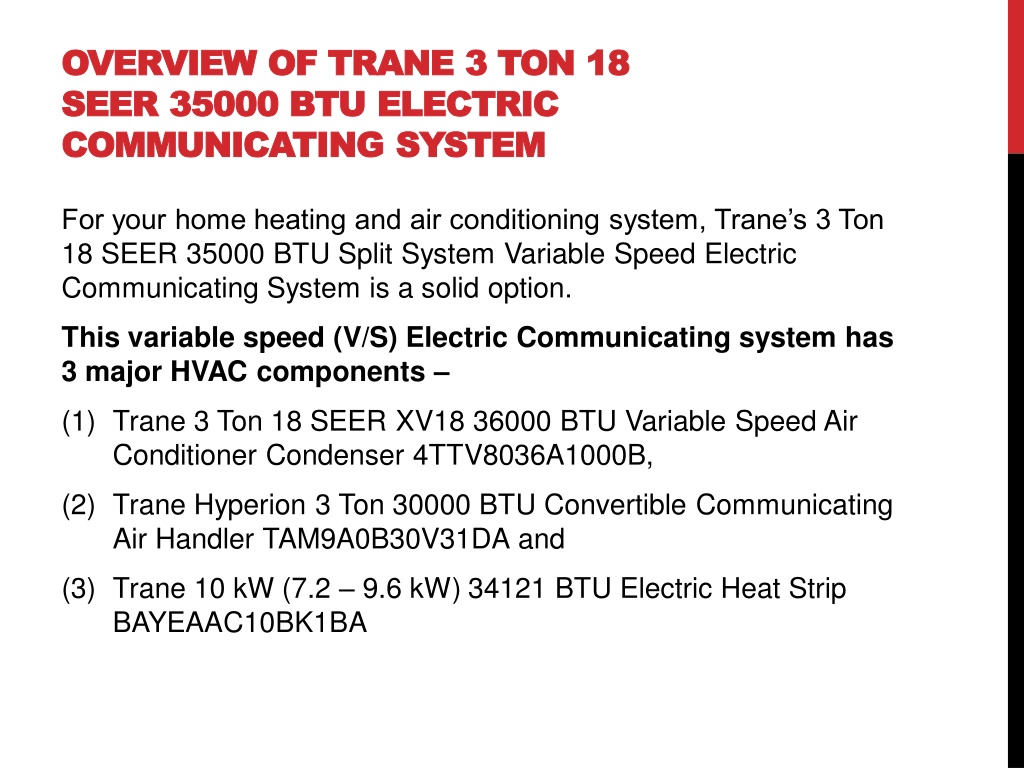

  3. OVERVIEW OF TRANE OVERVIEW OF TRANE 3 SEER SEER 35000 35000 BTU ELECTRIC BTU ELECTRIC COMMUNICATING SYSTEM COMMUNICATING SYSTEM 3 TON TON 18 18 For your home heating and air conditioning system, Trane’s 3 Ton 18 SEER 35000 BTU Split System Variable Speed Electric Communicating System is a solid option. This variable speed (V/S) Electric Communicating system has 3 major HVAC components – (1) Trane 3 Ton 18 SEER XV18 36000 BTU Variable Speed Air Conditioner Condenser 4TTV8036A1000B, (2) Trane Hyperion 3 Ton 30000 BTU Convertible Communicating Air Handler TAM9A0B30V31DA and (3) Trane 10 kW (7.2 – 9.6 kW) 34121 BTU Electric Heat Strip BAYEAAC10BK1BA

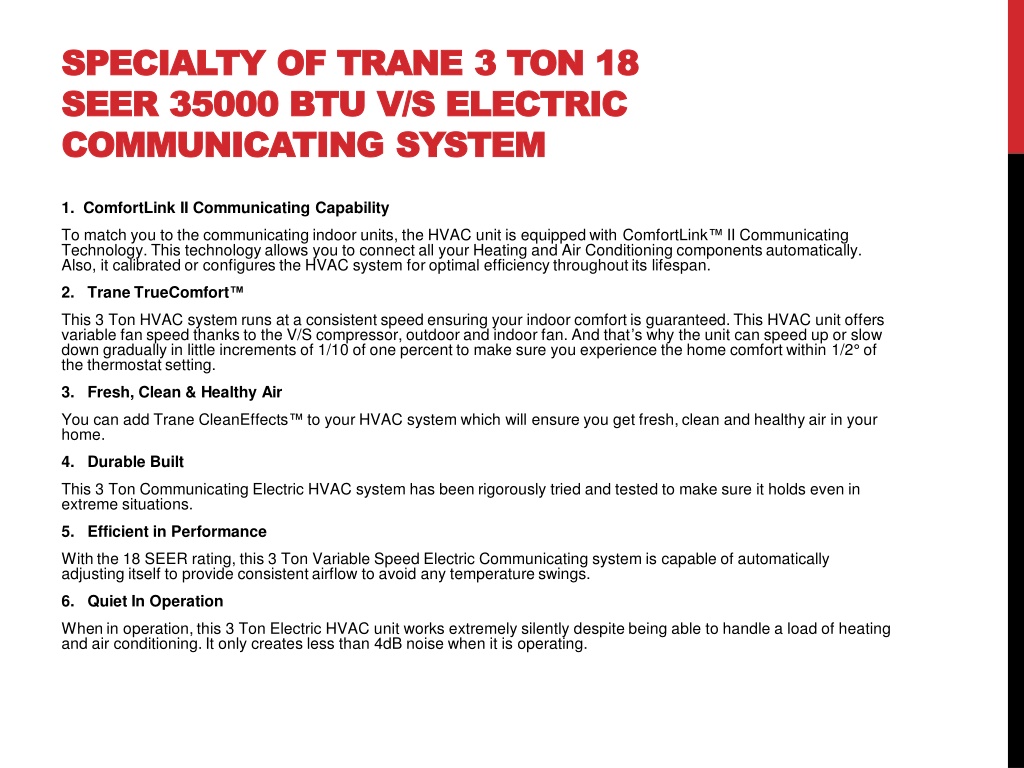

  4. SPECIALTY OF TRANE SPECIALTY OF TRANE 3 SEER SEER 35000 35000 BTU V/S ELECTRIC BTU V/S ELECTRIC COMMUNICATING SYSTEM COMMUNICATING SYSTEM 3 TON TON 18 18 1. ComfortLink II Communicating Capability To match you to the communicating indoor units, the HVAC unit is equipped with ComfortLink™ II Communicating Technology. This technology allows you to connect all your Heating and Air Conditioning components automatically. Also, it calibrated or configures the HVAC system for optimal efficiency throughout its lifespan. 2. Trane TrueComfort™ This 3 Ton HVAC system runs at a consistent speed ensuring your indoor comfort is guaranteed. This HVAC unit offers variable fan speed thanks to the V/S compressor, outdoor and indoor fan. And that’s why the unit can speed up or slow down gradually in little increments of 1/10 of one percent to make sure you experience the home comfort within 1/2° of the thermostat setting. 3. Fresh, Clean & Healthy Air You can add Trane CleanEffects™ to your HVAC system which will ensure you get fresh, clean and healthy air in your home. 4. Durable Built This 3 Ton Communicating Electric HVAC system has been rigorously tried and tested to make sure it holds even in extreme situations. 5. Efficient in Performance With the 18 SEER rating, this 3 Ton Variable Speed Electric Communicating system is capable of automatically adjusting itself to provide consistent airflow to avoid any temperature swings. 6. Quiet In Operation When in operation, this 3 Ton Electric HVAC unit works extremely silently despite being able to handle a load of heating and air conditioning. It only creates less than 4dB noise when it is operating.

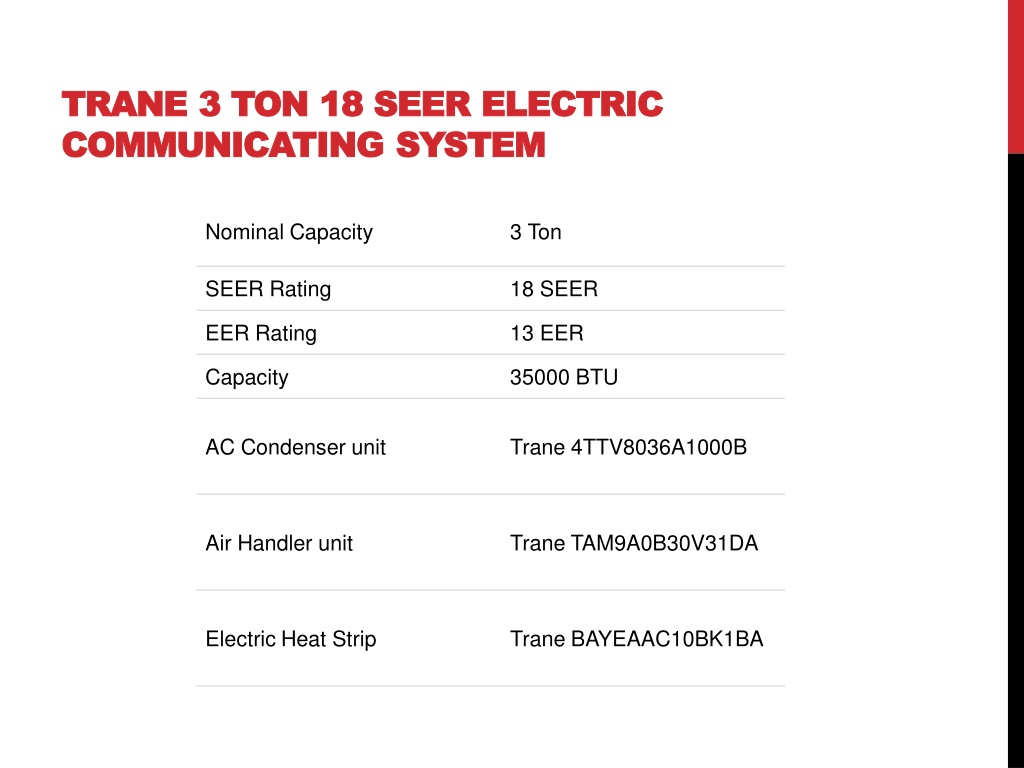

  5. TRANE 3 TON 18 SEER ELECTRIC TRANE 3 TON 18 SEER ELECTRIC COMMUNICATING SYSTEM COMMUNICATING SYSTEM Nominal Capacity 3 Ton SEER Rating 18 SEER EER Rating 13 EER Capacity 35000 BTU AC Condenser unit Trane 4TTV8036A1000B Air Handler unit Trane TAM9A0B30V31DA Electric Heat Strip Trane BAYEAAC10BK1BA

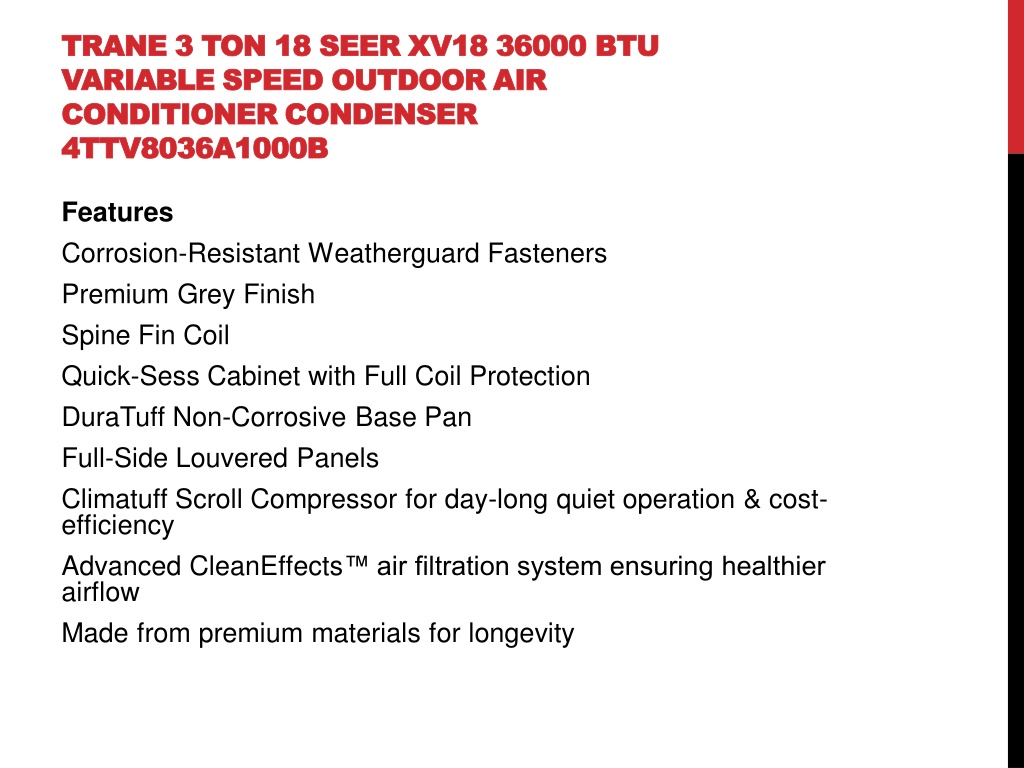

  6. TRANE TRANE 3 VARIABLE SPEED OUTDOOR AIR VARIABLE SPEED OUTDOOR AIR CONDITIONER CONDENSER CONDITIONER CONDENSER 4 4TTV TTV8036 8036A A1000 1000B B 3 TON TON 18 18 SEER XV SEER XV18 36000 18 36000 BTU BTU Features Corrosion-Resistant Weatherguard Fasteners Premium Grey Finish Spine Fin Coil Quick-Sess Cabinet with Full Coil Protection DuraTuff Non-Corrosive Base Pan Full-Side Louvered Panels Climatuff Scroll Compressor for day-long quiet operation & cost- efficiency Advanced CleanEffects™ air filtration system ensuring healthier airflow Made from premium materials for longevity

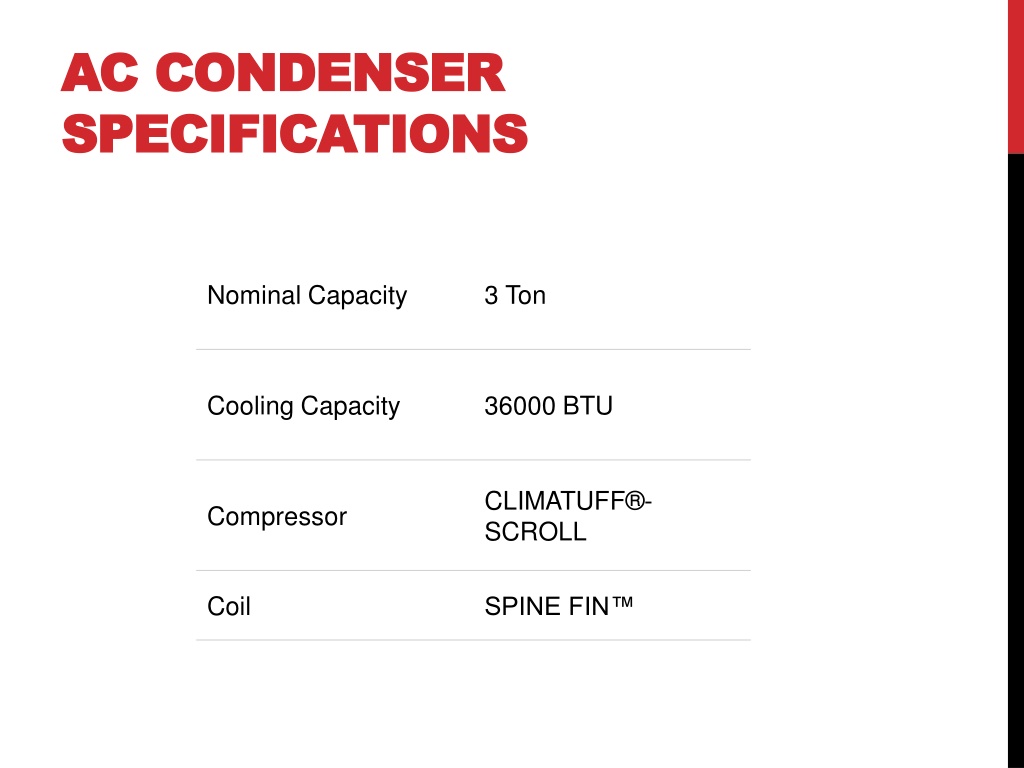

  7. AC CONDENSER AC CONDENSER SPECIFICATIONS SPECIFICATIONS Nominal Capacity 3 Ton Cooling Capacity 36000 BTU CLIMATUFF®- SCROLL Compressor Coil SPINE FIN™

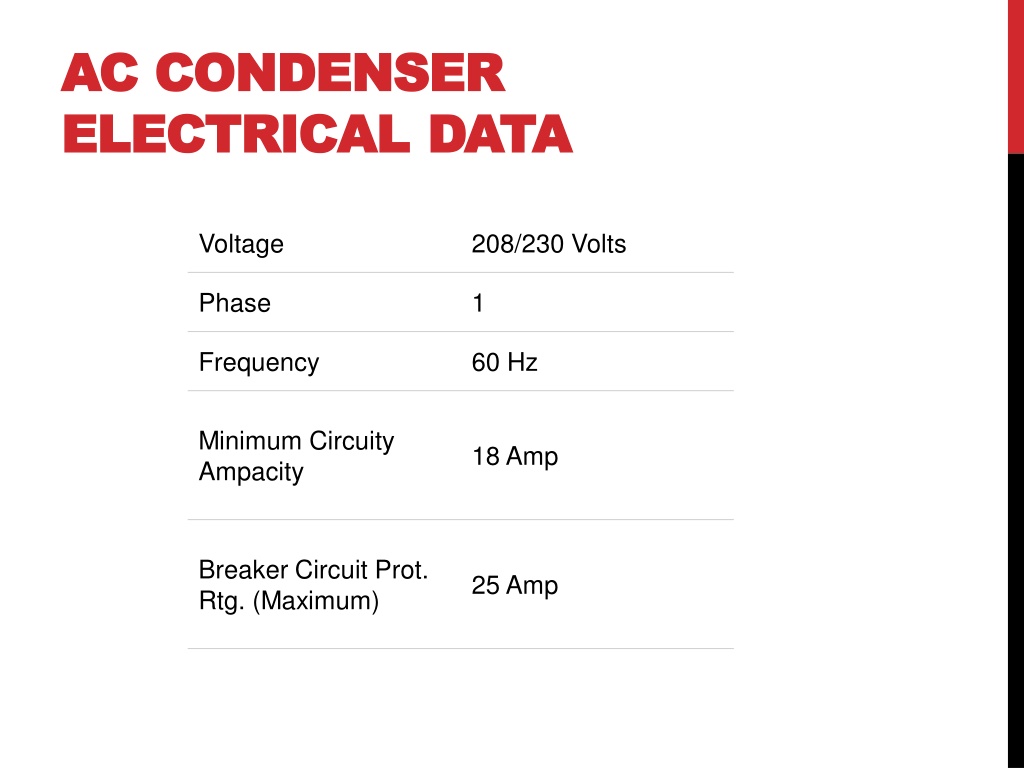

  8. AC CONDENSER AC CONDENSER ELECTRICAL DATA ELECTRICAL DATA Voltage 208/230 Volts Phase 1 Frequency 60 Hz Minimum Circuity Ampacity 18 Amp Breaker Circuit Prot. Rtg. (Maximum) 25 Amp

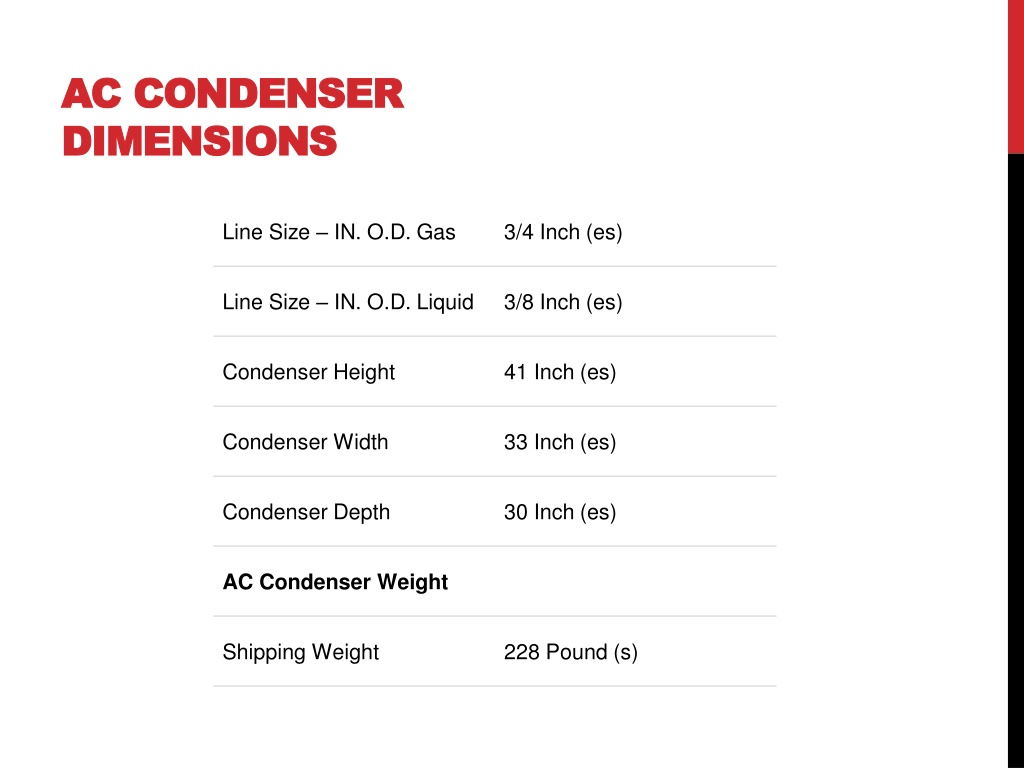

  9. AC CONDENSER AC CONDENSER DIMENSIONS DIMENSIONS Line Size – IN. O.D. Gas 3/4 Inch (es) Line Size – IN. O.D. Liquid 3/8 Inch (es) Condenser Height 41 Inch (es) Condenser Width 33 Inch (es) Condenser Depth 30 Inch (es) AC Condenser Weight Shipping Weight 228 Pound (s)

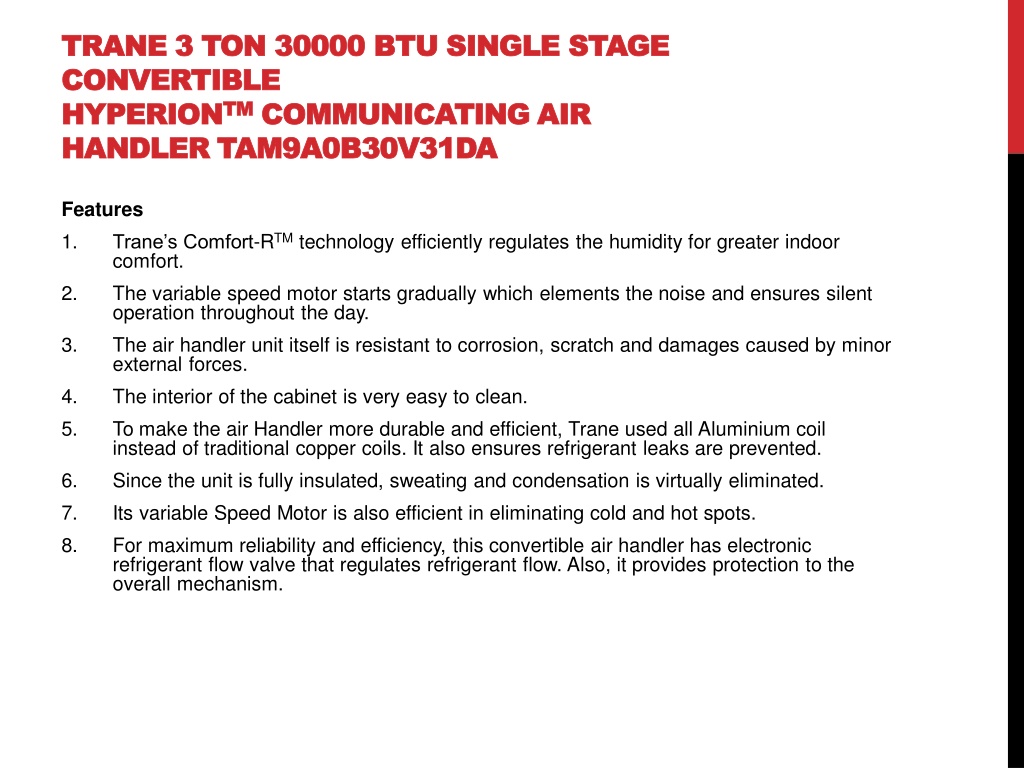

  10. TRANE TRANE 3 CONVERTIBLE CONVERTIBLE HYPERION HYPERIONTM HANDLER TAM HANDLER TAM9 9A A0 0B B30 3 TON TON 30000 30000 BTU SINGLE STAGE BTU SINGLE STAGE TMCOMMUNICATING AIR COMMUNICATING AIR 30V V31 31DA DA Features 1. Trane’s Comfort-RTMtechnology efficiently regulates the humidity for greater indoor comfort. The variable speed motor starts gradually which elements the noise and ensures silent operation throughout the day. The air handler unit itself is resistant to corrosion, scratch and damages caused by minor external forces. The interior of the cabinet is very easy to clean. To make the air Handler more durable and efficient, Trane used all Aluminium coil instead of traditional copper coils. It also ensures refrigerant leaks are prevented. Since the unit is fully insulated, sweating and condensation is virtually eliminated. Its variable Speed Motor is also efficient in eliminating cold and hot spots. For maximum reliability and efficiency, this convertible air handler has electronic refrigerant flow valve that regulates refrigerant flow. Also, it provides protection to the overall mechanism. 2. 3. 4. 5. 6. 7. 8.

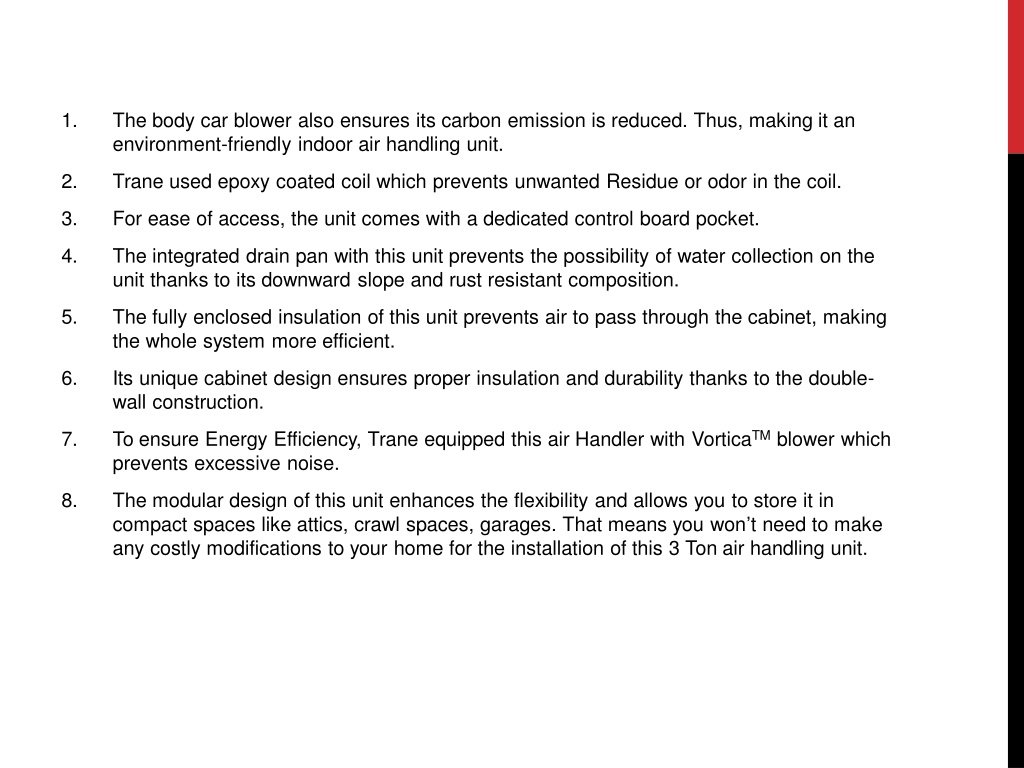

  11. 1. The body car blower also ensures its carbon emission is reduced. Thus, making it an environment-friendly indoor air handling unit. 2. Trane used epoxy coated coil which prevents unwanted Residue or odor in the coil. 3. For ease of access, the unit comes with a dedicated control board pocket. 4. The integrated drain pan with this unit prevents the possibility of water collection on the unit thanks to its downward slope and rust resistant composition. 5. The fully enclosed insulation of this unit prevents air to pass through the cabinet, making the whole system more efficient. 6. Its unique cabinet design ensures proper insulation and durability thanks to the double- wall construction. 7. To ensure Energy Efficiency, Trane equipped this air Handler with VorticaTMblower which prevents excessive noise. 8. The modular design of this unit enhances the flexibility and allows you to store it in compact spaces like attics, crawl spaces, garages. That means you won’t need to make any costly modifications to your home for the installation of this 3 Ton air handling unit.

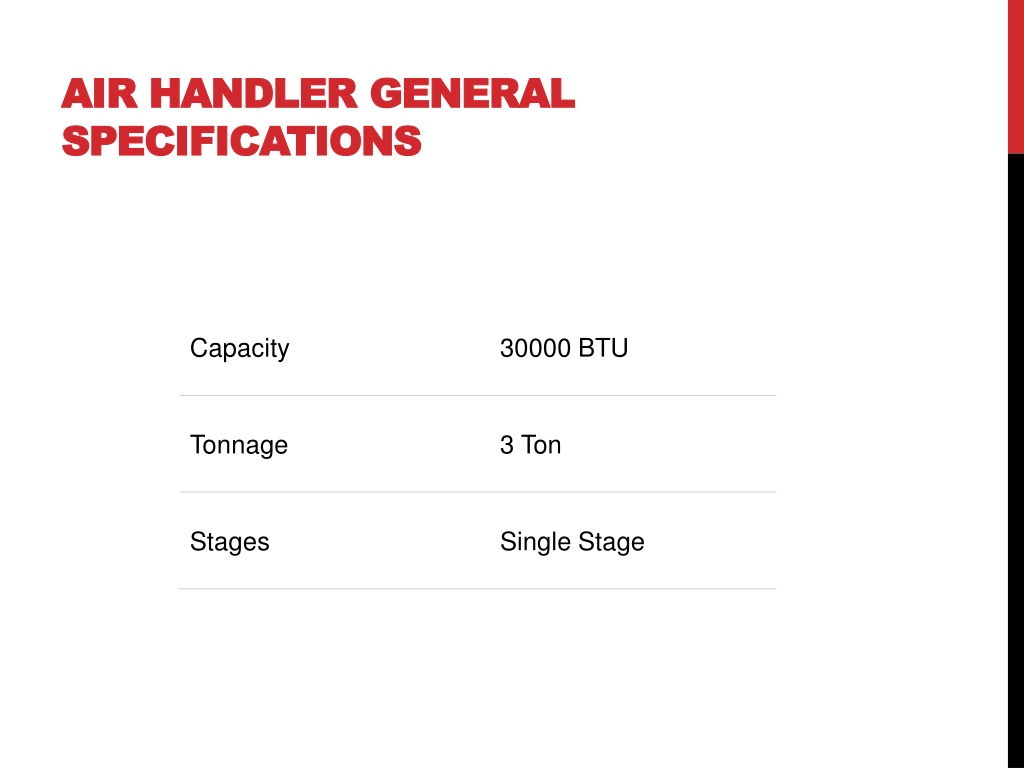

  12. AIR HANDLER GENERAL AIR HANDLER GENERAL SPECIFICATIONS SPECIFICATIONS Capacity 30000 BTU Tonnage 3 Ton Stages Single Stage

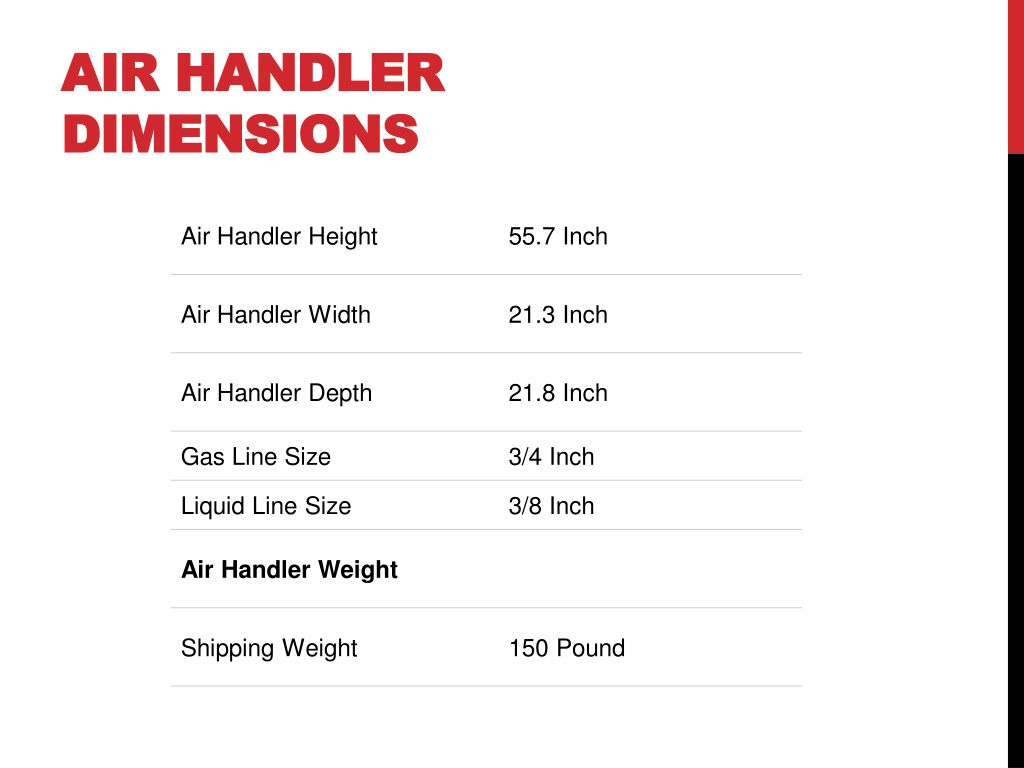

  13. AIR HANDLER AIR HANDLER DIMENSIONS DIMENSIONS Air Handler Height 55.7 Inch Air Handler Width 21.3 Inch Air Handler Depth 21.8 Inch Gas Line Size 3/4 Inch Liquid Line Size 3/8 Inch Air Handler Weight Shipping Weight 150 Pound

  14. TRANE 10 KW (7.2 KW TRANE 10 KW (7.2 KW – – 9.6 KW) 34121 BTU SINGLE PHASE HEAT 34121 BTU SINGLE PHASE HEAT STRIP BAYEAAC10BK1BA STRIP BAYEAAC10BK1BA 9.6 KW) Details of Trane 10 kW 7.2 kW – 9.6 kW ≈ 10 kW 60 Hz frequency 208 – 240 Voltage Single phase

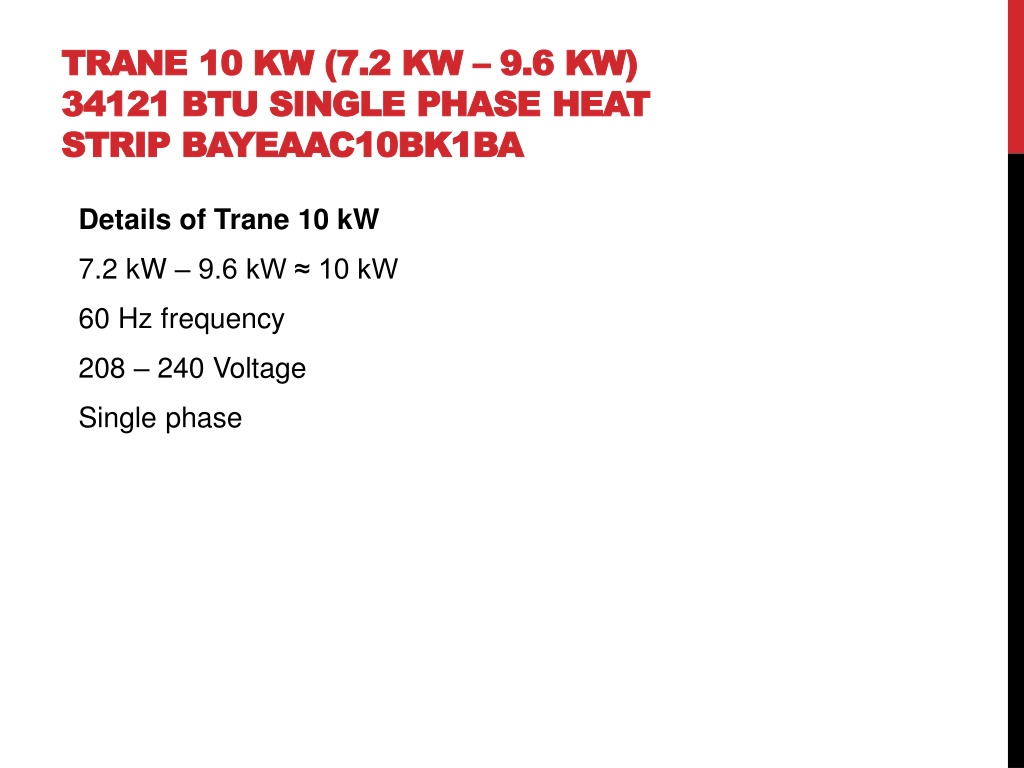

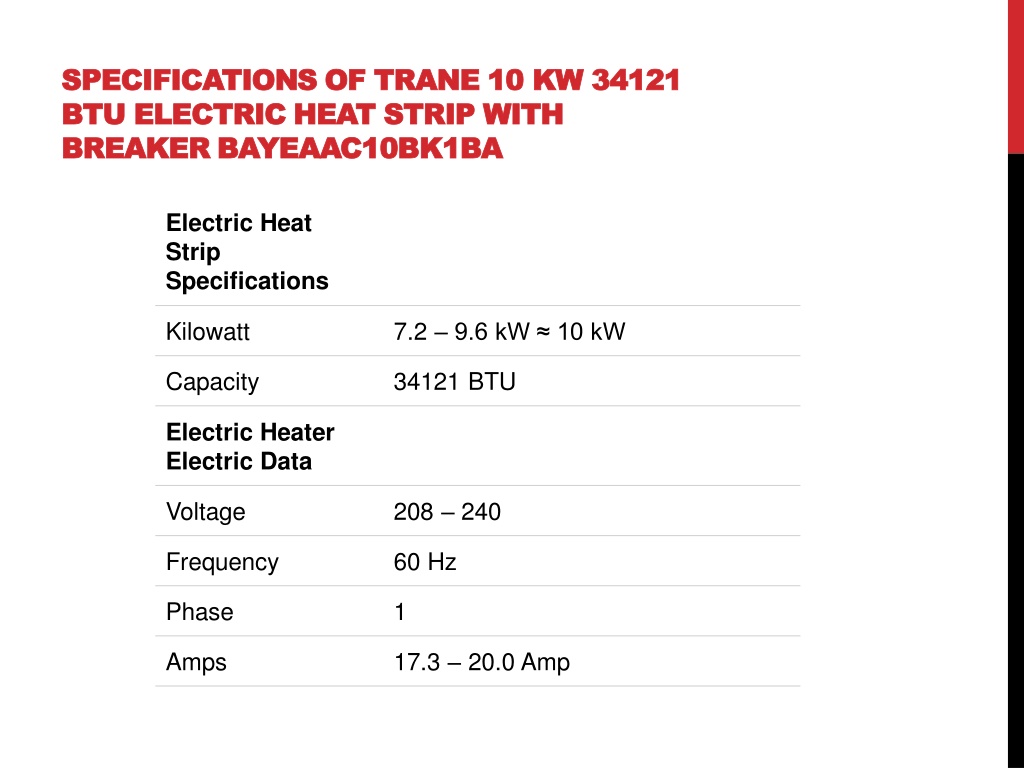

  15. SPECIFICATIONS OF TRANE 10 KW 34121 SPECIFICATIONS OF TRANE 10 KW 34121 BTU ELECTRIC HEAT STRIP WITH BTU ELECTRIC HEAT STRIP WITH BREAKER BREAKER BAYEAAC10BK1BA BAYEAAC10BK1BA Electric Heat Strip Specifications Kilowatt 7.2 – 9.6 kW ≈ 10 kW Capacity 34121 BTU Electric Heater Electric Data Voltage 208 – 240 Frequency 60 Hz Phase 1 Amps 17.3 – 20.0 Amp

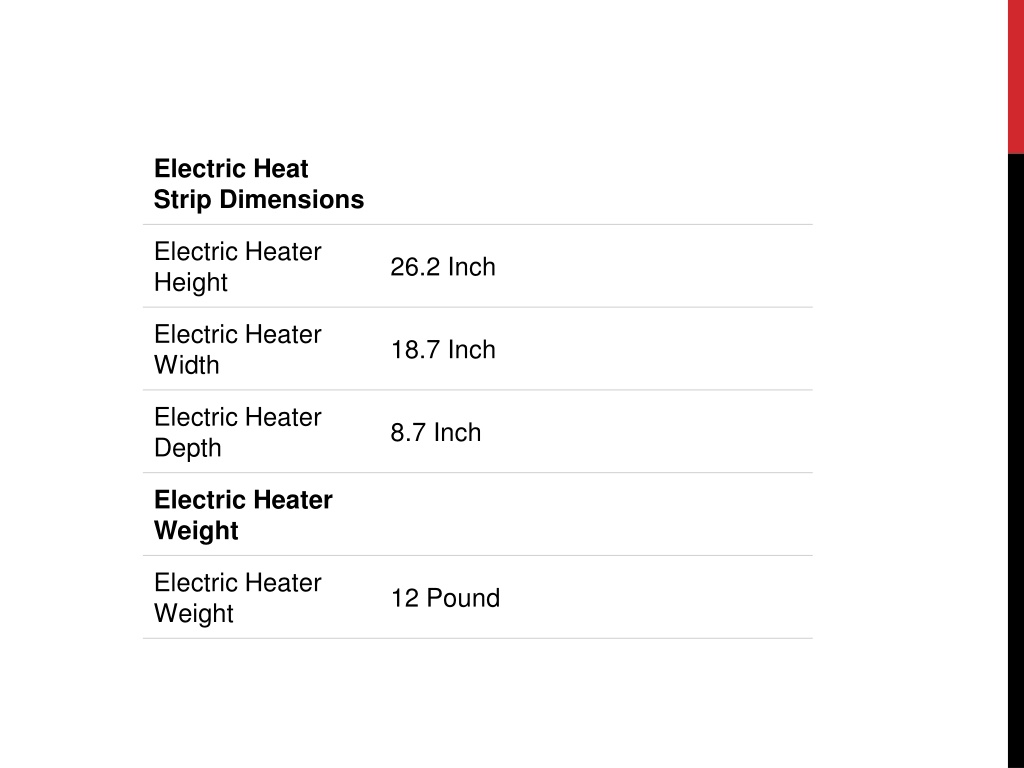

  16. Electric Heat Strip Dimensions Electric Heater Height 26.2 Inch Electric Heater Width 18.7 Inch Electric Heater Depth 8.7 Inch Electric Heater Weight Electric Heater Weight 12 Pound

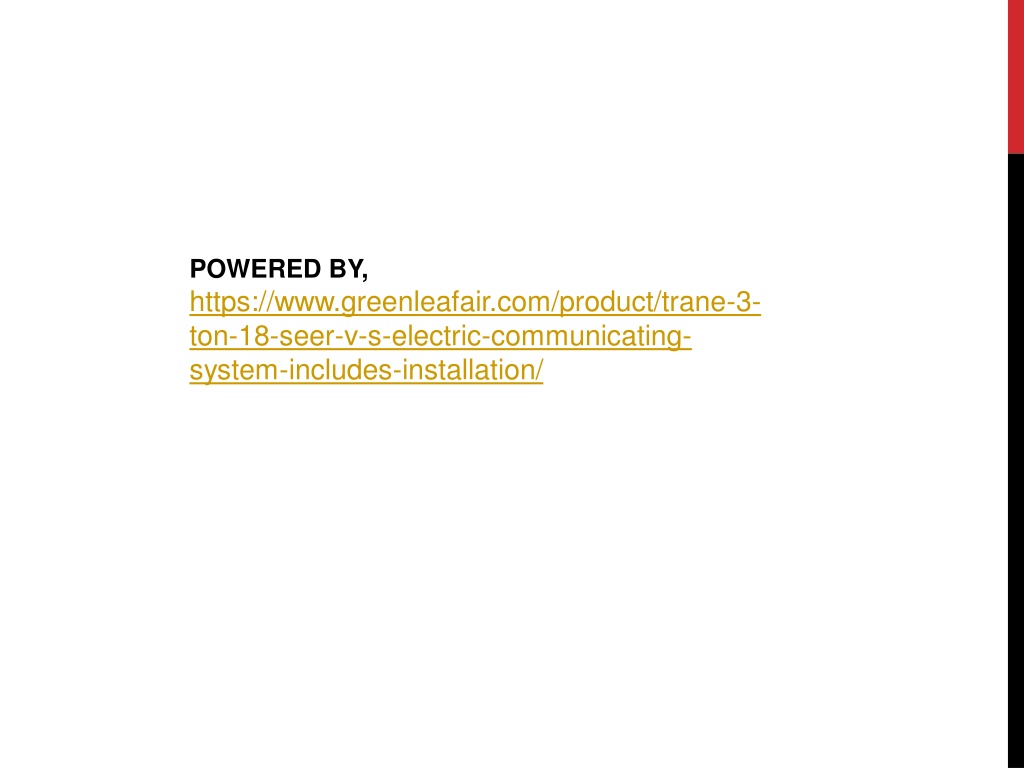

  17. POWERED BY, https://www.greenleafair.com/product/trane-3- ton-18-seer-v-s-electric-communicating- system-includes-installation/
