Ocp profiles discussion input p klapproth philips semiconductors 17 06 2004

OCP ProfilesDiscussion InputP. Klapproth Philips Semiconductors17.06.2004


Address mapped block data flow profile

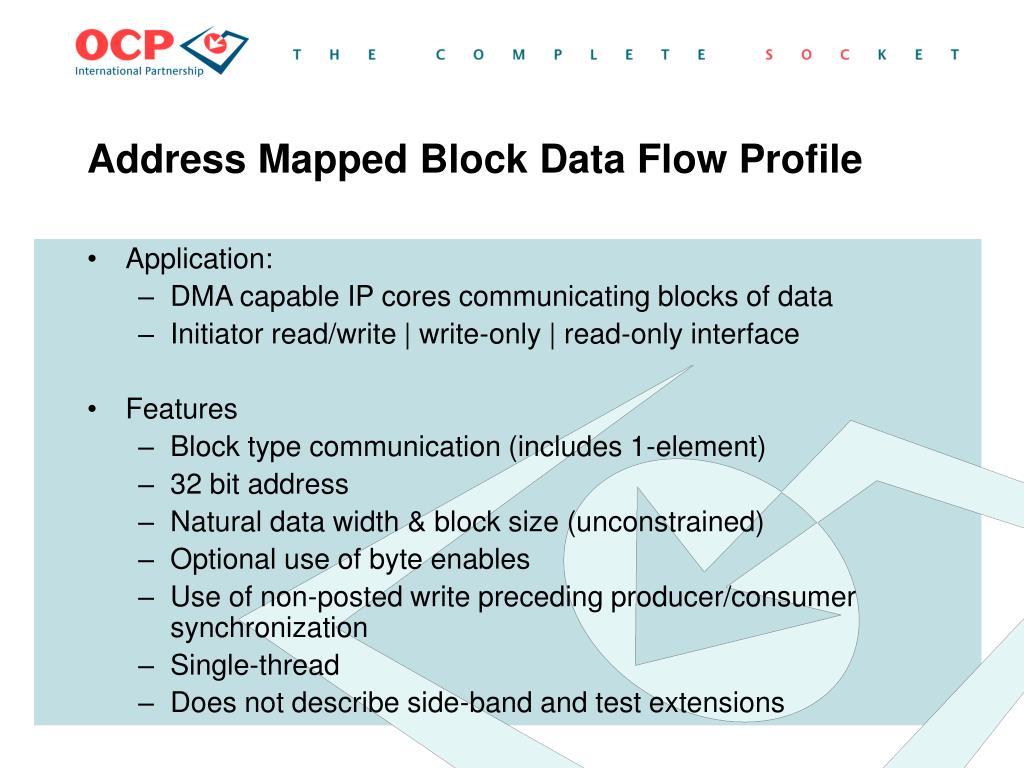

Address Mapped Block Data Flow Profile

  • Application:

    • DMA capable IP cores communicating blocks of data

    • Initiator read/write | write-only | read-only interface

  • Features

    • Block type communication (includes 1-element)

    • 32 bit address

    • Natural data width & block size (unconstrained)

    • Optional use of byte enables

    • Use of non-posted write preceding producer/consumer synchronization

    • Single-thread

    • Does not describe side-band and test extensions


Addressed mapped block data flow profile
Addressed Mapped Block Data Flow Profile

MCmd,

Maddr, MBurstLength, (MByteEn)

Master

Slave

MCmd

SCmdAccept

Mdata, (MDataByteEn)

MDataValid

SDataAccept

SData, SResp

SResp

MRespAccept

MCmd ={ Idle | Write | Write NonPost | Read}

MBurstPrecise=1, MBurstSeq=1, MBurstSingleReq=1


Address mapped streaming data flow profile
Address Mapped Streaming Data Flow Profile

  • Application:

    • DMA capable IP cores communicating streams of data

    • Initiator read/write | write-only | read-only interface

  • Features

    • streaming type communication (= an undefined length sequence of data elements at consecutive addresses)

    • 32 bit address

    • Merged or separate Command/Write data flow

    • Natural data width

    • Optional use of byte enables

    • Use of non-posted write preceding producer/consumer synchronization

    • Single-thread

    • Does not describe side-band and test extensions


Addressed mapped streaming data flow profile
Addressed Mapped Streaming Data Flow Profile

MCmd,

Maddr, (MByteEn)

Master

Slave

MCmd

SCmdAccept

Mdata, (MDataByteEn)

MDataValid

SDataAccept

SData, SResp

SResp

MRespAccept

MCmd ={ Idle | Write | Write NonPost | Read}


Peer to peer streaming data flow profile

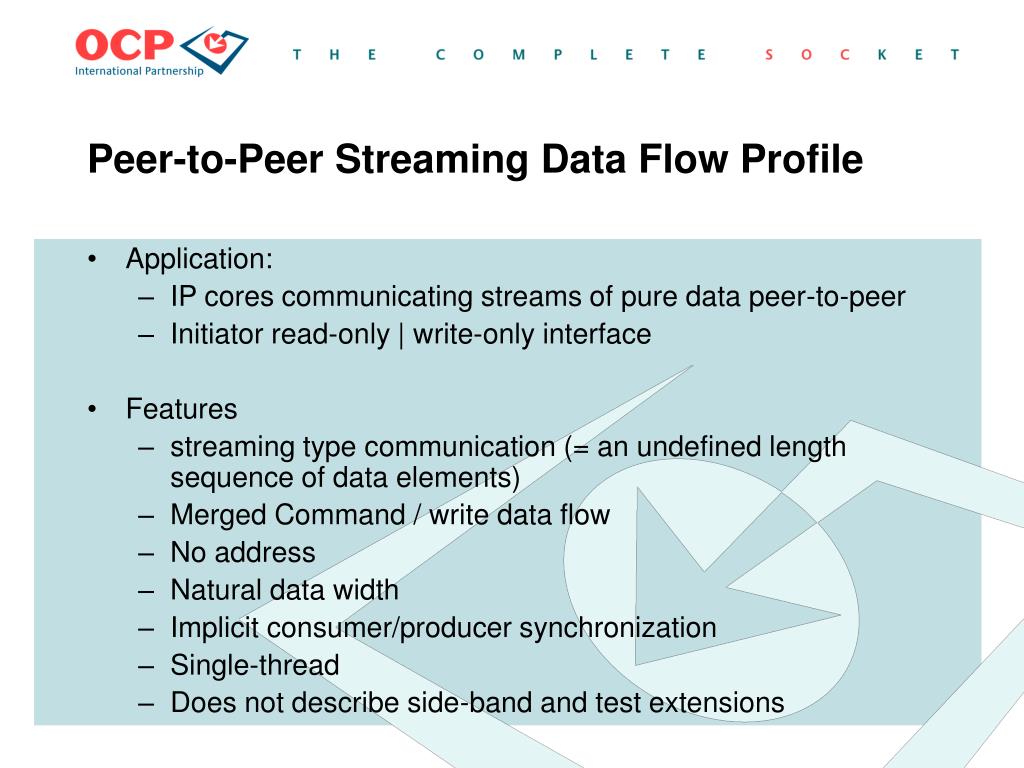

Peer-to-Peer Streaming Data Flow Profile

  • Application:

    • IP cores communicating streams of pure data peer-to-peer

    • Initiator read-only | write-only interface

  • Features

    • streaming type communication (= an undefined length sequence of data elements)

    • Merged Command / write data flow

    • No address

    • Natural data width

    • Implicit consumer/producer synchronization

    • Single-thread

    • Does not describe side-band and test extensions


Peer to peer streaming data flow profile1
Peer-to-Peer Streaming Data Flow Profile

MCmd

Master

Slave

MCmd

SCmdAccept

Mdata

SData

SResp

MRespAccept
