Cs 152b final report

CS 152b Final Report

Group 6


Background

Background

Our goal was to design and implement a functional 16-bit RISC processor using the Xilinx software. The constrains on our chip design was that it must be able to run on a Xess board and must adhere to the standards specified by our primary customer Young Cho Enterprises out of UCLA.

Group 6 staff

The R2-Yu2 processor

  • Randy Grant – Technical lead

  • Robert Johnson – VHDL master

  • Anthony (moo) Yu – Datapath guru

  • George Yu – Software designer


Instruction set architecture

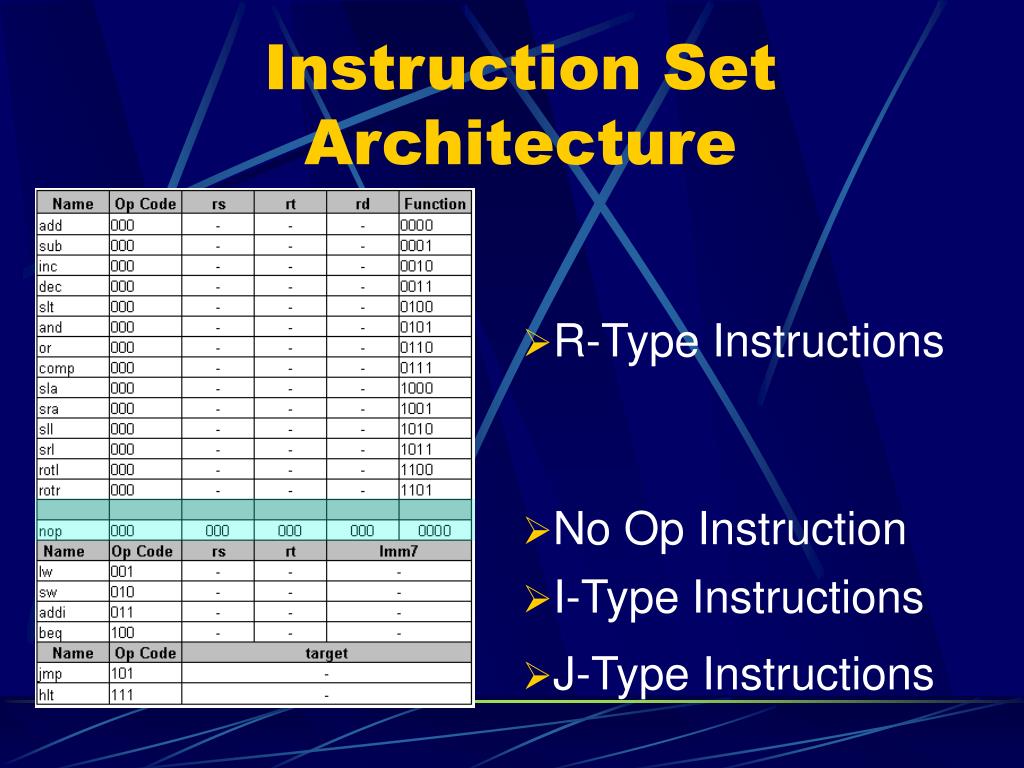

Instruction Set Architecture

  • R-Type Instructions

  • No Op Instruction

  • I-Type Instructions

  • J-Type Instructions


Pipeline

Pipeline

Instruction Read

Instruction Decode

ALU

Memory

Register Write Back


Instruction cache

Instruction Cache

  • 32 Word Direct Mapped Cache

  • Instructions are read-only, so no write-back or write-through schemes are needed

  • Multiplexor selects proper cache entry for controller

  • Implemented in structural and behavioral VHDL

  • Each cache entry has 1 bit valid flag, 11 bits tag, 16 bits data

  • Cache Controller processes hits and misses

  • Demuxliplexor sets write signal for each cache entry (Max one bit high)

  • 28 bit registers store cache entries


Instruction cache1

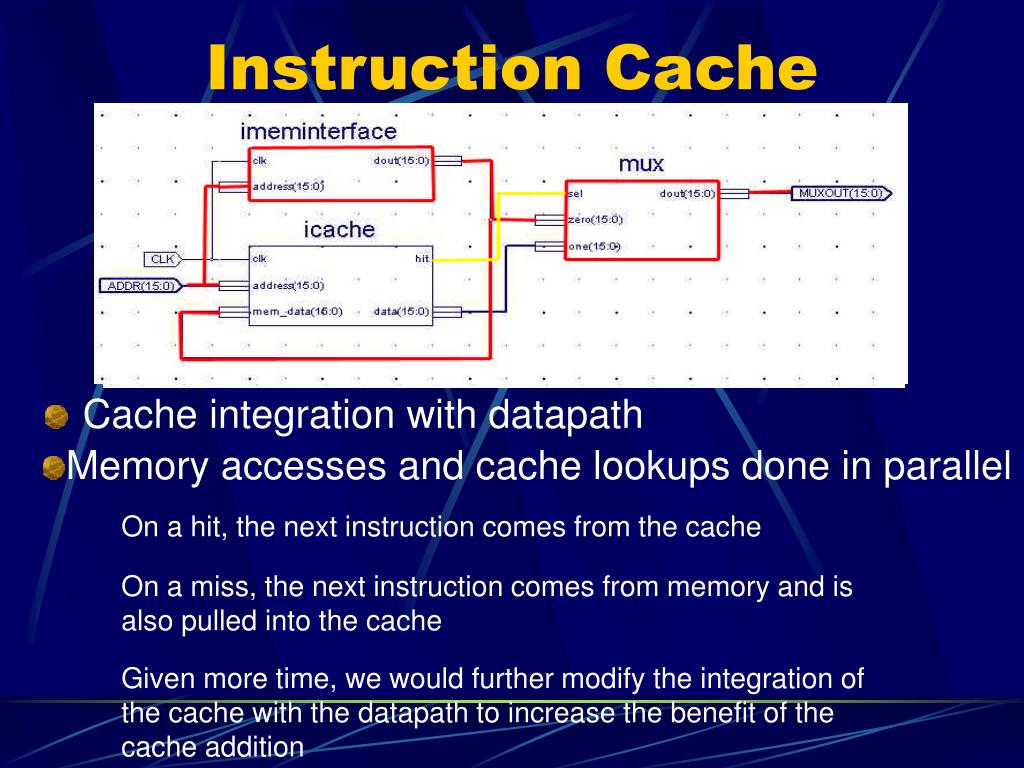

Instruction Cache

  • Cache integration with datapath

  • Memory accesses and cache lookups done in parallel

On a hit, the next instruction comes from the cache

On a miss, the next instruction comes from memory and is also pulled into the cache

Given more time, we would further modify the integration of the cache with the datapath to increase the benefit of the cache addition


Instruction cache2

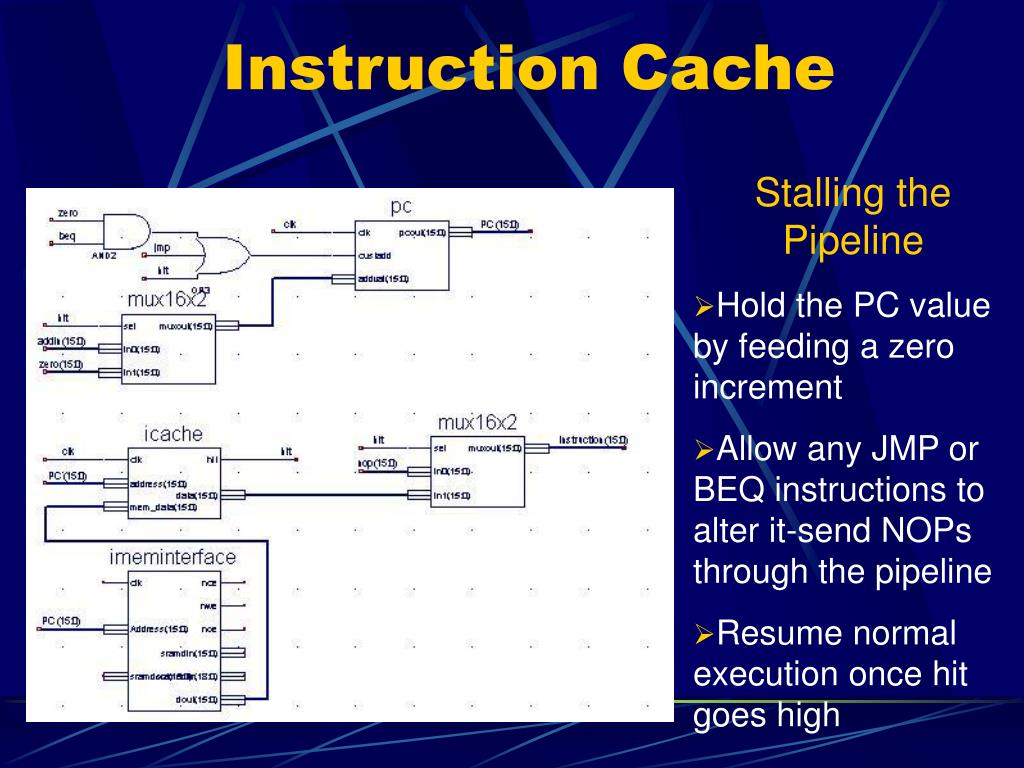

Instruction Cache

Stalling the Pipeline

  • Hold the PC value by feeding a zero increment

  • Allow any JMP or BEQ instructions to alter it-send NOPs through the pipeline

  • Resume normal execution once hit goes high


Typical compiler

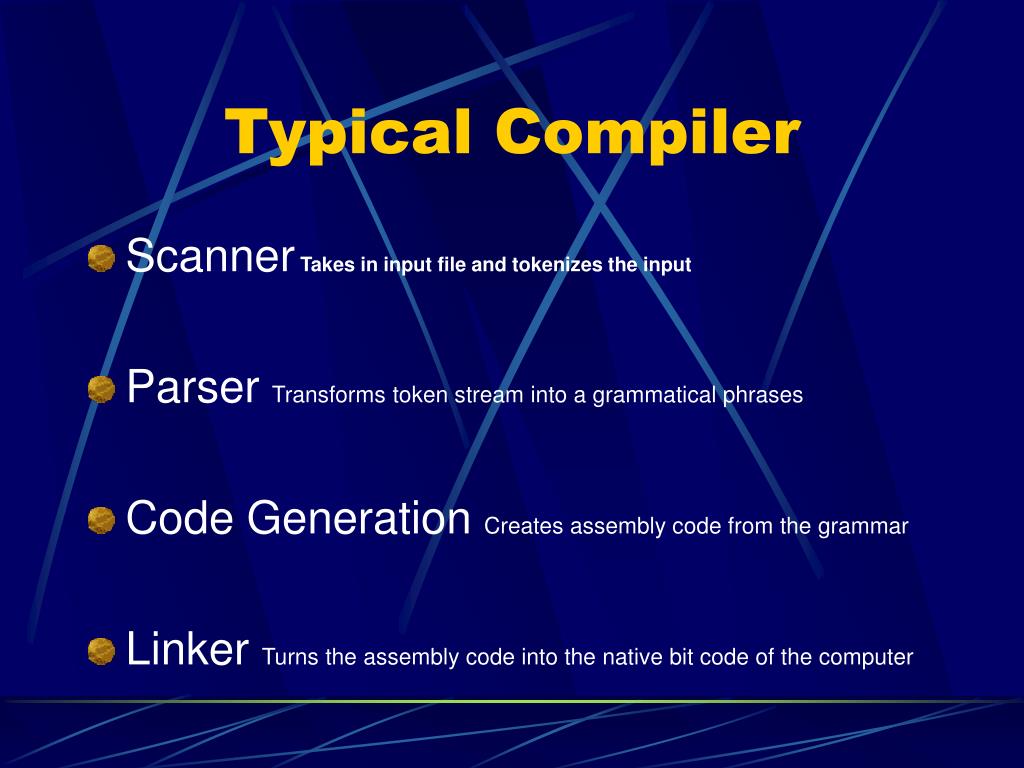

Typical Compiler

  • ScannerTakes in input file and tokenizes the input

  • Parser Transforms token stream into a grammatical phrases

  • Code Generation Creates assembly code from the grammar

  • Linker Turns the assembly code into the native bit code of the computer


Our compiler solution

Our Compiler Solution

  • Implemented a stack for embedded structures

  • Combined parsing and scanning into a single array of struct (tokenlist), which stored all the tokens


Implementing a stack

Implementing a Stack

Initial state of the memory

Push register

sw r1, 51(r0)

sw r2, 52(r0)

sw r3, 53(r0)

sw r4, 54(r0)

sw r5, 55(r0)

sw r6, 56(r0)

sw r7, 57(r0)

Heapstart = Heapstart + 7

Pop Register

lw r7, 57(r0)

lw r6, 56(r0)

lw r5, 55(r0)

lw r4, 54(r0)

lw r3, 53(r0)

lw r2, 52(r0)

lw r1, 51(r0)

Heapstart = Heapstart - 7


Our compiler design

Our Compiler Design

L6: lw r7, 57(r0)

lw r6, 56(r0)

lw r5, 55(r0)

lw r2, 52(r0)

lw r1, 51(r0)

beq r2, r1, L7

add r1, r1, r3

jmp L3

L7: hlt

lw r7, 72(r0) L5: lw r7, 65(r0)

lw r6, 71(r0) lw r6, 64(r0)

lw r5, 70(r0) lw r5, 63(r0)

lw r4, 69(r0) lw r4, 62(r0)

lw r3, 68(r0) lw r3, 61(r0)

lw r2, 67(r0) lw r2, 60(r0)

lw r1, 66(r0) lw r1, 59(r0)

beq r2, r1, L6jmp L4

add r1, r1, r3

L3: sw r1, 51(r0)

sw r2, 52(r0)

sw r3, 53(r0)

sw r4, 54(r0)

sw r5, 55(r0)

sw r6, 56(r0)

sw r7, 57(r0)

L4: sw r1, 59(r0)

sw r2, 60(r0)

sw r3, 61(r0)

sw r4, 62(r0)

sw r5, 63(r0)

sw r6, 64(r0)

sw r7, 65(r0)

sw r1, 66(r0)

sw r2, 67(r0)

sw r3, 68(r0)

sw r4, 69(r0)

sw r5, 70(r0)

sw r6, 71(r0)

sw r7, 72(r0)

lw r4, 51(r0)

add r1, r0, r4

addi r2, r0, 49

addi r3, r0, 1

lw r5, 0(r3)

lw r6, 0(r4)

slt r7, r6, r5

beq r7, r0, L5

sw r5, 50(r0)

add r5, r6, r0

sw r5, 0(r3)

lw r6, 50(r0)

sw r6, 0(r4)

addi r1, r0, 0

addi r2, r0, 48

addi r3, r0, 1


Conclusion

Conclusion

In Conclusion the Group 6 16-bit RISC Processor Meets and Exceeds Design Requirements!


References

References

  • Cache ReferenceComputer Organization & Design The Hardware/Software Interface by Patterson & Hennessy

  • VHDL Referencehttp://www.ee.ucla.edu/~young/csm152b/vhdl_comp.pdf

  • Compiler Referencehttp://cs.wisc.edu/~bodik/cs536/Notes/1.Overview.html


Thank you

Thank You

  • For viewing this presentation you qualify for Group 6’s special offer

  • For a limited time only you can get a copy of the Group 6 processor schematic for only $999.95
