Graphing Motion

Graphing Motion. You can show the motion of an object on a line graph. Time is on the X-axis (horizontal) and distance is on the Y-axis (vertical). The 2 numbers are called coordinates of the point. Moving Man: http://www.mste.uiuc.edu/Murphy/MovingMan/MovingMan.html. Graphing Constant Motion.

zora
Download Presentation

Graphing Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

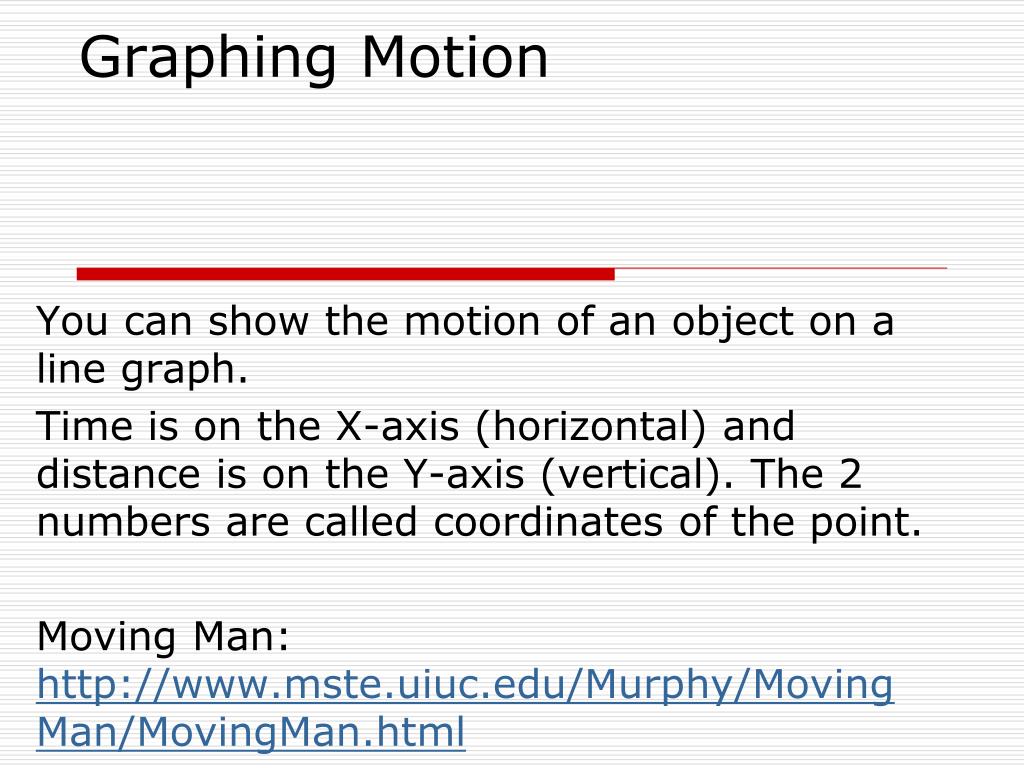

  1. Graphing Motion You can show the motion of an object on a line graph. Time is on the X-axis (horizontal) and distance is on the Y-axis (vertical). The 2 numbers are called coordinates of the point. Moving Man: http://www.mste.uiuc.edu/Murphy/MovingMan/MovingMan.html

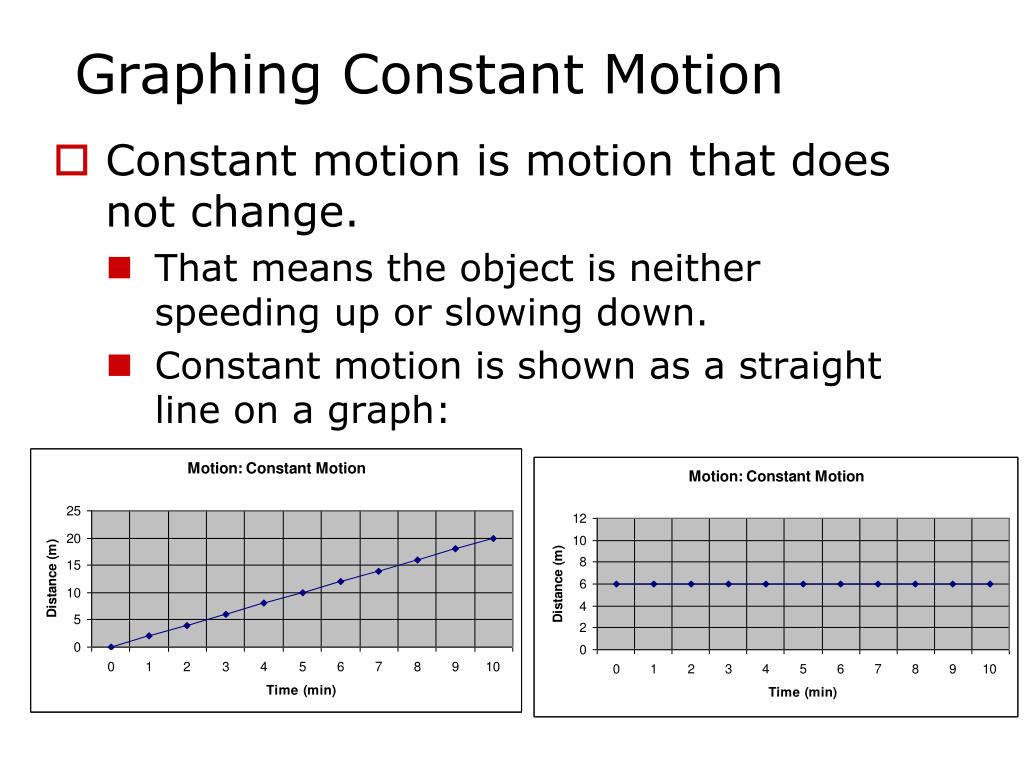

  2. Graphing Constant Motion • Constant motion is motion that does not change. • That means the object is neither speeding up or slowing down. • Constant motion is shown as a straight line on a graph:

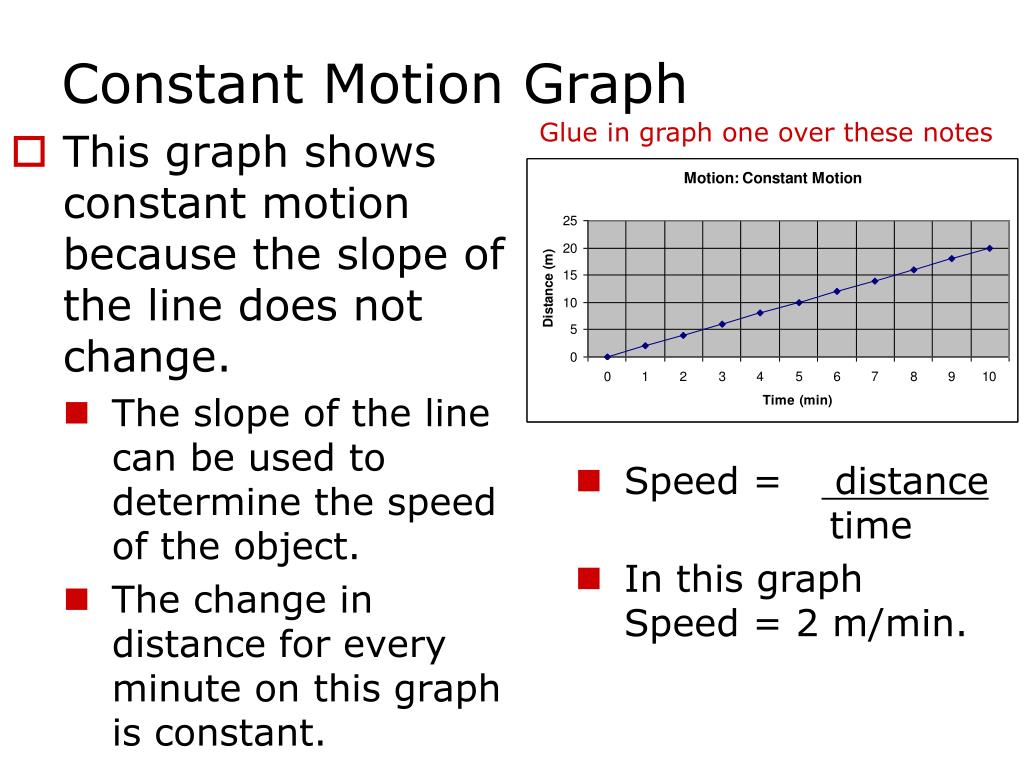

  3. Constant Motion Graph Glue in graph one over these notes • This graph shows constant motion because the slope of the line does not change. • The slope of the line can be used to determine the speed of the object. • The change in distance for every minute on this graph is constant. • Speed = distance time • In this graph Speed = 2 m/min.

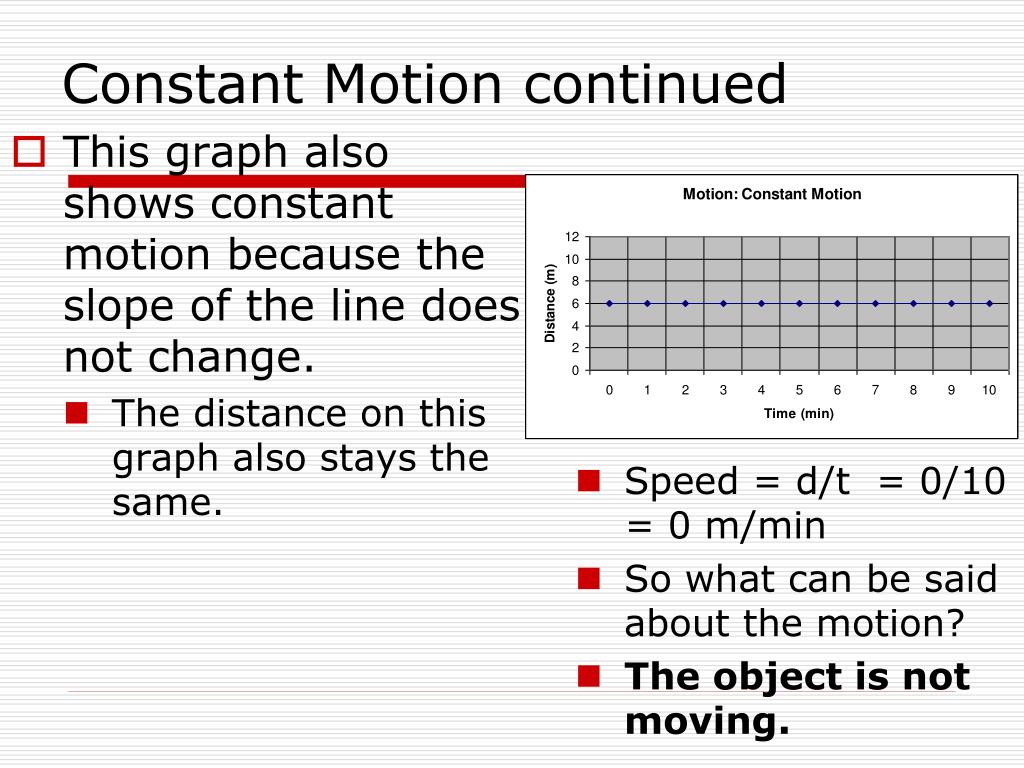

  4. Constant Motion continued • This graph also shows constant motion because the slope of the line does not change. • The distance on this graph also stays the same. • Speed = d/t = 0/10 = 0 m/min • So what can be said about the motion? • The object is not moving.

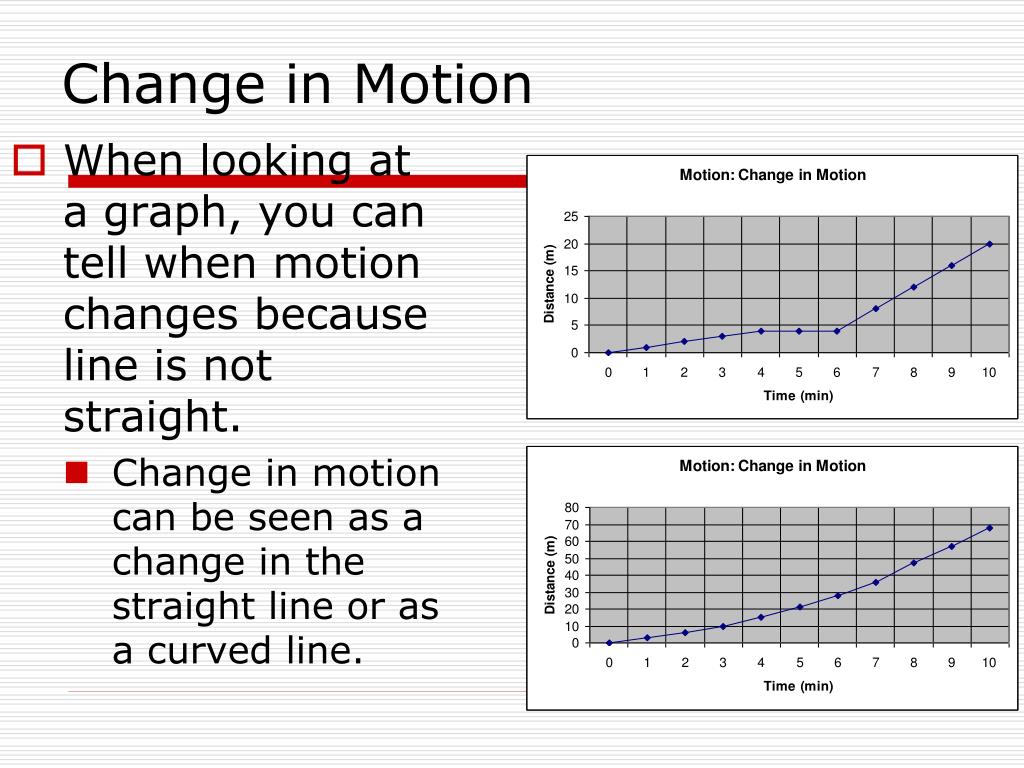

  5. Change in Motion • When looking at a graph, you can tell when motion changes because line is not straight. • Change in motion can be seen as a change in the straight line or as a curved line.

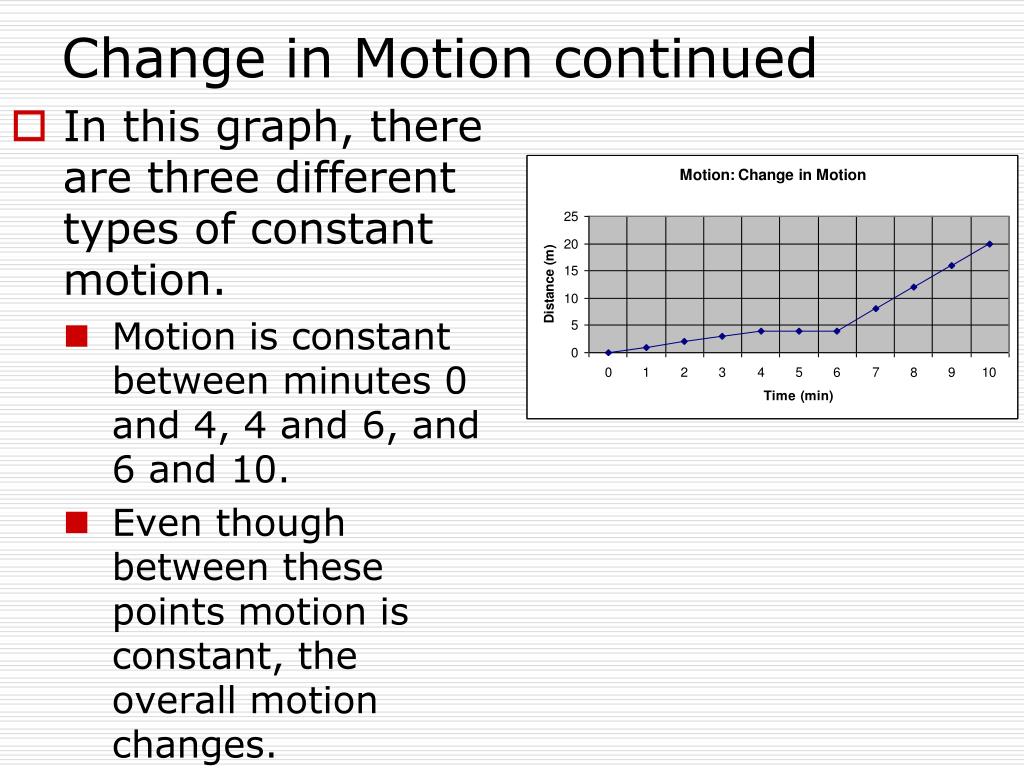

  6. Change in Motion continued • In this graph, there are three different types of constant motion. • Motion is constant between minutes 0 and 4, 4 and 6, and 6 and 10. • Even though between these points motion is constant, the overall motion changes.

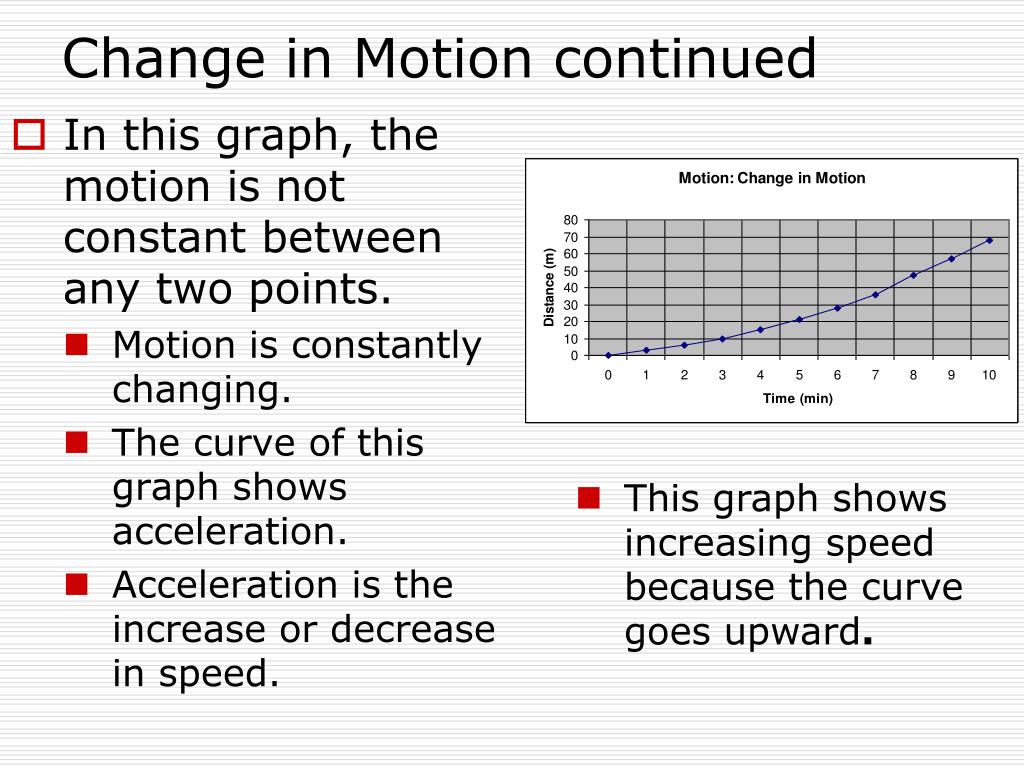

  7. Change in Motion continued • In this graph, the motion is not constant between any two points. • Motion is constantly changing. • The curve of this graph shows acceleration. • Acceleration is the increase or decrease in speed. • This graph shows increasing speed because the curve goes upward.

  8. Change in Direction • On a motion graph, you can tell when the object reverses direction because the distance from the starting point becomes less. • By looking at the slopes of the two lines, what can be said about the speed before compared to the speed after turning around? • The speed before turning around is quicker because the _______ is steeper than after turning around. Slope

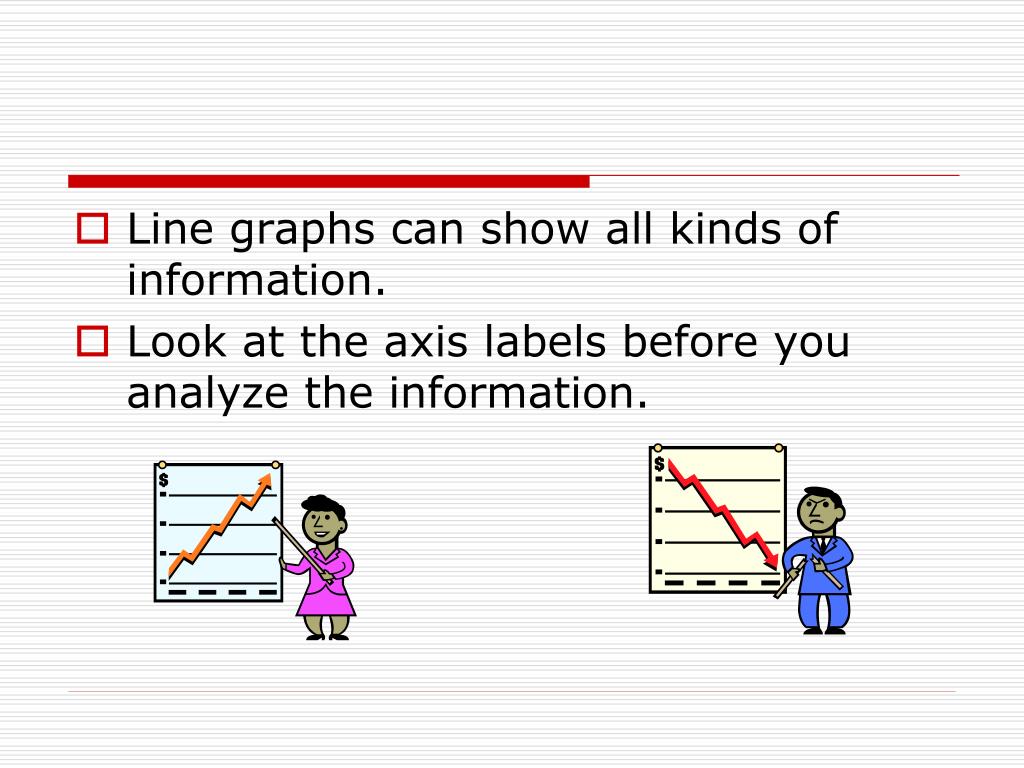

  9. Line graphs can show all kinds of information. • Look at the axis labels before you analyze the information.

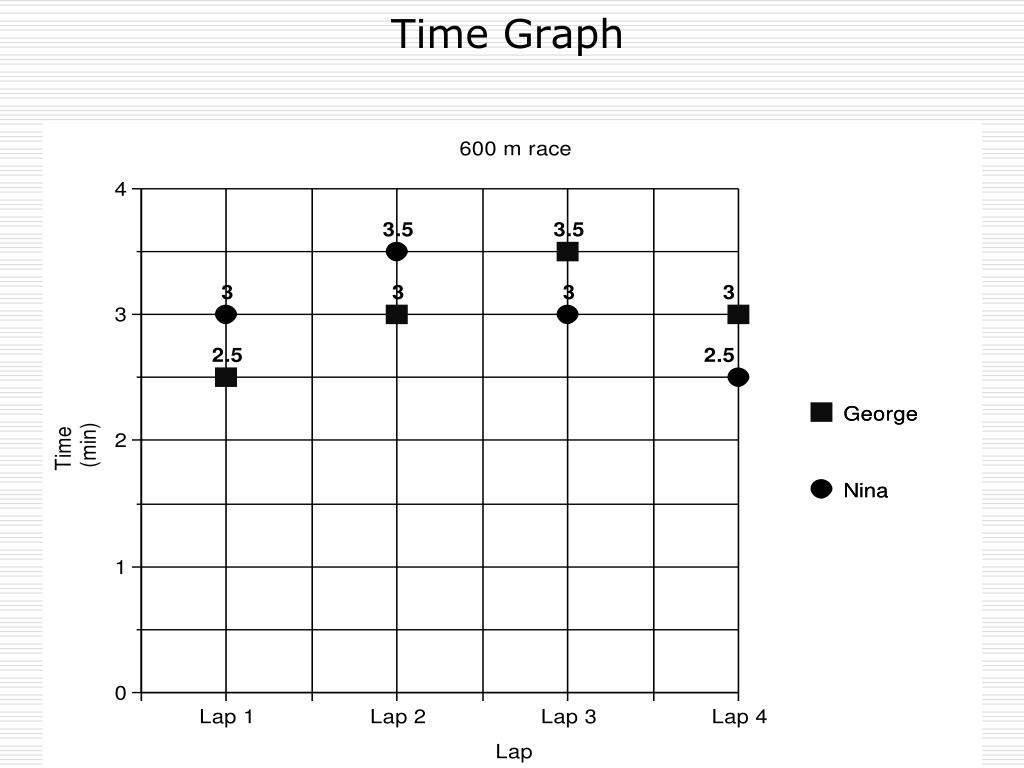

  10. Time Graph

  11. Analysis: Time Graph • This is a graph showing time for 2 runners in the 600 m race. It shows that George ran 2.5 minutes for the first lap, 3 minutes for the 2nd lap, 3.5 minutes for the 3rd lap, and 3 minutes for the 4th lap. Nina ran 3 minutes for the 1st, 3.5 for the 2nd, 3 for the 3rd, and 2.5 for the 4th. To calculate the average speed, take the total distance and divide by the total time. • George’s average speed: 50 m/min • Nina’s average speed: 50 m/min

  12. Your turn to make a graph Use the data from the “Take a Walk” lab (p.3a & b) and create a graph (on page 3c). • Be sure you put a title on the graph, • label each axis (x and y), X-axis is time and Y-axis is distance. • put in the correct scale (numbers), • put the points in the correct location (coordinates), start with your data then add the others in your group. Then add the others in the class from p.3b. • Connect the points with a straight line. Use a different color for each student. • Answer these questions: • Where is the independent variable? • Where is the dependent variable? • Analyze the graph.
