A 4 bit serial to parallel converter

A 4 bit Serial to Parallel Converter

Jason Baechler

Benjamin Liu

Forozan Amely

Trang Nguyen


Introduction

Introduction

  • Our project is to design a 4 bit serial

    to parallel data stream converter


Project specification

Project Specification

  • 25Mhz Clock

  • 50% clock duty cycle

  • Power is less than 500 mW

  • Vth = 2.5 V

  • Output Buffer drives 10pF load

  • Area is less than 40 mm^2


Schmitt trigger

Schmitt Trigger

  • Reduces the noise at the input

  • Wnf = 8 um

  • Wpf = 225 um


Schmitt trigger1

Schmitt Trigger


Schmitt trigger2

Schmitt Trigger


Schmitt trigger3

Schmitt Trigger


Clock

Clock

  • to take a serial stream at 25Mhz:

    - clock period = 40ns

    - for minimizing the skew, a fat bus was used for clock

    - Pick up 1/10 of the clk period for the Tf and Tr for 4ns


Counter waveform

Counter Waveform


Dff schematic

DFF Schematic


Dff layout

DFF Layout


Dff waveform

DFF Waveform


Shift register schematic

Shift Register Schematic


Shift register layout

Shift Register Layout


Shift register waveform

Shift Register Waveform


Buffer schematic

Buffer Schematic


Buffer test bench

Buffer Test Bench

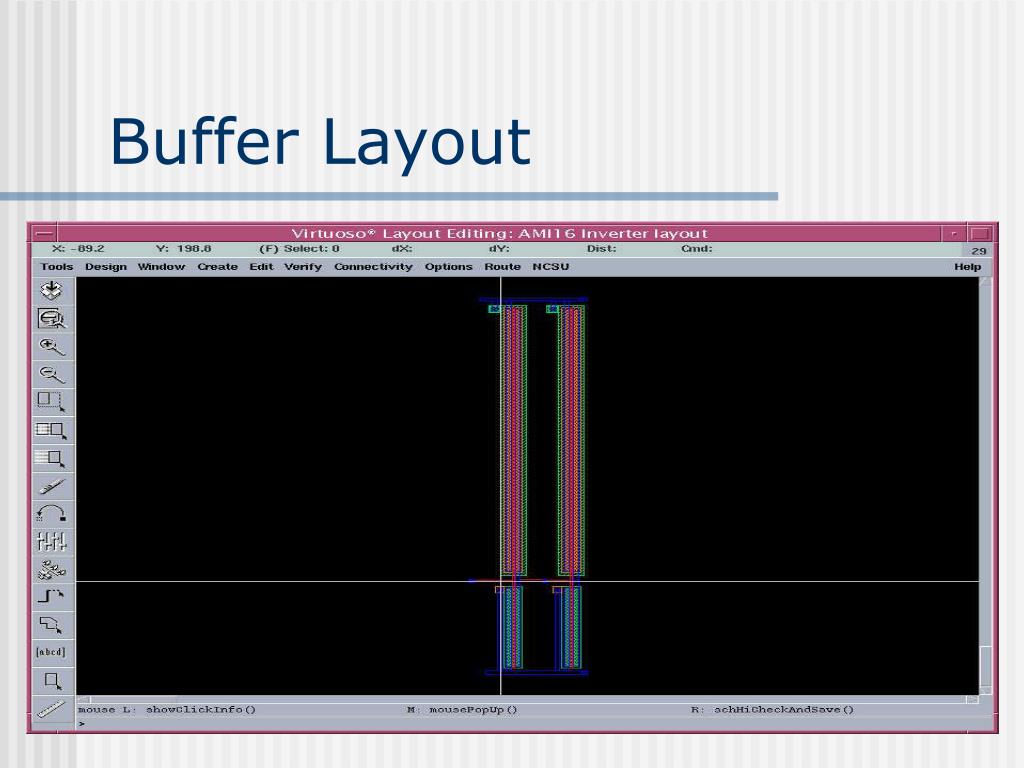

Buffer layout

Buffer Layout


Buffer waveform

Buffer Waveform
