  1. Mass Spec Sampling Device Jake Ahrens Stephen Pearson Kyle Sala Seth Yellin

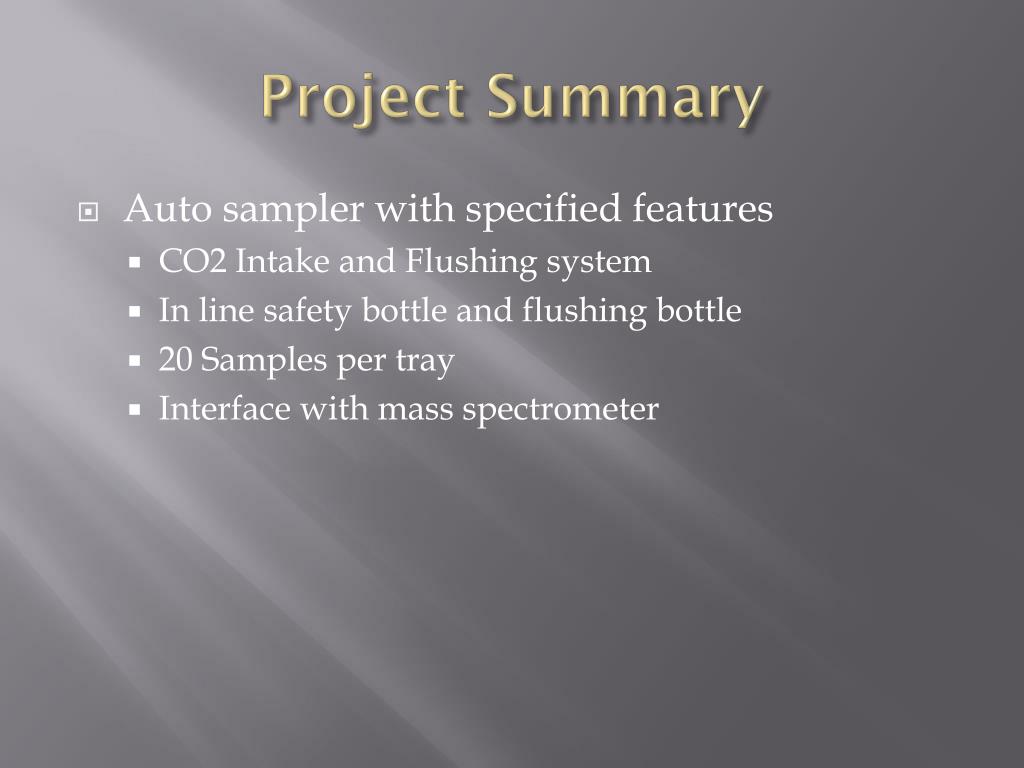

  2. Project Summary • Auto sampler with specified features • CO2 Intake and Flushing system • In line safety bottle and flushing bottle • 20 Samples per tray • Interface with mass spectrometer

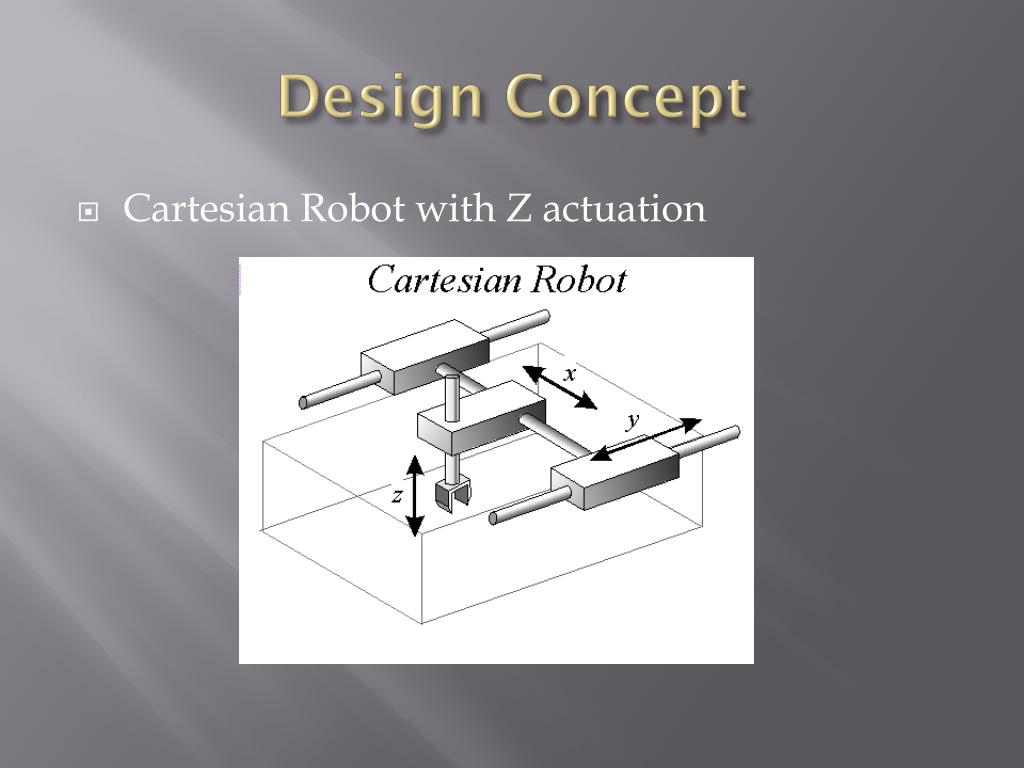

  3. Design Concept • Cartesian Robot with Z actuation

  4. Design Concept • Septa bottle tops • Fixed tray of samples

  5. Design Concept • CO2 Intake and Flushing • Inlet and Outlet Puncture Needle

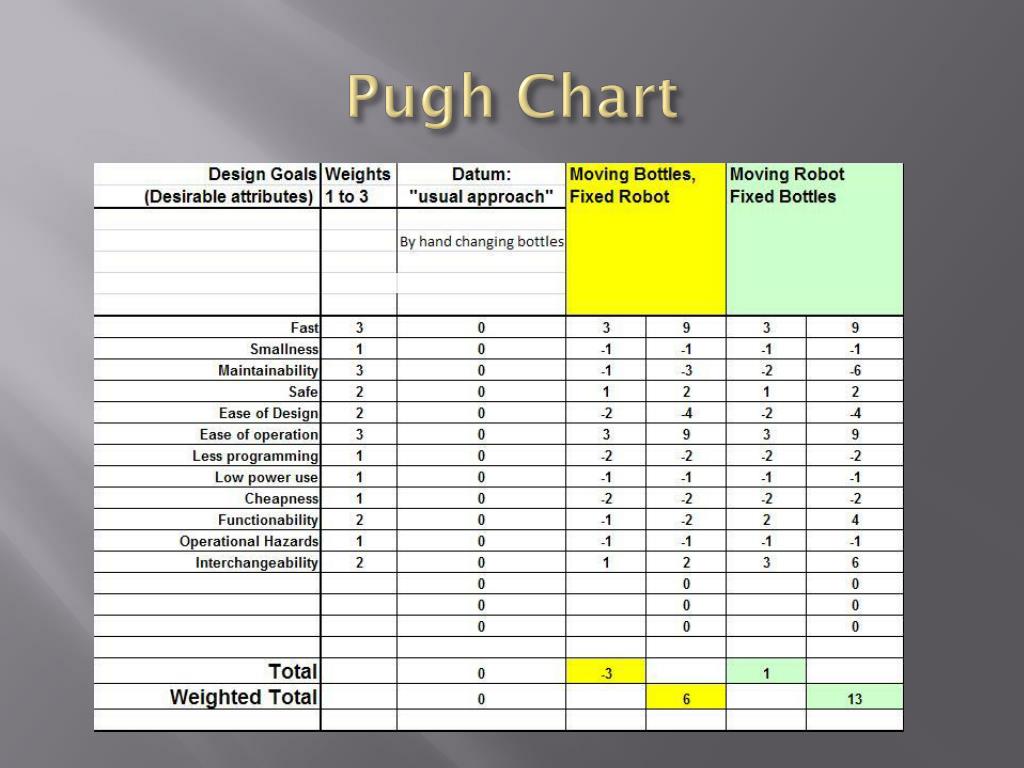

  6. Pugh Chart

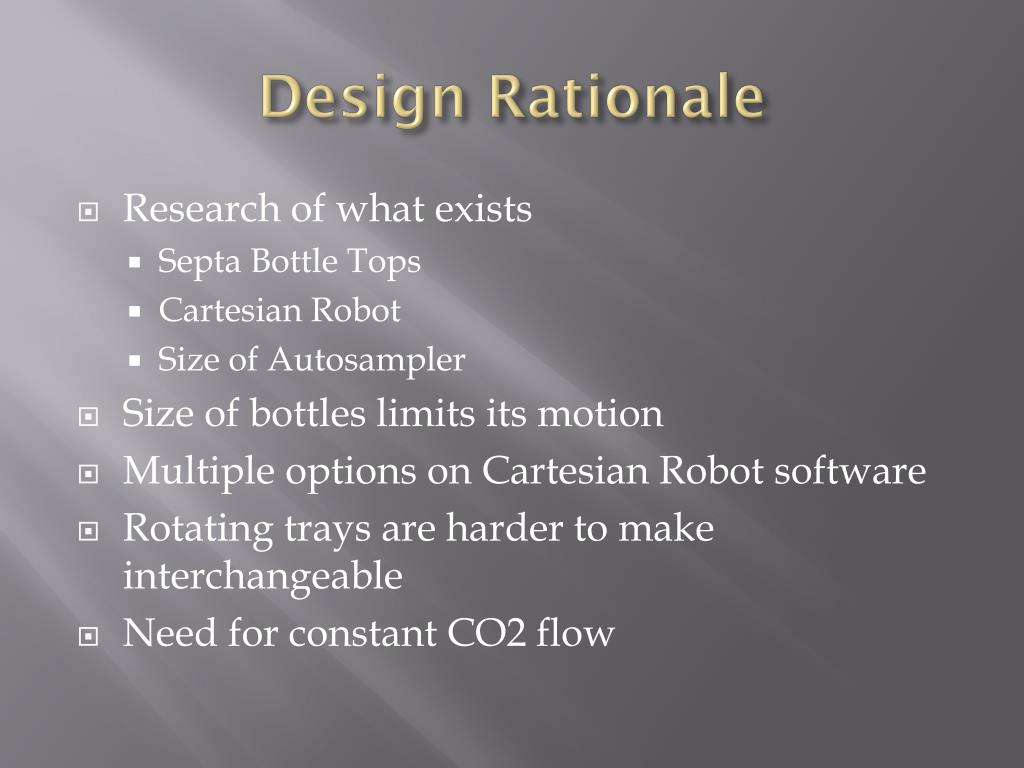

  7. Design Rationale • Research of what exists • Septa Bottle Tops • Cartesian Robot • Size of Autosampler • Size of bottles limits its motion • Multiple options on Cartesian Robot software • Rotating trays are harder to make interchangeable • Need for constant CO2 flow

  8. Discussion • Sample Cataloging • Software Integrating • Electrical Control System • CO2 System • Enclosure • Bottle Injection System • Flushing System
