  1. NEMA/NFPA/UL LVDC Conference April 8, 2011Product StandardsKen BoyceUnderwriters Laboratories Inc.

  2. LVDC standards development • DC equipment has been used in many focused applications in the past, dating back to Thomas Edison as a vocal proponent • Product standards & codes have addressed these focused applications, with much evolution

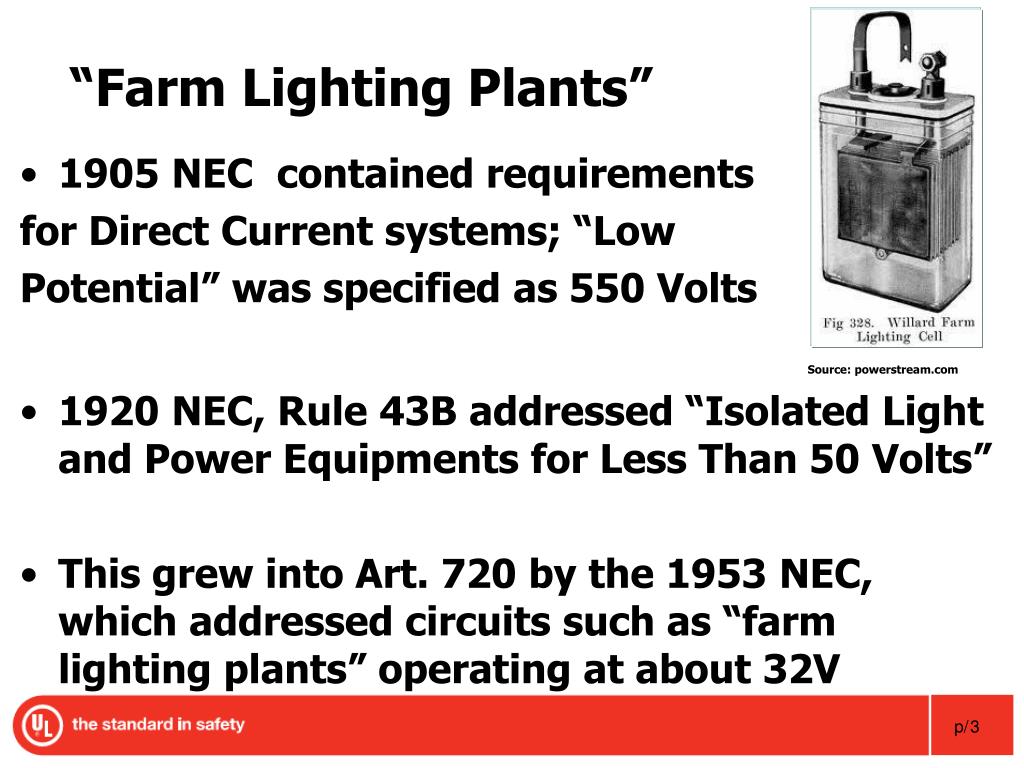

  3. “Farm Lighting Plants” • 1905 NEC contained requirements for Direct Current systems; “Low Potential” was specified as 550 Volts Source: powerstream.com • 1920 NEC, Rule 43B addressed “Isolated Light and Power Equipments for Less Than 50 Volts” • This grew into Art. 720 by the 1953 NEC, which addressed circuits such as “farm lighting plants” operating at about 32V

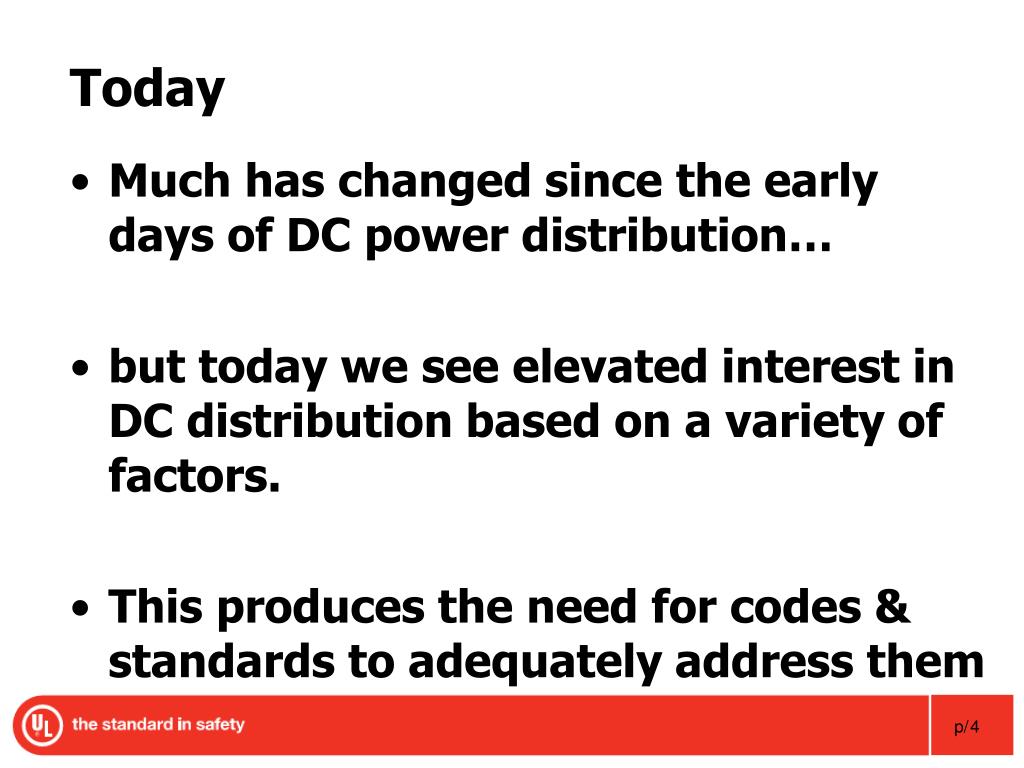

  4. Today • Much has changed since the early days of DC power distribution… • but today we see elevated interest in DC distribution based on a variety of factors. • This produces the need for codes & standards to adequately address them

  5. LVDC Systems

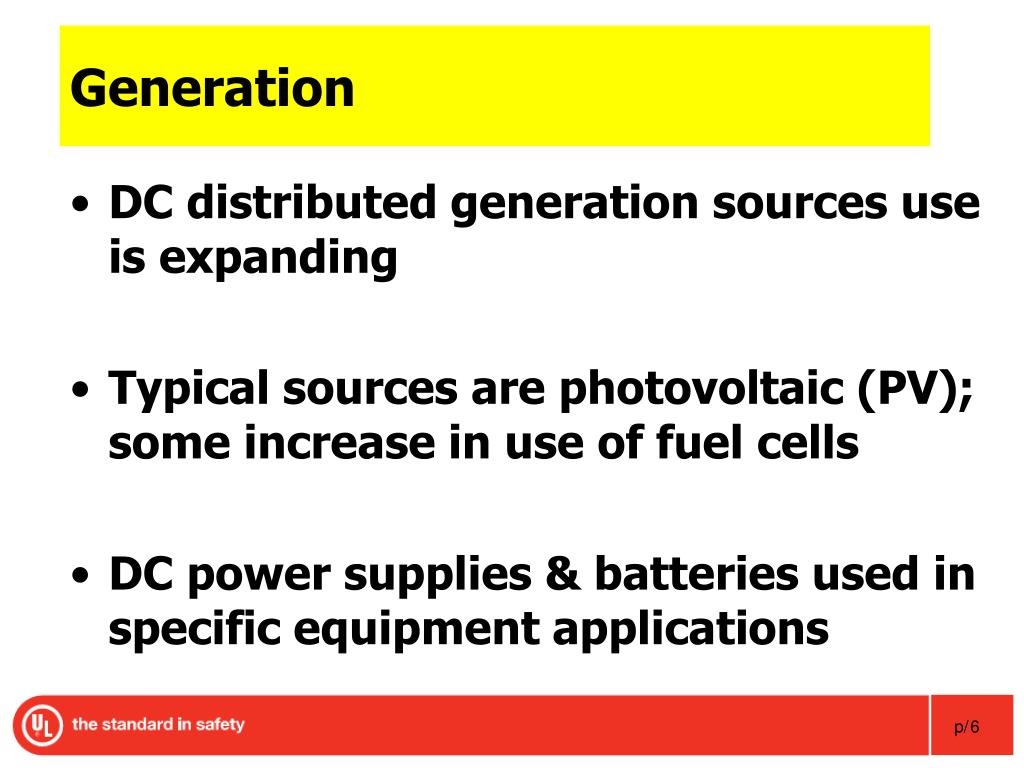

  6. Generation • DC distributed generation sources use is expanding • Typical sources are photovoltaic (PV); some increase in use of fuel cells • DC power supplies & batteries used in specific equipment applications

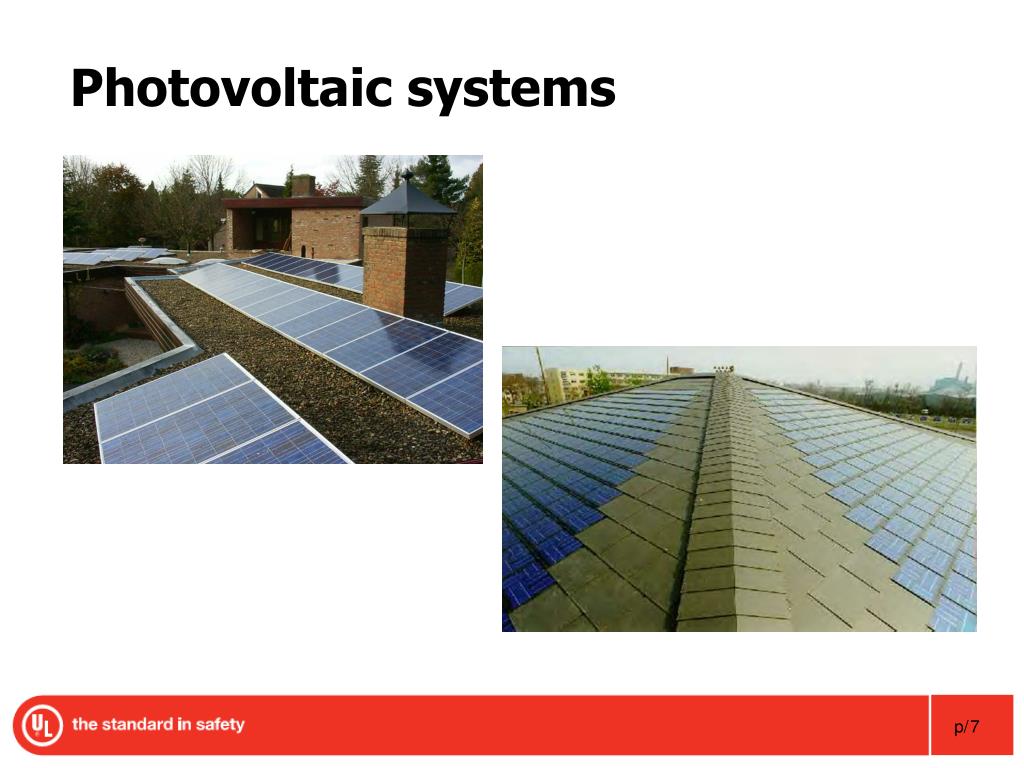

  7. Photovoltaic systems

  8. Photovoltaic systems • Photovoltaic systems typically generate (& distribute) DC power on premises • Modules may or may not be “low voltage” - ~0.5V/cell • Increasing voltage means more attention to mitigating hazards such as shock, ground faults and arcing

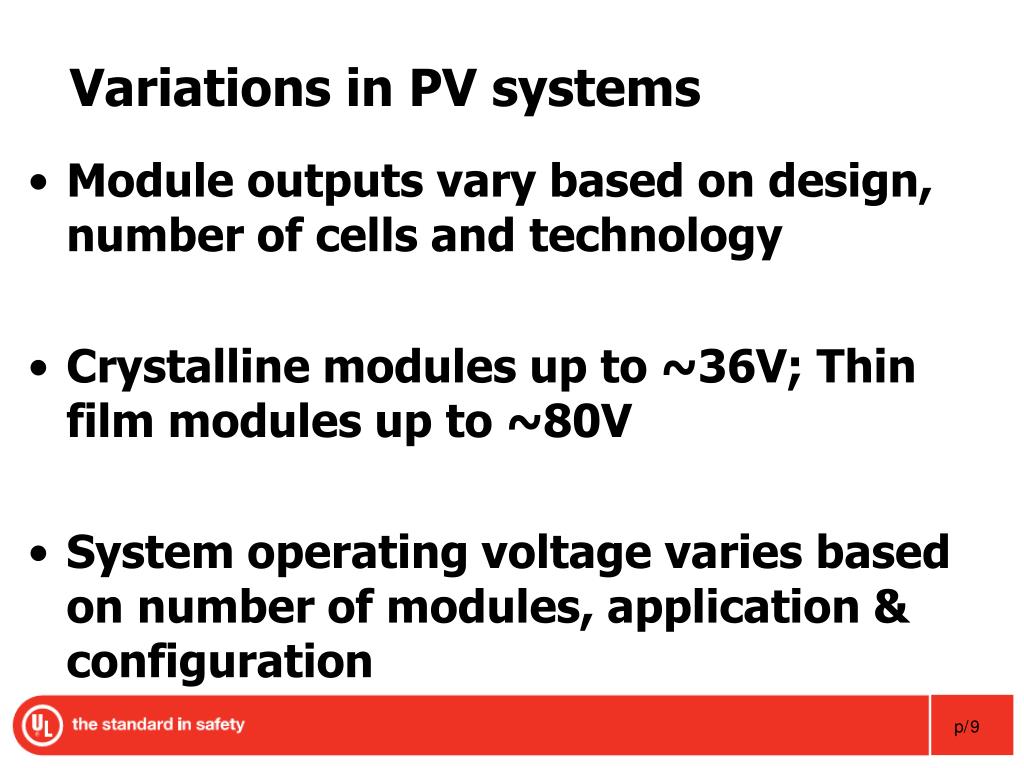

  9. Variations in PV systems • Module outputs vary based on design, number of cells and technology • Crystalline modules up to ~36V; Thin film modules up to ~80V • System operating voltage varies based on number of modules, application & configuration

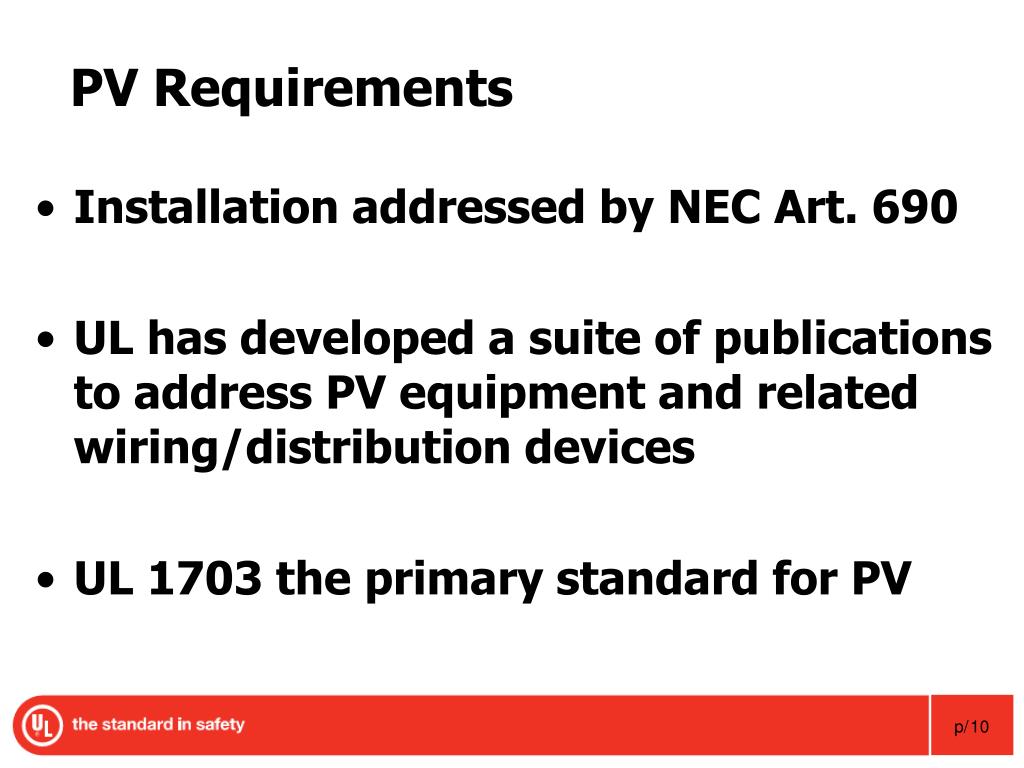

  10. PV Requirements • Installation addressed by NEC Art. 690 • UL has developed a suite of publications to address PV equipment and related wiring/distribution devices • UL 1703 the primary standard for PV

  11. PV Experiences & Learnings • System voltages trending upward • Special consideration for standards is needed • Efforts underway to standardize connector & module port configurations • Ground faults not unusual based on wiring practices

  12. Fuel Cells Fuel Cells addressed by a number of standards:Source: www.slipperybrick.com • Stationary: ANSI FC-1 • Portable: ANSI FC-3 • Hand-held: UL Sub 2265A • Industrial Trucks: ANSI/UL 2267

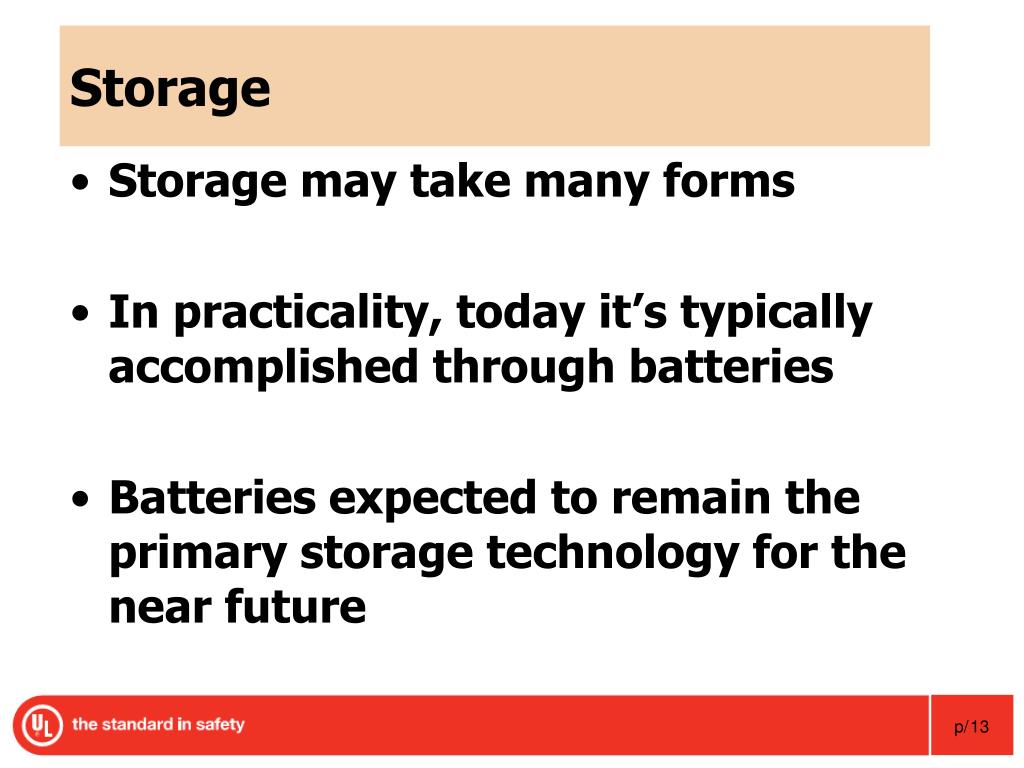

  13. Storage • Storage may take many forms • In practicality, today it’s typically accomplished through batteries • Batteries expected to remain the primary storage technology for the near future

  14. Battery Standards • Stationary: UL 1973 • Vehicle: UL 2580 (and others) – relevant for V2G & plans to repurpose auto batteries for second life • Portable & cells – many standards including UL 1642 Lithium, UL 2054 Household, UL 2575 Battery Systems for Appliances

  15. Storage issues moving forward • Developing/refreshing codes and standards as needed – e.g. V2G • Addressing safety of evolving technology as well as concerns like relative performance • Repurposing and other practical use issues

  16. Distribution • Standards may be needed to address unique aspects of DC distribution • New use for existing products or new requirements and products? • PV platform includes Sub 4703, Subs 6703/6703A, Sub 2759, Sub 4248-18, and Sub 98B

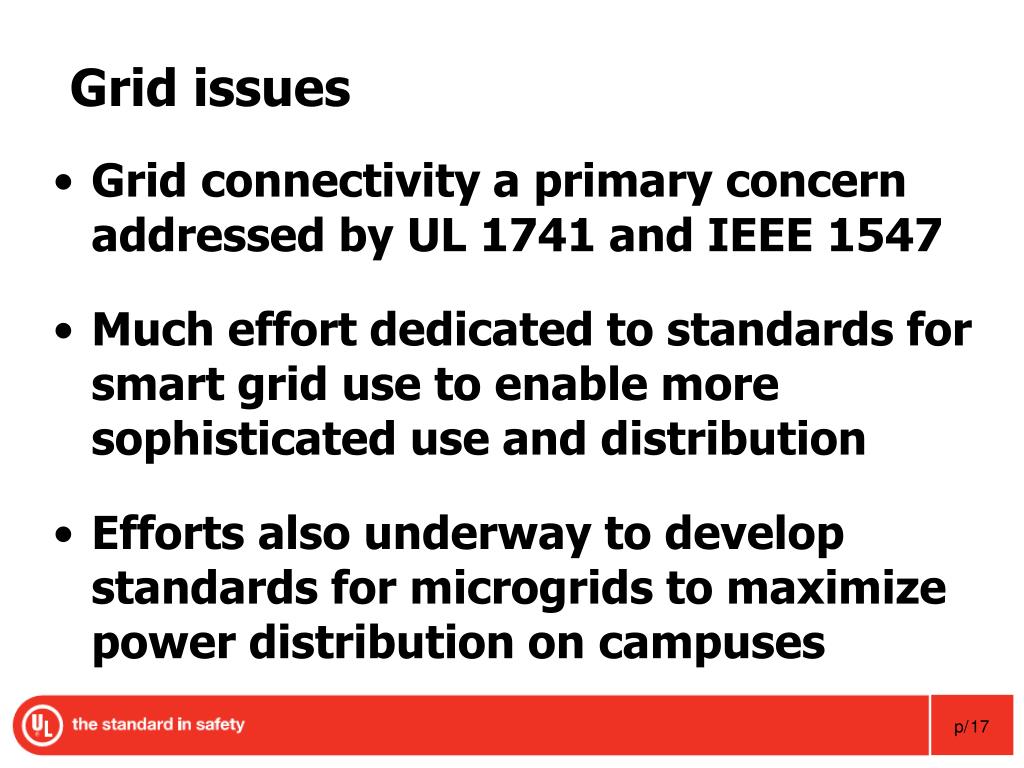

  17. Grid issues • Grid connectivity a primary concern addressed by UL 1741 and IEEE 1547 • Much effort dedicated to standards for smart grid use to enable more sophisticated use and distribution • Efforts also underway to develop standards for microgrids to maximize power distribution on campuses

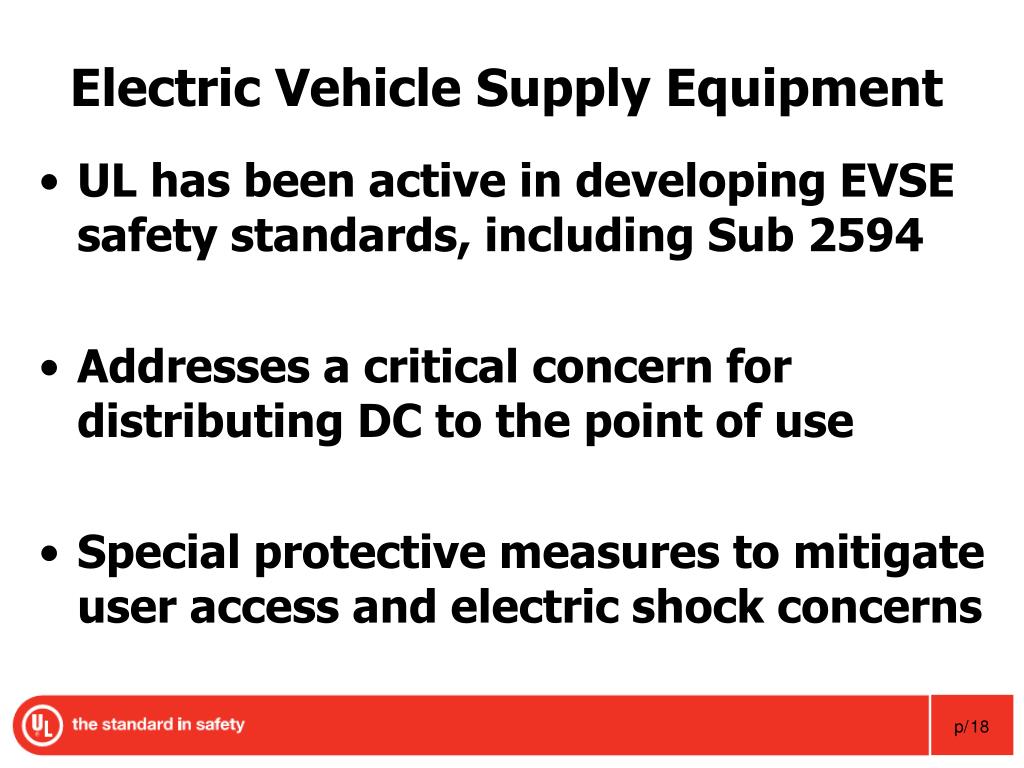

  18. Electric Vehicle Supply Equipment • UL has been active in developing EVSE safety standards, including Sub 2594 • Addresses a critical concern for distributing DC to the point of use • Special protective measures to mitigate user access and electric shock concerns

  19. Use DC presently used in many places: • Lighting • Information technology (IT) rooms • Photovoltaic systems …..and many more are on the horizon

  20. Lighting • Low voltage lighting systems addressed by UL 2108 and NEC Article 411 Source: www.lightsoutlighting.com • LED Lighting addressed by UL Sub 8750 and other standards Source: www.lightsoutlighting.com

  21. Suspended ceiling grid LV lighting • Recently Listed by UL to Sub 2577 • Originally envisioned for lighting and other equipment (e.g. hot spots) • Presently limited to use in lighting applications based on NEC Article 411 provisions

  22. Ceiling Grid DC System Source: www.armstrong.com

  23. Movement to more DC distribution • The ceiling grid concept showed movement to establishing an LVDC grid within a premises • We have seen other product concepts with similar approaches • Product standard and Code issues both come into play

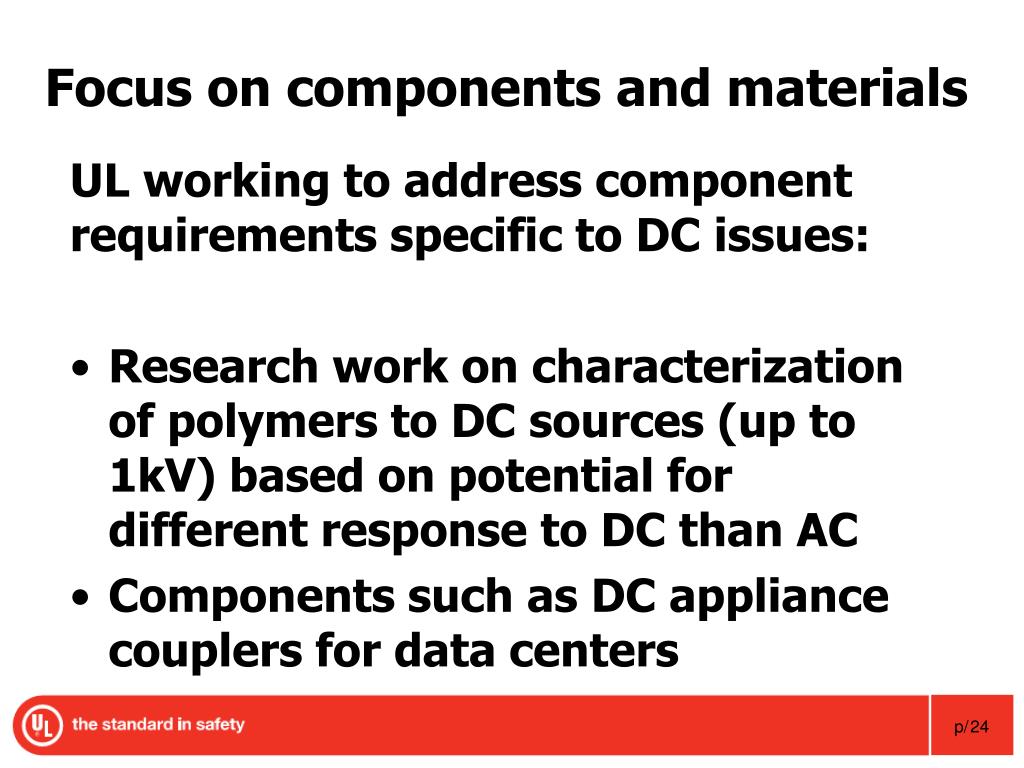

  24. Focus on components and materials UL working to address component requirements specific to DC issues: • Research work on characterization of polymers to DC sources (up to 1kV) based on potential for different response to DC than AC • Components such as DC appliance couplers for data centers

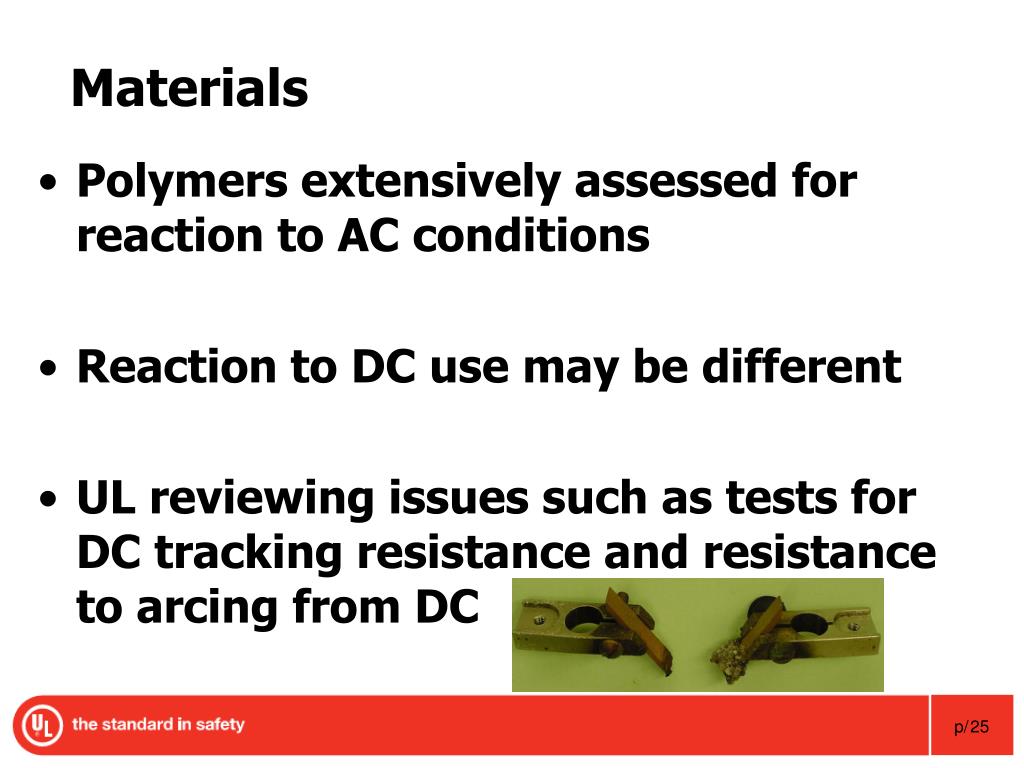

  25. Materials • Polymers extensively assessed for reaction to AC conditions • Reaction to DC use may be different • UL reviewing issues such as tests for DC tracking resistance and resistance to arcing from DC

  26. Couplers for DC Data Centers • Variety of designs • Being addressed by development of UL Sub 2695 and IEC 62695 • Ratings up to 400Vdc Source: The Green Grid

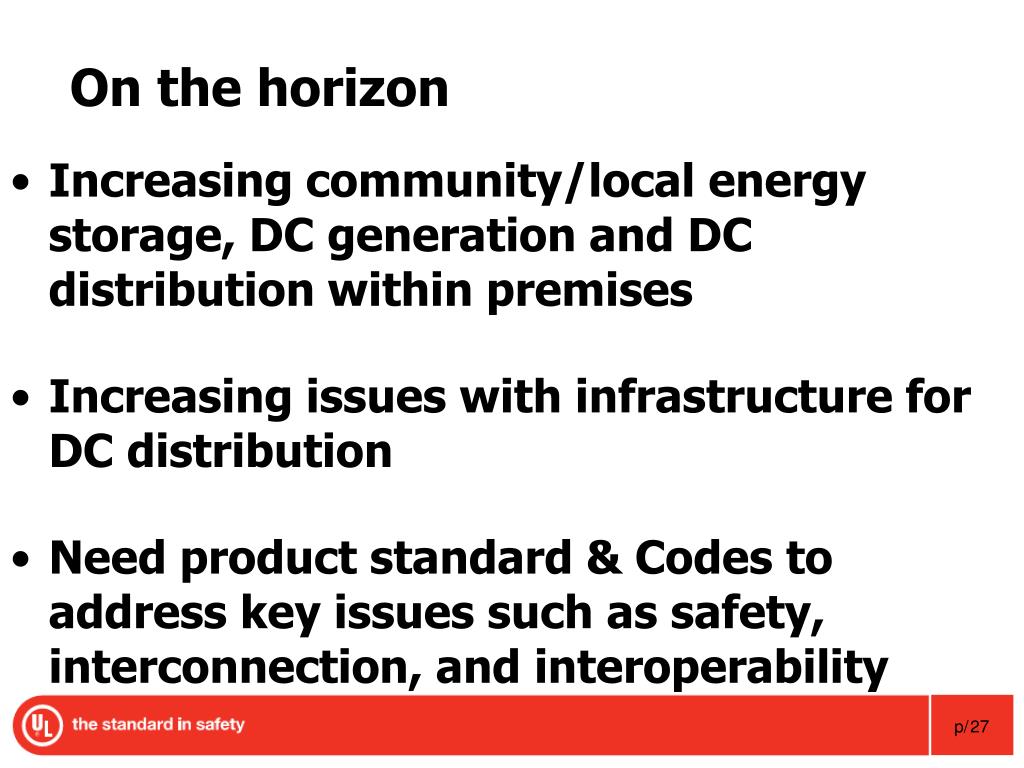

  27. On the horizon • Increasing community/local energy storage, DC generation and DC distribution within premises • Increasing issues with infrastructure for DC distribution • Need product standard & Codes to address key issues such as safety, interconnection, and interoperability

  28. Standards development • Many organizations active in developing standards to address the phenomenon of DC distribution • These organizations include UL, NFPA, IEEE, IEC, EMerge Alliance, Solar ABCs • Holistic efforts needed to address key issues for the public, including safety

  29. Conclusion • Products standards & codes address focused LVDC applications and new uses • Standards development will be required to address key issues such as safety, interconnectivity, and interoperability • Collaboration by key stakeholders is needed to generate a cohesive set of standards & codes supporting safe deployment

  30. Thank you Kenneth.p.boyce@us.ul.com 847.664.2318
