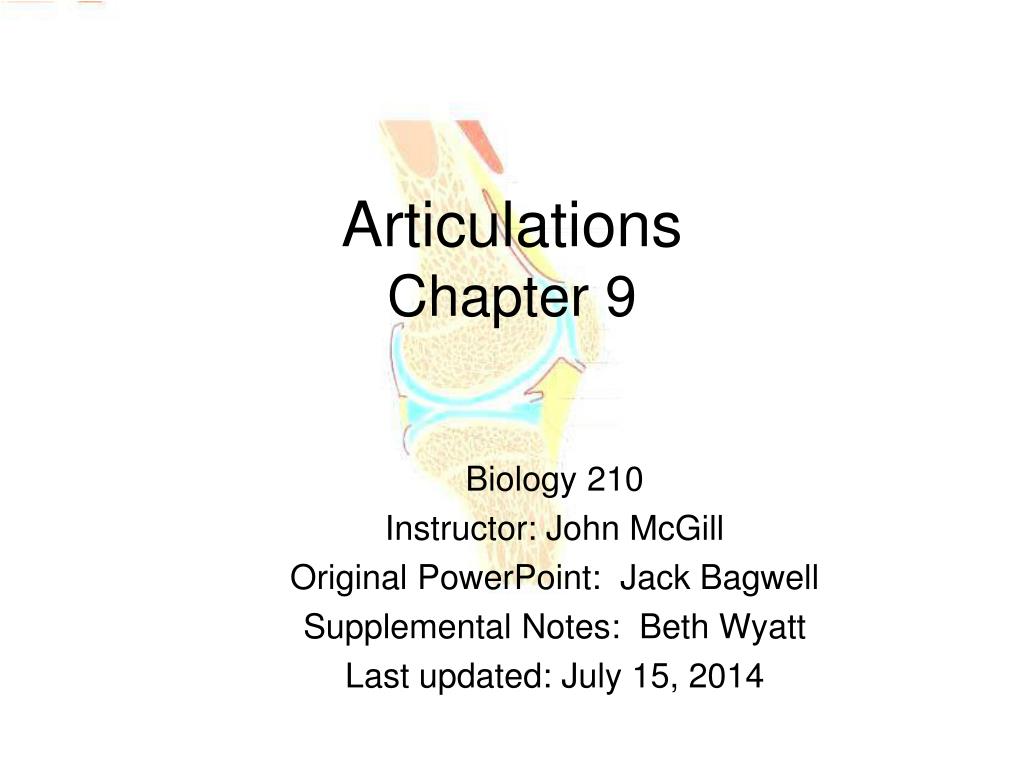

  1. ArticulationsChapter 9 Biology 210 Instructor: John McGill Original PowerPoint: Jack Bagwell Supplemental Notes: Beth Wyatt Last updated: July 15, 2014

  2. INTRODUCTION TO ARTICULATIONS • DEFINITION • Articulations (joints) are the junctions between bones. • FUNCTION • They bind the various parts of the skeletal system together. • They permit bone growth and enable body parts to move in response to skeletal muscle contractions.

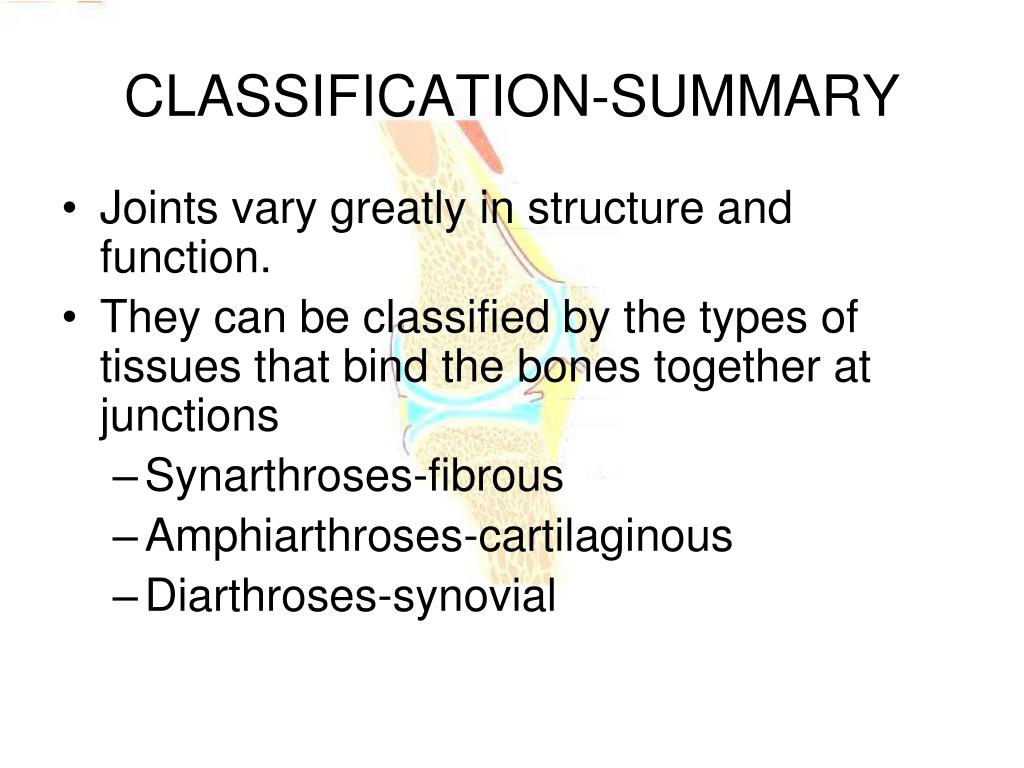

  3. CLASSIFICATION-SUMMARY • Joints vary greatly in structure and function. • They can be classified by the types of tissues that bind the bones together at junctions • Synarthroses-fibrous • Amphiarthroses-cartilaginous • Diarthroses-synovial

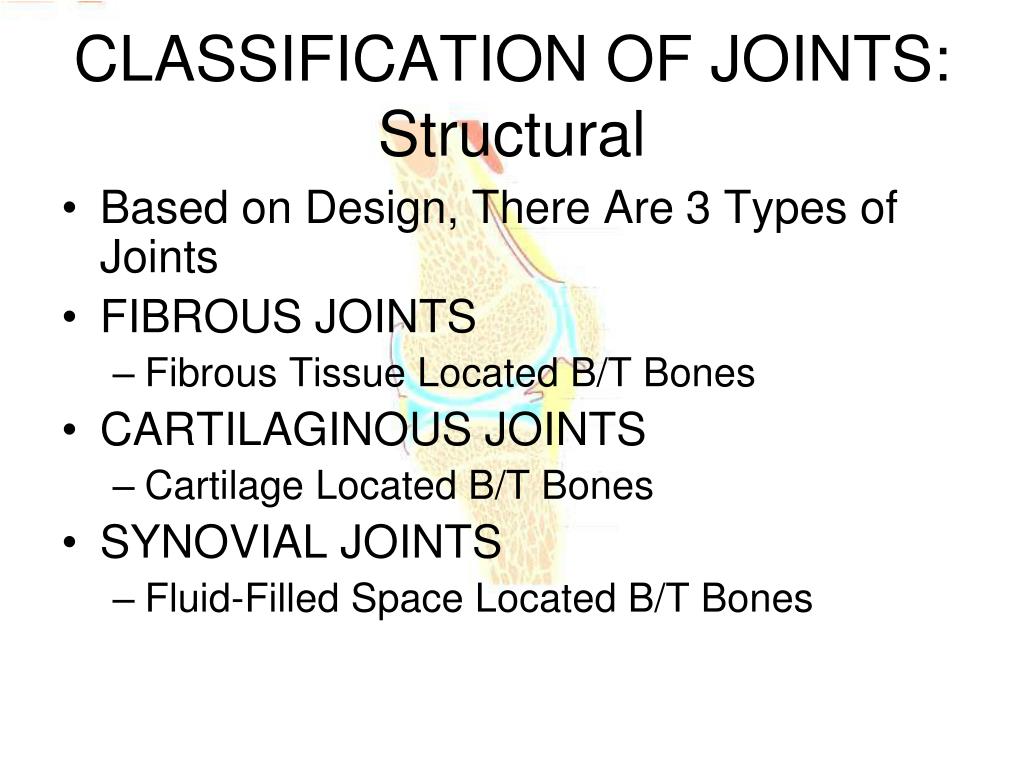

  4. CLASSIFICATION OF JOINTS: Structural • Based on Design, There Are 3 Types of Joints • FIBROUS JOINTS • Fibrous Tissue Located B/T Bones • CARTILAGINOUS JOINTS • Cartilage Located B/T Bones • SYNOVIAL JOINTS • Fluid-Filled Space Located B/T Bones

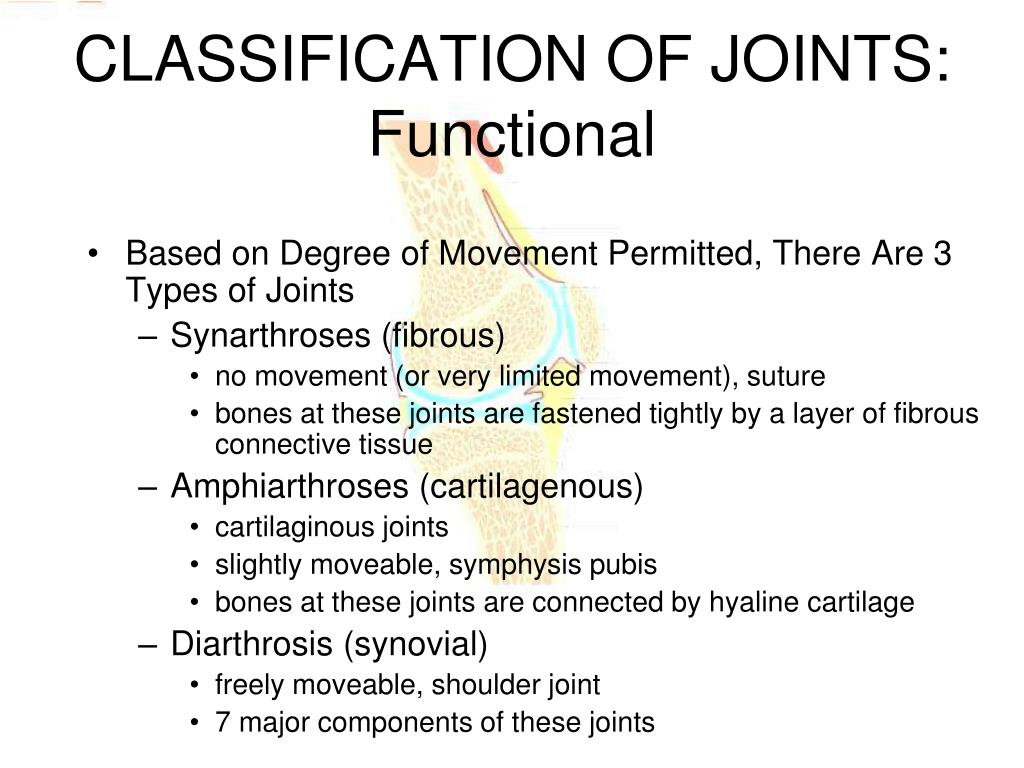

  5. CLASSIFICATION OF JOINTS: Functional • Based on Degree of Movement Permitted, There Are 3 Types of Joints • Synarthroses (fibrous) • no movement (or very limited movement), suture • bones at these joints are fastened tightly by a layer of fibrous connective tissue • Amphiarthroses (cartilagenous) • cartilaginous joints • slightly moveable, symphysis pubis • bones at these joints are connected by hyaline cartilage • Diarthrosis (synovial) • freely moveable, shoulder joint • 7 major components of these joints

  6. Synarthroses (Fibrous joints) • Syndesmoses • Sutures • Gomphoses

  7. Synarthroses (Fibrous joints) • Syndesmoses • Bones are bound together by ligaments • Limited movement is possible • Ex: Joint between distal end of radius and ulna

  8. Synarthroses (Fibrous joints) • Sutures • Occur only between the flat bones of the skull. • United by a connective tissue called a sutural ligament; eventually this ligament becomes ossified. • Joints between skull bones

  9. Synarthroses (Fibrous joints) • Gomphoses • The union of a cone-shaped bony process in a bony socket. • Ex: a tooth is fastened to the jawbone by a peridontal ligament.

  10. Amphiarthroses (Cartilaginous Joints) • Synchondroses • Sympheses

  11. Amphiarthroses (Cartilaginous Joints) • Synchondroses • United by bands of hyaline cartilage. • Many of these joints are temporary structures that disappear as a result of the growth process • Examples • Epiphyseal plate between the epiphysis and the diaphysis • costal cartilage (ribs articulate with sternum)

  12. Amphiarthroses (Cartilaginous Joints) • Sympheses • Joint in which a pad or disk of fibrocartilage connects two bones • Most are located in the midline of the body. • Example: • symphysis pubis • intervertebral disks

  13. Structure of the Synovial (Diarthroses) Joint: Elbow, Knee, Shoulder, Hip, etc… • Joint capsule • sleeve like extension of the periosteum • forms a covering around the ends of the bones and binds the bones together. • Synovial membrane • moist membrane which lines the inner surface of the joint capsule • secretes synovial fluid • Articular cartilage • covers and cushions the articulating surfaces of the bones

  14. Structure of the Synovial (Diarthroses) Joint: • Joint cavity • small space between the articulating surface of the 2 bones of the joint

  15. Structure of the Synovial (Diarthroses) Joint: Elbow, Knee, Shoulder, Hip, etc… • Mensci (articular disk) • pads of cartilage between the articulating ends of bone

  16. Structure of the Synovial (Diarthroses) Joint: Elbow, Knee, Shoulder, Hip, etc… • Ligaments • helps hold the articular cartilages together

  17. Structure of the Synovial (Diarthroses) Joint: Elbow, Knee, Shoulder, Hip, etc… • Bursae • pillow-like structure formed from the synovial membrane

  18. TYPES AND RANGE OF MOVEMENT AT SYNOVIAL/DIARTHROSES • Angular movements • Flexion • decreases the angle between two bones • “bending” a body part • Extension • increases the angle between two bones • “straightening” a joint

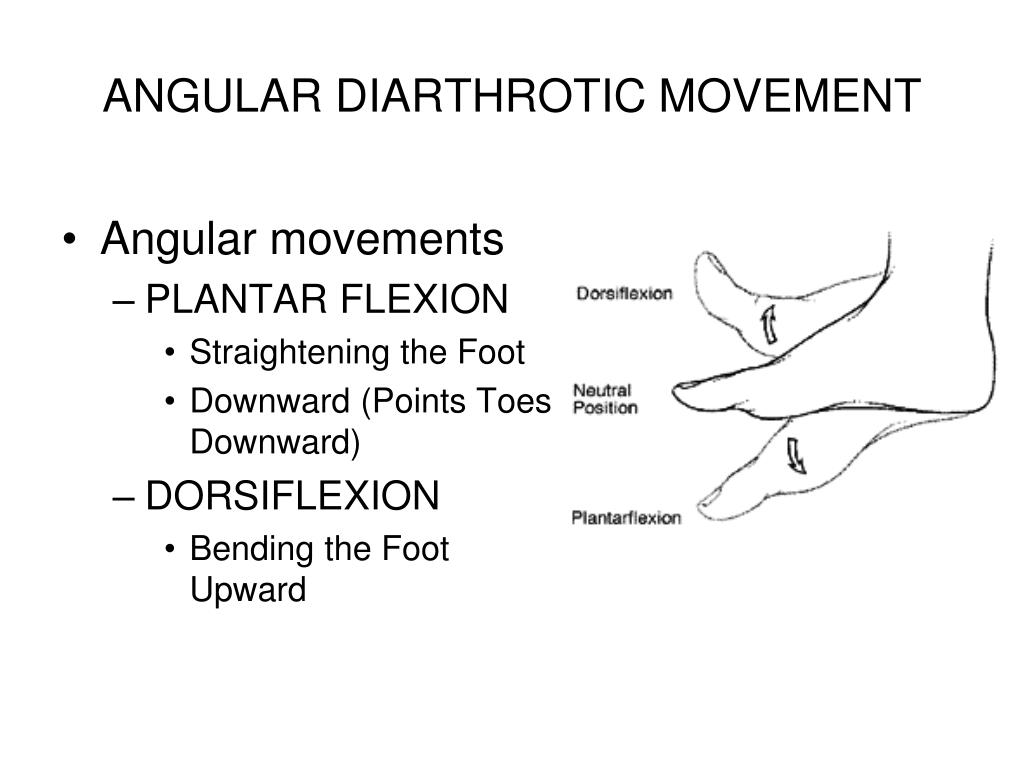

  19. ANGULAR DIARTHROTIC MOVEMENT • Angular movements • PLANTAR FLEXION • Straightening the Foot • Downward (Points Toes Downward) • DORSIFLEXION • Bending the Foot Upward

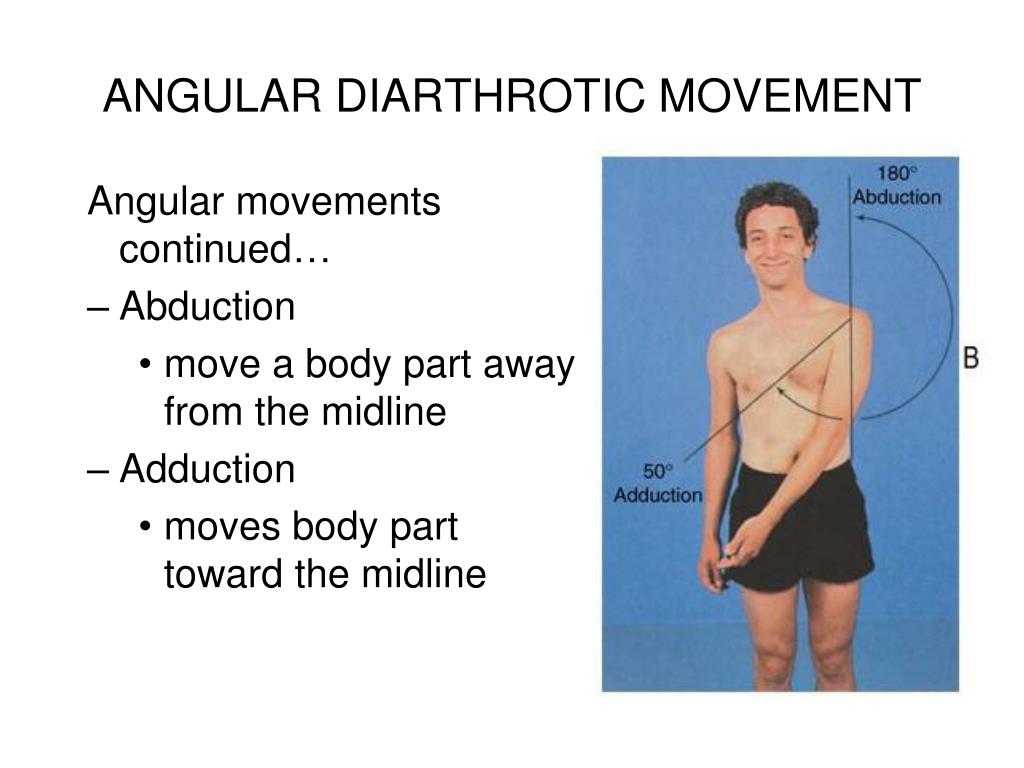

  20. ANGULAR DIARTHROTIC MOVEMENT Angular movements continued… • Abduction • move a body part away from the midline • Adduction • moves body part toward the midline

  21. CIRCULAR DIARTHROTIC MOVEMENT • CIRCULAR MOVEMENTS • ROTATION • Bone Pivots Around a Fixed Point • CIRCUMDUCTION • Moves a Body Part so That Its Distal End Describes a Circle

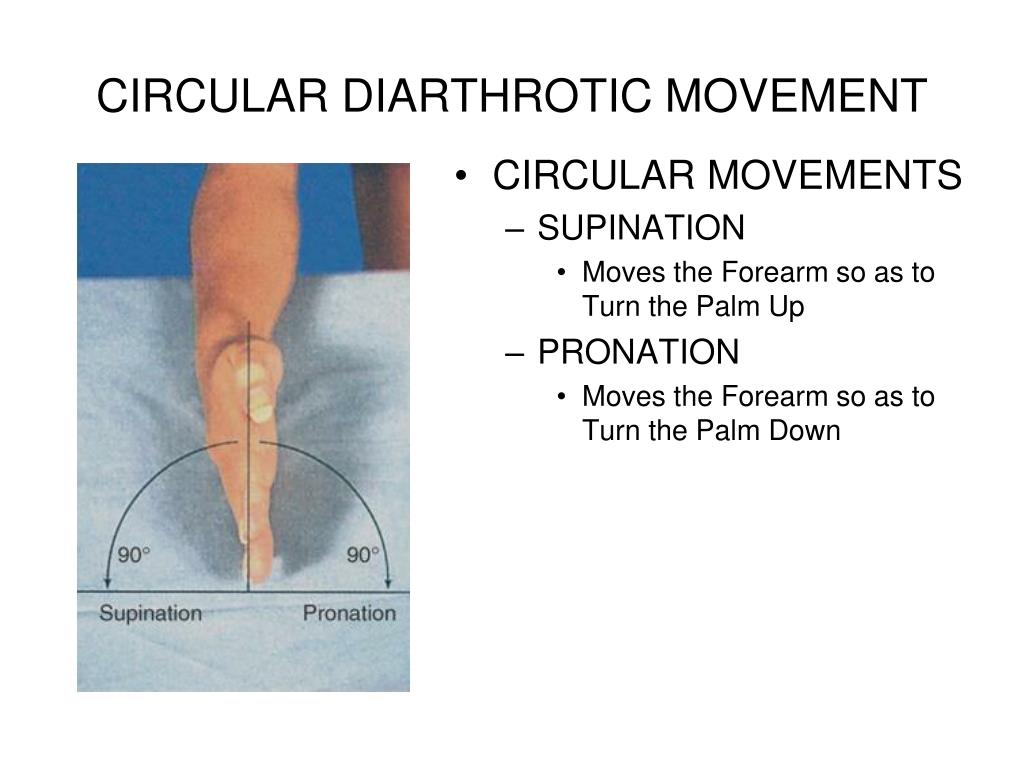

  22. CIRCULAR DIARTHROTIC MOVEMENT • CIRCULAR MOVEMENTS • SUPINATION • Moves the Forearm so as to Turn the Palm Up • PRONATION • Moves the Forearm so as to Turn the Palm Down

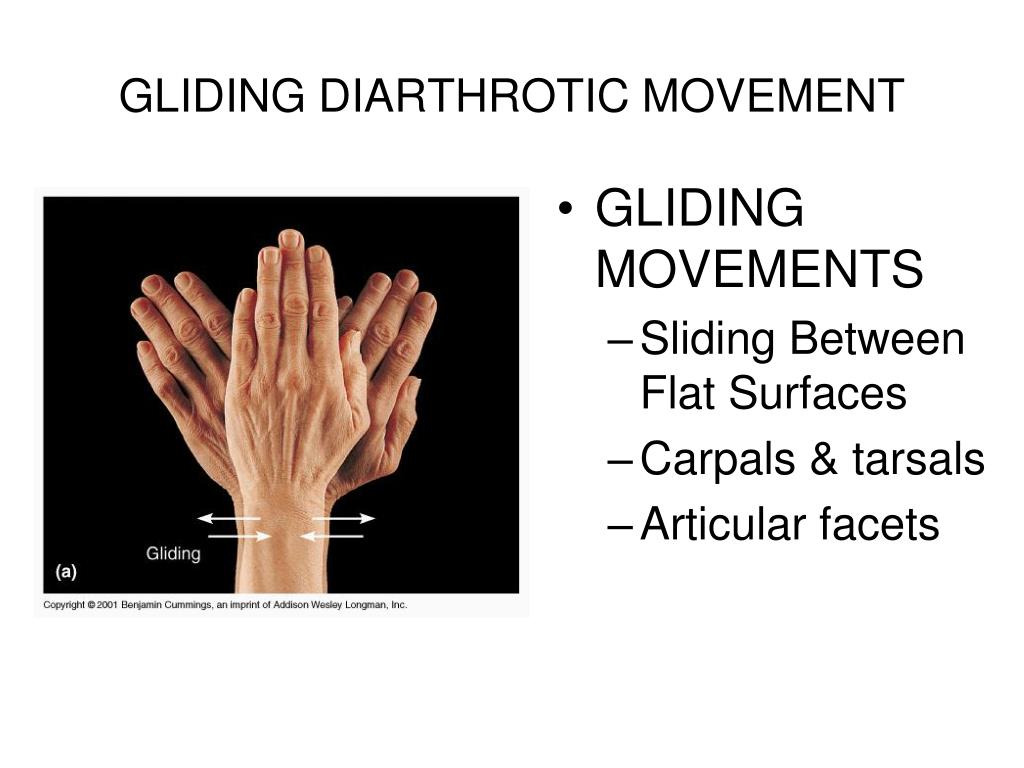

  23. GLIDING DIARTHROTIC MOVEMENT • GLIDING MOVEMENTS • Sliding Between Flat Surfaces • Carpals & tarsals • Articular facets

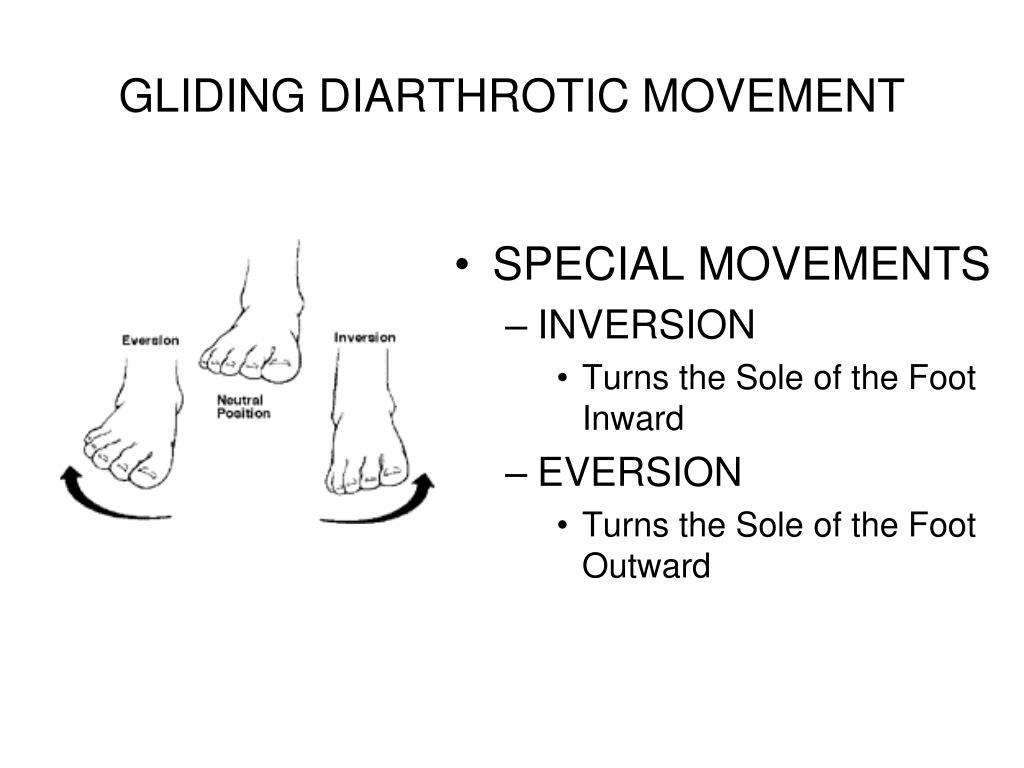

  24. GLIDING DIARTHROTIC MOVEMENT • SPECIAL MOVEMENTS • INVERSION • Turns the Sole of the Foot Inward • EVERSION • Turns the Sole of the Foot Outward

  25. SPECIAL DIARTHROTIC MOVEMENT • SPECIAL MOVEMENTS continued… • PROTRACTION • Moves a Body Part Forward • Sticking out jaw • RETRACTION • Moves a Body Part Backward

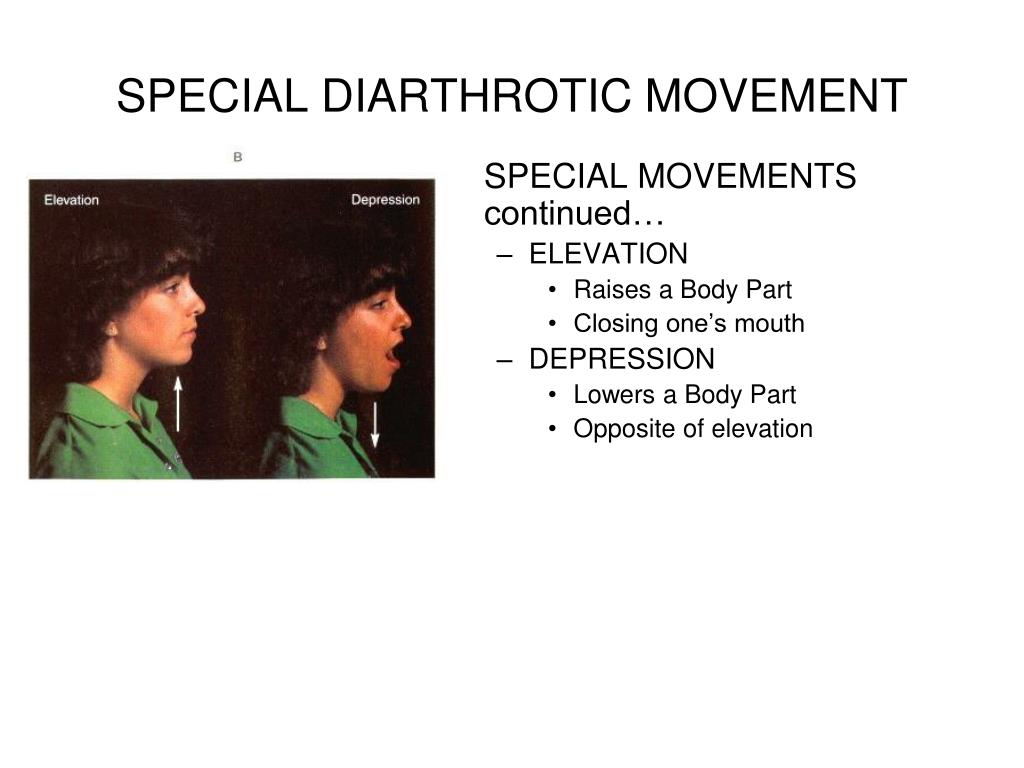

  26. SPECIAL DIARTHROTIC MOVEMENT • SPECIAL MOVEMENTS continued… • ELEVATION • Raises a Body Part • Closing one’s mouth • DEPRESSION • Lowers a Body Part • Opposite of elevation

  27. TYPES OF SYNOVIAL/DIARTHROSES (Moveable) • Uniaxial joints • Biaxial joints • Multiaxial joints

  28. Uniaxial joints-Hinge • Permit movement around one axis and in one plane. • Hinge joints • the convex surface of one bone fits into the concave surface of another bone. • Elbows, phalanges, knee • Flexion & Extension

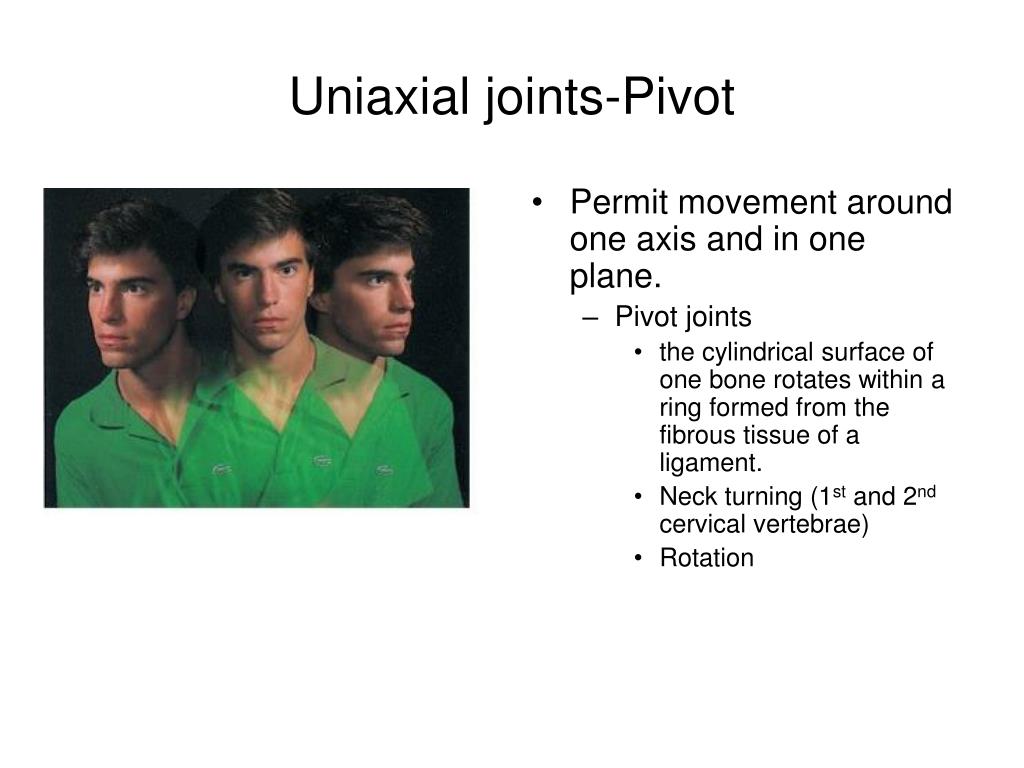

  29. Uniaxial joints-Pivot • Permit movement around one axis and in one plane. • Pivot joints • the cylindrical surface of one bone rotates within a ring formed from the fibrous tissue of a ligament. • Neck turning (1st and 2nd cervical vertebrae) • Rotation

  30. Biaxial Joints-Saddle • Permit movement around two perpendicular axes in 2 perpendicular planes. • Saddle joints • formed between bones whose articulating surfaces have both convex and concave regions. • Thumb joint between first metacarpal and carpal bone • Flexion, extension, abduction, adduction

  31. Biaxial Joints-Condyloid • Permit movement around two perpendicular axes in 2 perpendicular planes. • Condyloid (ellipsoidal) joints • a condyle fits into an elliptical socket. • Joint between radius and carpal bones • Flexion, extension, abduction, adduction

  32. Multiaxial joint-Gliding • Joint that permits movement around 3 or more planes • Gliding joints • articulating surfaces are nearly flat or slightly curved • these joints only sliding (back and forth) motion (least movable) • Processes between vertebrae (articular facets) • gliding

  33. Multiaxial joint-Ball and Socket • Joint that permits movement around 3 or more planes • Ball and socket joints • consists of a bone with a slightly egg-shaped head that articulates with the cup-shaped cavity of another bone • allows for the broadest range of movements. • Shoulder and hip • Flexion, extension, abduction, adduction, rotation, circumduction

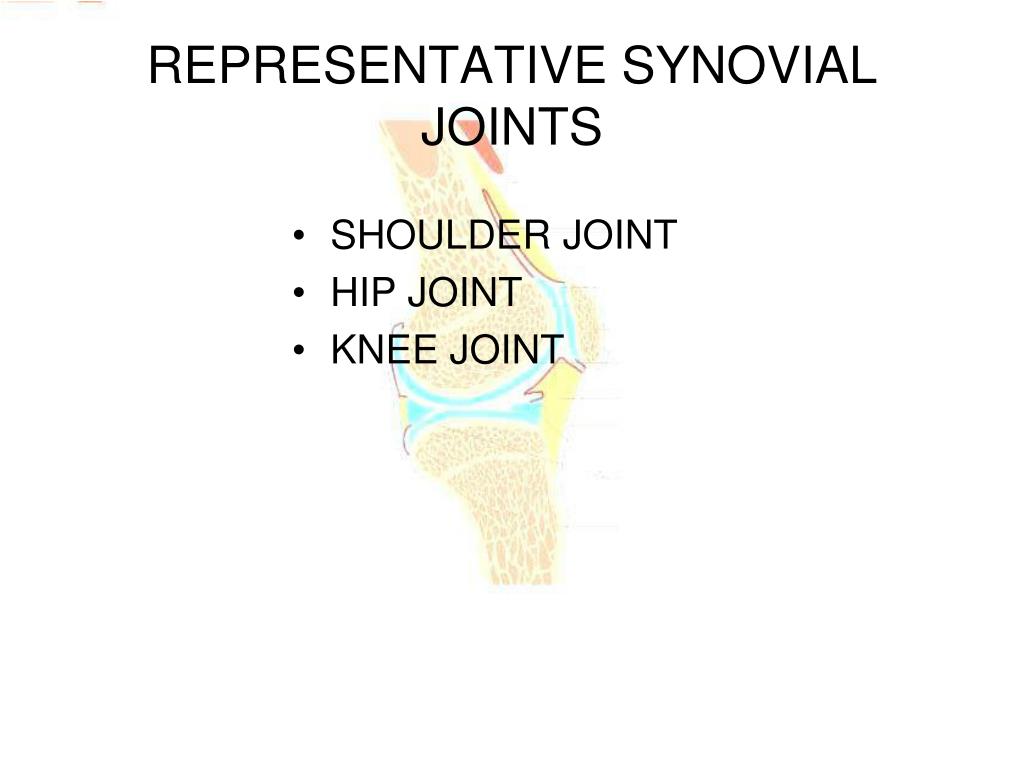

  34. REPRESENTATIVE SYNOVIAL JOINTS • SHOULDER JOINT • HIP JOINT • KNEE JOINT

  35. SHOULDER JOINT • The Most Moveable Diarthrosis • Reason: Glenoid Cavity (Scapula) Shallow, Head of Humerus Doesn’t Fit Deep

  36. HIP JOINT • The Most Stable Diarthrosis • Reason: Acetabulum (Os Coxa) Deep, Head of Femur Fits Deep

  37. KNEE JOINT • The Major Weight Bearing Diarthrosis • The Most Frequently Injured Diarthrosis • Reasons • Fit Between Femur and Tibia (Condyles) Unstable • Little Muscle Over Knee Joint

  38. Anatomy of the Knee http://www.aclsolutions.com/images/Seif_what is ACL.jpg

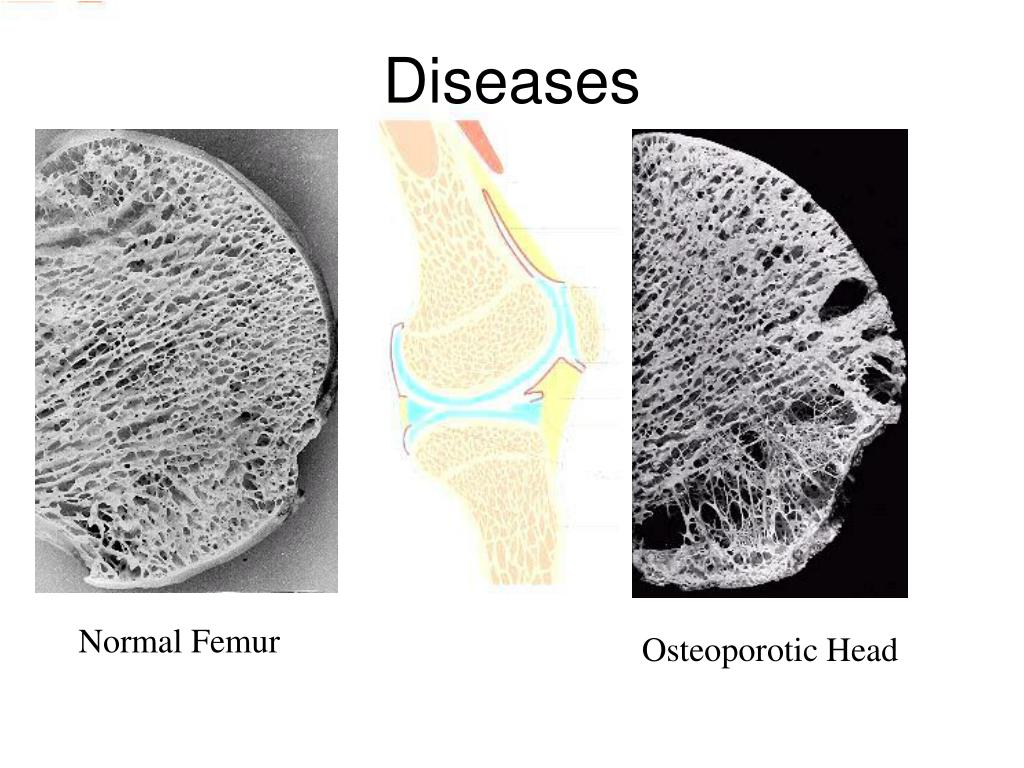

  39. Diseases Normal Femur Osteoporotic Head

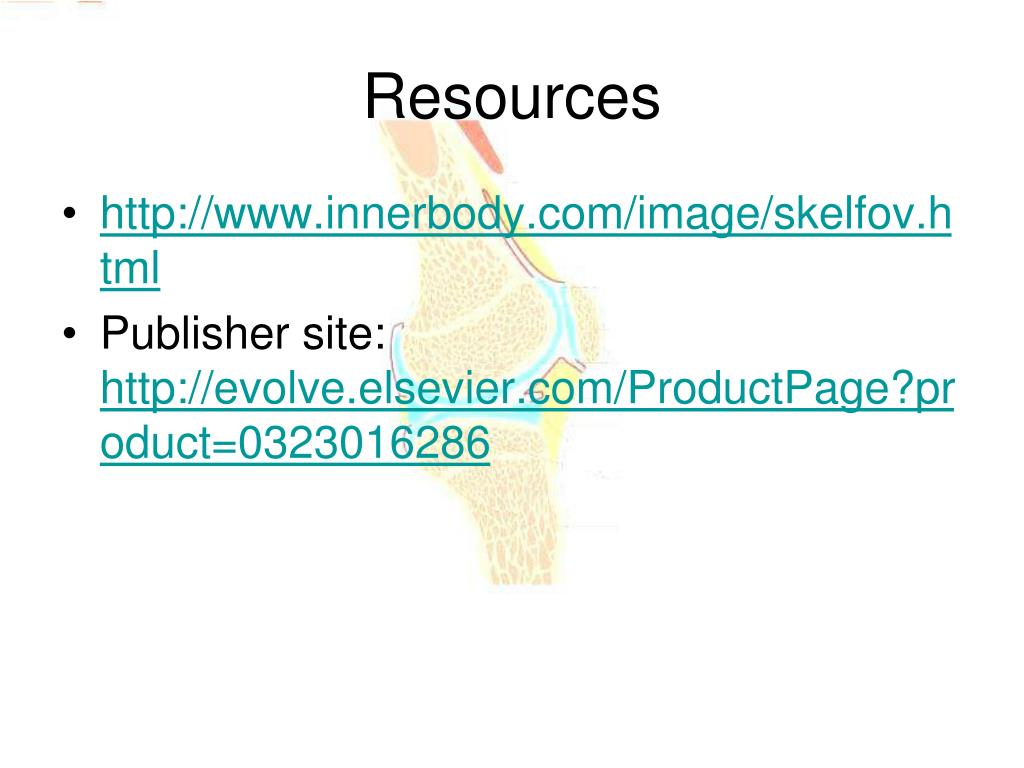

  40. Resources • http://www.innerbody.com/image/skelfov.html • Publisher site: http://evolve.elsevier.com/ProductPage?product=0323016286

  41. Case Study • http://www.recoverymedicine.com/rheumatoid_arthritis.htm • http://www.recoverymedicine.com/tendinitis_bursitis.htm

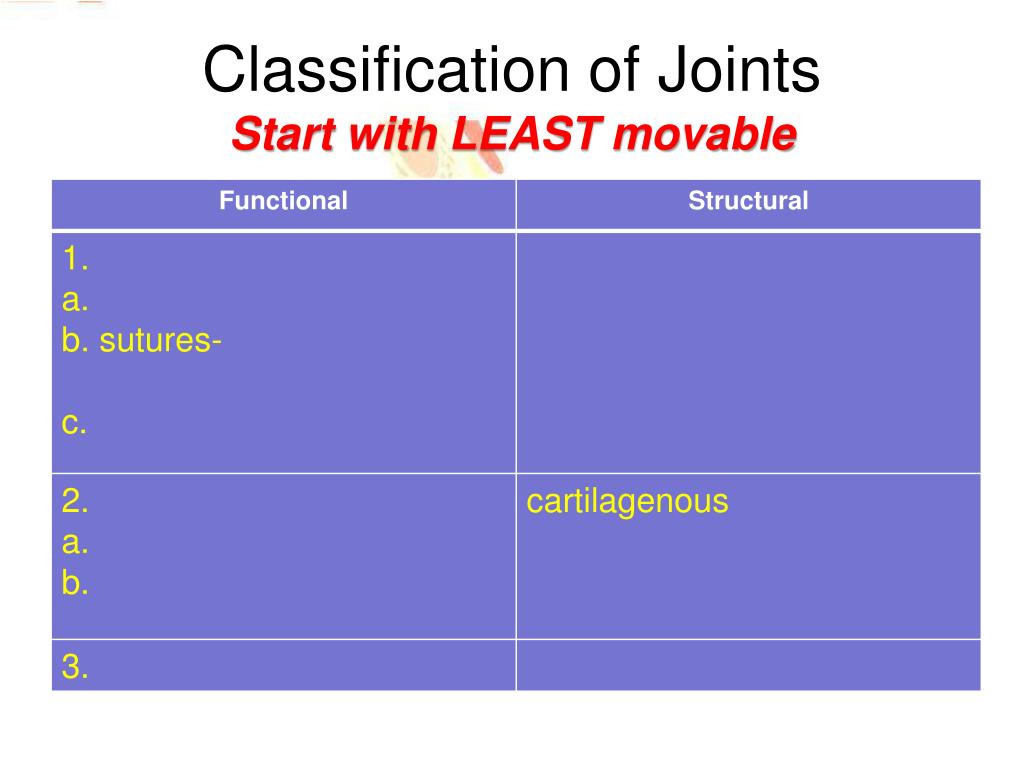

  42. Classification of JointsStart with LEAST movable

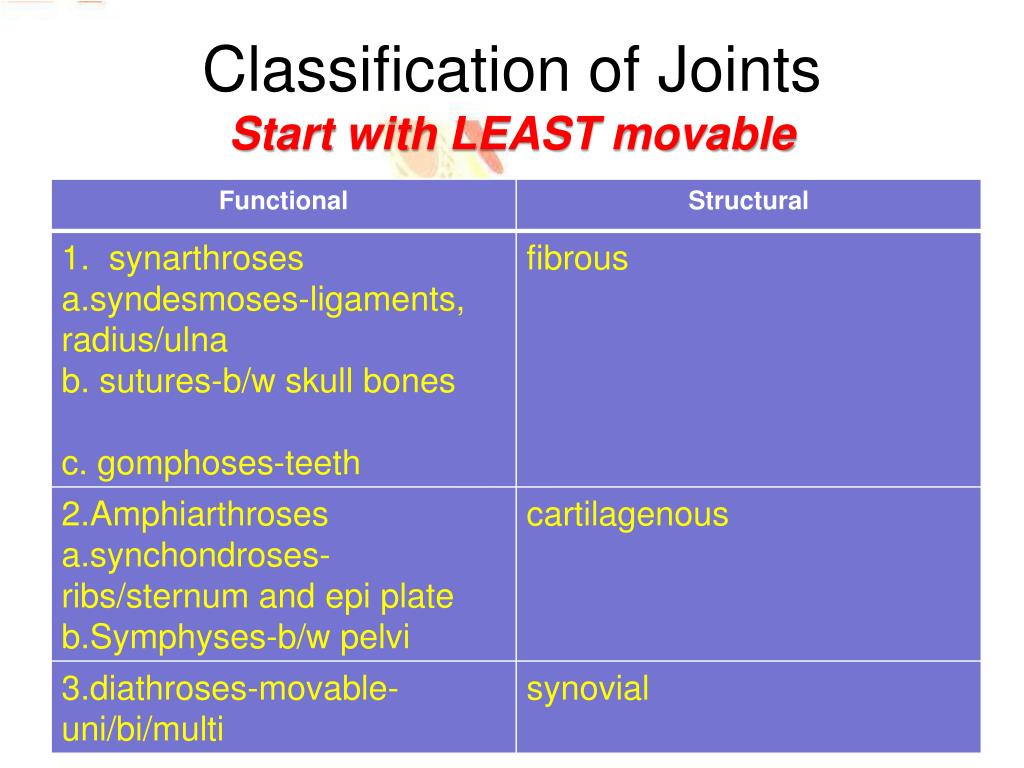

  43. Classification of JointsStart with LEAST movable
