Presentation Transcript


Rtty

RTTY

Lets get started

Mike, K4GMH

[email protected]


Rtty

INTRODUCTION

  • Where to find HF RTTY on your radio

  • RTTY Code or what is all this noise about

  • Interface between Computer and Radio

  • Computer RTTY Software

  • Sources of information

  • RTTY Contesting


Rtty

WHERE TO FIND RTTY OPERATION

  • 10 meters: 28080-28100 KHz, during contests 28060-28150 KHz

  • 15 meters: 21080-21100 KHz, during contests 21060-21150 KHz

  • 20 meters: 14080-14100 KHz, during contests 14060-14140 KHz

  • 40 meters: 7025-7050 and 7080-7100 KHz, during contests 7025-7100 KHz

  • 80 meters: 3580-3600 KHz, during contests 3570 (or lower)-3600 KHz

  • 160 meters: No RTTY contesting

  • Notes:

    • Avoid PSK-31 operations near 28120, 21070, 14070, 7070, 3580 KHz

    • Avoid the NCDXF beacons at 21150 and 14100 KHz

    • For more detail, see www.aa5au.com/gettingstarted/rtty_subbands.htm


Rtty

RTTY CODE

  • RTTY uses the 5-bit ITA2 code

    • 5 bits means only 32 characters can be represented

    • To get around this there are two “sets”, Letters and Figures

    • Each set uses 26 characters plus 6 common entries

  • Letters mode

    • “A” through “Z” (26 CAPITAL letters)

    • Ltrs shift, Figs shift, null, space, carriage return, line feed

  • Figures mode

    • “0” through “9”, various punctuation (26 characters)

    • Ltrs shift, Figs shift, null, space, carriage return, line feed

  • Letters Shift and Figures Shift latches which set displayed


Rtty

RTTY CODE


Rtty

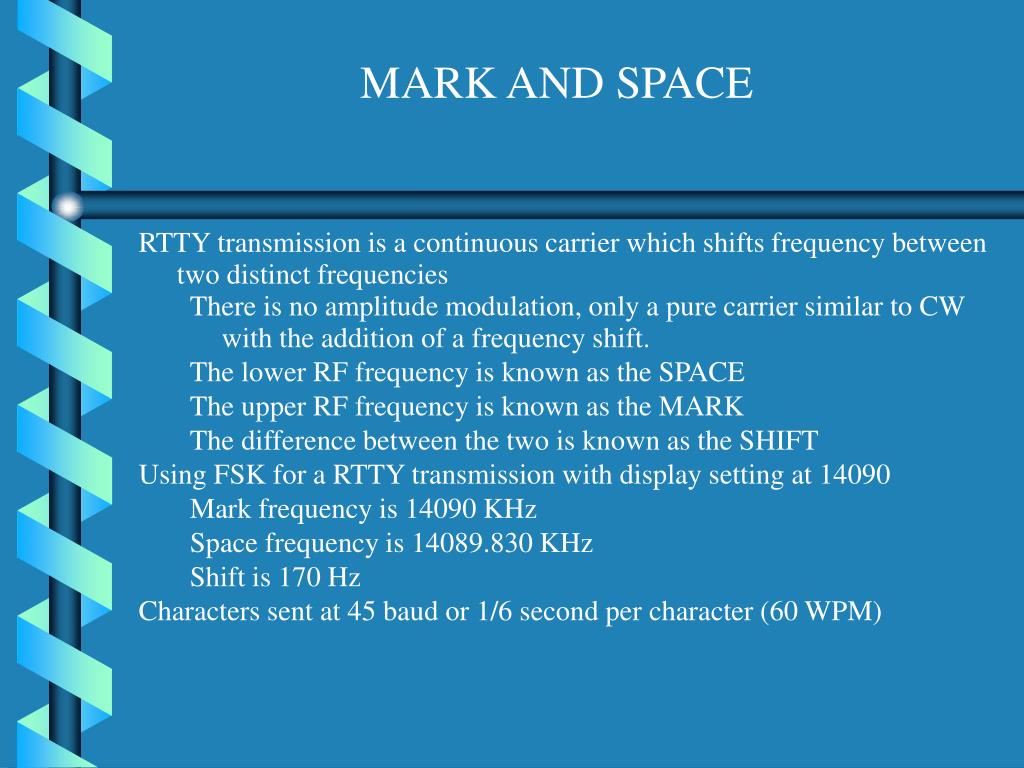

MARK AND SPACE

  • RTTY transmission is a continuous carrier which shifts frequency between two distinct frequencies

    • There is no amplitude modulation, only a pure carrier similar to CW with the addition of a frequency shift.

    • The lower RF frequency is known as the SPACE

    • The upper RF frequency is known as the MARK

    • The difference between the two is known as the SHIFT

  • Using FSK for a RTTY transmission with display setting at 14090

    • Mark frequency is 14090 KHz

    • Space frequency is 14089.830 KHz

    • Shift is 170 Hz

  • Characters sent at 45 baud or 1/6 second per character (60 WPM)


Rtty

MARK AND SPACE


Rtty

INTERFACE OVERVIEW


Rtty

INTERFACE TYPES

  • The difference is the way your transmitter generates the RF signal.

  • AFSK = audio frequency shift keying

    • Mark (2.125kHz) and Space (2.295kHz) audio signals generated from computer sound card to audio input on radio.

    • AFSK is should be transmitted in LSB mode so Mark frequency is higher than Space frequency.

  • FSK = frequency shift keying

    • With FSK, your transmitter receives a simple on-off signal which causes the carrier frequency to shift between mark and space.

    • Digital signal generated from computer viaserial port or USB (through USB to converter) to FSK input on radio.


Rtty

FSK vs AFSK

  • Why use FSK?

    • Ability to use your CW filters in most rigs

    • Easier than AFSK to set up

      • No need to adjust audio drive

  • Why use AFSK?

    • If your rig doesn’t have an FSK input

    • Same interface as PSK31

    • Ability to use AFC


Rtty

FULL MODE INTERFACE


Rtty

SIMPLE FSK INTERFACE


Rtty

COMMERCIAL INTERFACES

  • There are many commercial interfaces with many options

    • Buxcomm – Rascal

    • Donner’s – Digital Interface

    • Ham Radio Solutions – EZMaster

    • KK7UQ – Model II

    • MFJ – 1273, 1275, and 1279

    • MicroHAM – USB Interface II

    • RigExpert – Navigator

    • Tigertronics – Signal Link

    • West Mountain Radio – RigBlaster

    • ZLP Electronics - DigiMaster


Rtty

Computer Software

  • Software for computer decoding received RTTY signal and

  • generating RTTY signal for transmission (that I am familiar

  • with)

  • - MMTTY (http://mmhamsoft.amateur-radio.ca/)

  • - MixW2 (http://mixw.net/)

  • - Ham Radio Deluxe w/ Digital Master 780

  • (http://www.ham-radio-deluxe.com/)

  • MMTTY RTTY only, but used with all major contest

  • logging software. Free

  • MixW2 includes most digital programs including CW

  • (send/receive), SSB, SSTV, PSK, Packet (receive only),

  • Olivia, etc. $50

  • HRD/DM 780 PSK, SSTV, Olivia, etc. Free?


Rtty

MMTTY SCREEN


Rtty

MixW2 SCREEN


Rtty

SOURCES OF INFORMATION

AA5AU Website:

Getting Started on RTTY - detailed step-by-step instructions (www.aa5au.com/rtty.html)

RTTY Contest Macros - examples and explanations: (www.rttycontesting.com/rttymessages.htm)

RTTY Tutorials - WriteLog, MMTTY, software-generated FSK, Microham Microkeyer, etc. (www.rttycontesting.com/tutorials/tutorials.htm)

Downloads - Super Check Partial (RTTY version), keyboard templates, etc. (www.rttycontesting.com/downloads/downloads.htm)

Miscellaneous - SO2R, contest notes, survey results, USB-to-serial adaptors, improving your RTTY scores

Getting Started on RTTY:

AA5AU website (www.aa5au.com/rtty.html)

British Amateur Radio Teledata Group (BARTG) (www.bartg.org.uk/articles/Getting%20started%20on%20RTTY.pdf)

DX-Stations Guide to RTTY Operations (www.plicht.de/ekki/rtty/dxguide.html)

Sound Card Interfacing:

Understanding Soundcard Interfacing by Ernie Mills, WM2U (www.qsl.net/wm2u/interface.html)

Simple Serial FSK Setup (users.skynet.be/ON4AOI/keyer.shtml)

Understanding FSK and AFSK (homepage.mac.com/chen/w7ay/cocoaModem/More/Contents/part2.html)

Using MMTTY with FSK (mmhamsoft.amateur-radio.ca/extfsk.htm)

USB-to-Serial Port Adapters (www.rttycontesting.com/usb)

N1MM Logger documentation (pages.cthome.net/n1mm/html/English/Help.htm)


Rtty

SOURCES OF INFORMATION

RTTY Discussion:

- Email reflector (lists.contesting.com/mailman/listinfo/rtty)

- Searchable archives (lists.contesting.com/archives//html/RTTY/)

RTTY Background:

History of RTTY (www.rtty.com)

Other:

Article about RTTY Contesting and SO2R (contestclubfinland.com/pileup/pu4_06.pdf) – 3.8 MB file


Rtty

RTTY CONTESTS

  • First weekend in January ARRL RTTY Roundup

  • Second weekend in February CQ World Wide RTTY Contest

  • Fourth weekend in February North American QSO Party

  • Third weekend in March BARTG Spring RTTY Contest

  • First weekend in April EA RTTY Contest

  • Second weekend in May A. Volta RTTY DX Contest

  • Third weekend in July North American QSO Party

  • Third weekend in August SARTG RTTY Contest

  • Last weekend in September CQ WW RTTY DX Contest

  • Second weekend in October BARTG RTTY Sprint

  • Third weekend in October JARTS World Wide RTTY Contest

  • Second weekend in November Worked All Europe DX Contest

  • Third weekend in December OK DX RTTY Contest


Rtty

RTTY CONTESTING REFERENCES

  • ARRL HF Digital Handbook www.arrl.org/catalog

  • WriteLog for Windows http://www.writelog.com

  • N1MM Logger http://www.n1mm.com/

  • CocoaModem (MacOS) http://homepage.mac.com/chen/

  • w7ay/Site/indes.html

  • MMTTY http://mmhamsoft.amateur-radio.ca/mmtty

  • AA5AU RTTY Contesting http://www.rttycontesting.com
