Radiation Safety and Operations

The University of Montana-Missoula

Today s mixed message l.jpg

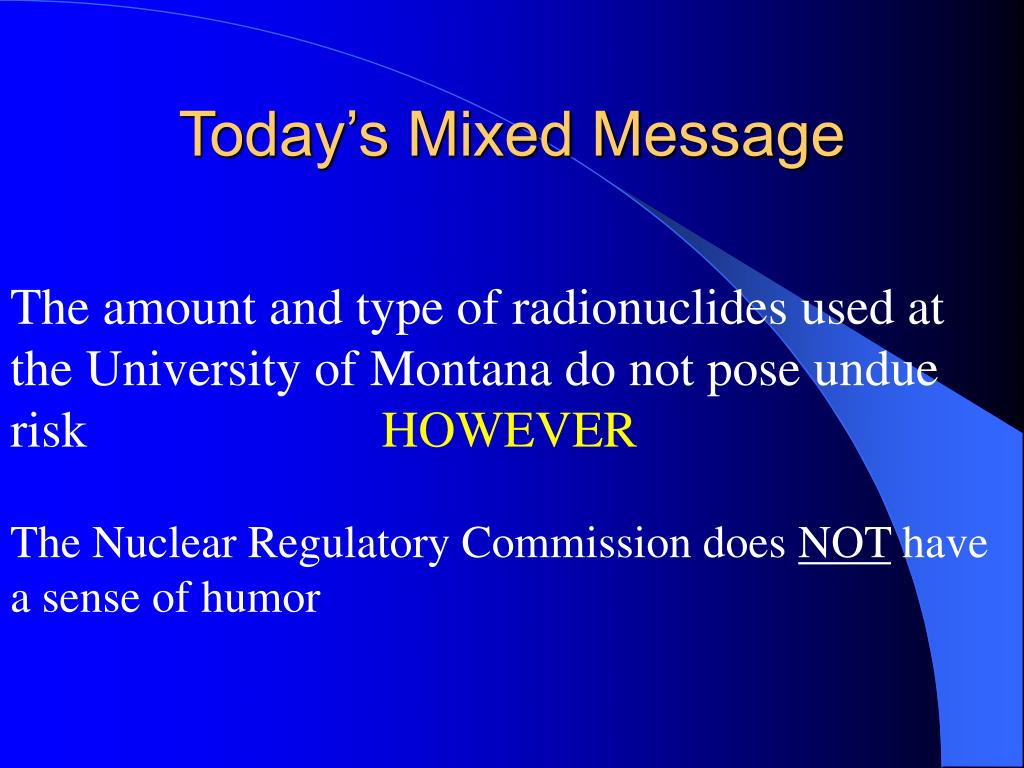

Today’s Mixed Message principles of safe use:

The amount and type of radionuclides used at the University of Montana do not pose undue risk HOWEVER

The Nuclear Regulatory Commission does NOT have a sense of humor

Nrc enforcement policy l.jpg
NRC Enforcement Policy principles of safe use:

…”Prompt and vigorous enforcement action will be taken when dealing with licensees and their employees who do not achieve the necessary meticulous attention to detail and the high standard of compliance which the NRC expects…”

What are we not talking about at least not much l.jpg
What are we not talking about? principles of safe use:At least not much

Non-Ionizing Radiation

Radiation and radioactive material are a natural part of our lives l.jpg
Radiation and Radioactive Material are a Natural Part of Our Lives

  • We are constantly exposed to low levels of radiation from outer space, earth, and the healing arts.

  • Low levels of naturally occurring radioactive material are in our environment, the food we eat, and in many consumer products.

  • Some consumer products also contain small amounts of man-made radioactive material.



Unstable atoms decay l.jpg
Unstable Atoms Decay Lives

  • The number of “decays” that occur per unit time in the radioactive material tell us how radioactive it is.

    • Units include Curies (Ci), decays per minute (dpm), and Becquerels (decays per second).

  • When an unstable atom decays, it transforms into another atom and releases it’s excess energy in the form of radiation. Radiation can be

    • Electromagnetic radiation (like X or gamma rays), and

    • Particles (like alpha, beta, or neutron radiation)

  • Sometimes the new atom is also unstable, creating a “decay chain”

How unstable is it l.jpg

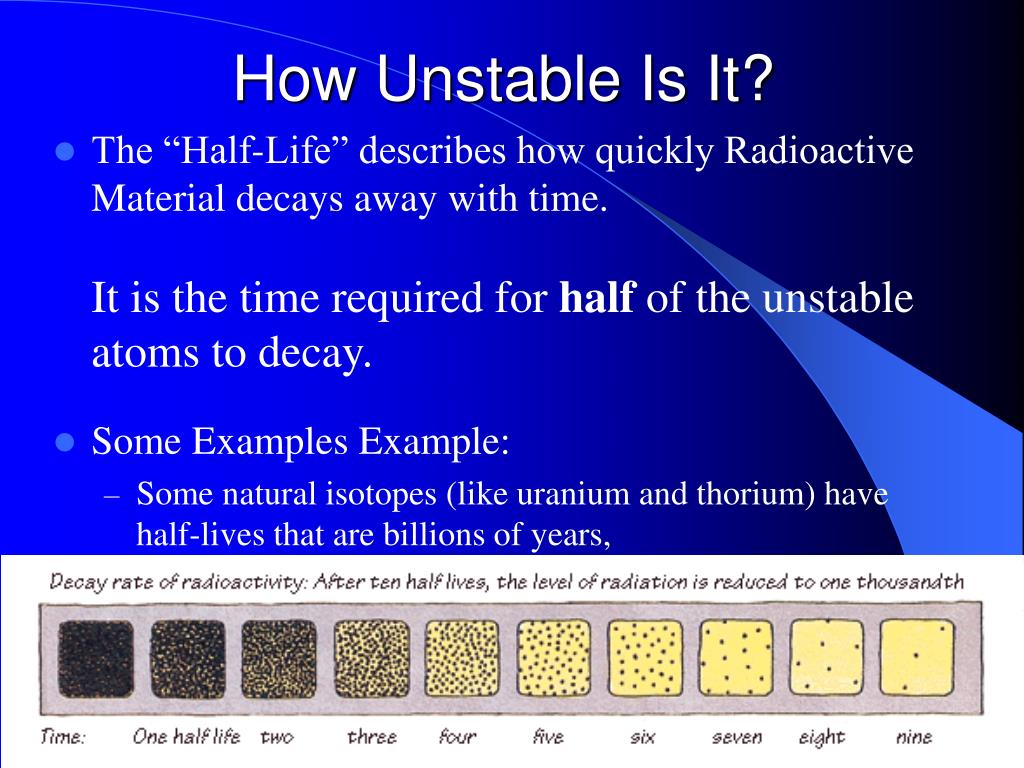

How Unstable Is It? Lives

  • The “Half-Life” describes how quickly Radioactive Material decays away with time.It is the time required for half of the unstable atoms to decay.

  • Some Examples Example:

    • Some natural isotopes (like uranium and thorium) have half-lives that are billions of years,

Half life calculation l.jpg

Most medical isotopes (like LivesTechnicium-99m) last only a few days

Half Life Calculation

The amount of radioactivity is not necessarily related to size l.jpg
The Amount of Radioactivity is NOT Necessarily Related to Size

  • Specific activity is the amount of radioactivity found in a gram of material.

  • Radioactive material with long half-lives have low specific activity.

    1 gram of Cobalt-60has the sameactivity as1800 tons of natural Uranium

Four primary types of ionizing radiation alpha particles l.jpg
Four Primary Types of Ionizing Radiation: SizeAlpha Particles

Alpha Particles: 2 neutrons and 2 protons

They travel short distances, have large mass

Only a hazard when inhaled

Four primary types of ionizing radiation beta particles l.jpg
Four Primary Types of Ionizing Radiation: SizeBeta Particles

Beta Particles: Electrons or positrons having small mass and variable energy. Electrons form when a neutron transforms into a proton and an electron or:

Four primary types of ionizing radiation gamma rays l.jpg
Four Primary Types of Ionizing Radiation: SizeGamma Rays

Gamma Rays (or photons): Result when the nucleus releases

Energy, usually after an alpha, beta or positron transition

Four primary types of ionizing radiation x rays l.jpg
Four Primary Types of Ionizing Radiation: SizeX-Rays

X-Rays: Occur whenever an inner shell orbital electron is removed

and rearrangement of the atomic electrons results with the release of

the elements characteristic X-Ray energy

Four primary types of ionizing radiation neutrons l.jpg
Four Primary Types of Ionizing Radiation: SizeNeutrons

Neutrons: Have the same mass as protons but are uncharged

They behave like bowling balls

Four primary types of ionizing radiation l.jpg
Four Primary Types of Ionizing Radiation Size

  • Alpha particles

  • Beta particles

  • Gamma rays (or photons)

  • X-Rays (or photons)

  • Neutrons

Slide21 l.jpg

Shielding for Size,  and 


Place materials between the source and person to absorb some or all of the radiation

Direct ionization caused by l.jpg
Direct Ionization Caused By: Size

  • Protons

  • Alpha Particles

  • Beta Particles

  • Positron Particles

Indirect ionization caused by l.jpg
Indirect Ionization Caused By: Size

  • Neutrons

  • Gamma Rays

  • X-Rays

Ionizing radiation at the cellular level l.jpg
Ionizing Radiation at the Cellular Level Size

  • Causes breaks in one or both DNA strands or;

  • Causes Free Radical formation

Cellular effects27 l.jpg
Cellular Effects Size

Cell death

Cell repair

Cell change

Is this change good or bad?

Our bodies are resilient l.jpg
Our Bodies Are Resilient Size

  • DNA damage is most important and can lead to cell malfunction or death.

  • Our body has ~ 60 trillion cells

    • Each cell takes “a hit” about every 10 seconds, resulting in tens of millions of DNA breaks per cell each year.

    • BACKGROUND RADIATION causes only a very small fraction of these breaks (~ 5 DNA breaks per cell each year).

  • Our bodies have a highly efficient DNA repair mechanisms

Dividing cells are the most radiosensitive l.jpg
Dividing Cells are the Most Radiosensitive Size

  • Rapidly dividing cells are more susceptible to radiation damage.

  • Examples of radiosensitive cells are;

    • Blood forming Cells

    • The intestinal lining

    • Hair follicles

    • A fetus

This is why the fetus has a exposure limit (over gestation period) of 500 mrem (or 1/10th of the annual adult limit)

At high doses we know radiation causes harm l.jpg
At HIGH Doses, We KNOW Radiation Causes Harm Size

  • High Dose effects seen in:

    • Radium dial painters

    • Early radiologists

    • Atomic bomb survivors

    • Populations near Chernobyl

    • Medical treatments

    • Criticality Accidents

  • In addition to radiation sickness, increased cancer rates were also evident from high level exposures.

Old terms l.jpg
Old Terms Size

  • Roentgen-Based on the quantity of electrical charges produced in air by X or Gamma photons 1R=2 billion pr

  • RAD-Radiation Absorbed Dose is the work energy resulting from the absorption of one ROENTGEN or 6.24 E5 Mev

More old terms l.jpg
More Old Terms Size

  • REM-Roentgen Equivalent Mammal is equal to the absorbed does in RADS multiplied by a quality factor

  • Quality Factors

  • Beta = 1

  • Gamma & X ray photons = 1

  • Alpha = 10

  • Neutrons = 20

New terms sort of l.jpg

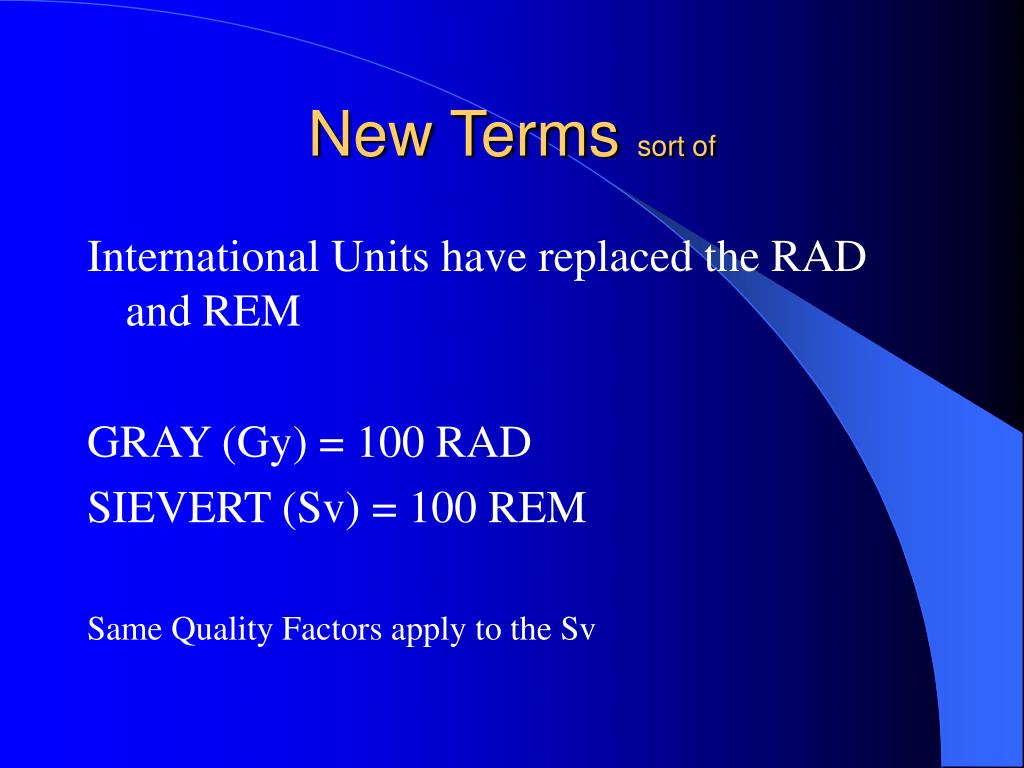

New Terms Sizesort of

International Units have replaced the RAD and REM

GRAY (Gy) = 100 RAD

SIEVERT (Sv) = 100 REM

Same Quality Factors apply to the Sv

Units of radioactivity l.jpg

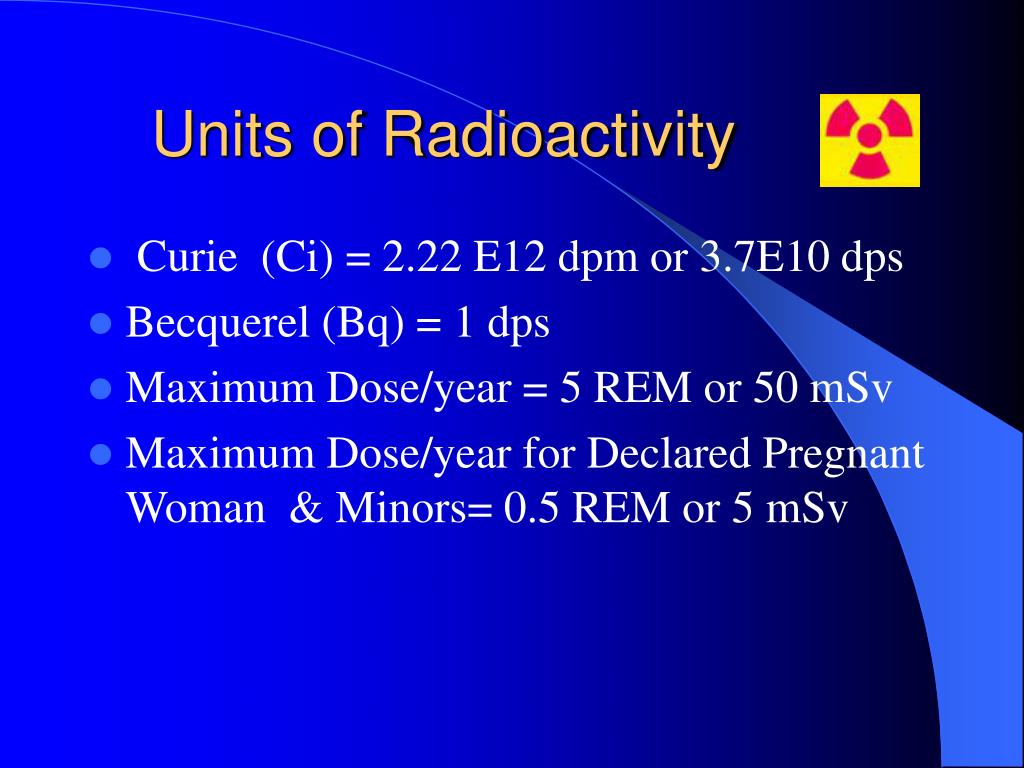

Units of Radioactivity Size

  • Curie (Ci) = 2.22 E12 dpm or 3.7E10 dps

  • Becquerel (Bq) = 1 dps

  • Maximum Dose/year = 5 REM or 50 mSv

  • Maximum Dose/year for Declared Pregnant Woman & Minors= 0.5 REM or 5 mSv

Annual dose limits l.jpg

Adult ( Size$18 yrs)

Minor (< 18 yrs)

Whole body*

5000 mrem/yr

500 mrem/yr

Lens of eye

15000 mrem/yr

1500 mrem/yr


50000 mrem/yr

5000 mrem/yr


50000 mrem/yr

5000 mrem/yr


50000 mrem/yr

5000 mrem/yr

Annual Dose Limits

External/Internal Exposure Limits for Occupationally Exposed Individuals

  • *Effective dose equivalent

Radiation is a type of energy contamination is material l.jpg
Radiation is a type of energy; Contamination is material Size

  • Exposure to Radiation will not contaminate you or make you radioactive

  • Contamination is Radioactive Material spilled someplace you don’t want it.

  • Radioactive contamination emits radiation

  • Contact with Contamination can contaminate you with the material

Rad use at um l.jpg
RAD use at UM Size

  • Prior to first use of radionuclides, the Authorized User must provide written and interactive training.

  • Read the Radiation Safety Manual

  • Specific, clear and detailed instruction on safe handling

  • Documentation

Ordering radionuclides l.jpg

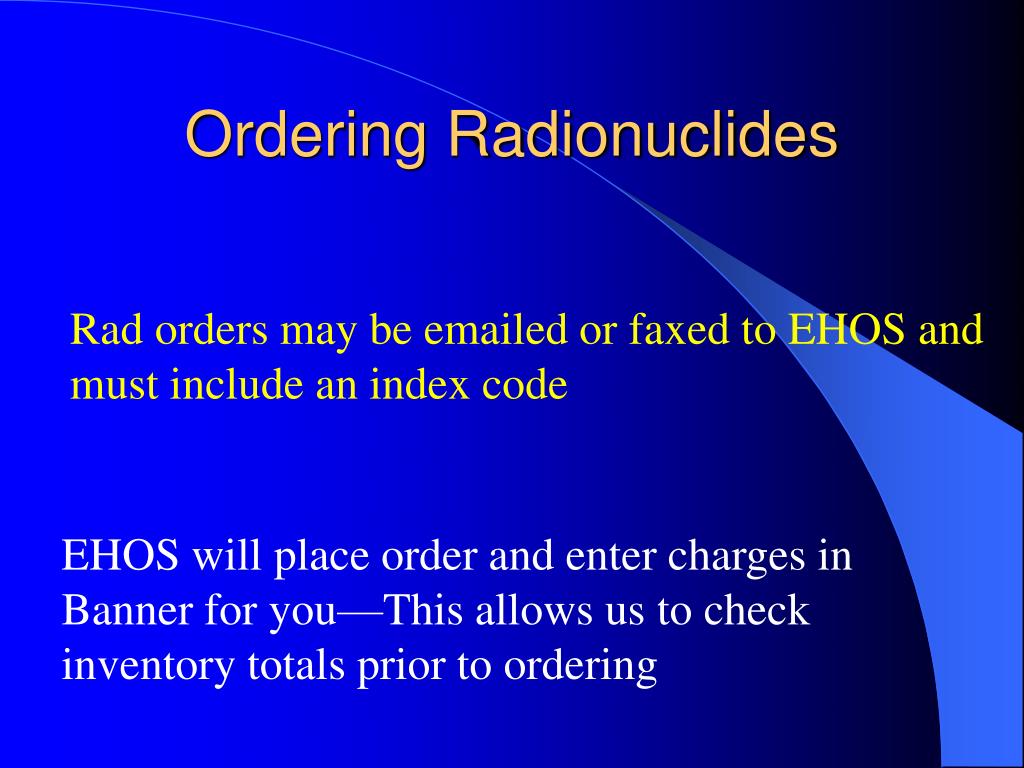

Ordering Radionuclides Size

Rad orders may be emailed or faxed to EHOS and must include an index code

EHOS will place order and enter charges in Banner for you—This allows us to check inventory totals prior to ordering

What if i don t pay for my nukes l.jpg
What if I Don’t Pay for my Nukes Size

Free shipments must be approved

Inter-Laboratory Transfers must

Be approved

Incoming shipments l.jpg
Incoming Shipments Size


  • Use the appropriate survey meter to confirm the TYPE and AMOUNT of detectable radiation is proper

  • Wipe test outer package and run wipes in LSC

  • Check each inner increment of packaging

  • Record the Results on your inventory sheet in the Rad Manual

  • Notify the RSO if any contamination is found

Security l.jpg
Security Size

  • All Radioactive Materials must be secured or under direct supervision at all times

  • There MUST be someone in the room at all times OR the door must be locked.

Contamination surveys l.jpg
Contamination Surveys Size

Record the Results

Wipe tests must be done monthly if you have inventory on hand

Spill response l.jpg

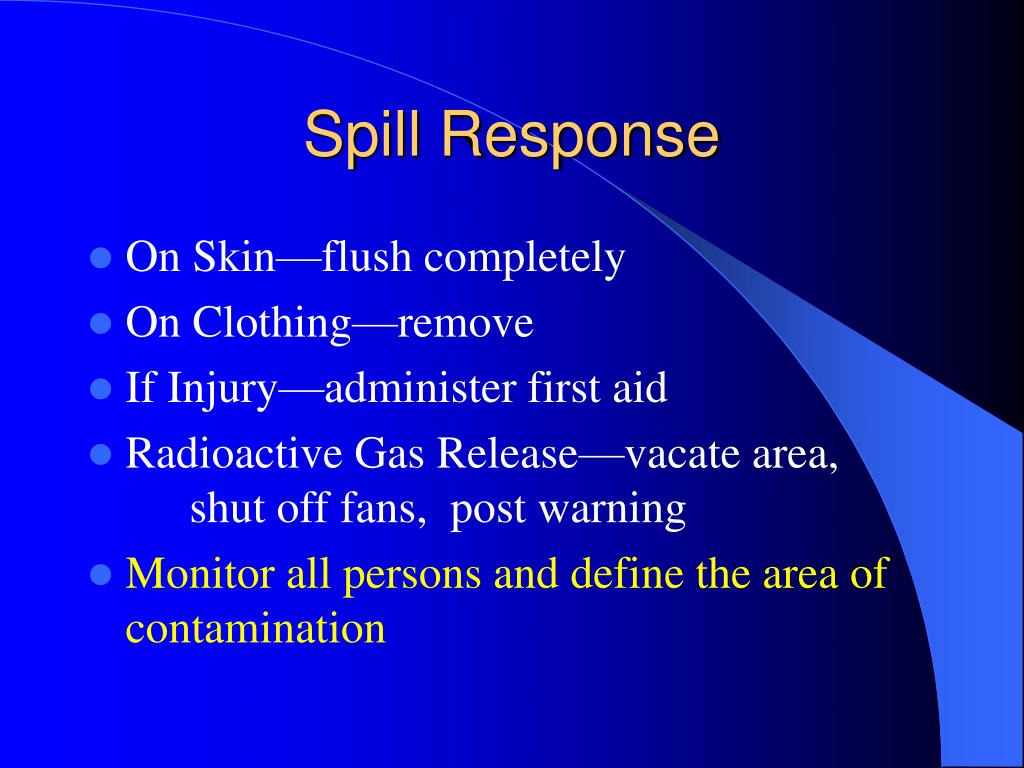

Spill Response Size

  • On Skin—flush completely

  • On Clothing—remove

  • If Injury—administer first aid

  • Radioactive Gas Release—vacate area, shut off fans, post warning

  • Monitor all persons and define the area of contamination

Alara l.jpg

As Low As Reasonably Achievable—means making every reasonable effort to maintain exposures to radiation as far below the dose limits as is practicable consistent with the purpose for which the licensed activity is undertaken, taking into account the state of technology, the economics of improvements in relation to the state of technology, the economics of improvements in relation to benefits to the public health and safety, and other societal and socioeconomic considerations, and in relation to utilization of nuclear energy and licensed materials in the public interest.

Radiation protection l.jpg
Radiation Protection Size

  • Decrease Time

  • Increase Distance

  • Increase Shielding

Reduce waste volume l.jpg
Reduce Waste Volume Size

  • Exercise care in handling—avoid spills

  • Use counter covers with overlays or cutouts

  • Keep primary rinse volumes to the minimum necessary

Something extra l.jpg
Something Extra Size

  • Irradiating Food

  • Radon

  • Dirty Bombs

What should you remember l.jpg
What should you remember? Size

  • The NRC has no sense of humor

  • The amount and type of radionuclides used

  • at UM are very unlikely to cause you harm

  • You must abide by all the rules

  • If you have questions make sure they get answered ASAP
