Presentation Transcript


Engineering problem solving with c an object based approach

Engineering Problem Solving With C++An Object Based Approach

Chapter 9

Pointers and

Creating Data Structures


Pointer basics

Pointer Basics

  • A pointer is a variable that holds the memory address of another object

  • If a variable p contains the address of another variable q, then p is said to point to q

  • If q is a variable at location 100 in memory, then p would have the value 100 (q’s address)


Address of operator

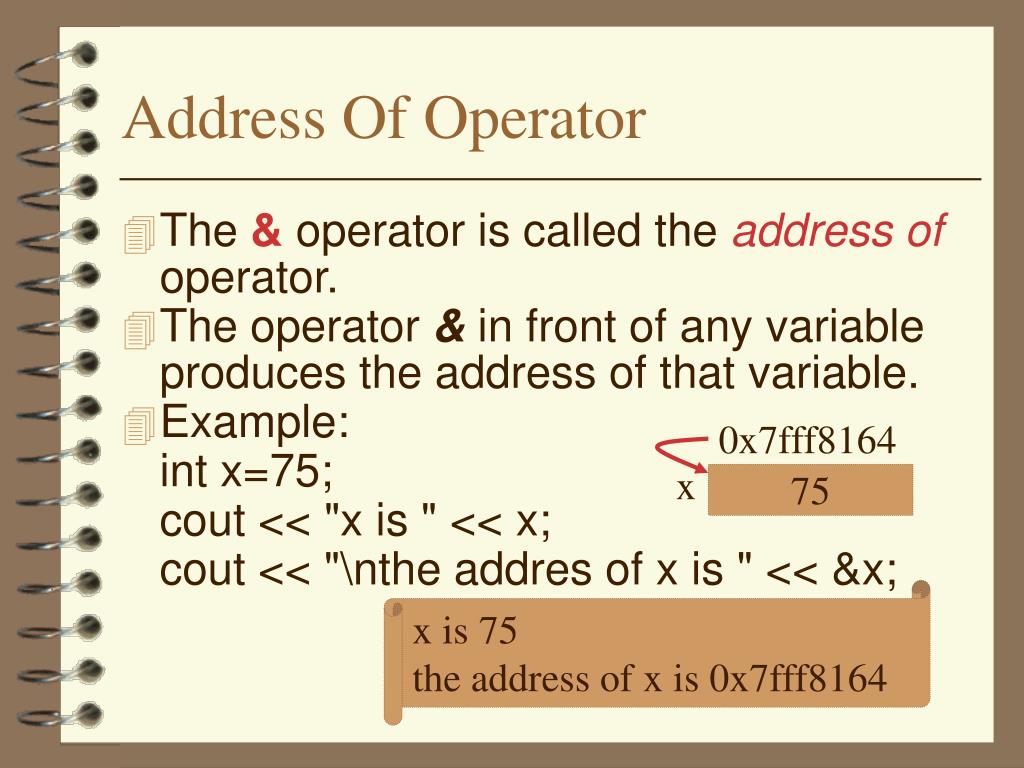

Address Of Operator

  • The & operator is called the addressof operator.

  • The operator & in front of any variable produces the address of that variable.

  • Example:

    int x=75;

    cout << "x is " << x;

    cout << "\nthe addres of x is " << &x;

0x7fff8164

x

75

x is 75

the address of x is 0x7fff8164


How to declare a pointer variable

How to declare a pointer variable

  • pointer variables are declared using the indirection operator*, more commonly called the dereferencing operator.

  • general form -

    • type *variable_name, *variable_name;

    • type* variable_name;

  • when declaring more than one pointer variable, the * must precede each variable.


Example

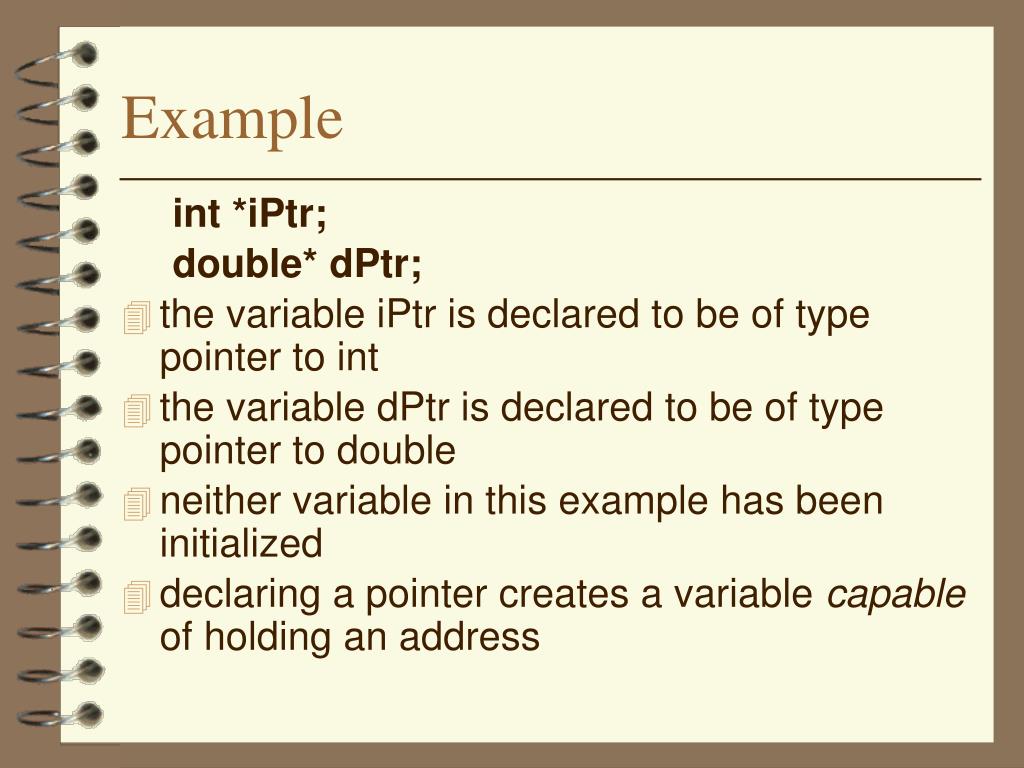

Example

int *iPtr;

double* dPtr;

  • the variable iPtr is declared to be of type pointer to int

  • the variable dPtr is declared to be of type pointer to double

  • neither variable in this example has been initialized

  • declaring a pointer creates a variable capable of holding an address


Example1

Example

int *iPtr, i=6;char* s, str = "example";double *dPtr, d=1.25;

iPtr

s

dPtr

i

str

d

6

"example"

1.25


Null pointer

NULL pointer

  • there is a literal value that can be assigned to any pointer

  • the literal value is NULL or 0

  • in this context it is known as the nulladdressand does not point to anything which can be referenced.

  • trying to dereference the null address, results in a terminal error


Example2

Example

int *iPtr=0;

char *s=NULL; //predefined constant in iostream.h

double *dPtr=NULL;

NULL

iPtr

s

dPtr

NULL

NULL


Assigning values to a pointer

x

xp

ip

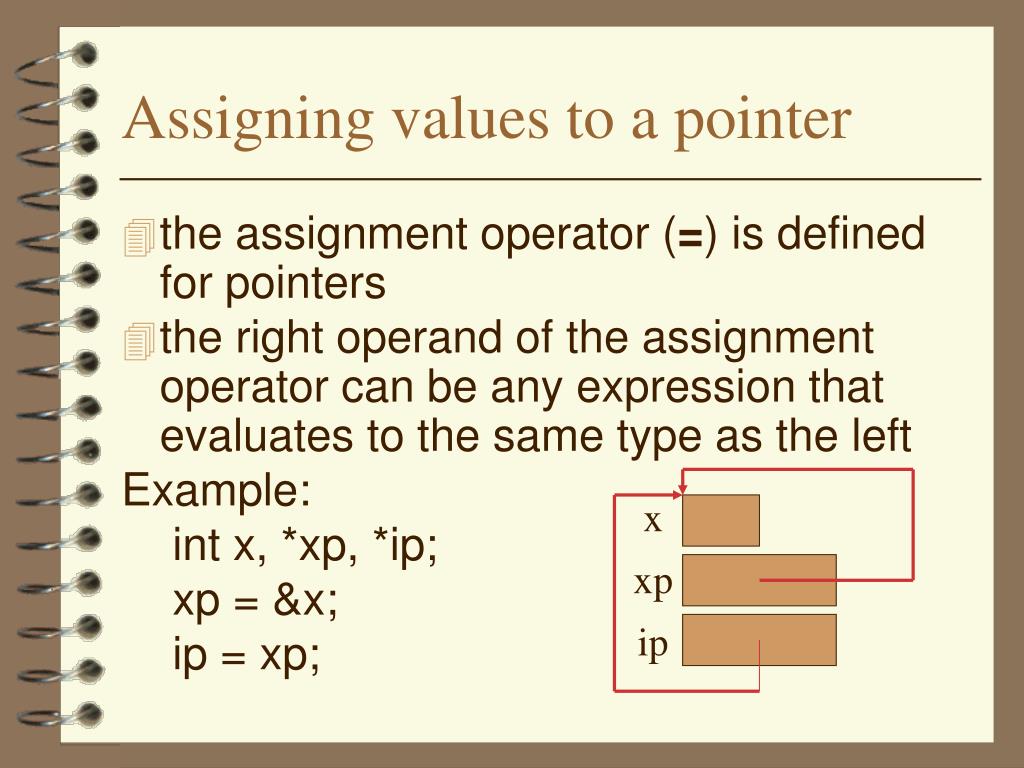

Assigning values to a pointer

  • the assignment operator (=) is defined for pointers

  • the right operand of the assignment operator can be any expression that evaluates to the same type as the left

    Example:

    int x, *xp, *ip;

    xp = &x;

    ip = xp;


The base type

The Base Type

  • In the declaration

    int *p;// the base type of p is int

    double *q;// the base type of q is double

  • Base type determines the size of an object to which the pointer is assumed to be pointing

  • The size of p and q are the same ( 4 bytes**), but p points to 4 bytes** and q points to 8 bytes**

    **compiler dependent

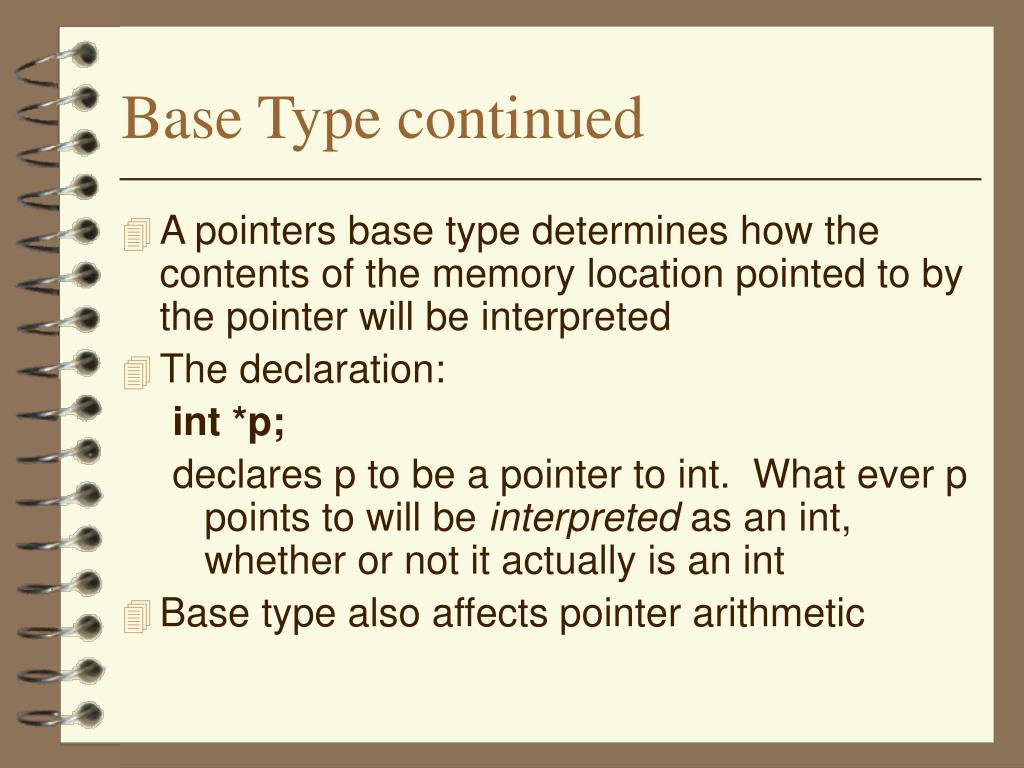

Base type continued

Base Type continued

  • A pointers base type determines how the contents of the memory location pointed to by the pointer will be interpreted

  • The declaration:

    int *p;

    declares p to be a pointer to int. What ever p points to will be interpreted as an int, whether or not it actually is an int

  • Base type also affects pointer arithmetic

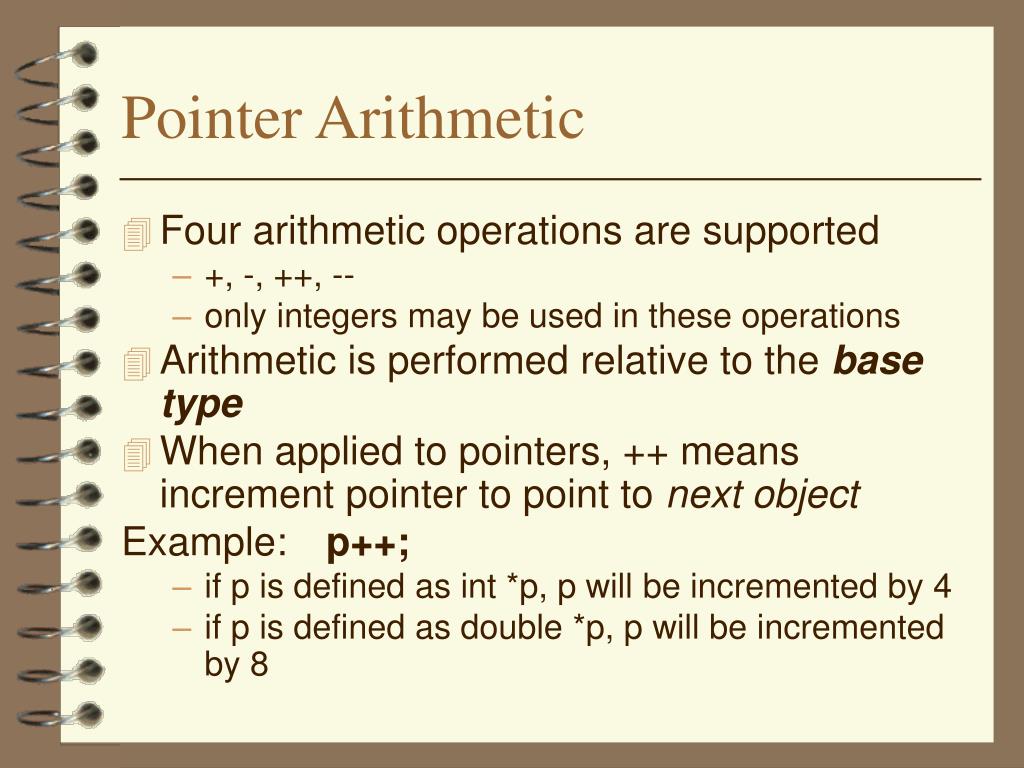

Pointer arithmetic

Pointer Arithmetic

  • Four arithmetic operations are supported

    • +, -, ++, --

    • only integers may be used in these operations

  • Arithmetic is performed relative to the base type

  • When applied to pointers, ++ means increment pointer to point to nextobject

    Example:p++;

    • if p is defined as int *p, p will be incremented by 4

    • if p is defined as double *p, p will be incremented by 8


Example3

Example

int *p;

cout << "size of char is " << sizeof(char) << endl;

cout << "size of int is " << sizeof(int) << endl;

cout << "size of double is " << sizeof(double) << endl;

cout << "size of float is " << sizeof(float) << endl;

cout << "the size of p is " << sizeof(p) << endl;

Output:

size of char is 1

size of int is 4

size of double is 8

size of float is 4

the size of p is 4

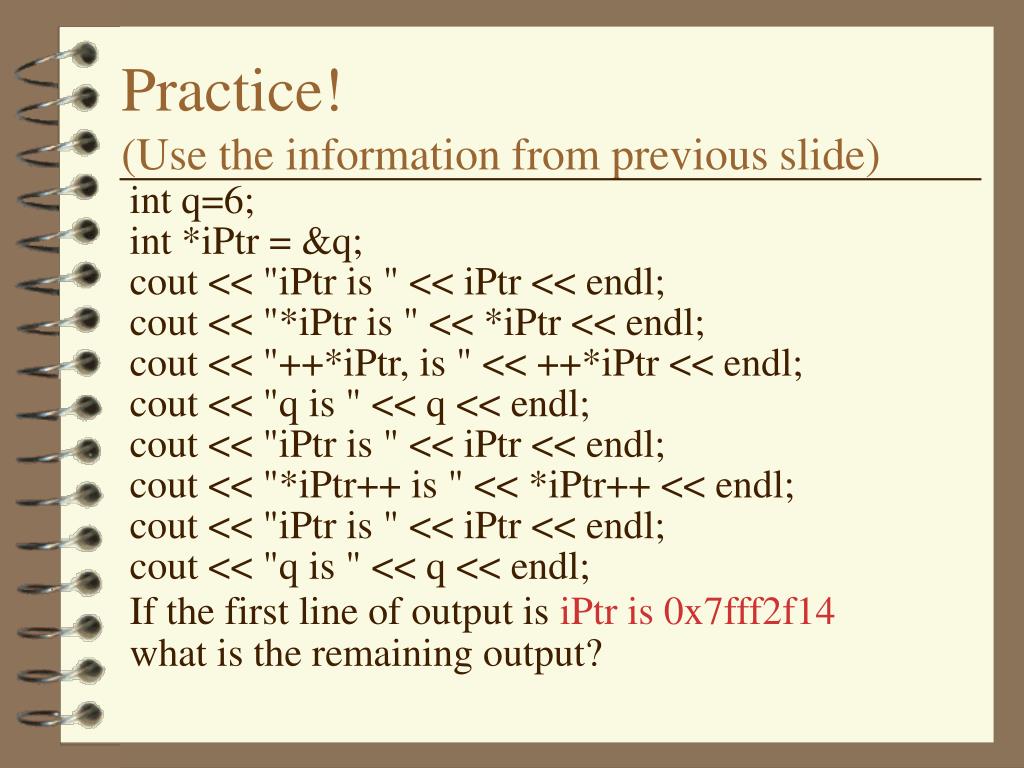

Practice use the information from previous slide

Practice! (Use the information from previous slide)

int q=6;

int *iPtr = &q;

cout << "iPtr is " << iPtr << endl;

cout << "*iPtr is " << *iPtr << endl;

cout << "++*iPtr, is " << ++*iPtr << endl;

cout << "q is " << q << endl;

cout << "iPtr is " << iPtr << endl;

cout << "*iPtr++ is " << *iPtr++ << endl;

cout << "iPtr is " << iPtr << endl;

cout << "q is " << q << endl;

If the first line of output is iPtr is 0x7fff2f14

what is the remaining output?


Result of practice

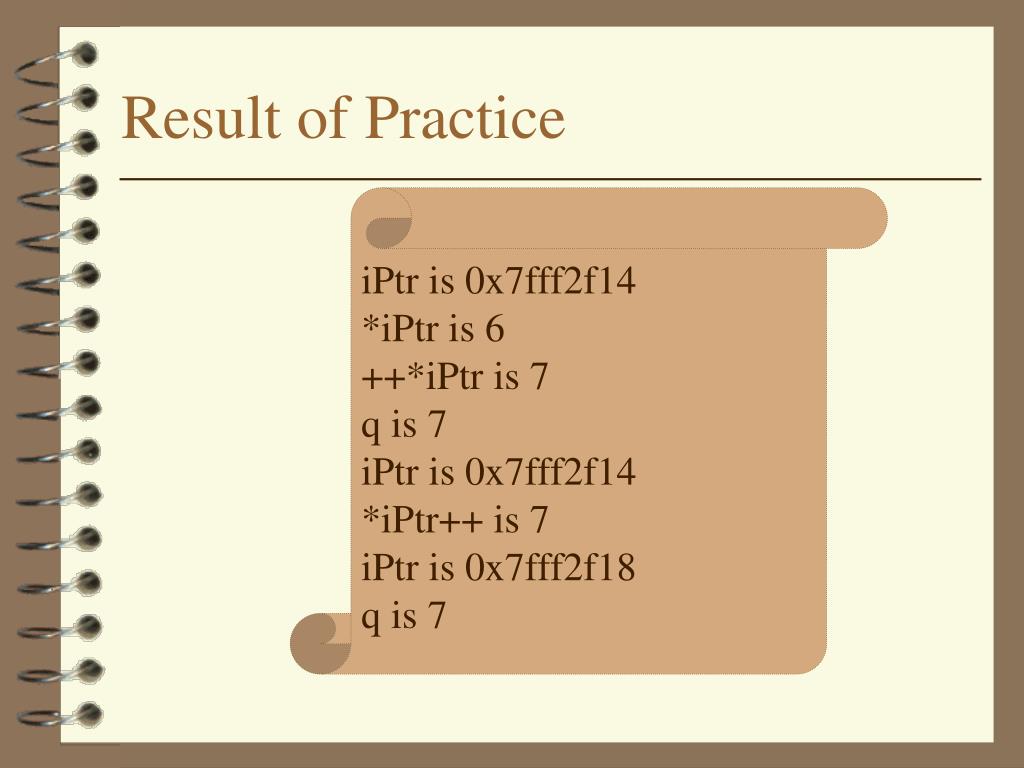

Result of Practice

iPtr is 0x7fff2f14

*iPtr is 6

++*iPtr is 7

q is 7

iPtr is 0x7fff2f14

*iPtr++ is 7

iPtr is 0x7fff2f18

q is 7


Comparing pointers

Comparing Pointers

  • You may compare pointers using relational operators

  • Common comparisons are:

    • check for null pointer (p == NULL)

    • Note: since NULL evaluates as false, and any other pointer evaluates as true, checking for a null pointer can be done as (!p)

    • check if two pointers are pointing to the same object

      (p == q)

    • Note: (*p == *q) means they are pointing to equivalent, but not necessarily the same data.


Pointers and arrays

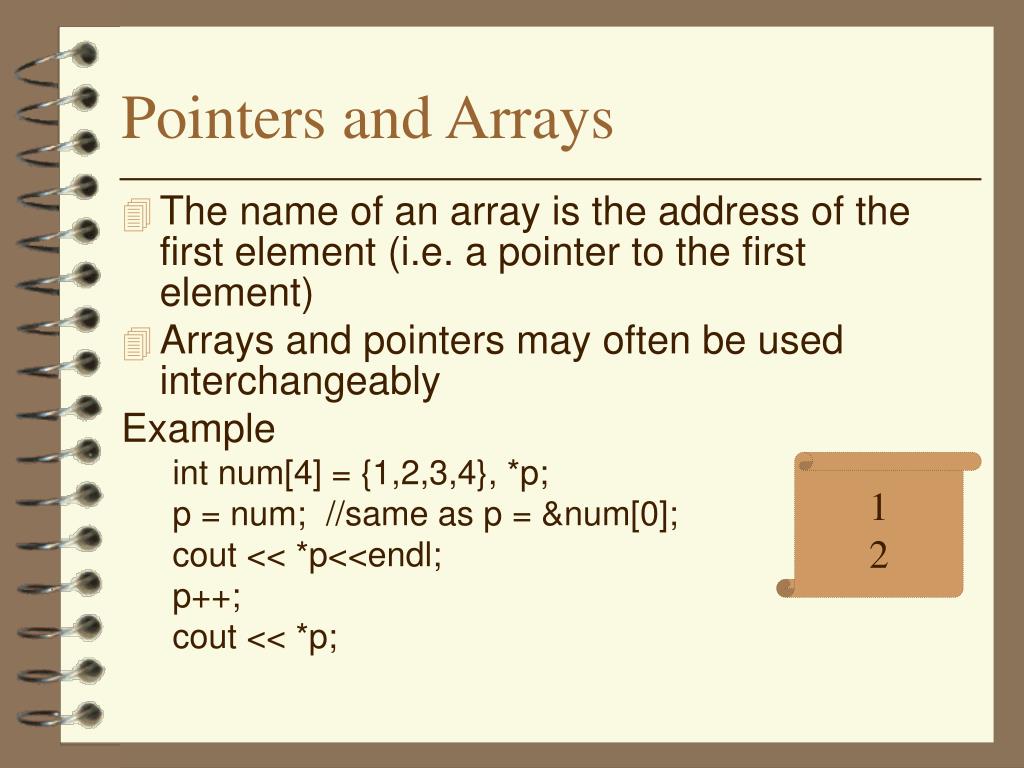

Pointers and Arrays

  • The name of an array is the address of the first element (i.e. a pointer to the first element)

  • Arrays and pointers may often be used interchangeably

    Example

    int num[4] = {1,2,3,4}, *p;

    p = num;//same as p = &num[0];

    cout << *p<<endl;

    p++;

    cout << *p;

1

2


More pointers and arrays

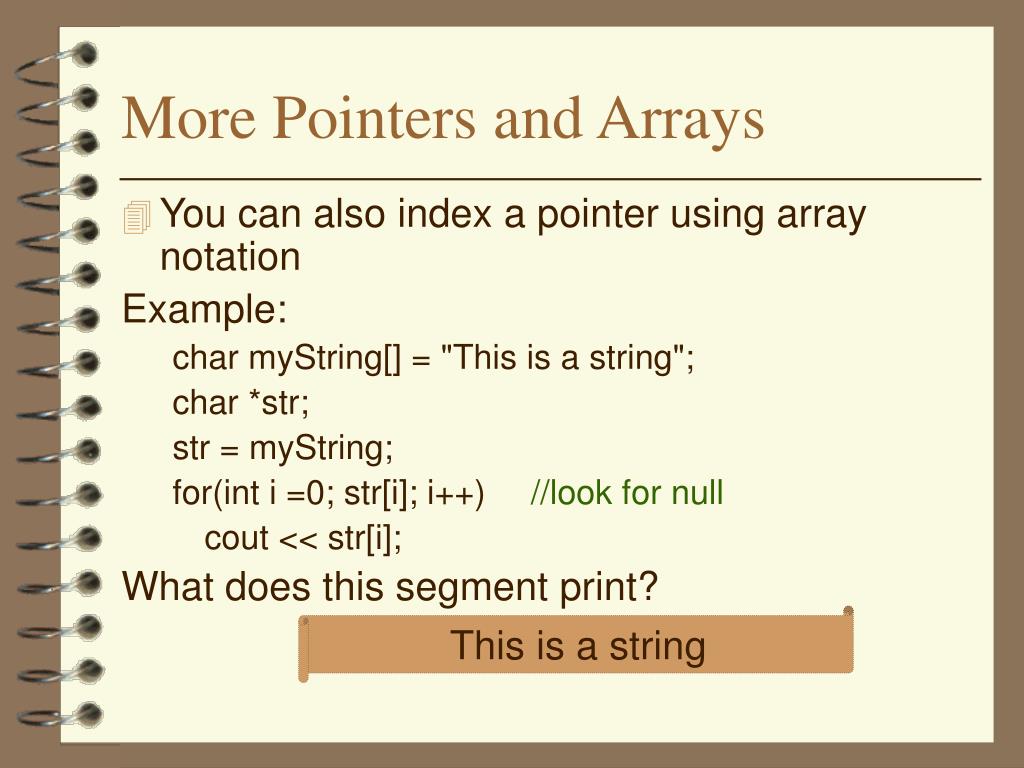

More Pointers and Arrays

  • You can also index a pointer using array notation

    Example:

    char myString[] = "This is a string";

    char *str;

    str = myString;

    for(int i =0; str[i]; i++)//look for null

    cout << str[i];

    What does this segment print?

This is a string


Arrays and pointers

Arrays and Pointers

  • The name of an array is a pointer to the first element. However, the array name is not a pointer variable. It is a constantpointer that always points to the first element of the array and its value can not be changed.

  • Also when an array is declared, space for all elements in the array is allocated, however when a pointer variable is declared only space sufficient to hold an address is allocated


Practice what does this print

0xfff4c252

myString

T

h

i

s

i

s

a

s

t

r

i

n

g

\0

strPtr

0xfff4c252

Practice! What does this print?

char myString[ ] = "This is a string";

char *strPtr;

strPtr = myString;

cout << *myString << endl;

cout<<myString << endl;

cout << *(myString + 1) << endl;

strPtr++;

cout << *++strPtr << endl;

myString++;//not legal

T

This is a string

h

i


Arrays of pointers

Arrays of Pointers

  • You may define arrays of pointers like any other data type in C++

    int num=8;

    //declare an array of 10 pointers to int

    int *iPtrs[10];

    //first element is assigned a value

    iPtrs[0] = &num;

    //output the value of num

    cout << *iPtrs[0];


Arrays of type char pointers

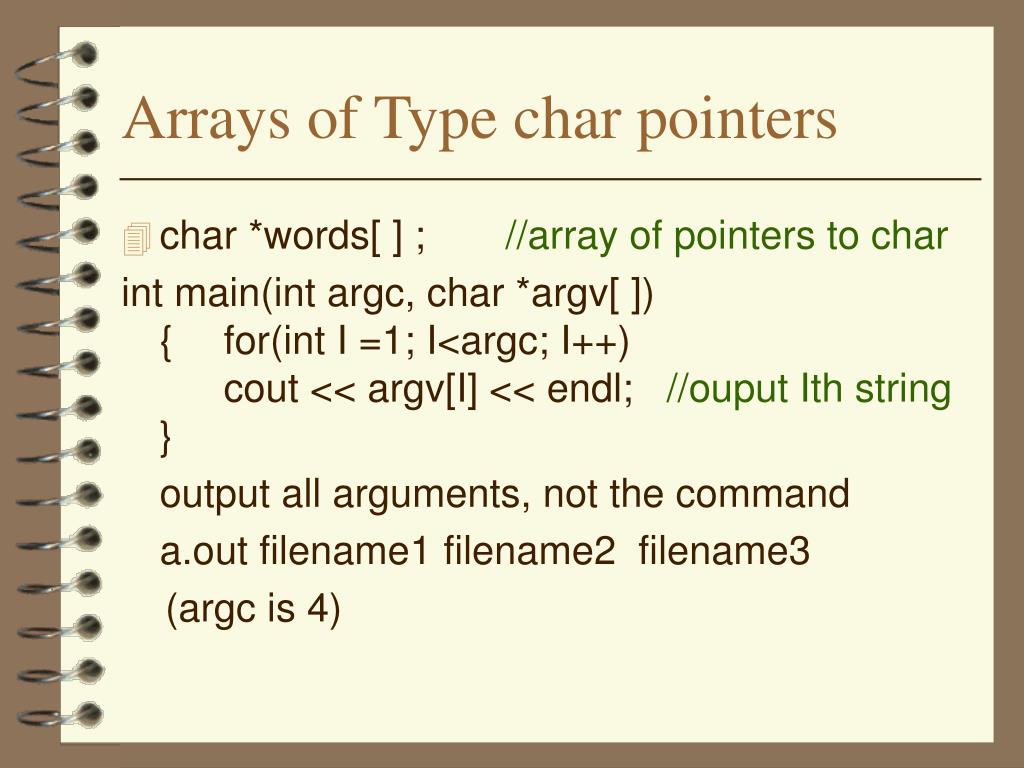

Arrays of Type char pointers

  • char *words[ ] ; //array of pointers to char

    int main(int argc, char *argv[ ]) {for(int I =1; I<argc; I++)cout << argv[I] << endl; //ouput Ith string }

    output all arguments, not the command

    a.out filename1 filename2 filename3

    (argc is 4)


Passing pointers as parameters

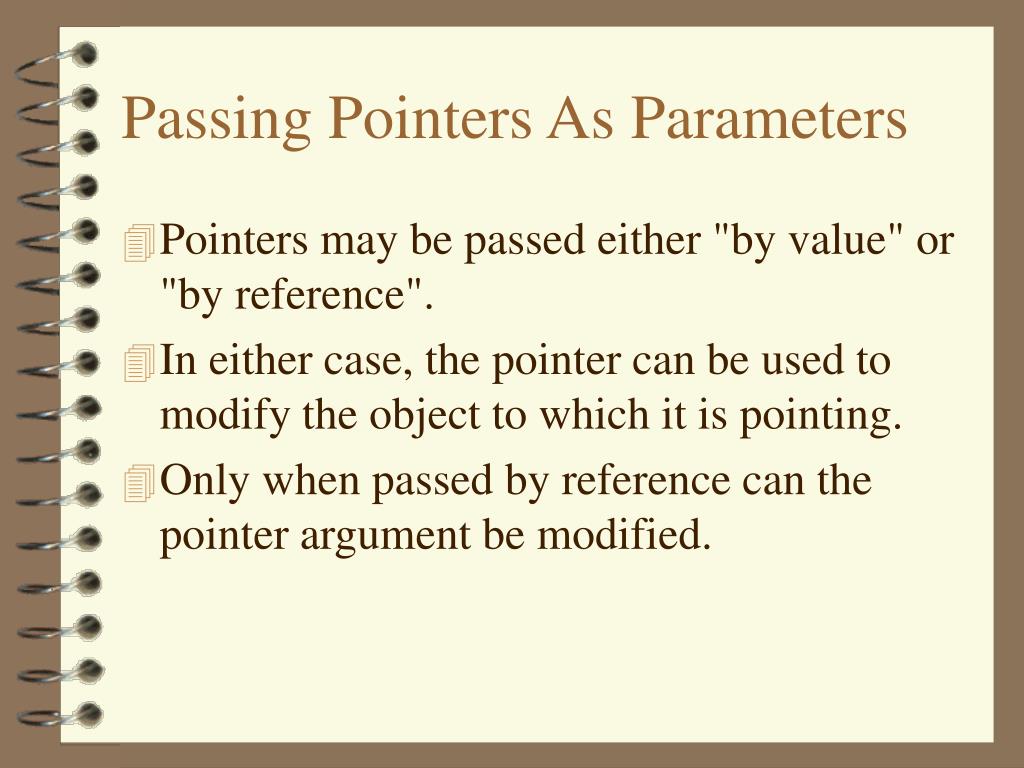

Passing Pointers As Parameters

  • Pointers may be passed either "by value" or "by reference".

  • In either case, the pointer can be used to modify the object to which it is pointing.

  • Only when passed by reference can the pointer argument be modified.

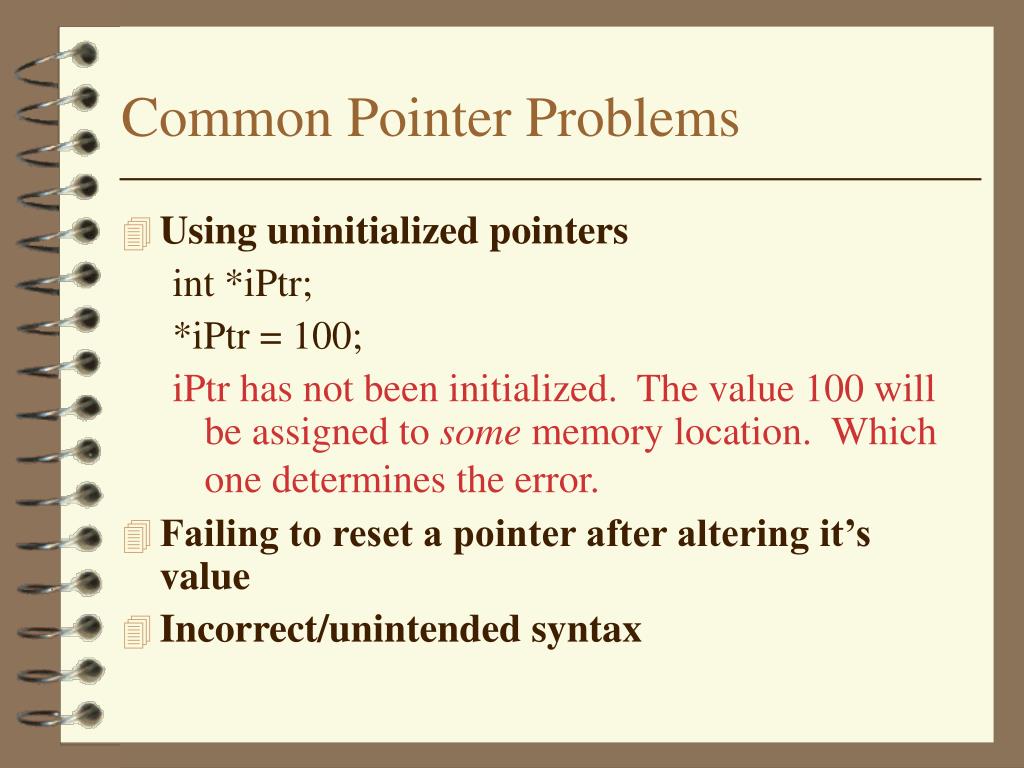

Common pointer problems

Common Pointer Problems

  • Using uninitialized pointers

    int *iPtr;

    *iPtr = 100;

    iPtr has not been initialized. The value 100 will be assigned to some memory location. Which one determines the error.

  • Failing to reset a pointer after altering it’s value

  • Incorrect/unintended syntax


Practice

Practice!

  • #include <iostream>

  • using namespace std;

  • int main()

  • { char *aString = "What happens here?";

  • int len=0;

  • while(*aString++ != '\0')

    • len++;

    • cout << len << ": " << aString;

    • return 0;

  • }

  • Does this compile? If not, why?

  • If it does, what is the output? Why?

Yes

18:

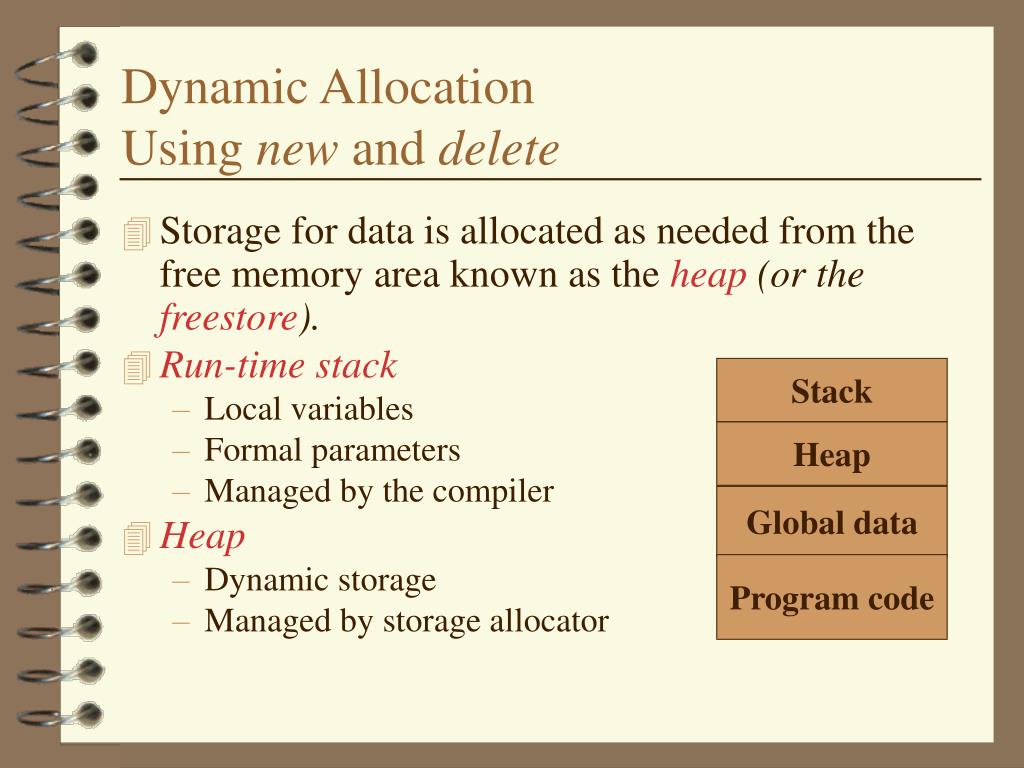

Dynamic allocation using new and delete

Stack

Heap

Global data

Program code

Dynamic Allocation Using new and delete

  • Storage for data is allocated as needed from the free memory area known as the heap (or the freestore).

  • Run-time stack

    • Local variables

    • Formal parameters

    • Managed by the compiler

  • Heap

    • Dynamic storage

    • Managed by storage allocator


Dynamic memory allocation

Dynamic Memory Allocation

  • Dynamically allocated memory is determined at runtime

  • It allows a program to create as many or as few variables as required, offering greater flexibility

  • Dynamic allocation is often used to support data structures such as stacks, queues, linked lists and binary trees.

  • Dynamic memory is finite

  • Dynamically allocated memory may be freed during execution


Operator new

Operator new

  • Replaces malloc() used in C

  • Creates a new dynamic variable of the specified type

  • Returns a pointer to the new variable

  • If allocation fails, new terminates the program (or returns NULL on older compilers)


Example4

Example

int *iPtr;

iPtr = new int;// 4 bytes are allocated

// iPtr points to new integer // variable

double *dPtr;

dPtr = new double[20];// dPtr points to the first // double in anarray // of 20 doubles (160 bytes // allocated)

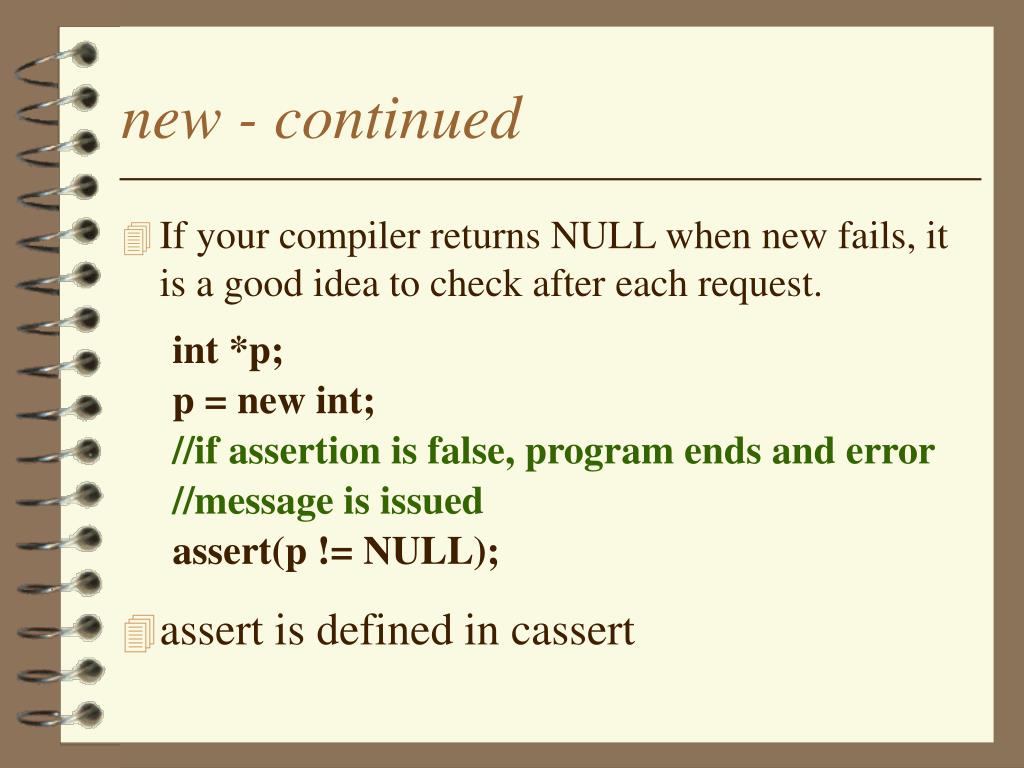

New continued

new - continued

  • If your compiler returns NULL when new fails, it is a good idea to check after each request.

    int *p;

    p = new int;

    //if assertion is false, program ends and error

    //message is issued

    assert(p != NULL);

  • assert is defined in cassert


Initializing dynamically allocated memory

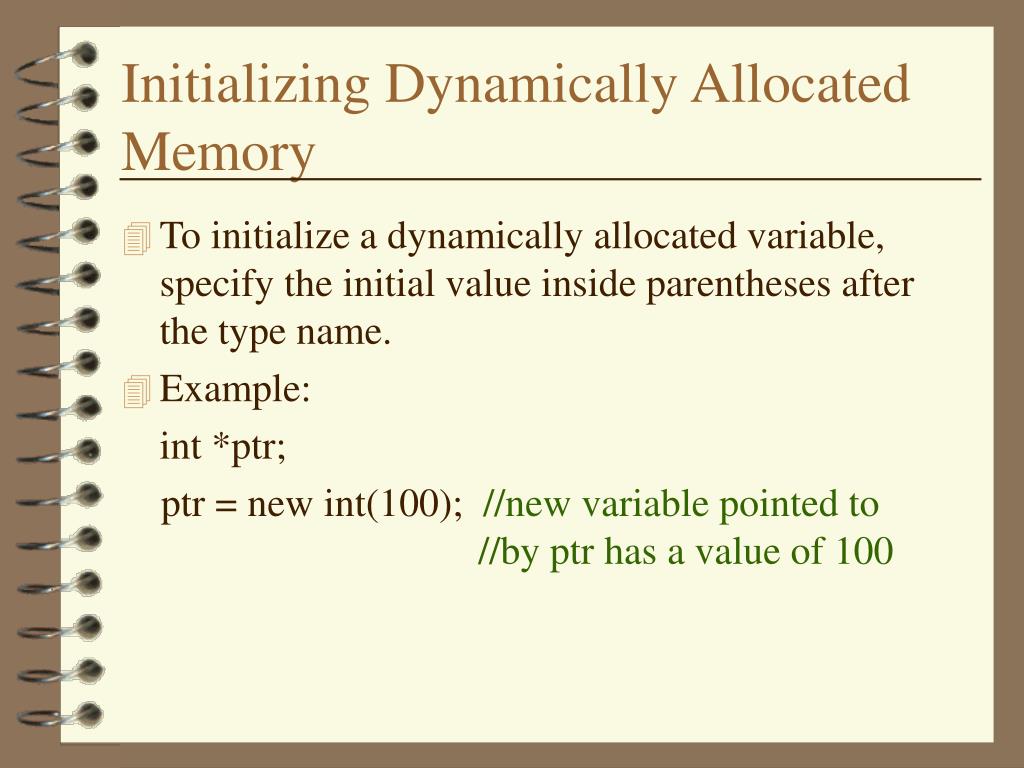

Initializing Dynamically Allocated Memory

  • To initialize a dynamically allocated variable, specify the initial value inside parentheses after the type name.

  • Example:

    int *ptr;

    ptr = new int(100); //new variable pointed to //by ptr has a value of 100


Engineering problem solving with c an object based approach

iPtr

jPtr

?

?

?

?

?

?

dptr

Practice:

int main()

{ int *iPtr, *jPtr, i;

iPtr = new int;

jPtr = new int(3);

double *dPtr;

dPtr = new double[6];

*iPtr = 7; //SKETCH MEMORY

cout << *iPtr << ',' << *jPtr << endl;

for(i=0; i<6; i++)

dPtr[i] = 5;

for(i=0; i<6; i++)

cout << (*dPtr)++ << ' ';

cout << endl;

for(i=0; i<6; i++)

cout << dPtr[i] << ' ';

return 0; //OUTPUT?

}

7

3

OUTPUT

7 , 3

5 6 7 8 9 10

11 5 5 5 5 5


Const modifier with pointers

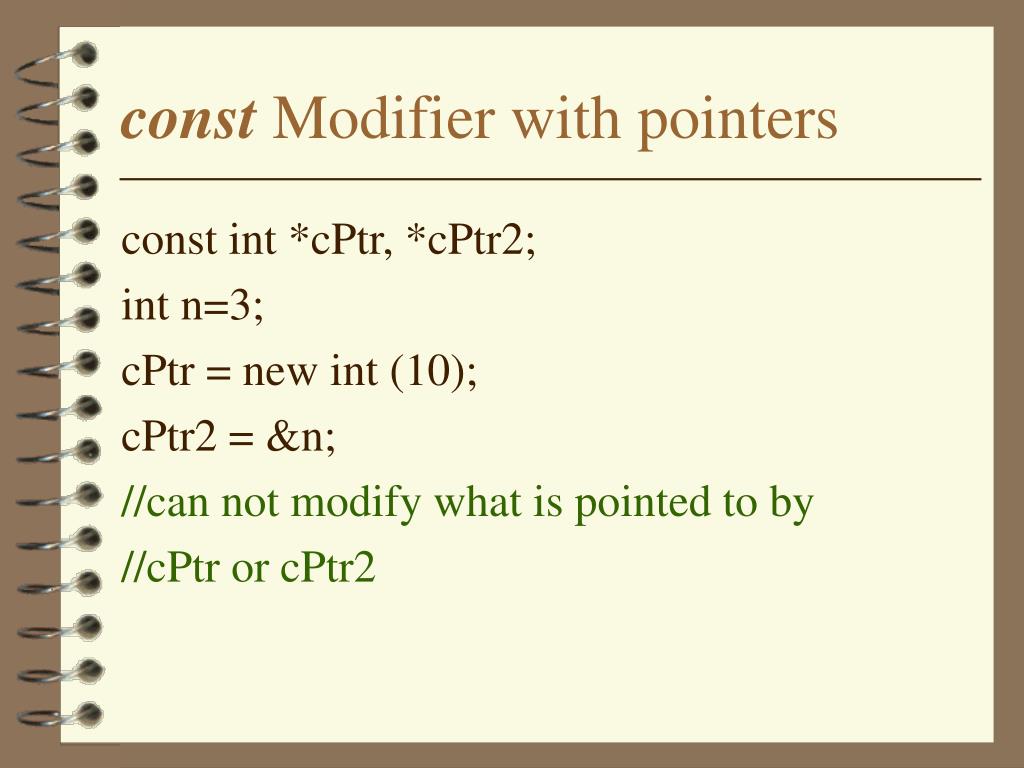

constModifier with pointers

const int *cPtr, *cPtr2;

int n=3;

cPtr = new int (10);

cPtr2 = &n;

//can not modify what is pointed to by

//cPtr or cPtr2


Operator delete

Operatordelete

  • Replaces free() function used in C

  • The delete operator frees memory produced by new

  • Using delete to attempt to free any other type of address will produce problems

  • While delete uses a pointer variable, it does not destroy the pointer variable, it only frees the storage to which the variable is pointing.


Delete example

100

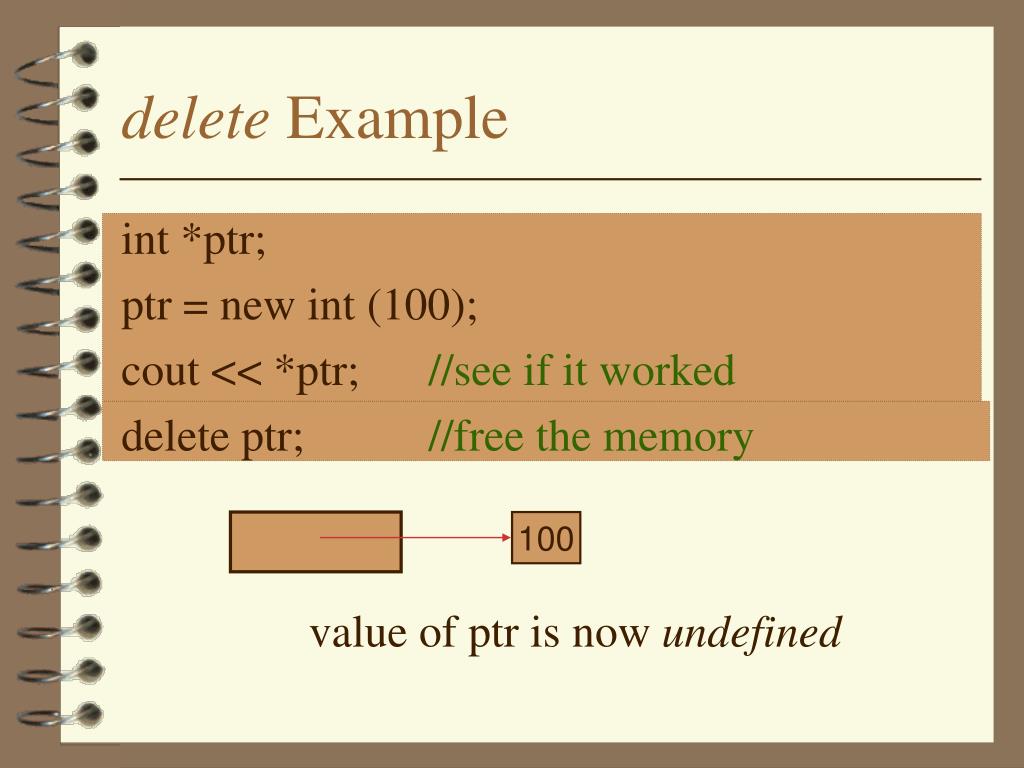

delete Example

int *ptr;

ptr = new int (100);

cout << *ptr;//see if it worked

delete ptr;//free the memory

value of ptr is now undefined


Example of dynamically allocated arrays

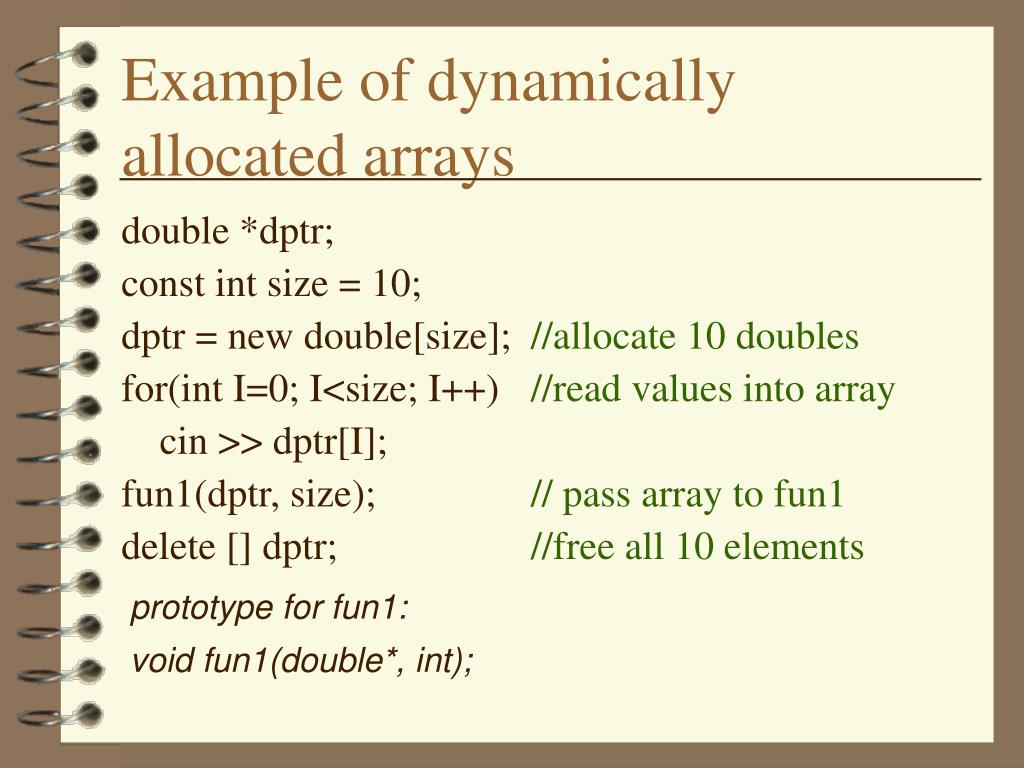

Example of dynamically allocated arrays

double *dptr;

const int size = 10;

dptr = new double[size];//allocate 10 doubles

for(int I=0; I<size; I++)//read values into array

cin >> dptr[I];

fun1(dptr, size);// pass array to fun1

delete [] dptr;//free all 10 elements

prototype for fun1:

void fun1(double*, int);


Example using delete

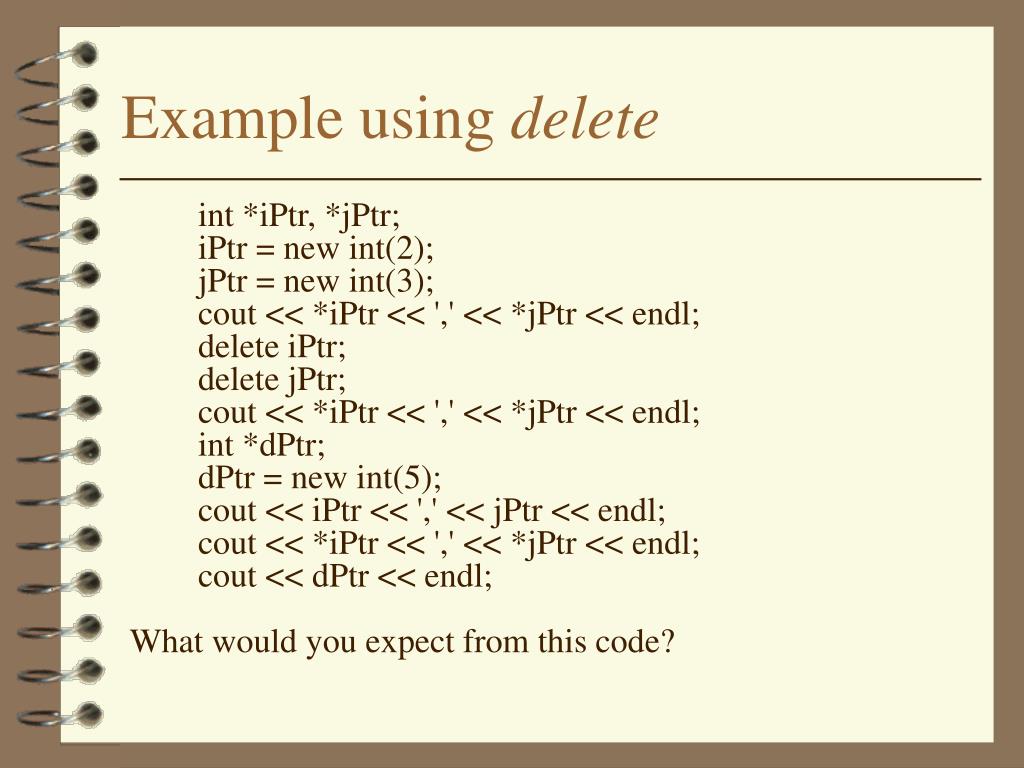

Example using delete

int *iPtr, *jPtr;

iPtr = new int(2);

jPtr = new int(3);

cout << *iPtr << ',' << *jPtr << endl;

delete iPtr;

delete jPtr;

cout << *iPtr << ',' << *jPtr << endl;

int *dPtr;

dPtr = new int(5);

cout << iPtr << ',' << jPtr << endl;

cout << *iPtr << ',' << *jPtr << endl;

cout << dPtr << endl;

What would you expect from this code?


Data structures

Data Structures

  • Dynamic memory allocation is used to implement data structures such as

    • stacks

    • queues

    • linked lists

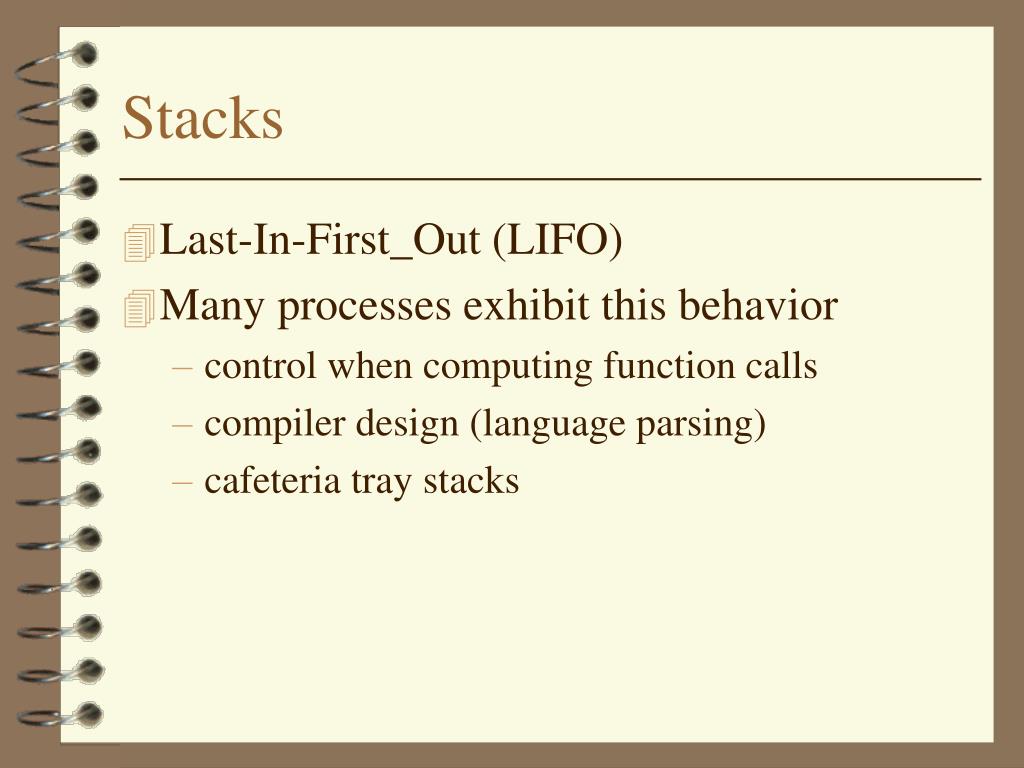

Stacks

Stacks

  • Last-In-First_Out (LIFO)

  • Many processes exhibit this behavior

    • control when computing function calls

    • compiler design (language parsing)

    • cafeteria tray stacks

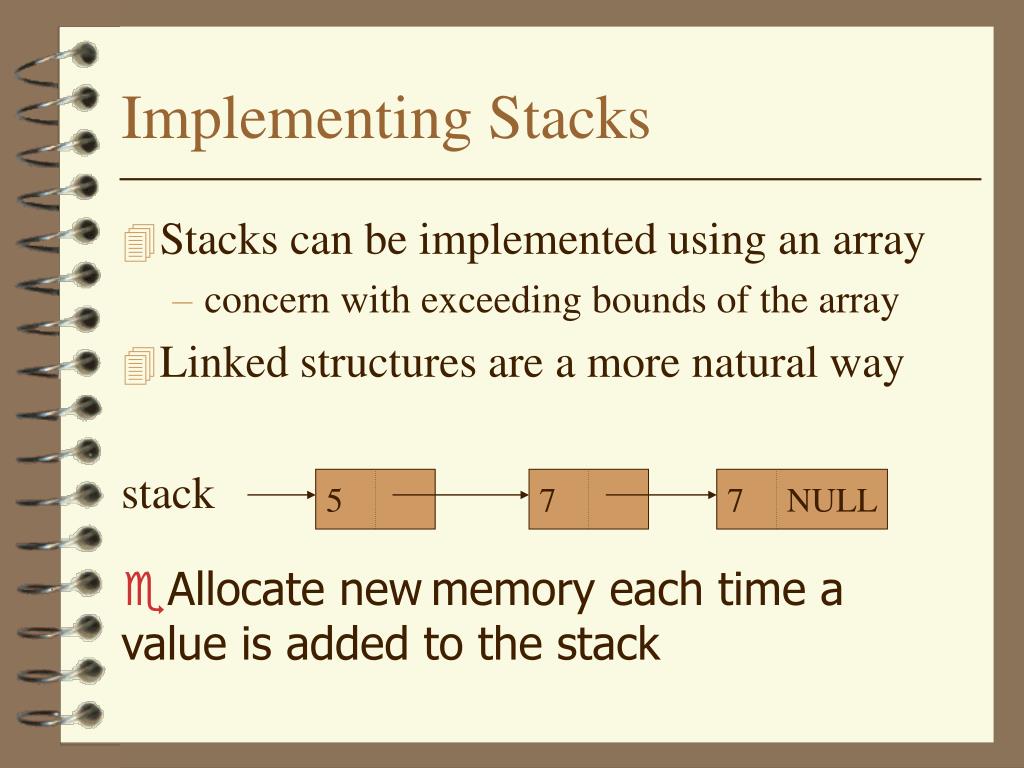

Implementing stacks

Implementing Stacks

  • Stacks can be implemented using an array

    • concern with exceeding bounds of the array

  • Linked structures are a more natural way

    stack

5

7

7 NULL

  • Allocate newmemory each time a value is added to the stack

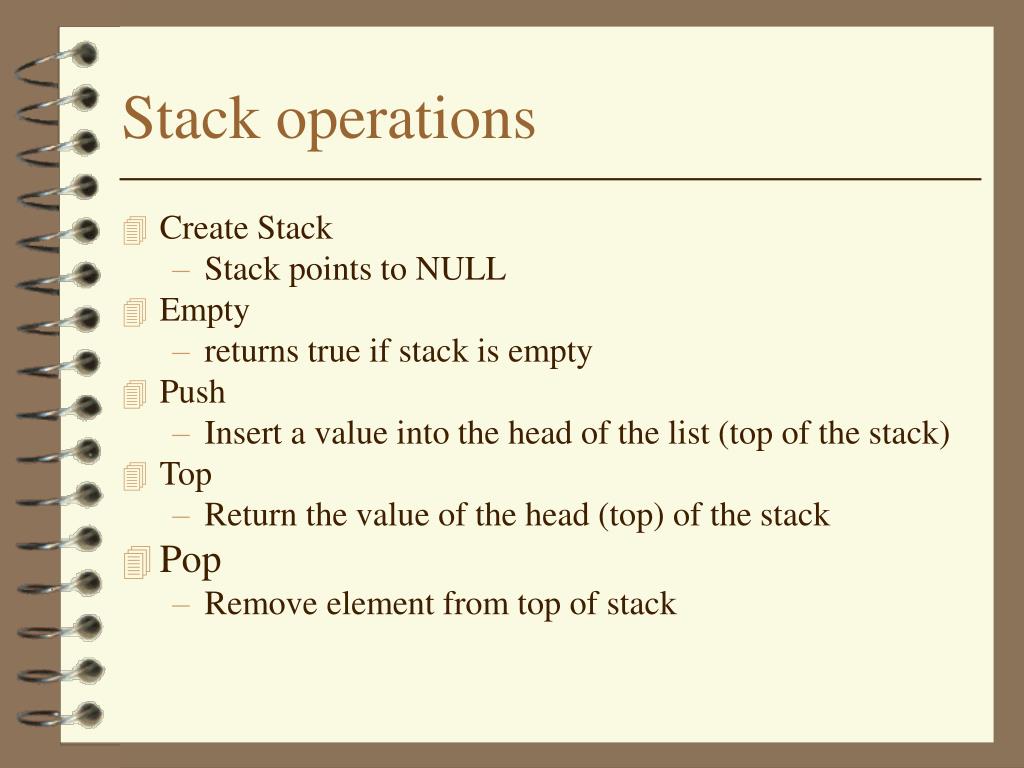

Stack operations

Stack operations

  • Create Stack

    • Stack points to NULL

  • Empty

    • returns true if stack is empty

  • Push

    • Insert a value into the head of the list (top of the stack)

  • Top

    • Return the value of the head (top) of the stack

  • Pop

    • Remove element from top of stack


Example5

Example

  • Create

  • Push 2

  • Push 4

  • Pop

  • Top

  • Stack

  • Stack

    2

    Stack

    4

    2

    Stack

    2

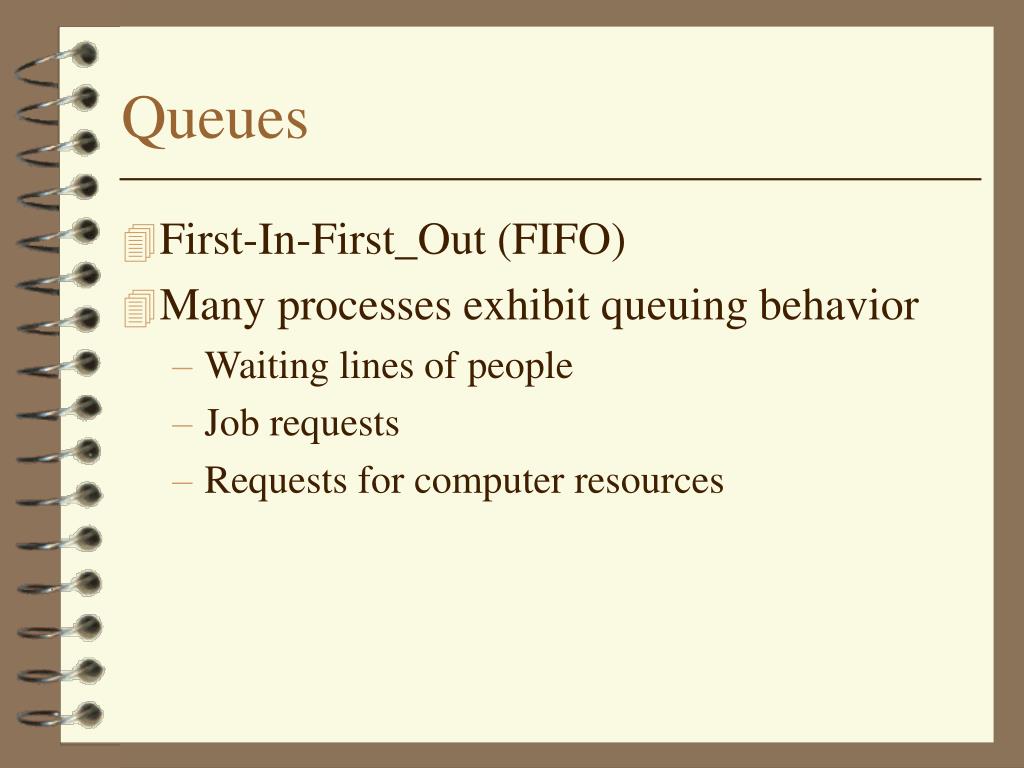

    Queues

    Queues

    • First-In-First_Out (FIFO)

    • Many processes exhibit queuing behavior

      • Waiting lines of people

      • Job requests

      • Requests for computer resources


    Implementing queues

    Implementing Queues

    • Queues require both a head (front) and a tail (rear) pointer

    • Values are added to the tail

    • Values are retrieved from the head

    5

    7

    8

    head

    tail

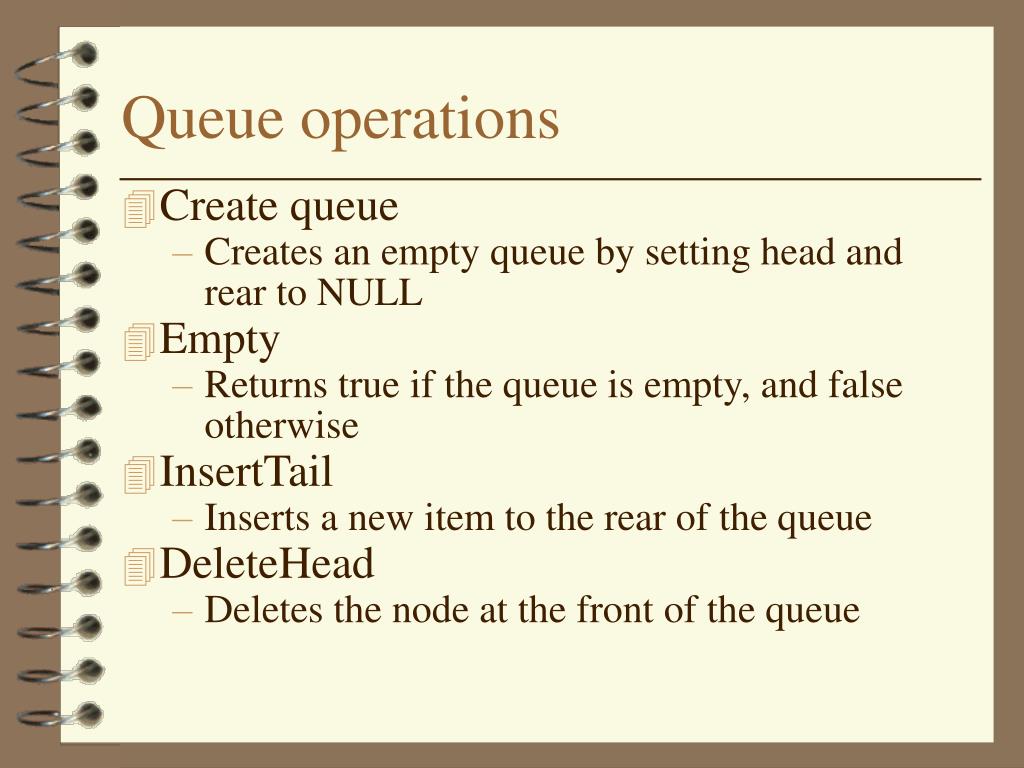

    Queue operations

    Queue operations

    • Create queue

      • Creates an empty queue by setting head and rear to NULL

    • Empty

      • Returns true if the queue is empty, and false otherwise

    • InsertTail

      • Inserts a new item to the rear of the queue

    • DeleteHead

      • Deletes the node at the front of the queue


    Example6

    Example

    • Create

    • InsertTail 2

    • InsertTail 4

    • DeleteHead

  • Head

  • Head

    2

    2

    Head

    Tail

    4

    Tail

    Head

    Tail

    4


  • Login
