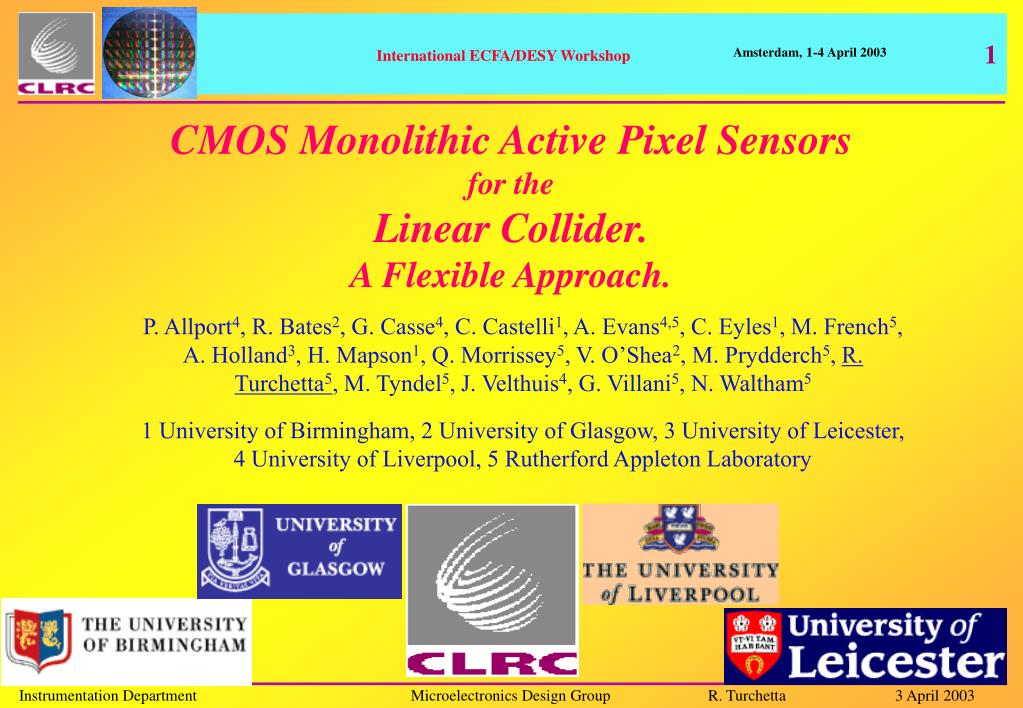

  1. CMOS Monolithic Active Pixel Sensorsfor theLinear Collider.A Flexible Approach. P. Allport4, R. Bates2, G. Casse4, C. Castelli1, A. Evans4,5, C. Eyles1, M. French5, A. Holland3, H. Mapson1, Q. Morrissey5, V. O’Shea2, M. Prydderch5, R. Turchetta5, M. Tyndel5, J. Velthuis4, G. Villani5, N. Waltham51 University of Birmingham, 2 University of Glasgow, 3 University of Leicester, 4 University of Liverpool, 5 Rutherford Appleton Laboratory

  2. Introduction Science-grade CMOS sensors Technology choice Current status Concept How it works Design of a ladder for the Vertex detector Future developments Outline

  3. Goal: to design science-grade sensors. for Particle Physics, Space Science, … This requires: full-custom designed tailored to specific applications  new designs Good imaging performances  CMOS sensor technologies CMOS sensors design in RAL Many foundries propose three flavour of a given technology: digital, analogue and image sensors At present we are using a CMOS Image Sensors (CIS) 0.25 mm process • low leakage current, low number of defects, good sensitivity to the whole spectrum of light (absorption length for red  a few mm)  thick epitaxial layer (8 mm) • integration of colour filters, microlenses • Up to 5 metal layers for complex routing • Metal-to-metal capacitors for precise analogue design • Dual power supply: 2.5/3.3 V. Good for low power consumption and good analogue performances • Multiple choice of transistors Vt gives more flexibility to the designer

  4. RAL CMOS camera-on-chip Designed in standard CMOS 0.5 mm 512 by 512 array of 25mm pixels Camera-on-a-chip 10-bit ADC integrated (1 per column) with all the control logic Simple, only digital PC-based DAQ Example of snapshot

  5. 4K linear device 3 mm pitch 1m-resolution Earth Observation Science-grade sensors in 0.25 mm CIS 256x384 test structure Flexible APS:  this talk Design in 0.25 mm CMOS 200 mm diameter wafers. Image Sensor 0.25 mm and 8” (200 mm) wafers 4Kx3K = 12M pixels 5 mm pitch 4MOS pixel with CDS EUV Solar Orbiter 12 wafers manufactured.

  6. A Flexible APS (FAPS) for Linear Collider Standard New  FAPS Memory# 1 Select Select Memory # 2 Reset Reset 1 1 Out Out Memory # n The in-pixel amplifier accesses the ‘Out’ line, which is connected to all the pixels in a column  relatively large capacitive load (>~ pF)  relatively slow (1-10 Kfps) The in-pixel amplifier accesses only local storage capacitors  small capacitive load (<<pF) Write and read phase separate  fast (>1 Mfps) Test structures with different designs and 5 FAPS arrays of 40*40*10 (time slices) pixels

  7. The storage is user controlled and any time sequence can be programmed Simple snapshot (rolling shutter also possible) Time slices can have any time separation, from fraction of msec upwards The readout can be done in much the same way as a standard APS One sample can be used to store the reset value  in-pixel CDS possible Flexible Active Pixel Sensor (FAPS).

  8. Present design (proof-of-principle) 5 arrays with slightly different designs. Each array: 40*40 pixel Each pixel: 20 mm pitch and10 storage cells Present number of memory cell is not a limit  more memory cells possible Designed with 3 metal layers. FAPS pixel layout

  9. Timing Readout done as in a conventional APS Amplifier active only during writing in the capacitance  reduced power consumption

  10. Single event: sampling spaced by 100ns and then readout at 1 MHz. Charge injected every 200 ns FAPS simulation result Linearity: good linearity up to 30,000 electrons. It can accommodate for leakage current increases and/or large signals Analogue output Current status. Test in preparation. Generic DAQ module designed. PC-based setup. Sampling control signals

  11. Large-area sensor 200 mm wafer in a 0.25 mm CMOS technology 12Mpixels Option 1: clever dicing (some dead space). See picture on the right. Cost-effective solution for prototyping. Option 2: stitching (seamless) Plan: use the 4Kx3K sensor to gain experience on issues such as yield, uniformity, specific design issues. Clever dicing  build a 6Kx12K, i.e.72 M pixel sensor Work, in collaboration with the CMOS foundries, for a stitched device 36Mpixels 72Mpixels

  12. Guidelines Minimize budget material in the central area Keep power dissipation evenly spread and low Keep sensor architecture simple and adaptable to machine choice Simplify system design CMOS sensors for the linear collider 50 mm 50 mm Readout direction 13 mm Red line: control electronics (sampling and readout). Minimal space. Red rectangle: readout electronics (column amplifiers + ADC + sparsifying circuit)  CCD talk Either on same substrate or bump-bonded to sensor substrate Ladder with 1 sensor Sensor size: 100 mm *13 mm, read out at both sides Number of pixels per sensor: 2500 x 650 In each pixel: 20 samples For Tesla: sample at 50 ms during beam-on periods and store 20 samples in the pixel Column parallel readout between trains: 2500*20=5*104 samples at 5 MHz  10 ms For NLC/JLC: number of samples depending on readout speed. It would give reduced pixel occupancy. E.g.: readout at 5 MHz during 8 ms  16 samples: 2500*16=4*104 samples at 5 MHz  8 ms

  13. UK collaboration to develop CMOS sensors for particle physics and space science RAL has proved capability in complex design of camera-on-a-chip sensors and is developing science-grade CMOS sensors for a broad range of applications. Flexible APS architecture suitable for Linear Collider Large area sensor 4k*3k  12 M pixels  *6  72 M pixels sensor Conclusion / Summary

  14. Layer 2/3/4/5 sensor 125 mm 22 mm Readout direction Ladder with 2 sensors Sensor size: 125 mm * 22 mm, read out on one side Number of pixels per sensor: 6250 x 1100 For Tesla: sample at 250 ms during beam-on periods and store 4 samples in the pixel Column parallel readout between trains: 6250*4=2.5*104 samples at 5 MHz  5 ms. More samples possible For NLC/JLC: number of samples depending on readout speed if higher time segmentation is required. E.g.: readout at 5 MHz during 8 ms  16 samples: 6250*6=3.75*104 samples at 5 MHz  7.5 ms
