  1. Evaluating the MMF Using High Resolution Data Thomas Ackerman Roger Marchand University of Washington

  2. The Question • As we move towards higher resolution models with more realistic simulations of cloud processes and cloud properties, how do we evaluate model cloud properties? • What are the metrics? • How do know we are improving those metrics?

  3. The Metrics • Occurrence in space and time – cloud fraction • Cloud top height • Optical depth – an optical (radiation) measure of the total condensed water and ice in a cloud • Statistical distributions of these quantities

  4. The tools CloudSat – 3 mm radar NASA A-Train, launched 2006 Profiles of cloud reflectivity MISR – multi-angle radiometer NASA Terra, launched 1999 Cloud height and optical depth ARM sites – multiple instruments Established 1996 – 1998 Cloud profiles and integrated properties

  5. CloudSat data – an example Cyclone Nargis in the Bay of Bengal before landfall in Myanmar MODIS image CloudSat curtain along red line

  6. CloudSat Instrument Simulator MMF August Composite

  7. MAM (Diff = MMF – CS)

  8. JJA (Diff = MMF – CS)

  9. SON (Diff = MMF – CS)

  10. DJF (Diff = MMF – CS)

  11. What have we learned • MMF captures general cloud structure and seasonal movement • MMF generally overproduces convective cloud • Too much high cloud and too optically thick • MMF underpredicts BL cloud (Stratus, Trade Cu) • Produces too much precipitation • Simulated Radar reflectivity values are too high • Too much drizzle

  12. CloudSat and ARM • CloudSat has limited temporal coverage • ARM radar has limited spatial coverage • Combine them to provide detailed regional data • Work in progress • Detailed comparison ofradar signals • Apply to simulations inTWP

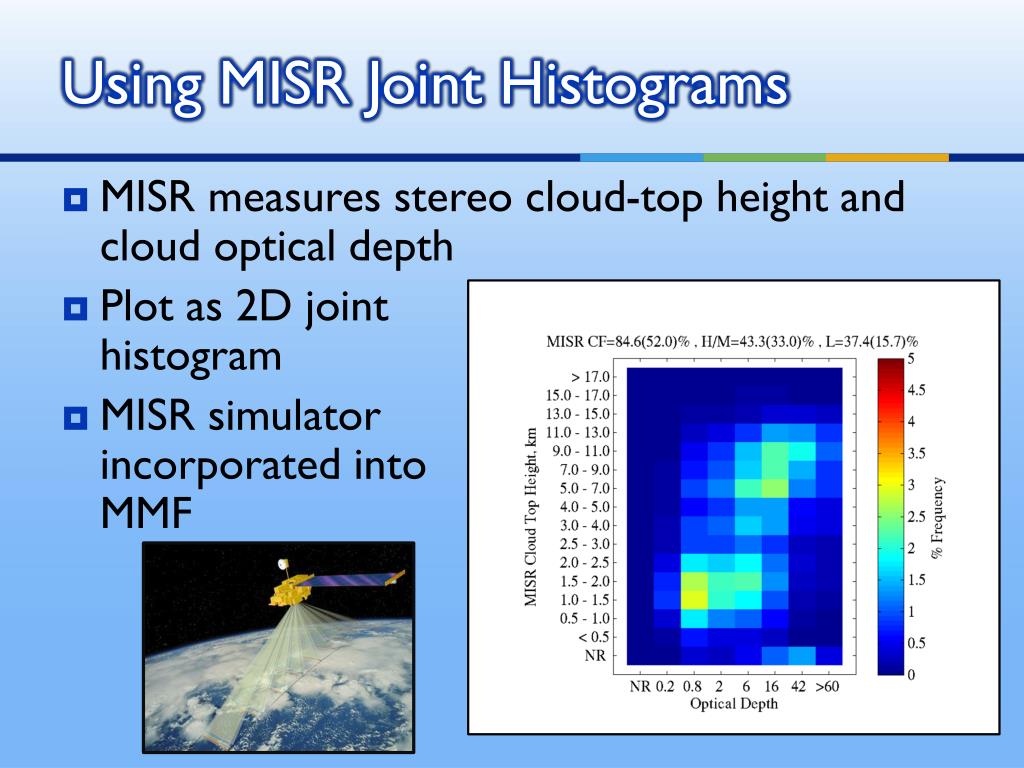

  13. Using MISR Joint Histograms • MISR measures stereo cloud-top height and cloud optical depth • Plot as 2D joint histogram • MISR simulatorincorporated into MMF

  14. Multi-scale Modeling Framework (MMF)Testing the effect of increasing resolution • 3-month MMF runs Increasing resolution • Control run • 4 km horizontal • 64 columns • 26 vertical layers • Test A • 1 km horizontal • 64 & 128 columns • 26 vertical layers • Test B • 1 km horizontal • 64 columns • 52 vertical layers 2.5° 2° 64 or 128 Columns Run on SDSC Datastar with support from CMMAP

  15. Sensitivity of low cloud amount to CRM resolution

  16. Hawaiian Trade Cumulus

  17. Summary of Low Cloud Response • Going from 4 km to 1 km reduced low cloud amount. • Much (but not all) due to dissipation of “stratofogulus” • Generally, little change in amount of low cloud with optical depths less than 10. • Going from 4 km to 1 km and vertical resolution to 52 levels (50 in CRM) resulted in … • Small increase in the amount of low-level cloud relative to the simulations with 4 km horizontal resolution. • Increase in cloud with optical depths less than 10 (better agreement with MISR observational data) • Stratocumulus zones show a significant improvement in cloud top height. • BUT • Total amount of model low cloud remains too low • Too much low cloud with optical depths larger than 23 (the largest two optical-depth bins).

  18. Concluding thoughts • New instruments well suited to evaluating MMF • Model spatial resolution matches sensors • Simulator approach easy to implement in MMF • Provide new metrics • Profiles of cloud occurrence • Optical depth – cloud top height joint histograms • Test model improvements against these same metrics

  19. Thank you for your attention!

  20. References • Mace, G. G., Q. Zhang, M. Vaughan, R. Marchand, G. Stephens, C. Trepte, and D. Winker (2009), A description of hydrometeor layer occurrence statistics derived from the first year of merged Cloudsat and CALIPSO data, J. Geophys. Res., 114, D00A26, doi:10.1029/2007JD009755. • McFarlane, S. A., J. H. Mather, and T. P. Ackerman, 2007: Analysis of tropical radiative heating profiles: A comparison of models and observations, J.Geophys. Res., 112, D14218, doi:10.1029/2006JD008290 • Marchand, R. T., J. Haynes, G. G. Mace, T. P. Ackerman, and G. Stephens, 2009: A comparison of CloudSat cloud radar observations with simulated cloud radar output from the Multiscale Modeling Framework global climate model, J. Geophys. Res., 114, D00A20, doi:10.1029/2008JD009790 • Marchand, R. T., and T. P. Ackerman, 2009: Analysis of the MMF global climate model using ISCCP and MISR histograms of cloud top height and optical depth, manuscript in preparation • Marchand, R. T., T. P. Ackerman, M. Smyth, P. Hubanks, S. Platnick, and W. Rossow, 2009: A comparison of cloud top height and optical depth histograms from MISR, ISCCP, and MODIS, manuscript in preparation Research supported by DOE ARM, NASA, and CMMAP
