  1. SGH-i7350 Software Manual(2010.06.25) Andrey Klebanov Windows Mobile Lab Mobile Communication Division Telecommunication Network Business

  2. Notice : All functionality, features, specifications and other product information provided in this document including, but not limited  to, the benefits, design, pricing, components, performance,  availability, and capabilities of the product are subject to change  without notice or obligation. Samsung reserves the right to make changes to this document and the product described herein, at anytime, without obligation on Samsung to provide notification of  such change.

  3. Contents • Overview of SGH-i7350 • About Applications • About Keystring • How to Download image • How to Make Logging Files • Q&A

  4. Overview of SGH-i7350

  5. Hardware Specification • CPU • One-Chip Processor : Qualcomm MSM 7227 Modem • Quadband(850/900/1800/1900 MHz) • UMTS band(900/2100 MHz) • Support HSDPA(7.2Mbps) • Display • 320 x 320 SQUARE TFT w/TSP • Memory • Internal : 2G/4GB • External : microSD (up to 16GB) • Camera • 3.2Mega Auto focus • Others • Qwerty, 3.5pi Earjack

  6. Software Specification Windows Mobile 6.5 Professional Contacts, Calendar, Tasks, Notes, Push Mail/MSFP 2.0 (Outlook Compatible), Threaded SMS ActiveSync 4.5, IE mobile 7.11, Windows Live, Messenger, Facebook, Communicator Mobile, MarketPlace, WMP, Voice Record Office Mobile, Adobe Reader Extra Apps WebEx, FM Radio, Media Browser, Streaming Player Communities, Twitter, Podcast, RSS Reader, VT Call Smart Converter, Google Map, Smart Reader, Java, Dictionary Fingertip UI Enhanced Today Screen Camera, Dialer, FM Radio, Media Browser

  7. About Applications

  8. Samsung Today (1/3) • What is Samsung Today? • A Special Home Screen Theme • It can be edited by adding or removing items. • Items • There are Status, Time, Calendar, Settings, Appointments, World Clock, AccuWeather, Shortcuts, Notification, Contacts, Photo, Message, Email, Tasks and Network

  9. Samsung Today (2/3) • How to Modify Home Screen • To add or Remove items touch Edit(RSK) on Samsung Today Screen

  10. Samsung Today (3/3) • Drag item that you want to modify to left side to remove and right side to add • To confirm it, Touch Done or Cancel

  11. Twitter (1/2) Very popular real-time social network service (http://twitter.com) Start -> Twitter -> Login

  12. Twitter (2/2) Functionalities Tweet, Re-tweet, Search, Follow, Un-follow and all other services of Twitter Supports multi-account

  13. Communicator Mobile (1/5) An enterprise messaging client for mobile devices. Provides instant messaging (IM), presence, and telephony

  14. Communicator Mobile (2/5) Preloaded as a cab file. Installed automatically when the user selects it for the first time It requires device reboot to complete the installation as shown in the picture.

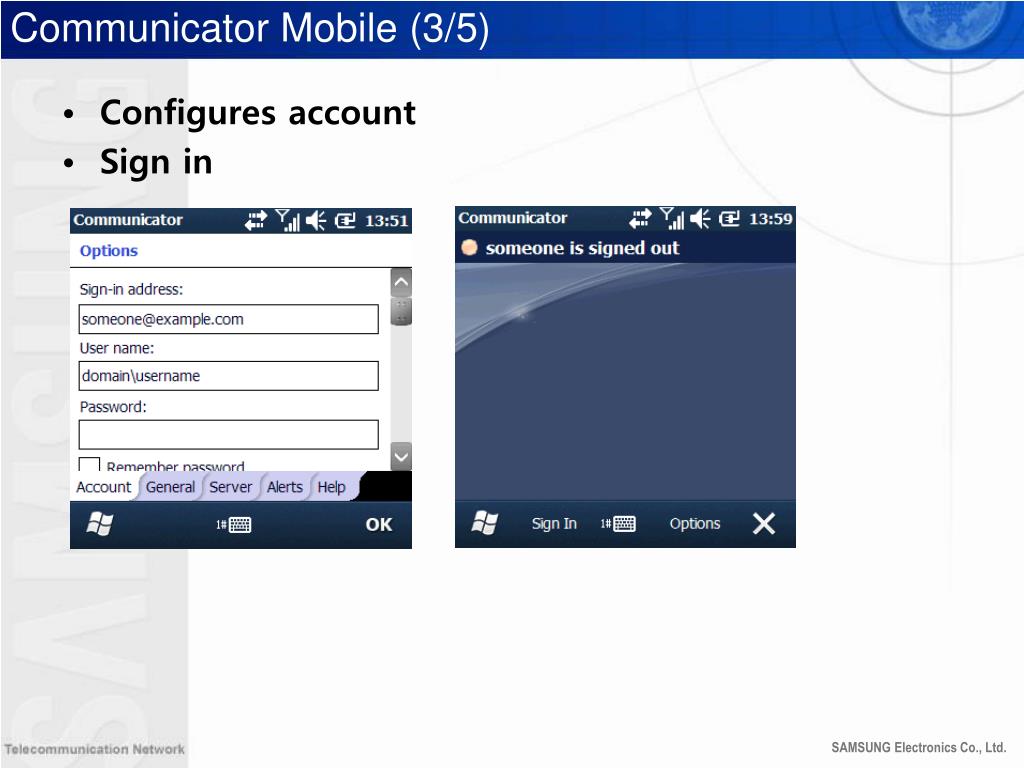

  15. Communicator Mobile (3/5) Configures account Sign in

  16. Communicator Mobile (4/5) Send an instant message In the Contact List, click the name of the person Click Send Instant Message. Type your message, and then either click Send or click the center select key on your mobile device. Invite others In the Conversation window, click Menu > Invite Someone

  17. Communicator Mobile (5/5) Manage your own presence status In the Contact List, click Menu > My Status. Your current presence status is indicated by a check mark

  18. WebEx Provides phone conferencing How to access meeting room Start -> WebEx Select Join by Meeting Number Input Meeting Number and Your name. Then select Join Meeting Input password if it is set.

  19. About KeyString

  20. KeyString • Debug Screen • *#0011# in idle mode • *#0011## and back key in connected mode • IMEI Number Check • *#06# • SW Version Check • *#1234# • Vibrate • *#0842# • Battery Information • *#0228#

  21. How To Download Image

  22. Equipment for Download GT-B7350 device USB DATA Link Cable Download program MSM7255_MultiDownloader_v2.9.exe Modem driver Samsung_Mobile_USB_Driver(V5.2)_V1.2.1050.0.zip

  23. Driver Installation Make sure that you install drivers. Modem Driver Installation If you want to download the image, install the Samsung CDMA Modem driver. After you install the driver of Samsung CDMA Modem, please restart a host computer.

  24. How to Download – 1/6 Step1. Turn off your device. Step2. Execute the Downloader Program. MSM7255_MultiDownloader_v2.9.exe

  25. How to Download – 2/6 Step3. Select the “Orsay” at the “model” on the tool. Step4. Select Phone, Eboot, PDA, CSC, and Langpak files on the tool.

  26. How to Download – 3/6 Step5. Check the checkbox at the “Download Mode” on the tool. Check the “Phone Boot”, “Phone”, “Eboot”, “PDA”, “CSC” and “LangPak” checkbox.

  27. How to Download – 4/6 Step6. Press the volume down and hold key on your device simultaneously. Device is entered to the download mode. Step7. Connect your device to a host computer by using USB DATA Link Cable.

  28. How to Download – 5/6 Step8. Click the “Start” button. Step9. Downloading proceed Modem image -> EBOOT image -> PDA image ->CSC image -> Langpak image

  29. How to Download – 6/6 Step10. When the download is finished, the device is rebooted automatically.

  30. How To Make Logging Files

  31. Contents • What kind of logs? • Debug Dump log • RIL Log • Net Log • VT Call log • MS Error Reporting Log • Screen Capture

  32. Debug Dump Log • It has general system logs. The max buffer size is 512KB. • How to make logging file • Step1. The logging is started in booting time • Step2. Press “*#9900#” • Step3. Copy file to PC via ActiveSync • Location of logging file • \Temp\DebugDump[x].txt

  33. RIL Log • It is RIL(radio interface layer) logs-message between PDA and Modem. • How to make logging file • Step1. The logging is started in booting time • Step2. Press “*#745#” • Step3. Copy file to PC via ActiveSync • Location of logging file • \Temp\RIL*.txt

  34. Net Log • Netlog is a tool which captures TCP/IP packet • How to make logging file • Step1. Dial *#638# • Step2. Start if Netlog is launched • Step3. Perform the test • Step6. Press “Stop” button. • Step7. Copy netlog file to PC via ActiveSync • Location of logging file • \netlog*.cap

  35. Video Call Log • It is for video call. • How to make logging file • Step1. Start video call and hang up • Step2. Press “*#938#” • Step3. Copy file to PC via ActiveSync • Location of logging file • \Temp\[xx-xx] VTLogxx.txt • There are no message boxes like Ril Log or DebugDump log • Cause • Cannot create VT Call log during VT Call

  36. MS Error Reporting Log - 1/2 • Microsoft error reporting • How to make logging file • Step1. Make sure that “Start->Settings->system-> Error Reporting->Enable error reporting” is selected. • Step2. Performing the test • Step3. When you see “We’re sorry…” message • Step4. Press “Send” • Step5. Press “*#9900# • Step6. Copy file to PC via ActiveSync

  37. MS Error Reporting Log – 2/2 • Location of logging file • \Windows\System\DumpFiles • \Temp\DebugDump[x].txt

  38. Capture screen • Press Alt key and Camera key together • Location of captured image • \SD[MMDDYY]-??.bmp • For example, SD062510-01.bmp

  39. Q & A
