  1. Application & Imaging Features of SARS on HRCT KT Wong Department of Diagnostic Radiology and Organ Imaging Chinese University of Hong Kong Prince of Wales Hospital Hong Kong

  2. Background • Outbreak in medical ward in PWH in March • To the end of May, over 300 SARS patients treated in our institution • Imaging play an important role - diagnosis - monitor progress and treatment response - assess long-term lung damage

  3. Indication • Not all patients with suspected SARS need HRCT scan • Initial cohort of 138 patients - 78% had abnormal CXR on presentation - 22% had normal initial CXR • Early diagnosis important for this group for prompt Tx and patient isolation Wong et al. Radiology Aug 2003

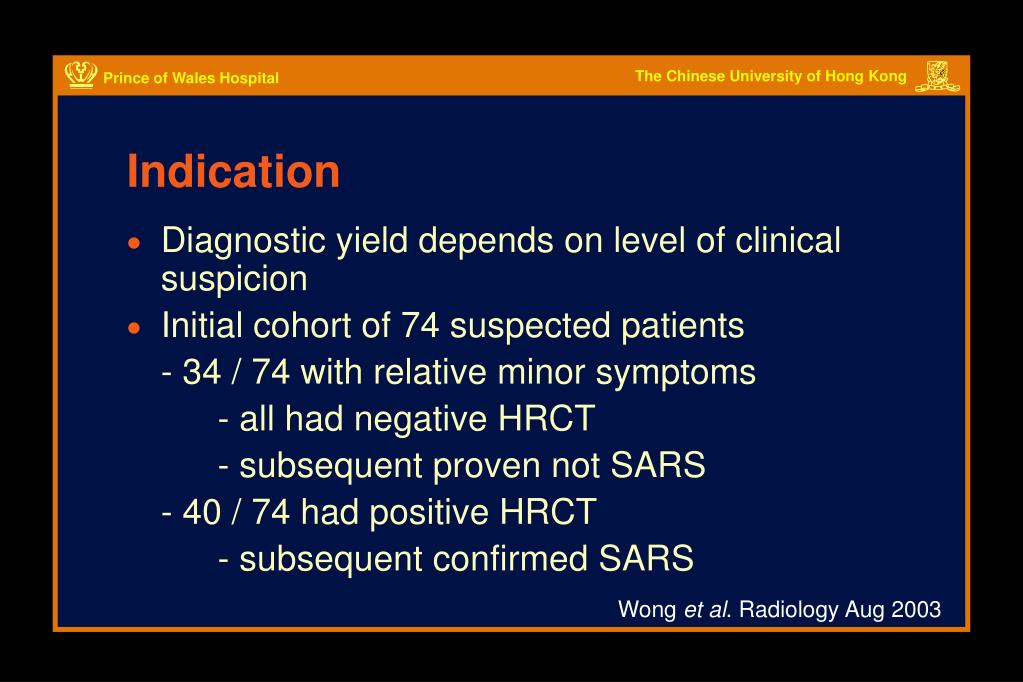

  4. Indication • Diagnostic yield depends on level of clinical suspicion • Initial cohort of 74 suspected patients - 34 / 74 with relative minor symptoms - all had negative HRCT - subsequent proven not SARS - 40 / 74 had positive HRCT - subsequent confirmed SARS Wong et al. Radiology Aug 2003

  5. Indication • High clinical index of suspicion and negative CXR • High clinical index with equivocal CXR findings (young female with dense breasts) • Not recommended - all patients with low clinical suspicion - high suspicion with definite CXR changes

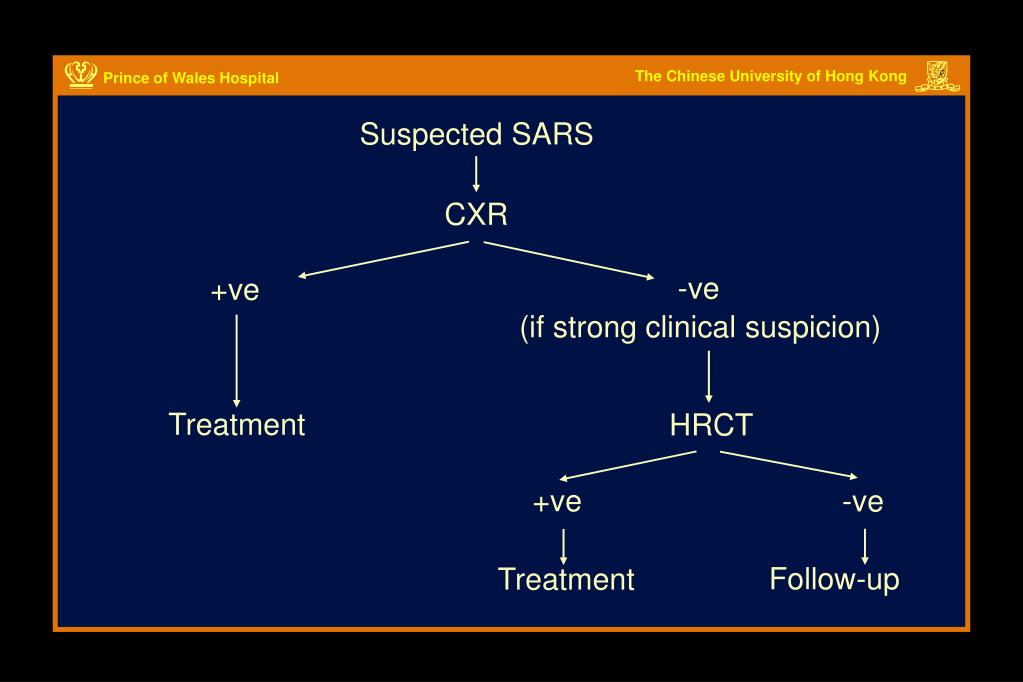

  6. CXR Suspected SARS -ve +ve (if strong clinical suspicion) Treatment HRCT +ve -ve Follow-up Treatment

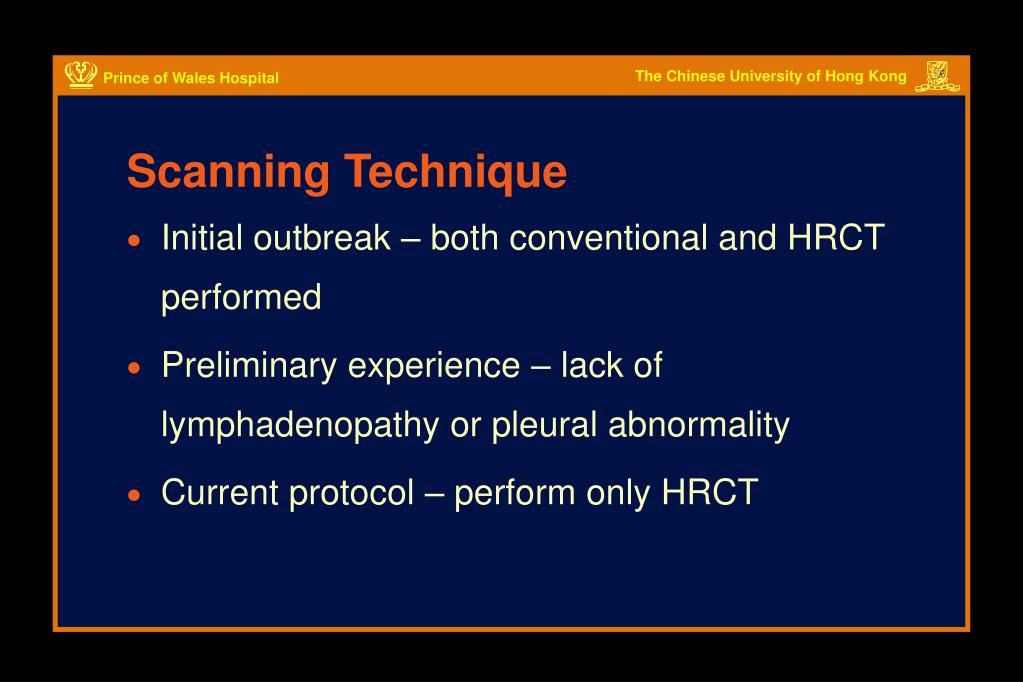

  7. Scanning Technique • Initial outbreak – both conventional and HRCT performed • Preliminary experience – lack of lymphadenopathy or pleural abnormality • Current protocol – perform only HRCT

  8. Scanning Technique • Supine position • Full inspiration (shallow breathing if SOB) • 1mm collimation, 6mm interslice gap • 120 kV, 140mA, scan time of 1 second • Whole scanning procedure of ~ 1 minute

  9. Scanning Technique • High-spatial frequency reconstruction algorithm • Image viewed at lung window setting - level: -700 HU - width: 1500 HU • Close patient monitoring • Strict infection control measures

  10. Imaging Features • Appearances: (initial cohort of 40 patients, 149 lesions) - Ground-glass opacification (68%) - Consolidation +/- GGO (32%) - Thickened intralobular interstitium (32%) - Thickened interlobular septa (24%) (‘Crazy-paving’ appearances) - Associated bronchiectasis (7%) Wong et al. Radiology Aug 2003

  11. Imaging Features • Location: - Peripheral / subpleural (72%) - Peripheral + central (20%) - Pure central unusual (8%) - Slight lower lobe predominance - half patients with bilateral involvement Wong et al. Radiology Aug 2003

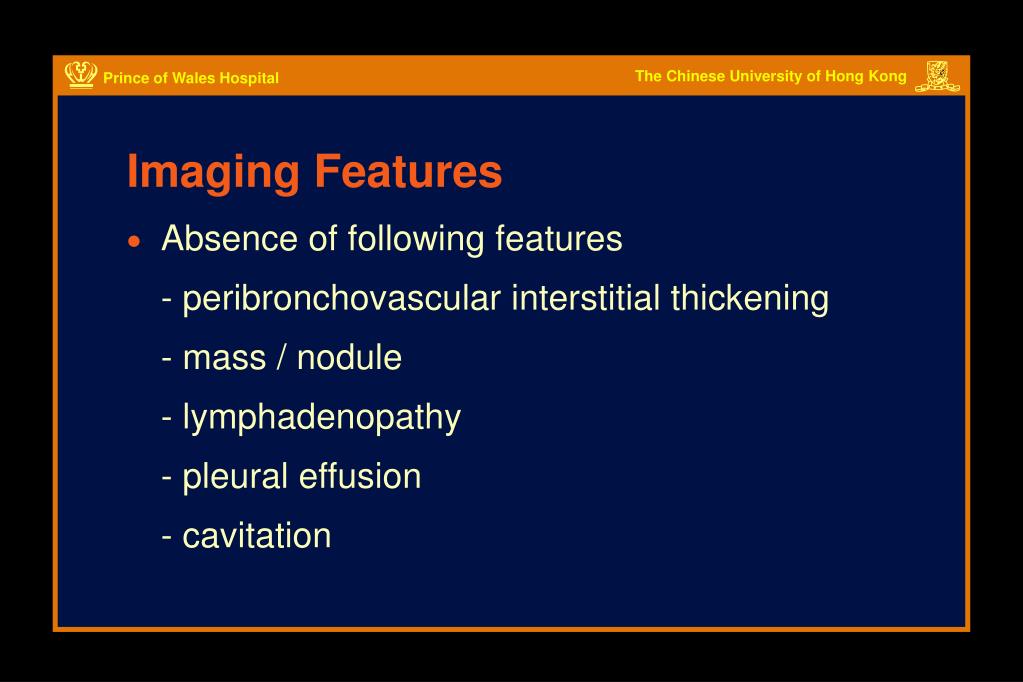

  12. Imaging Features • Absence of following features - peribronchovascular interstitial thickening - mass / nodule - lymphadenopathy - pleural effusion - cavitation

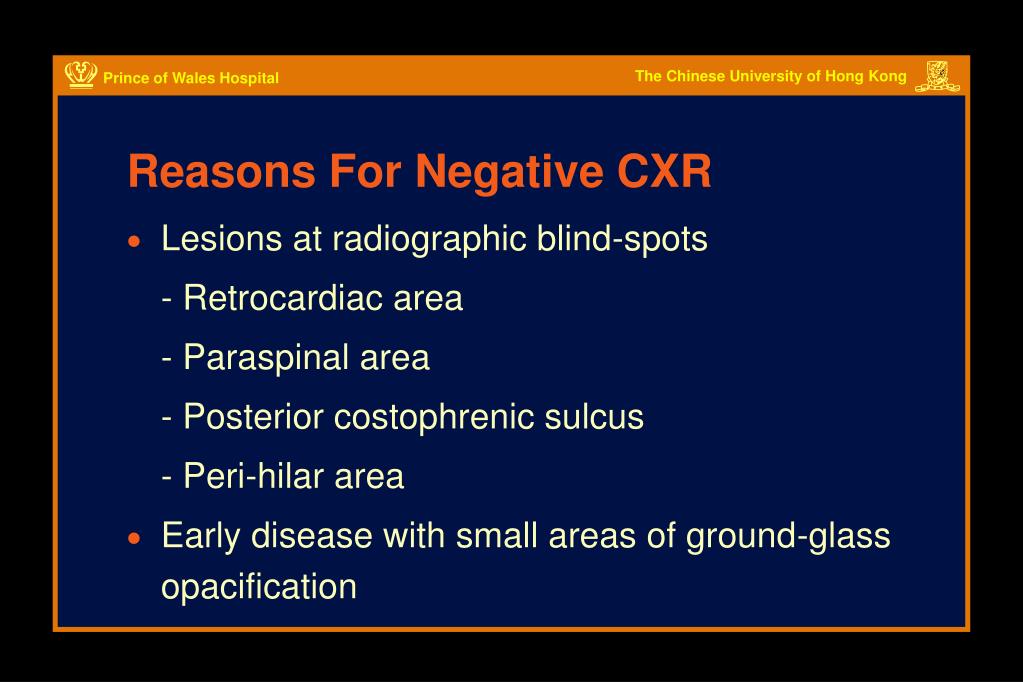

  13. Reasons For Negative CXR • Lesions at radiographic blind-spots - Retrocardiac area - Paraspinal area - Posterior costophrenic sulcus - Peri-hilar area • Early disease with small areas of ground-glass opacification

  14. Role In Follow-up • Persistent CXR changes after discharge + functional impairment necessitate HRCT - assessment of nature of lung change (persistent alveolitis  steroid / immune Tx fibrosis  irreversible, steroid not useful) - extent of lung fibrosis - interval HRCT – serial change after Tx

  15. Follow-up • Initial cohort of 24 discharged patients • HRCT at ~ 37 days after admission • 23/24 (96%) – persistent GGO • 15/24 (62%) – HRCT evidence of fibrosis • 9 had HRCT at initial presentation - all had radiological improvement - residual GGO + interstitial changes Antonio et al. Radiology Sep 2003

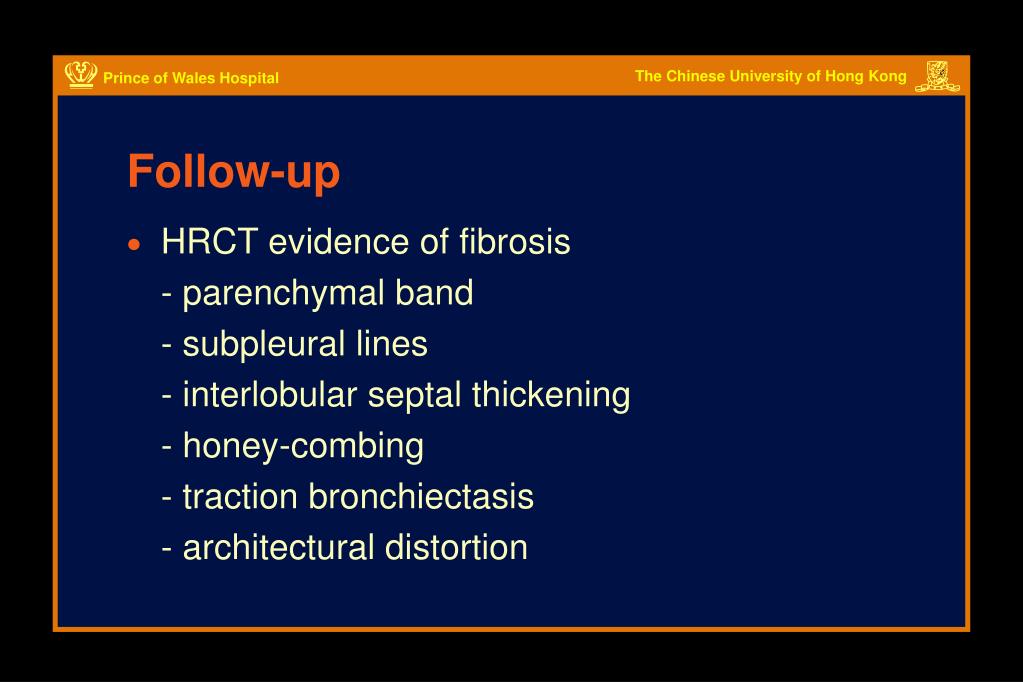

  16. Follow-up • HRCT evidence of fibrosis - parenchymal band - subpleural lines - interlobular septal thickening - honey-combing - traction bronchiectasis - architectural distortion

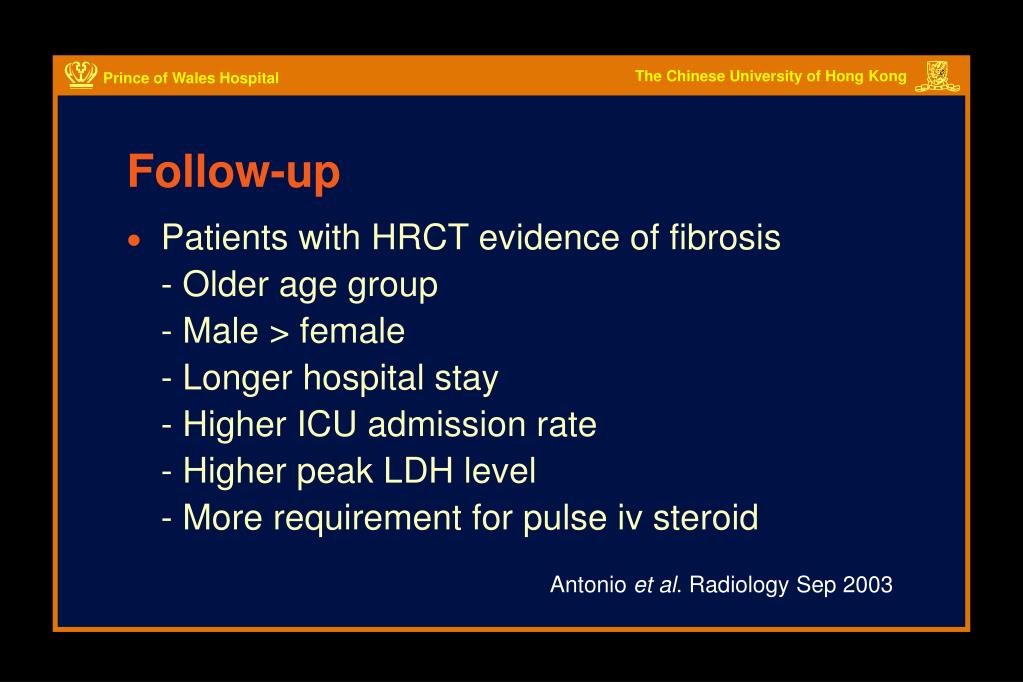

  17. Follow-up • Patients with HRCT evidence of fibrosis - Older age group - Male > female - Longer hospital stay - Higher ICU admission rate - Higher peak LDH level - More requirement for pulse iv steroid Antonio et al. Radiology Sep 2003

  18. Limitations • Small number of patients • Relatively short follow-up - some HRCT changes may be reversible • No histology for confirmation of fibrosis • No correlation with lung function or objective assessment of exercise tolerance

  19. Take Home Messages • HRCT useful for early diagnosis of SARS • Not suitable as 1st line investigation • Indication of HRCT for suspected SARS - patients with high index of clinical suspicion and negative / equivocal CXR findings

  20. Take Home Messages • HRCT features includes - GGO +/- consolidation - interstitial thickening - peripheral / subpleural in location - slight lower lobe predominance - lack of cavitation, lymphadenopathy & pleural effusion

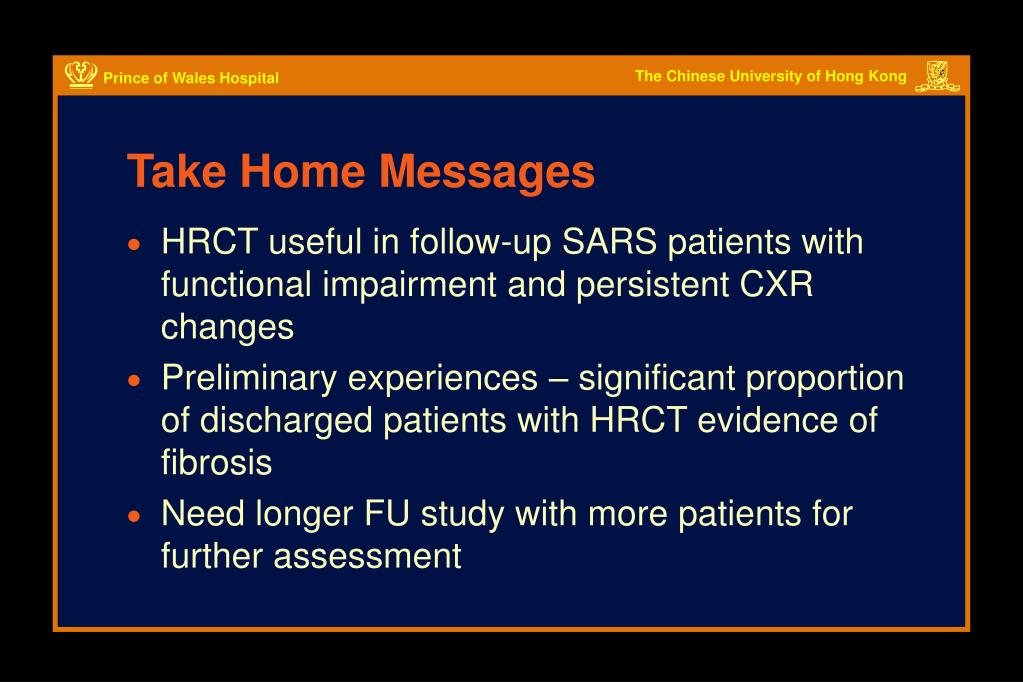

  21. Take Home Messages • HRCT useful in follow-up SARS patients with functional impairment and persistent CXR changes • Preliminary experiences – significant proportion of discharged patients with HRCT evidence of fibrosis • Need longer FU study with more patients for further assessment
