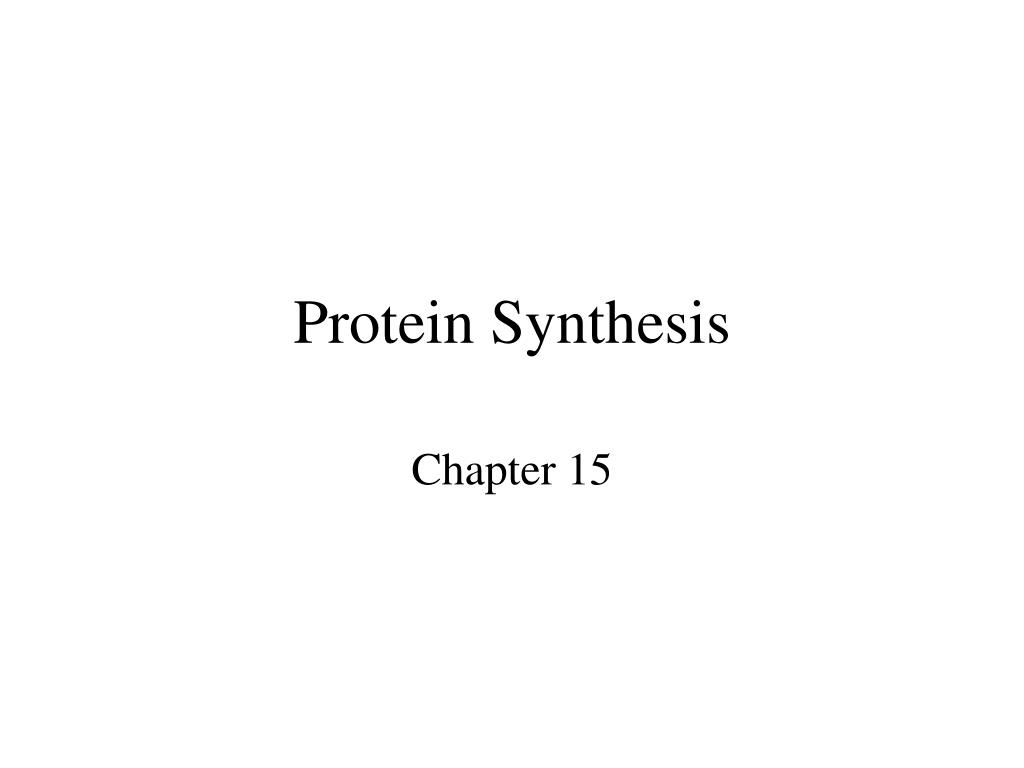

  1. Protein Synthesis Chapter 15

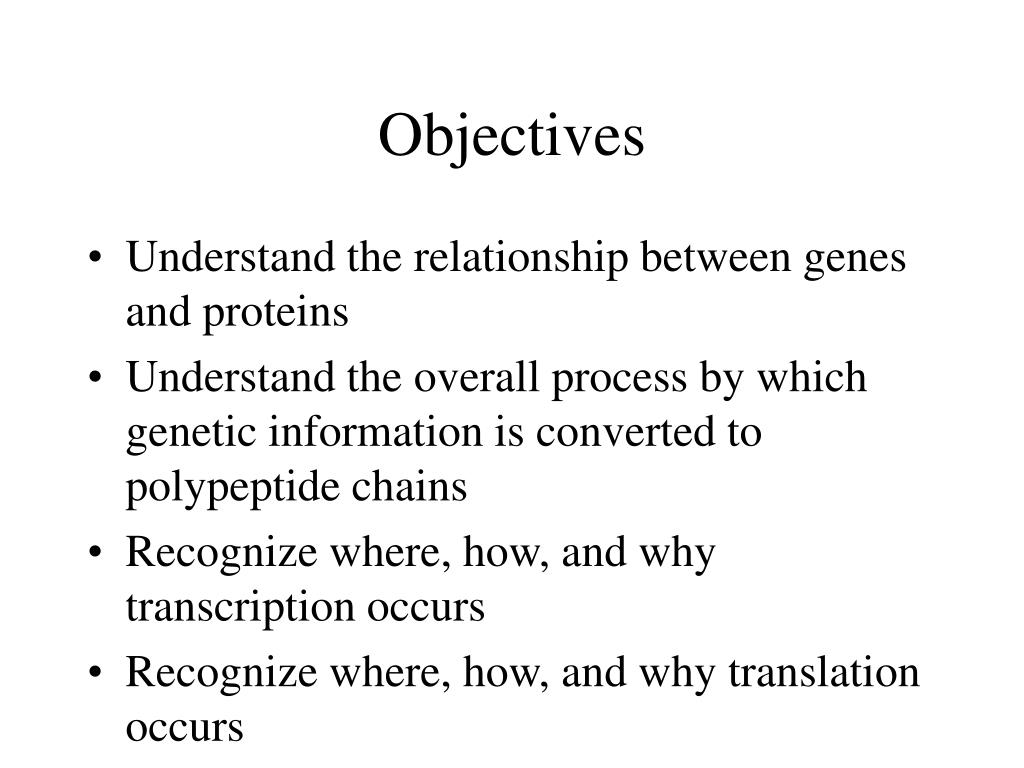

  2. Objectives • Understand the relationship between genes and proteins • Understand the overall process by which genetic information is converted to polypeptide chains • Recognize where, how, and why transcription occurs • Recognize where, how, and why translation occurs

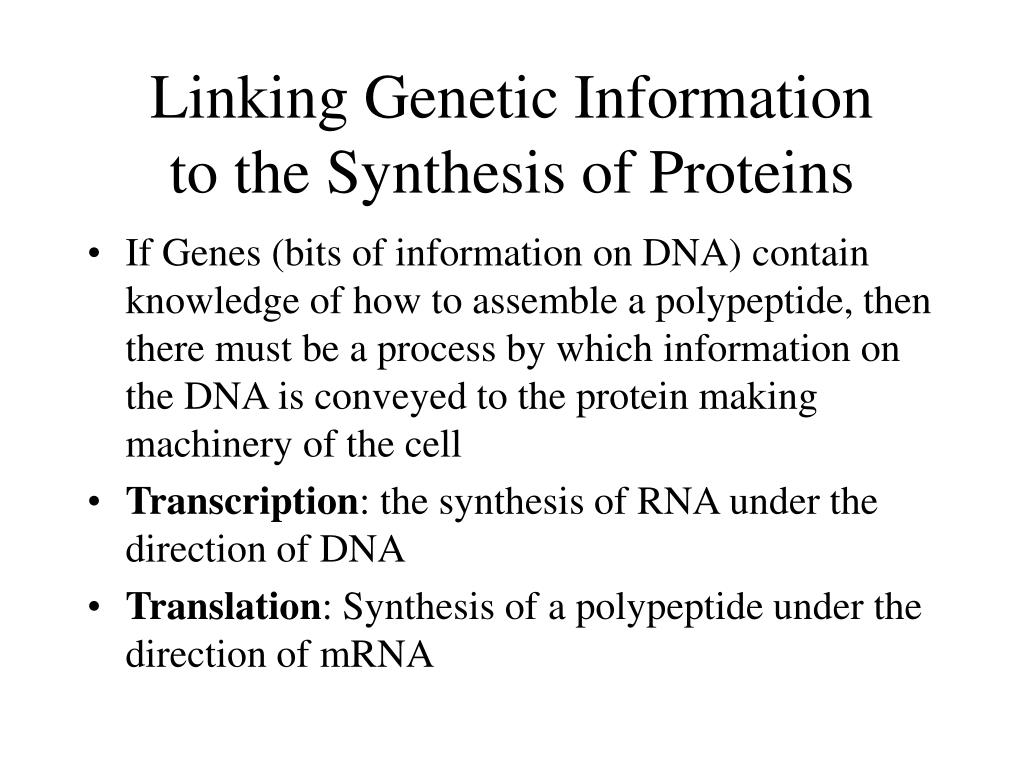

  3. Linking Genetic Information to the Synthesis of Proteins • If Genes (bits of information on DNA) contain knowledge of how to assemble a polypeptide, then there must be a process by which information on the DNA is conveyed to the protein making machinery of the cell • Transcription: the synthesis of RNA under the direction of DNA • Translation: Synthesis of a polypeptide under the direction of mRNA

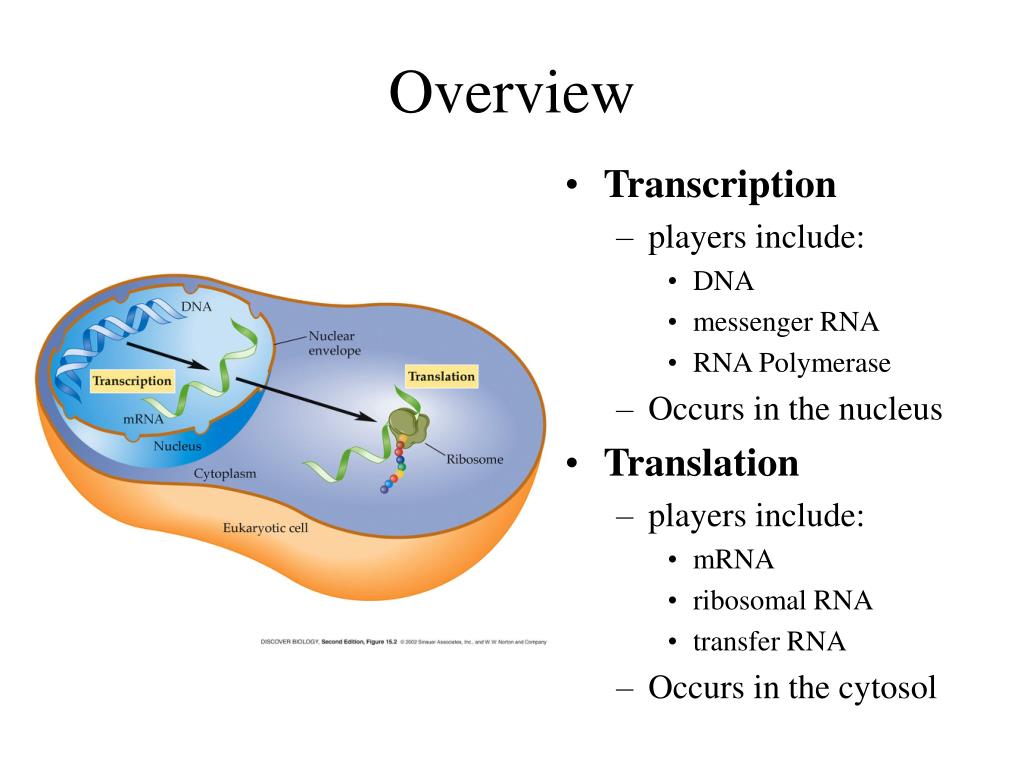

  4. Overview • Transcription • players include: • DNA • messenger RNA • RNA Polymerase • Occurs in the nucleus • Translation • players include: • mRNA • ribosomal RNA • transfer RNA • Occurs in the cytosol

  5. Review • Nucleotides each consist of a sugar, Phosphate and Base • Polymers of nucleotides form either DNA or RNA • DNA nucleotides have: • Deoxyribose as sugar • Bases ATGC • Double stranded nucleic acid with complimentary bases pairedas A-T & G-C • Found only in the nucleus • RNA nucleotides have: • Ribose as sugar • Bases AUGC • Single stranded nucleic acid • Found in the nucleus and cytoplasm

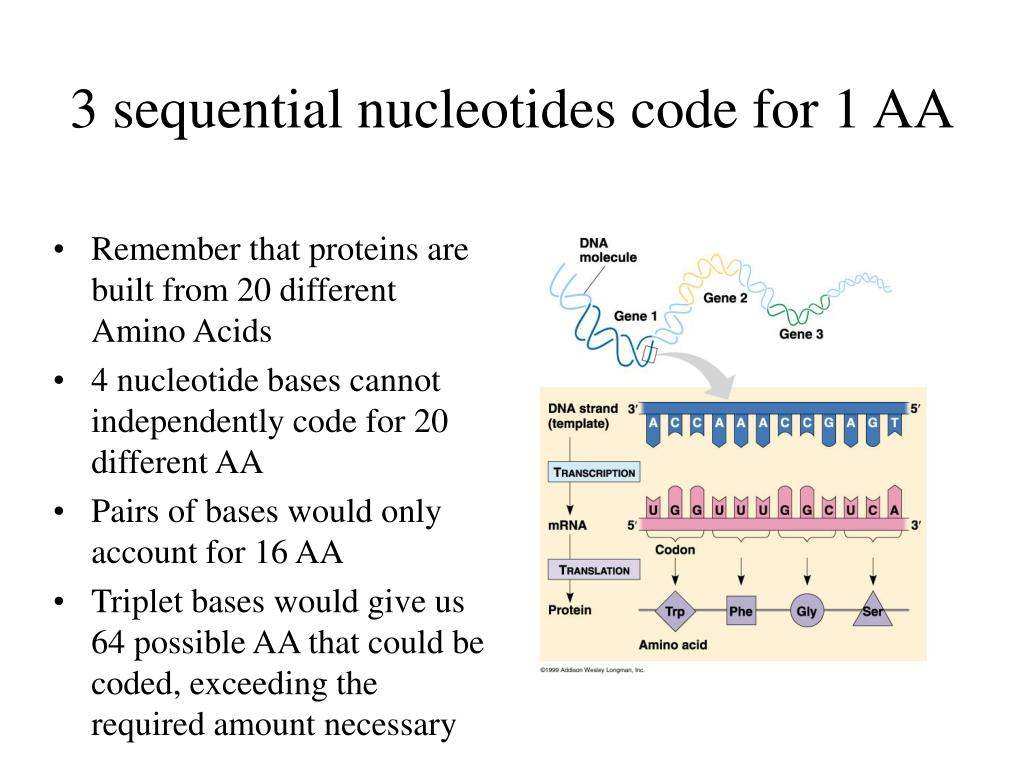

  6. 3 sequential nucleotides code for 1 AA • Remember that proteins are built from 20 different Amino Acids • 4 nucleotide bases cannot independently code for 20 different AA • Pairs of bases would only account for 16 AA • Triplet bases would give us 64 possible AA that could be coded, exceeding the required amount necessary

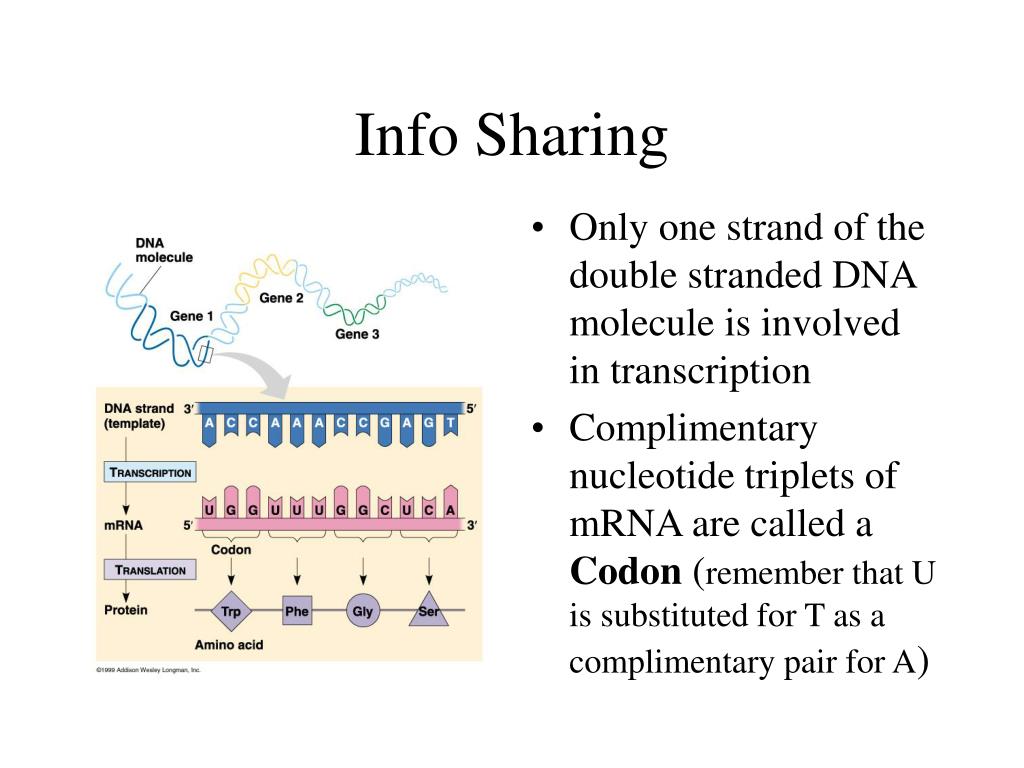

  7. Info Sharing • Only one strand of the double stranded DNA molecule is involved in transcription • Complimentary nucleotide triplets of mRNA are called a Codon (remember that U is substituted for T as a complimentary pair for A)

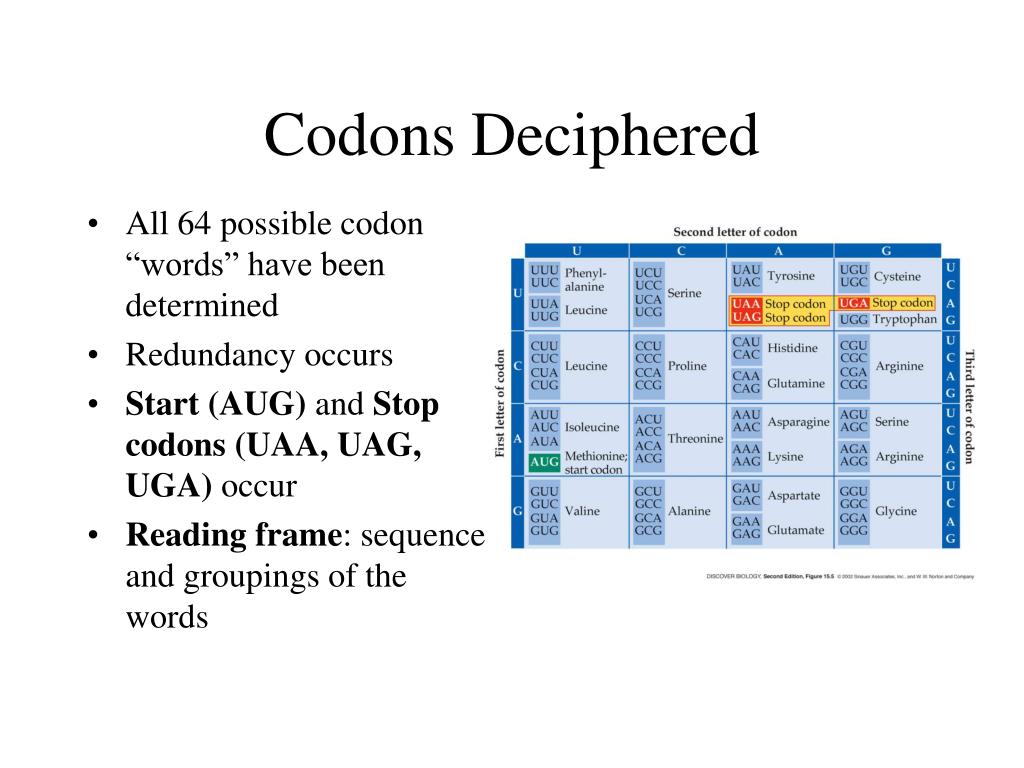

  8. Codons Deciphered • All 64 possible codon “words” have been determined • Redundancy occurs • Start (AUG) and Stop codons (UAA, UAG, UGA) occur • Reading frame: sequence and groupings of the words

  9. Transcription involves the making of messenger RNA from a DNA template • The region of a molecule of DNA called a gene is defined by a promoter (beginning) and terminator (ending) area • An enzyme (protein) called RNA polymerase attaches to the DNA

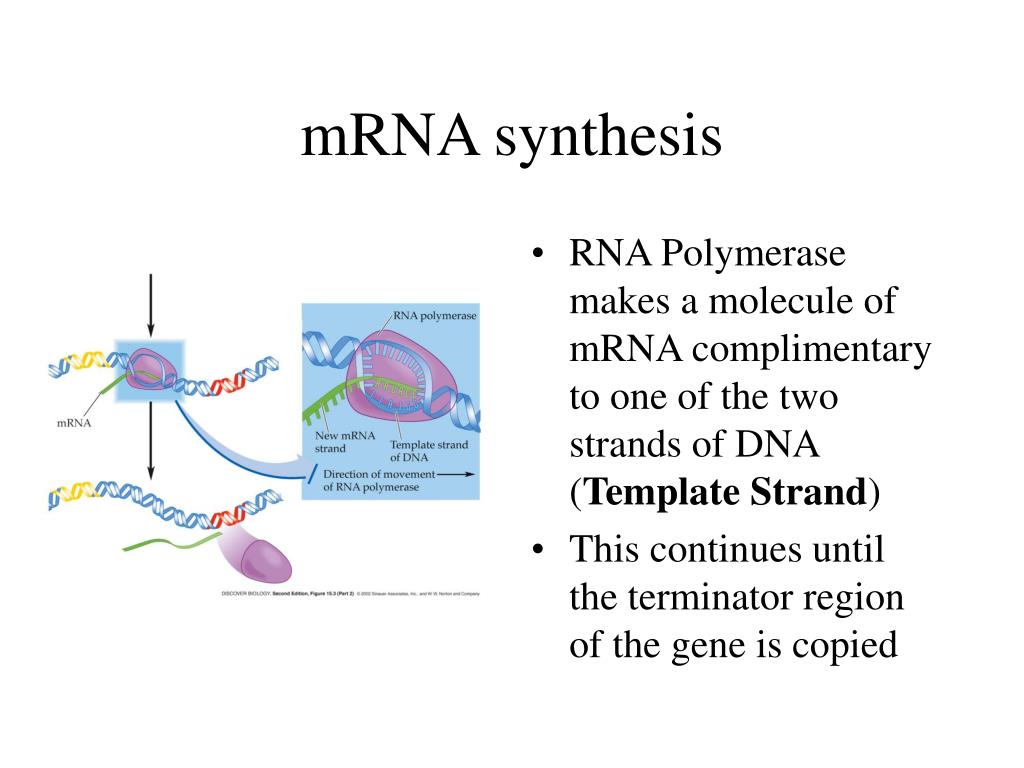

  10. mRNA synthesis • RNA Polymerase makes a molecule of mRNA complimentary to one of the two strands of DNA (Template Strand) • This continues until the terminator region of the gene is copied

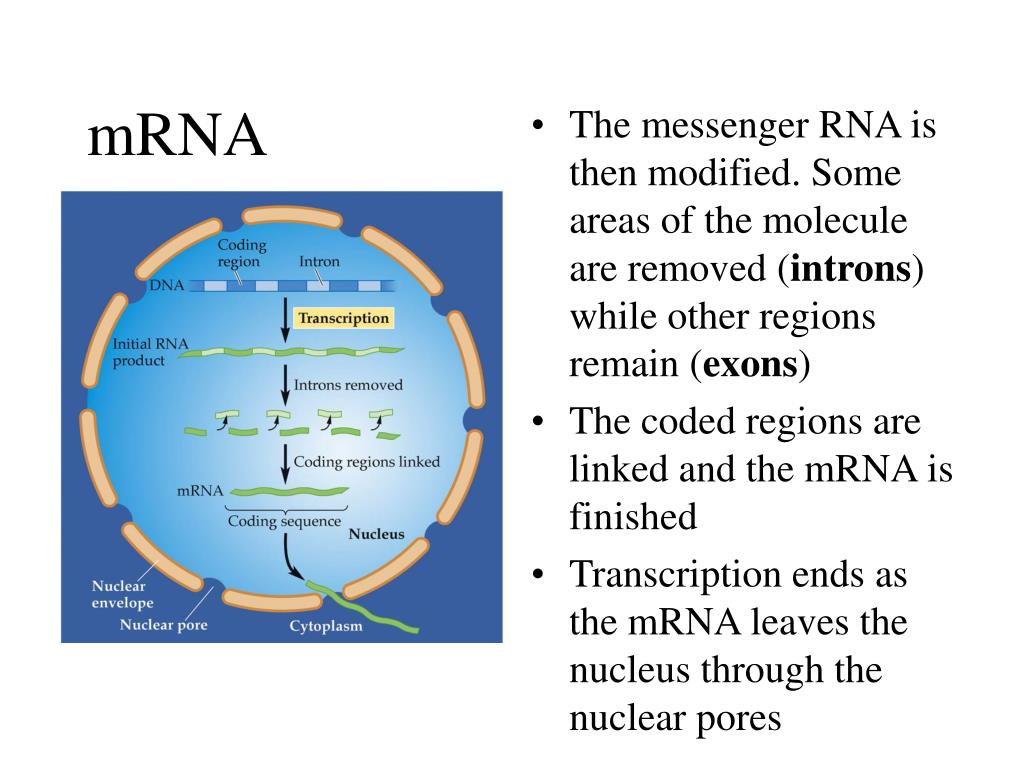

  11. mRNA • The messenger RNA is then modified. Some areas of the molecule are removed (introns) while other regions remain (exons) • The coded regions are linked and the mRNA is finished • Transcription ends as the mRNA leaves the nucleus through the nuclear pores

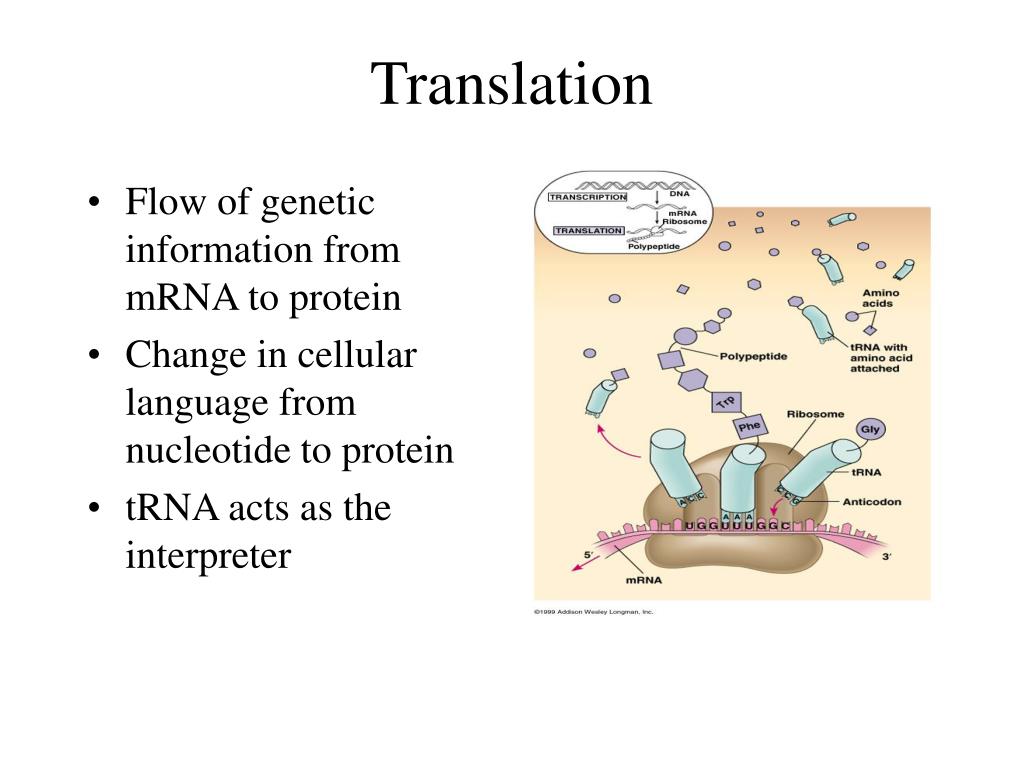

  12. Translation • Flow of genetic information from mRNA to protein • Change in cellular language from nucleotide to protein • tRNA acts as the interpreter

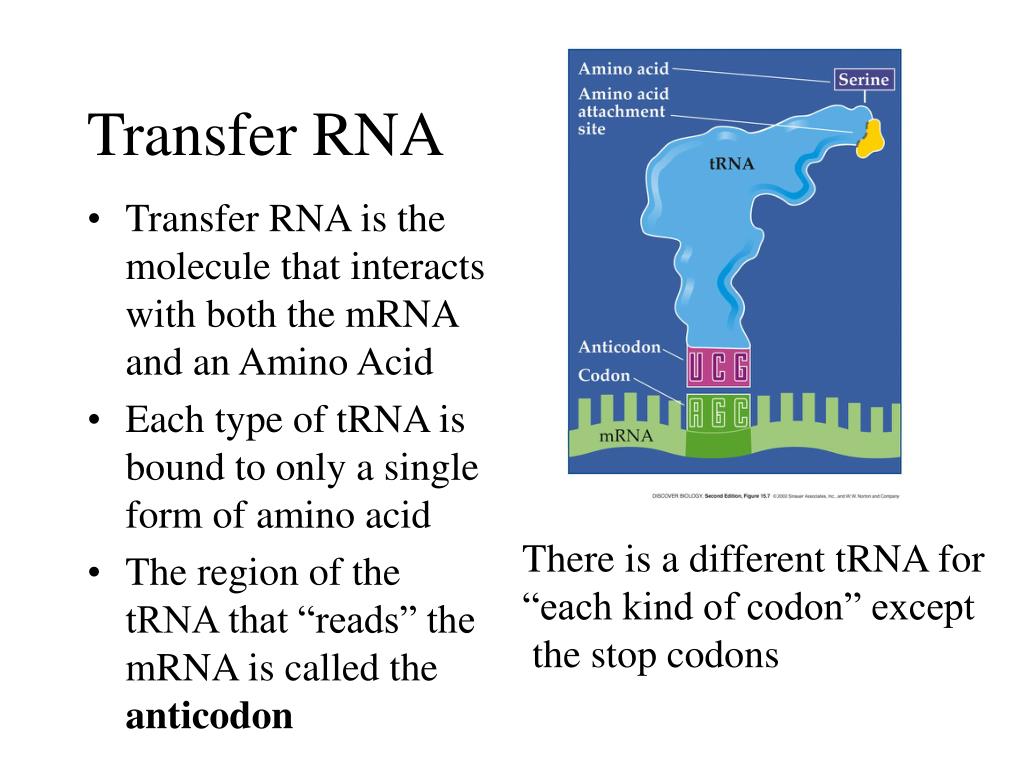

  13. Transfer RNA • Transfer RNA is the molecule that interacts with both the mRNA and an Amino Acid • Each type of tRNA is bound to only a single form of amino acid • The region of the tRNA that “reads” the mRNA is called the anticodon There is a different tRNA for “each kind of codon” except the stop codons

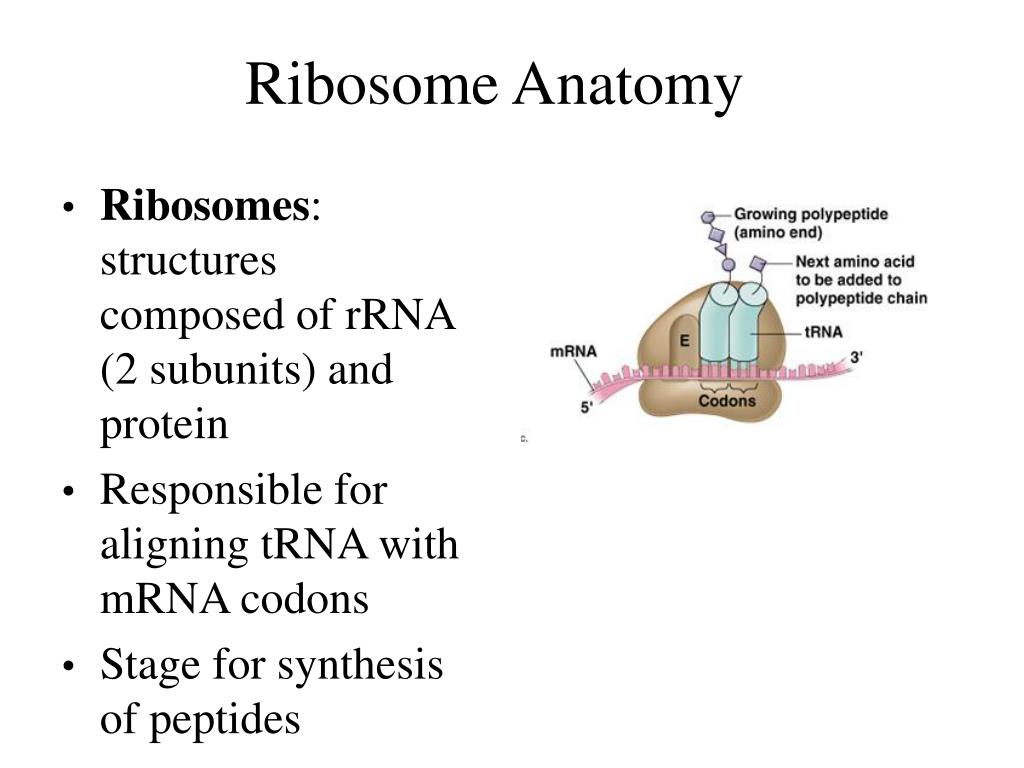

  14. Ribosome Anatomy • Ribosomes: structures composed of rRNA (2 subunits) and protein • Responsible for aligning tRNA with mRNA codons • Stage for synthesis of peptides

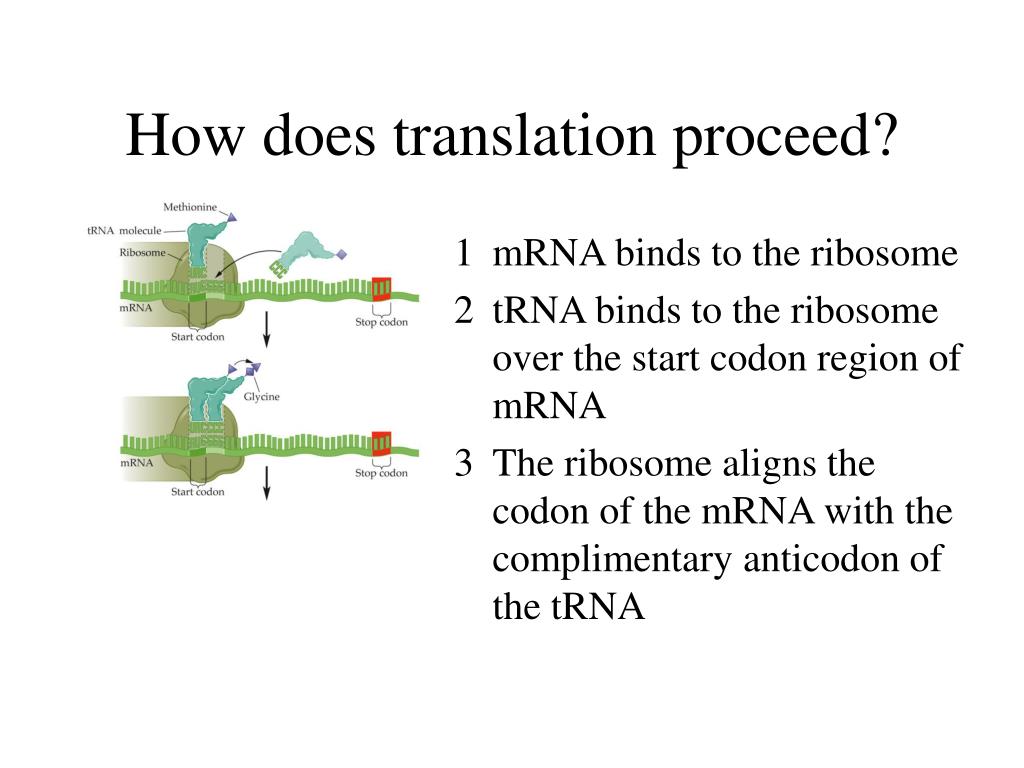

  15. How does translation proceed? • mRNA binds to the ribosome • tRNA binds to the ribosome over the start codon region of mRNA • The ribosome aligns the codon of the mRNA with the complimentary anticodon of the tRNA

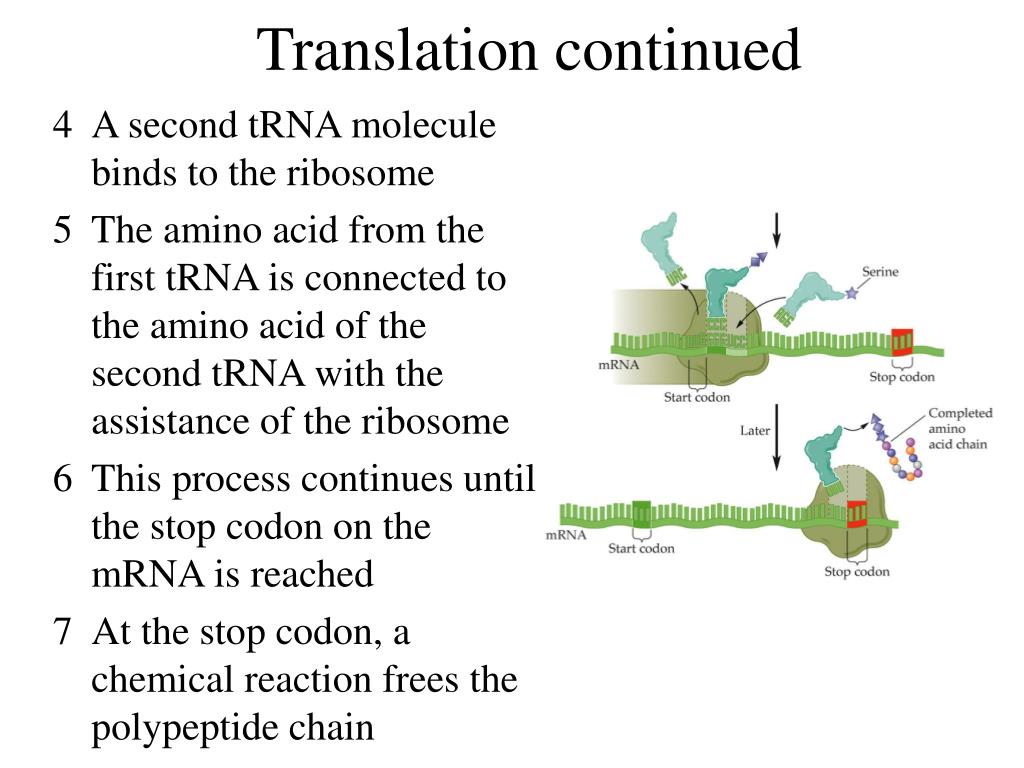

  16. Translation continued • A second tRNA molecule binds to the ribosome • The amino acid from the first tRNA is connected to the amino acid of the second tRNA with the assistance of the ribosome • This process continues until the stop codon on the mRNA is reached • At the stop codon, a chemical reaction frees the polypeptide chain

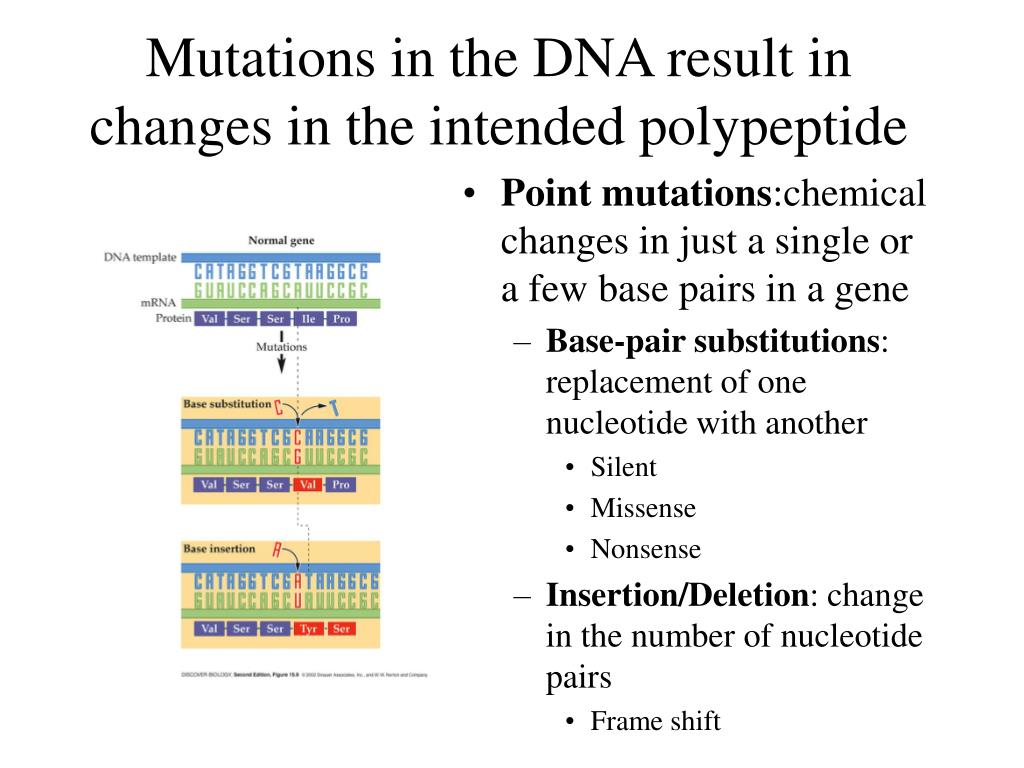

  17. Mutations in the DNA result in changes in the intended polypeptide • Point mutations:chemical changes in just a single or a few base pairs in a gene • Base-pair substitutions: replacement of one nucleotide with another • Silent • Missense • Nonsense • Insertion/Deletion: change in the number of nucleotide pairs • Frame shift

  18. Sickle Cell Disease
