Week 7 public key cryptography

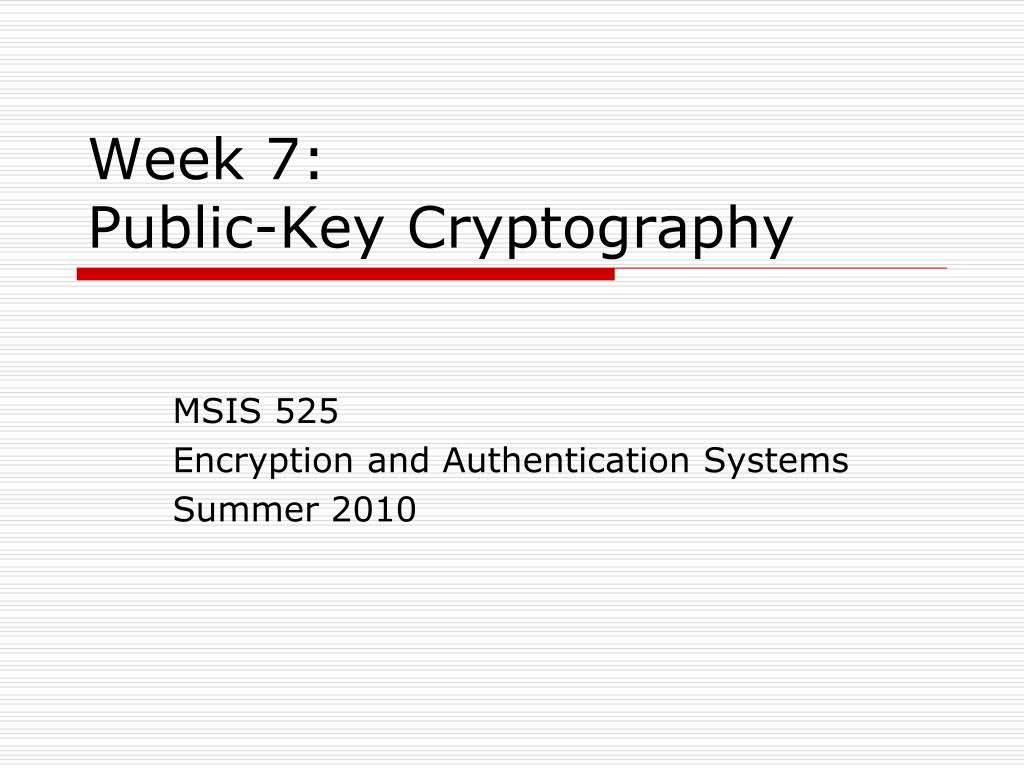

Week 7: Public-Key Cryptography

MSIS 525

Encryption and Authentication Systems

Summer 2010

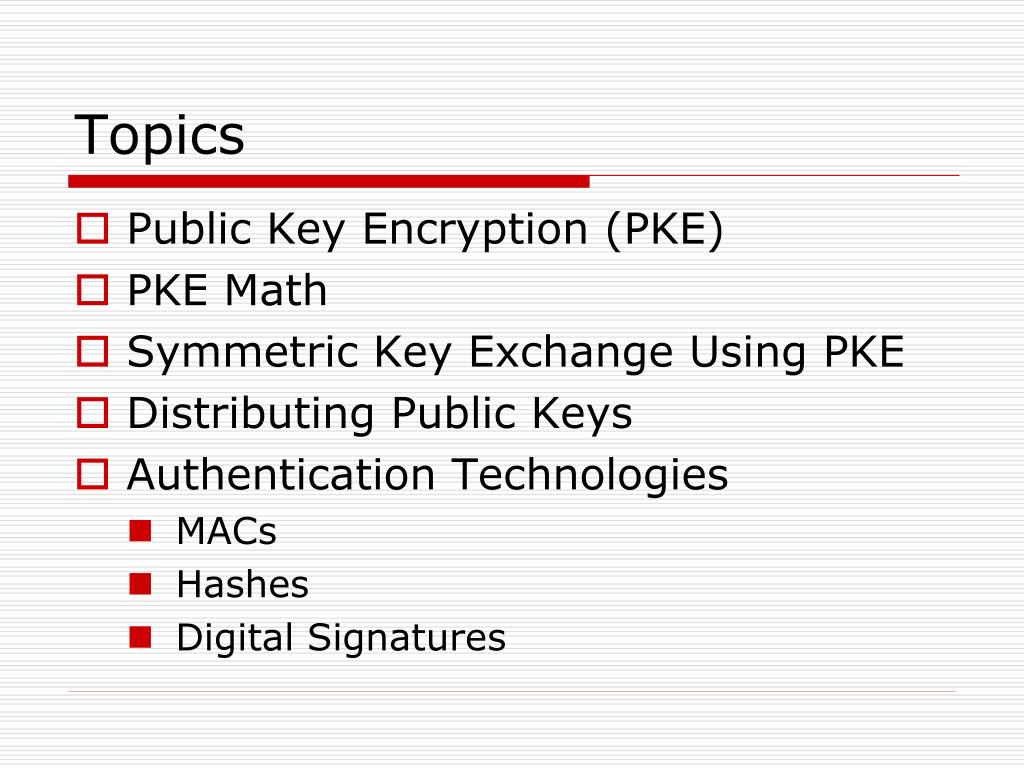

  • Public Key Encryption (PKE)

  • PKE Math

  • Symmetric Key Exchange Using PKE

  • Distributing Public Keys

  • Authentication Technologies

    • MACs

    • Hashes

    • Digital Signatures

Public key encryption

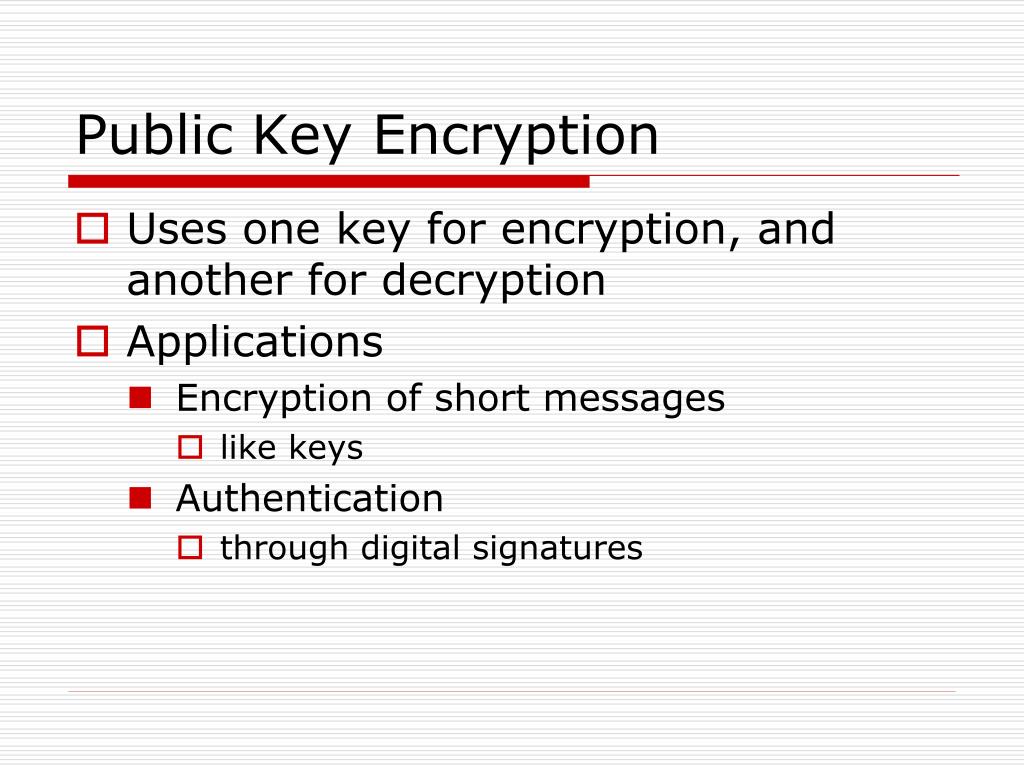

Public Key Encryption

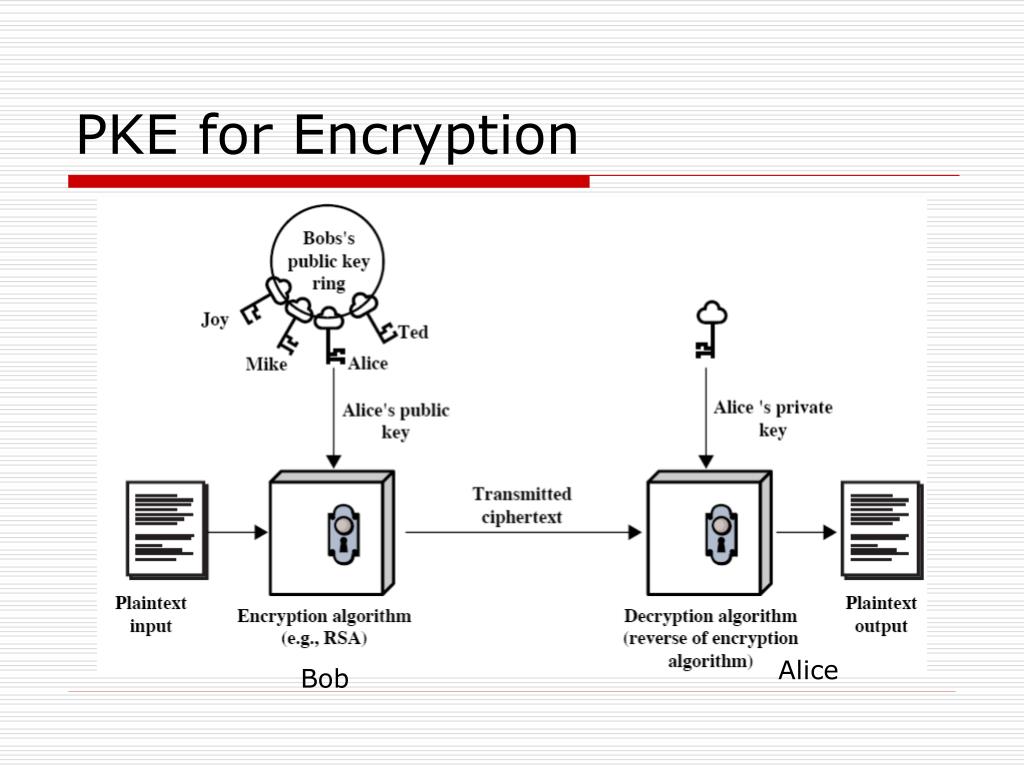

  • Uses one key for encryption, and another for decryption

  • Applications

    • Encryption of short messages

      • like keys

    • Authentication

      • through digital signatures

Pke for both simultaneously

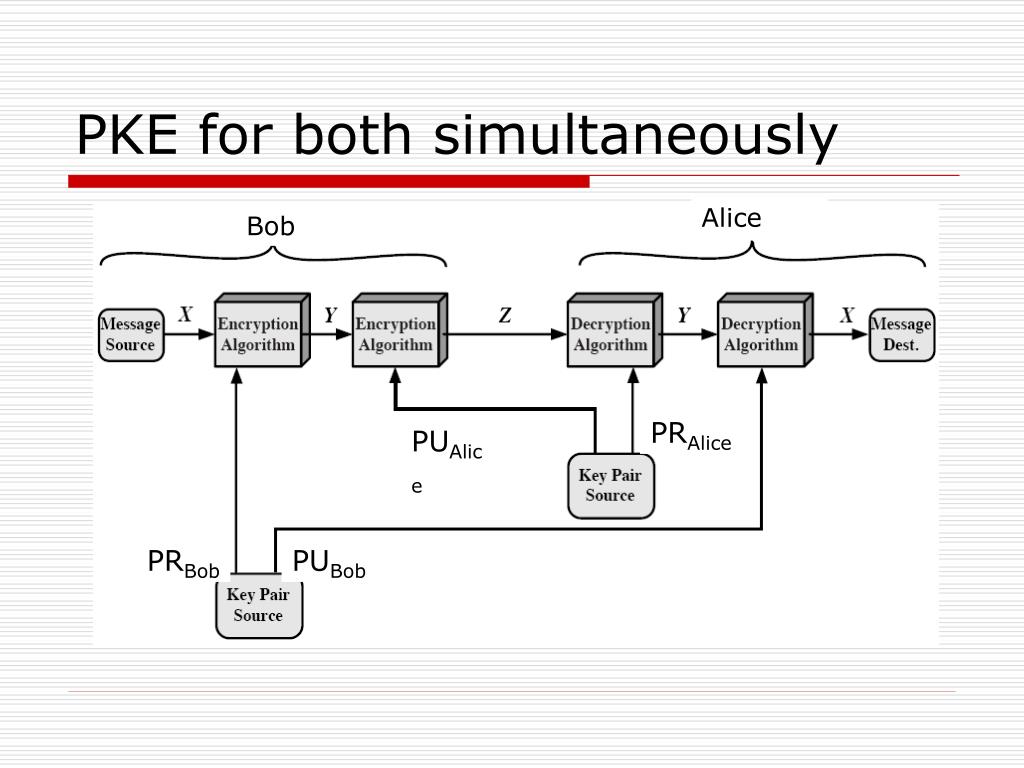

PKE for both simultaneously








Pke is not
PKE is not ...

  • Suitable for encrypting long messages

  • Necessarily more secure than symmetric

  • Necessarily more efficient in distributing keys than symmetric

    So don’t fall prey to these myths.


  • The most popular PKE system

  • Developed by Rivest, Shamir, and Adelman in 1977

  • Is a block cipher

  • Plaintext and ciphertext are treated as numbers between 0 and 2numbits–1

    • numbits typically >= 1024

Rsa encryption and decryption

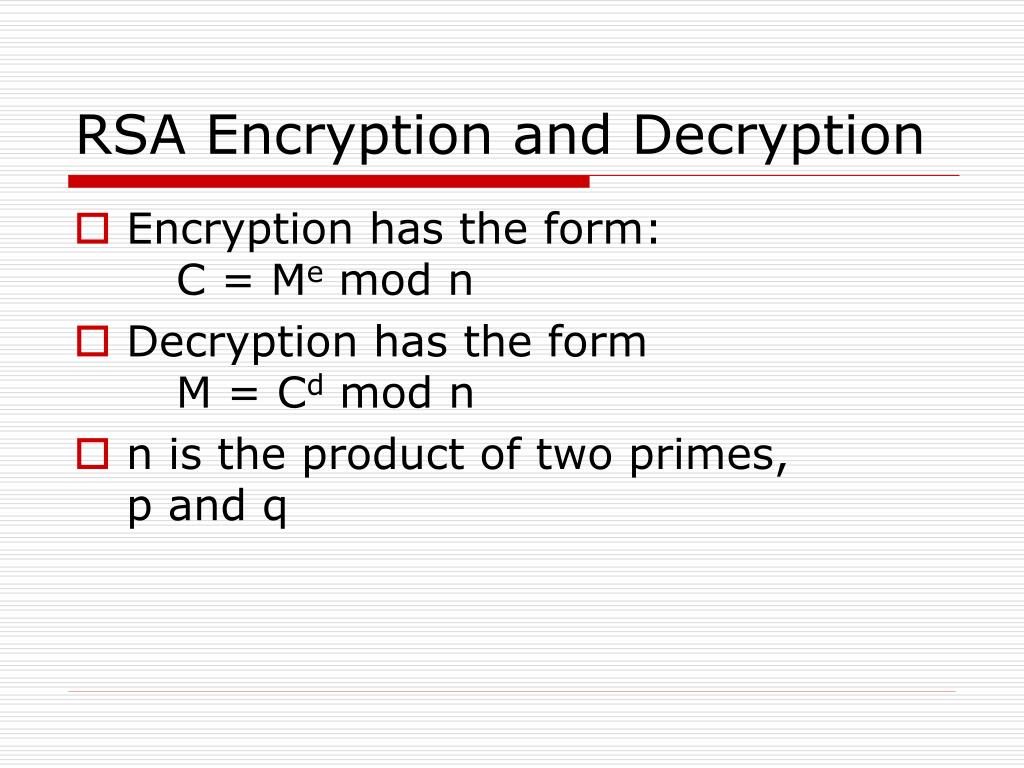

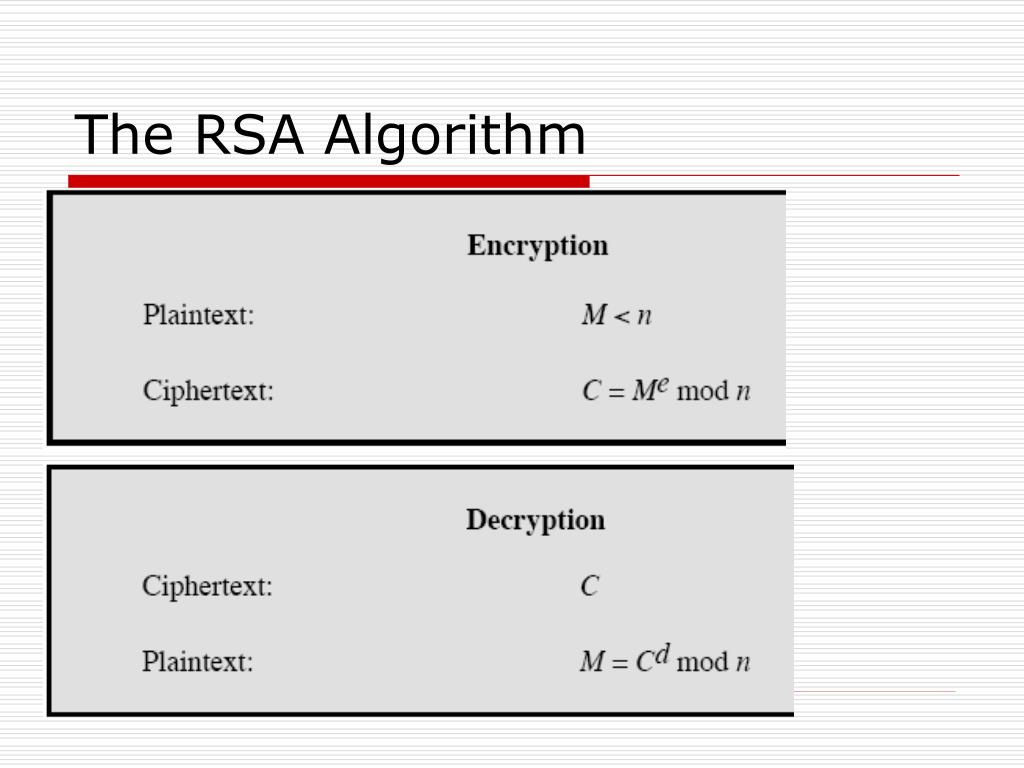

RSA Encryption and Decryption

  • Encryption has the form: C = Me mod n

  • Decryption has the form M = Cd mod n

  • n is the product of two primes, p and q

Rsa what the two sides know
RSA: What the two sides know

  • Visibility for confidentiality:

    • sender knows e and n

    • receiver knows d and n (as the product p and q)

  • In other words, these are the keys:

    • public key = {e, n}

    • private key = {d, p, q}

Example rsa by hand

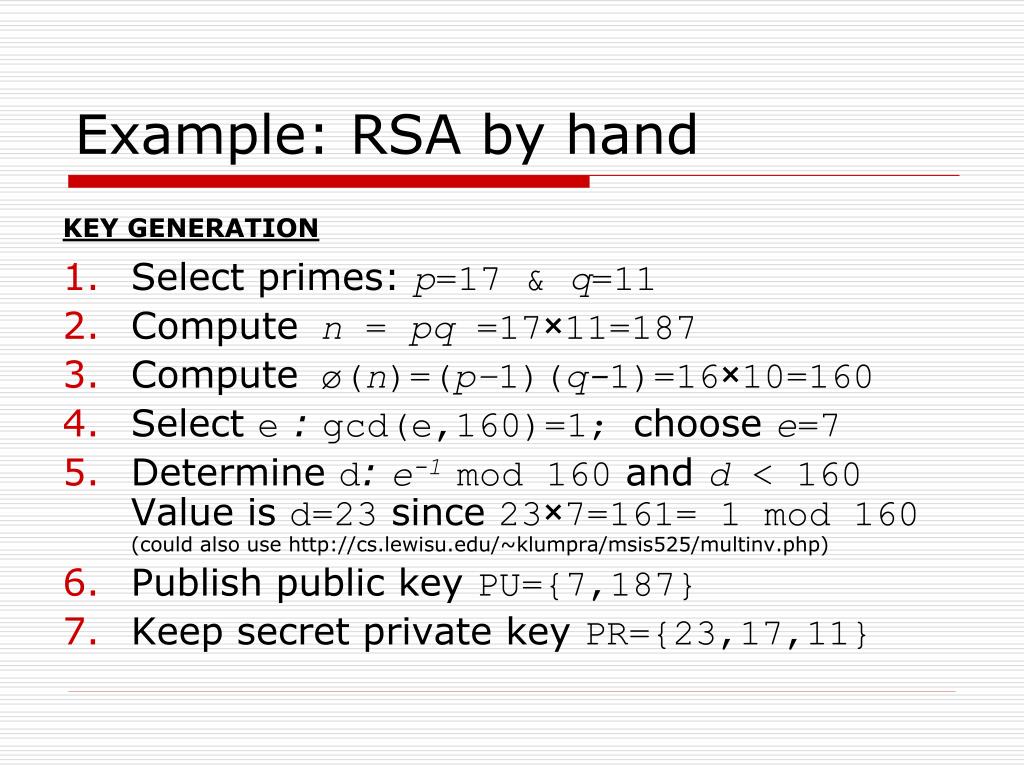

Example: RSA by hand

  • Select primes: p=17 & q=11

  • Computen = pq =17×11=187

  • Compute ø(n)=(p–1)(q-1)=16×10=160

  • Select e : gcd(e,160)=1; choose e=7

  • Determine d: e-1 mod 160 and d < 160 Value is d=23 since 23×7=161= 1 mod 160(could also use http://cs.lewisu.edu/~klumpra/msis525/multinv.php)

  • Publish public key PU={7,187}

  • Keep secret private key PR={23,17,11}


Example rsa by hand1

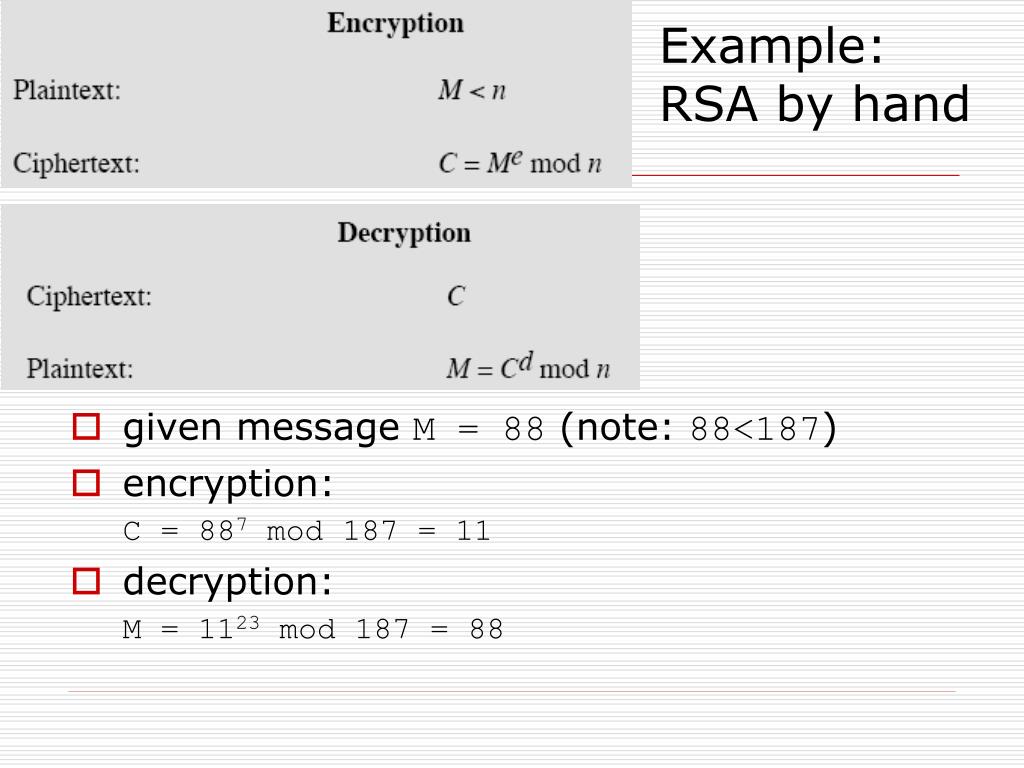

Example: RSA by hand

  • given message M = 88 (note: 88<187)

  • encryption:

    C = 887 mod 187 = 11

  • decryption:

    M = 1123 mod 187 = 88

How hard is it to break rsa

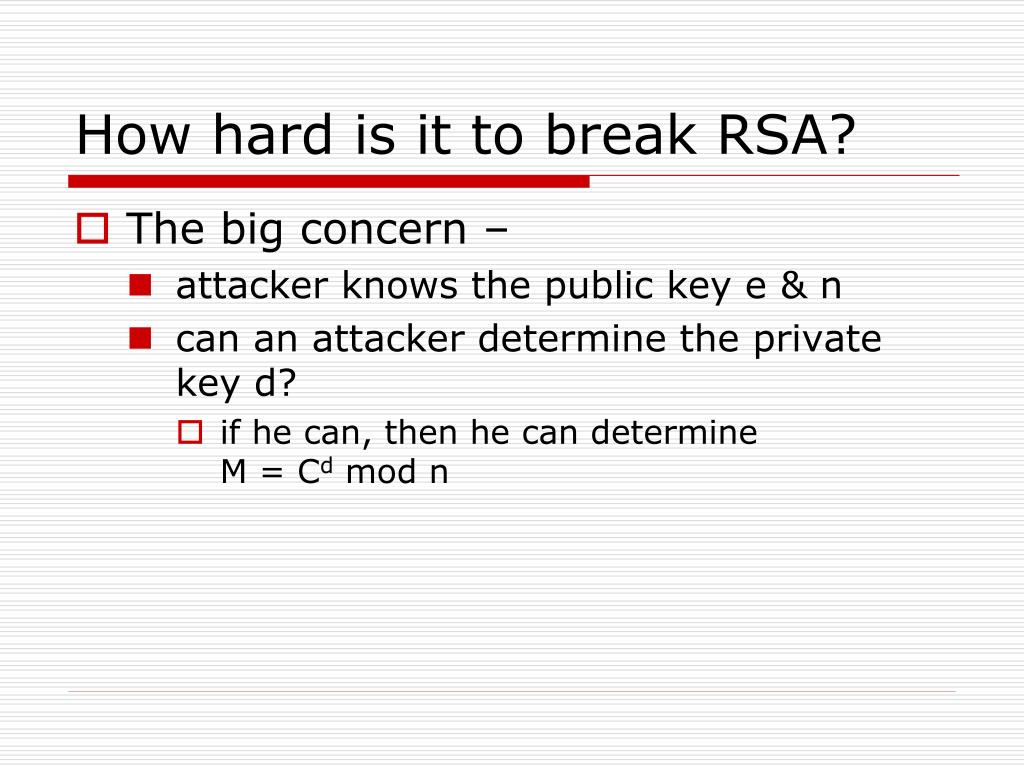

How hard is it to break RSA?

  • The big concern –

    • attacker knows the public key e & n

    • can an attacker determine the private key d?

      • if he can, then he can determine M = Cd mod n

How hard is it to determine d

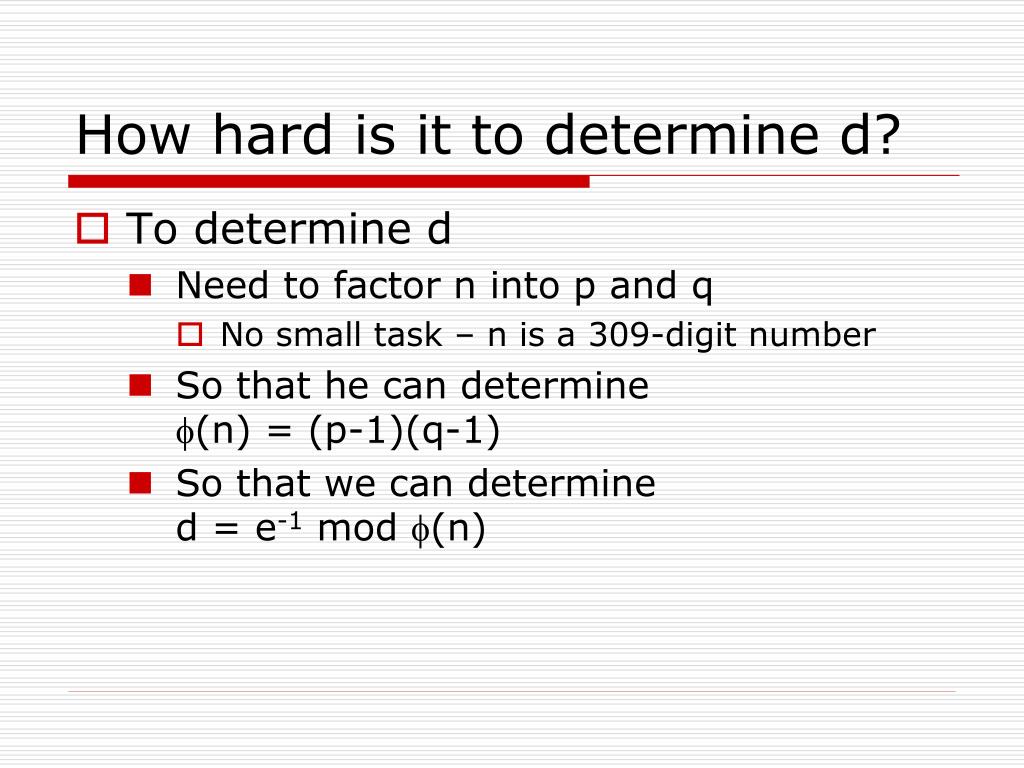

How hard is it to determine d?

  • To determine d

    • Need to factor n into p and q

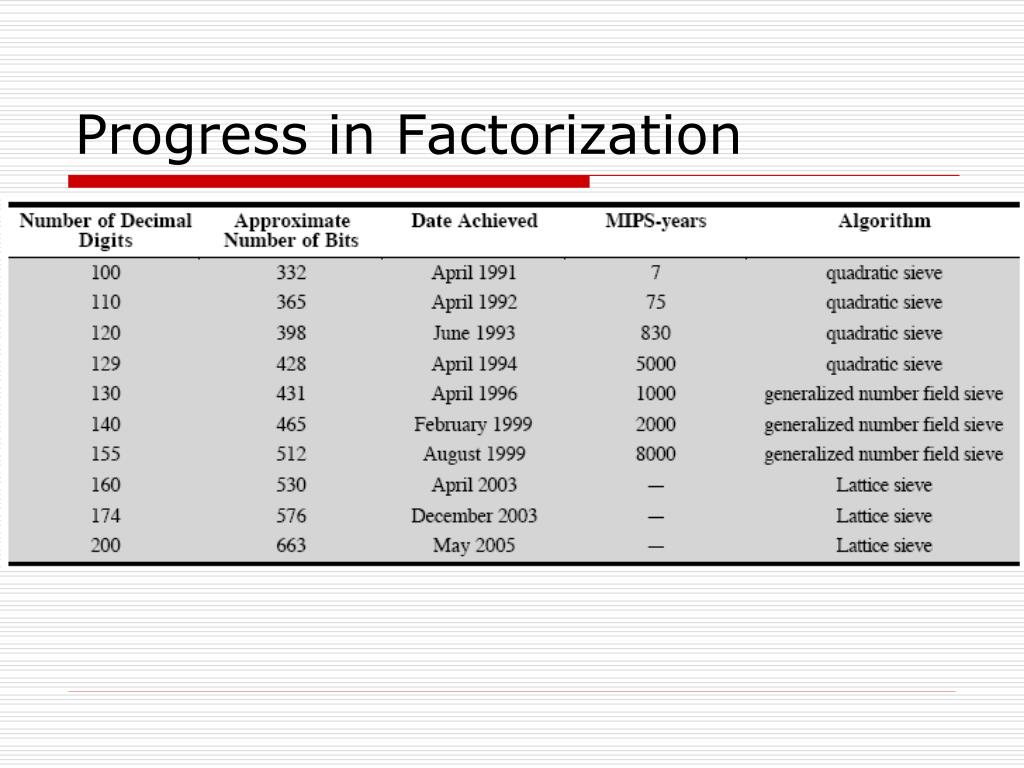

      • No small task – n is a 309-digit number

    • So that he can determine f(n) = (p-1)(q-1)

    • So that we can determine d = e-1 mod f(n)

Timing attacks

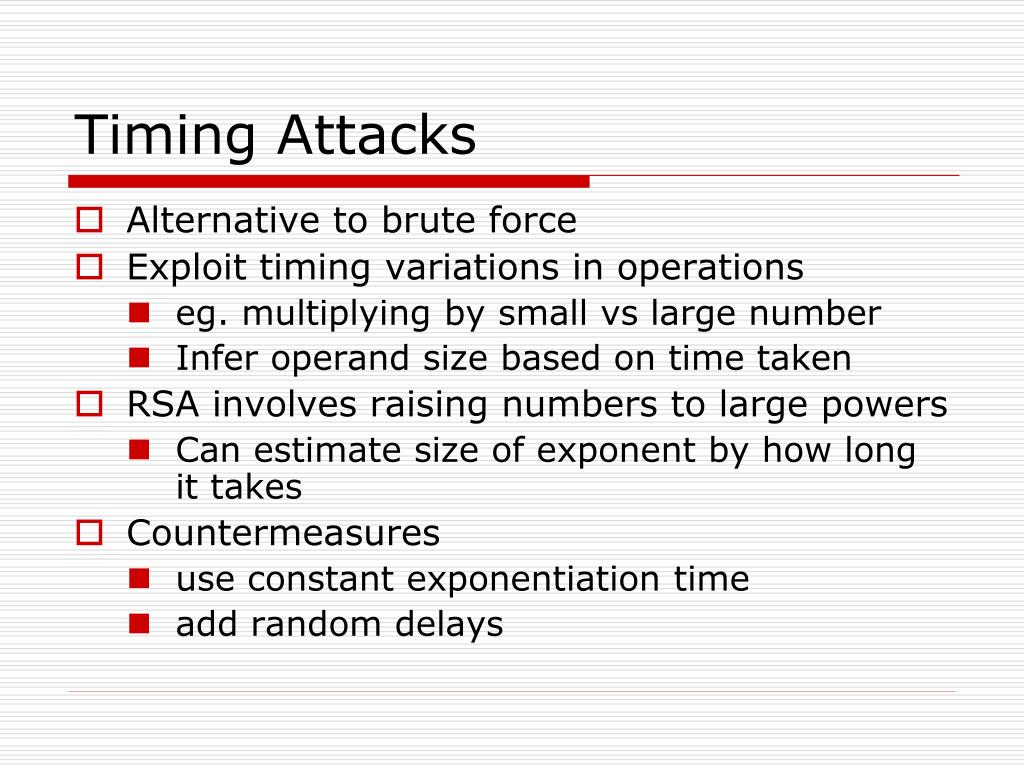

Timing Attacks

  • Alternative to brute force

  • Exploit timing variations in operations

    • eg. multiplying by small vs large number

    • Infer operand size based on time taken

  • RSA involves raising numbers to large powers

    • Can estimate size of exponent by how long it takes

  • Countermeasures

    • use constant exponentiation time

    • add random delays

Rsa secure but
RSA Secure but ...

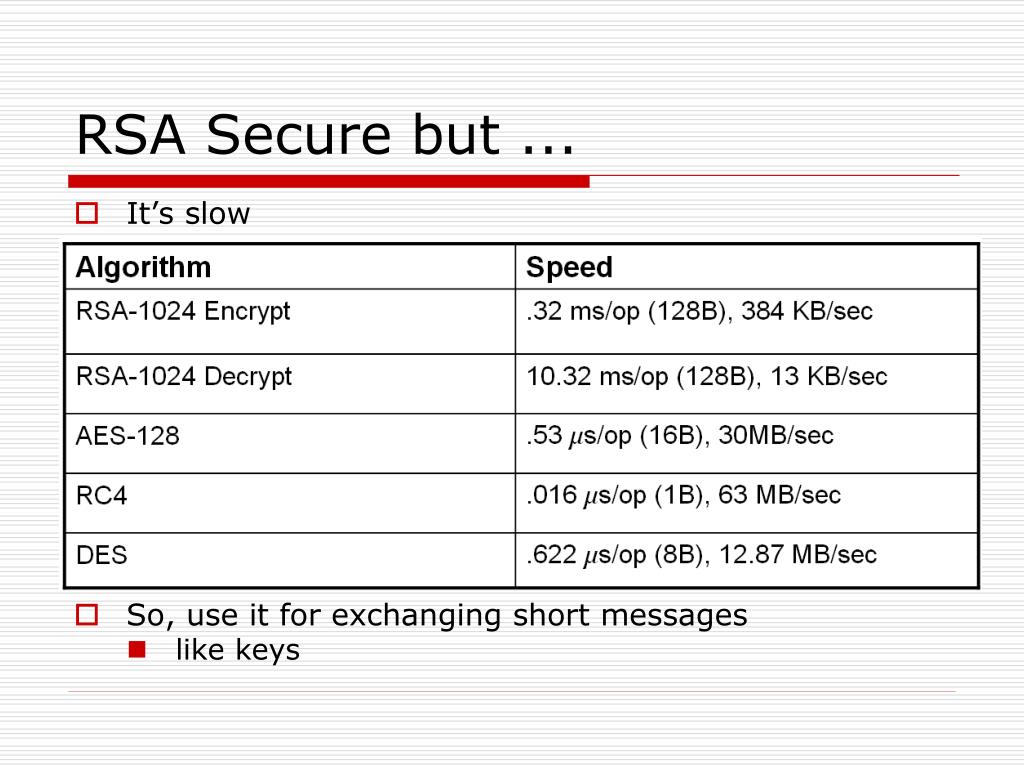

  • It’s slow

  • So, use it for exchanging short messages

    • like keys


  • How can we speed up the arithmetic?

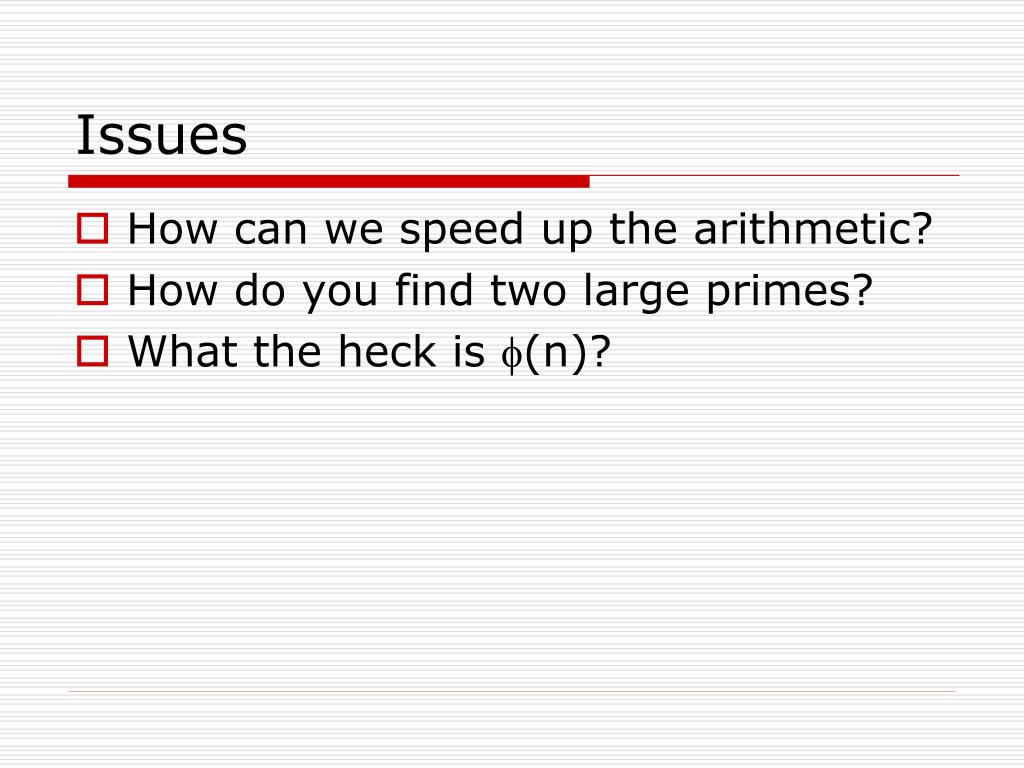

  • How do you find two large primes?

  • What the heck is f(n)?

Basic operations mod n

Speeding up the math through knowledge of modular arithmetic

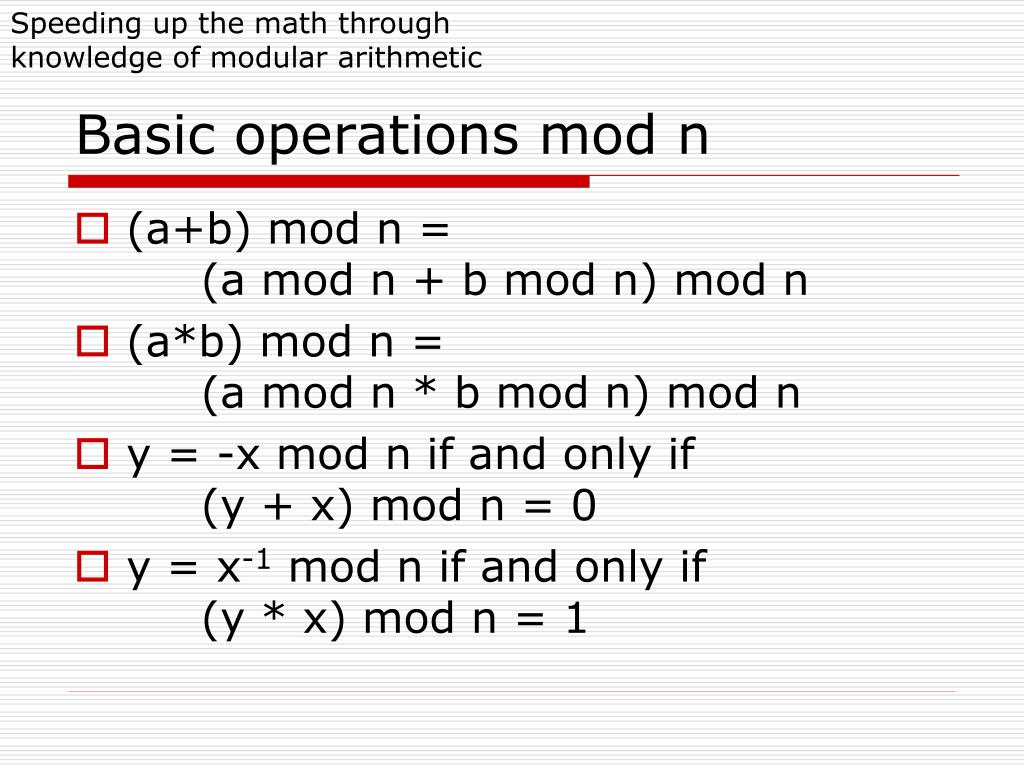

Basic operations mod n

  • (a+b) mod n = (a mod n + b mod n) mod n

  • (a*b) mod n = (a mod n * b mod n) mod n

  • y = -x mod n if and only if (y + x) mod n = 0

  • y = x-1 mod n if and only if (y * x) mod n = 1

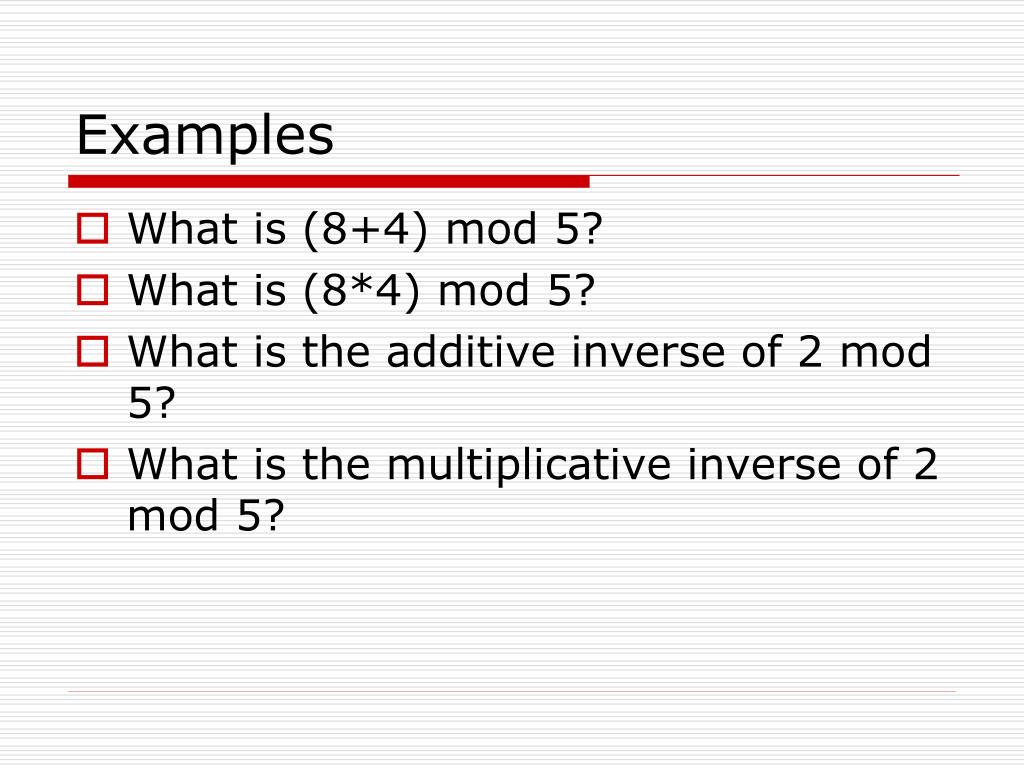

  • What is (8+4) mod 5?

  • What is (8*4) mod 5?

  • What is the additive inverse of 2 mod 5?

  • What is the multiplicative inverse of 2 mod 5?

How do you compute big powers

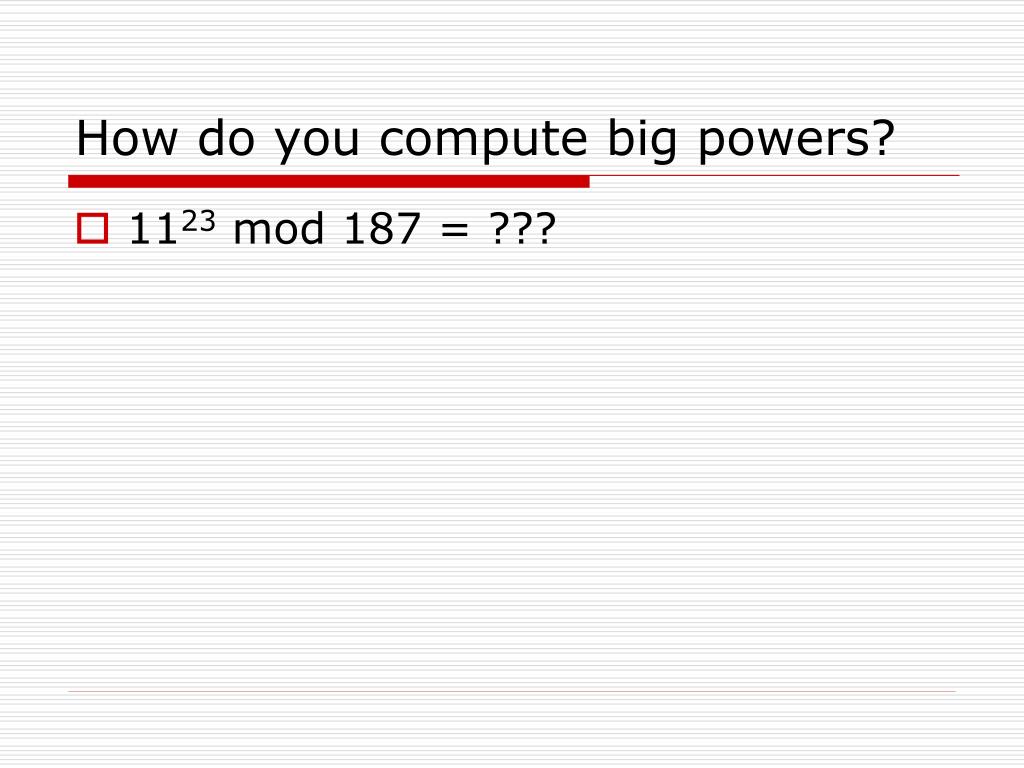

How do you compute big powers?

  • 1123 mod 187 = ???

Example computing 11 23 mod 187
Example:Computing 1123 mod 187

  • 1123 mod 187 = [(111 mod 187) x (112 mod 187) x (114 mod 187) x (118 mod 187) x (118 mod 187) mod 187

  • 111 mod 187 = 11

  • 112 mod 187 = 121

  • 114mod 187=(121*121)mod 187 =55

  • 118mod 187 = (55*55)mod 187 = 33

  • 1123mod 187=(11*121*55*33*33) mod 187 = 88

Chinese remainder theorem
Chinese Remainder Theorem

  • Makes it possible to reconstruct integers in a certain range from their remainders when divided by a pair of relatively prime numbers.

  • provided we know the factors, a very large number can be manipulated using smaller numbers

  • this will help the recipient compute M = Cd mod n, since n = p * q, and the recipient knows p and q

Example crt

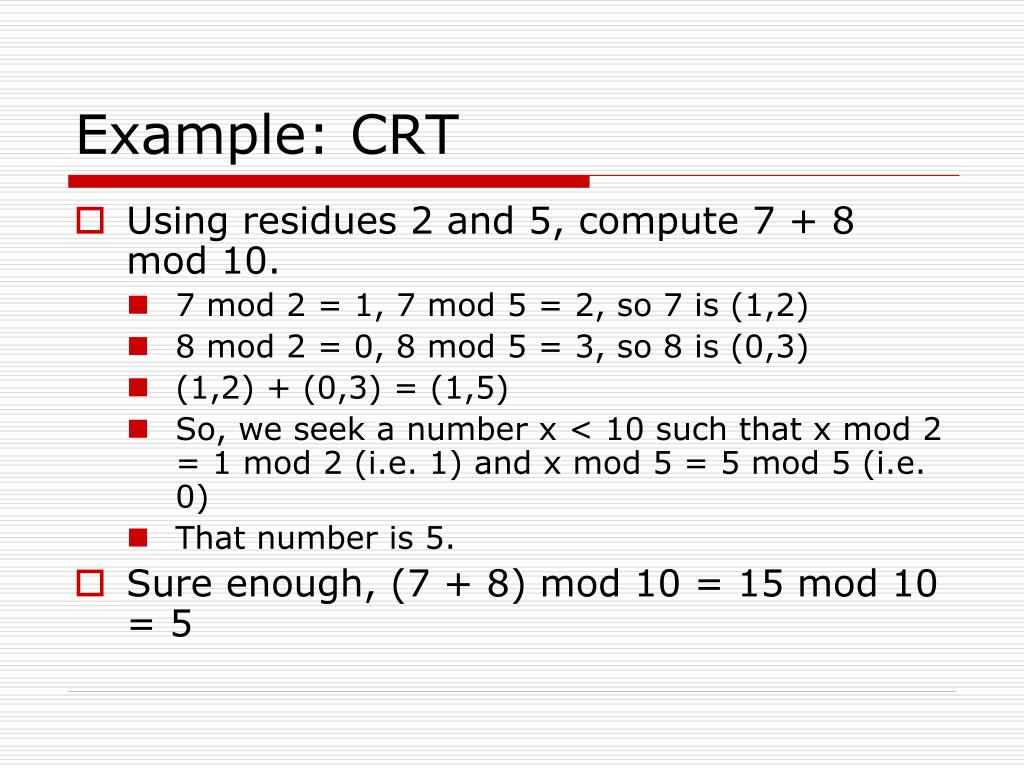

Example: CRT

  • Using residues 2 and 5, compute 7 + 8 mod 10.

    • 7 mod 2 = 1, 7 mod 5 = 2, so 7 is (1,2)

    • 8 mod 2 = 0, 8 mod 5 = 3, so 8 is (0,3)

    • (1,2) + (0,3) = (1,5)

    • So, we seek a number x < 10 such that x mod 2 = 1 mod 2 (i.e. 1) and x mod 5 = 5 mod 5 (i.e. 0)

    • That number is 5.

  • Sure enough, (7 + 8) mod 10 = 15 mod 10 = 5

Another example crt

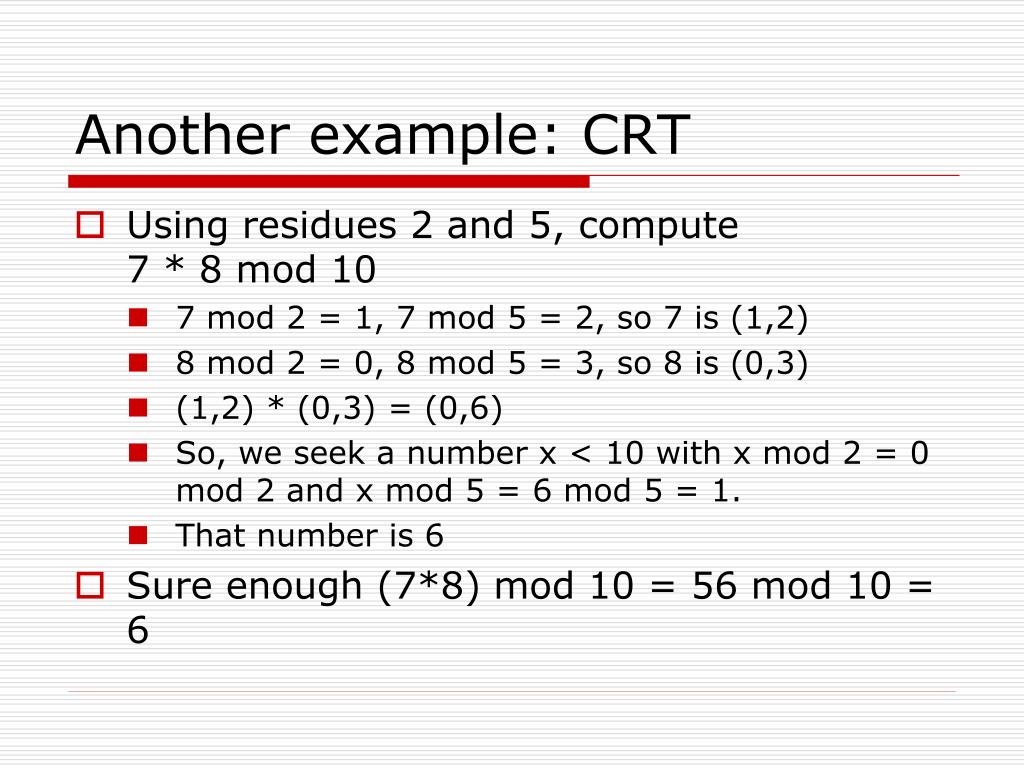

Another example: CRT

  • Using residues 2 and 5, compute 7 * 8 mod 10

    • 7 mod 2 = 1, 7 mod 5 = 2, so 7 is (1,2)

    • 8 mod 2 = 0, 8 mod 5 = 3, so 8 is (0,3)

    • (1,2) * (0,3) = (0,6)

    • So, we seek a number x < 10 with x mod 2 = 0 mod 2 and x mod 5 = 6 mod 5 = 1.

    • That number is 6

  • Sure enough (7*8) mod 10 = 56 mod 10 = 6

Application of crt to encryption

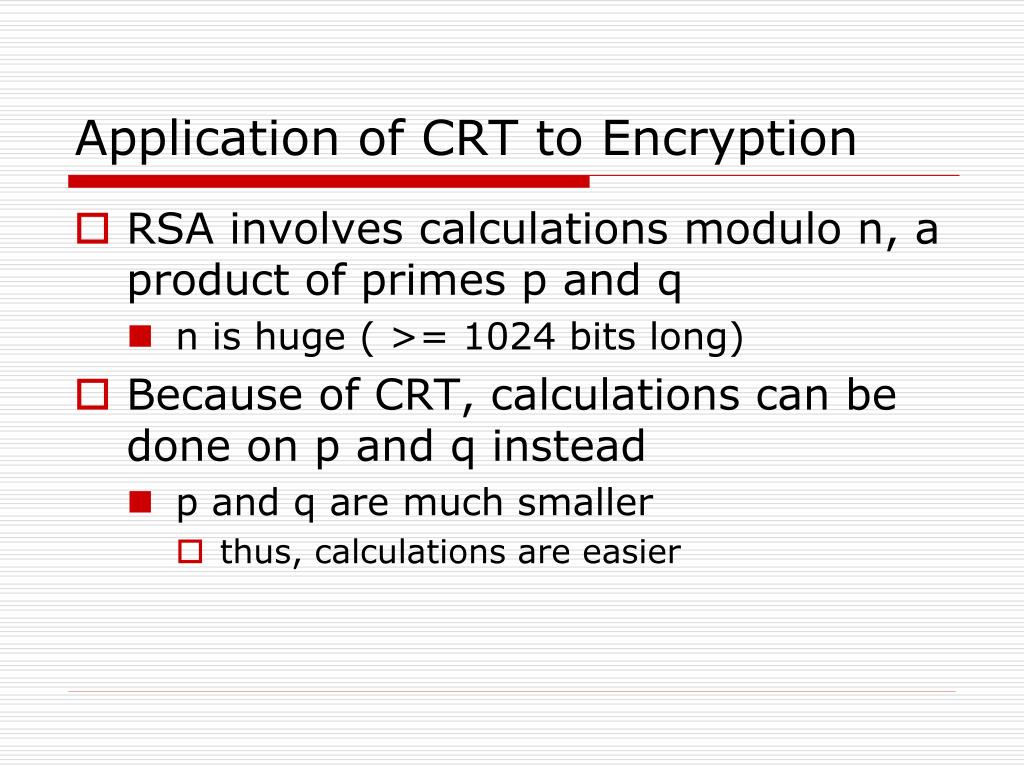

Application of CRT to Encryption

  • RSA involves calculations modulo n, a product of primes p and q

    • n is huge ( >= 1024 bits long)

  • Because of CRT, calculations can be done on p and q instead

    • p and q are much smaller

      • thus, calculations are easier

Determining the multiplicative inverse
Determining the multiplicative inverse

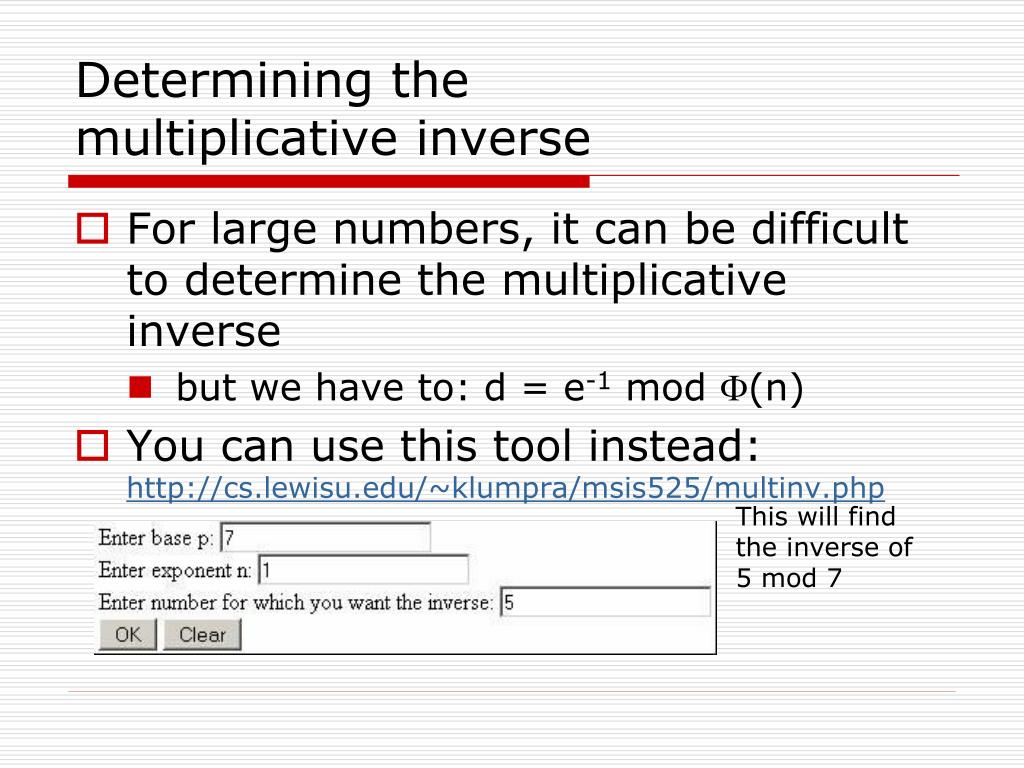

  • For large numbers, it can be difficult to determine the multiplicative inverse

    • but we have to: d = e-1 mod F(n)

  • You can use this tool instead:http://cs.lewisu.edu/~klumpra/msis525/multinv.php

This will find the inverse of 5 mod 7

Here s the source code

Just in case you’re interested.

Here’s the source code:



<title>Find the multiplicative inverse in GF(p^n)</title>




function xGCD($a1,$a2,$a3,$b1,$b2,$b3) {

$q = 0;

$t1 = $t2 = $t3 = 0;

if ($b3 == 0) {

return 0;


if ($b3 == 1) {

return $b2;


$q = (int)($a3/$b3);

$t1 = $a1-$q*$b1;

$t2 = $a2-$q*$b2;

$t3 = $a3-$q*$b3;

return xGCD($b1,$b2,$b3,$t1,$t2,$t3);


$vars= $_REQUEST;

if (count($vars) > 0) {

$p = $vars["base"];

$n = $vars["exp"];

$num = $vars["num"];

$base = pow($p,$n);

$answer = xGCD(1,0,$base,0,1,$num%$base);

while ($answer < 0) {

$answer += $base;


print "Answer = $answer<br>";



<form method="get">

Enter base p: <input type="text" name="base"></input><br>

Enter exponent n: <input type="text" name="exp"></input><br>

Enter number for which you want the inverse: <input type="text" name="num"></input><br>

<input type="submit" value="OK"></input>

<input type="reset" value="Clear"></input>




Prime numbers
Prime numbers

  • First step in RSA: choose p and q prime

  • A prime number p is a positive integer having no divisors other than 1 and p

  • There are an infinite number of primes

Theorems regarding primes

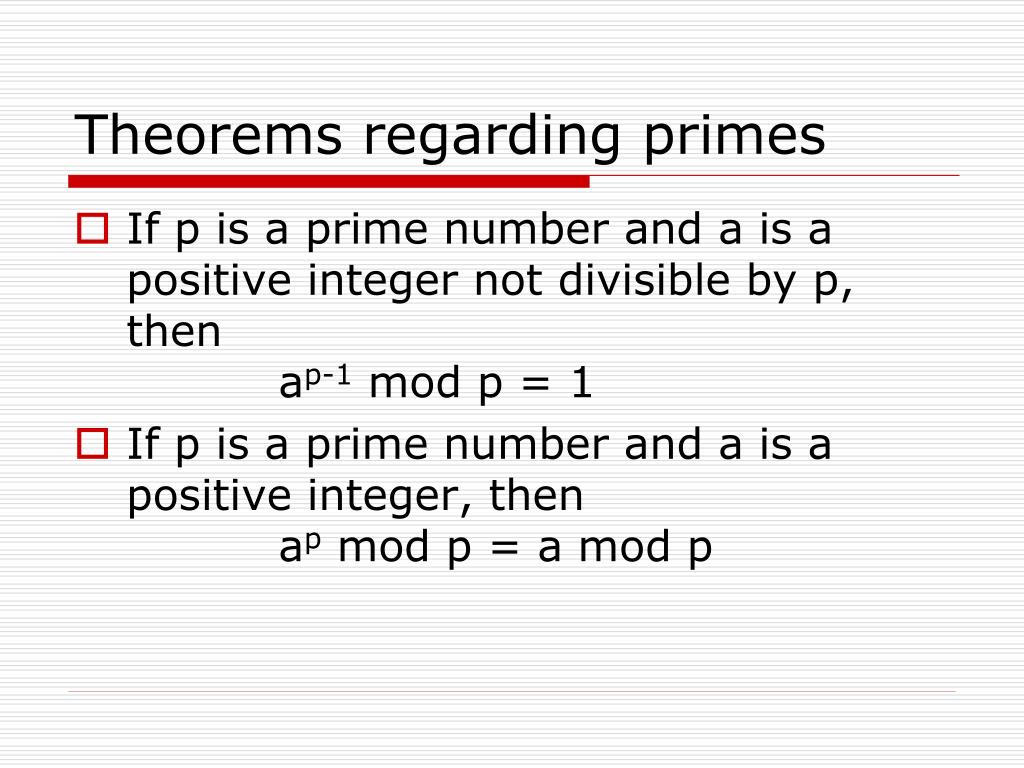

Theorems regarding primes

  • If p is a prime number and a is a positive integer not divisible by p, then ap-1 mod p = 1

  • If p is a prime number and a is a positive integer, then ap mod p = a mod p

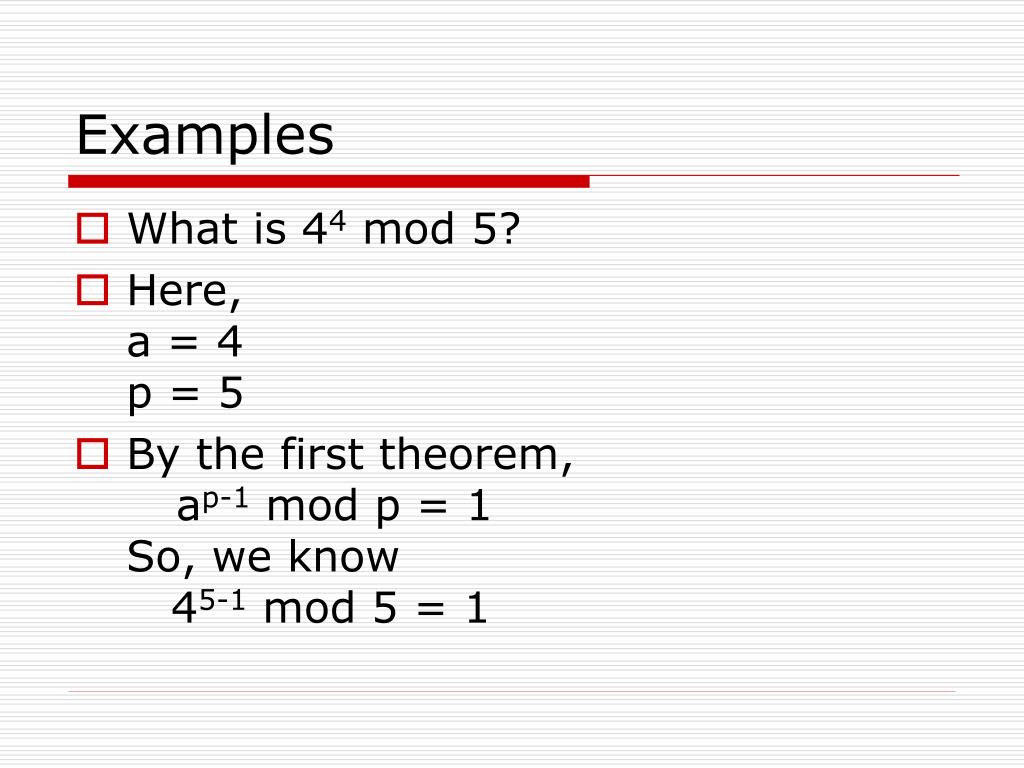

  • What is 44 mod 5?

  • Here,a = 4p = 5

  • By the first theorem, ap-1 mod p = 1So, we know 45-1 mod 5 = 1

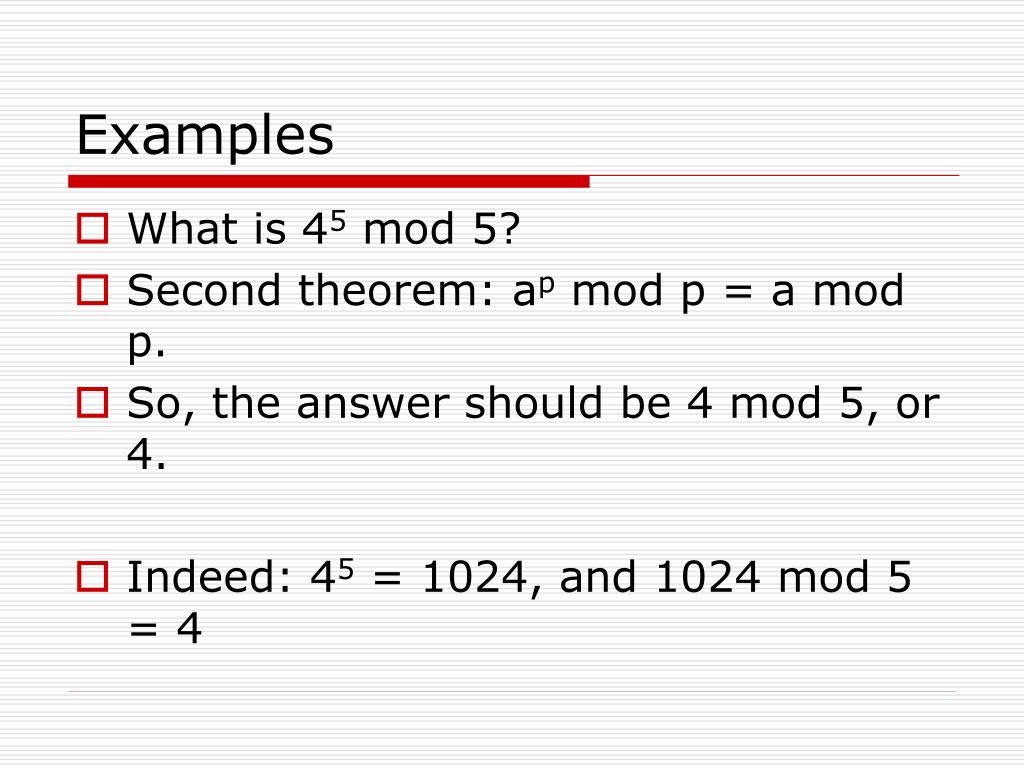

  • What is 45 mod 5?

  • Second theorem: ap mod p = a mod p.

  • So, the answer should be 4 mod 5, or 4.

  • Indeed: 45 = 1024, and 1024 mod 5 = 4

Euler s totient function

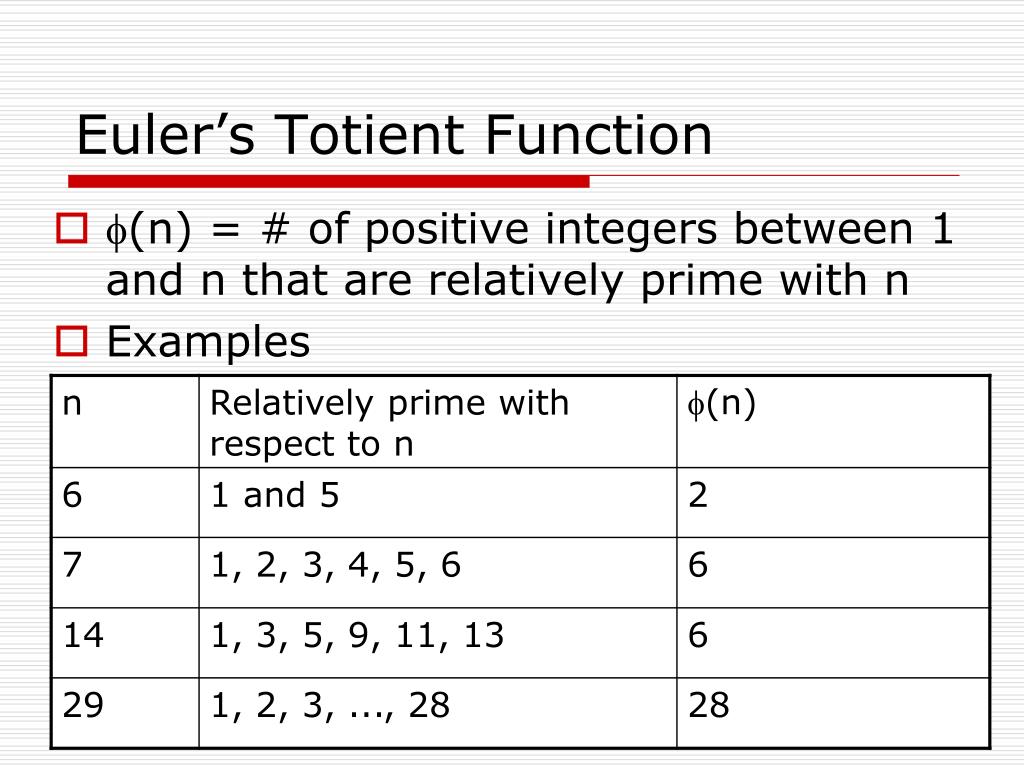

Euler’s Totient Function

  • f(n) = # of positive integers between 1 and n that are relatively prime with n

  • Examples

What does relatively prime mean

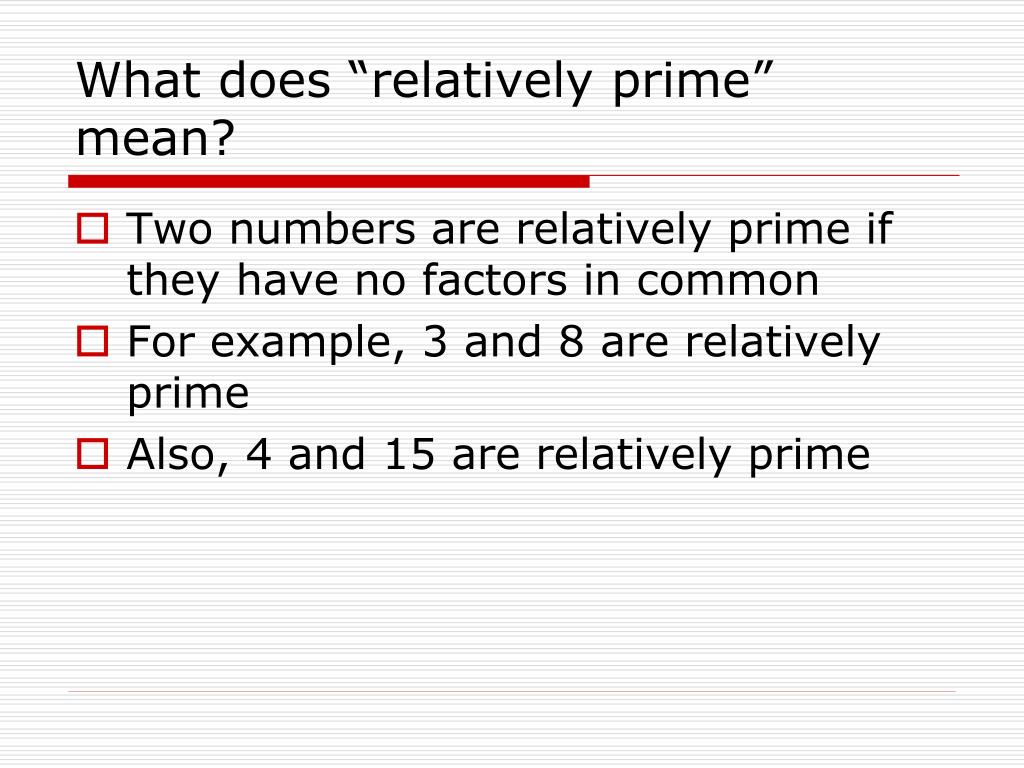

What does “relatively prime” mean?

  • Two numbers are relatively prime if they have no factors in common

  • For example, 3 and 8 are relatively prime

  • Also, 4 and 15 are relatively prime

Euler s totient function continued

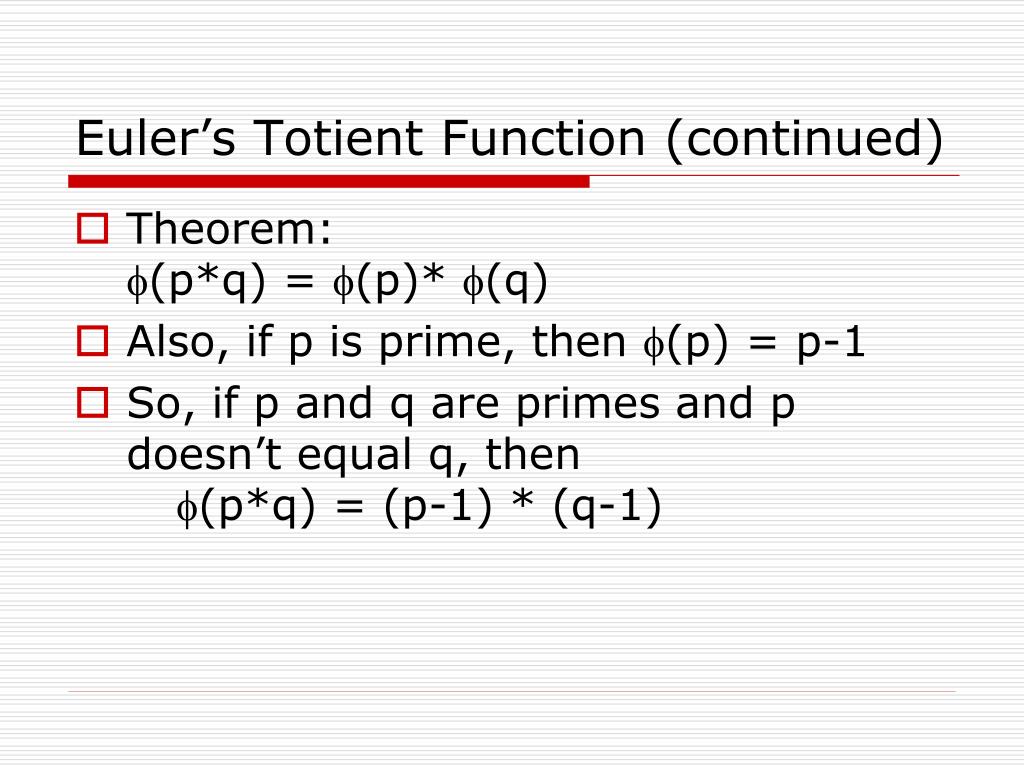

Euler’s Totient Function (continued)

  • Theorem:f(p*q) = f(p)* f(q)

  • Also, if p is prime, then f(p) = p-1

  • So, if p and q are primes and p doesn’t equal q, thenf(p*q) = (p-1) * (q-1)

Example properties of the totient

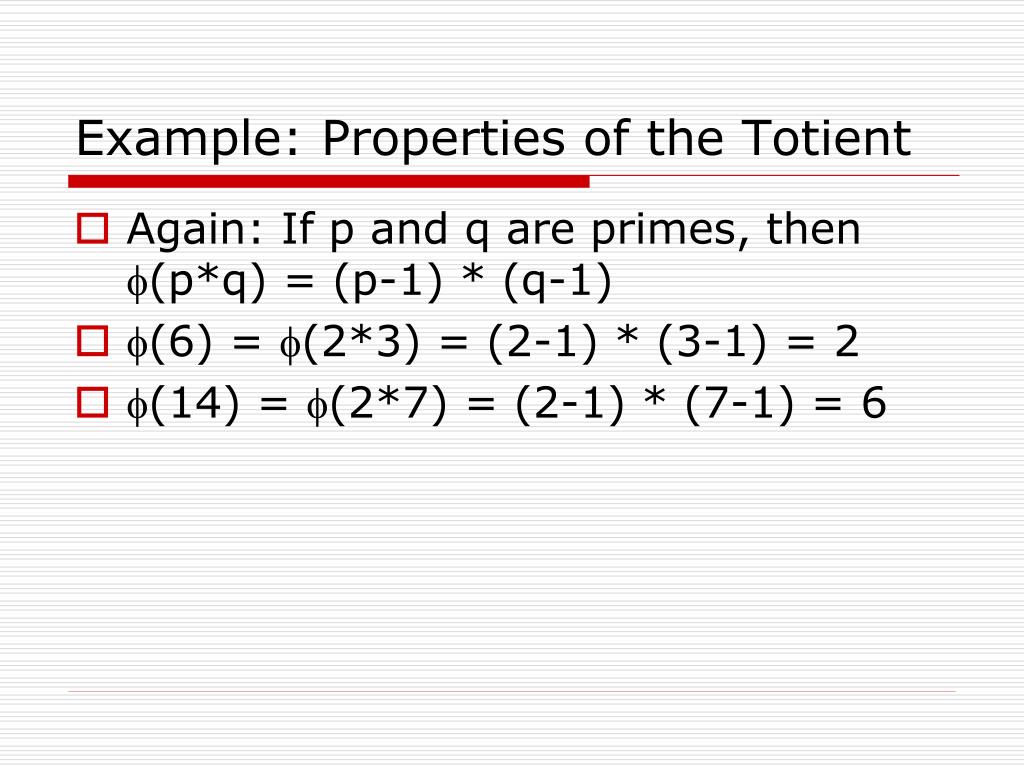

Example: Properties of the Totient

  • Again: If p and q are primes, then f(p*q) = (p-1) * (q-1)

  • f(6) = f(2*3) = (2-1) * (3-1) = 2

  • f(14) = f(2*7) = (2-1) * (7-1) = 6

Euler s theorem
Euler’s Theorem

  • if a and n are relatively prime, then af(n) = 1 mod n

  • if a and n are relatively prime, then af(n)+1 = a mod n

  • Examples (with a = 3, n = 8)

    • Note that f(8) = 4

    • Then, 34 = 1 mod 8

    • Also, 35 = 3 mod 8

confirm these by computing 34 and 35

Testing for primes
Testing for Primes

  • Public-key encryption requires finding very large prime numbers

  • There is no efficient way to do this

  • Simplest algorithm:for i = 2 up to square root of n if n mod i is 0 then n is not prime, so exit loopif you don’t find an i for which n mod i = 0, then n is prime

Testing for primes miller rabin algorithm
Testing for Primes – Miller & Rabin Algorithm

  • Can say simply that a number is not prime

    • can’t say for sure whether a number is prime

  • However, if you repeat the algorithm t times, Probability(n is prime) > 1 – (1/4)t

  • Thus, if you repeat the test 10 times, the probability the number is prime > 99.9999%

Distribution of primes
Distribution of Primes

  • Primes near n are spaced on the average one every 0.5*ln(n) integers

  • Thus, one has to test, on average, this many integers

  • For example, if a prime near 2200 is desired, need to test 0.5 * ln(2200) = 69numbers (on average)

Review the rsa algorithm

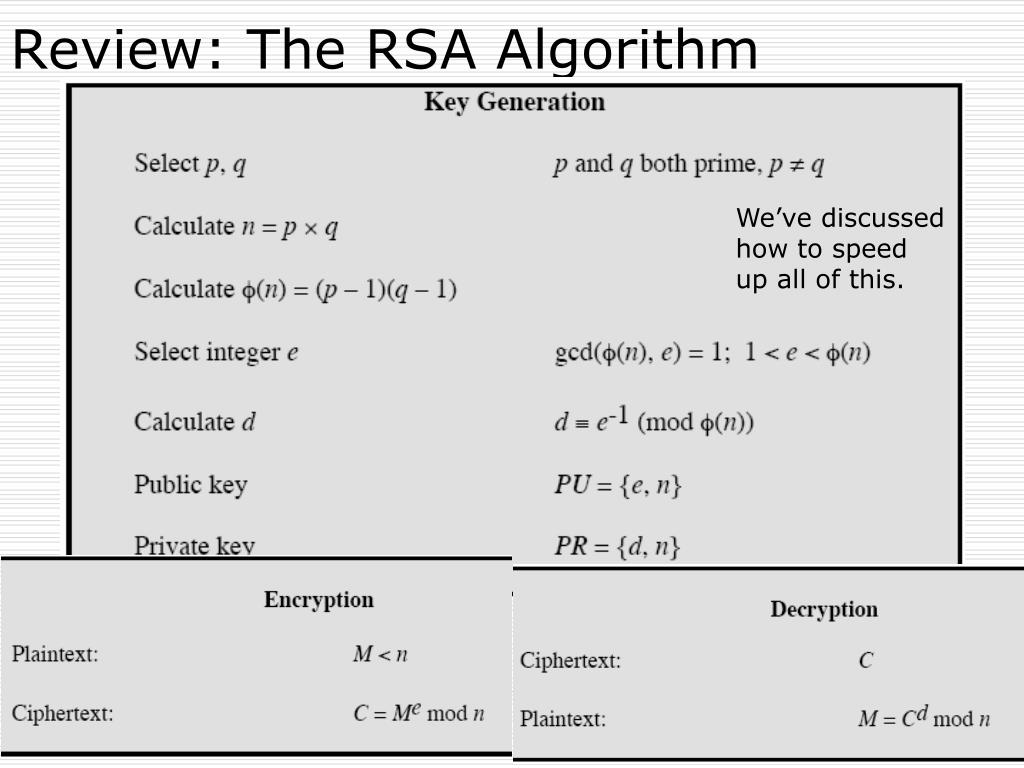

Review: The RSA Algorithm

We’ve discussed how to speed up all of this.

Now we ll talk about key exchange
Now we’ll talk about Key Exchange

  • First, how do you exchange symmetric keys using PKE technology?

    • This is the recommended application of PKE

    • Will present the most popular technique – Diffie Helman

  • Then, how do you exchange public keys?

    • Necessary for PKE to happen

Symmetric key exchange

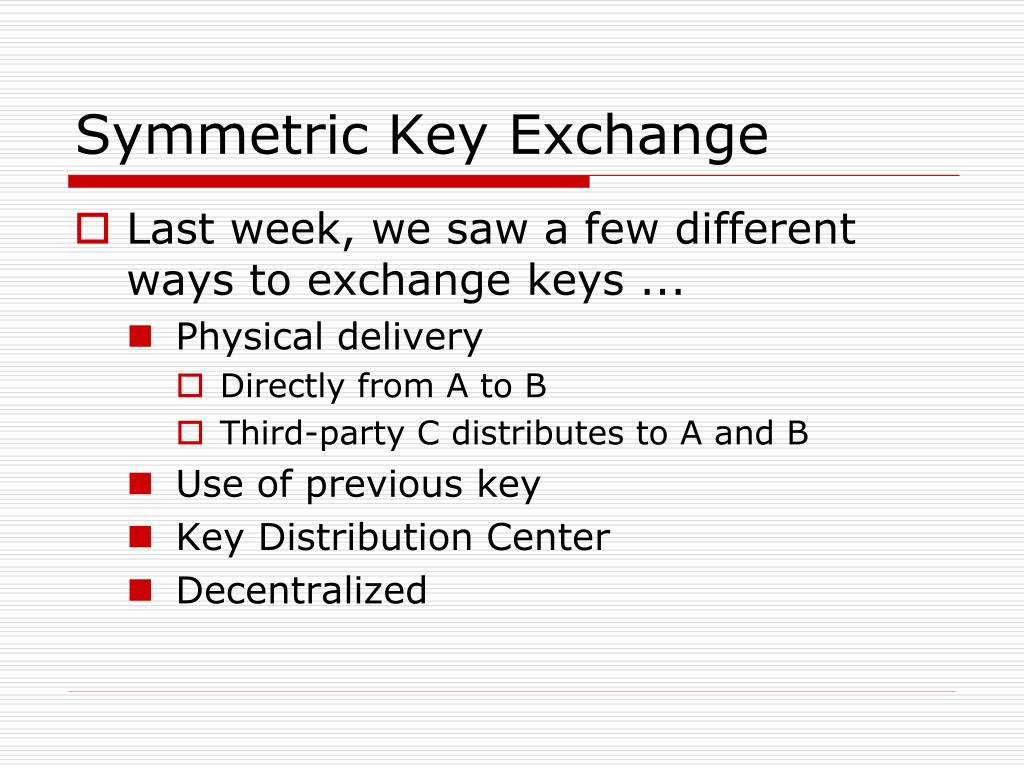

Symmetric Key Exchange

  • Last week, we saw a few different ways to exchange keys ...

    • Physical delivery

      • Directly from A to B

      • Third-party C distributes to A and B

    • Use of previous key

    • Key Distribution Center

    • Decentralized

Centralized key distribution
Centralized Key Distribution

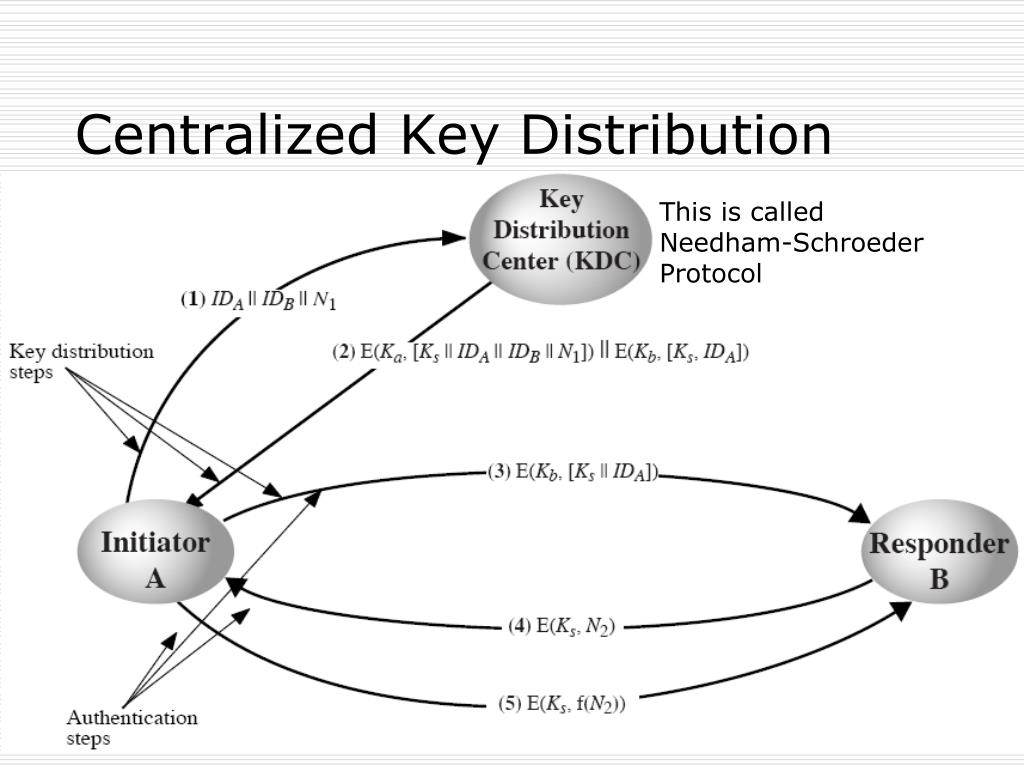

This is called Needham-Schroeder Protocol

Limitation of kdc
Limitation of KDC

  • “What good would it do after all to develop impenetrable cryptosystems if their users were forced to share their keys with a KDC that could be compromised by either burglary or subpoena?” – Whitfield Diffie, co-creator of public-key encryption

Decentralized key distribution
Decentralized Key Distribution

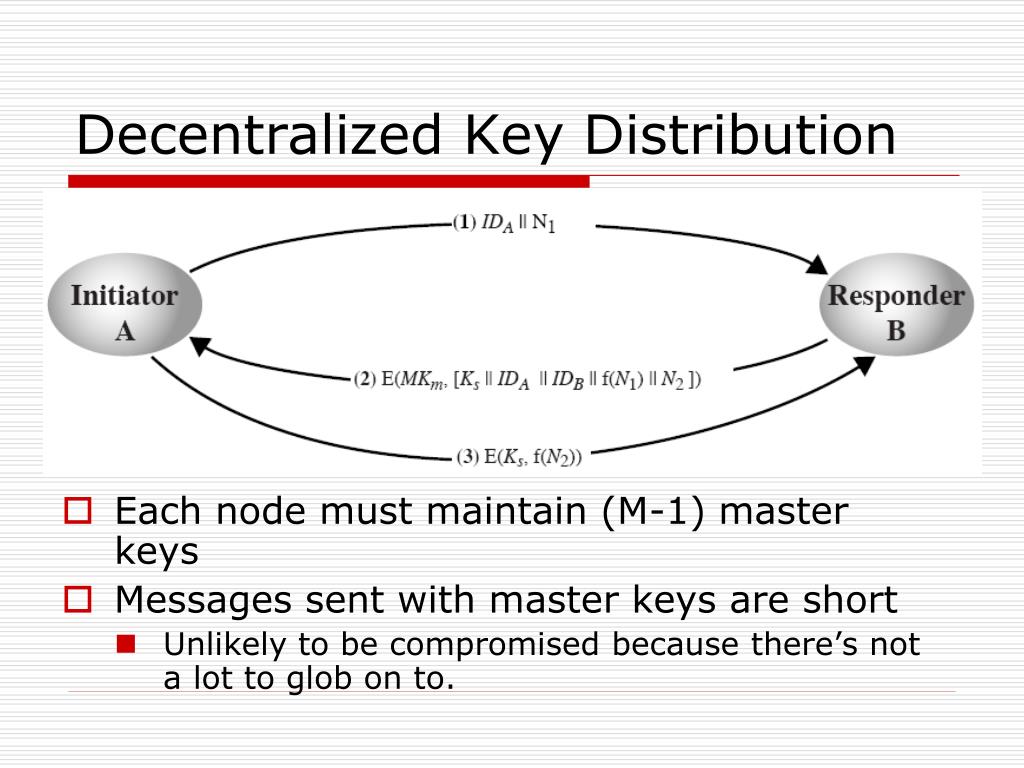

  • Each node must maintain (M-1) master keys

  • Messages sent with master keys are short

    • Unlikely to be compromised because there’s not a lot to glob on to.

Limitation of decentralized approach
Limitation of Decentralized Approach

  • With M different participants, there are M(M-1)/2 different master keys to distribute

    • Doesn’t scale well

So we seek an alternative
So, we seek an alternative

  • One that doesn’t necessarily require trust in a third party

  • One that doesn’t require such a large up-front key distribution

Will look at 3 approaches to distributing symmetric keys w pke
Will look at 3 approaches to distributing symmetric keys w/ PKE

  • Simple Key Distribution

  • Simple Key Distribution with Confidentiality and Authentication

  • Diffie-Hellman

Simple key distribution

Symmetric Key Distribution Using PKE PKE

Simple Key Distribution

  • Alice contacts Bob with her ID and public key

  • Bob generates a symmetric key and returns it to Alice (encrypted with her public key)

    • so that only she can read it with her private key

  • Susceptible to Man-in-the-middle attack

Man in the middle attack
Man-in-the-Middle Attack PKE

  • Alice generates {PUA, PRA} and transmits message intended for Bob consisting of PUA and IDA

  • Creep intercepts message, creates own public/private key pair {PUC,PRC}, and transmits PUC & IDA to Bob

  • Bob generates secret key KS and transmits E(PUC, KS)

  • Creep intercepts message, learns KS through D(PRC,E(PUC, KS))

  • Creep transmits E(PUA, KS) to Alice so that Alice doesn’t think anything is wrong

    So, everybody – Alice, Bob, and Creep, know KS – bad news!

Secret key distribution with confidentiality and authentication

Symmetric Key Distribution Using PKE PKE

Secret Key Distribution withConfidentiality and Authentication

Lots of overhead!

Diffie hellman
Diffie-Hellman PKE

  • An algorithmic approach to exchanging a secret key.

  • This is the most popular way

    • involves less overhead

Primitive root

First need to understand … PKE

Primitive Root

  • Let p be a prime. Then b is a primitive root for p if the powers of b,    1, b, b^2, b^3, ...include all of the residue classes mod p

  • i.e. first p-1 powers of b have to be different mod p.

  • Example: If p is 7, then 3 is a primitive root of p.

    • because the powers of 3 mod 7 are 1, 3, 2, 6, 4, 5

    • 2 is not: 1, 2, 4, 1, 2, 4, 1, 2, 4

  • Useful in Diffie-Hellman …

Diffie hellman key exchange

Diffie-Hellman PKE

Diffie-Hellman Key Exchange

Pre-select large prime q and a primitive root of q called a.

Then ...

Example diffie hellman

Diffie-Hellman PKE

Example: Diffie-Hellman

  • q = 11, a = 7

  • A selects XA = 9calculates YA= 79 mod 11 = 8

  • B selects XB = 5calculates YB = 75 mod 11 = 10

  • A calculates KS = YBXa mod q = 10

  • B calculates KS = YAXb mod q = 10

    So, they have the same shared key!

So that s how you do symmetric key exchange with pke
So that’s how you do symmetric key exchange with PKE PKE

  • How do you exchange the public keys themselves?

  • Several ways:

    • Public Announcement

    • Public Directory

    • Public Key Authority

    • Public Key Certificates

Method 1 public announcement

Distribution of public keys PKE

Method 1:Public Announcement

Public announcement

Distribution of public keys PKE

Public Announcement

  • Simple sharing of keys

  • Useful for small communities

  • Major weakness:

    • Bad guy can distribute false public key for Alice

Method 2 public key directory

Distribution of public keys PKE

Method 2:Public Key Directory

Public key directory

Distribution of public keys PKE

Public Key Directory

  • Maintenance and distribution of the public directory is responsibility of some trusted authority

  • Authority maintains a directory with {name, public key} for each user

  • Each user registers public key with authority (in person or in some other secure way)

  • User may replace public key any time

  • Users can access directory electronically

    • Secure, authenticated channel to/from directory necessary

Public key directory example

Distribution of public keys PKE

Public Key Directory Example


Method 3 public key authority

Distribution of public keys PKE

Method 3:Public Key Authority

Public key authority problems

Distribution of public keys PKE

Public Key Authority: Problems

  • Seven messages are required!

    • The PK authority may become bottleneck

    • However, the first 5 can be spared if Alice and Bob cache (i.e. store locally) each other’s public keys

      • periodically refresh to ensure they are current

  • If the authority is compromised, then all the held public keys are compromised

Method 4 public key certificate

Distribution of public keys PKE

Method 4:Public-Key Certificate

  • Attempts to offload some of the responsibility of the central authority

  • A certificate identifies

    • a user

    • his or her public key

    • a time stamp

  • The certificate authority signs it and gives it back to user:

    CA = PRauth[IDA, PUA, T]

Public key certificate

Distribution of public keys PKE

Public-Key Certificate

X 509 certificates

Distribution of public keys PKE

X.509 Certificates

  • Certificates have a standard format, defined by X.509.

  • Will investigate this format next week

Where are we
Where are we? PKE

  • We’ve spent most of the term talking about confidentiality

  • But what about

    • integrity?

    • authentication?

    • non-repudiation?

Tools for these other purposes
Tools for these other purposes PKE

  • MACs

  • Hashes

  • Digital Signatures

Authentication integrity mechanisms
Authentication & Integrity Mechanisms PKE

  • Symmetric Key:

    • Frame check sequence

    • Message Authentication Code

  • Public-Key

    • Message Digest provided by a hash

Symmetric key authentication
Symmetric Key Authentication PKE

  • if symmetric encryption is used then:

    • the very fact that the key is shared provides some authentication

  • But how do you recognize what is a valid message?

    • Requires that the message have a verifiable structure

Provide such a structure by using
Provide such a structure by using PKE

  • A Frame Check Sequence

F is some function that you pass the message through.

Another option use a mac
Another option: use a MAC PKE

Authentication only

Authentication & Confidentiality

Properties of a mac
Properties of a MAC PKE

  • a MAC is a cryptographic checksum

    MAC = C(K,M)

    • condenses a variable-length message M

    • using a secret key K

    • to a fixed-sized authenticator

  • is a many-to-one function

    • potentially many messages have same MAC (i.e. they are summarized down to the same value)

    • but finding the message from the MAC needs to be very difficult

Macs are actually harder to break than encryption
MACs are actually harder to break than encryption PKE

  • The many-to-one nature makes it very difficult to recover the original message

  • Example:

    • Suppose 100-bit message, 10-bit MAC

    • There are then 2100 different messages, but only 210 different MACs to which they map

    • Thus, for any MAC, there are 2100/210 = 290 different messages that compile down to it

      • How in the world are you to know which message it actually was that led to that MAC?

An example of a mac data authentication algorithm
An Example of a MAC: PKEData Authentication Algorithm

MAC is too small to prevent birthday attack!

Mac pros and cons
MAC pros and cons PKE

  • Pro:

    • The code is much smaller than the message

    • The two-key approach gives us a way to authenticate separate from encrypting

  • Cons:

    • This is not a signature

      • The two parties share the key, so either could have sent it

    • Requires the sharing of secret keys

Examples of mac is not a signature
Examples of PKE“MAC is not a signature”

Suppose John sends an authenticated message to Mary

  • Mary may forge a different message and claim it came from John

  • John may deny sending the message, stating that Mary must have forged it

Addressing mac s cons
Addressing MAC’s Cons PKE

  • Logical choice:

    • investigate use of public-key encryption

Pke provides both authentication confidentiality
PKE provides both authentication & confidentiality PKE

  • Z = E(PUb, E(PRa,X))

  • X = D(PUa, D(PRb, Z))

Drawback PKE

  • Again, the math:

    • Z = E(PUb, E(PRa,X))

    • X = D(PUa, D(PRb, Z))

  • Pretty darn slow

    • 4 public-key operations in all

Alternative hash function
Alternative: Hash Function PKE

  • Used for a similar purpose to a MAC

  • Just like a MAC

    • takes in variable-size message

    • produces fixed-size output

  • Unlike a MAC

    • does not use a key

So what if it doesn t use a key
So what if it doesn’t use a key? PKE

  • Useful in situations where you can’t share a key conveniently

  • Good for digital signatures

Overview of a hash
Overview of a hash: PKE

  • condenses arbitrary message to fixed size

    h = H(M)

  • output of hash is called a digest

  • the hash function is public

  • the hash function is one way

  • hash sensitive to changes in message

Requirements for hash functions
Requirements for Hash Functions PKE

  • can be applied to any sized message M

  • produces fixed-length output h

  • is easy to compute h=H(M) for any message M

  • given h is infeasible to find original message (one-way property)

  • given x is infeasible to find y such that H(y)=H(x) (weak collision resistance)

  • is infeasible to find any x,y such that H(y)=H(x) (strong collision resistance)

Hash as digital signature
Hash as Digital Signature PKE

The signature

Hash as digital signature encryption
Hash as PKEDigital Signature + Encryption

Elements common to all hash functions
Elements common to all PKEhash functions

  • input (message, file, etc.) viewed as a sequence of n-bit blocks

  • blocks are processed one at a time

  • Compression function reduces the blocks

  • end result is an n-bit hash function

Illustration of these elements
Illustration of these elements PKE

f is the compression function (where the “magic” happens)

Simple hash proposals
Simple Hash Proposals PKE

  • xor all m blocks together

    • Ci = bi1 xor bi2 xor ... xor bim

  • another option

    • initially set n-bit hash value to 0.

    • process each successive n-bit block as follows:

      • rotate the current hash to the left by one bit

      • xor the data block with the hash function

  • both of these are weak

    • because it is possible to determine how to craft a new message that gives the same hash code

Could also use a block cipher as a hash
Could also use a block cipher PKEas a hash

  • can use block ciphers as hash functions

    • Divide message into M fixed-size blocks

      • pad final block with 0’s if necessary

    • Set initial hash H0 to 0

    • compute: Hi = E [Mi, Hi-1] repeatedly

    • and use final block as the hash value

  • With DES, though, hash will be too small

    • because of birthday attack

Summary PKE

  • How public key encryption works

  • Mathematics behind PKE

  • Exchanging public keys

  • Authentication using MACs and Hashes
