  1. Public key cryptography RSA Algorithm Diffie-Hellman key exchange

  2. Public-Key Cryptography • traditional private/secret/single key cryptography uses one key • Key is shared by both sender and receiver • if the key is disclosed communications are compromised • also known as symmetric, both parties are equal • hence does not protect sender from receiver forging a message & claiming is sent by sender

  3. Disadvantages of Classical Cryptography • Requires secure transmission of key value • Requires a separate key for each group of people that wishes to exchange encrypted messages (readable by any group member) • For example, to have a separate key for each pair of people, 100 people would need 4950 different keys. • Cumbersome Handshaking involved in KDC

  4. Public-Key Cryptography • probably most significant advance in the 3000 year history of cryptography • uses two keys – a public key and a private key • asymmetric since parties are not equal • uses clever application of number theory concepts to function • complements rather than replaces private key cryptography

  5. Why Public-Key Cryptography? • developed to address two key issues: • key distribution – how to have secure communications in general without having to trust a KDC with your key • digital signatures – how to verify a message comes intact from the claimed sender • public invention due to Whitfield Diffie & Martin Hellman at Stanford U. in 1976

  6. Key Distribution requires that • Two communicants already share a key,which somehow has been distributed to them • Use of a key distribution center • Electronic messages and documents would need the equivalent of signatures used in paper documents.

  7. Public-Key Cryptography • public-key/two-key/asymmetric cryptography involves the use of two keys: • a public-key, which may be known by anybody, and can be used to encrypt messages, and verify signatures • a private-key, known only to the recipient, used to decrypt messages, and sign (create) signatures • is asymmetric because • those who encrypt messages or verify signatures cannot decrypt messages or create signatures

  8. Public-Key CryptographyEncryption

  9. Alice generates a key value (usually a number or pair of related numbers) which she makes public. • Alice uses her public key (and some additional information) to determine a second key (her private key). • Alice keeps her private key (and the additional information she used to construct it) secret.

  10. Bob (or Carol, or anyone else) can use Alice’s public key to encrypt a message for Alice. • Alice can use her private key to decrypt this message. • No-one without access to Alice’s private key (or the information used to construct it) can easily decrypt the message

  11. An Example: Internet Commerce • Bob wants to use his credit card to buy some books from Alice over the Internet. • Alice sends her public key to Bob. • Bob uses this key to encrypt his credit-card number and sends the encrypted number to Alice. • Alice uses her private key to decrypt this message (and get Bob’s credit-card number).

  12. Authentication

  13. Public-Key Cryptosystems

  14. Public-Key Applications • can classify uses into 3 categories: • encryption/decryption (provide secrecy) • digital signatures (provide authentication) • key exchange (of session keys) • some algorithms are suitable for all uses, others are specific to one

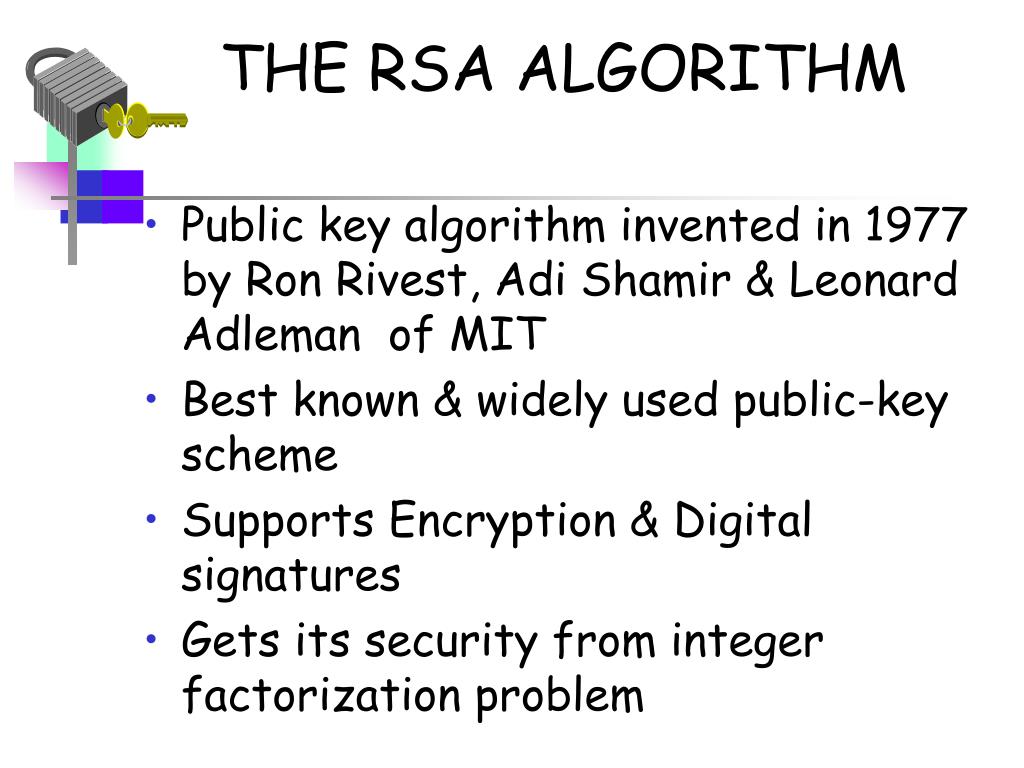

  15. THE RSA ALGORITHM • Public key algorithm invented in 1977 by Ron Rivest, Adi Shamir & Leonard Adleman of MIT • Best known & widely used public-key scheme • Supports Encryption & Digital signatures • Gets its security from integer factorization problem

  16. Key Generation • Generate two large random primes, p and q, of approximately equal size such that their product n = pq is of the required bit length, e.g. 1024 bits. • Compute n = pq and phi φ(n) = (p-1)(q-1). • Choose an integer e, 1 < e < φ(n), such that gcd(e, φ) = 1. • Compute the secret exponent d, 1 < d < φ(n), such that ed≡ 1 mod φ(n). • The public key is (n, e) and the private key is (n, d). Keep all the values d, p, q and φ(n) secret. • n is known as the modulus. • e is known as the public exponent or encryption exponent or just the exponent. • d is known as the secret exponent or decryption exponent.

  17. Key Generation -detail • Use a random process to select two large prime numbers p and q. Compute the product n = p*q. This number is called the modulus, and is made publicly available. • RSA currently recommends a modulus that’s at least 768 bits long. • Also compute the Euler totient φ(n) = φ(pq)= (p-1)*(q-1). Keep this number (as well as p and q) secret.

  18. GCD & Relatively prime • Two numbers a and b which have no common factors other than one are said to be coprime or relatively prime. For example, 4 and 9 are coprime but 15 and 25 are not. • The greatest common divisor of two integers a and b is the largest integer that divides both numbers and is denoted by ‘gcd(a, b)’. For example, gcd(25, 15) = 5 and gcd(4, 9) = 1. • a and b are coprime if and only if gcd(a, b) = 1.

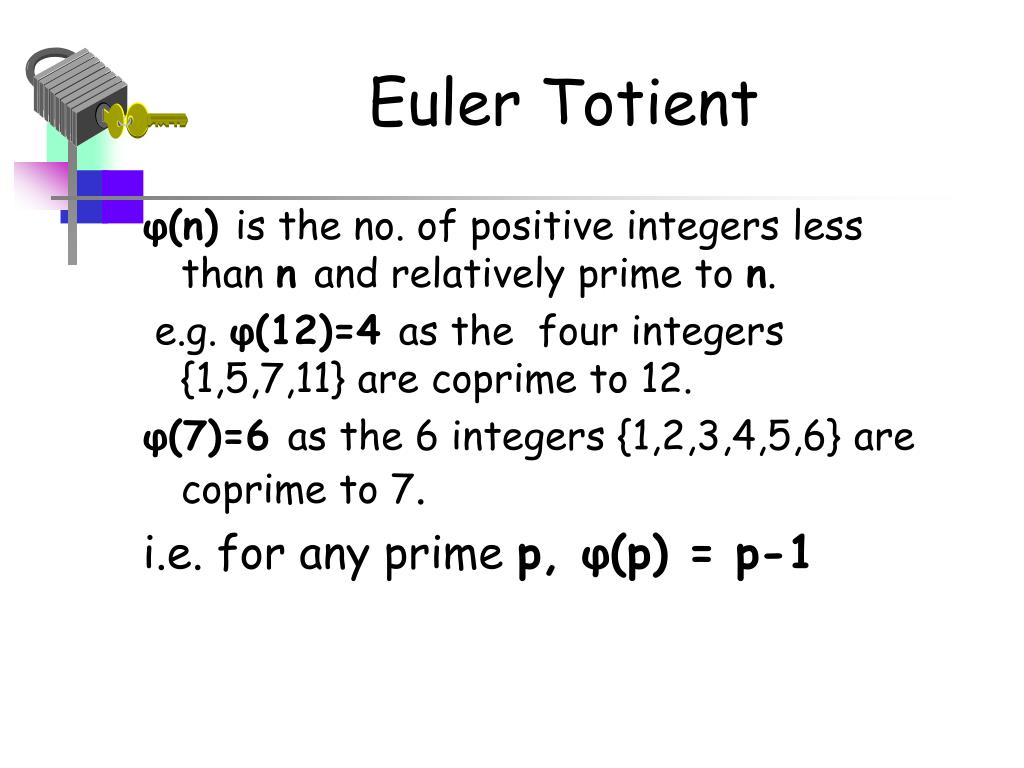

  19. Euler Totient φ(n) is the no. of positive integers less than n and relatively prime to n. e.g. φ(12)=4 as the four integers {1,5,7,11} are coprime to 12. φ(7)=6 as the 6 integers {1,2,3,4,5,6} are coprime to 7. i.e. for any prime p, φ(p) = p-1

  20. Key Generation -detail • Randomly choose a public key e that has no factors in common with φ(n)= (p-1)*(q-1). so that gcd(e, φ(n)) = 1, 1 < e < φ(n);[Euclid’s algorithm: gcd(a,b)=gcd(b,r) where r=a mod b e.g. gcd(18,12)=gcd(12,6)=gcd(6,0)=6 i.e. a = qb + r] • Solve following equation to find decryption key d ,e.d ≡ 1 mod φ(n)and d < n; where d is the multiplicative inverse of e in mod φ(n);d ≡ e-1mod φ(n)

  21. ‘mod’ as a congruence relation: The notation ‘a ≡ b (mod n)’ means a and b have the same remainder when divided by n, or, equivalently, • (a) n|a − b, or • (b) a − b = nk for some integer k . • We say that a is congruent to b modulo n, where n is the modulus of the congruence. The two ways of using ‘mod’ are related: • a ≡ b (mod n) <==> a mod n = b mod n.

  22. Compute a private key d so that e*d leaves a remainder of 1 when divided by φ(n) . Find a value for d such that φ(n) divides (ed-1).Note that d is easy to compute only if one knows the value of φ(n). This is essentially the same as knowing the values of p and q.

  23. Using RSA • publish their public encryption key: KU={e,n} • keep secret private decryption key: KR={d,p,q} • to encrypt a message M the sender: • obtains public key of recipient KU={e,n} • computes: C=Me mod n, where 0≤M<n • to decrypt the ciphertext C the owner: • uses their private key KR={d,p,q} • computes: M=Cd mod n

  24. RSA Example • Select primes: p =17 &q =11 • Compute n = pq =17×11=187 • Compute ø(n)=(p–1)(q-1)=16×10=160 • Select e : gcd(e,160)=1; choose e =7 • Determine d: de=1 mod 160 and d < 160 Value is d=23 since 23×7=161= 1×160+1 • Publish public key KU={7,187} • Keep secret private key KR={23,17,11}

  25. Use a property of modular arithmetic: (a x b) mod n = [ (a mod n) x (b mod n) ] mod n • modulo of a product = modulo of the product of its multipliers’ modulos • Strategy - reduce xy into xaxbxc where y=abc using powers of 2 for a, b, c . Then apply above property

  26. given message M = 88 (nb. 88<187) • Encryption: • C = 887 mod 187 = [(884 mod 187)( 882 mod 187)( 881 mod 187)] mod 187 881 mod 187 =88 882 mod 187 = 7744 mod 187 = 77 884 mod 187 = 59,969,536 mod 187=132 = (88 x 77 x 132) mod 187 = 894,432 mod 187 = 11

  27. Decryption: • M = 1123 mod(187) = [(111 mod 187)( 112 mod 187)( 114 mod 187)( 118 mod 187)( 118 mod 187)] mod (187) = (11 x 121 x 55 x 33 x 33) mod(187) = 88

  28. Q. p=11,q=3 M=7

  29. Comparison

  30. Diffie-Hellman Key Exchange • Whittfield Diffie and Martin Hellman are called the inventors of Public Key Cryptography. • Diffie-Hellman Key Exchange is the first Public Key Algorithm published in 1976.

  31. Discrete Logarithms • What is a logarithm? • log10100 = 2 because 102 = 100 • In general if logmb = a then ma = b • Where m is called the base of the logarithm • A discrete logarithm can be defined for integers only • In fact we can define discrete logarithmsmod p also where p is any prime number

  32. Primitive Roots • If x n = a then a is called the n-th root of x • For any prime number p, if we have a number a such that powers of a mod p generate all the numbers between 1 to p-1 then a is called a Primitive Root of p. • Then for any integer b and a primitive root a of prime number p we can find a unique exponent i such that b = a i mod p • The exponent i is referred to as the discrete logarithm or index, of b for the base a.

  33. 2 as primitive root

  34. Diffie-Hellman Algorithm • Five Parts • Global Public Elements • User A Key Generation • User B Key Generation • Generation of Secret Key by User A • Generation of Secret Key by User B

  35. Global Public Elements • p Prime number • g g < p and g is a primitive root of p • The global public elements are also sometimes called the domain parameters

  36. User A Key Generation • Select private XA XA< p • Calculate public YA YA = g XA mod p

  37. User B Key Generation • Select private XB XB< p • Calculate public YB YB = g XB mod p

  38. Generation of Secret Key by User A • K = (YB)XA mod p

  39. Generation of Secret Key by User B • K = (YA)XB mod p

  40. Diffie-Hellman Key Exchange • Alice and Bob agree upon and make public two • numbers g and p, where p is a prime and g is a primitive root mod p. Note: Anyone has access to these numbers. • The Exchange: 1. Alice chooses a random number a (secret)and computes u =g a (mod p), and sends u to Bob. 2. Bob chooses a random number b (secret)and computes v= g b (mod p), and sends v to Alice. 3. Bob computes the key kbusing secret b= u b mod p 4. Alice computes the key kausing secret a=v a mod p Now, both Alice and Bob have the same key, namely ka = kb = gab (mod p).

  41. kb = u b mod p =(g a mod p)b mod p =(g a)b mod p by modular arithmetic = g ab mod p =(g b)a mod p =(g b mod p)a mod p = v a mod p = ka

  42. Example • Suppose Alice and Bob agree to • use p = 47 and g = 5. • Alice chooses a number between 0 and 46, • say a = 18. • Bob chooses a number between 0 and 46, • say b = 22.

  43. Example • Alice publishes ga (mod p), i.e. • u = 518 (mod 47) = 2. • Bob publishes gb (mod p), i.e. • v = 522 (mod 47) = 28. • If Alice wants to know the secret key k, she takes Bob’s public number,v =28 and raises it to her private number, a = 18 (taking the result mod 47). • This gives her: 2818 (mod 47) = 24.

  44. Example • If Bob wants to know the secret key, he takes Alice’s public number, u = 2, and raises it to his private number, b = 22 (taking the result mod 47). • This gives him: 222 (mod 47) = 24. • Thus, Alice and Bob have agreed upon a secret key, k = 24.

  45. Security of DH exchange • Opponent Eve has the following ingredients p,g,u,v to work with • If Eve wants to compute k, then she would need either a or b. • Otherwise, Eve would need to solve a Discrete Logarithm Problem. • There is no known algorithm to accomplish this in a reasonable amount of time. • E.g. for attacking user B’s secret key,the opponent must compute b=indg,p(v)

  46. Man in the middle attack • Susceptibility: If Eve can intercept u and v, it is possible for her to substitute her own u’ and v’. • If she can intercept all communication • between Alice and Bob, then she can substitute her own messages. • In 1992, the exchange was modified to prevent the man-in-the-middle attack described above.

  47. Example for m-i-t-m-a • Alice wants to talk to Bob, sends her public key to Bob. • But Eve intercepts it, and replaces Alice’s public key with hers. She sends this to Bob. • Bob thinks Alice wants to talk to him. He sends his public key to her. • But Eve intercepts and replaces! • Then Eve sets up shared keys with both!
