Presentation Transcript

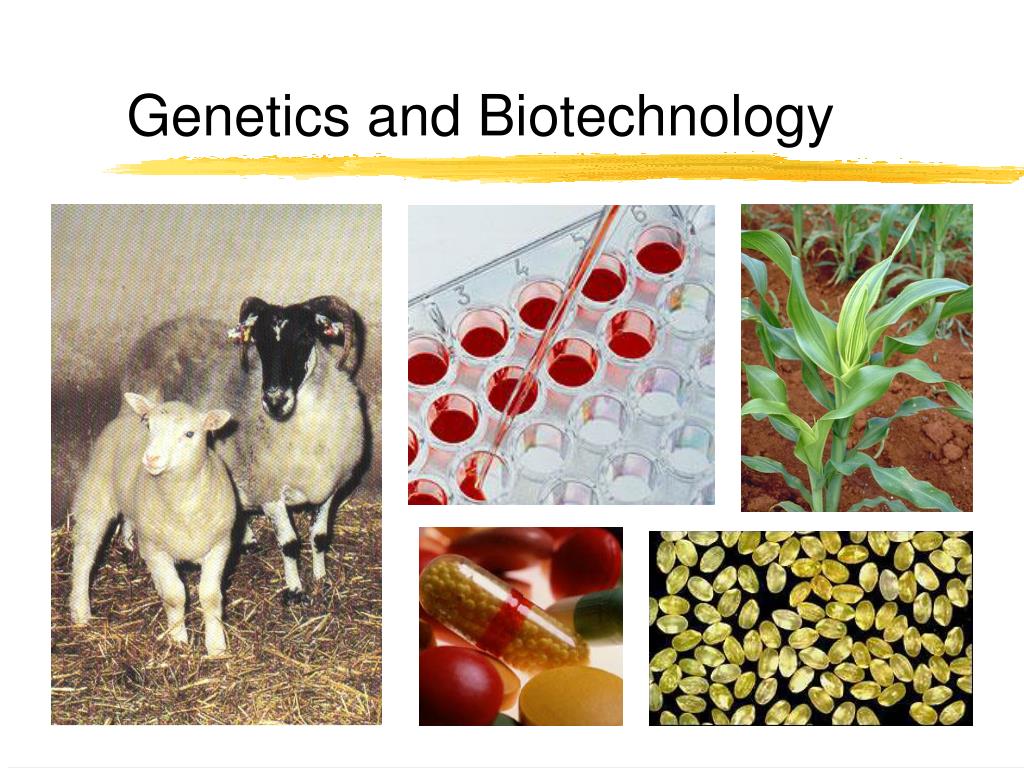

Genetics and biotechnology l.jpg

Genetics and Biotechnology

Biotechnology l.jpg


  • A group of many technologies that use living cells or their processes to make products or solve problems

  • Used in basic and applied research

  • Used in developing products for the marketplace

Fields contributing to biotechnology l.jpg


Plant Science

Food Science






Computer Science

Philosophy (Ethics)

Fields Contributing to Biotechnology

Applications of biotechnology l.jpg



Whole organisms

Drug production


Disease prevention

HIV test

Blood-type test

Pregnancy test

Applications of Biotechnology

Applications of biotechnology5 l.jpg

Applications of Biotechnology

  • Genetic engineering

  • Gene therapy

  • Gene discovery

    • Human disease genes

      • Alzheimer’s

      • Breast cancer

      • Huntington’s Disease

    • Plant genes

      • Carotenoid synthesis

      • Oil production

Genetics primer l.jpg

Genetics Primer

  • Gene: basic unit of heredity

  • Protein: product of a gene

  • Genotype: genetic makeup of an individual (sum of all the genes)

  • Phenotype: observed traits of an individual, due to expression of its genes and interaction with the environment

Genes are made of dna l.jpg

Genes are made of DNA


  • DNA is a ladder-like double helix.

  • Rungs of the ladder are made of pairs of four bases: A, C, G, T


Sugar-phosphate backbone


Genes code for proteins l.jpg

Genes code for proteins

  • The sequence of bases in the DNA of a gene contains information to make a protein

    • The DNA code is triplet

    • Each triplet codes for an amino acid

      • Example: the sequence TTG is the code for the amino acid tryptophan

    • Proteins are built from amino acids

  • Transferring the information from DNA to protein is called gene expression


gene (DNA)


Gene expression is regulated l.jpg

Gene expression is regulated

  • The same set of genes is contained in (nearly) every cell of an organism, but...

  • Not all genes are expressed in every cell

    • Genes for helping plants absorb minerals from the soil are expressed in the root

    • Genes for plant oil production are expressed primarily in the embryo

    • Genes for milk production in mammals are expressed in the mammary glands

Proteins have many functions l.jpg

Proteins have many functions

  • Transport: hemoglobin carries oxygen in blood

  • Structural: collagen holds cells together

  • Receptor: receives signals sent to cell

  • Regulatory: control gene expression

  • Enzymes: catalyze chemical reactions in the cell

Proteins govern traits l.jpg

Proteins govern traits

An organism’s appearance and qualities are the products of gene expression






Variation in traits is due to different alleles l.jpg

Variation in traits is due to different alleles

Different forms of a gene (called alleles)

can lead to different phenotypes (expression of traits)

Gene A

Trait (Fruit Color)

Allele 1


Allele 2


Transmitting genes to offspring l.jpg

Transmitting genes to offspring

  • Traditional mating or breeding

    • Female contributes half her genes through egg

    • Male contributes half his genes through sperm

    • Offspring have half their genes from mom and half from dad

  • Genetic engineering

    • Donor contributes one or a few genes

    • Offspring have all their own genes plus one or a few genes

Breeding vs engineering l.jpg


“Breeding” vs. “Engineering”



Commercial variety

New variety

(many genes transferred)


Desired gene

Desired gene


Commercial variety

New variety

Desired gene

(one gene transferred)



Desired gene

Terms l.jpg


  • Transgenic organism

    • One in which a gene has been introduced or modified by genetic engineering

  • Genetically engineered organism (GEO)

    • Same as transgenic organism

  • Genetically modified organism (GMO)

    • Erroneously assumed to be same as transgenic organism

    • Actually, organisms can be modified genetically by “breeding” or by “engineering”

Applications of biotechnology16 l.jpg

Applications of Biotechnology

  • Agricultural food production

    • Improved production

      • Disease resistance

      • Herbicide tolerance

      • Insect resistance

    • Improved food quality

      • Modified oils

      • Delayed fruit ripening

      • Nutritional enhancement

Insect resistance bt corn l.jpg

Insect resistance: Bt corn

  • Plants contain a gene from the soil bacterium, Bacillus thuringensis

  • Bacillus thuringensis strains contain genes for a series of proteins called Bt toxins

  • Bt toxins:

    • are toxic to certain insects, including European corn borer

    • break down rapidly in the soil

    • are not harmful to mammals or birds

Concerns l.jpg


  • Environmental concerns

    • Effect of Bt corn on monarchs

    • Invasion of natural plant populations by genetically engineered crops

  • Food safety concerns

    • StarLink in taco shells

  • Farmer’s point of view

Impact of bt corn on monarch butterflies l.jpg

Impact of Bt corn on monarch butterflies

  • In 1999, an article* was published stating that pollen from Bt corn plants could kill monarch butterfly larvae

  • Assertion: planting of Bt corn poses a risk to monarch butterflies

  • Concerns were raised and more research was done

    * Losey et al., 1999. Transgenic pollen harms monarch larvae. Nature 399:214.

Questions asked l.jpg

Are the data reproducible?

Does the lab represent the field?

What controls should be included?

What does monarch reproductive behavior say about the lab experiment?

Is all Bt corn the same?

How does Bt corn compare to impact of current insect control methods?

What is the greatest documented threat to monarch survival?

Is the monarch endangered?

Questions asked

Findings l.jpg


  • Some varieties of Bt corn produce pollen with toxic levels of Bt; these are being phased out of commercial production in favor of varieties do not produce Bt in the pollen

  • In most parts of the country where corn is grown, the time of monarch larvae feeding does not coincide with the time that corn pollen is shedding

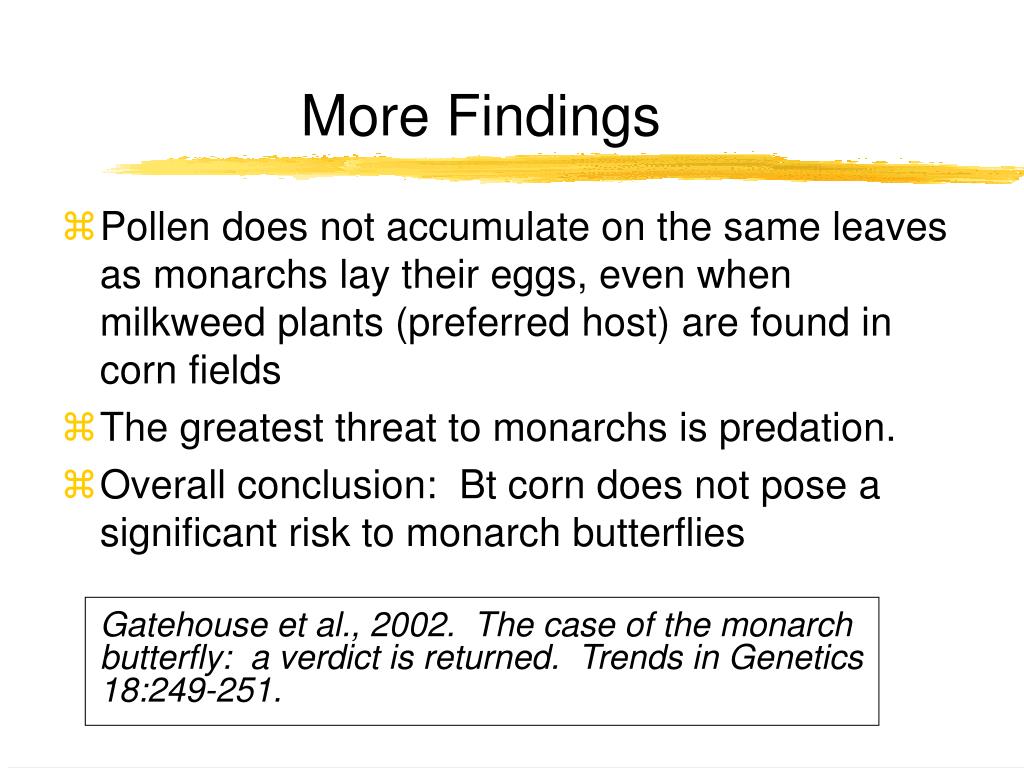

More findings l.jpg

More Findings

  • Pollen does not accumulate on the same leaves as monarchs lay their eggs, even when milkweed plants (preferred host) are found in corn fields

  • The greatest threat to monarchs is predation.

  • Overall conclusion: Bt corn does not pose a significant risk to monarch butterflies

    Gatehouse et al., 2002. The case of the monarch butterfly: a verdict is returned. Trends in Genetics 18:249-251.

The taco shell controversy l.jpg

The taco shell controversy

  • A variety of Bt corn called StarLink was detected in taco shells and other foods

  • StarLink produces a variety of Bt toxin that had not been tested for allergenicity in humans

  • Therefore, StarLink was approved by FDA only for animal feed and not for human consumption; accessed 17 June 04

Risks to natural plant populations l.jpg

Risks to natural plant populations

  • Survival / reproduction of genetically engineered crops outside cultivation

  • Pollen flow of genetically engineered crop to wild relatives, hybrid formation, survival and reproduction

  • Spread and persistence represent possible economic or environmental harm

Wolfenberger and Phifer, 2000. The ecological risks and benefits of genetically engineered plants. Science 290:2088.

Farmer s view l.jpg

Farmer’s view

  • 45% of farmers had higher yields in fields of Bt corn than conventional corn in 1998

  • Nearly 26% of farmers using Bt corn reported a decrease in pesticide use

  • Even considering additional cost of planting Bt corn (~$15/acre), Bt corn should pay off in 7 out of 10 years

  • Bt corn can also reduce occurrence of Fusarium ear rot (spread by borers)

Applications of biotechnology26 l.jpg

Applications of Biotechnology

  • Agricultural food production

    • Plants

    • Animals

  • Medical treatment

    • Biopharmaceuticals

    • Gene therapy

  • Environmental detoxification

    • Bioremediation

    • Phytoremediation

Animal production l.jpg

Animal production

  • Improving production through cloning

  • Strategy:

Good producer


(identical copies)


Slide28 l.jpg

Cloned Animals

Dolly and Mom

Calf Clones

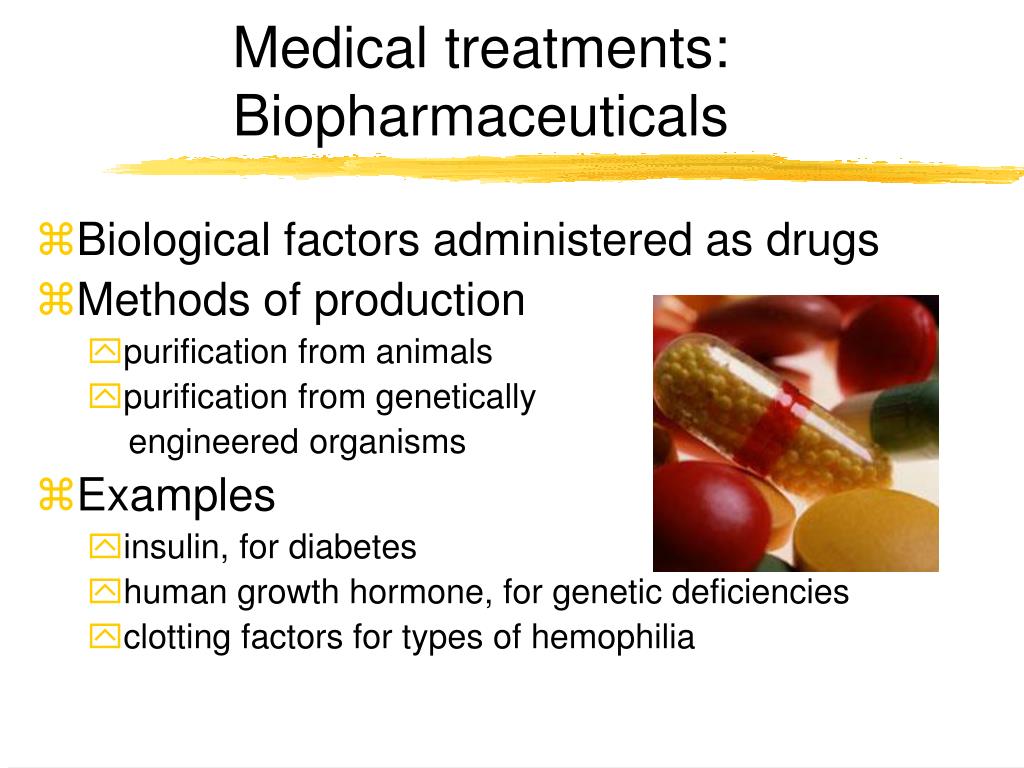

Medical treatments biopharmaceuticals l.jpg

Medical treatments:Biopharmaceuticals

  • Biological factors administered as drugs

  • Methods of production

    • purification from animals

    • purification from genetically

      engineered organisms

  • Examples

    • insulin, for diabetes

    • human growth hormone, for genetic deficiencies

    • clotting factors for types of hemophilia

Using animals for pharmaceuticals molecular pharming l.jpg

Using animals for pharmaceuticals:Molecular “pharming”

Proteins from milk of transgenic animals


Clotting factor IX

Insulin-like growth factor

Iron supplement in

infant formula

Treatment of hemophilia

Treatment of diabetes

Medical treatments gene therapy l.jpg

Medical treatments:Gene therapy

David Vetter, the “Bubble Boy”

Severe Combined Immune Deficiency

Applications of biotechnology32 l.jpg

Applications of Biotechnology

  • Agricultural food production

    • Plants

    • Animals

  • Medical treatment

    • Biopharmaceuticals

    • Gene therapy

  • Environmental detoxification

    • Bioremediation by bacteria

    • Phytoremediation by plants

Environmental detoxification phytoremediation l.jpg

Environmental detoxification:Phytoremediation

  • Types of contaminants detoxified

    • heavy metals

    • radionuclides

    • organic compounds

    • petroleum products

    • explosives

  • Mechanisms plants use to detoxify

    • Accumulating heavy metals

    • Breaking down organic compounds

    • Volatilizing organic compounds

Phytodegradation l.jpg

Enzymes in plant roots break down (degrade) organic contaminants.

The fragments are incorporated into new plant materials.



Phytoaccumulation l.jpg


  • Nickel is removed from soil by moving into plant roots, stems, and leaves.

  • Plant is then harvested and disposed of, and site is replanted until nickel levels are acceptably low.

Genetics and biotechnology36 l.jpg

Genetics and Biotechnology
