Dna genetics in biotechnology

DNA & Genetics in Biotechnology


What is a dna

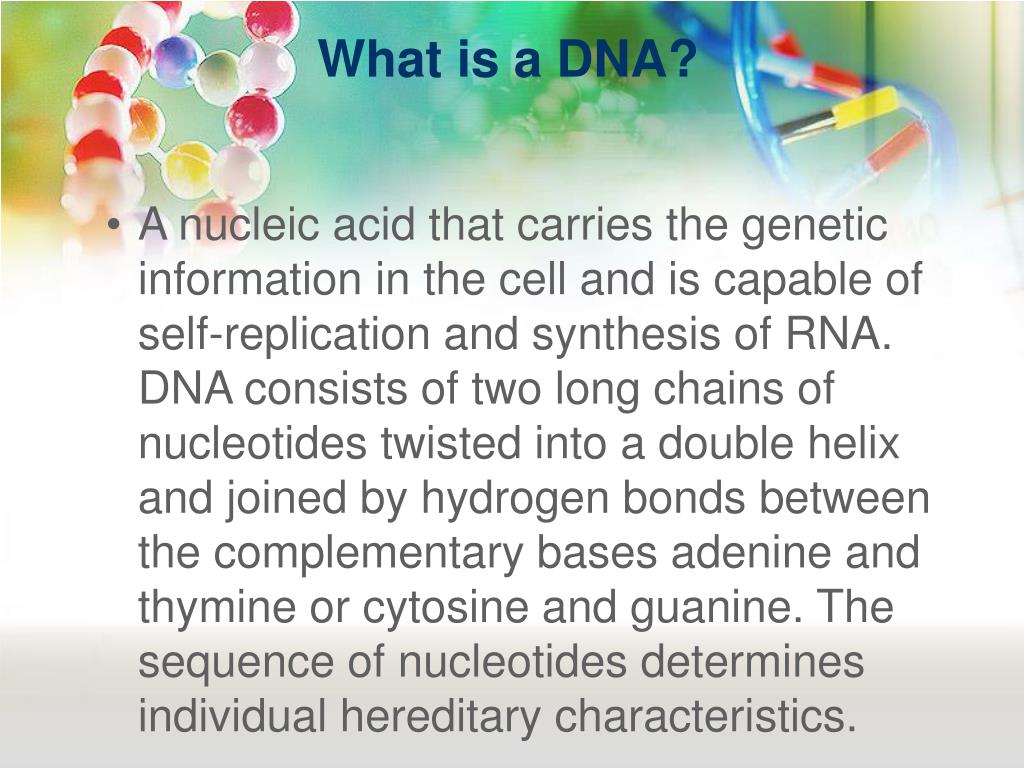

What is a DNA?

  • A nucleic acid that carries the genetic information in the cell and is capable of self-replication and synthesis of RNA. DNA consists of two long chains of nucleotides twisted into a double helix and joined by hydrogen bonds between the complementary bases adenine and thymine or cytosine and guanine. The sequence of nucleotides determines individual hereditary characteristics.


What is a nucleotide

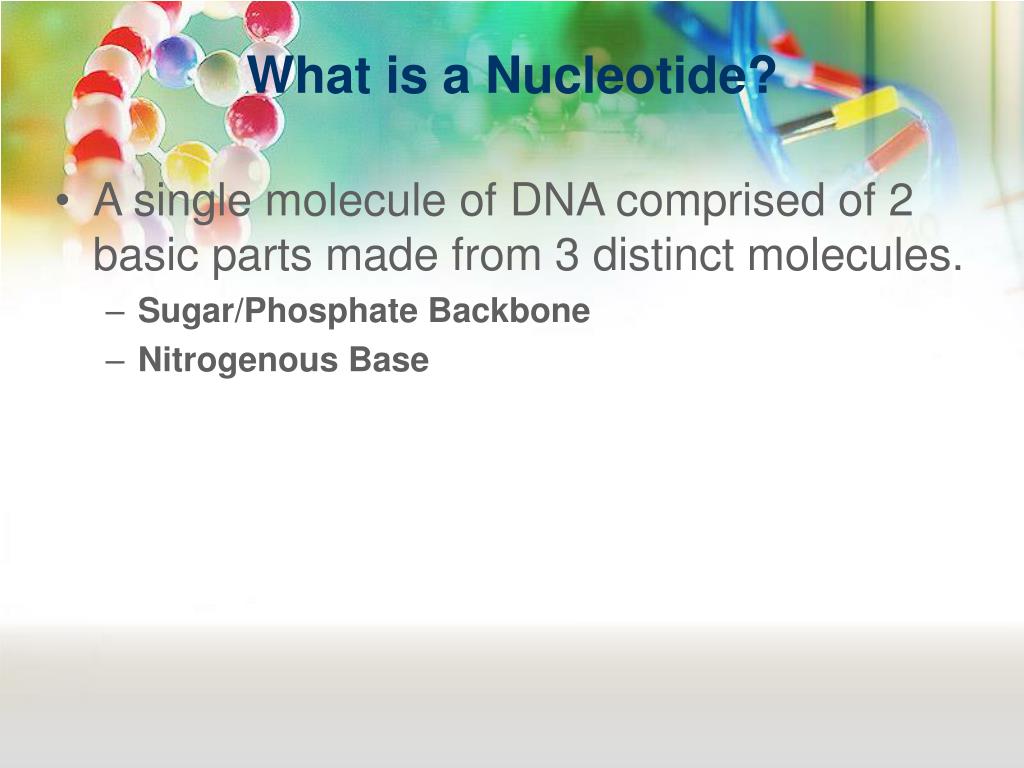

What is a Nucleotide?

  • A single molecule of DNA comprised of 2 basic parts made from 3 distinct molecules.

    • Sugar/Phosphate Backbone

    • Nitrogenous Base


Sugar phosphate backbone

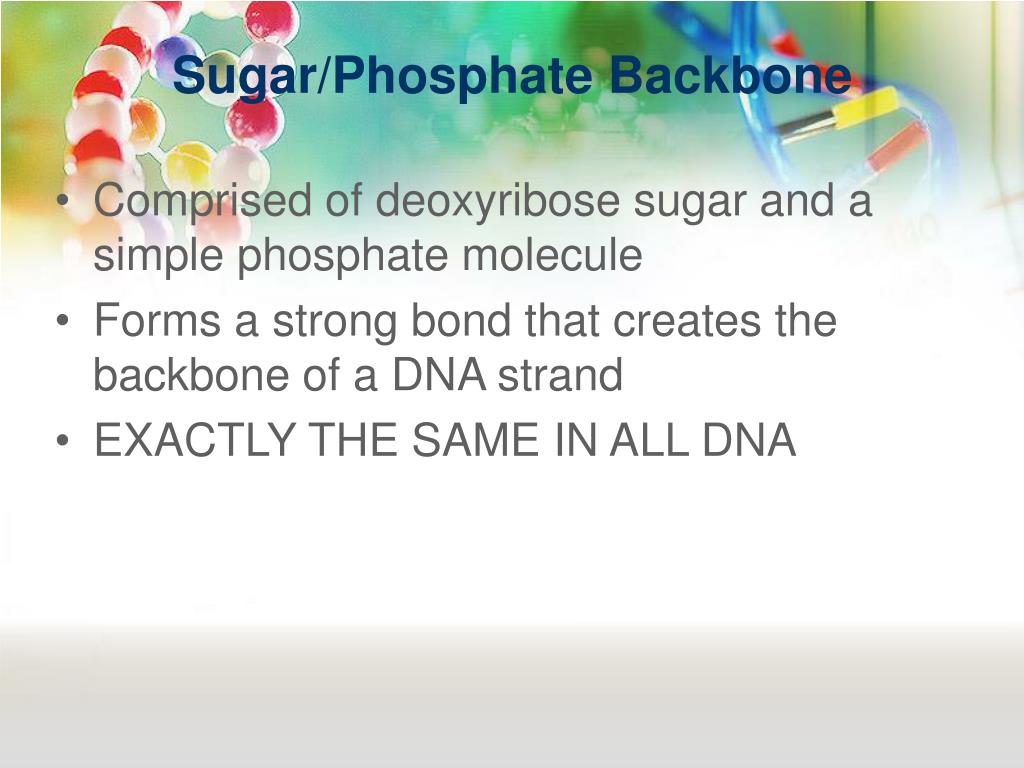

Sugar/Phosphate Backbone

  • Comprised of deoxyribose sugar and a simple phosphate molecule

  • Forms a strong bond that creates the backbone of a DNA strand

  • EXACTLY THE SAME IN ALL DNA


Nitrogenous base

Nitrogenous Base

  • Bond with complimentary bases in other nucleotides to form the rungs of the DNA ladder (zip DNA together)

  • Only 4 types in all DNA-Adenine, Cytosine, Guanine, and Thymine

  • Adenine and Thymine bond only with each other

  • Cytosine and Guanine bond only with each other


Dna form

DNA form

  • DNA nucleotides combine in cells to form long strands in the shape of a double helix (looks like a twisted ladder)


Dna form1

DNA Form

  • Nucleotides bond at two spots

    • Sugar/Phosphate molecules form the backbone (outside rails)

    • Nitrogenous bases bond in the middle by hydrogen bonds (steps or rungs)

    • Hydrogen bonds between nitrogenous bases are MOST EASILY BROKEN

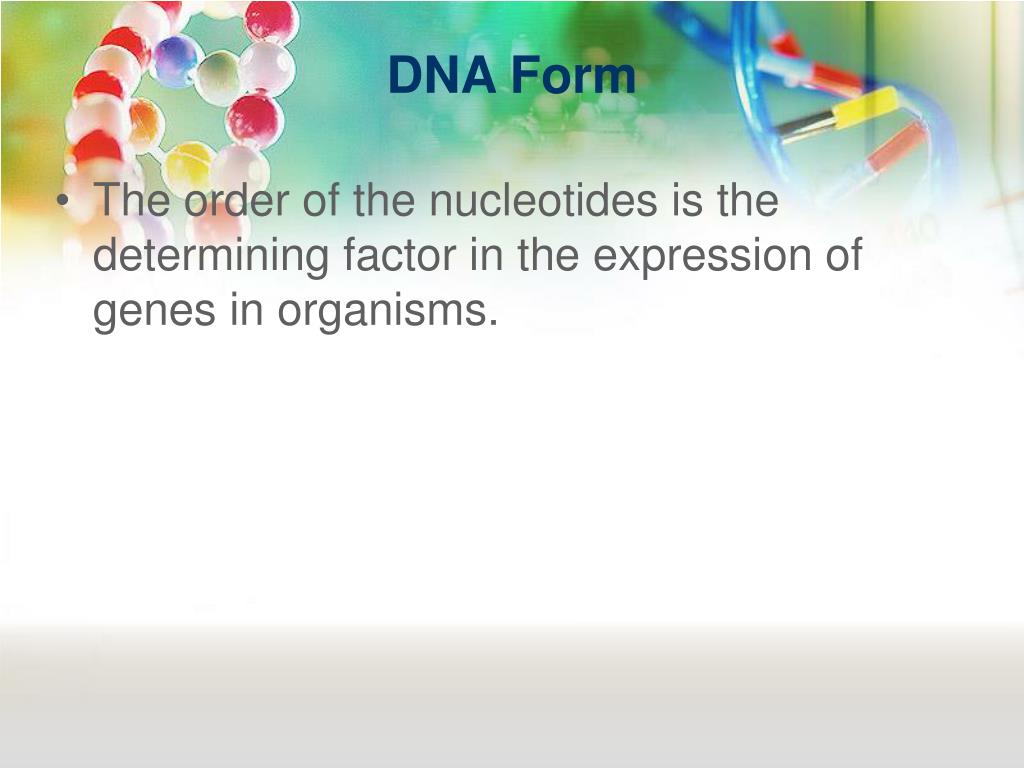

Dna form2

DNA Form

  • The order of the nucleotides is the determining factor in the expression of genes in organisms.


Characteristics of dna

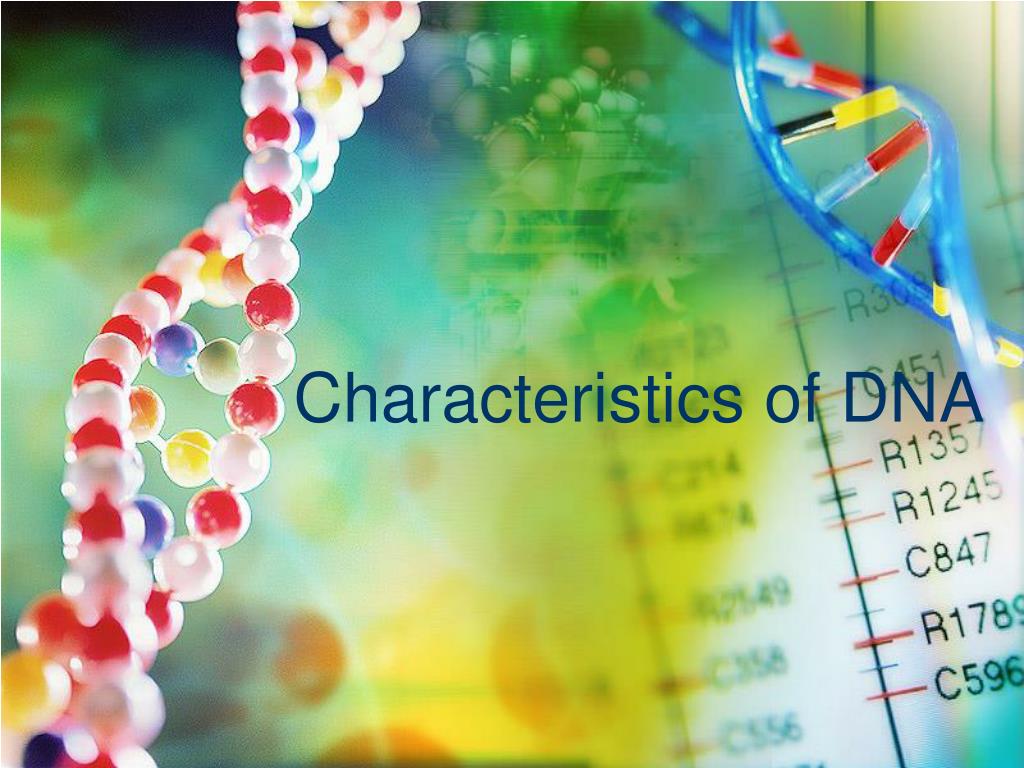

Characteristics of DNA


Dna genetics in biotechnology

DNA

  • Accounts for all genetic variation between different individuals and organisms by the use of different:

    • Sequences of nitrogenous bases

    • Lengths of DNA segments

    • Numbers of Chromosomes and amounts of DNA in an organism

  • The amount of DNA in an organism DOES NOT relate to the size or complexity of an organism.


Dna replication

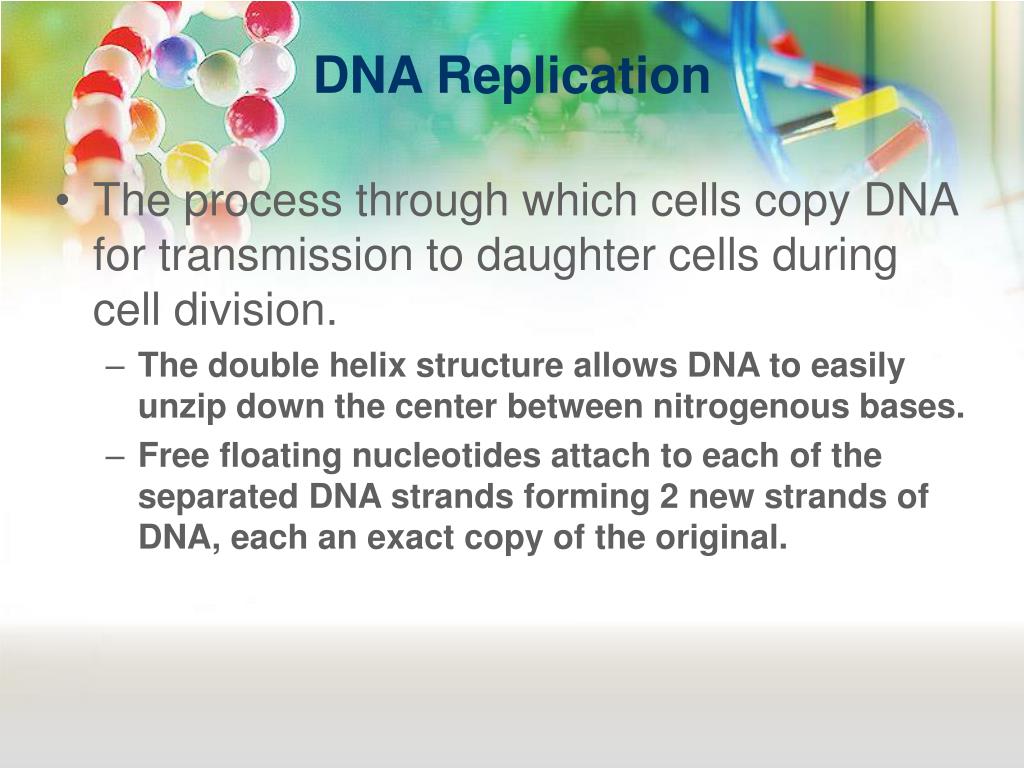

DNA Replication

  • The process through which cells copy DNA for transmission to daughter cells during cell division.

    • The double helix structure allows DNA to easily unzip down the center between nitrogenous bases.

    • Free floating nucleotides attach to each of the separated DNA strands forming 2 new strands of DNA, each an exact copy of the original.


Mutations

Mutations

  • A mutation is an unexpected change in a DNA sequence, usually occurring during the replication/cell division.

  • Mutations are common in most organisms (especially simple organisms) though only a small percentage produce noticeable changes in organisms.


Genetic hierarchy

Genetic Hierarchy


Genetic hierarchy1

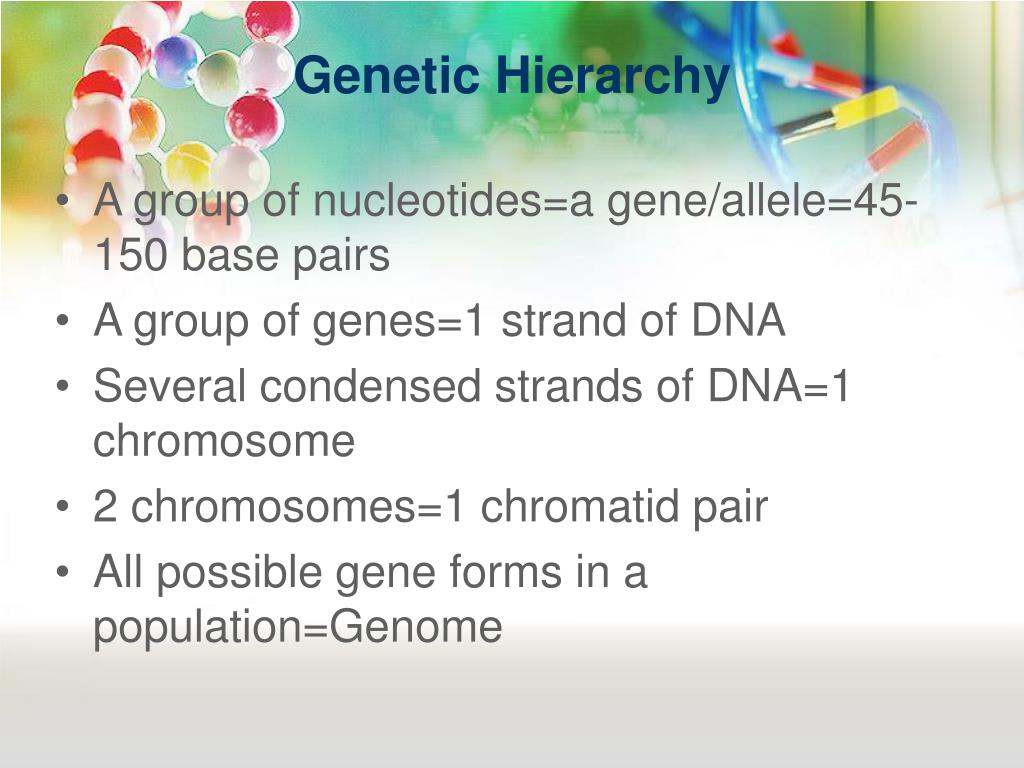

Genetic Hierarchy

  • A group of nucleotides=a gene/allele=45-150 base pairs

  • A group of genes=1 strand of DNA

  • Several condensed strands of DNA=1 chromosome

  • 2 chromosomes=1 chromatid pair

  • All possible gene forms in a population=Genome


Gene mapping

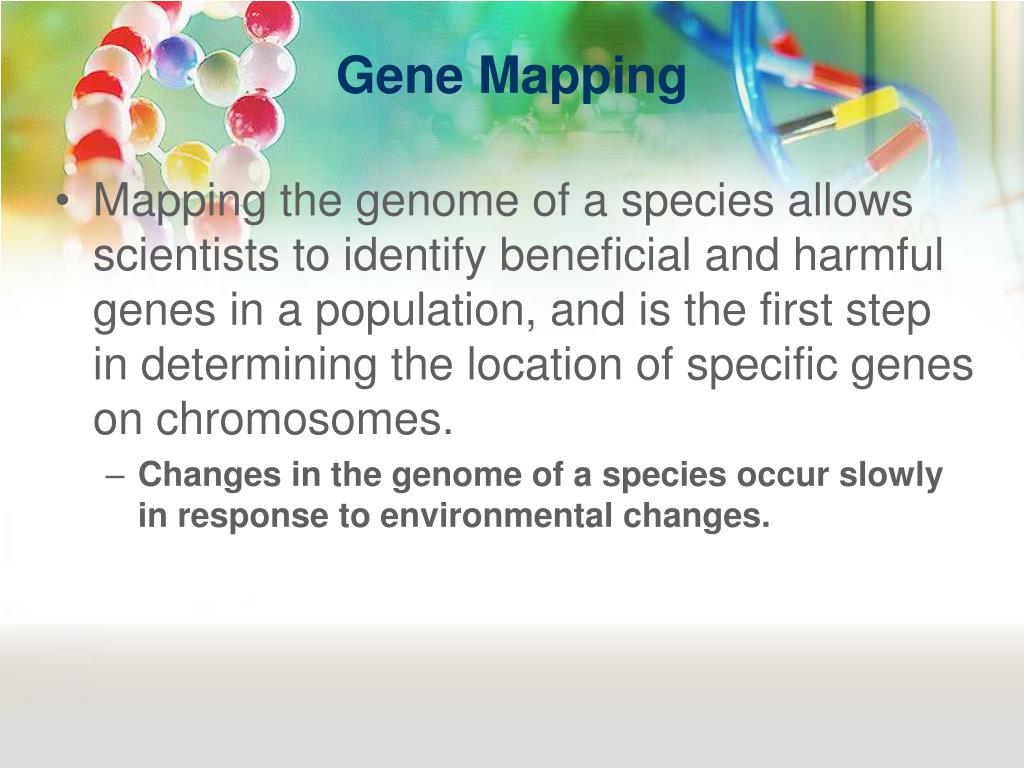

Gene Mapping

  • Mapping the genome of a species allows scientists to identify beneficial and harmful genes in a population, and is the first step in determining the location of specific genes on chromosomes.

    • Changes in the genome of a species occur slowly in response to environmental changes.


Transferring of dna

Transferring of DNA

  • DNA is passed to offspring during sexual reproduction through single chromosomes.


Human genetics

Human Genetics

  • Almost all humans have 46 chromosomes.

    • Individuals with Down Syndrome have one extra chromosome.

  • Humans generally differ from each other by approximately 3 million nitrogenous base pairs, or 0.1% of the total gene sequence.


Genetic disorders

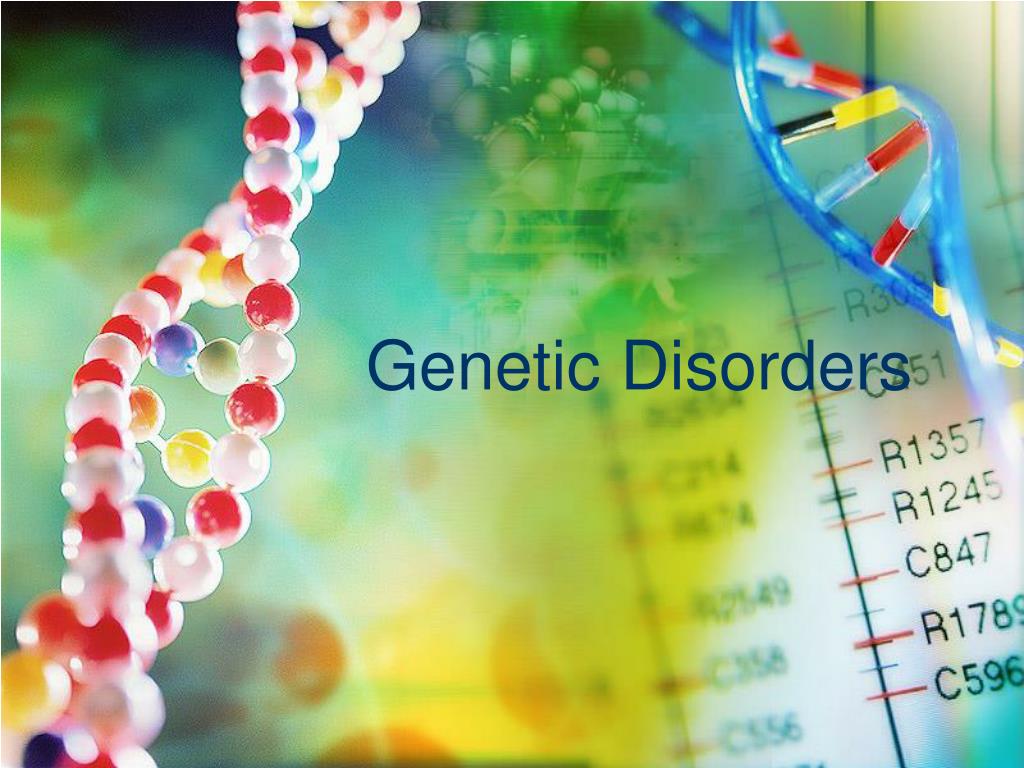

Genetic Disorders


Genetic disorders1

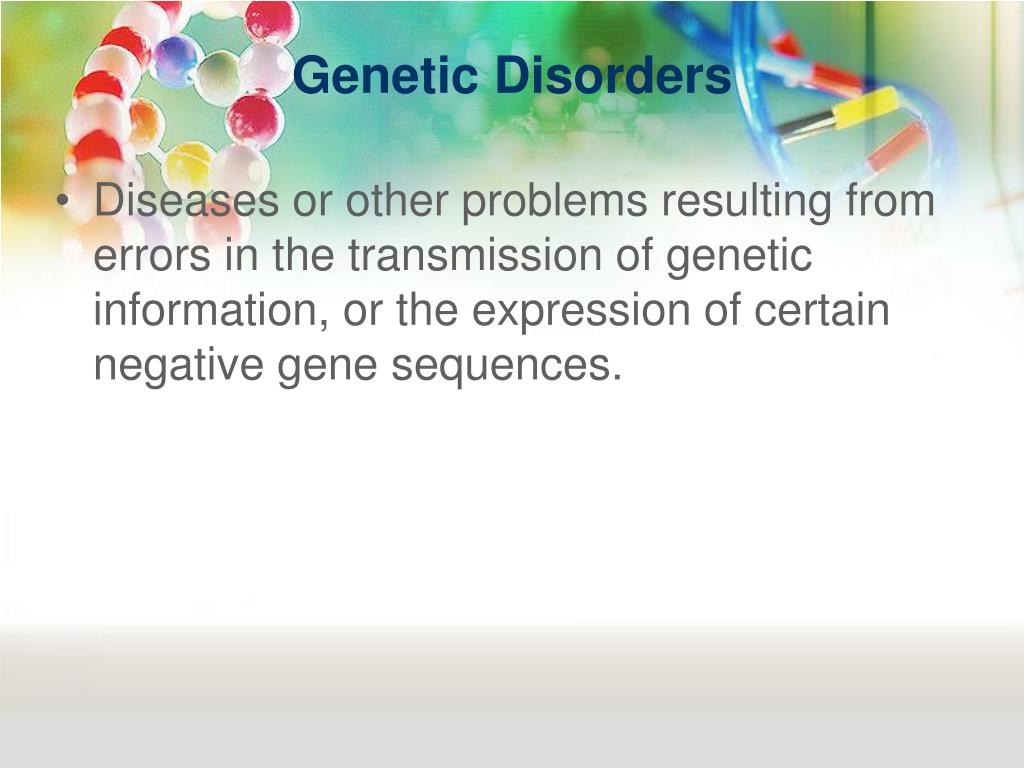

Genetic Disorders

  • Diseases or other problems resulting from errors in the transmission of genetic information, or the expression of certain negative gene sequences.


Genetic disorders2

Genetic Disorders

  • Most genetic disorders are recessive, and thus cannot be predicted without genetic analysis

    • Recessive disorders are transmitted by carriers-parents with one dominant gene (normal) and one recessive gene (disorder)

      • Example-Tt


Genetic disorders3

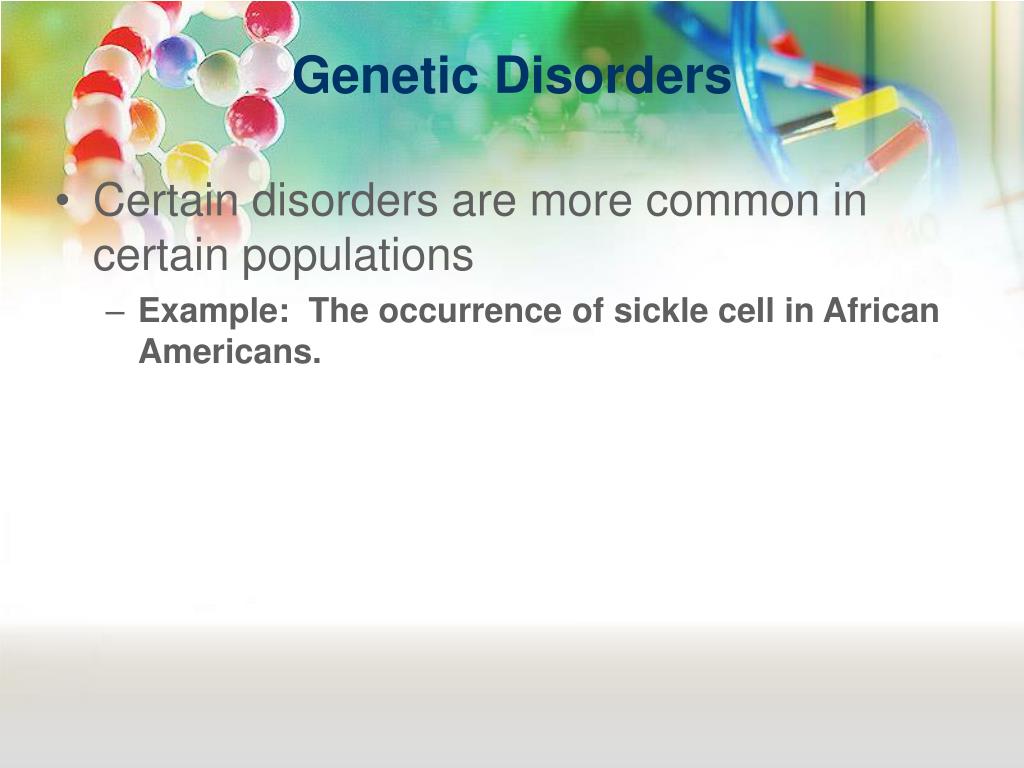

Genetic Disorders

  • Certain disorders are more common in certain populations

    • Example: The occurrence of sickle cell in African Americans.


Common genetic disorders

Common Genetic Disorders

  • Inherited Disorders

    • Examples: Tay-Sachs, Sickle Cell Anemia, Hemophilia

  • Mutations

    • Cancer-uncontrolled division of abnormal cells

    • Treatment must destroy mutated cells


Genetic mutations

Genetic Mutations

  • Sudden unexpected changes in the genetic code of an organism which appear most often during the process of replication


Genetic mutations1

Genetic Mutations

  • Often result from increased levels of stress on cells just prior to or during cell division

  • Stresses include-radiation, UV rays, environmental, etc.


Genetic mutations2

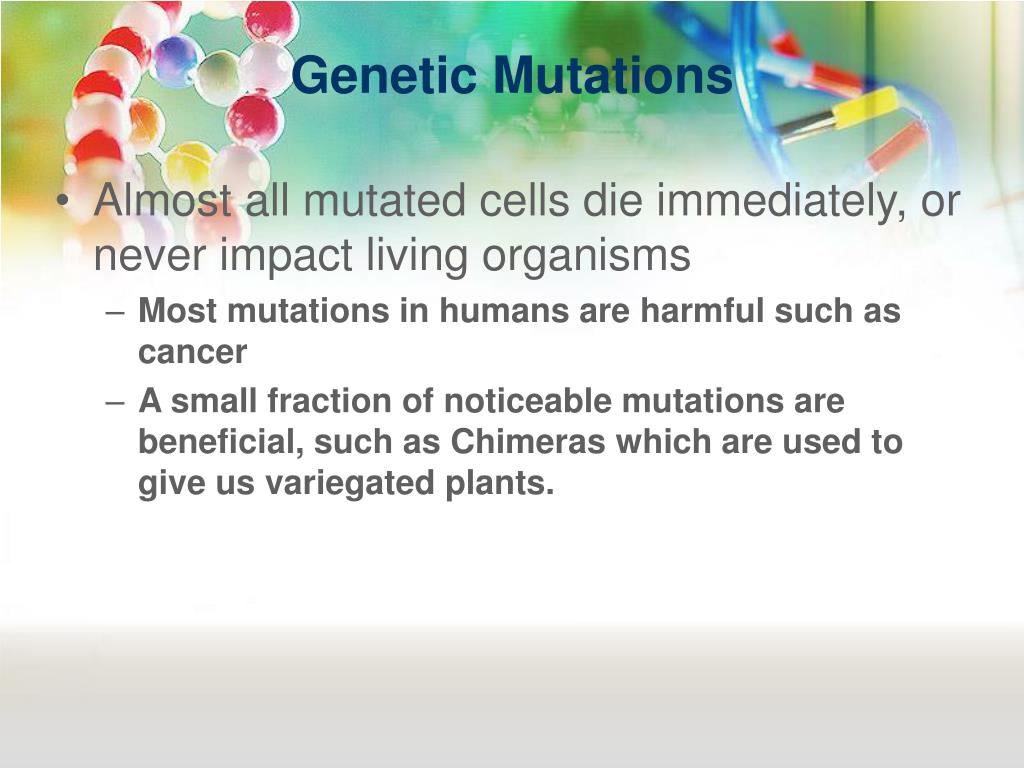

Genetic Mutations

  • Almost all mutated cells die immediately, or never impact living organisms

    • Most mutations in humans are harmful such as cancer

    • A small fraction of noticeable mutations are beneficial, such as Chimeras which are used to give us variegated plants.


Genetic mutations3

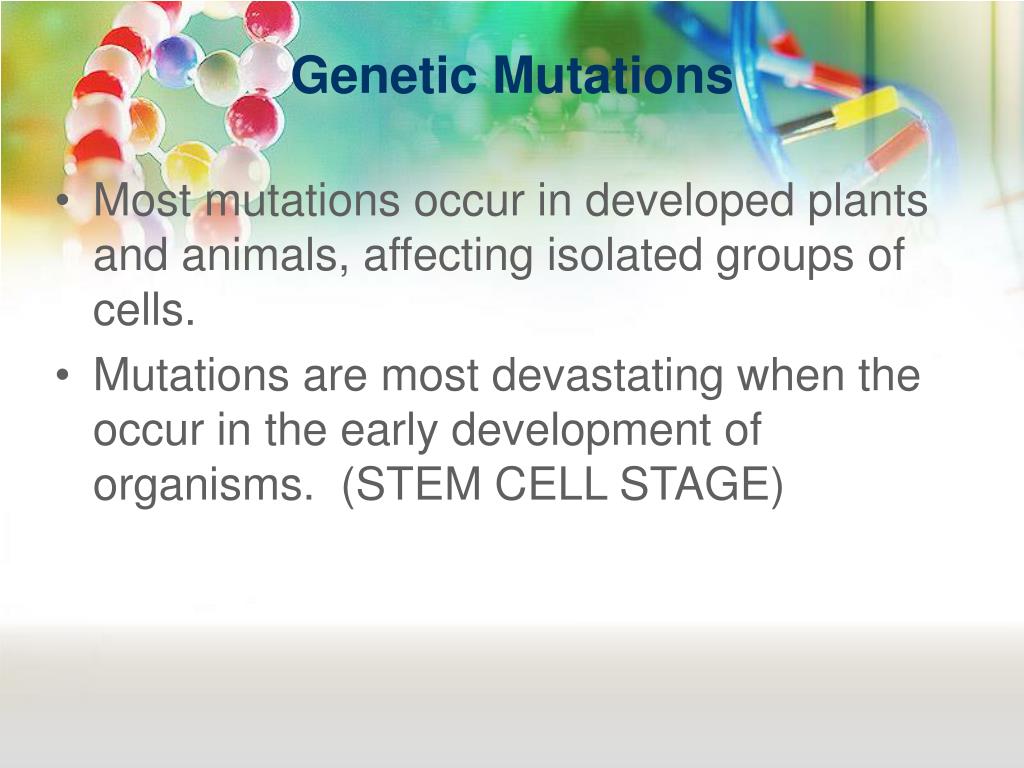

Genetic Mutations

  • Most mutations occur in developed plants and animals, affecting isolated groups of cells.

  • Mutations are most devastating when the occur in the early development of organisms. (STEM CELL STAGE)


Types of mutations

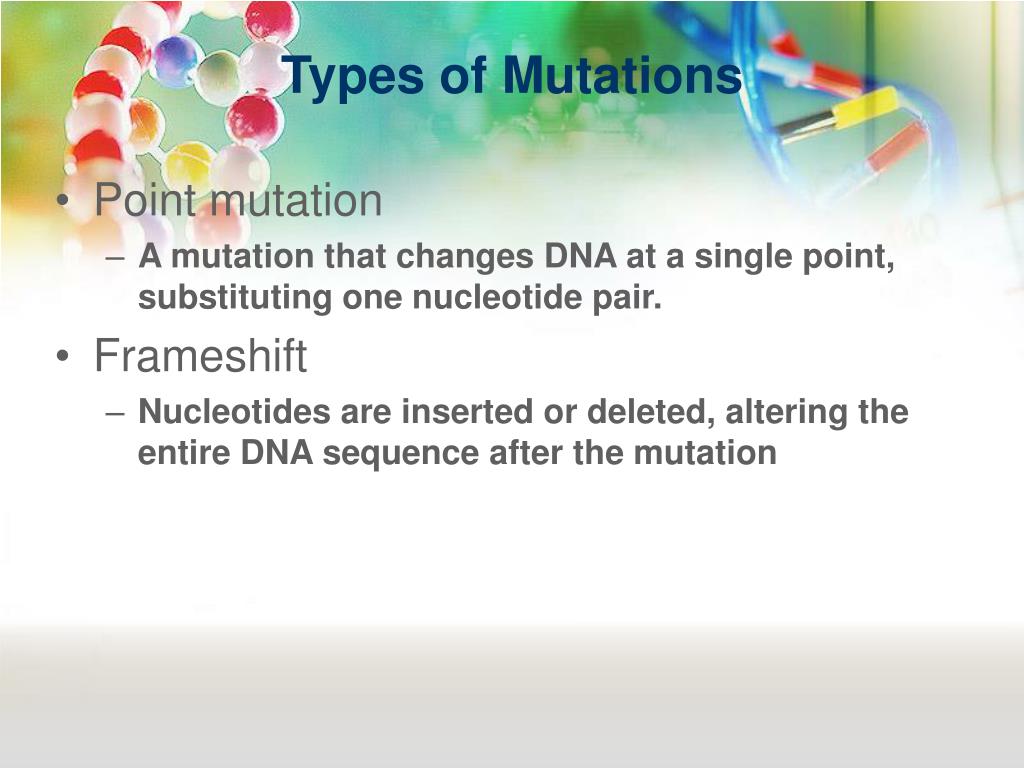

Types of Mutations

  • Point mutation

    • A mutation that changes DNA at a single point, substituting one nucleotide pair.

  • Frameshift

    • Nucleotides are inserted or deleted, altering the entire DNA sequence after the mutation


Mitosis and meiosis

Mitosis and Meiosis


What is mitosis

What is Mitosis?

  • The process of cell division in all diploid cells

  • Constantly occurs in cells throughout plants and animals at all times

    • Muscle cells

    • Skin cells

    • Stem cells

    • Cambium cells

  • Results in two diploid daughter cells


Stages of mitosis

Stages of Mitosis

  • Interphase

  • Prophase

  • Metaphase

  • Anaphase

  • Telephase

  • Cytokinesis


Interphase

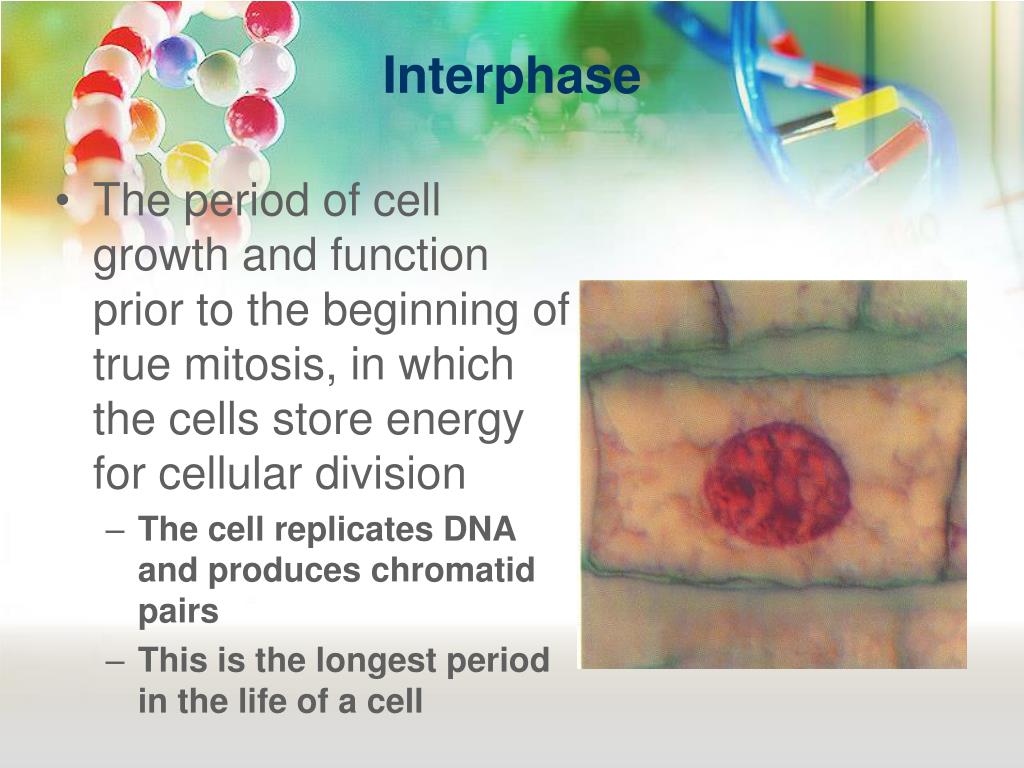

Interphase

  • The period of cell growth and function prior to the beginning of true mitosis, in which the cells store energy for cellular division

    • The cell replicates DNA and produces chromatid pairs

    • This is the longest period in the life of a cell


Prophase

Prophase

  • The first true stage of mitosis

  • The nuclear membrane dissolves, centromeres form, and centrioles move toward opposite ends of the cell


Metaphase

Metaphase

  • The second and shortest stage of mitosis

  • Chromatids align in the center of the cell and spindle fibers attach to centromeres from centrioles


Anaphase

Anaphase

  • The third stage of mitosis

  • Chromatids are separated and pulled towards opposite ends of the cell by spindle fibers

  • Errors in the transmission of genetic information are most likely to occur at this stage


Telephase

Telephase

  • The final and longest stage of mitosis

  • Chromosomes reach opposite ends of the cell, and new nuclear membranes form for each new daughter cell


Cytokinesis

Cytokinesis

  • The actual division of daughter cells at the end of mitosis

  • A cleavage furrow forms pinching apart cells in animals

  • In plant cells, a cell plate forms between daughter cells, dividing cells and forming the new section of the cell wall.


Cytokinesis1

Cytokinesis


What is meiosis

What is Meiosis?

  • The specialized form of cell division that occurs only in haploid cells

    • Sperm

    • Egg

    • Pollen

    • Ovum

  • Very similar in process to mitosis, except with two cycles, producing 4 haploid daughter cells (23 chromosomes each)


Spermatogenesis

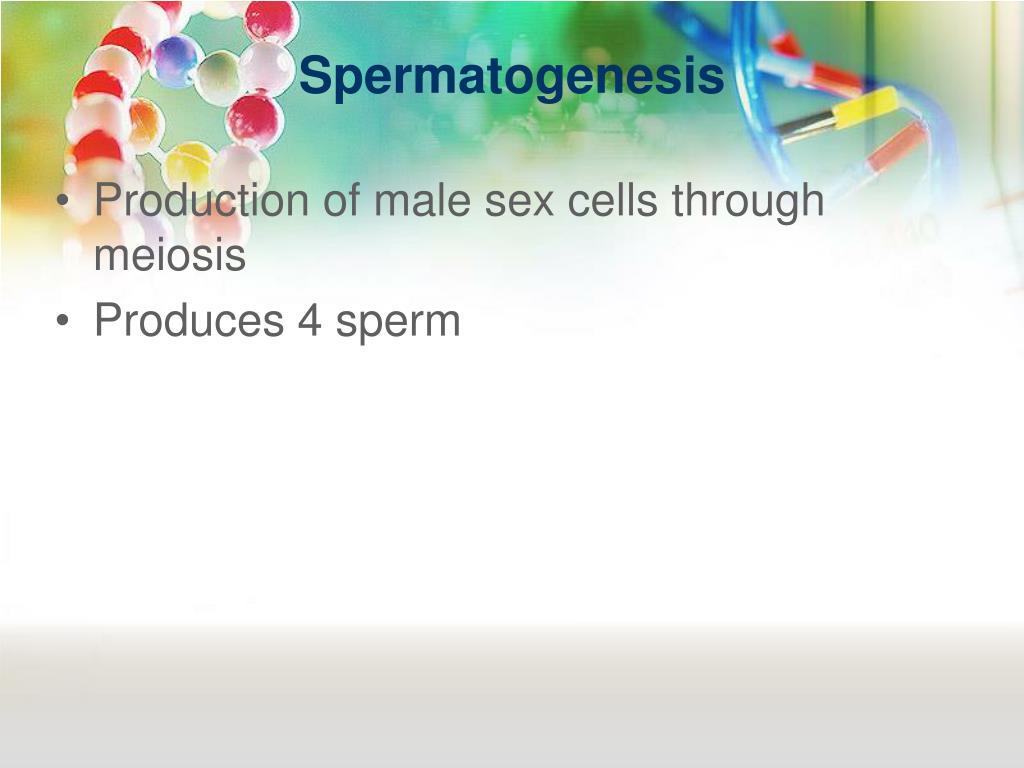

Spermatogenesis

  • Production of male sex cells through meiosis

  • Produces 4 sperm


Oogenesis

Oogenesis

  • Production of female sex cells through meiosis

  • Usually produces 1 viable egg-other 3 abort


Stages of meiosis

Stages of Meiosis

  • Interphase

  • Meiosis I

  • Meiosis II

  • The stages of Meiosis I and Meiosis II are identical to the stages of Mitosis, but with different cells for a different purpose


Interphase1

Interphase

  • Same as mitosis

  • Period of growth and function


Meiosis i

Meiosis I

  • Prophase I

  • Metaphase I

  • Anaphase I

  • Telephase I

  • Cytokinesis

    • Reduction process-changes cells from diploid to haploid


Meiosis ii

Meiosis II

  • Prophase II

    • Prophase II is responsible for aligning chromosomes for the final division

  • Metaphase II

  • Anaphase II

  • Telephase II

  • Cytokinesis


Dna extraction and analysis

DNA Extraction and Analysis


Dna extraction

DNA Extraction

  • The process of isolating nucleic acids (DNA) from organic material.

  • DNA can be extracted from almost any intact cellular tissue (more cells make it easier)

    • Skin, blood, saliva, semen, mucus, muscle tissue, bone marrow, etc.

    • DNA cannot be extracted from hair, unless skin is attached at the bottom

  • Mitochondrial DNA can often be extracted long after nuclear DNA has degraded.


Simple dna extraction

Simple DNA Extraction

  • For observation only, not feasible for analyzing DNA

  • Works well with fruit (Example: Strawberries)


Simple dna extraction1

Simple DNA Extraction

  • Step 1

    • Physically break apart plant material, usually fruits

  • Step 2

    • Use a detergent to break apart the cell membrane

  • Step 3

    • Treat with ethyl alcohol to isolate DNA from remaining proteins and sugars

  • Step 4

    • Spool using a glass rod to view a large clump of nucleic acids (DNA)


Advanced dna extraction

Advanced DNA Extraction

  • The organism to be tested is chosen, and a sample is taken from which DNA can be extracted.

  • Detergents are used in simple DNA extraction procedures to break down cell membranes, blending the contents of the cell.


Advanced dna extraction1

Advanced DNA Extraction

  • The DNA sample is treated with enzymes to isolate nucleic acids, usually both DNA and RNA

    • Enzymes dissolve proteins, sugars, and other materials

    • Examples: protease, amylase, etc (enzymes end with the suffix –ase)

    • A second enzyme may be applied to cut DNA into gene segments for analysis


Restriction digests and enzymes

Restriction Digests and Enzymes

  • Restriction enzymes are used to cut extracted DNA into smaller gene sequences.

    • Make analysis easier during the process of gel electrophoresis.

    • Enables scientists to isolate specific genes with specific enzymes for use in genetic engineering.


Restriction digests and enzymes1

Restriction Digests and Enzymes

  • Cuts the gene from the chromosome making a sort of gene soup after the removal of proteins

  • Leaves the ends of gene segments “sticky” with usually 3 exposed nucleotides on one side of the double helix, so that ends may be rejoined later.


Methods of dna analysis

Methods of DNA Analysis

  • There are several simple methods used for analyzing DNA

    • Paternity Testing

    • Gel Electrophoresis

  • Advanced Methods

    • Polymer Chain Reaction (PCR)

    • Amniocentesis


Paternity testing

Paternity Testing

  • Simple method of DNA analysis that compares the DNA of an offspring, plant or animal, with a known mother and suspected father.


Paternity testing process

Paternity Testing Process

  • DNA sample taken usually from saliva or blood in animals and leaf or callus tissue in plants. (Hair does not contain DNA, but the hair follicle does.)

  • DNA isolated in sample through the use of protein “eating” enzymes.


Paternity testing process1

Paternity Testing Process

  • Sample run on gels or through a gene sequencer to indicate the presence of certain genes.

  • Comparison of genes-anything present in the child MUST BE PRESENT IN EITHER THE MOTHER OR THE FATHER. 13 genes present in the child that are not in the mother, but present in the father make a 99% match.


Polymer chain reaction pcr

Polymer Chain Reaction (PCR)

  • Method used in forensic science to amplify genetic material for identification or analysis.

  • Newer technique used only in advanced laboratories.

  • Only a few cells are needed with this technique.


Amniocentesis

Amniocentesis

  • Method used to analyze the DNA of a mammal (occasionally other animals) prior to birth.

  • Used widely in humans to predict the expression of lethal genes or genetic disorders in high-risk pregnancies.

  • Gaining favor in high expense animal breeding (Ex. Race horses)


Gel electrophoresis

Gel Electrophoresis

  • Method used to analyze extracted DNA through the distribution of genetic markers on an agar media.

  • Smaller genes travel further distances on the gel. Samples extracted through the same process can be easily compared on a single gel.


Gel electrophoresis process

Gel Electrophoresis Process

  • An agar gel is placed into a mold to dry, then placed into an electrophoresis chamber.

  • DNA extraction is placed in small wells at one end of the agar gel. Each well represents a different sample or individual.


Gel electrophoresis process1

Gel Electrophoresis Process

  • Low voltage direct current is run through a buffer solution surrounding the agar gel distributing DNA fragments across the gel

  • Fragments separated by the size of the gene segment; smaller move faster than larger

  • Negative charged DNA fragments are repelled away from the negatively charged wells to the positive charged end.


Gel electrophoresis process2

Gel Electrophoresis Process

  • Buffer solution provides a means of transmission for electrical current, but also keeps DNA samples in place in wells in the gel.

    • Buffer is heavier than DNA


Gel electrophoresis process3

Gel Electrophoresis Process

  • Strength of the electrical current determines the speed at which DNA moves across the gel.

  • Ethidium Bromide or another Bromine based solution is applied at the end of the electrophoresis process to stain DNA for better viewing under certain bands of light.


Genetics in agricultural breeding programs

Genetics in Agricultural Breeding Programs


Natural selection

Natural Selection

  • Mechanism for evolution in natural populations

  • Organisms with best traits suited to the environmental factors affecting a population are most likely to survive and reproduce.

    • Results in the inheritance of the same well-suited traits

  • Important traits in natural selection-disease resistance, size, color pattern/camouflage, etc.


Natural selection1

Natural Selection

  • Types of Natural Selection

    • Stabilizing selection

    • Directional selection

    • Disruptive selection


Stabilizing selection

Stabilizing Selection

  • Individuals with the average or norm for a trait have an advantage over other forms of the trait

    • Example: gray moths (norm) are favored over black and white moths


Directional selection

Directional Selection

  • Individuals with one extreme or less common version of a trait are favored over other forms of the trait.

    • Example: Black moths are favored over gray or white moths


Disruptive selection

Disruptive Selection

  • Multiple extremes or alternative forms of a trait are favored over the norm

    • Example: Black moths and white moths are favored over gray moths


Selective breeding

Selective Breeding

  • Method of breeding plants and animals utilized in agriscience to produce offspring that possess certain characteristics desirable to agriculturists

    • Utilized for generations-produced the first domestic animals in early civilizations


Selective breeding1

Selective Breeding

  • Used to select for a variety of traits including:

    • Muscling/Size

    • Fat content

    • Breeding Capability

    • Color

    • Speed/Agility

    • Temperament

    • Milk Production


Selective breeding2

Selective Breeding

  • Methods for selective breeding:

    • Artificial insemination

    • Pen/field breeding

    • Isolation Breeding-inbreeding

    • Mechanical pollination of plants

    • Hybridization of plants and animals


Selective breeding3

Selective Breeding

  • Selective breeding is accomplished much quicker in plants than animals due to growth rates and ease of propagation/production


Selecting plants and animals for breeding

Selecting Plants and Animals for Breeding


Observe patterns of heredity

Observe Patterns of Heredity

  • The occurrence of genetic disorders in offspring or parents is an indicator that the parent may have a recessive gene for the disorder

  • Though genetic recombination is random, some animals are more likely to transmit genes than others

  • Keeping careful breeding records improves effectiveness


Select animals carefully

Select Animals Carefully

  • Animals used in selective breeding should be:

    • Healthy-old injuries or illnesses are not a factor unless they are a result of genetic propensities or impair breeding capabilities

    • Carefully monitored-nutrition levels, pests and stress can all reduce breeding viability. Some very good specimens are completely isolated.


Select animals carefully1

Select Animals Carefully

  • Hybrids should be avoided, since traits expressed in the organism are rarely transmitted to offspring

    • The process of inbreeding isolates genes for only a single generation, as many are recessive.


Carefully plan breeding crosses

Carefully Plan Breeding Crosses

  • Plants can be crossed not only within species (interspecific), but also within genus (intergeneric), and even, in rate cases family (interfamilial)

  • Animals are usually limited to crosses within the same species


Methods for producing selective breeding programs

Methods for Producing Selective Breeding Programs


Inbreeding

Inbreeding

  • Crossing organisms that are genetically related

    • Crossing two plants to produce an f1 generation, then crossing two of the f1 offspring to create an f2 generation


Backcrossing

Backcrossing

  • Crossing offspring from a cross with one of the previous parents, or a similar organism, to maximize the expression of certain traits.

    • Often used after intergeneric crosses to produce offspring that possess more characteristics from one genus.


  • Login
