Presentation Transcript


  1. Observations of Storms off the West Coast in 2012 from Seafloor Data • David Atkinson, UVic Dept. of Geography • Steve Mihaly, ONC • Dilumie Abeysirigunawardena, ONC • Martin Heesemann, ONC • 2013 CSAS State of Ocean Workshop • February 20, 2013

  2. Series of storm events, Jan 19 – 26, 2012: • Synoptic overview • La Perouse traces • ONC Folger Passage (Deep) data: • surface waves • Start with annual variance and comparison, 2011 vs 2012 • BPR power spectra trace, late summer period • spring period close-up • storm period close-up • ADCP currents • storm event response • oxygen • storm event response

  3. Series of storm events, Jan 19 – 26, 2012: • Synoptic overview. • - point to note: potential for different wave source regions during these events

  4. January 19 2012 00Z • Typical progression: • - “parent” system moves off jet • into GoA • Dynamically linked systems • generated, moved towards • coast and to NE • -Support from aloft = • rapid increases in strength M

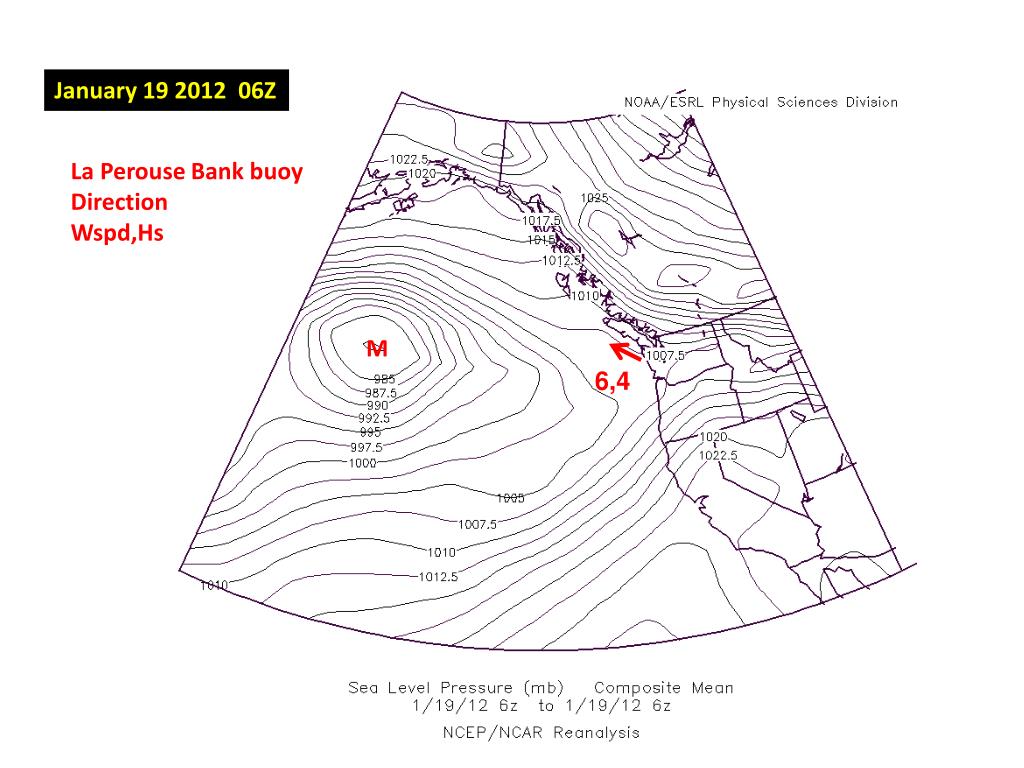

  5. January 19 2012 06Z • La Perouse Bank buoy • Direction • Wspd,Hs M 6,4

  6. January 19 2012 12Z M 10,4

  7. January 19 2012 18Z M 7,3 1

  8. January 20 2012 00Z M 6,2.5 1

  9. January 20 2012 06Z M 1 11,3

  10. January 20 2012 12Z M 1 15,3

  11. January 20 2012 18Z M 1 15,4

  12. January 21 2012 00Z M 1 16,5

  13. January 21 2012 06Z 960 M 1 12,4 2

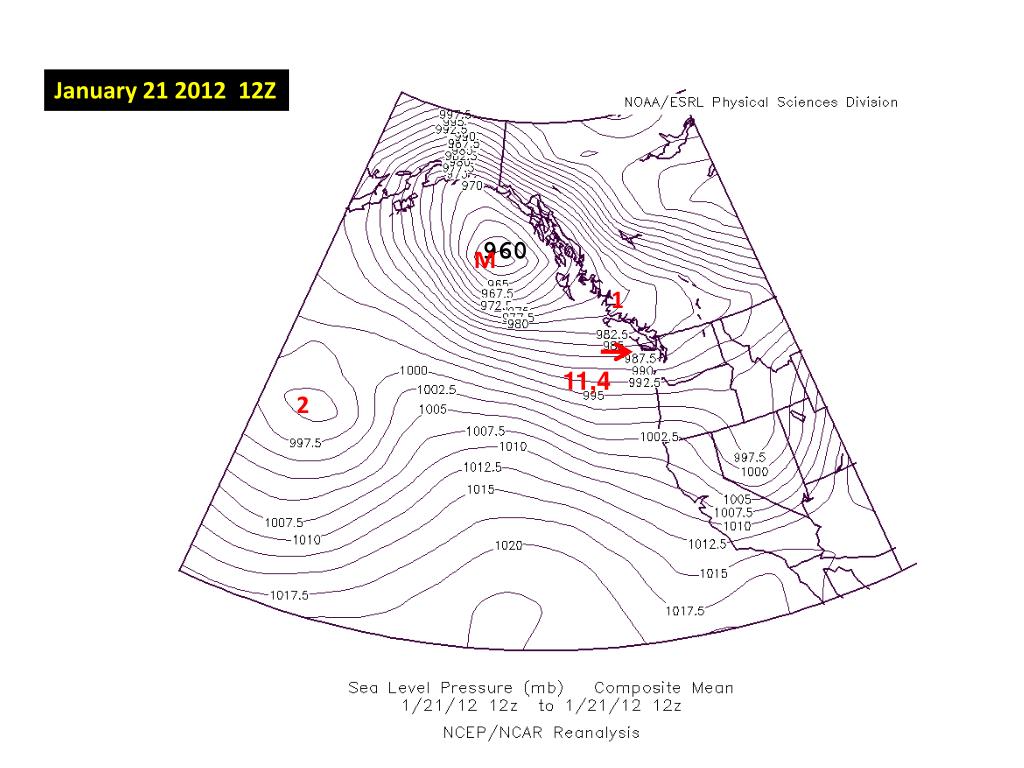

  14. January 21 2012 12Z 960 M 1 11,4 2

  15. January 21 2012 18Z M 11,5 2

  16. January 22 2012 00Z M 10,6 2

  17. January 22 2012 06Z M 11,6 2

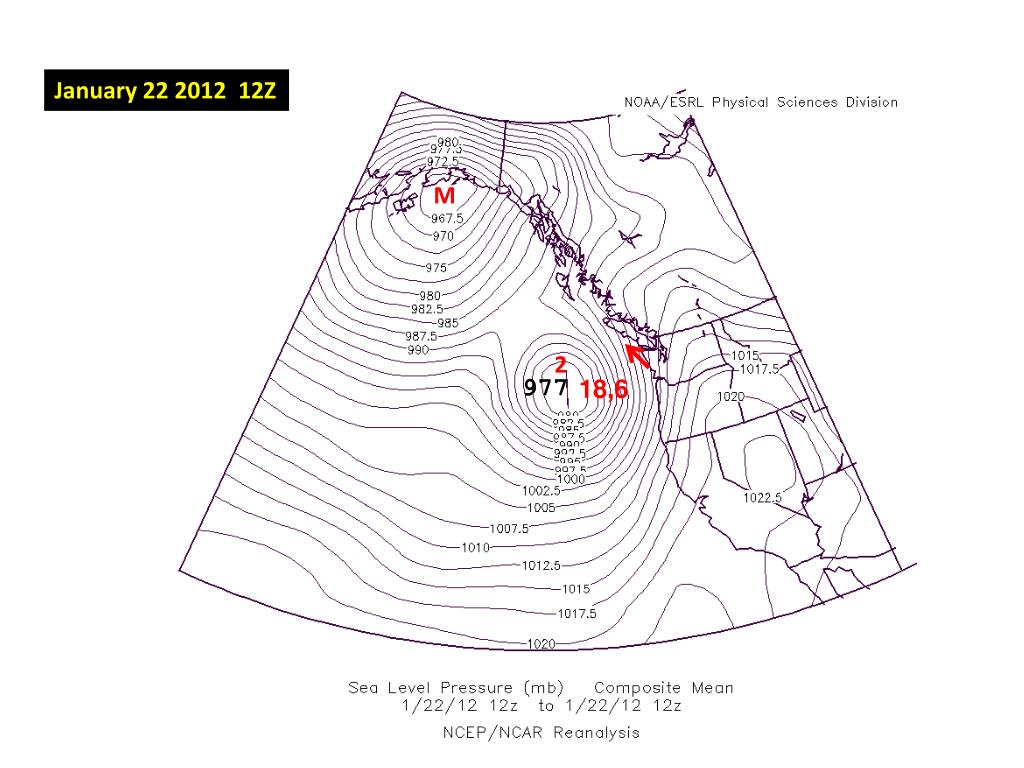

  18. January 22 2012 12Z M 2 977 18,6

  19. January 22 2012 18Z M 977 2 20,7 3

  20. January 23 2012 00Z M 2 977 22,9 3

  21. January 23 2012 06Z M 2 10,7 3

  22. January 23 2012 12Z M 7,6 4 3

  23. January 23 2012 18Z M 4 9,4 3

  24. January 24 2012 00Z M 4 5 10,4

  25. January 24 2012 06Z M 4 5 14,4

  26. January 24 2012 12Z M 4 5 14,6

  27. January 24 2012 18Z 4 967 5 972 13,6

  28. January 25 2012 00Z 4 964 968 5 12,5

  29. January 25 2012 06Z 4 964 5 968 15,6

  30. January 25 2012 12Z 4 5 10,8

  31. January 25 2012 18Z 5 4 8,8

  32. La Perouse traces

  33. Max sustained wind ~23m/s (gust 30m/s) Wave height peaks >8m Note direction shifts

  34. ONC Folger Passage (Deep) data : Wave activity expressed as variance

  35. Annual: 2011 log

  36. Annual: 2011 log More energetic, more variable winter season Less energetic/variable summer season

  37. Annual: 2011 log February – activity appeared to be winding down - Kicked back in for an active March

  38. Annual: 2012 log

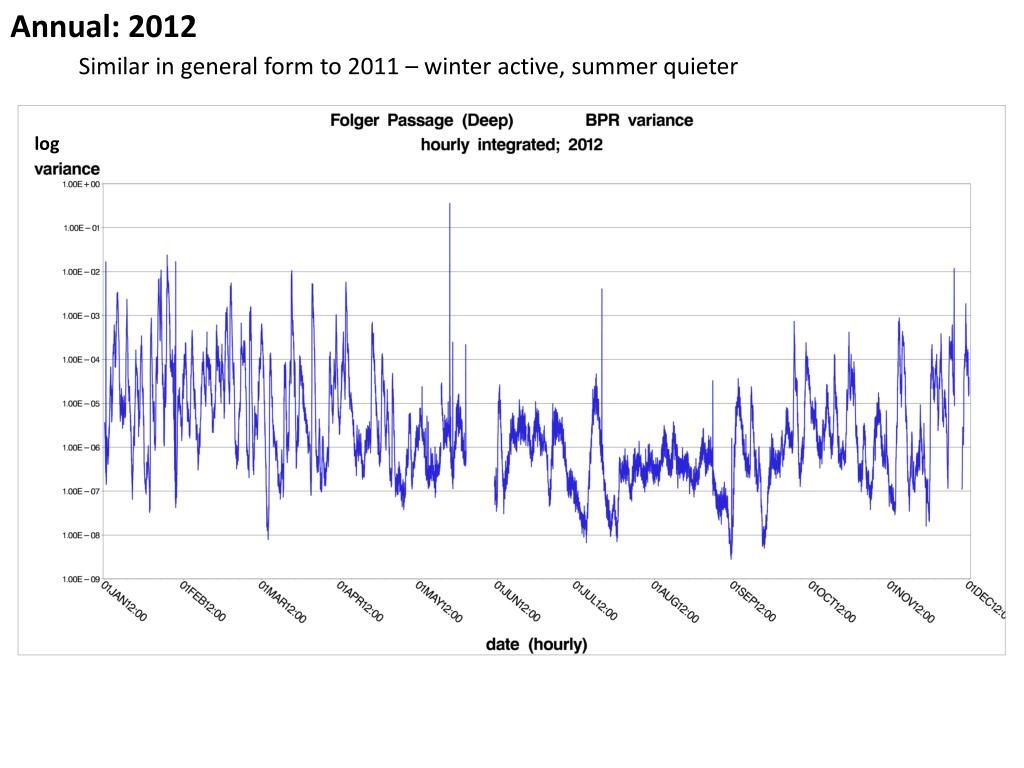

  39. Annual: 2012 Similar in general form to 2011 – winter active, summer quieter log

  40. Annual: 2012 Timings – 2011 winter ended fairly suddenly; 2012 dragged out log

  41. Annual: 2012 Timings – both years – late July/August very quiet, September sees increasing activity log July/Aug. Sept.

  42. First three weeks of September 2012 locally were (very) storm free Observed energy can not be local.

  43. Use a running spectral power plot of Folger BPR data to assess wave dispersion - angled tracks between 25s-10s indicate long period waves arriving well before shorter = wave trains pumped out by distant storms Relative power Wave Period Sept 1 2012 Sept 7 2012 Sept 14 2012 Sept 21 2012

  44. Annual: 2012 Late Jan. Stormy period – most active single week in 2012 log

  45. Spring: 2011 Closer look at variance traces for stormy period log spring JAN 01 FEB 01 MAR 01

  46. Spring: 2011 log spring • Note pattern – waves often exhibit rapid onset, slow decline • Cordillera blocks eastern progression of storms • move in fast, but stall and die slowly JAN 01 FEB 01 MAR 01
