Presentation Transcript


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

  • Recent evidence for gamma-ray line emission from Fermi-LAT data:

  • dark matter or artifact?

Meng Su

Pappalardo/Einstein Fellow

MIT/CfA

Collaborators: Douglas Finkbeiner, ChristophWeniger

FermilabAstrophysics Seminar, March 4th 2013


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Vera Rubin and her colleagues: galaxies rotation curve of nearly galaxies (1970s)

Fritz Zwicky's pioneering work in 1933

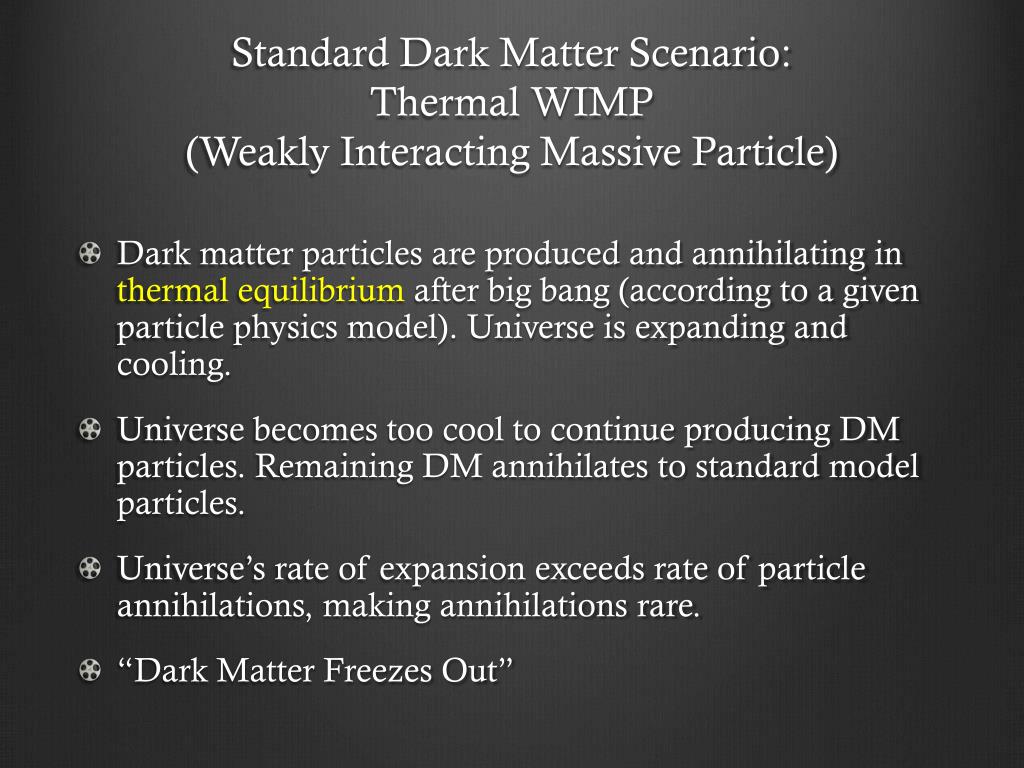

Standard dark matter scenario thermal wimp weakly interacting massive particle

Standard Dark Matter Scenario: Thermal WIMP(Weakly Interacting Massive Particle)

  • Dark matter particles are produced and annihilating in thermal equilibrium after big bang (according to a given particle physics model). Universe is expanding and cooling.

  • Universe becomes too cool to continue producing DM particles. Remaining DM annihilates to standard model particles.

  • Universe’s rate of expansion exceeds rate of particle annihilations, making annihilations rare.

  • “Dark Matter Freezes Out”


Indirect detection gamma ray

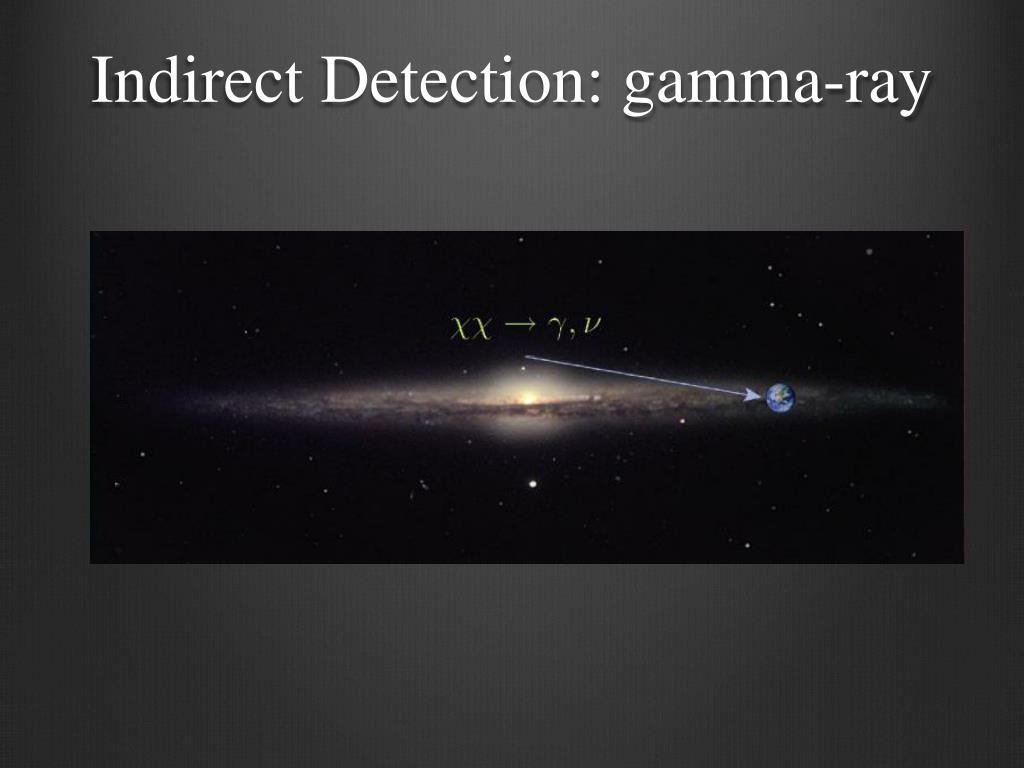

Indirect Detection: gamma-ray


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Techniques for the Indirect Detection of Dark Matter

•Morphological Differentiation

•Galactic Center Search

•Milky Way Halo

•Dwarf Spheroidal Galaxies

•Anisotropy Power Spectrum

•Gamma-Rays from Galaxy Clusters

•Cosmic Ray Electrons/Gammas from the Sun

•Spectral Differentiation

•Gamma-Ray Line Search

The two-body annihilation of DM into photons produces monochromatic gamma rays

•e+e- ratio and electron + positron Spectrum

(Recall previous talks by Alexander Belikov andLawrence Rudnick)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Gamma-Ray LineSearch

• GOAL: Search for a spectral signal from an annihilation (or decay) of dark matter directly into gammarays.

• Targets: Any annihilating or decaying dark matter particle which produces photons directly, or possibly produces a very hard spectrum of single photons through internal bremsstrahlung

• Benefits: No astrophysical process is expect to produce a gamma-ray line. Resulting constraints can fall far below thermal cross-section

•Difficulties: Direct production of gamma-gamma is not a generic prediction of dark matter annihilation or decay.


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

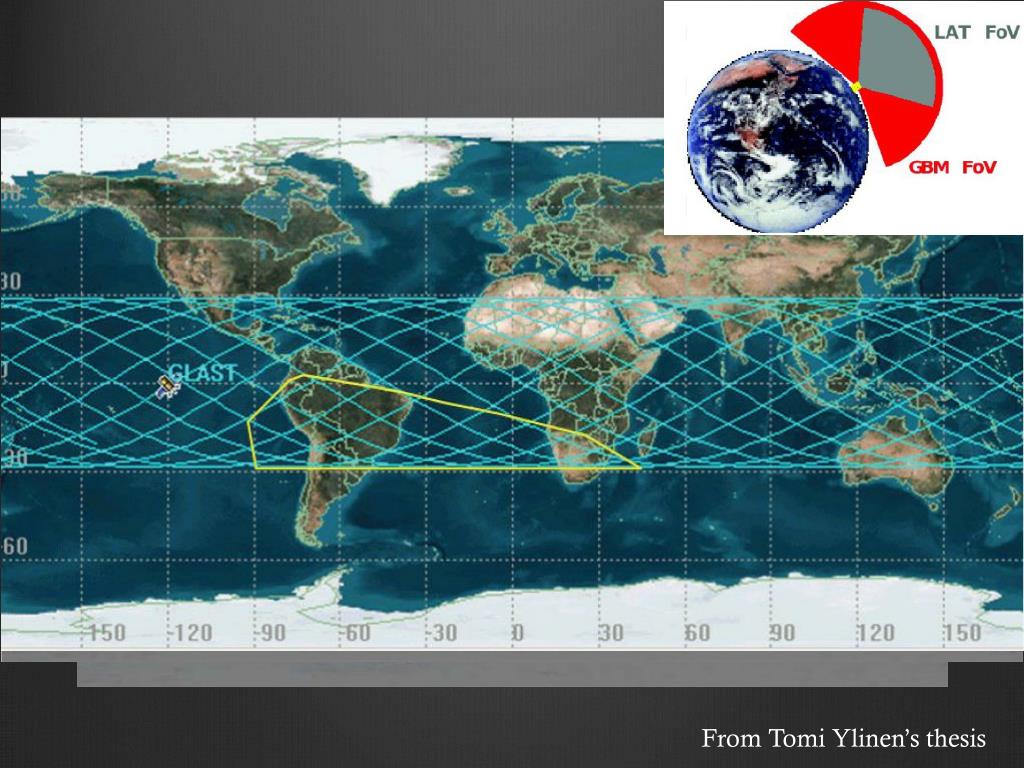

From TomiYlinen’s thesis


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Atwood et al. 2009


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Atwood et al. 2012


The fermi lat three year maps

Fermi Bubble

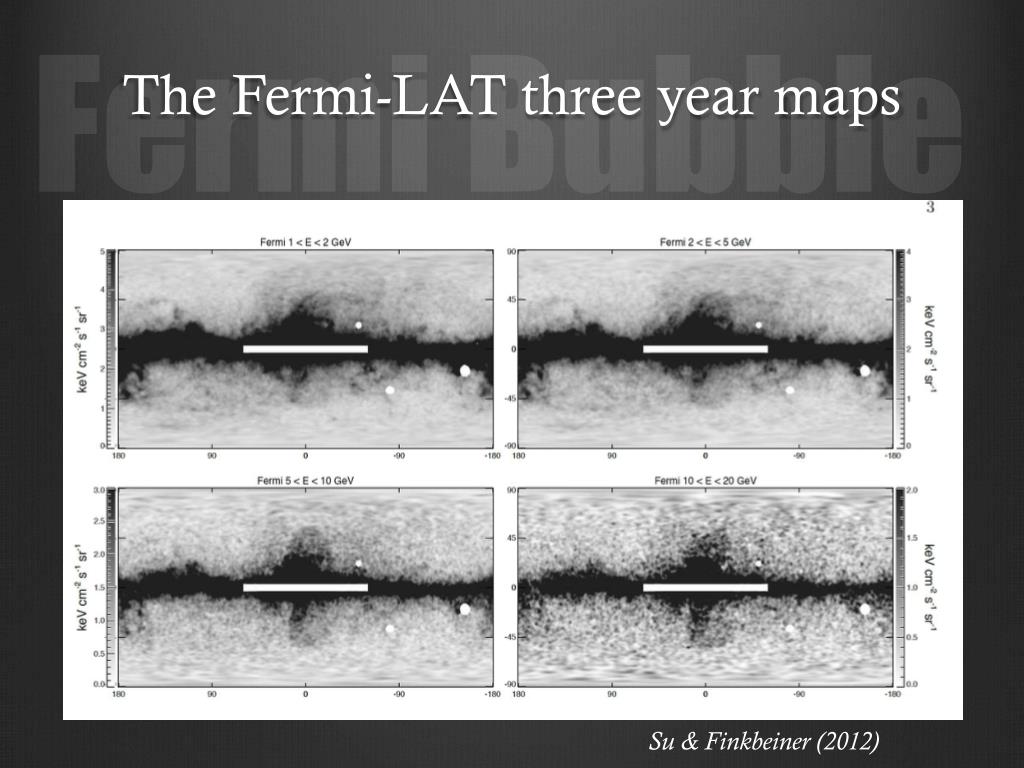

The Fermi-LAT three year maps

Su& Finkbeiner (2012)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

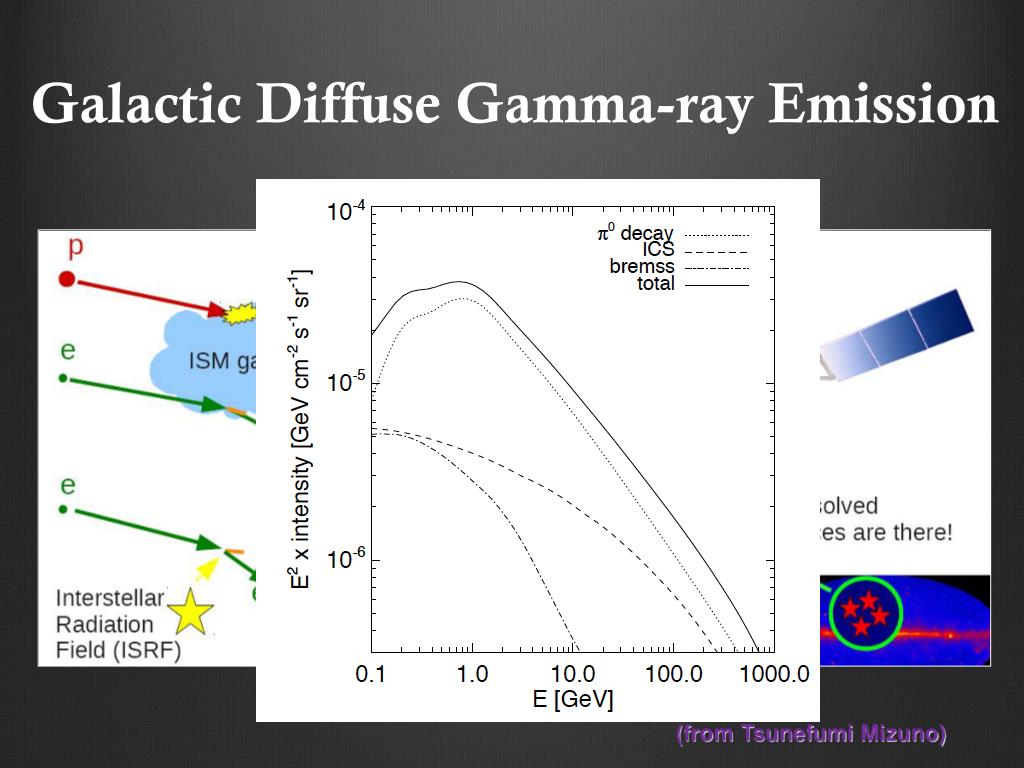

Galactic Diffuse Gamma-ray Emission

(from Tsunefumi Mizuno)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Fermi Bubble

Fermi Bubble from three year maps


Bubbles as foreground for dm search

Bubbles as foreground for DM search


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Fermi-LAT Collaboration, arXiv:1205.2739v1


Best limits so far

Best limits so far:

Fermi-LAT Collaboration, arXiv:1205.2739v1


How to define a search region

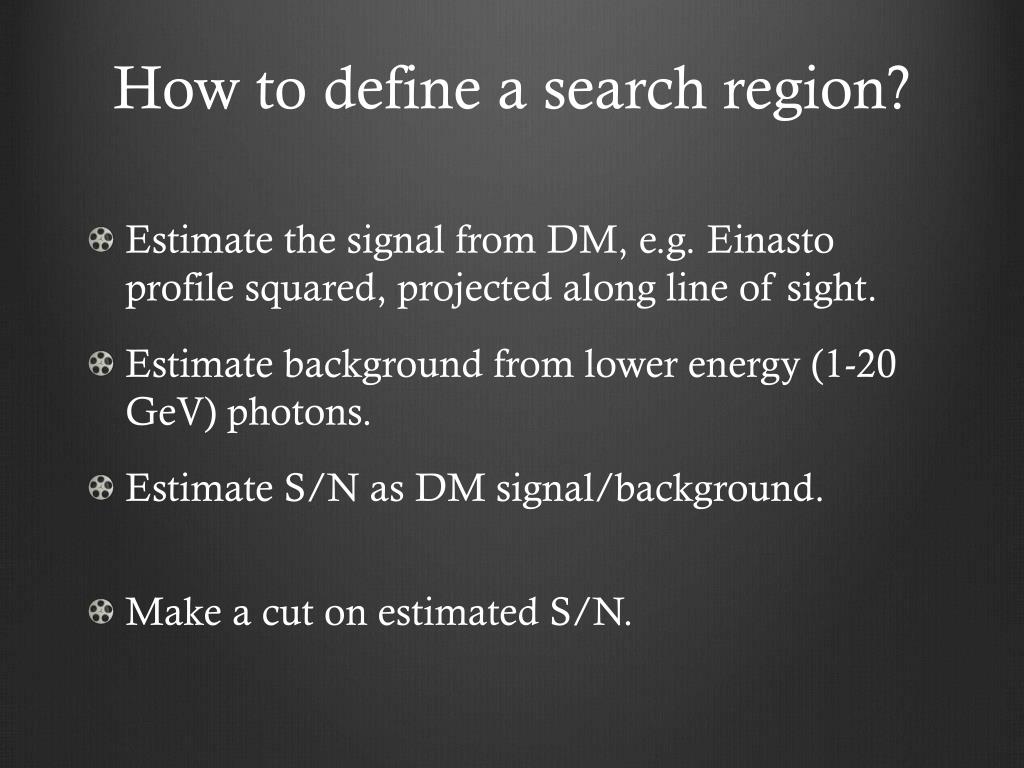

How to define a search region?

  • Estimate the signal from DM, e.g. Einasto profile squared, projected along line of sight.

  • Estimate background from lower energy (1-20 GeV) photons.

  • Estimate S/N as DM signal/background.

  • Make a cut on estimated S/N.


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

There have been hints of something at ~ 130 GeV!


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

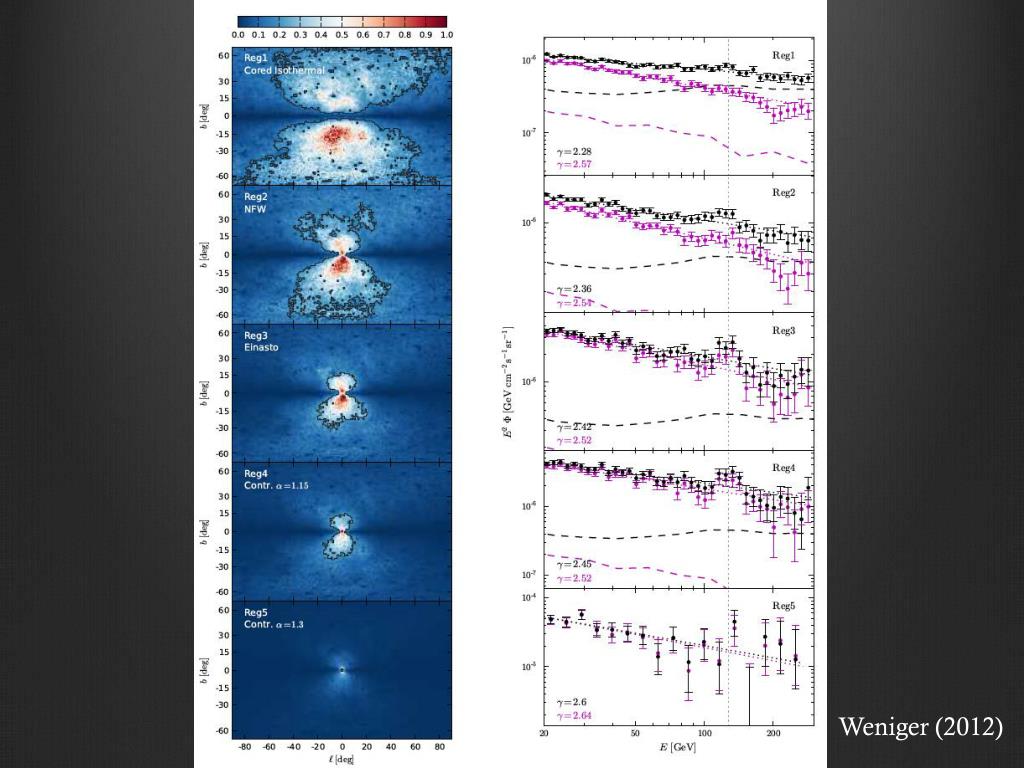

Weniger (2012)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Profumoand Linden (2012)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Profumoand Linden (2012)


Why the reluctance to call a sharp spectral feature a line

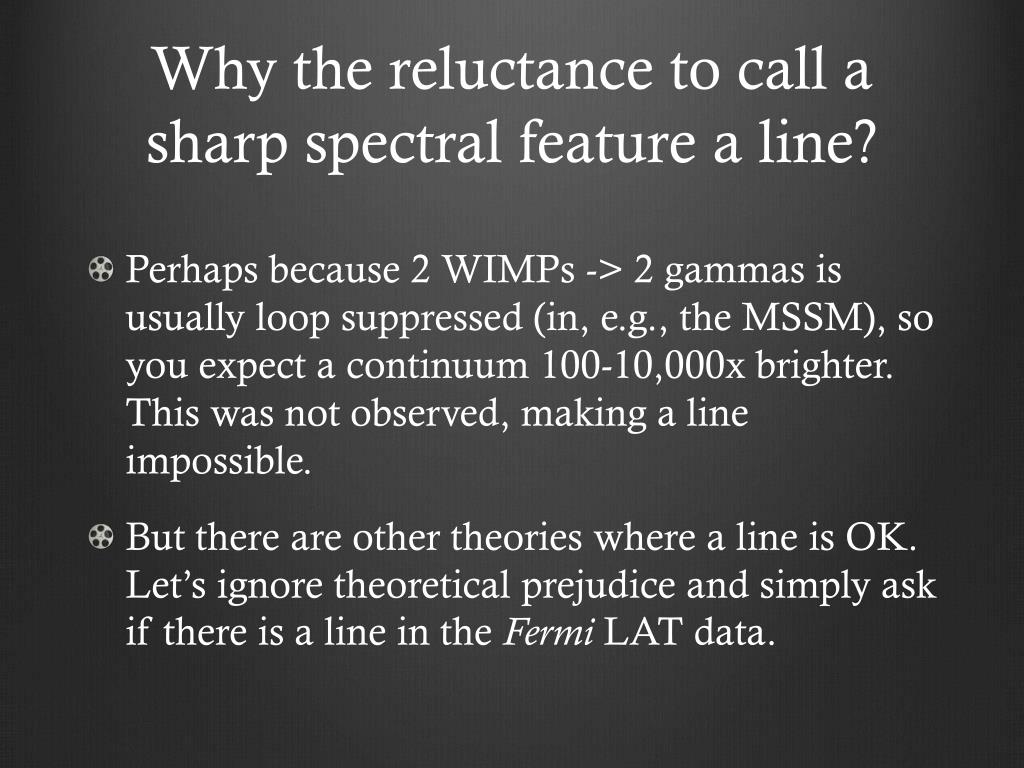

Why the reluctance to call a sharp spectral feature a line?

  • Perhaps because 2 WIMPs -> 2 gammas is usually loop suppressed (in, e.g., the MSSM), so you expect a continuum 100-10,000x brighter. This was not observed, making a line impossible.

  • But there are other theories where a line is OK. Let’s ignore theoretical prejudice and simply ask if there is a line in the Fermi LAT data.


Timeline of 130 gev line

Timeline of 130 GeV line:

12 April - Weniger (looks like a line at 130 GeV)

26 April - Profumo & Linden (is it the Fermi bubbles?)

10 May - Tempel et al., (No, it’s not a bubble, could be DM)

21 May - Boyarsky (lots of blobs, probably not DM)

25 May - Acharya, Kane... (It’s a Wino)

29 May - Bergstrom (reviews claims as part of larger review)

30 May - Jim Cline (two lines)

30 May - Buckley & Hooper (theoretical models)

5 June - Geringer-Sameth & Koushiappas (Line search in dwarfs)

7 June - Su & Finkbeiner (Off center 1.5 deg, Einasto, 6.5sigma, usehigh energy-resolution events)

(As of March2013, Wenigerpaper has 120+ citations)


Fermi lat maps at 100 180 gev

Fermi-LAT maps at 100–180 GeV

Su & Finkbeiner (arXiv:1206.1616)

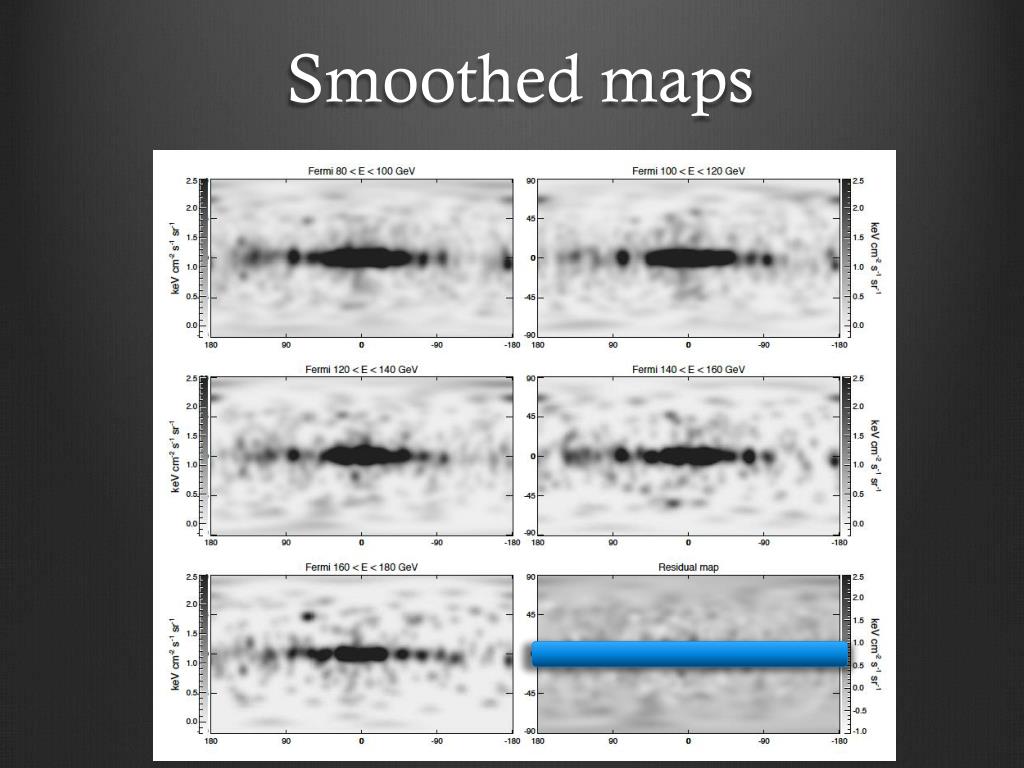

Smoothed maps

Smoothed maps


A cusp structure

A cusp structure!


Null tests

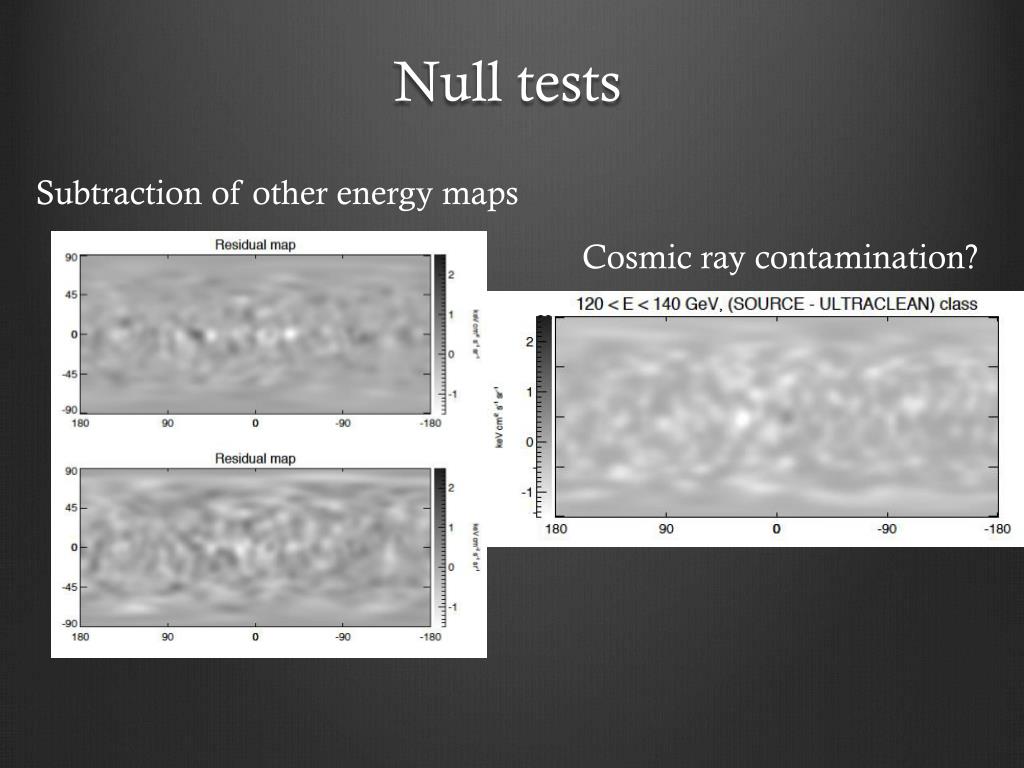

Null tests

Subtraction of other energy maps

Cosmic ray contamination?


Spectrum

Spectrum:

  • Make maps in each of 16 energy bins, assume that emission in each bin is a linear combination of template maps, and plot the template coefficients.

  • Coefficients are determined by maximizing the Poisson likelihood of observing the observed counts given the model.

  • Templates choice corresponds to hypothesis to be tested.

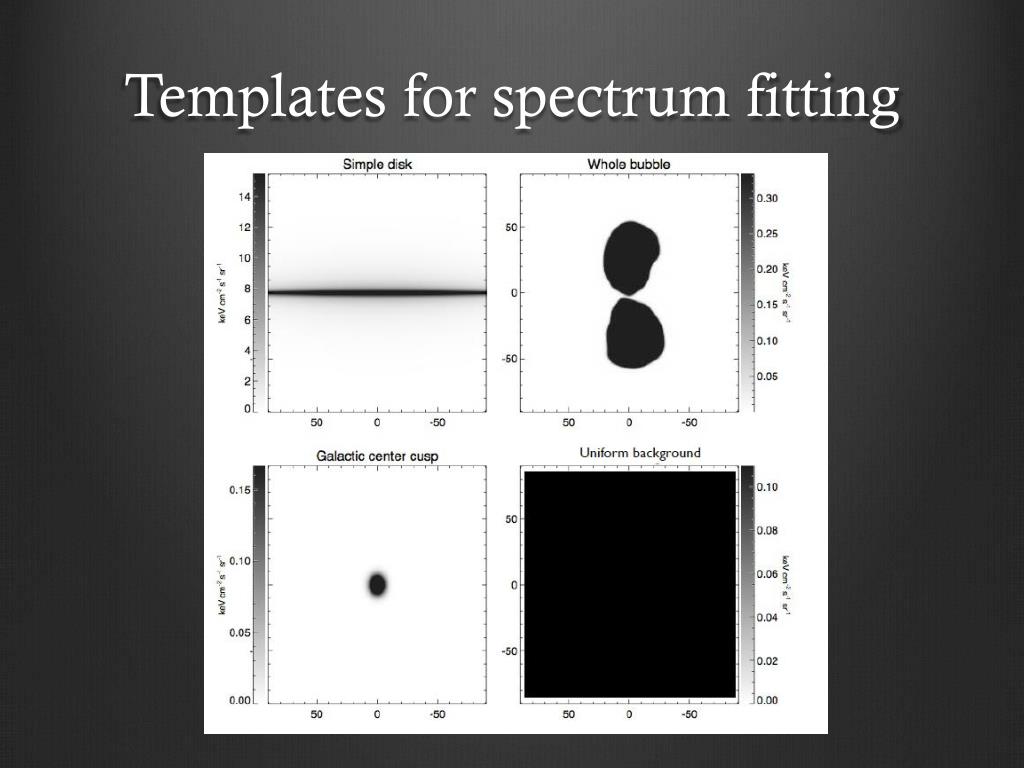

Templates for spectrum fitting

Templates for spectrum fitting


Energy spectrum of the cusp

Energy spectrum of the cusp

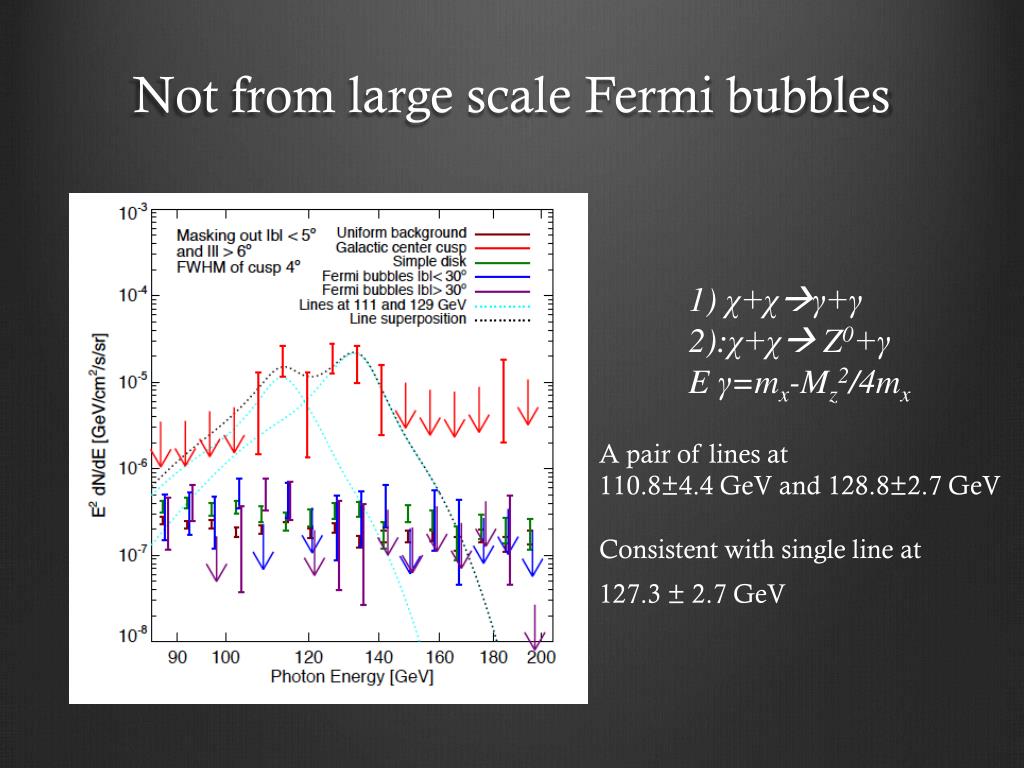

Not from large scale fermi bubbles

Not from large scale Fermi bubbles

1) χ+χγ+γ

2):χ+χ Z0+γ

E γ=mx-Mz2/4mx

A pair of lines at

110.8±4.4 GeV and 128.8±2.7 GeV

Consistent with single line at

127.3 ± 2.7 GeV


Galactic longitude and latitude profile

Galactic longitude and latitude profile

Offset from the GC?

Even though the high-incidence-angle photons (θ > 40◦; right) panels have half the exposure (9.7% vs. 19% for the left panels), they have more than half of the photons, and nearly the same TS due to lower off-line background leaking in.

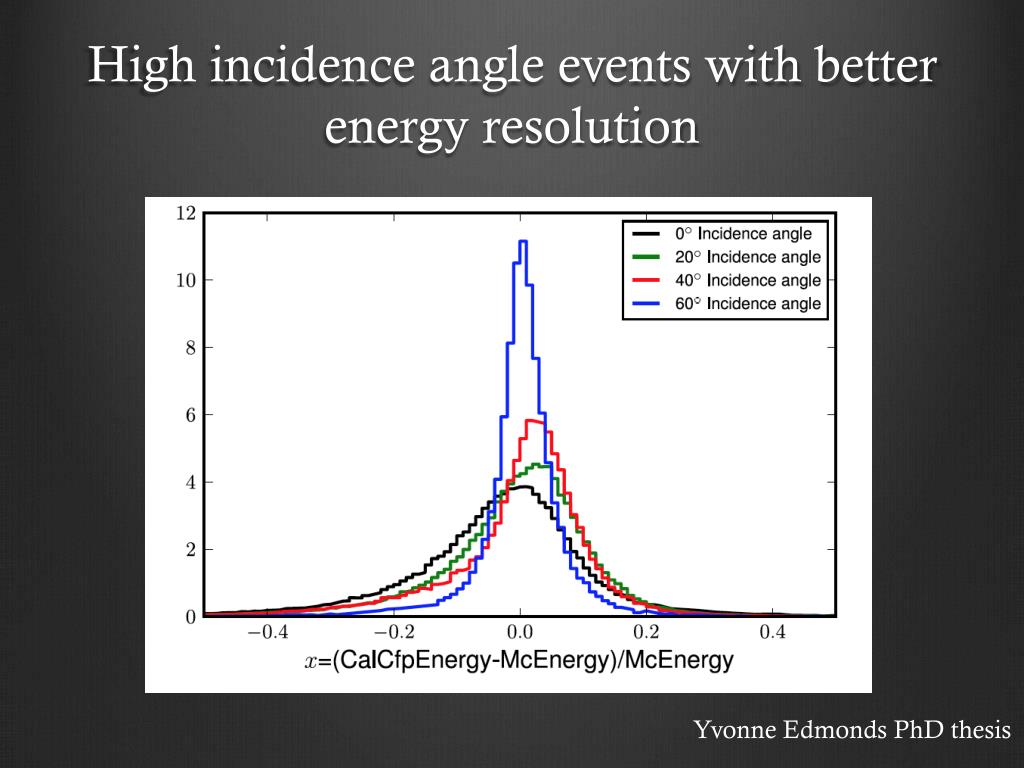

High incidence angle events with better energy resolution

High incidence angle events with better energy resolution

Yvonne Edmonds PhD thesis

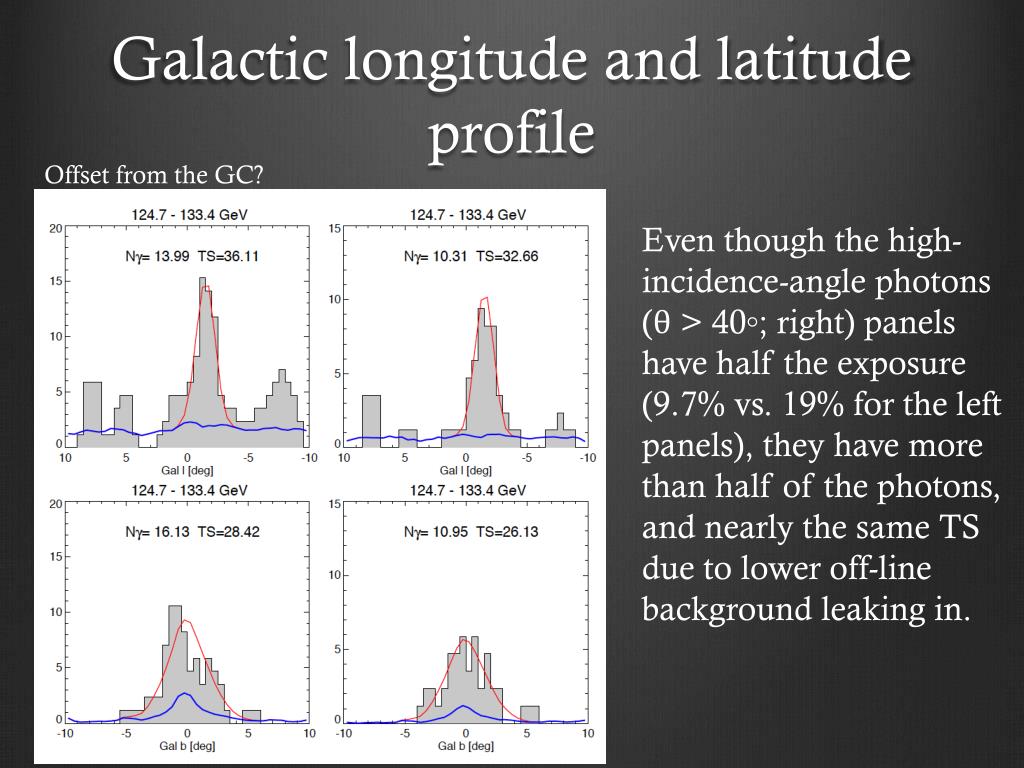

Galactic longitude and latitude profile1

Galactic longitude and latitude profile

Offset from the GC?

Even though the high-incidence-angle photons (θ > 40◦; right) panels have half the exposure (9.7% vs. 19% for the left panels), they have more than half of the photons, and nearly the same TS due to lower off-line background leaking in.


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

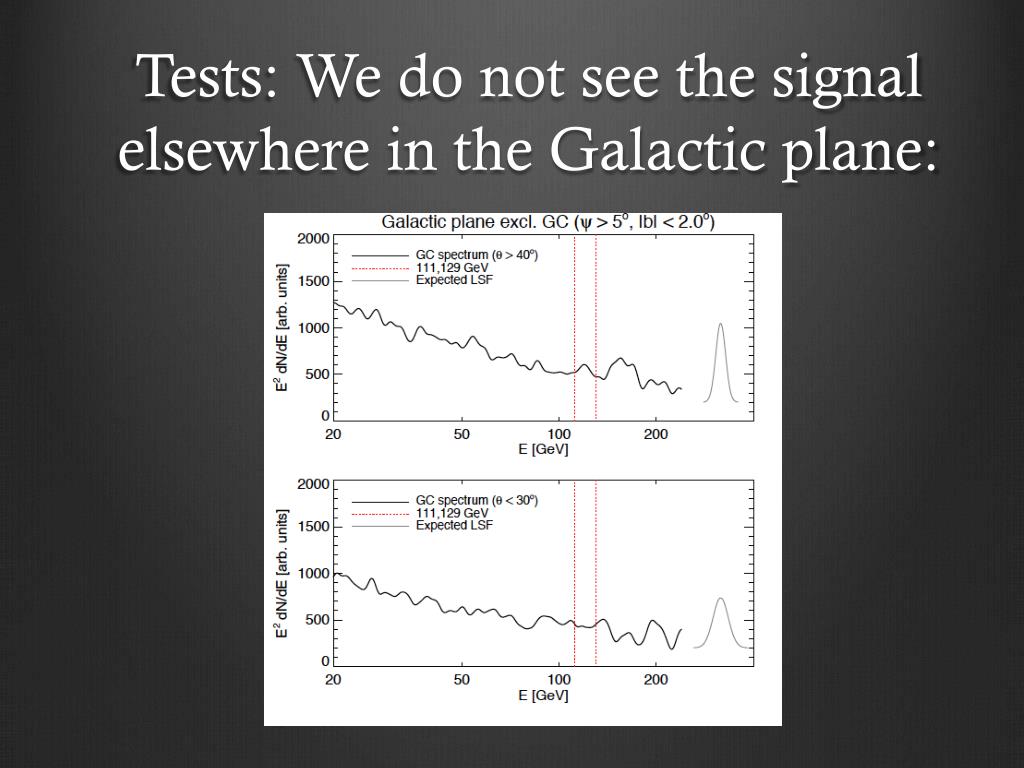

Tests: We do not see the signal elsewhere in the Galactic plane:

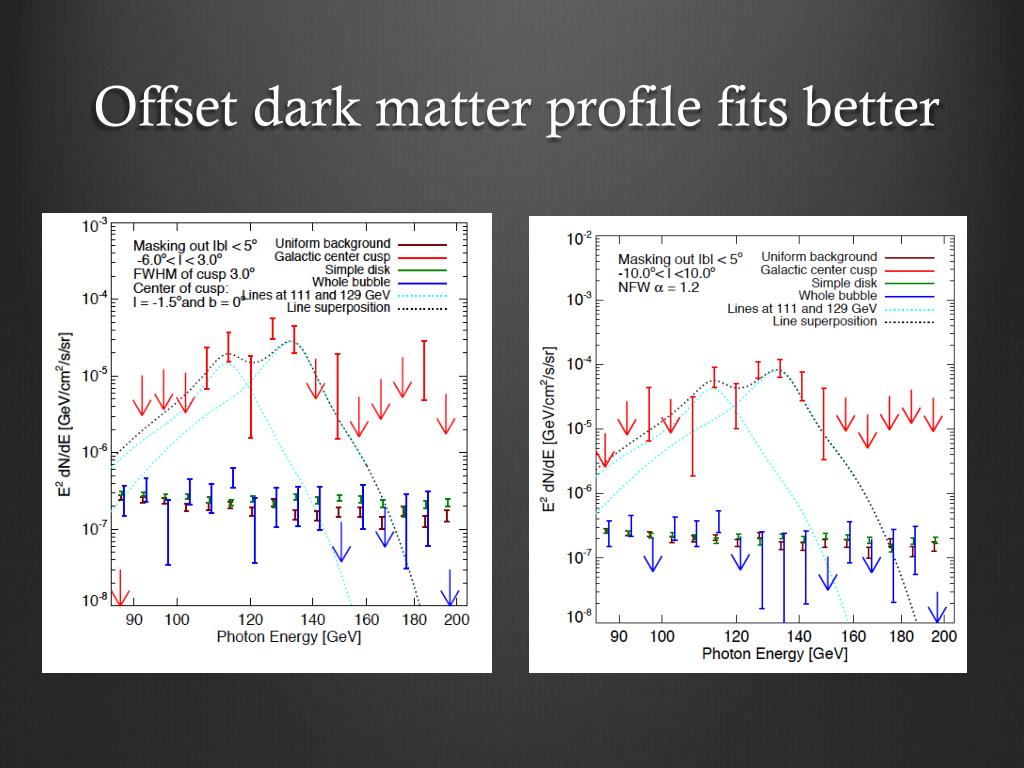

Offset dark matter profile fits better

Offset dark matter profile fits better

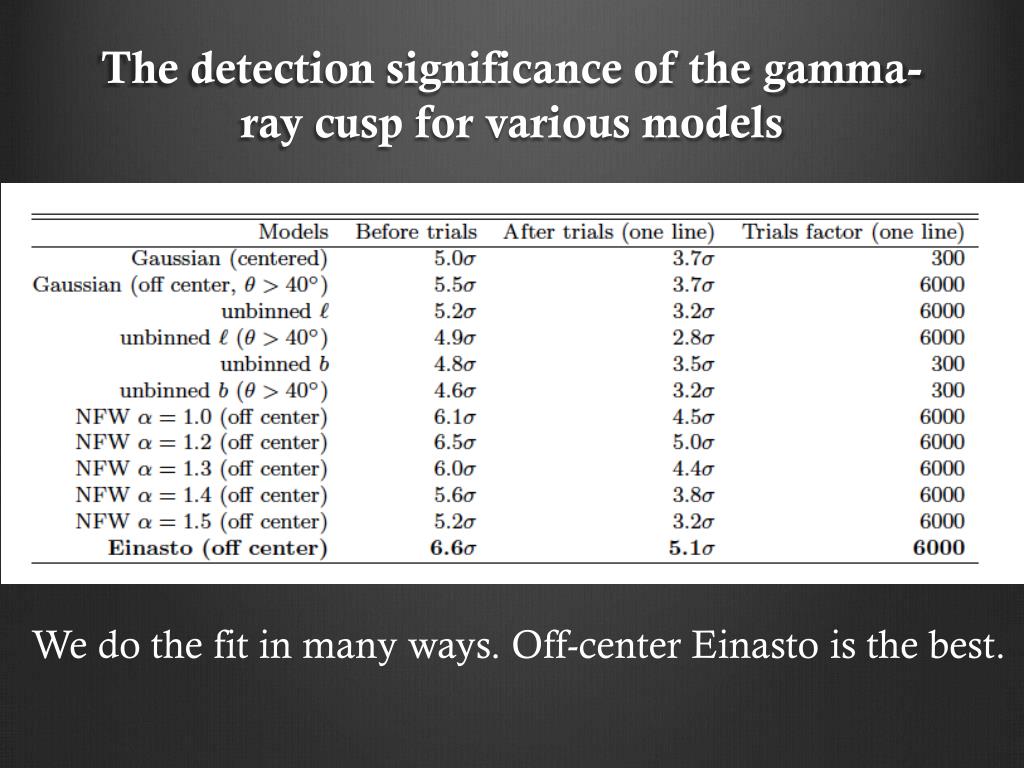

The detection significance of the gamma ray cusp for various models

The detection significance of the gamma-ray cusp for various models

We do the fit in many ways. Off-center Einasto is the best.

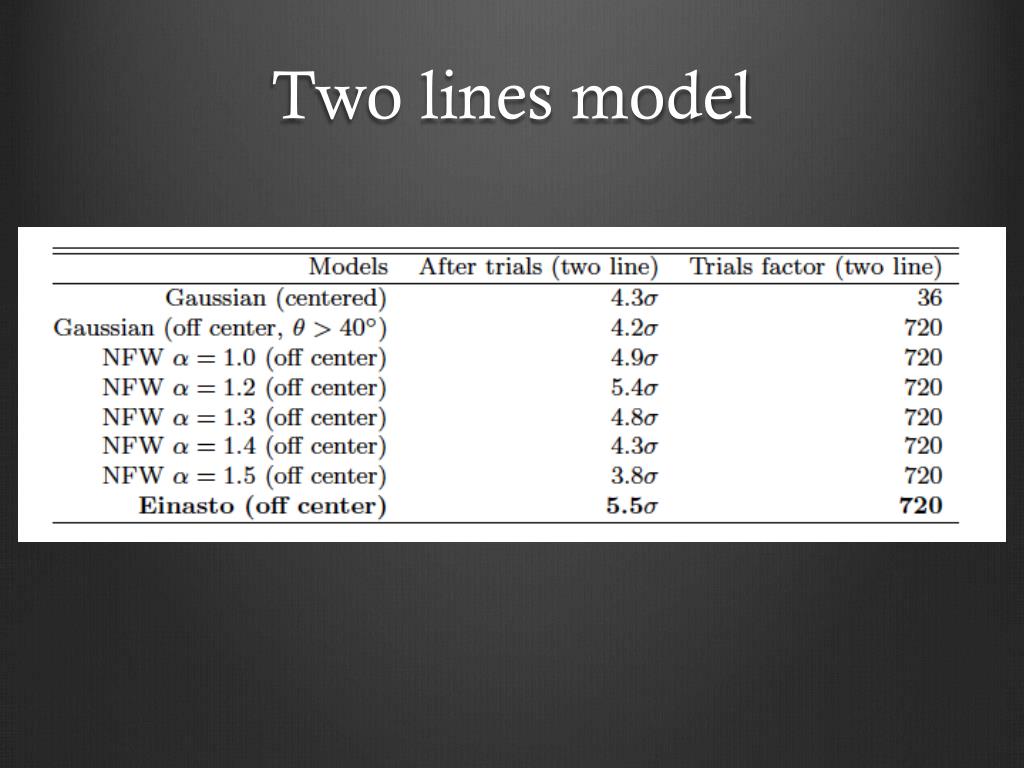

Two lines model

Two lines model


Assessment of line profile

Assessment of line profile

• The 129 GeV feature shape is strikingly similar to that expected for a line. The 111 GeV feature is

unconvincing, but is also compatible with a line.

• In some cases, fluctuations appear, but are not present in both low and high incidence spectra.

• This test did not have to succeed. The fact that the high-incidence photon sample has sharper spectral features is important.


A modified survey strategy for fermi

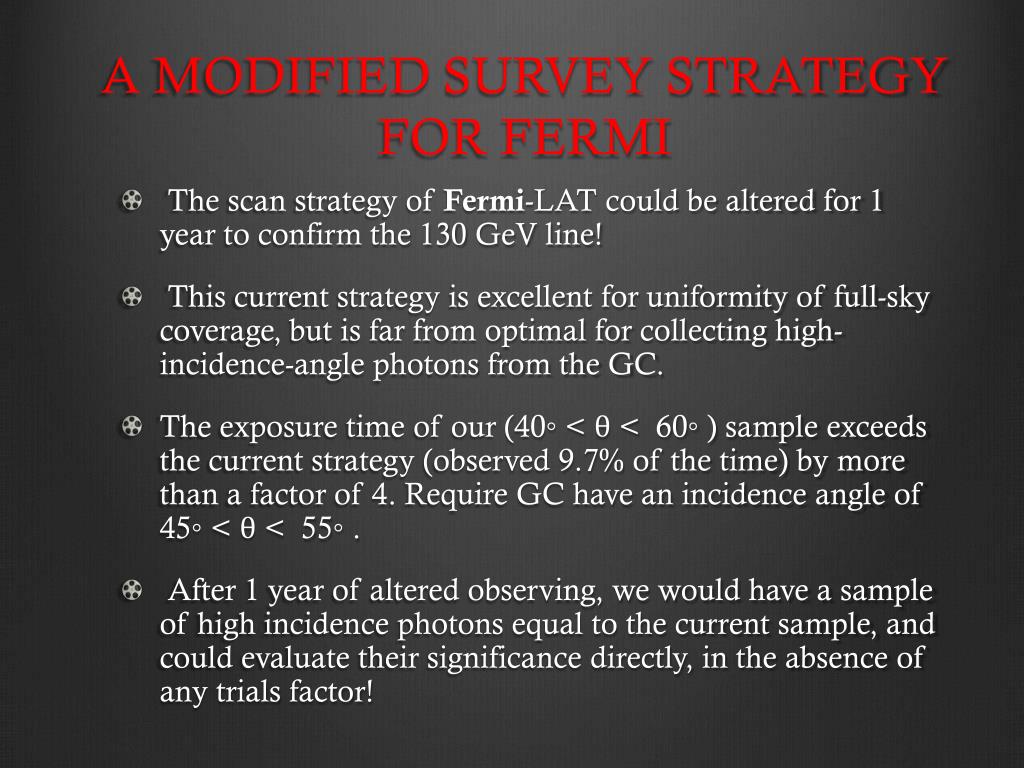

A MODIFIED SURVEY STRATEGY FOR FERMI

  • Thescan strategy of Fermi-LAT could be altered for 1 year to confirm the 130 GeV line!

  • This current strategy is excellent for uniformity of full-sky coverage, but is far from optimal for collecting high-incidence-angle photons from the GC.

  • The exposure time of our (40◦ < θ < 60◦ ) sample exceeds the current strategy (observed 9.7% of the time) by more than a factor of 4. Require GC have an incidence angle of 45◦ < θ < 55◦ .

  • After 1 year of altered observing, we would have a sample of high incidence photons equal to the current sample, and could evaluate their significance directly, in the absence of any trialsfactor!


What can go wrong

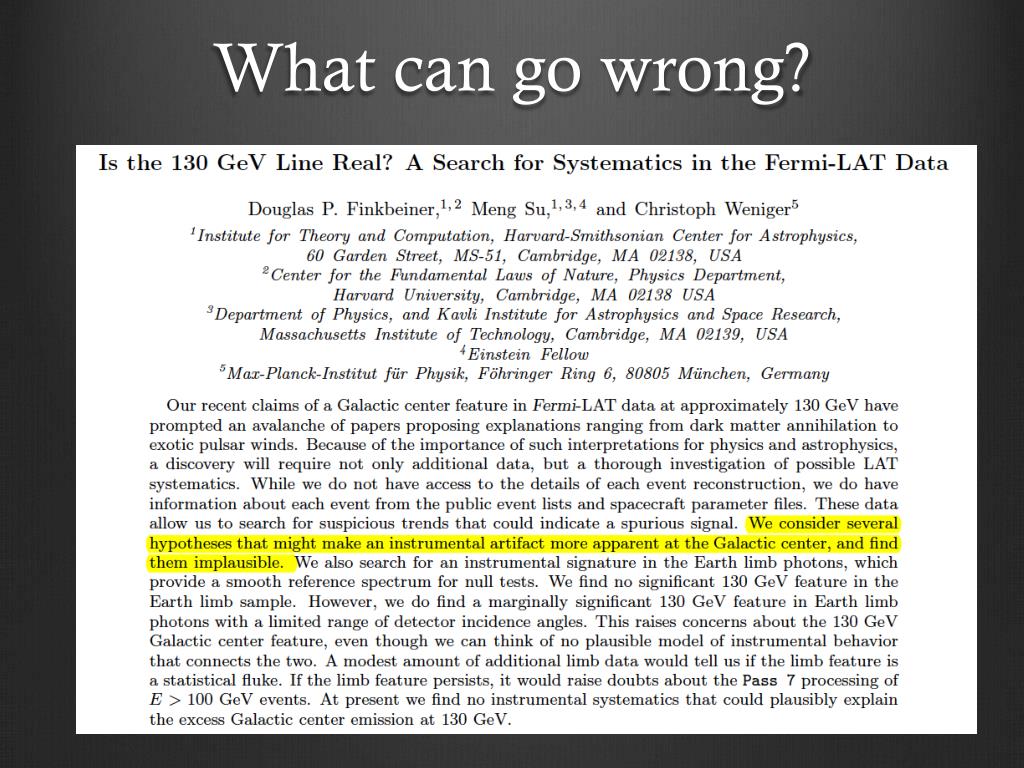

What can go wrong?


Peculiarities of the galactic center observation

Peculiarities of the Galactic center observation?


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

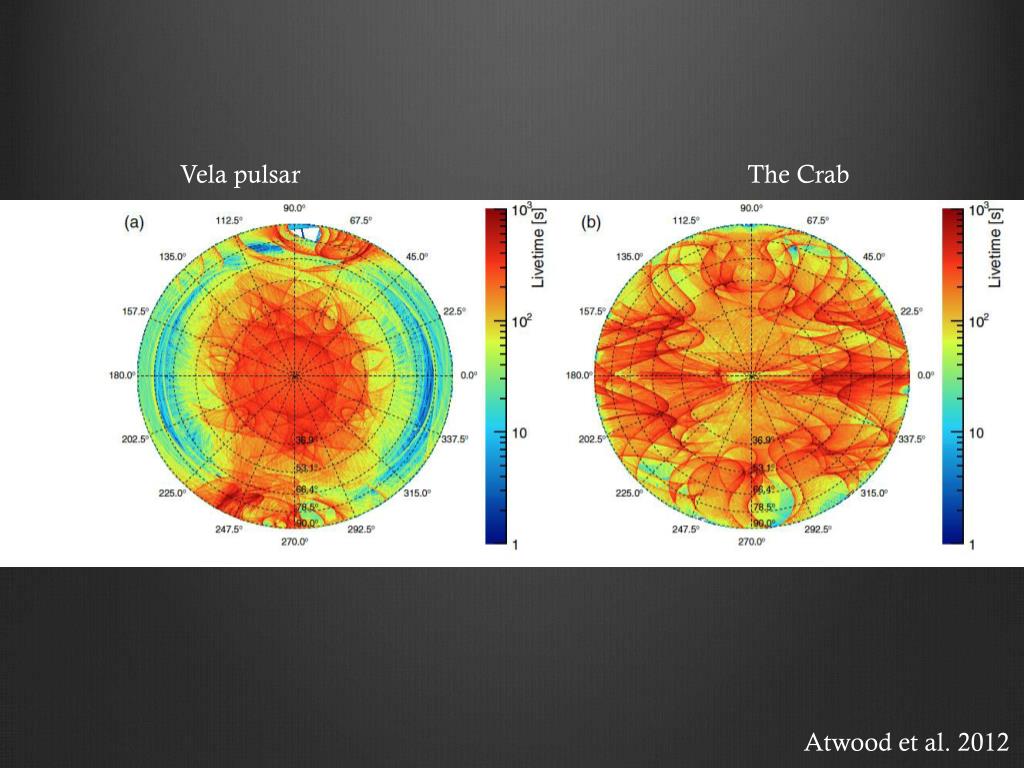

Vela pulsar The Crab

Atwood et al. 2012

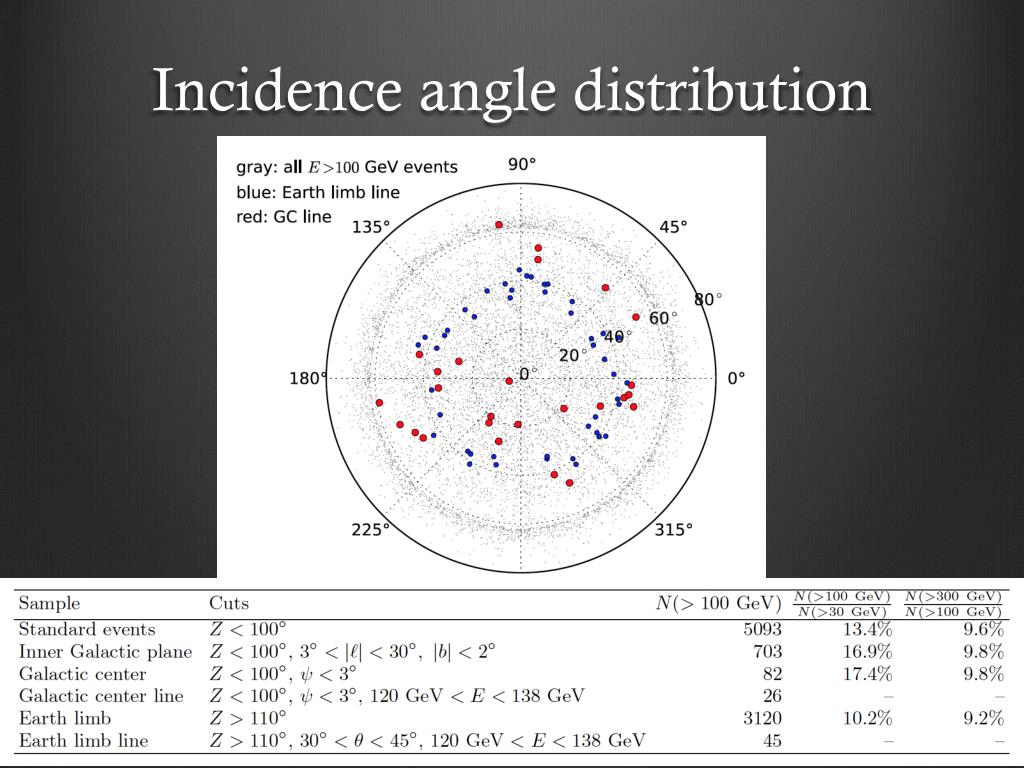

Incidence angle distribution

Incidence angle distribution


Hypothesis 1 the galactic center is bright so instrumental artifacts are more significant there

Hypothesis 1: The Galactic center is bright, soinstrumental artifacts are more significant there


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Credit: HESS Collaboration; NASA/UMass/D.Wang et al.


Hypothesis 1 the galactic center is bright so instrumental artifacts are more significant there1

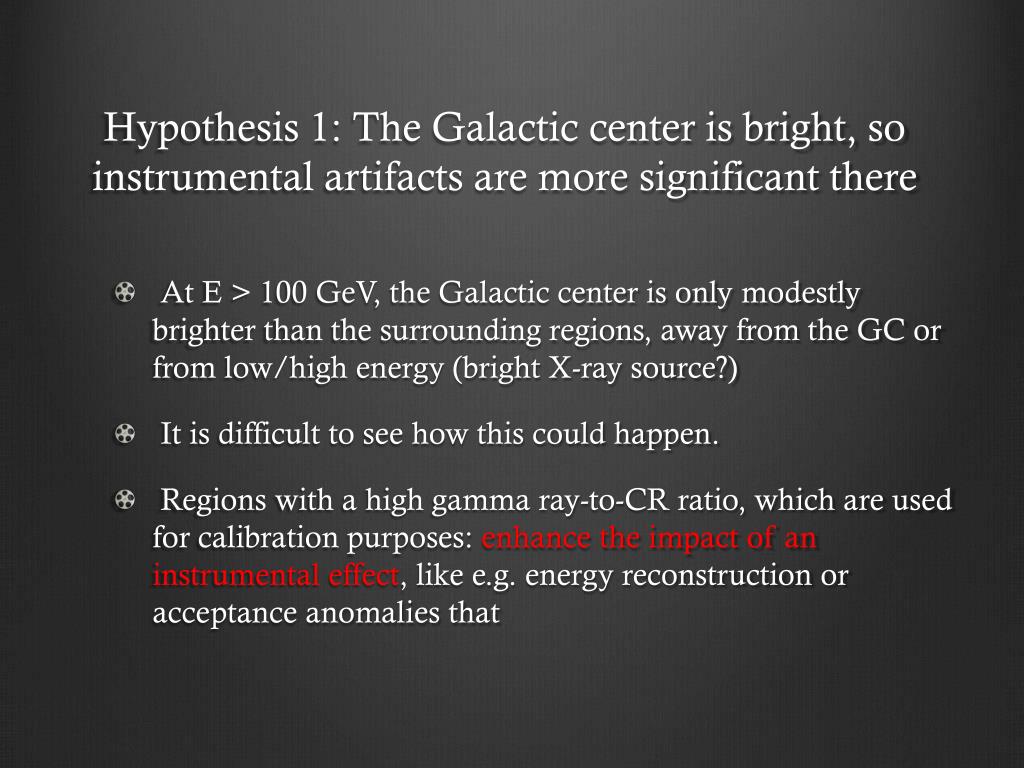

Hypothesis 1: The Galactic center is bright, soinstrumental artifacts are more significant there

  • At E > 100 GeV, the Galactic center is only modestly brighter than the surrounding regions, away from the GC or from low/high energy (bright X-ray source?)

  • It is difficult to see how this could happen.

  • Regions with a high gamma ray-to-CR ratio, which are used for calibration purposes: enhance the impact of an instrumental effect, like e.g. energy reconstruction or acceptance anomalies that

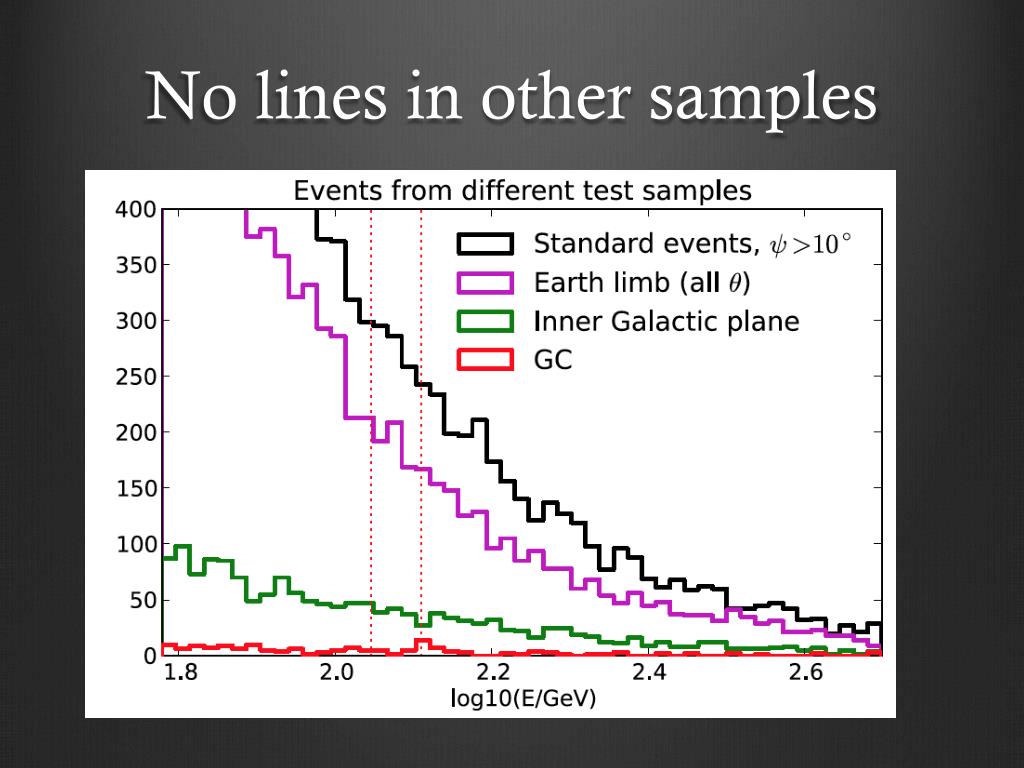

No lines in other samples

No lines in other samples

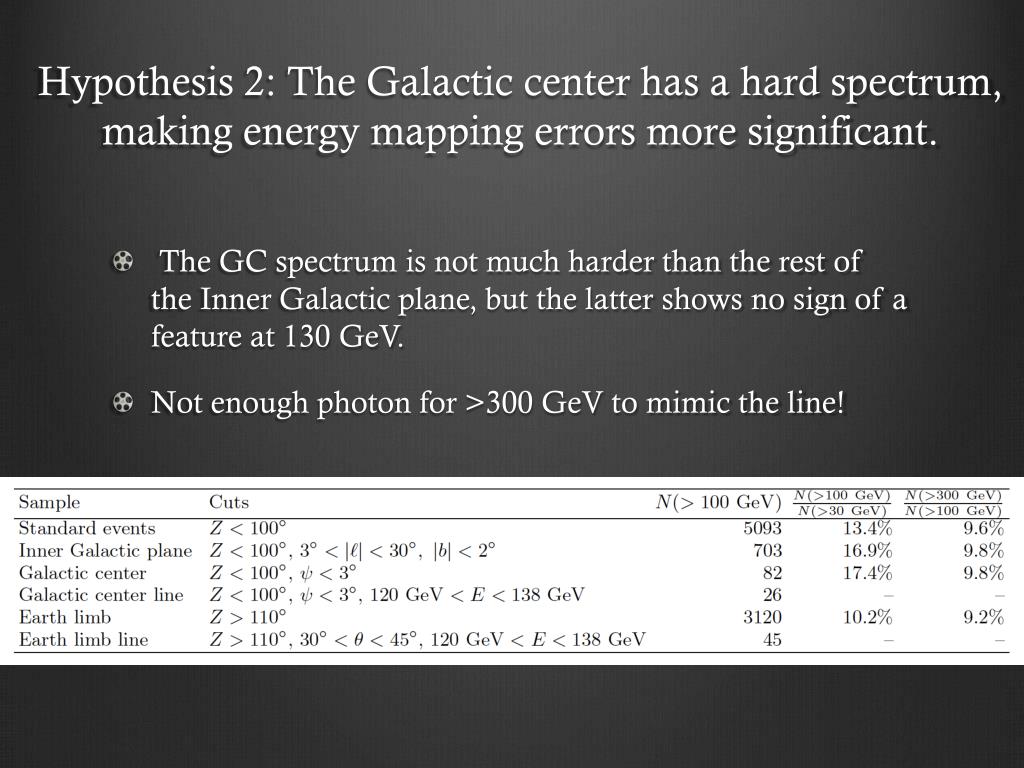

Hypothesis 2 the galactic center has a hard spectrum making energy mapping errors more significant

Hypothesis 2: The Galactic center has a hard spectrum, making energy mapping errors more significant.

  • The GC spectrum is not much harder than the rest of the Inner Galactic plane, but the latter shows no sign of a feature at 130 GeV.

  • Not enough photon for >300 GeV to mimic the line!


Hypothesis 3 the gc observations have a restricted range of incidence angles on the instrument

Hypothesis 3: the GC observations have a restricted rangeof incidence angles on the instrument.

  • Instrumental problems could be projected onto the Galactic center simply for geometric reasons

  • In Dec (Jun) the Sun passes near the Galactic center (anticenter), solar panels orientation determines the GC direction is close to the Sun!


How reconstruction works

How reconstruction works?


Parameterize the shower profile

Parameterize the shower profile

  • Energy leakage requires extensive modeling of showers for energy reconstruction

From TomiYlinen’sthsis


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

  • Modeling of the longitudinal and transverse profiles of electromagnetic showers and on the modeling of the development of the showers through the LAT calorimeter.

The shower maximum is not well contained is ∼ 25% for photons at 100 GeV

Philippe Bruel et al. (2012)


Shower longitudinal transverse profile parameterization

Shower longitudinal (transverse) profile parameterization

Philippe Bruel et al. (2012)

Simulation of CsIcalorimeter with GEANT4


Performance of the shower profile fit bias left resolution center shower containment

Performance of the shower profile fit: bias (left), resolution (center), shower containment

Philippe Bruel et al. (2012)


How to test

How to test?


Earth limb photons

“Earth limb” photons

The Fermi-LAT collaboration (2009)


Subsample from high incident angle events

Subsample from high incident angle events

What’s that?


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

So it looks like there a 3.3 sigma (4.7 sigma?) detection of an artifact in the Fermi data, but only for incidence angles 30-45 degrees

Dip in energy response?


The earth limb line and correlations with the gc signal

The Earth limb line and correlations with the GC signal

  • The majority of high-incidence limb events appear near the orbital pole


Timing correlation

Timing correlation


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

But we see no way this can be the explanation. Even if we discard all events with 30 < theta < 45, we get 4 sigma:


How about the offset from the galactic center

How about the offset from the Galactic center?


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Kuhlen et al., arXiv:1208.4844 “Eris” simulation, run with Gasoline n-body codeCosmological zoom-in simulation of a MW-like galaxy.

The region of highest DM density (X) is away from the

dynamical center of the simulation, by 2.5 smoothing

Lengths. This offset is typical over billions of years.


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

The region of highest DM density (X) is away from the

dynamical center of the simulation, by 2.5 smoothing

lengths.

This offset is typical over billions of years.


But a central core

But: a central core?


Eris conclusions

Eris conclusions:

  • The Kuhlen et al. paper suggests that the distribution of DM in the center of a barred spiral is nontrivial, and the point of maximum density may not (always) be at the center.

  • However, it is not clear at all that this solves our problem with the 130 GeV feature.


Lines at the same energy from other regions of the sky might help

Lines at the same energy from other regions of the sky might help…


Double gamma ray lines from unassociated fermi lat sources

DOUBLE GAMMA-RAY LINES FROM UNASSOCIATED FERMI-LAT SOURCES

Su & Finkbeiner(arXiv:1207.7060)


Background estimation

Background estimation

Su & Finkbeiner(arXiv:1207.7060)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Su & Finkbeiner(arXiv:1207.7060)


No such feature from faint agns

No such feature from faint AGNs


The line ratio is consistent

The line ratio is consistent


What s the future

What’s the future?


Hess ii expected performance in the tens of gev

HESS-II expected performance in the tens of GeV

600 m^2 mirror area and a very high resolution camera.

lower the energy threshold from 100 GeV to about 30 GeV and enhance the HESS sensitivity.

Image Credit: H.E.S.S. Collaboration, Frikkie van Greunen

HESS collaboration, ICRC2009


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Line detection sensitivity

Bergstrom et al. (arXiv: 1207.6773)


Pass 7 reprocessed data

Pass 7 reprocessed data

  • •  LAT team have reprocessed the data with updated calorimeter response calibration

    • –  Updated light yield calibration in each crystal -> affects energy reconstruction

    • –  Light asymmetry calibration -> affects position resolution, thus improves PSF at high energies

  • •  Impacts and changes– PSF at high energies is improved– Up to 5% shift in the energy scale (time and energy dependent) – Spectrum of background contamination has changed


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

Gamma-400 (planned launch 2017-2018)

Galperet al. (2012)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

DAMPE (2015)

The detector will be composed of a telescope (red layers in left figure) and an EM calorimeter.

The EM calorimeter will be composed of 576 BGO crystal bars with dimensions of 2.5 cm×2.5 cm×30cm.

The BGO crystals form 12 layers with an area of about 60cm×60 cm each. The r.l is ~27.

There will be also Silicon detector on the top for charge and position measurement

Total thickness is 34.5 r.l.

G.F. 0.5m2.sr

Total weight 1.5 tons

J. Chang (DSU 2011)


Recent evidence for gamma ray line emission from fermi lat data dark matter or artifact

CALET (2014)


Conclusions

Conclusions:

  • The line signal is not a discovery yet.- need more data (trials factors!)- can change survey strategy to get it fast

  • Want to know:- Is the cusp really off center?- are there two lines (or more)?

  • Doubling the data will address these questions...


  • Login
