Pichia pastoris Lysyl Oxidase (PPLO)

Pichia pastoris Lysyl Oxidase (PPLO). Copper amine oxidases. The structure of PPLO. Copper amine oxidases (CAOs) are ubiquitous metalloenzymes catalyzing the oxidative deamination of amines to aldehydes and ammonia: RCH 2 N H 2 + O 2 + H 2 O  RCHO + N H 3 + H 2 O 2

winda
Download Presentation

Pichia pastoris Lysyl Oxidase (PPLO)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

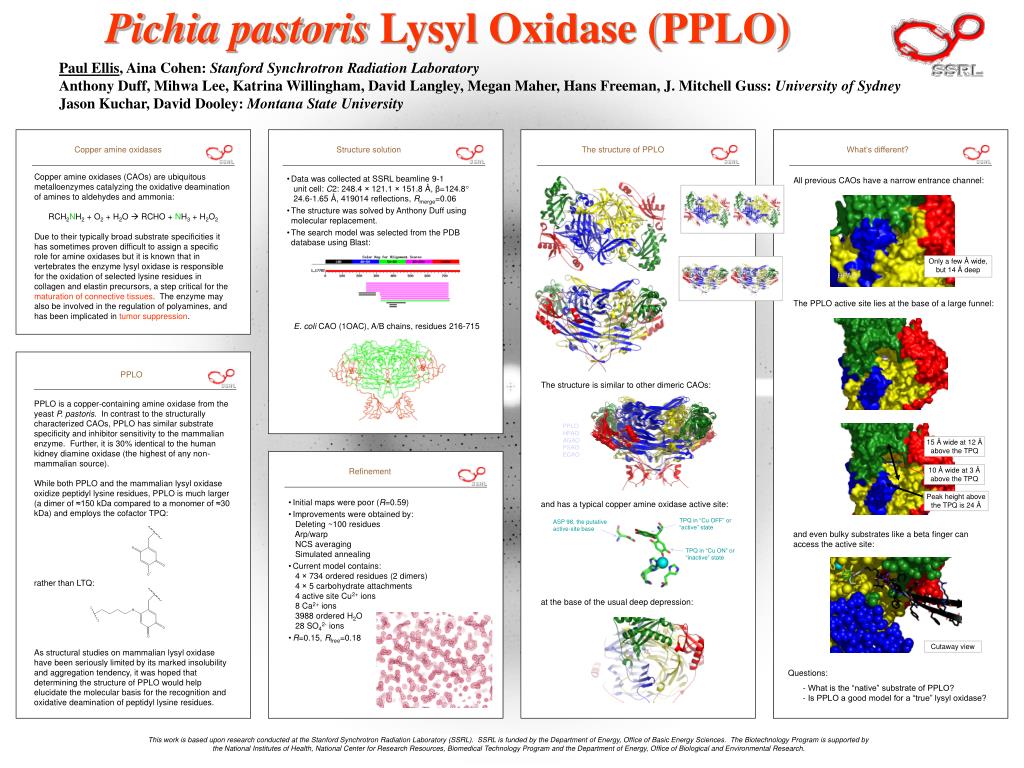

  1. Pichia pastoris Lysyl Oxidase (PPLO) Copper amine oxidases The structure of PPLO Copper amine oxidases (CAOs) are ubiquitous metalloenzymes catalyzing the oxidative deamination of amines to aldehydes and ammonia: RCH2NH2 + O2 + H2O  RCHO + NH3 + H2O2 Due to their typically broad substrate specificities it has sometimes proven difficult to assign a specific role for amine oxidases but it is known that in vertebrates the enzyme lysyl oxidase is responsible for the oxidation of selected lysine residues in collagen and elastin precursors, a step critical for the maturation of connective tissues. The enzyme may also be involved in the regulation of polyamines, and has been implicated in tumor suppression. • Data was collected at SSRL beamline 9-1 unit cell: C2: 248.4 × 121.1 × 151.8 Å, β=124.8 24.6-1.65 Å, 419014 reflections, Rmerge=0.06 • The structure was solved by Anthony Duff using molecular replacement. • The search model was selected from the PDB database using Blast: E. coli CAO (1OAC), A/B chains, residues 216-715 The structure is similar to other dimeric CAOs: Structure solution PPLO HPAO AGAO PSAO ECAO Refinement • Initial maps were poor (R=0.59) • Improvements were obtained by: Deleting ~100 residues Arp/warp NCS averaging Simulated annealing • Current model contains: 4 × 734 ordered residues (2 dimers) 4 × 5 carbohydrate attachments 4 active site Cu2+ ions 8 Ca2+ ions 3988 ordered H2O 28 SO42- ions • R=0.15, Rfree=0.18 and has a typical copper amine oxidase active site: TPQ in “Cu OFF” or “active” state ASP 98, the putative active-site base TPQ in “Cu ON” or “inactive” state at the base of the usual deep depression: Paul Ellis, Aina Cohen: Stanford Synchrotron Radiation Laboratory Anthony Duff, Mihwa Lee, Katrina Willingham, David Langley, Megan Maher, Hans Freeman, J. Mitchell Guss: University of Sydney Jason Kuchar, David Dooley: Montana State University What’s different? All previous CAOs have a narrow entrance channel: Only a few Å wide,but 14 Å deep HPAO The PPLO active site lies at the base of a large funnel: PPLO PPLO is a copper-containing amine oxidase from the yeast P. pastoris. In contrast to the structurally characterized CAOs, PPLO has similar substrate specificity and inhibitor sensitivity to the mammalian enzyme. Further, it is 30% identical to the human kidney diamine oxidase (the highest of any non-mammalian source). While both PPLO and the mammalian lysyl oxidase oxidize peptidyl lysine residues, PPLO is much larger (a dimer of ≈150 kDa compared to a monomer of ≈30 kDa) and employs the cofactor TPQ: rather than LTQ: As structural studies on mammalian lysyl oxidase have been seriously limited by its marked insolubility and aggregation tendency, it was hoped that determining the structure of PPLO would help elucidate the molecular basis for the recognition and oxidative deamination of peptidyl lysine residues. 15 Å wide at 12 Å above the TPQ 10 Å wide at 3 Å above the TPQ Peak height above the TPQ is 24 Å and even bulky substrates like a beta finger can access the active site: Cutaway view Questions: - What is the “native” substrate of PPLO? - Is PPLO a good model for a “true” lysyl oxidase? This work is based upon research conducted at the Stanford Synchrotron Radiation Laboratory (SSRL). SSRL is funded by the Department of Energy, Office of Basic Energy Sciences. The Biotechnology Program is supported bythe National Institutes of Health, National Center for Research Resources, Biomedical Technology Program and the Department of Energy, Office of Biological and Environmental Research.
