1 / 9

1) The angles of elevation to the top of a mountain are measured from beacons A and B, at sea.

Material Taken From: Mathematics for the international student Mathematical Studies SL Mal Coad , Glen Whiffen , John Owen, Robert Haese , Sandra Haese and Mark Bruce Haese and Haese Publications, 2004. Chapter 10 – Section I: Using the Sine and Cosine Rule.

wilton
Download Presentation

1) The angles of elevation to the top of a mountain are measured from beacons A and B, at sea.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Material Taken From:Mathematicsfor the international student Mathematical Studies SLMal Coad, Glen Whiffen, John Owen, Robert Haese, Sandra Haese and Mark BruceHaese and Haese Publications, 2004

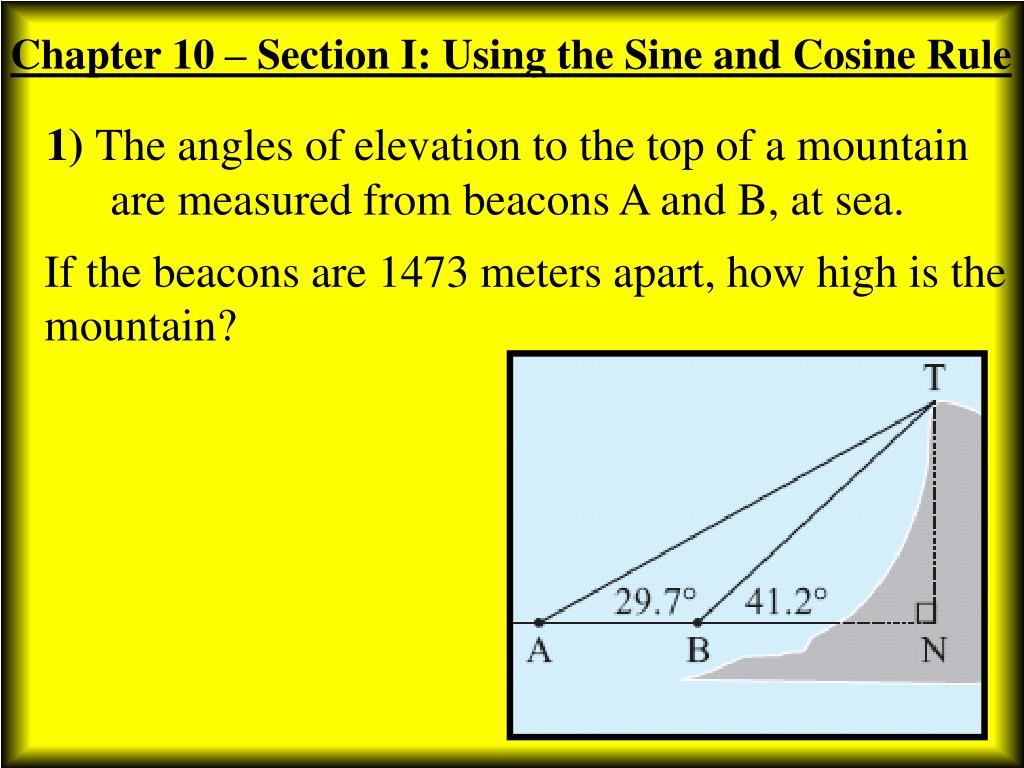

  2. Chapter 10 – Section I: Using the Sine and Cosine Rule 1) The angles of elevation to the top of a mountain are measured from beacons A and B, at sea. If the beacons are 1473 meters apart, how high is the mountain?

  3. 2) A roadway is horizontal for 524m from A to B, followed by a 23° incline 786m long from B to C. How far is it directly from A to C?

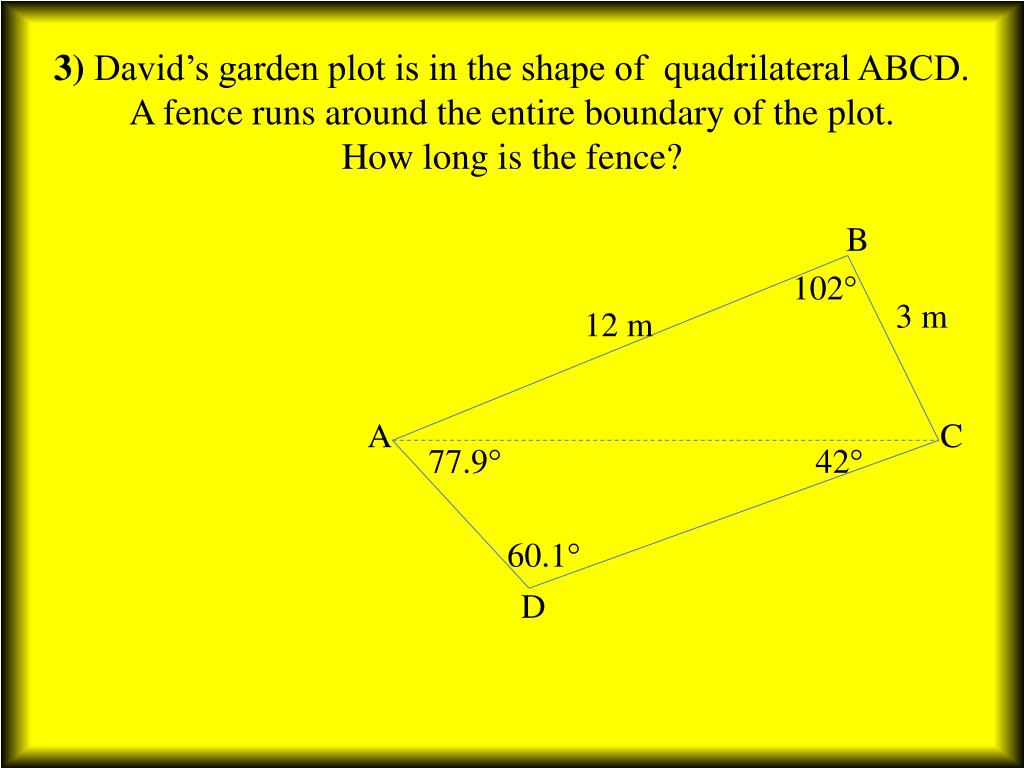

  4. 3) David’s garden plot is in the shape of quadrilateral ABCD. A fence runs around the entire boundary of the plot. How long is the fence? B 102° 3 m 12 m A C 77.9° 42° 60.1° D

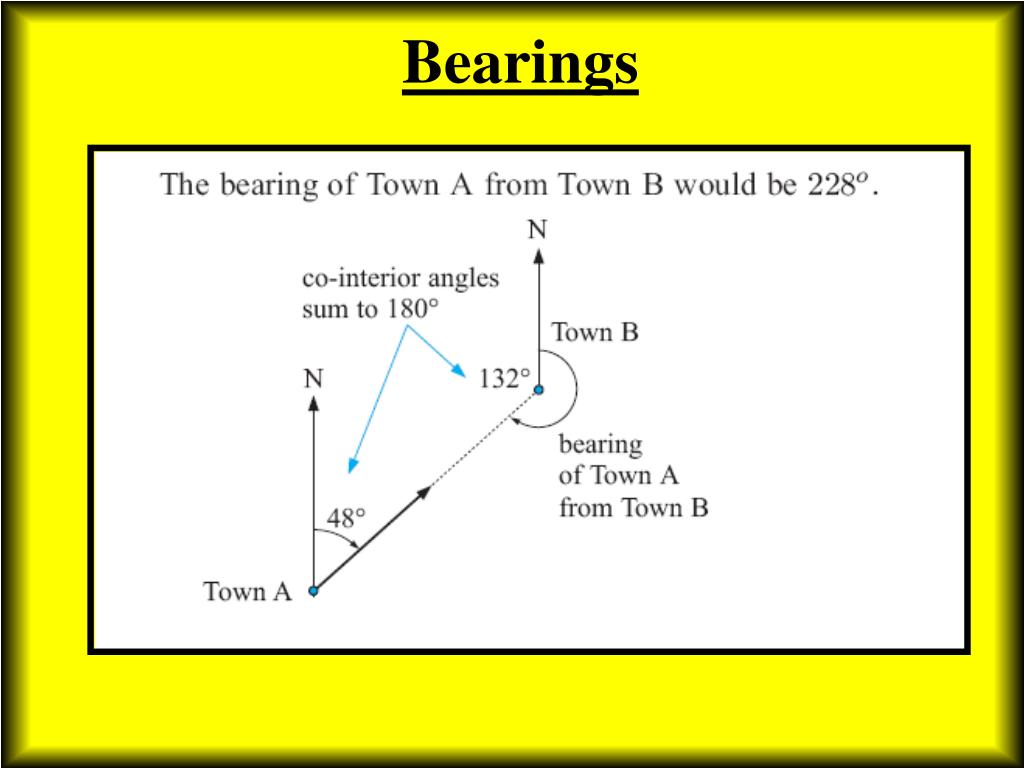

  5. Bearings

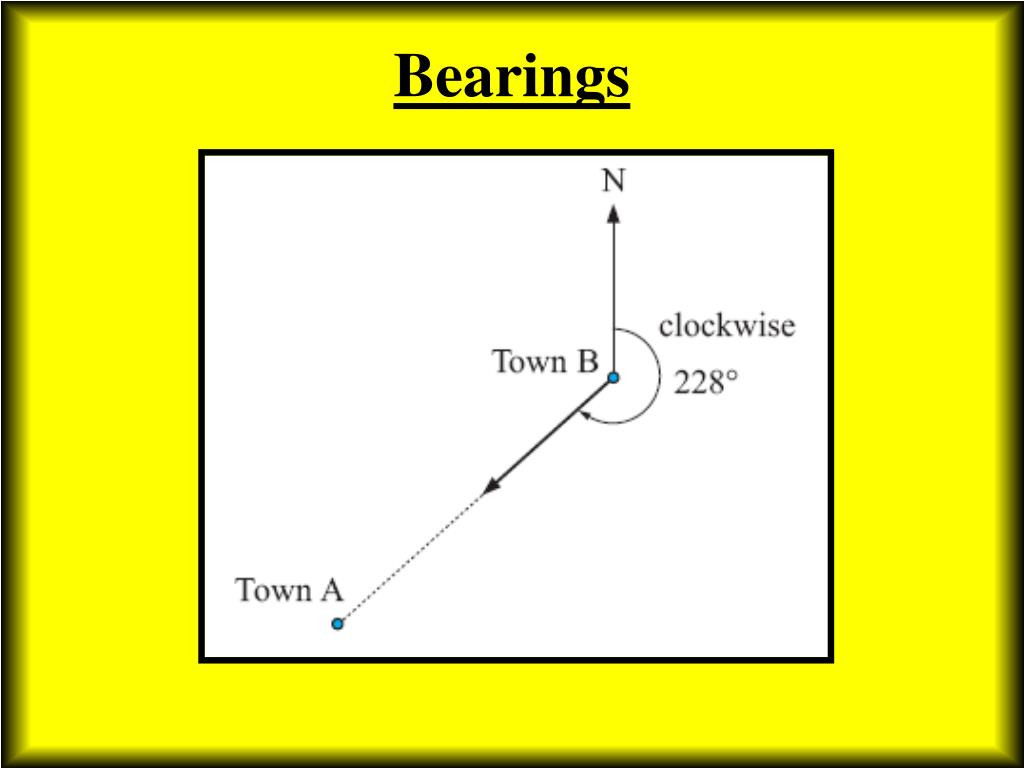

  6. Bearings

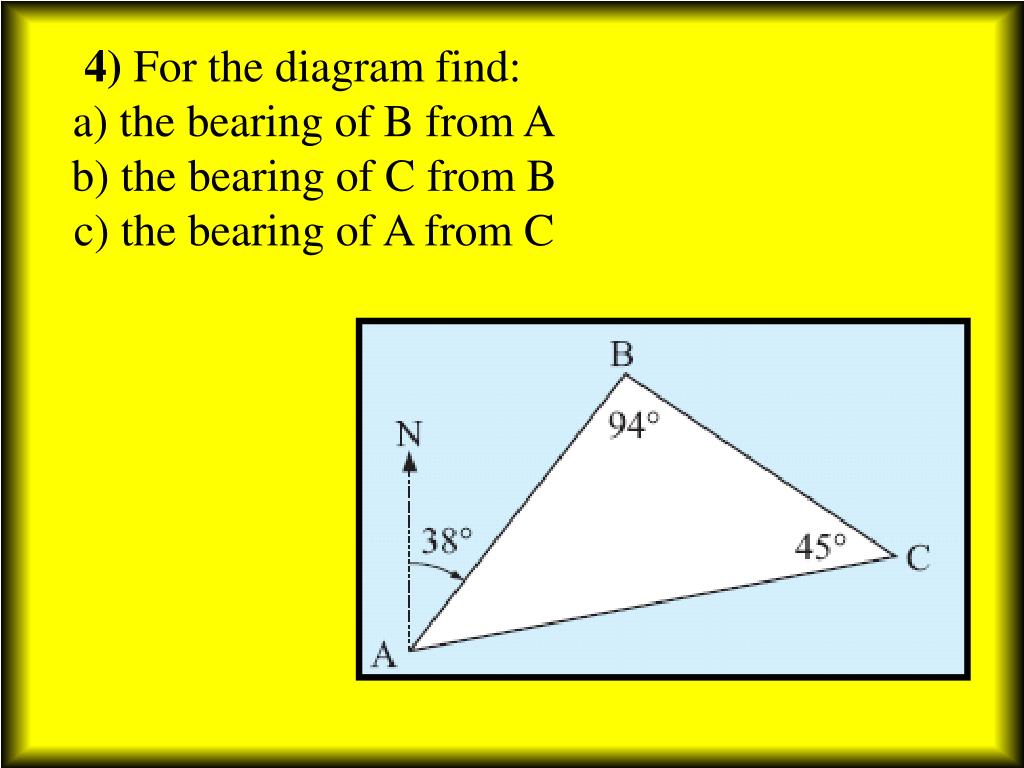

  7. 4) For the diagram find: a) the bearing of B from A b) the bearing of C from B c) the bearing of A from C

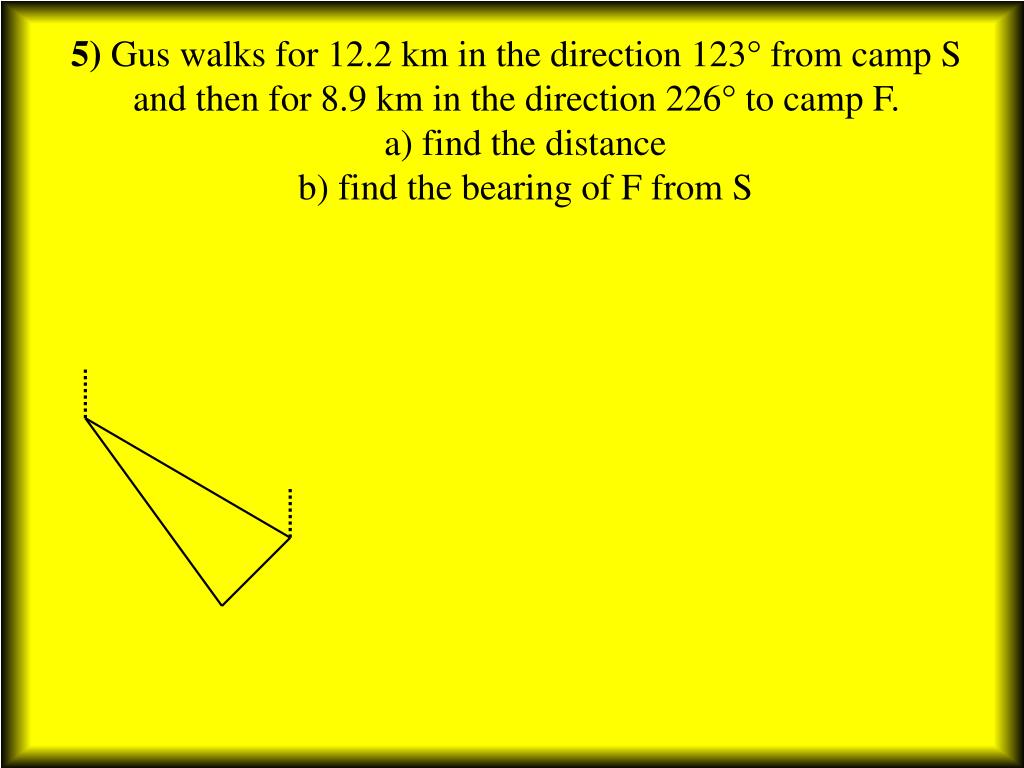

  8. 5) Gus walks for 12.2 km in the direction 123° from camp S and then for 8.9 km in the direction 226° to camp F. a) find the distance b) find the bearing of F from S

  9. Homework • Exercise 10I.1, pg 344 • #1, 2, 4 • Exercise 10I.2, pg347 • #3, 5, 8, 9
