  1. Scaling Down - The Optimal Choice? Fritz B. Prinz Departments of Mechanical Engineering and Materials Science and Engineering Stanford University Stanford, CA 94 305

  2. Outline • Scaling laws • Physics • Engineering performance (power, power density) • Mechanical tolerances • Manufacturing Processes • Examples • Turbine engine • Mites (millimeter sized flaps) • Mesicopter

  3. A World Apart 10-4mm-1 10-1mm-1 104 - 102

  4. Scaling of Strength and Stiffness Failure Load Failure Load per Weight Bending Stiffness per Weight Beam

  5. Scaling of Moving Objects • Find relation between: • Mass m • Length l • Time t

  6. Physics of Scaling(forget heat loss)

  7. Scaling of Length and Time k = 2 elastic K= -1 electro - static motor, gravity (Kepler’s third law)

  8. Scaling of Mass For v << c Relativisitic:

  9. Scaling of Power

  10. Electro Static Motors In theory: Assuming all dimensions e.g. gaps can be scaled down

  11. Constant Field In practice: E = constant

  12. Scaling of Critical Dimensions? Electro static /magnetic motors l Tolerance

  13. A Manufacturing Issue Determined by manufacturing process Determines quality of machine Traditional mechanical machines Integrated circuits May not be achievable Even

  14. Turbine Combustion Engines Power Density (1/l) - Thrust to Weight T/W = 5.6 T/W= 7.6

  15. Operating Temp. (OC) Current (metal) design Design incorporating ceramics M-Dot Micro Engine for Drone Aircraft Weight (g) Thrust-to-weight ratio Thrust (N)

  16. Shape Deposition Manufacturing ( SDM) From RP and CNC to . . . RP CNC 1960 1990 2000

  17. Sangkyun Kang: Mold Shape Deposition Manufacturing • Builds wax molds via SDM using Soldermask temporary part material • Gel cast ceramic slurry into • sacrificial mold

  18. Ceramic Inlet Nozzle Fully dense Silicon Nitride Strength ~ 400 - 600 Mpa as sintered RMS ~ 0,5 micro meter

  19. ‘Shape Assembled’ Mechanism

  20. Micro Flaps for Aero Elastic Control • Maximize flight time of Unmanned Air Vehicle (UAV) Front view

  21. Suggested Solution • Aeroelastic control using trailing edge effects • Concept • Span-wise lift control via micro-flaps Micro-flaps

  22. Flap Surface 6 mm Airfoil Approach • Design & Manufacture Micro-flaps Requirements • Small size (6 mm) • Large deflection (± 75°) • Frequency (10s HZ) • Material strength

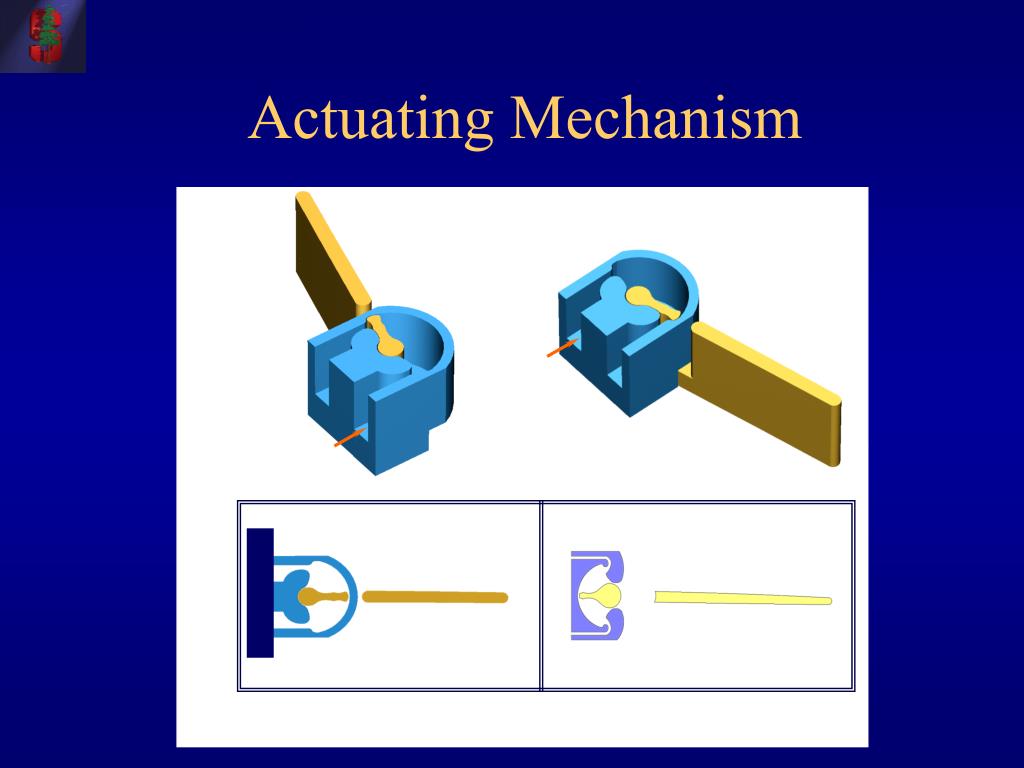

  23. Actuating Mechanism

  24. 1 2 3 5 4 6 Build Sequence in SDM

  25. SDM Fabrication of Multiple Flaps

  26. Micro Flap for Aero - Elastic Control Clearance ~ 50 micron

  27. The Mesicopter: a Miniature Helicopter

  28. Aerodynamics • New results for very low Re airfoils • Very thin sections required • Maximum lift increases as Re decreases below 10,000

  29. Rotor Optimization • Chord, twist, RPM, blade number designed using nonlinear optimization • 3D analysis based on Navier-Stokes section data • Rotor matched with measured motor performance (50 000rpm)

  30. Aerodynamics • Navier-Stokes analysis of rotor sections at unprecedented low Reynolds number • Novel results of interest to Mars airplane program • Nonlinear rotor analysis and optimization code

  31. SDM Rotor Manufacturing 1. Micro-machine bottom surface of rotor on wax 2. Cast epoxy 3. Remove excess epoxy 4. Machine top surface of rotor 5. Melt wax

  32. Scaled Down Mesicopter • Insect-Scale Aerodynamics • 3D Micro-Manufacturing • Power / Control / Sensors

  33. Mesomotor Rotor Stator Anker- spule REM-Aufnahme des 2mm-Motors Explosions- ansicht des Motors

  34. Shaping of Electrodes Sputtering of seed layer SEM Micro- graph of etched silicon Plating SEMMicro- graph of plated electrode

  35. EDM of Amorphous Metals Electro Discharge Machining

  36. Massively Parallel Mechanical Systems One Electro Static Motor Many Electro Static Motors
