  1. Homogeneous Transformation Ref: Richard Paul Chap. 1

  2. Notation • Vector: v • Plane: P • Frame: I, A • Point in space: p • Point p as a vector v in frame E: Ev • Same point as a vector w in frame H: Hw Discussion is in 3-space

  3. Vectors Homogeneous coordinate w Inner (dot) product Outer (cross) product [a,b,c,0]T: point at infinity

  4. [x/w,y/w,z/w] [a/m,b/m,c/m] -d/m Planes Compared with ax+by+cz+d = 0 … Point v on a plane:

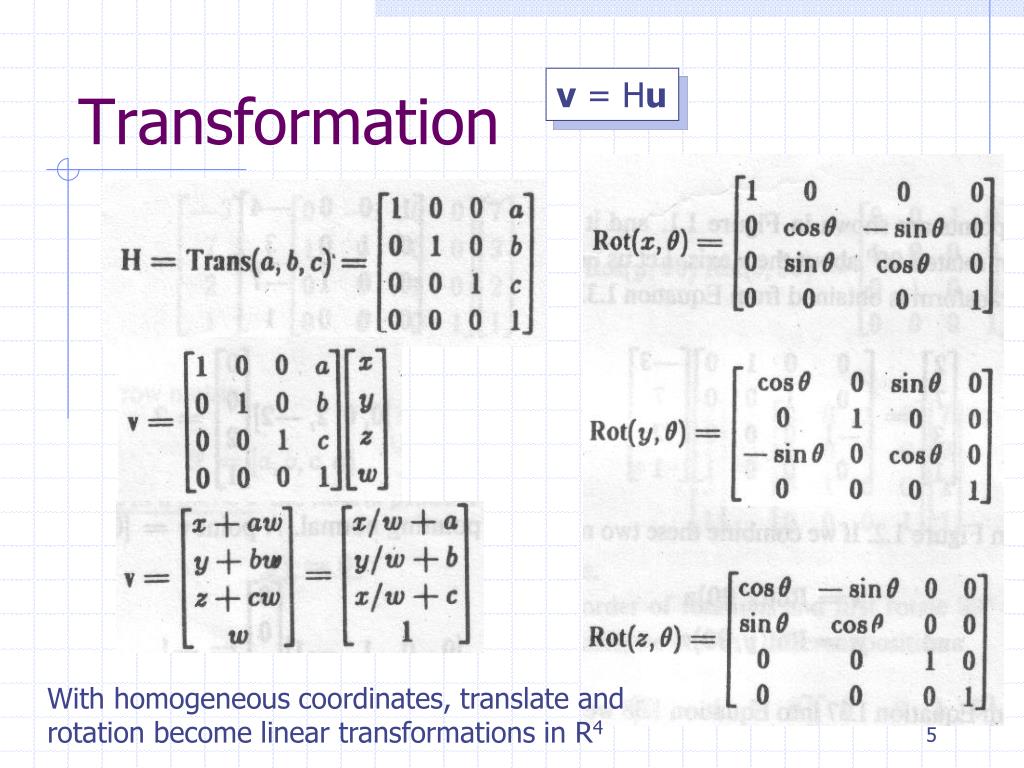

  5. Transformation v = Hu With homogeneous coordinates, translate and rotation become linear transformations in R4

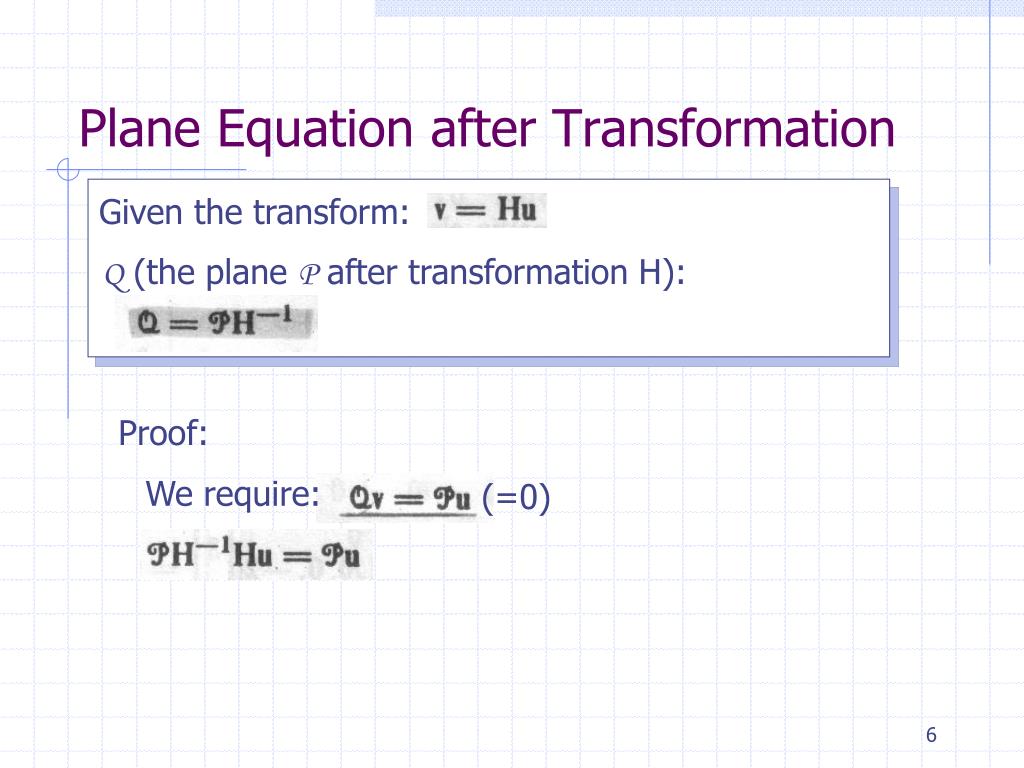

  6. Given the transform: Q (the plane P after transformation H): Plane Equation after Transformation Proof: We require: (=0)

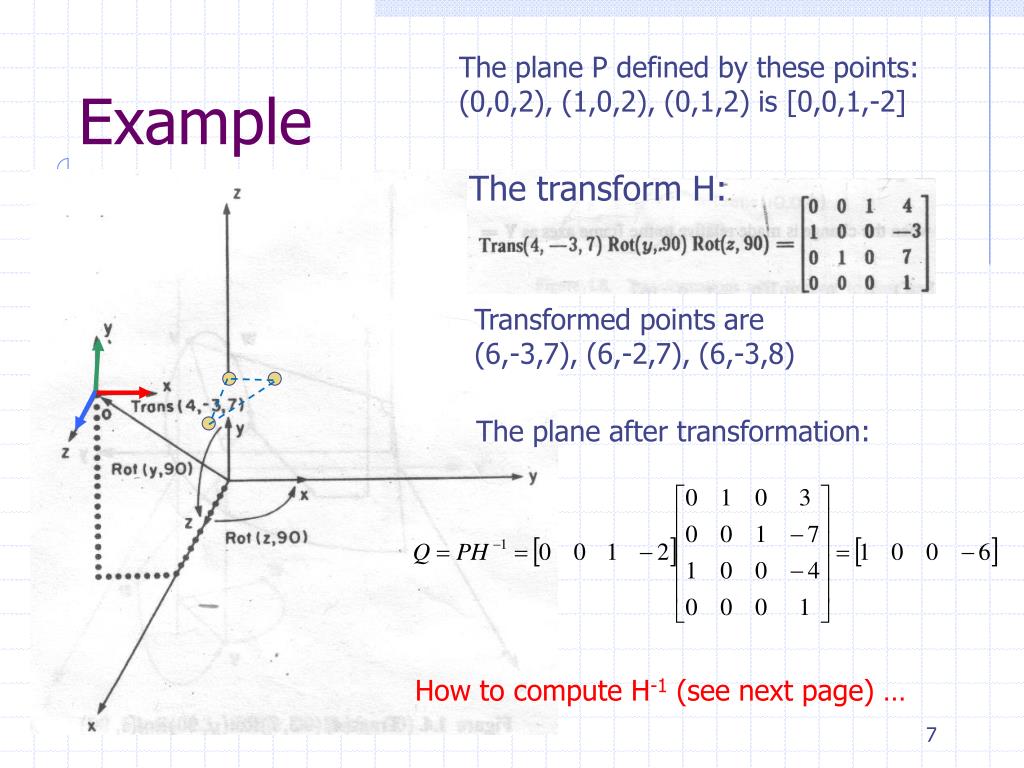

  7. Example The plane P defined by these points: (0,0,2), (1,0,2), (0,1,2) is [0,0,1,-2] The transform H: Transformed points are (6,-3,7), (6,-2,7), (6,-3,8) The plane after transformation: How to compute H-1 (see next page) …

  8. Inverse Transformation Assumption: [n o a] is orthogonal Verify:

  9. Recall Normal Matrix • In OpenGL, normal vectors are transformed by normal matrix into eye space • Normal matrix is the inverse transpose of modelview matrix (M-T) • Normal vector and plane equation are related!

  10. Point rotation is closely related to coordinate transformation (next page) Rotating a Point (same coordinates in new bases) x A B x’

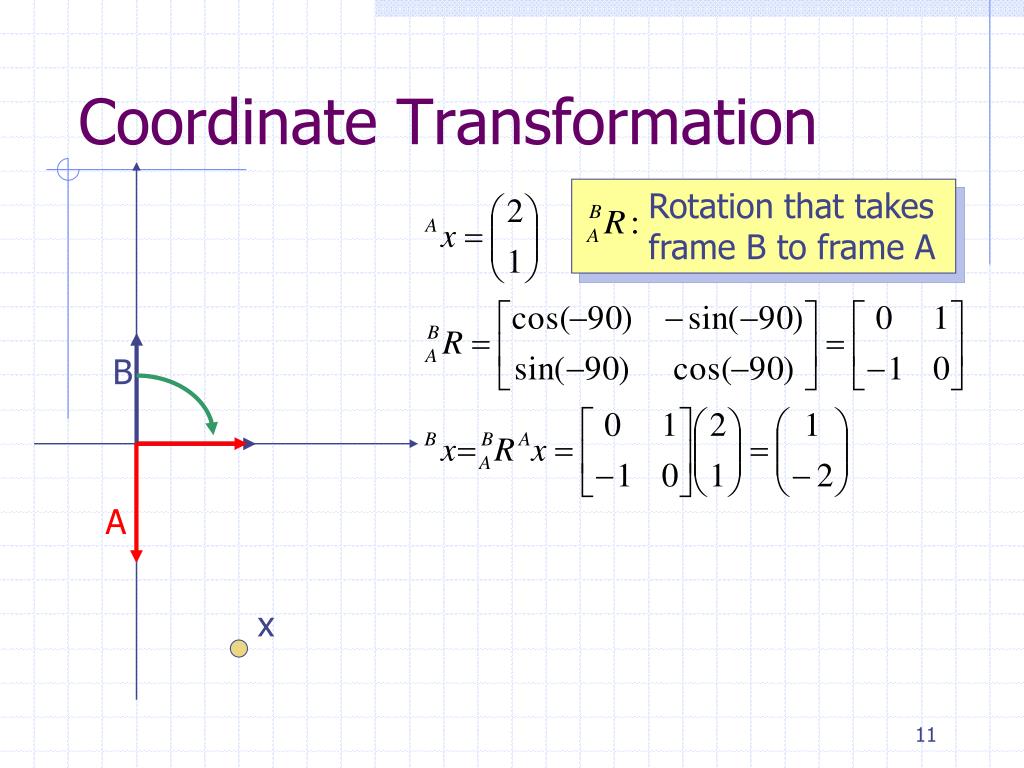

  11. Rotation that takes frame B to frame A Coordinate Transformation B A x

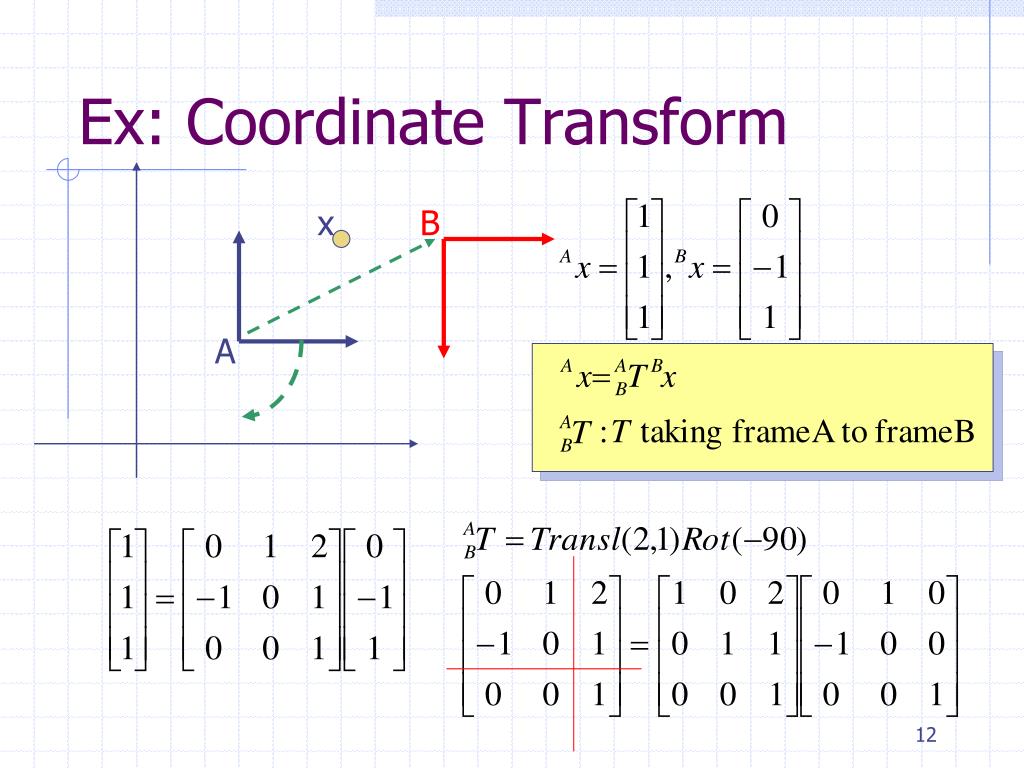

  12. Ex: Coordinate Transform x B A

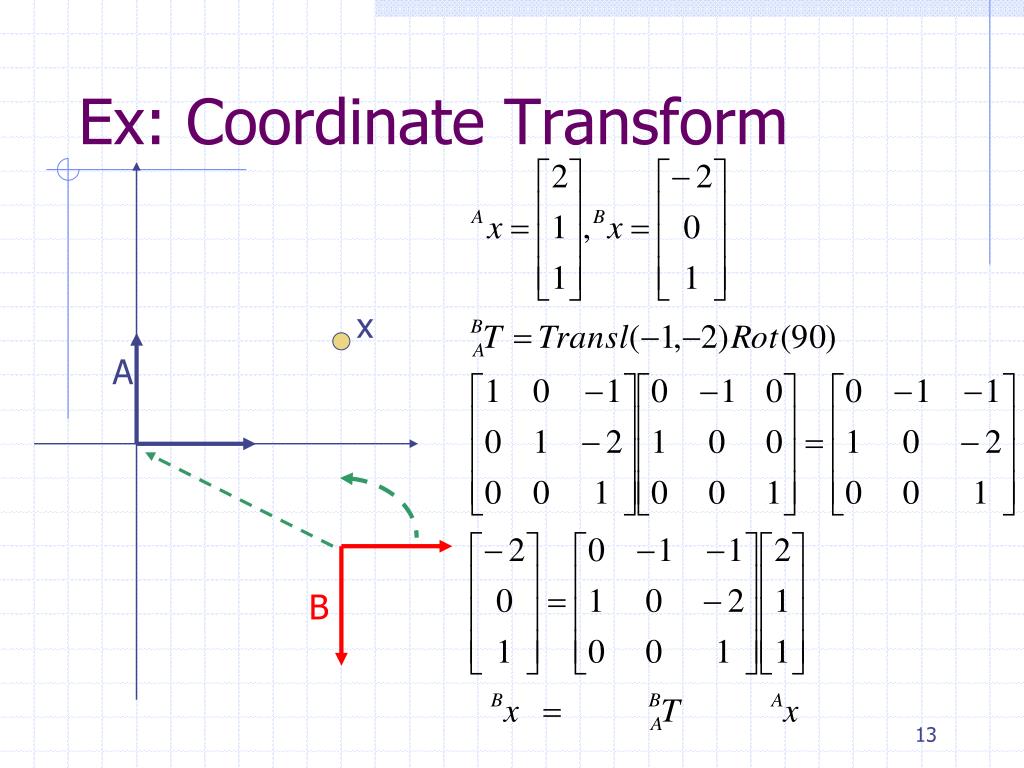

  13. Ex: Coordinate Transform x A B

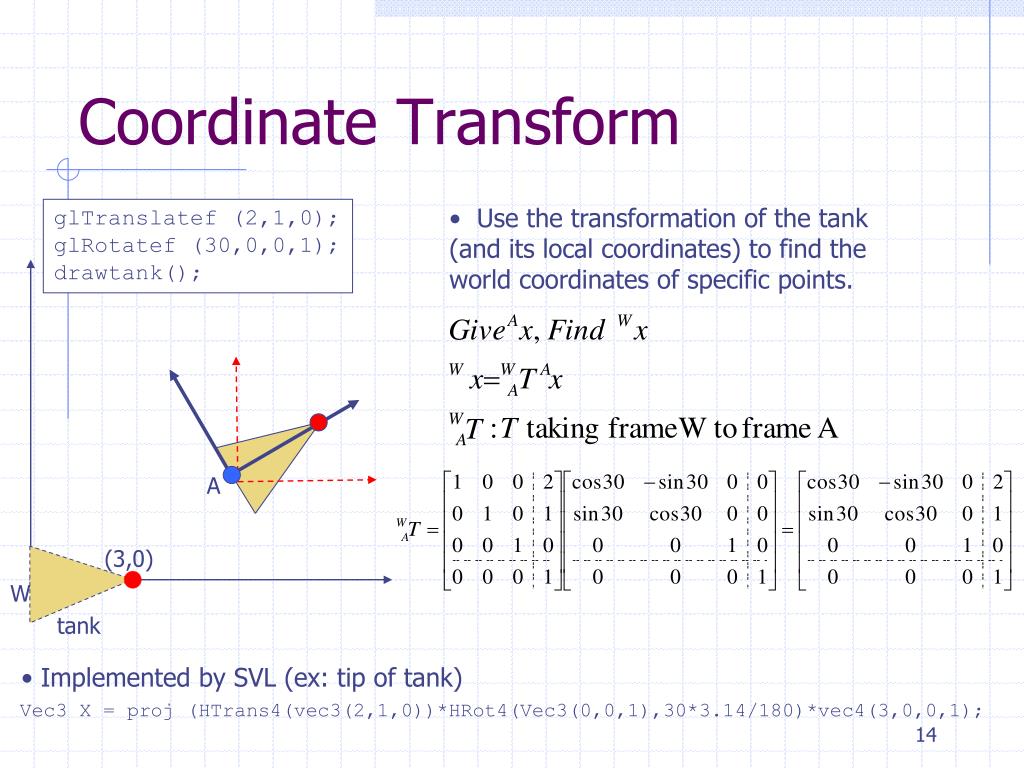

  14. tank Coordinate Transform • Use the transformation of the tank (and its local coordinates) to find the world coordinates of specific points. glTranslatef (2,1,0); glRotatef (30,0,0,1); drawtank(); A (3,0) W • Implemented by SVL (ex: tip of tank) Vec3 X = proj (HTrans4(vec3(2,1,0))*HRot4(Vec3(0,0,1),30*3.14/180)*vec4(3,0,0,1);

  15. Extra

  16. Relative Transform & Frames Trans(4,-3,7) Rot(y,90) Rot(z,90)

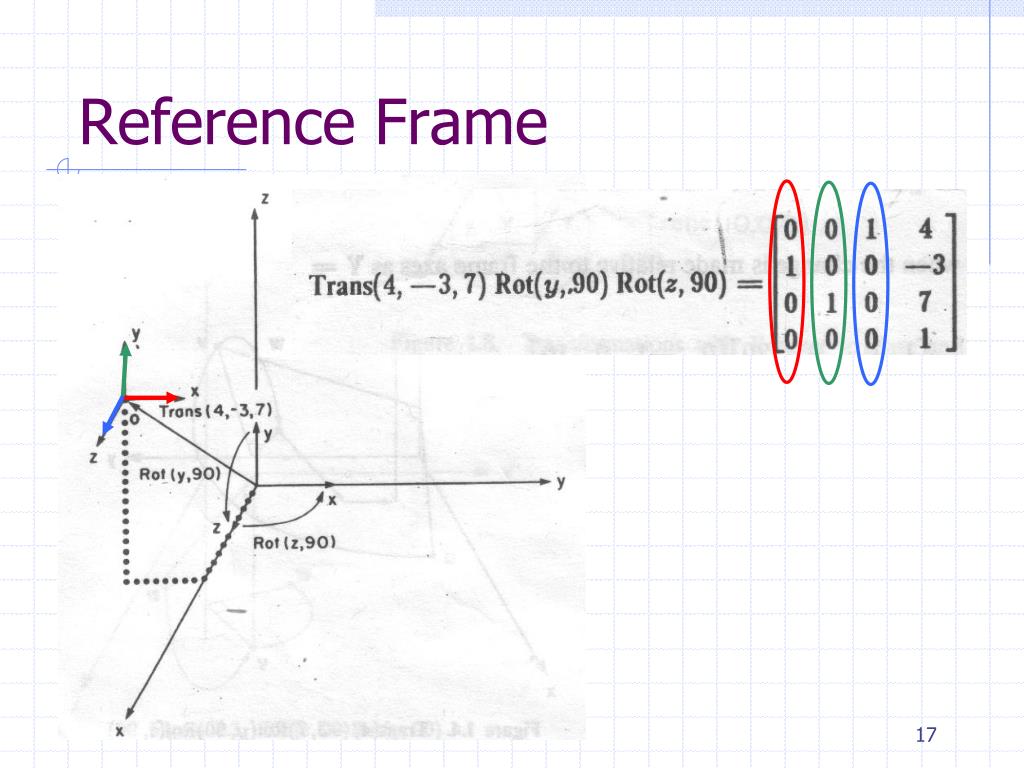

  17. Reference Frame

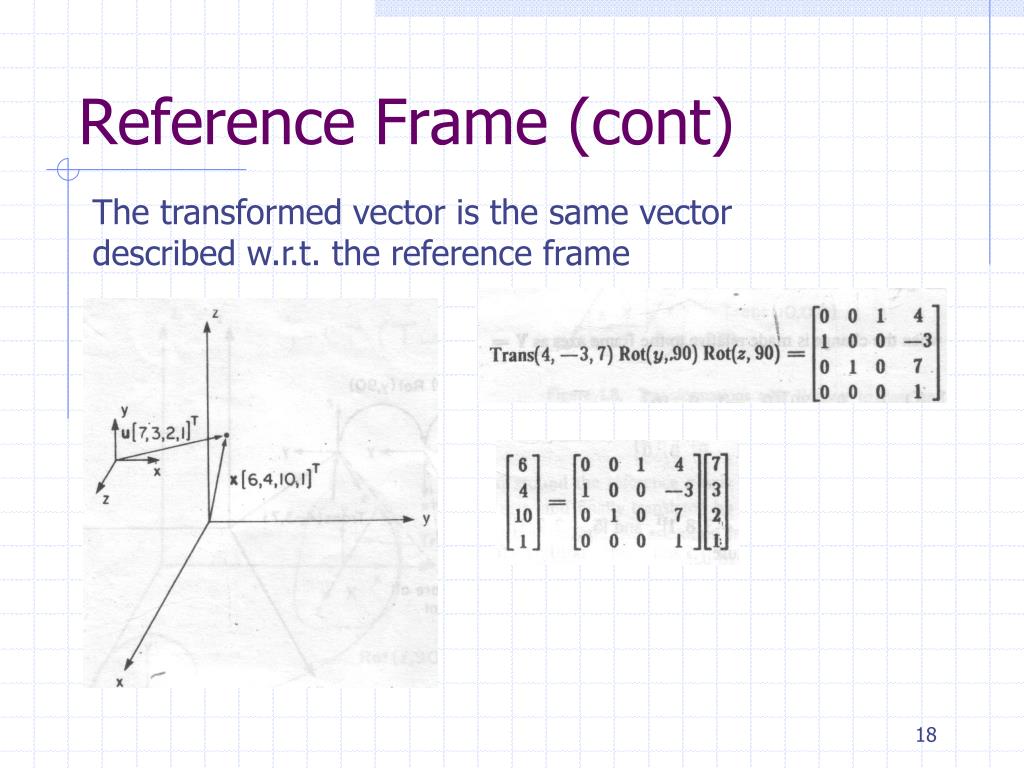

  18. Reference Frame (cont) The transformed vector is the same vector described w.r.t. the reference frame

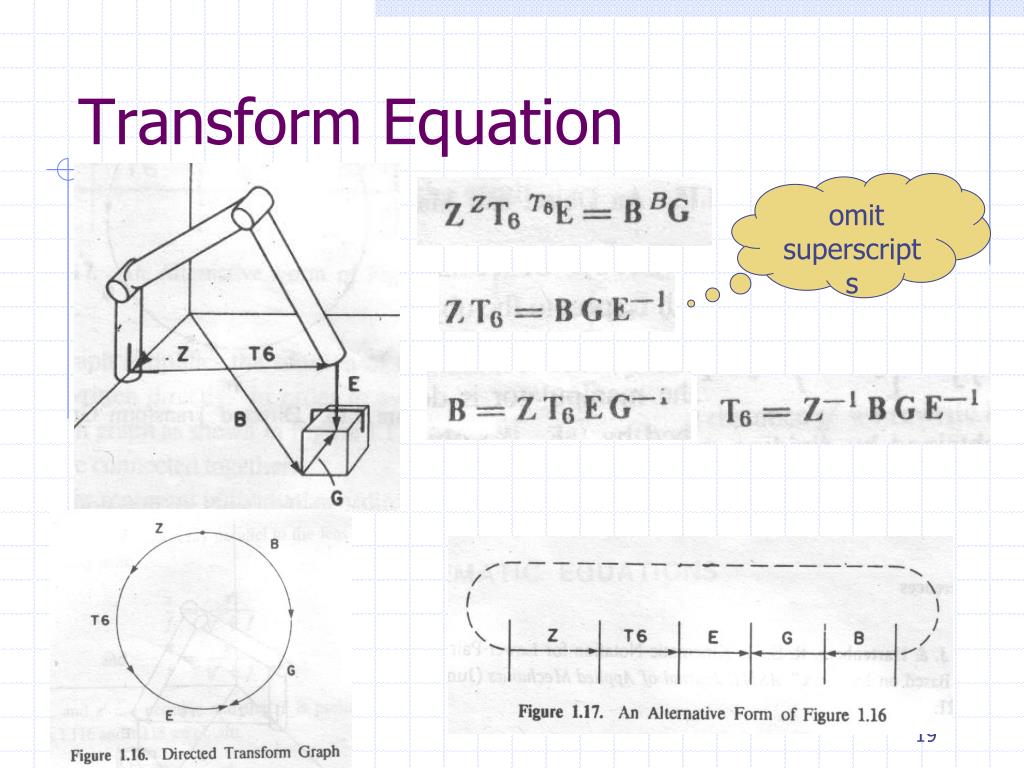

  19. Transform Equation omit superscripts

  20. Transform Equation OA AB = OB The Problem A AB B O
