ARCS

ARCS. arc. The length of an arc is proportional to the size of the angle at the middle, x °. x °. Ex1. arc. 90 ° is quarter of a full turn. so arc = 44cm  4 = 11cm. Circumference = 44cm. For more difficult angles we can cross-multiply as follows…. Ex2. arc. Angle = arc.

waseem
Download Presentation

ARCS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. ARCS arc The length of an arc is proportional to the size of the angle at the middle, x°. x° Ex1 arc 90° is quarter of a full turn so arc = 44cm  4 = 11cm Circumference = 44cm

  2. For more difficult angles we can cross-multiply as follows…. Ex2 arc Angle = arc 360 circumf 72° 72 = arc 360 45 360 X arc = 72 X 45 Circ = 45m arc = 3240  360 arc = 9m

  3. Ex3 arc Angle = arc 10m 108° 360 circumf 108 = arc 360 62.8 r = 10 so d = 20 360 X arc = 108 X 62.8 C = d arc = 6782.4  360 = 3.14 X 20 = 62.8 arc = 18.84m arc = 18.8m (3 sfs)

  4. Ex4 arc Angle = arc 15m 144° 360 circumf 144 = arc 360 94.2 r = 15 so d = 30 360 X arc = 144 X 94.2 C = d arc = 13564.8  360 = 3.14 X 30 = 94.2 arc = 37.68m arc = 37.7m ( 3 sfs)

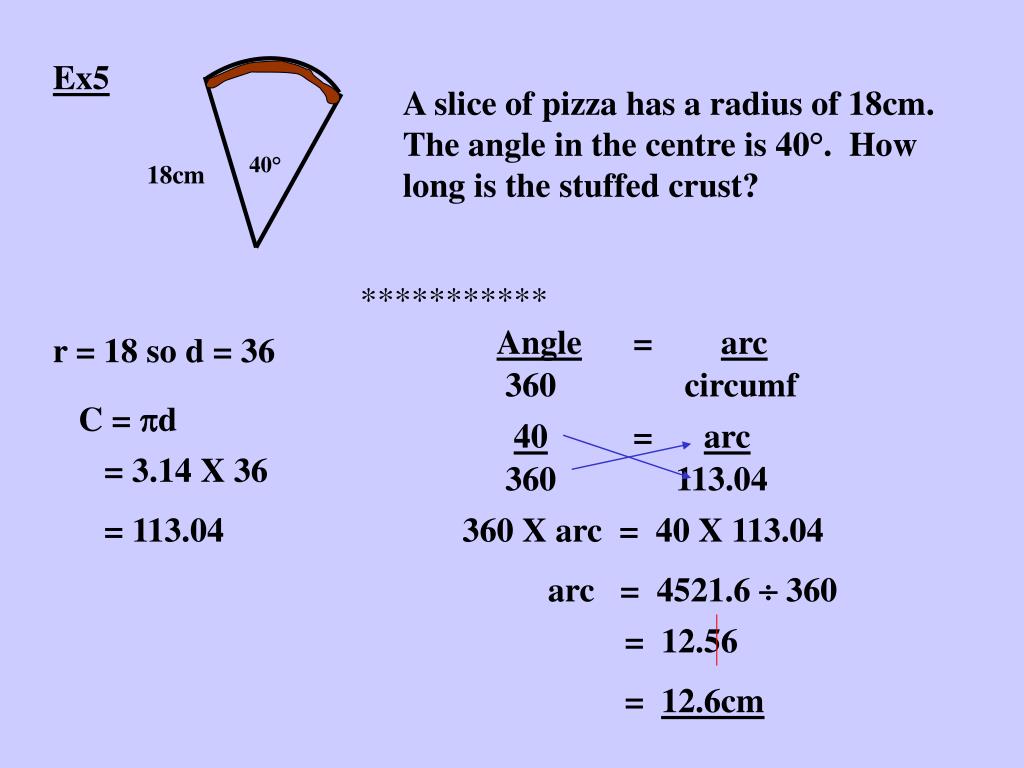

  5. Ex5 A slice of pizza has a radius of 18cm. The angle in the centre is 40°. How long is the stuffed crust? 40° 18cm *********** Angle = arc r = 18 so d = 36 360 circumf C = d 40 = arc = 3.14 X 36 360 113.04 = 113.04 360 X arc = 40 X 113.04 arc = 4521.6  360 = 12.56 = 12.6cm

  6. Ex6 The corner pocket on a pool table has a radius of 4cm and a minor angle of 70°. Find the length of the curved padding. 70° 4cm 290° Angle = arc 360 circumf r = 4 so d = 8 290 = arc 360 25.12 C = d 360 X arc = 290 X 25.12 = 3.14 X 8 arc = 7284.8  360 = 25.12 = 20.2355….. Small angle = 70°. = 20.2cm 3sfs Large angle = 290°.
