Ocean Island arcs

Ocean-ocean collision zones


Volcanic rocks of island arcs l.jpg
Volcanic Rocks of Island Arcs

  • Complex tectonic situation and broad spectrum

  • High proportion of basaltic andesite and andesite

    • Most andesites occur in subduction zone settings


Slide4 l.jpg

Figure 16-6. b. AFM diagram distinguishing tholeiitic and calc-alkaline series. Arrows represent differentiation trends within a series.


Tholeiitic vs calc alkaline differentiation l.jpg
Tholeiitic vs. Calc-alkaline differentiation

C-A shows continually increasing SiO2 and lacks dramatic Fe enrichment

Tholeiitic magmas: shallow partial melting of mantle

Calc-alkaline: restricted to subduction zones. Why?


Major elements and magma series l.jpg
Major Elements and Magma Series

  • Tholeiitic (MORB, OIB)

  • Alkaline (OIB)

  • Calc-Alkaline (~ restricted to subduction zone)


Slide7 l.jpg

Island Arc Petrogenesis

Figure 16-11b. A proposed model for subduction zone magmatism with particular reference to island arcs. Dehydration of slab crust causes hydration of the mantle (violet), which undergoes partial melting as amphibole (A) and phlogopite (B) dehydrate. From Tatsumi (1989), J. Geophys. Res., 94, 4697-4707 and Tatsumi and Eggins (1995). Subduction Zone Magmatism. Blackwell. Oxford.


Island arc petrogenesis l.jpg
Island Arc Petrogenesis

  • Altered ocean crust dehydrates at 50 km

  • Chlorite dehydrates first

  • Amphibole dehydrates at 110 km (point A)

  • Slab metamorphosed until 80-100 km

  • Water rises into mantle wedge

  • Hydrous mantle heats, melts, rises


How to get calc alkaline trend l.jpg
How to get calc-alkaline trend

  • Crystallize hornblende, anorthite (Ca-rich plag), olivine

  • How to get hornblende to crystallize?

  • Pond magmas in the crust

  • Get farther down Bowen’s reaction series

olivine

Calcic plagioclase

(Spinel)

Mg pyroxene

Calcic-alkalic plagioclase

Continuous

Series

Mg-Ca pyroxene

alkali-calcic plagioclase

Discontinuous

Series

amphibole

alkalic plagioclase

biotite

Temperature

potash feldspar

muscovite

quartz


Magma trends in island arcs l.jpg
Magma trends in island arcs

  • 1st magma: tholeiites

    • More primitive

    • Melts of mantle like OIB’s

  • 2nd: calc-alkaline

    • Crust gets thicker

    • Magmas stall out more


Chapter 16 island arc magmatism l.jpg

Chapter 16. Island Arc Magmatism

Activity along arcuate volcanic island chains along subduction zones

Distinctly different from the mainly basaltic provinces thus far

Composition more diverse and silicic

Andesite most common rock

Basalt generally occurs in subordinate quantities

Also more explosive than the quiescent basalts

Strato-volcanoes are the most common volcanic landform


Slide12 l.jpg

  • Igneous activity is related to convergent plate situations that result in the subduction of one plate beneath another

  • The initial petrologic model:

    • Oceanic crust is partially melted

    • Melts rise through the overriding plate to form volcanoes just behind the leading plate edge

    • Unlimited supply of oceanic crust to melt


Slide13 l.jpg

Ocean-ocean that result in the subduction of one plate beneath another  Island Arc (IA)

Ocean-continent  Continental Arc or

Active Continental Margin (ACM)

Figure 16-1. Principal subduction zones associated with orogenic volcanism and plutonism. Triangles are on the overriding plate. PBS = Papuan-Bismarck-Solomon-New Hebrides arc. After Wilson (1989) Igneous Petrogenesis, Allen Unwin/Kluwer.


Structure of an island arc l.jpg
Structure of an Island Arc that result in the subduction of one plate beneath another

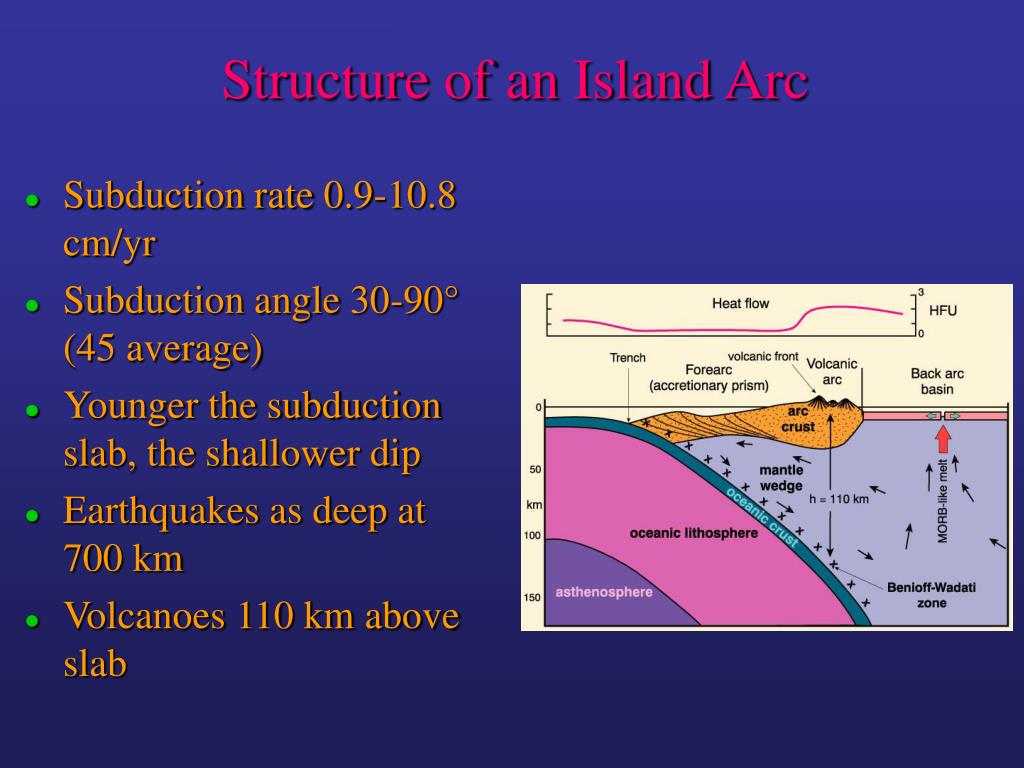

Figure 16-2. Schematic cross section through a typical island arc after Gill (1981), Orogenic Andesites and Plate Tectonics. Springer-Verlag. HFU= heat flow unit (4.2 x 10-6joules/cm2/sec)


Structure of an island arc15 l.jpg
Structure of an Island Arc that result in the subduction of one plate beneath another

  • Subduction rate 0.9-10.8 cm/yr

  • Subduction angle 30-90° (45 average)

  • Younger the subduction slab, the shallower dip

  • Earthquakes as deep at 700 km

  • Volcanoes 110 km above slab


Major elements and magma series16 l.jpg
Major Elements and Magma Series that result in the subduction of one plate beneath another

a. Alkali vs. silica (alkaline rocks minor)

b. AFM (both types)

c. FeO*/MgO vs. silica

diagrams for 1946 analyses from ~ 30 island and continental arcs with emphasis on the more primitive volcanics

Figure 16-3. Data compiled by Terry Plank (Plank and Langmuir, 1988) Earth Planet. Sci. Lett., 90, 349-370.


Sub series of calc alkaline l.jpg
Sub-series of Calc-Alkaline that result in the subduction of one plate beneath another

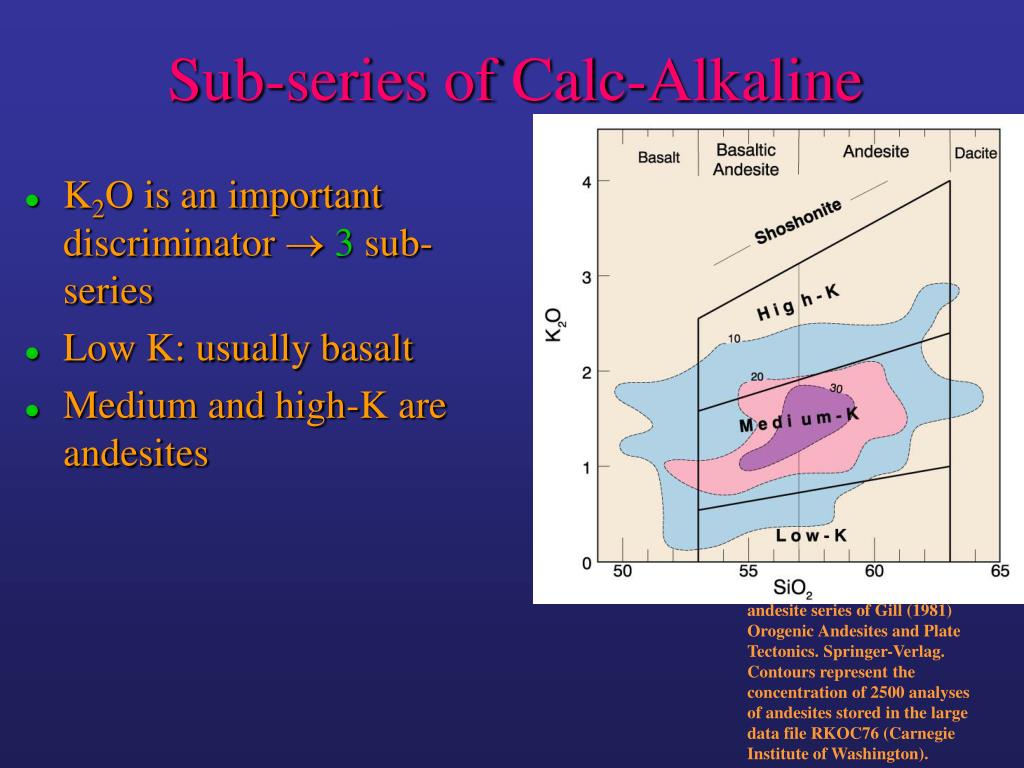

  • K2O is an important discriminator  3 sub-series

  • Low K: usually basalt

  • Medium and high-K are andesites

Figure 16-4. The three andesite series of Gill (1981) Orogenic Andesites and Plate Tectonics. Springer-Verlag. Contours represent the concentration of 2500 analyses of andesites stored in the large data file RKOC76 (Carnegie Institute of Washington).


Slide18 l.jpg

Figure 16-6. that result in the subduction of one plate beneath another a. K2O-SiO2 diagram distinguishing high-K, medium-K and low-K series. Large squares = high-K, stars = med.-K, diamonds = low-K series from Table 16-2. Smaller symbols are identified in the caption. Differentiation within a series (presumably dominated by fractional crystallization) is indicated by the arrow. Different primary magmas (to the left) are distinguished by vertical variations in K2O at low SiO2. After Gill, 1981, Orogenic Andesites and Plate Tectonics. Springer-Verlag.


Slide19 l.jpg

Figure 16-6. that result in the subduction of one plate beneath another c. FeO*/MgO vs. SiO2 diagram distinguishing tholeiitic and calc-alkaline series.


Slide20 l.jpg

Figure 16-6. that result in the subduction of one plate beneath another From Winter (2001) An Introduction to Igneous and Metamorphic Petrology. Prentice Hall.


Slide21 l.jpg

May choose that result in the subduction of one plate beneath another 3 most common:

  • Low-K tholeiitic

6 sub-series if combine tholeiite and C-A (some are rare)

  • Med-K C-A

  • Hi-K mixed

Figure 16-5. Combined K2O - FeO*/MgO diagram in which the Low-K to High-K series are combined with the tholeiitic vs. calc-alkaline types, resulting in six andesite series, after Gill (1981) Orogenic Andesites and Plate Tectonics. Springer-Verlag. The points represent the analyses in the appendix of Gill (1981).


Slide22 l.jpg

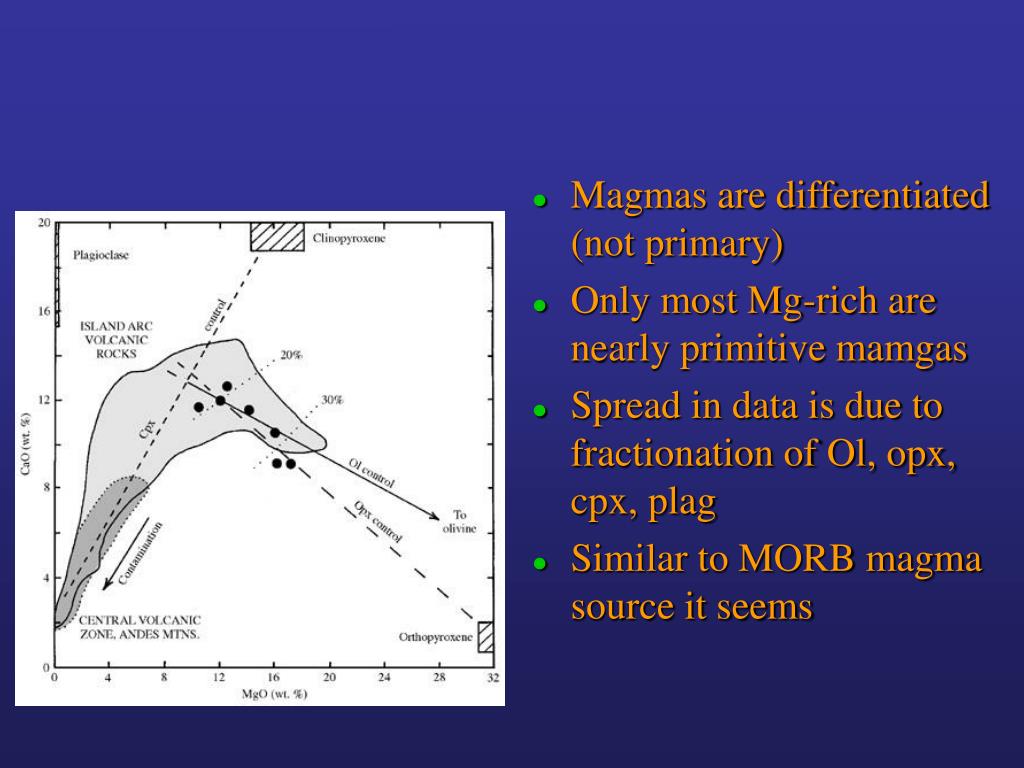

  • Magmas are differentiated (not primary) that result in the subduction of one plate beneath another

  • Only most Mg-rich are nearly primitive mamgas

  • Spread in data is due to fractionation of Ol, opx, cpx, plag

  • Similar to MORB magma source it seems


Magma source l.jpg
Magma source that result in the subduction of one plate beneath another

  • Need little Fe-enrichment, Na and K enrichment

  • If melting a depleted magma source, need water to facilitate melting

  • More water: can have amphiboles, biotite

  • More water: changes phase diagram

    • Larger olivine field (less Mg, Fe, Ni, Cr in melt)

    • Smaller plag field (more Na and K in melt)


Calc alkaline differentiation l.jpg
Calc-alkaline differentiation that result in the subduction of one plate beneath another

  • Early crystallization of an Fe-Ti oxide phase

    Probably related to the high water content of calc-alkaline magmas in arcs, dissolves

  • The crystallization of anorthitic plagioclase and low-silica, high-Fe hornblende is an alternative mechanism for the observed calc-alkaline differentiation trend


Petrogenesis of island arc magmas l.jpg
Petrogenesis of Island Arc Magmas that result in the subduction of one plate beneath another

  • Why is subduction zone magmatism a paradox?


Slide26 l.jpg

  • Rocks heat as subducted that result in the subduction of one plate beneath another

  • On normal geotherm, basalt melts at 40 km

  • In subduction zones, not until 200 km

  • All volcanoes sit 110 km above slab


Slide27 l.jpg

Of the many variables that can affect the isotherms in subduction zone systems, the main ones are:

1) the rate of subduction

2) the age of the subduction zone

3) the age of the subducting slab


Slide28 l.jpg

  • Typical thermal model for a subduction zone subduction zone systems, the main ones are:

  • Isotherms will be higher (i.e. the system will be hotter) if

    a)the convergence rate is slower

    b) the subducted slab is young and near the ridge (warmer)

    c) the arc is young (<50-100 Ma according to Peacock, 1991)

yellow curves = mantle flow

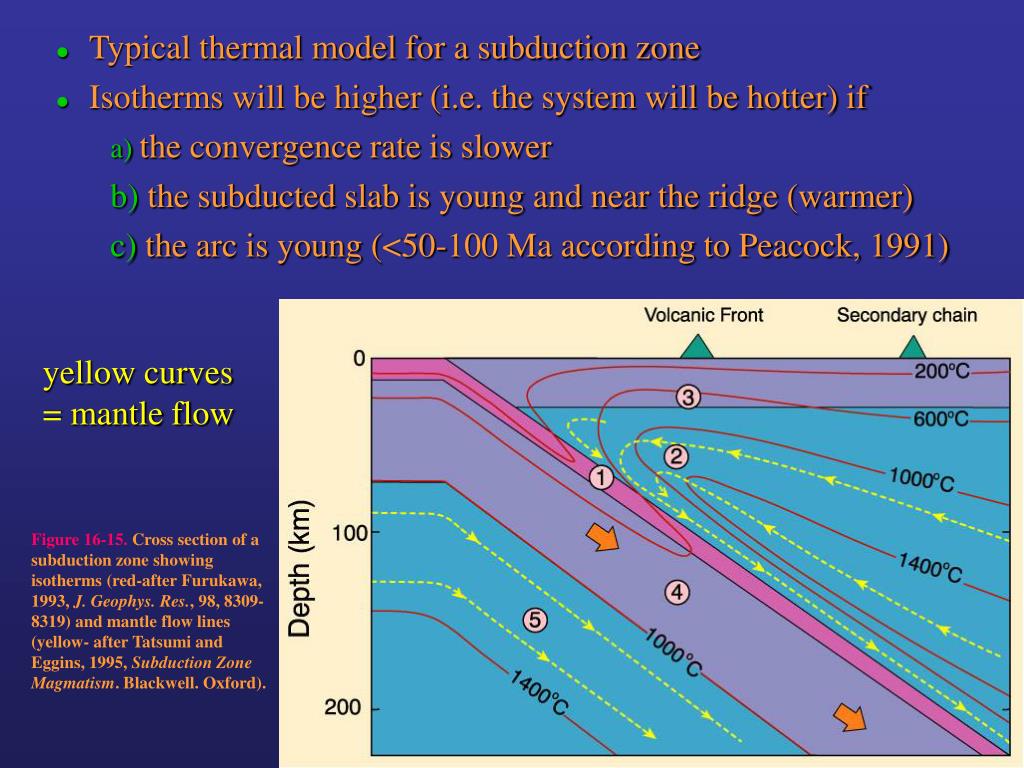

Figure 16-15. Cross section of a subduction zone showing isotherms (red-after Furukawa, 1993, J. Geophys. Res., 98, 8309-8319) and mantle flow lines (yellow- after Tatsumi and Eggins, 1995, Subduction Zone Magmatism. Blackwell. Oxford).


Slide29 l.jpg

The principal source components subduction zone systems, the main ones are:  island arc magmas

1. The crustal portion of the subducted slab

1a Altered oceanic crust (hydrated by circulating seawater, and metamorphosed in large part to greenschist facies)

1b Subducted oceanic and forearc sediments

1c Seawater trapped in pore spaces

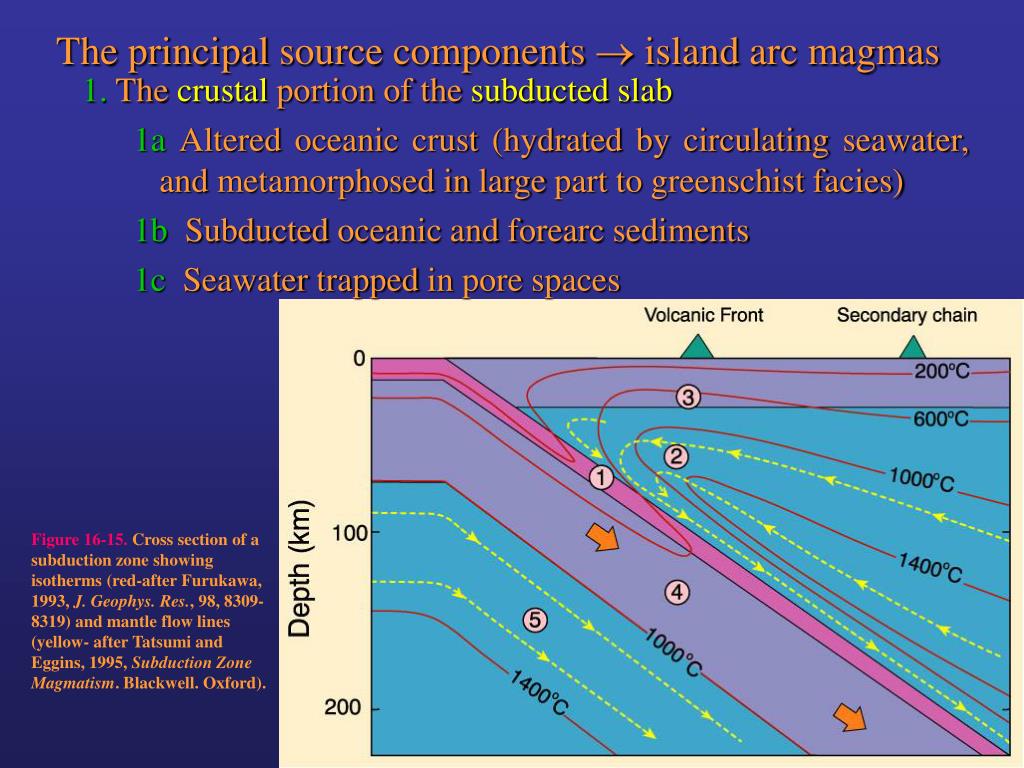

Figure 16-15. Cross section of a subduction zone showing isotherms (red-after Furukawa, 1993, J. Geophys. Res., 98, 8309-8319) and mantle flow lines (yellow- after Tatsumi and Eggins, 1995, Subduction Zone Magmatism. Blackwell. Oxford).


Slide30 l.jpg

The principal source components subduction zone systems, the main ones are:  Island arc magmas

2. The mantle wedge between the slab and the arc crust

3. The arc crust

Figure 16-15. Cross section of a subduction zone showing isotherms (red-after Furukawa, 1993, J. Geophys. Res., 98, 8309-8319) and mantle flow lines (yellow- after Tatsumi and Eggins, 1995, Subduction Zone Magmatism. Blackwell. Oxford).


Slide31 l.jpg

  • Left with the subduction zone systems, the main ones are: subducted crust and mantle wedge

  • The trace element and isotopic data suggest that both contribute to arc magmatism. How, and to what extent?

    • Dry peridotite solidus too high for melting of anhydrous mantle to occur anywhere in the thermal regime shown

    • water plays a significant role in arc magmatism


Slide32 l.jpg

A multi-stage, multi-source process subduction zone systems, the main ones are:

  • Dehydration of the slab provides the LIL enrichments

  • These components, plus other dissolved silicate materials, are transferred to the wedge in a fluid phase (or melt?)

  • The mantle wedge provides the depleted and compatible element characteristics


Slide33 l.jpg


Slide34 l.jpg

10 water and a MORB-like mantle wedge sourceBe created by cosmic rays + oxygen and nitrogen in upper atmos.

  •  Earth by precipitation & readily  clay-rich oceanic seds

  • Half-life of only 1.5 Ma (long enough to be subducted, but quickly lost to mantle systems). After about 10 Ma 10Be is no longer detectable

  • 10Be/9Be averages about 5000 x 10-11 in the uppermost oceanic sediments

  • In mantle-derived MORB and OIB magmas, & continental crust, 10Be is below detection limits (<1 x 106 atom/g) and 10Be/9Be is <5 x 10-14


Slide35 l.jpg

B water and a MORB-like mantle wedge source is a stable element

  • Very brief residence time deep in subduction zones

  • B in recent sediments is high (50-150 ppm), but has a greater affinity for altered oceanic crust (10-300 ppm)

  • In MORB and OIB it rarely exceeds 2-3 ppm


Slide36 l.jpg

10 water and a MORB-like mantle wedge sourceBe/Betotal vs. B/Betotal diagram (Betotal9Be since 10Be is so rare)

Figure 16-14.10Be/Be(total) vs. B/Be for six arcs. After Morris (1989) Carnegie Inst. of Washington Yearb., 88, 111-123.
