  1. 16.311 & 16.312Electronics Lab.BL 424Test Equipment

  2. 16.311 -312 Elect. Lab.Ball Hall rm. 424

  3. Sampling Scope

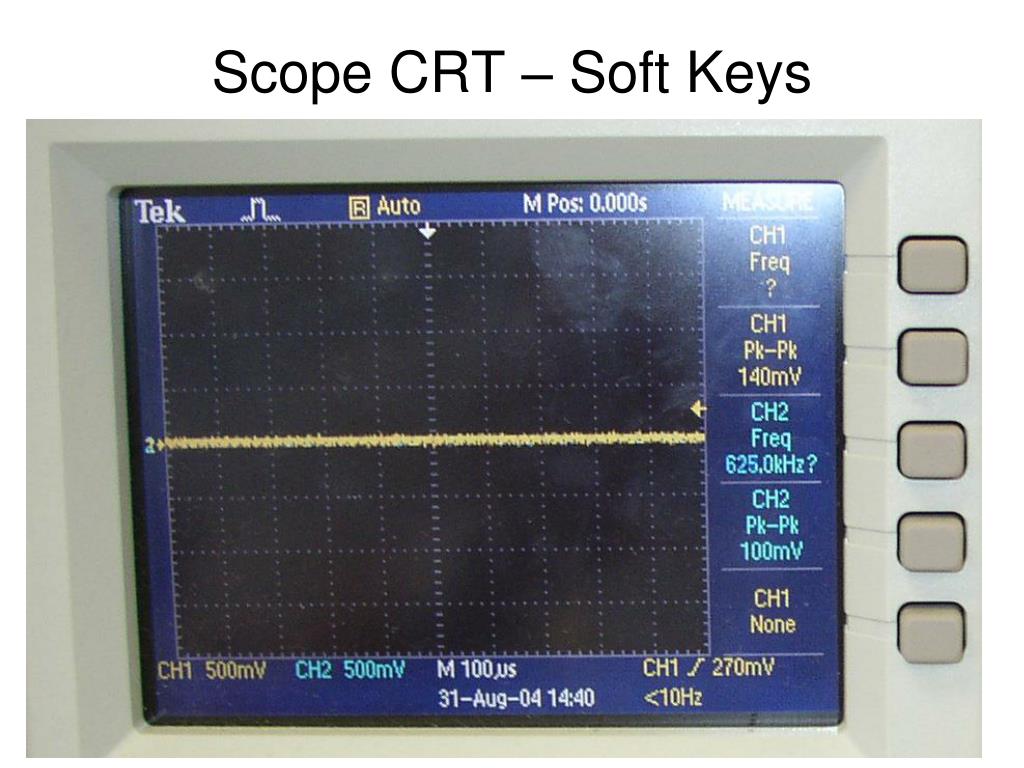

  4. Scope CRT – Soft Keys

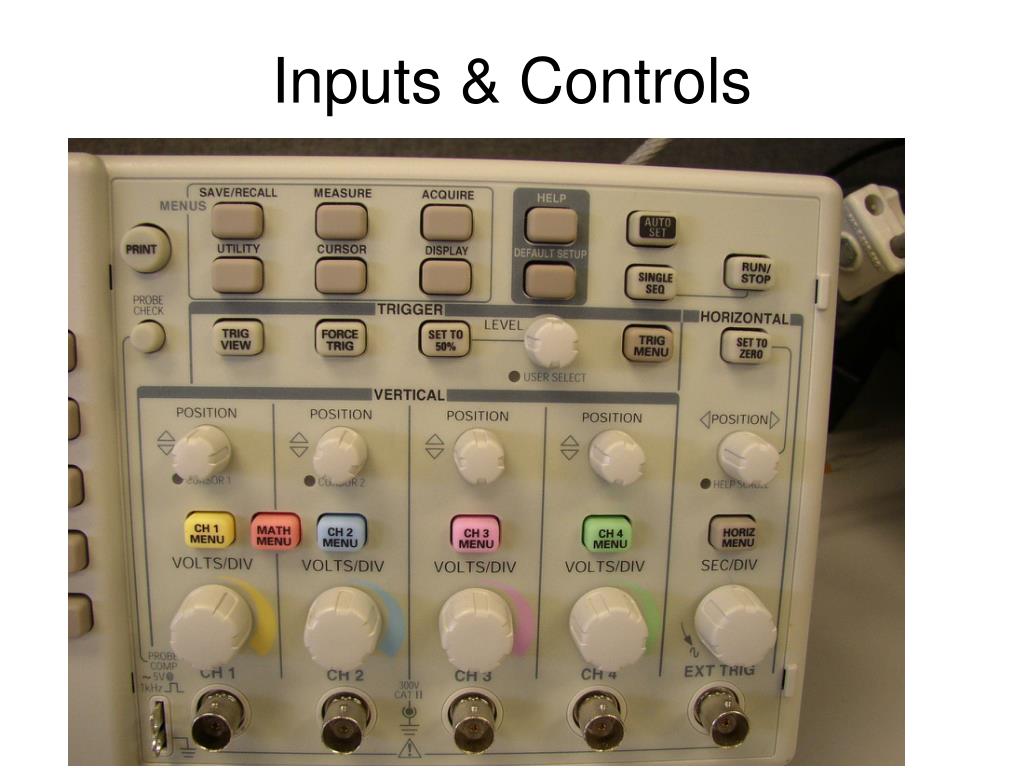

  5. Inputs & Controls

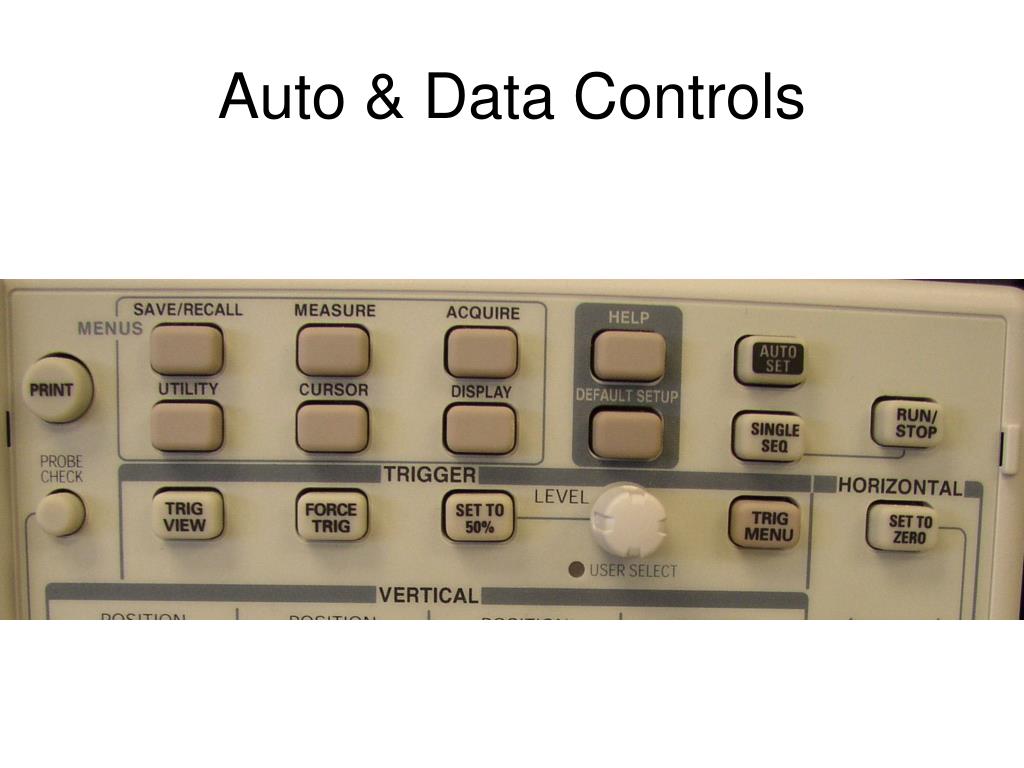

  6. Auto & Data Controls

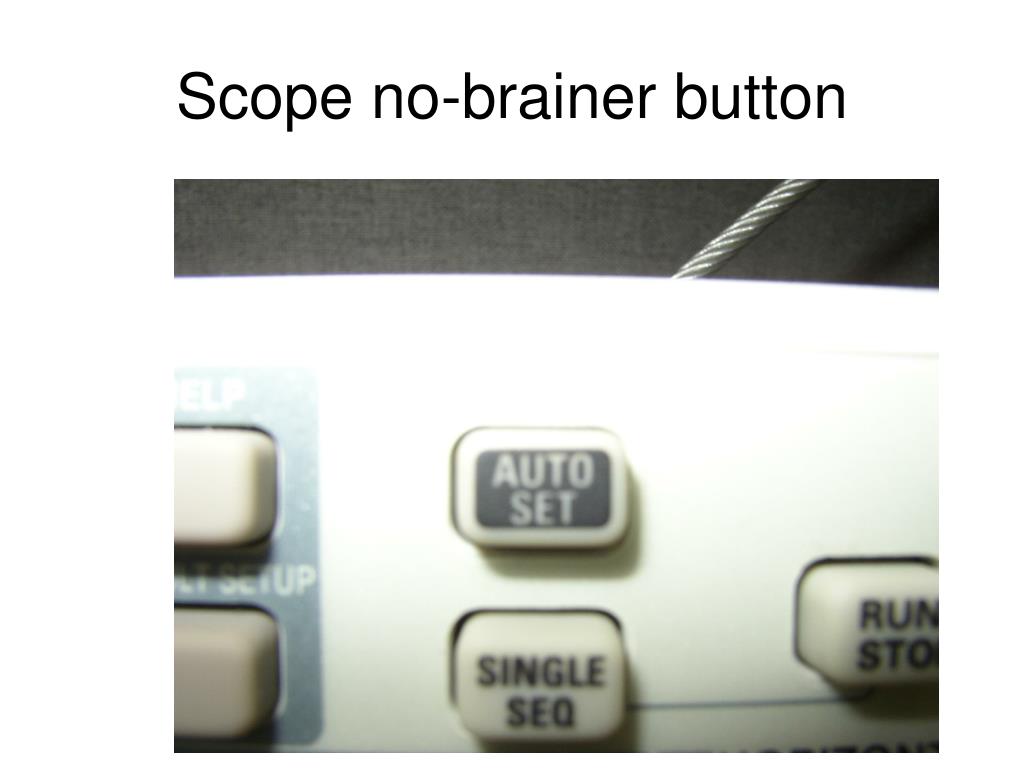

  7. Scope no-brainer button

  8. Signal Probe - 10meg. Ohms

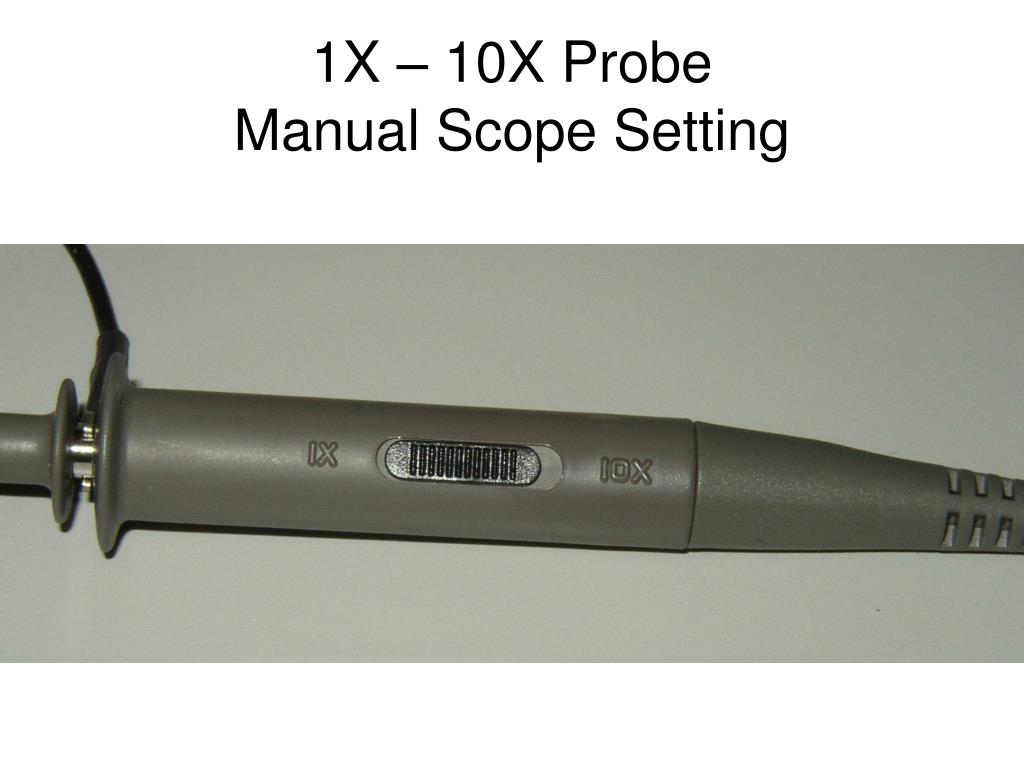

  9. 1X – 10X ProbeManual Scope Setting

  10. Test Leads – Pomona / Banana

  11. BNC to Banana Adapters

  12. Adapter Ground

  13. Dual Display DMM

  14. DMM Leads stay with Meter

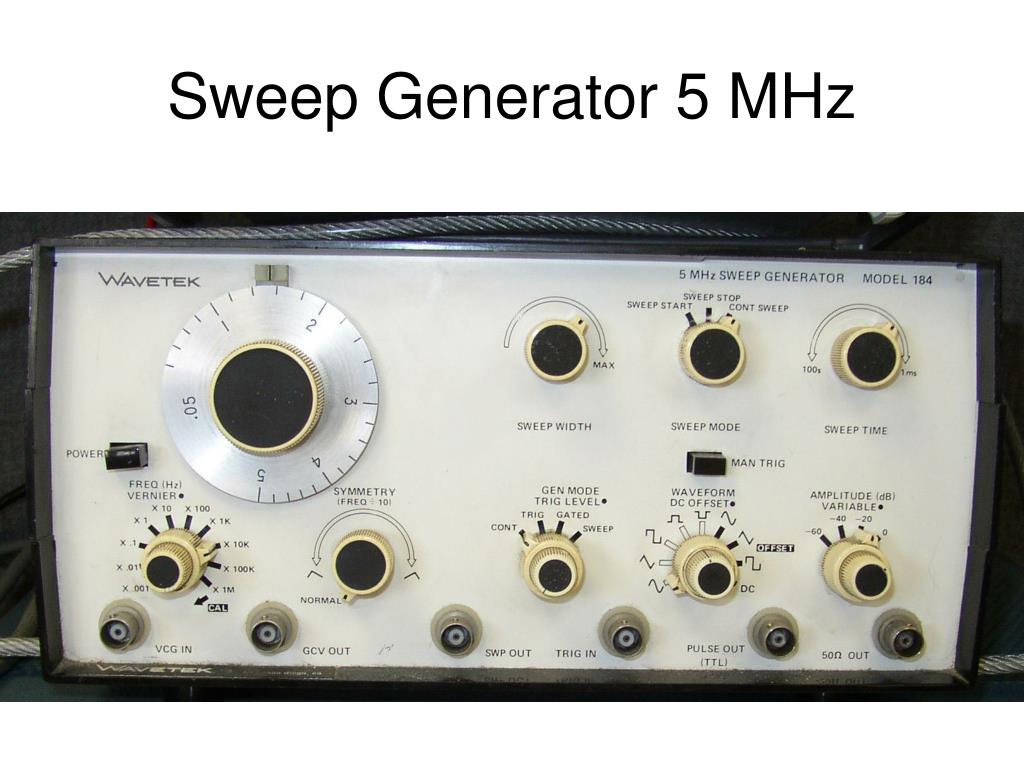

  15. Sweep Generator 5 MHz

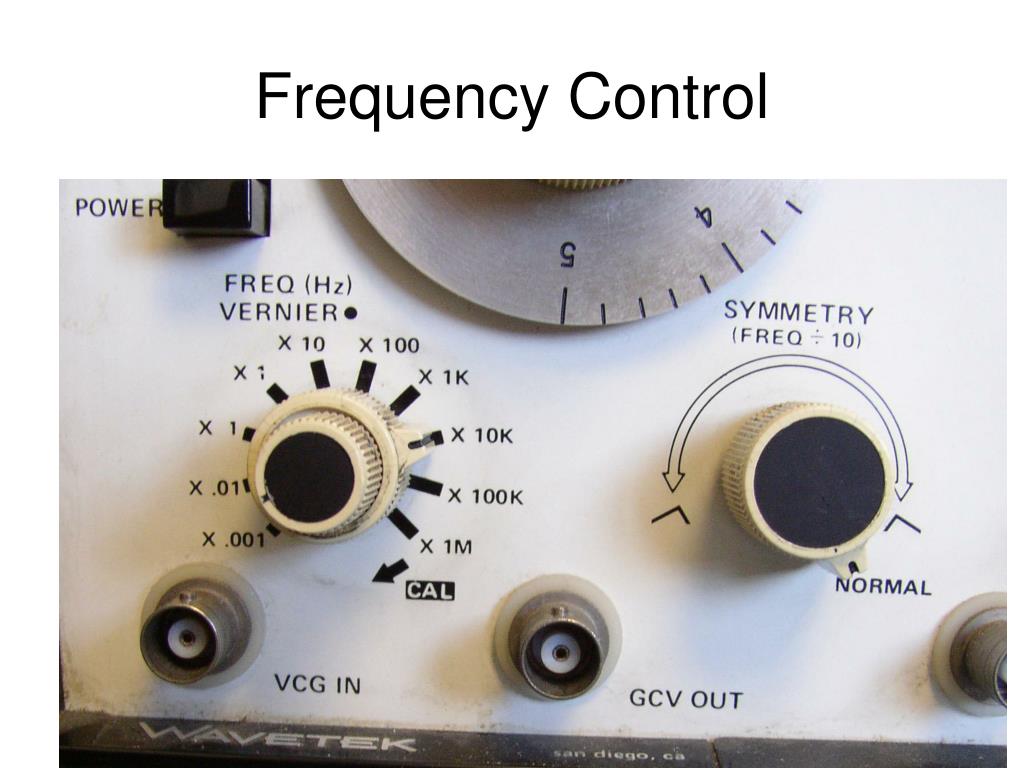

  16. Frequency Control

  17. Operation Control

  18. Symmetry Normal

  19. HP200CDAudioOscillator60’sTubesSine wave

  20. Output 600 Ohms ,Transformer

  21. Outputs&Chassis Ground

  22. Tektronix Test Set

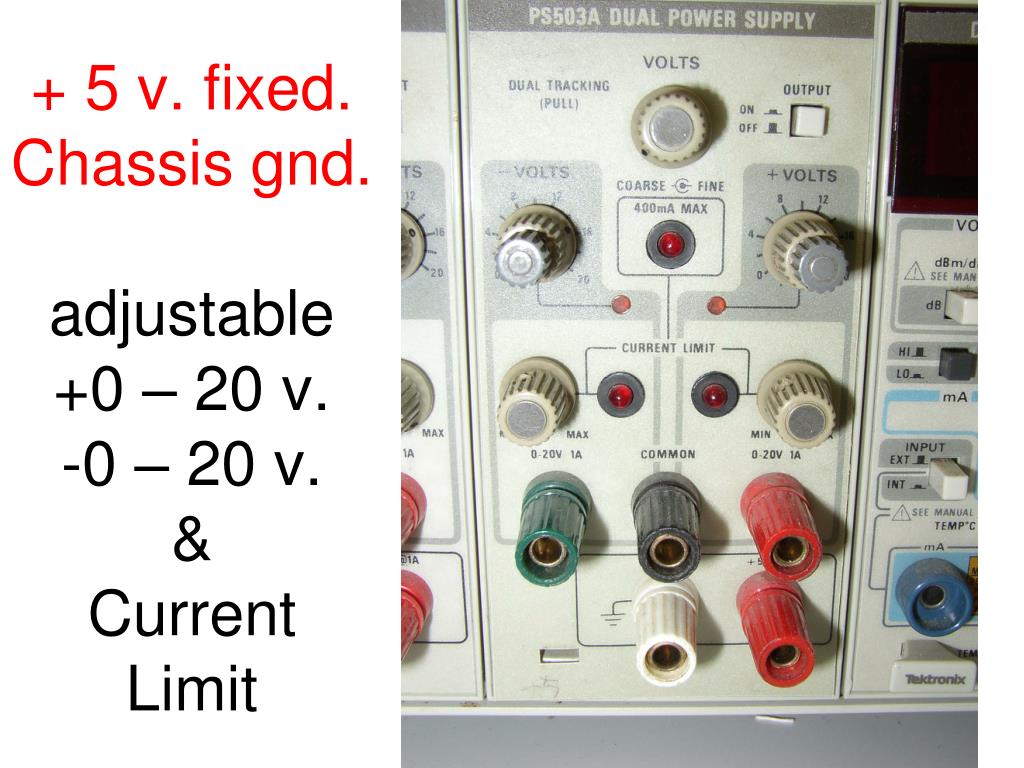

  23. + 5 v. fixed.Chassis gnd.adjustable+0 – 20 v.-0 – 20 v.&CurrentLimit

  24. DMMvoltsohmscurrent

  25. FrequencyCounter&Timer

  26. Diff. Amp

  27. Oscillator orGenerator

  28. Printer – Scope Display
