Unit 4 atmospheric processes

Unit 4 – Atmospheric Processes

Thunderstorms


Necessary atmospheric conditions

Necessary Atmospheric Conditions

  • Water vapour must be available in the lower atmosphere to feed clouds and precipitation as the storm forms

  • A temperature gradient must exist so that rising air cools off rapidly with height

  • An updraft must force moist air up to colder levels of the atmosphere


The 2 kinds of thunderstorms

The 2 Kinds of Thunderstorms

Air mass thunderstorms

  • Usually created by convective uplift of warm, moist, and unstable air.

    • Have you ever been surprised by a sudden downpour of thunderous rain on what was up to that point a pretty nice day?

  • Air mass thunderstorms typically do not have very high winds, hail, or much lightning associated with them.


Thunderstorms

Severe thunderstorms

  • Have very high winds, hail, or much lightning associated with them

  • May even spawn tornadoes

  • Tend to form along strong cold fronts where the air on either side is very different, the atmosphere is very unstable, and wind shear aloft is prevalent.

    • Wind Shear – the change in wind speed or direction with height in the atmosphere over a relatively short horizontal distance


Stages of thunderstorm development

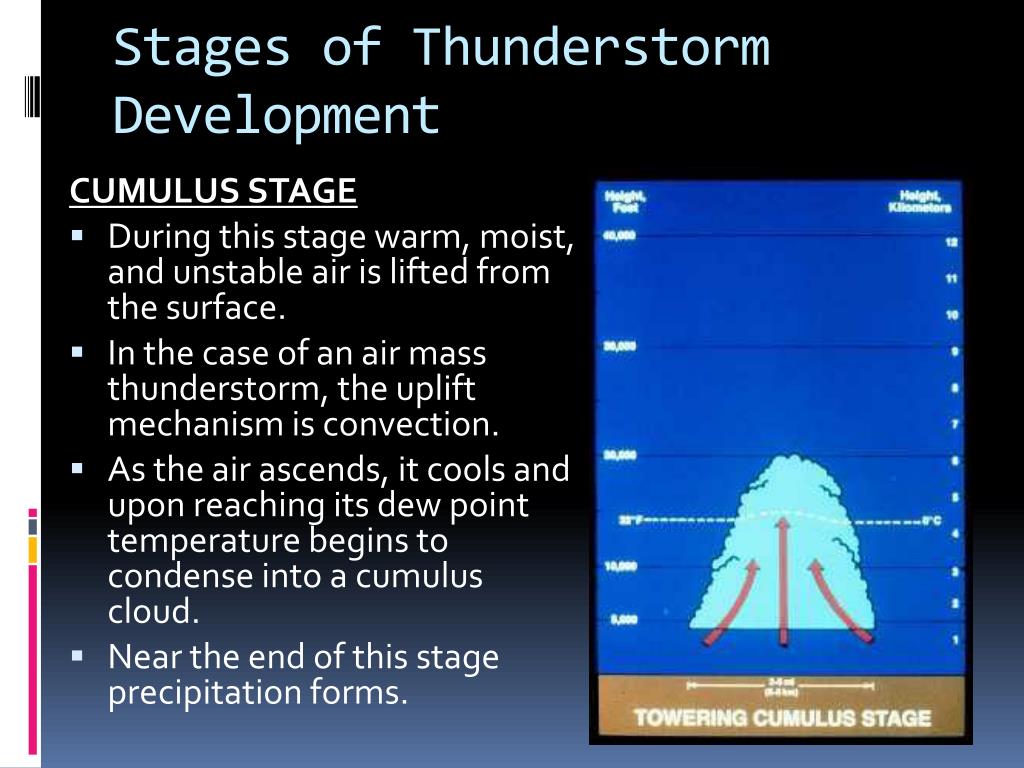

Stages of Thunderstorm Development

CUMULUS STAGE

  • During this stage warm, moist, and unstable air is lifted from the surface.

  • In the case of an air mass thunderstorm, the uplift mechanism is convection.

  • As the air ascends, it cools and upon reaching its dew point temperature begins to condense into a cumulus cloud.

  • Near the end of this stage precipitation forms.


Thunderstorms

MATURE STAGE

  • Warm, moist updrafts continue to feed the thunderstorm while cold downdrafts begin to form.

  • As rain falls through the air it drags the cool, dry air that surrounds the cloud into it.

  • As dry air comes in contact with cloud and rain droplets they evaporate cooling the cloud.

  • The falling rain drags this cool air to the surface as a cold downdraft.

  • In severe thunderstorms the region of cold downdrafts is separate from that of warm updrafts feeding the storm. As the downdraft hits the surface it pushes out ahead of the storm.

    • Sometimes you can feel the downdraft shortly before the thunderstorm reaches your location as a cool blast of air.


Thunderstorms

DISSIPATING STAGE

  • Thunderstorm dissolves away.

  • By this point, the entrainment of cool air into the cloud helps stabilize the air.

  • In the case of the air mass thunderstorm, the surface no longer provides enough convective uplift to continue fueling the storm.

  • As a result, the warm updrafts have ceased and only the cool downdrafts are present.

  • The downdrafts end as the rain ceases and soon the thunderstorm dissipates.


Severe thunderstorms

Severe Thunderstorms

Conditions necessary:

  • Winds blowing in different directions producing wind shear

  • high water-vapour content in the lower troposphere

  • uplift of air

  • the existence of a dry air mass above a moist air mass


Supercell storms

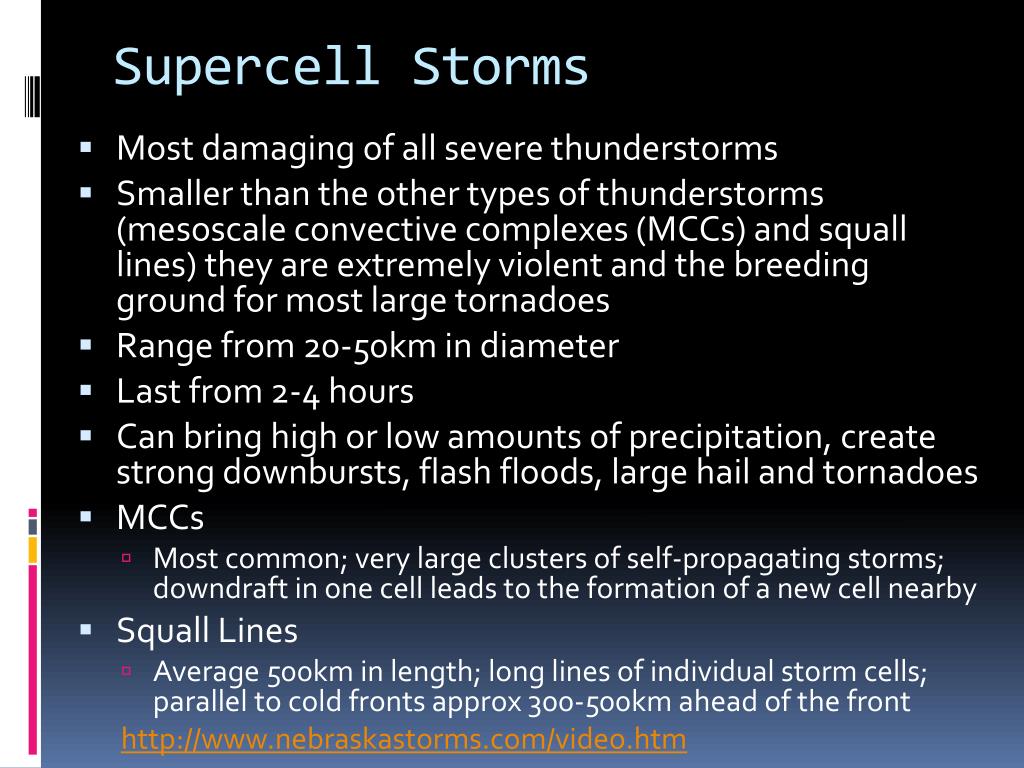

Supercell Storms

  • Most damaging of all severe thunderstorms

  • Smaller than the other types of thunderstorms (mesoscale convective complexes (MCCs) and squall lines) they are extremely violent and the breeding ground for most large tornadoes

  • Range from 20-50km in diameter

  • Last from 2-4 hours

  • Can bring high or low amounts of precipitation, create strong downbursts, flash floods, large hail and tornadoes

  • MCCs

    • Most common; very large clusters of self-propagating storms; downdraft in one cell leads to the formation of a new cell nearby

  • Squall Lines

    • Average 500km in length; long lines of individual storm cells; parallel to cold fronts approx 300-500km ahead of the front

      http://www.nebraskastorms.com/video.htm
