  1. EE138Introduction toEmbedded Control System Design

  2. Agenda • Overview of Micro-controller market • Overview of Atmel ATmega16 & AT91SAMD20 • Overview of Atmel Development Kit STK500 • C Development using Atmel AVR Studio 6.0 • Quick review of C development with focus in micro-controller programming • ATmega16 Digital I/O

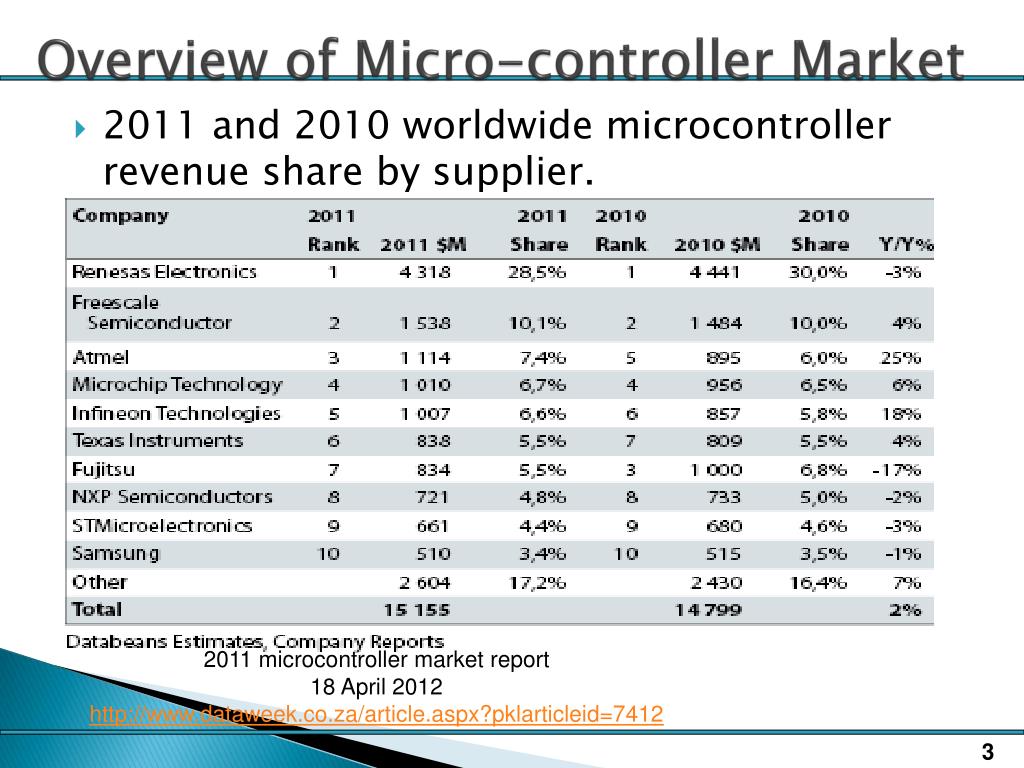

  3. Overview of Micro-controller Market • 2011 and 2010 worldwide microcontroller revenue share by supplier. 2011 microcontroller market report18 April 2012 http://www.dataweek.co.za/article.aspx?pklarticleid=7412

  4. Overview of Atmel Devices • Different price bands for different applications and markets • Microcontrollers in the 8-bit AVR family share a similar instruction set and architecture. • The ATmega16 has components that are useful for typical microcontroller applications, such as • Digital IO • Serial communications • Interrupts, Timers • Pulse-width-modulator. • Analog-to-digital converter • STK500 Development Kit • Atmega16 SAMD20 Explnd Pro Eval Kit • AT91 SAM D20 (*NEW*)

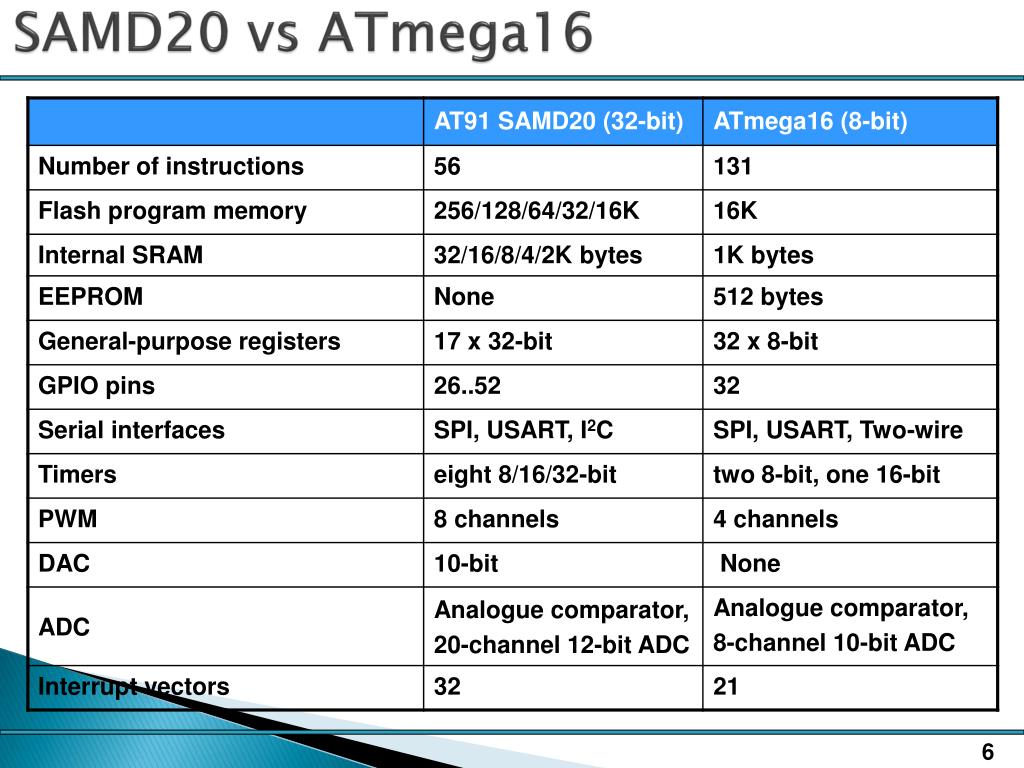

  5. SAMD20 vs ATmega16

  6. SAM D20 and ATmega16

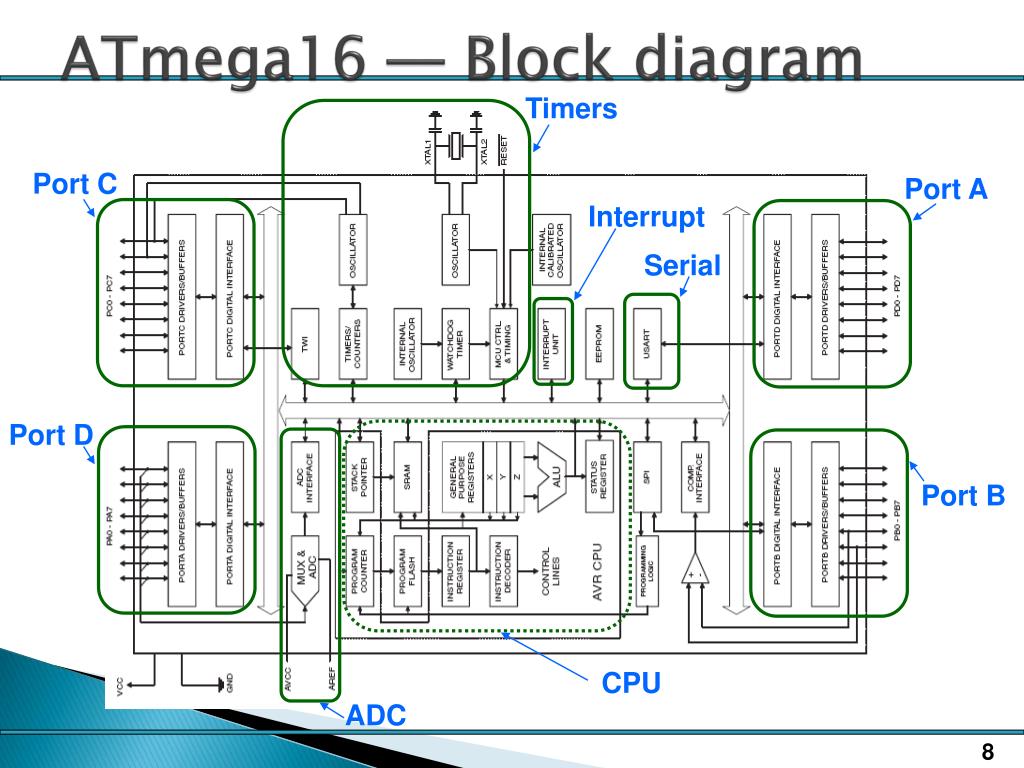

  7. ATmega16 ─ Block diagram Timers Port C Port A Interrupt Serial Port D Port B CPU ADC

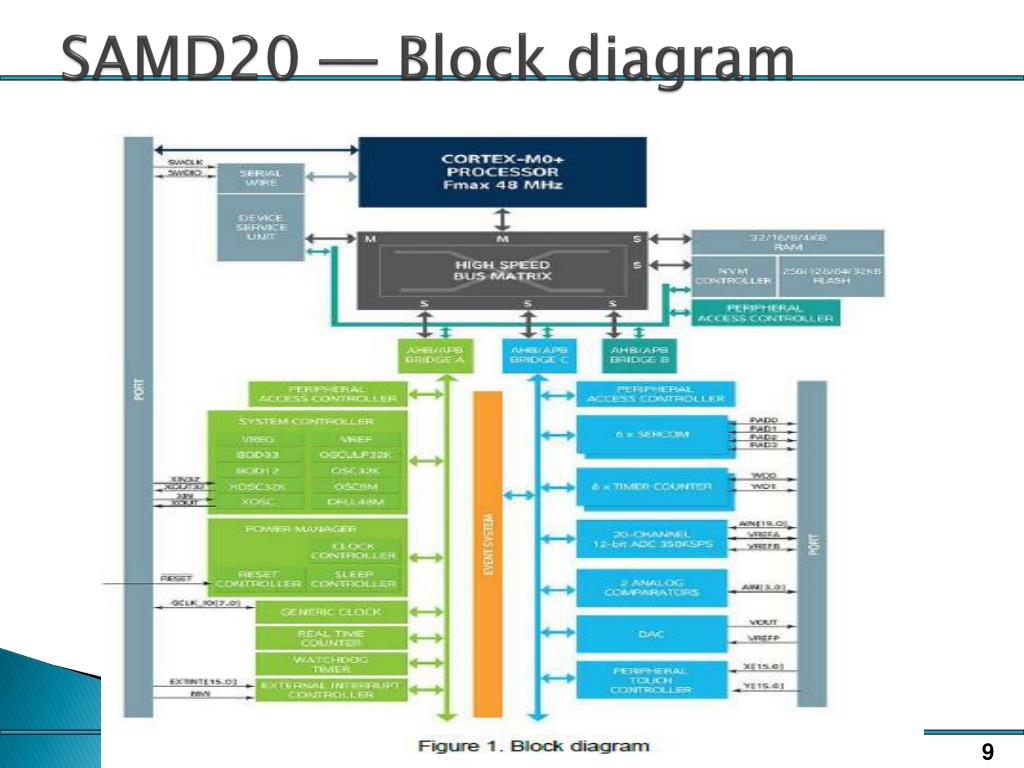

  8. SAMD20 ─ Block diagram

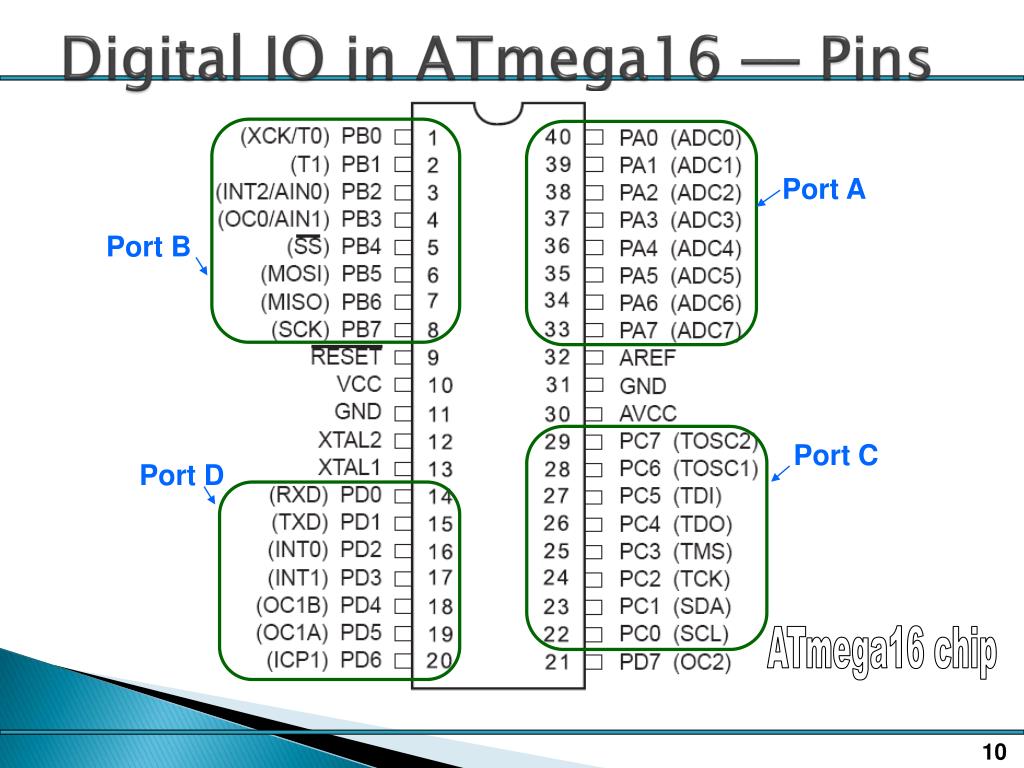

  9. Digital IO in ATmega16 ─ Pins Port A Port B Port C Port D ATmega16 chip

  10. SAMD20 Pin layout

  11. SAMD20 Xplained PRO Evaluation Kit EE138 – SJSU

  12. Atmel Development Kit STK500

  13. C Development using Atmel AVR Studio 6.0 Why using C? • C is a high-level programming language: C code is easier to understand compared to other languages. C supports low-level programming: We can use C to access all hardware components of the microcontroller. C has standard libraries for complex tasks: data type conversions, standard input/output, long-integer arithmetic. The Atmel AVR instruction set is designed to support C compilers: C code can be converted efficiently to assembly code.

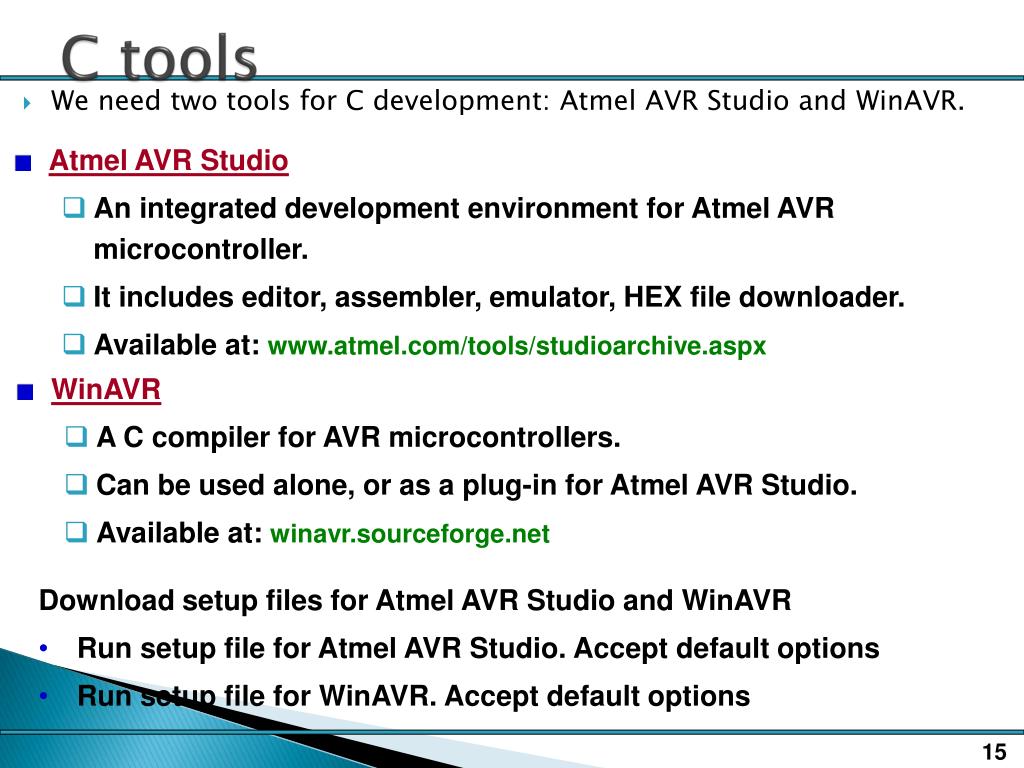

  14. C tools • Atmel AVR Studio • An integrated development environment for Atmel AVR microcontroller. • It includes editor, assembler, emulator, HEX file downloader. • Available at: www.atmel.com/tools/studioarchive.aspx • We need two tools for C development: Atmel AVR Studio and WinAVR. • WinAVR • A C compiler for AVR microcontrollers. • Can be used alone, or as a plug-in for Atmel AVR Studio. • Available at: winavr.sourceforge.net Download setup files for Atmel AVR Studio and WinAVR • Run setup file for Atmel AVR Studio. Accept default options • Run setup file for WinAVR. Accept default options

  15. Development cycle for C Step 1: Create AVR Studio project • project name • project type C • select simulator and device Step 2: Enter a C program. Step 3: Compile the C program to produce a HEX file. Step 4: Download and test the HEX file on Atmel AVR microcontroller. We’ll illustrate these steps using an example.

  16. Development cycle for C ─ Example A program that lets user turn on LED by pressing a switch. Video demo: Lab1_AVR6_LED

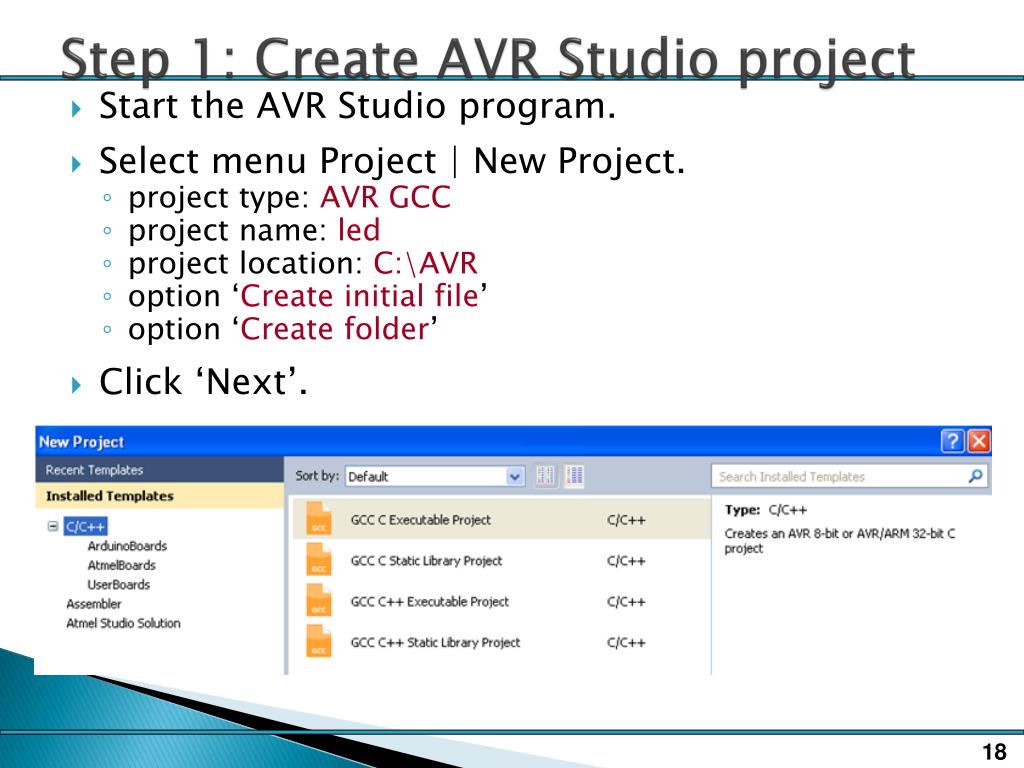

  17. Step 1: Create AVR Studio project • Start the AVR Studio program. • Select menu Project | New Project. • project type: AVR GCC • project name: led • project location: C:\AVR • option ‘Create initial file’ • option ‘Create folder’ • Click ‘Next’.

  18. Create AVR Studio project • Select debug platform and device. • debug platform: AVR Simulator • device: ATmega16 • Click ‘Finish’.

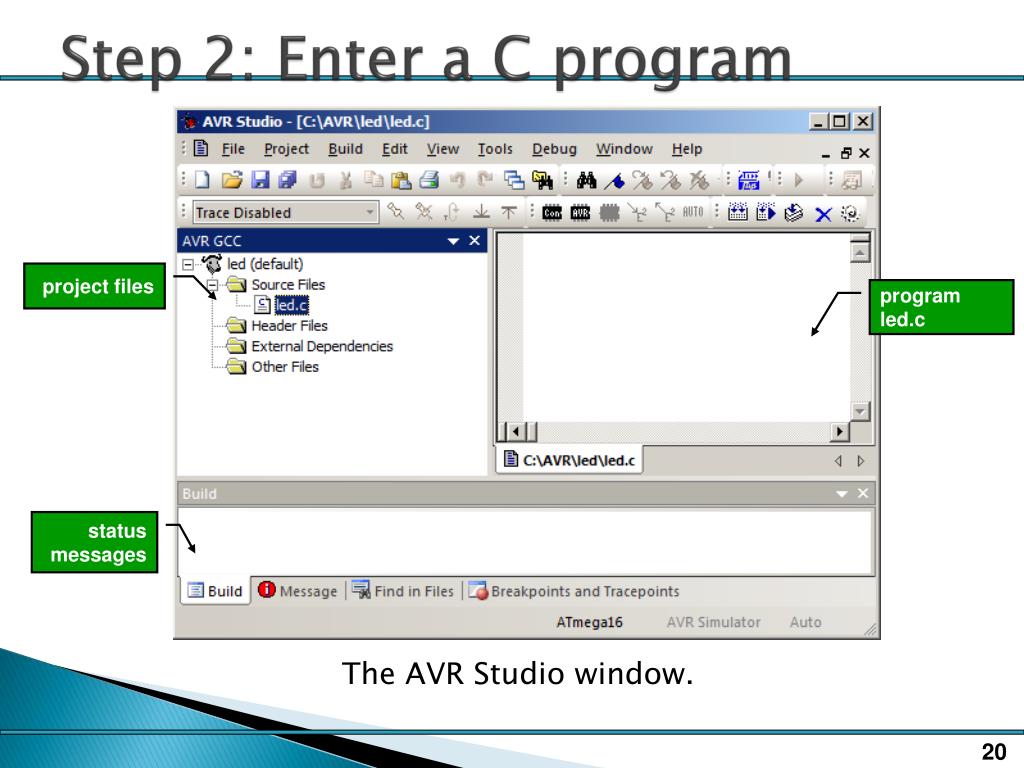

  19. Step 2: Enter a C program The AVR Studio window. project files program led.c status messages

  20. Enter a C program c /* File: led.c Description: Simple C program for the ATMEL AVR uC (ATmega16 chip) It lets user turn on LEDs by pressing the switches on STK500 board */ #include <avr/io.h> // AVR header file for all registers/pins int main(void){ unsigned char i; // temporary variable DDRA = 0x00; // set PORTA for input DDRB = 0xFF; // set PORTB for output PORTB = 0x00; // turn ON all LEDs initially while(1){ // Read input from PORTA. // This port will be connected to the 8 switches i = PINA; // Send output to PORTB. // This port will be connected to the 8 LEDs PORTB = i; } return 1; }

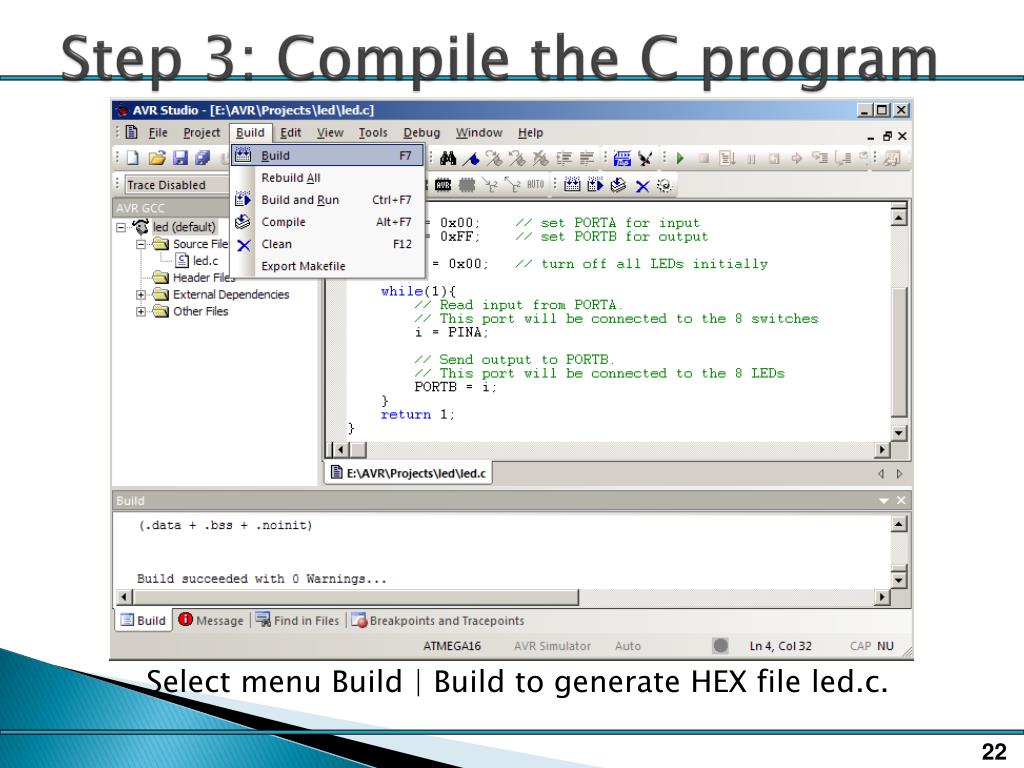

  21. Step 3: Compile the C program Select menu Build | Build to generate HEX file led.c.

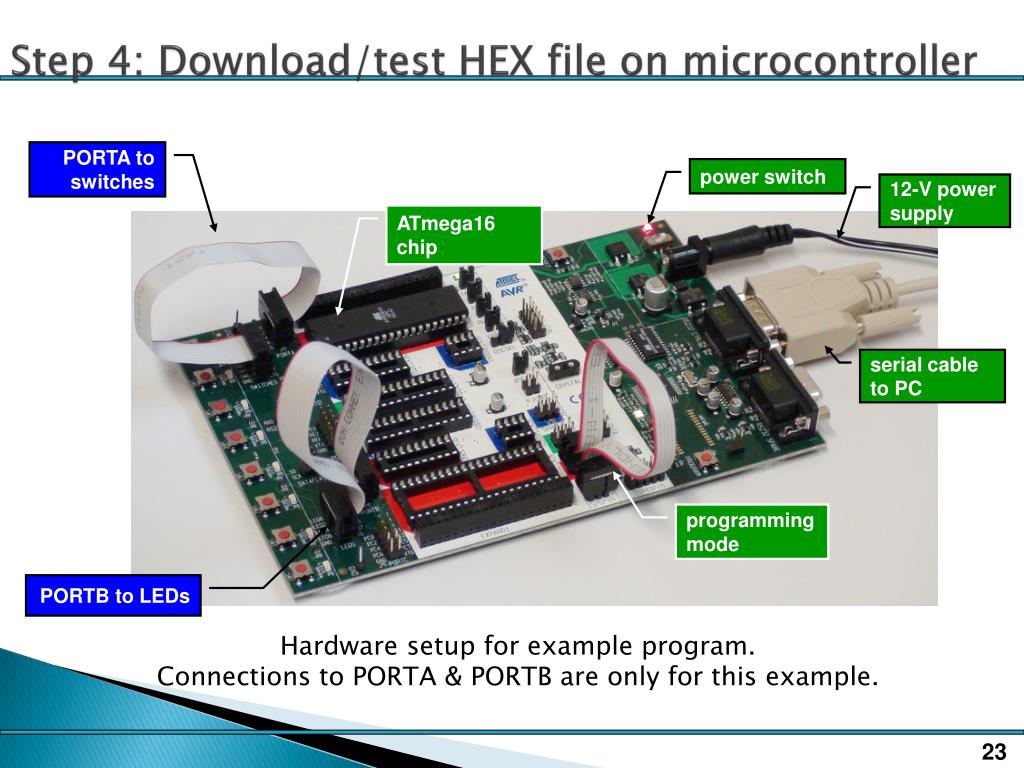

  22. Step 4: Download/test HEX file on microcontroller PORTA to switches power switch Hardware setup for example program. Connections to PORTA & PORTB are only for this example. 12-V power supply ATmega16 chip serial cable to PC programming mode PORTB to LEDs

  23. Download/run HEX file on microcontroller • Select menu Tools | Program AVR | Connect. • Select platform and port. • ‘STK500 or AVRISP’ • ‘Auto’ • Click ‘Connect’.

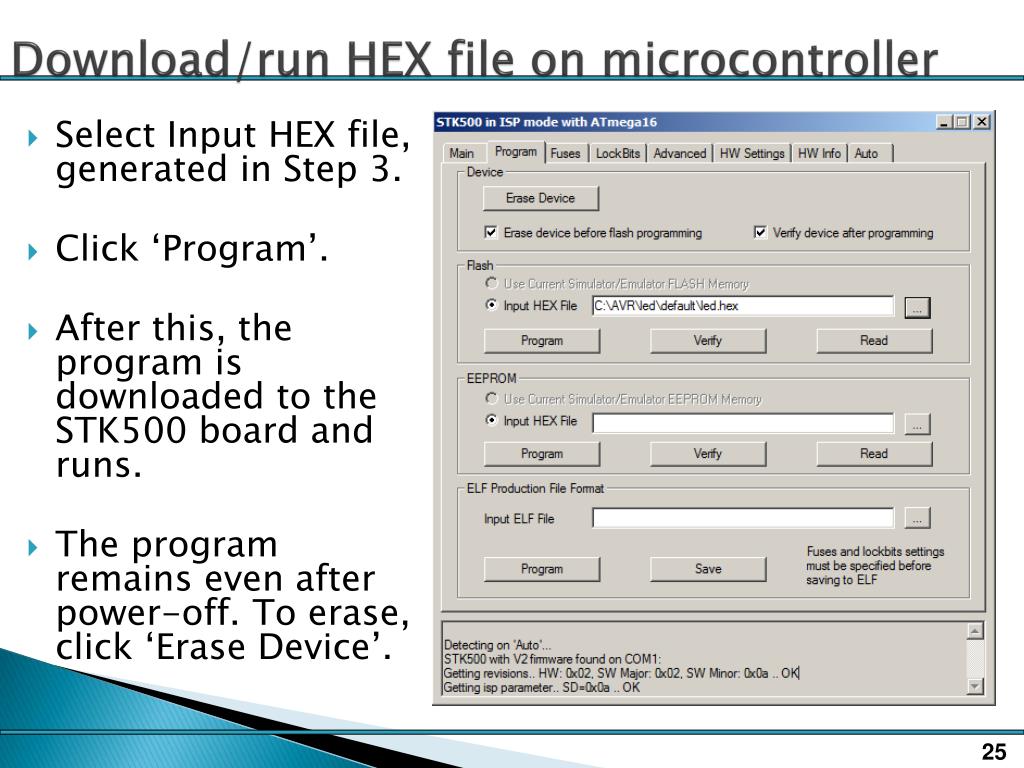

  24. Download/run HEX file on microcontroller • Select Input HEX file, generated in Step 3. • Click ‘Program’. • After this, the program is downloaded to the STK500 board and runs. • The program remains even after power-off. To erase, click ‘Erase Device’.

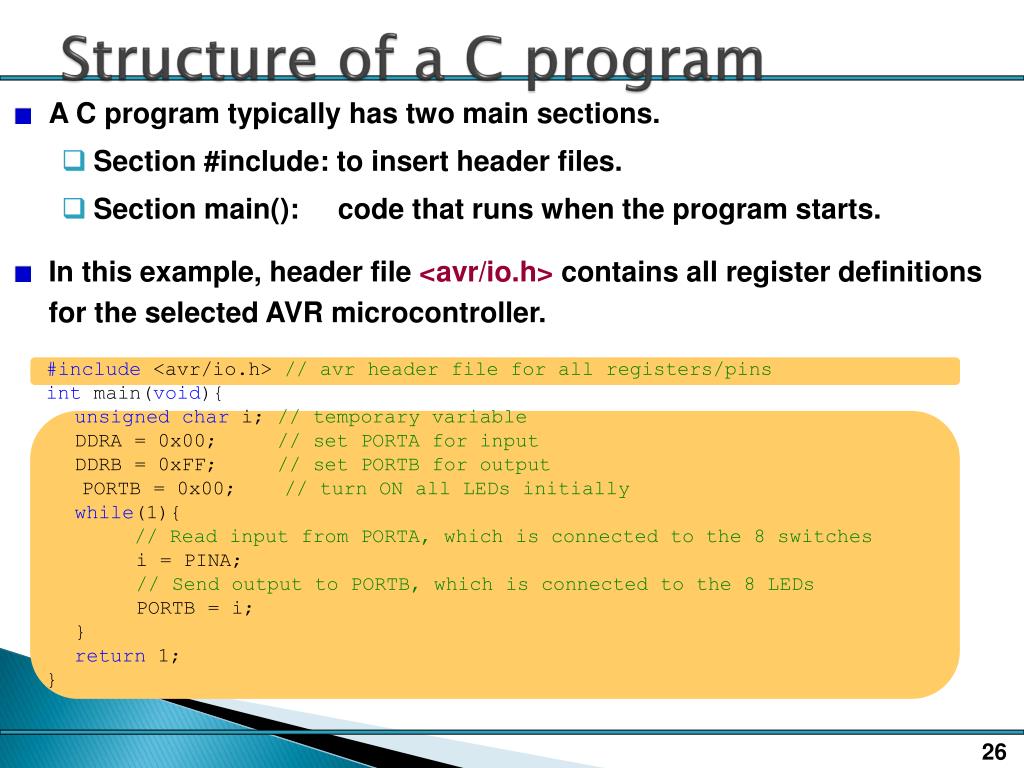

  25. Structure of a C program • A C program typically has two main sections. • Section #include: to insert header files. • Section main(): code that runs when the program starts. #include <avr/io.h> // avr header file for all registers/pins int main(void){ unsigned char i; // temporary variable DDRA = 0x00; // set PORTA for input DDRB = 0xFF; // set PORTB for output PORTB = 0x00; // turn ON all LEDs initially while(1){ // Read input from PORTA, which is connected to the 8 switches i = PINA; // Send output to PORTB, which is connected to the 8 LEDs PORTB = i; } return 1; } In this example, header file <avr/io.h> contains all register definitions for the selected AVR microcontroller.

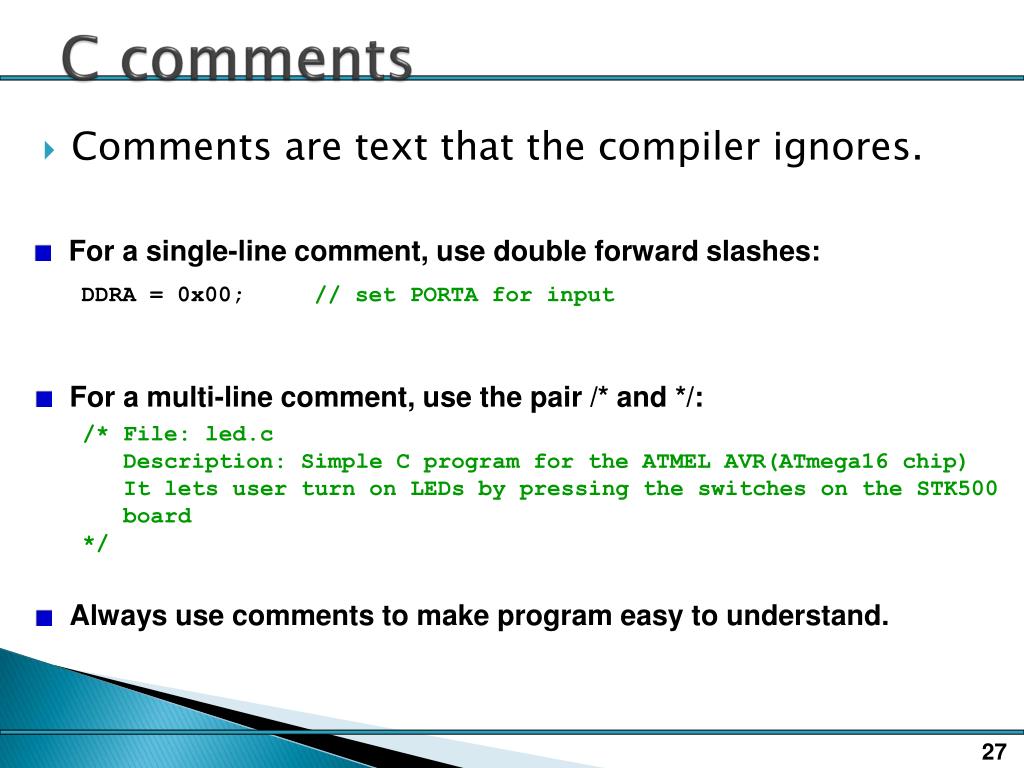

  26. C comments • Comments are text that the compiler ignores. • For a single-line comment, use double forward slashes: DDRA = 0x00; // set PORTA for input • For a multi-line comment, use the pair /* and */: /* File: led.c Description: Simple C program for the ATMEL AVR(ATmega16 chip) It lets user turn on LEDs by pressing the switches on the STK500 board */ Always use comments to make program easy to understand.

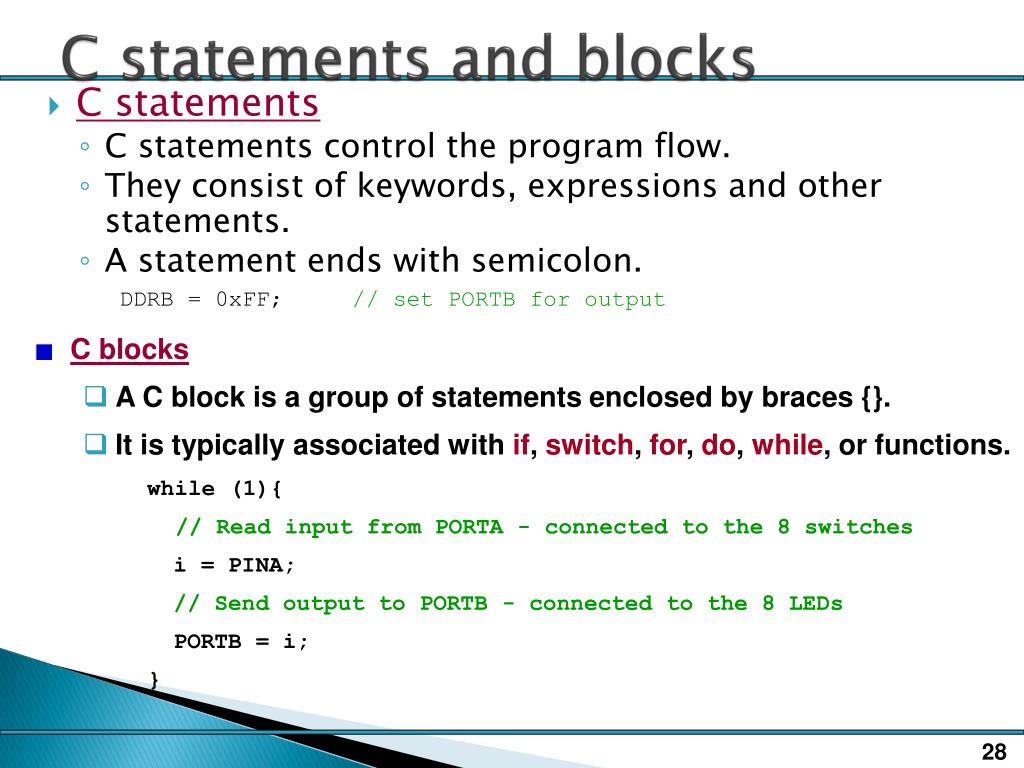

  27. C statements and blocks • C statements • C statements control the program flow. • They consist of keywords, expressions and other statements. • A statement ends with semicolon. DDRB = 0xFF; // set PORTB for output • C blocks • A C block is a group of statements enclosed by braces {}. • It is typically associated with if, switch, for, do, while, or functions. while (1){ // Read input from PORTA - connected to the 8 switches i = PINA; // Send output to PORTB - connected to the 8 LEDs PORTB = i; }

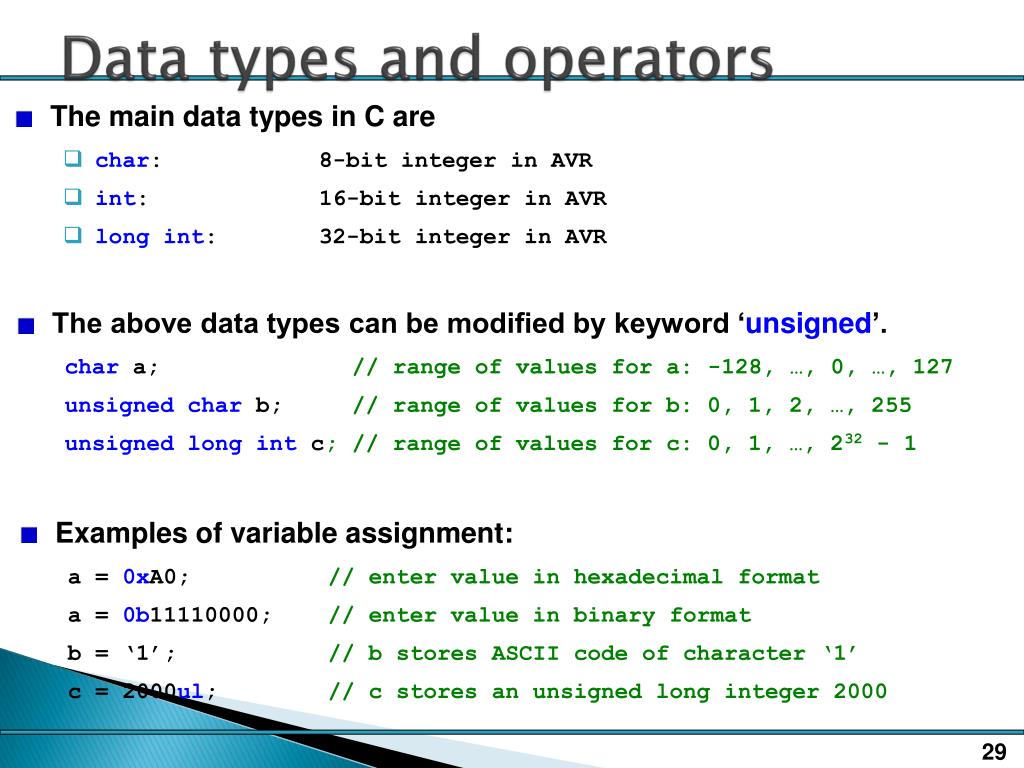

  28. Data types and operators • The main data types in C are • char: 8-bit integer in AVR • int: 16-bit integer in AVR • long int: 32-bit integer in AVR • The above data types can be modified by keyword ‘unsigned’. char a; // range of values for a: -128, …, 0, …, 127 unsigned char b; // range of values for b: 0, 1, 2, …, 255 unsigned long intc; // range of values for c: 0, 1, …, 232 - 1 • Examples of variable assignment: a = 0xA0; // enter value in hexadecimal format a = 0b11110000; // enter value in binary format b = ‘1’; // b stores ASCII code of character ‘1’ c = 2000ul; // c stores an unsigned long integer 2000

  29. C operators • C has a rich set of operators: • Arithmetic operators • Relational operators • Logical operators • Bit-wise operators • Data access operators • Miscellaneous operators

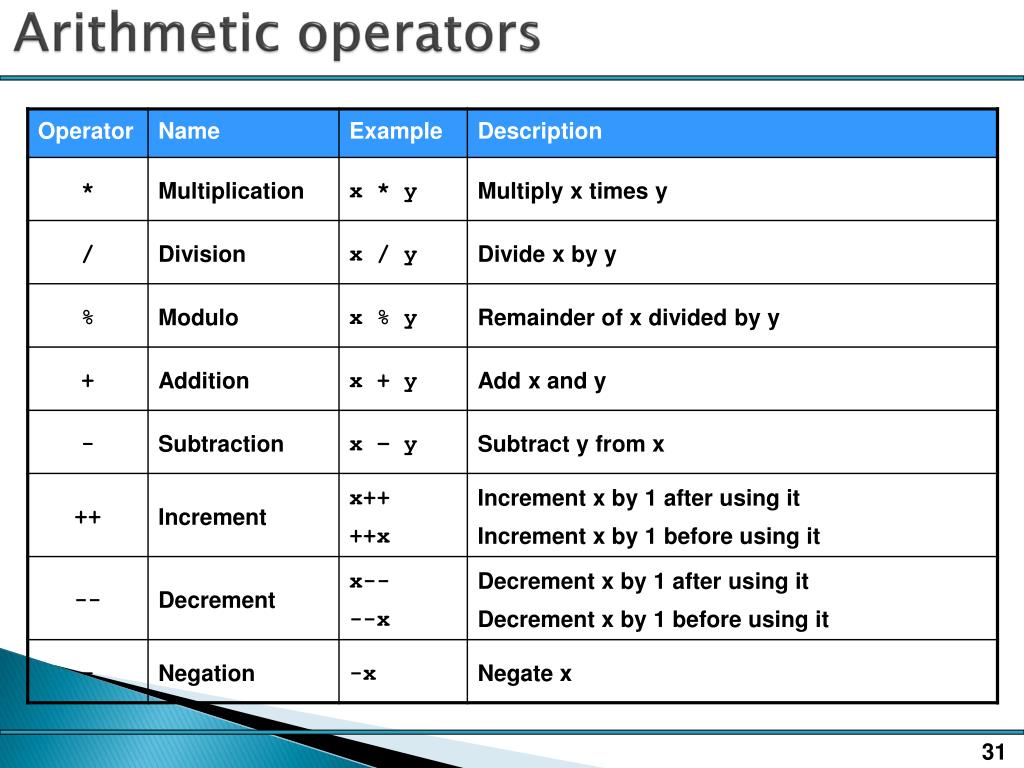

  30. Arithmetic operators

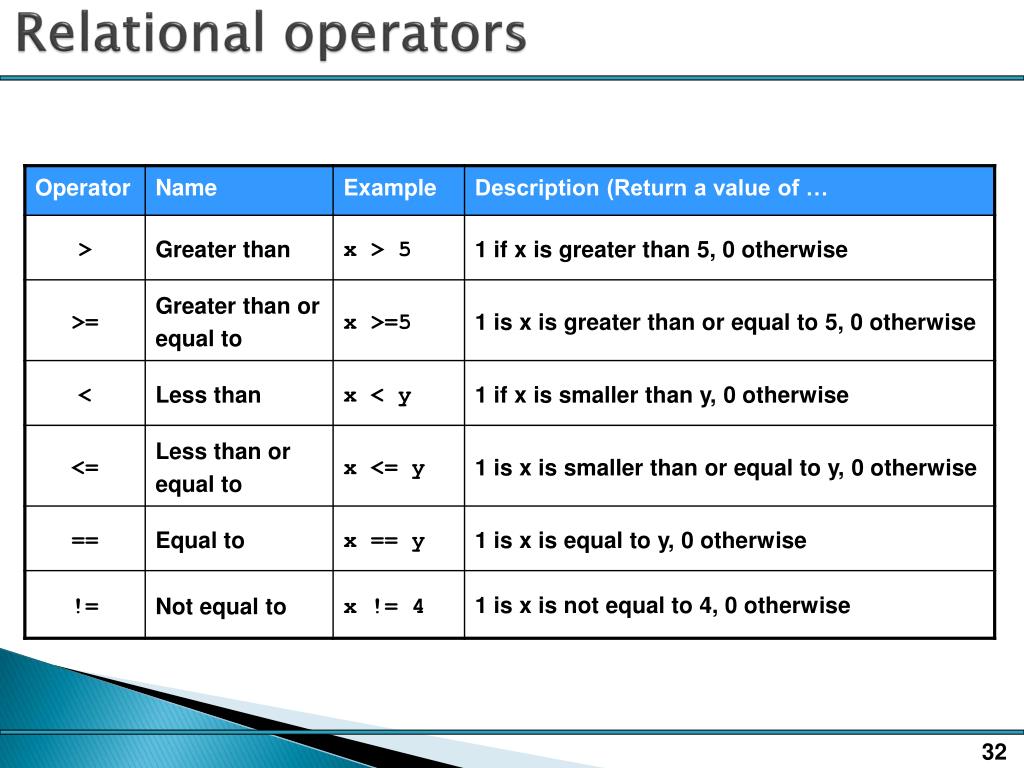

  31. Relational operators

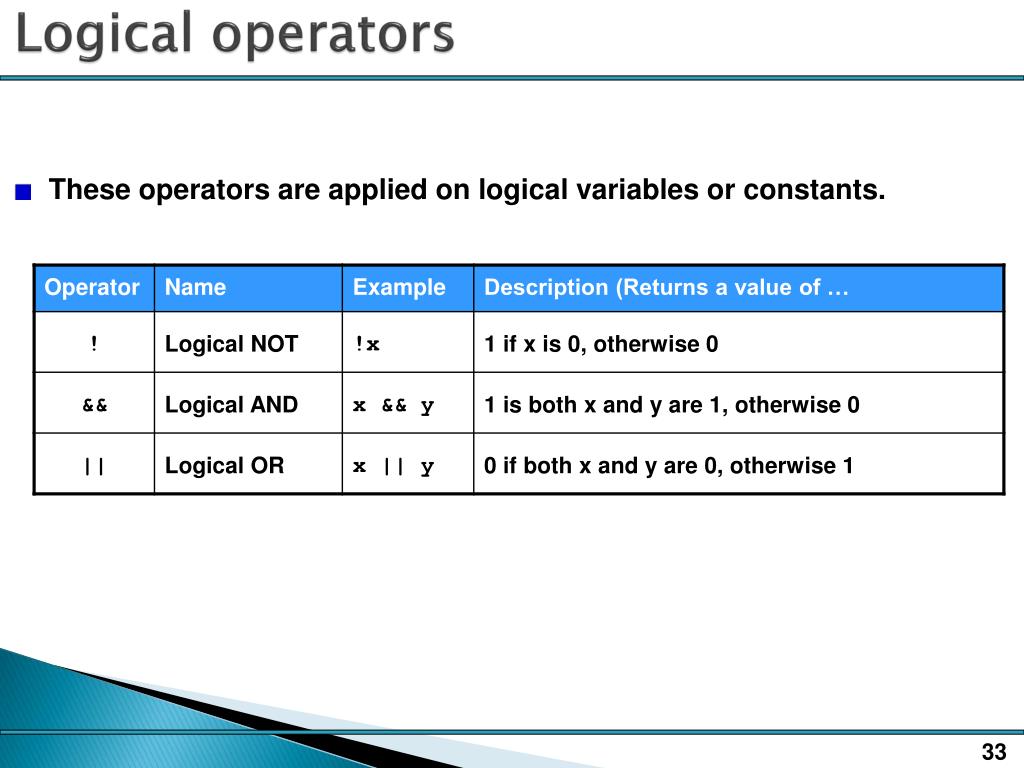

  32. Logical operators These operators are applied on logical variables or constants.

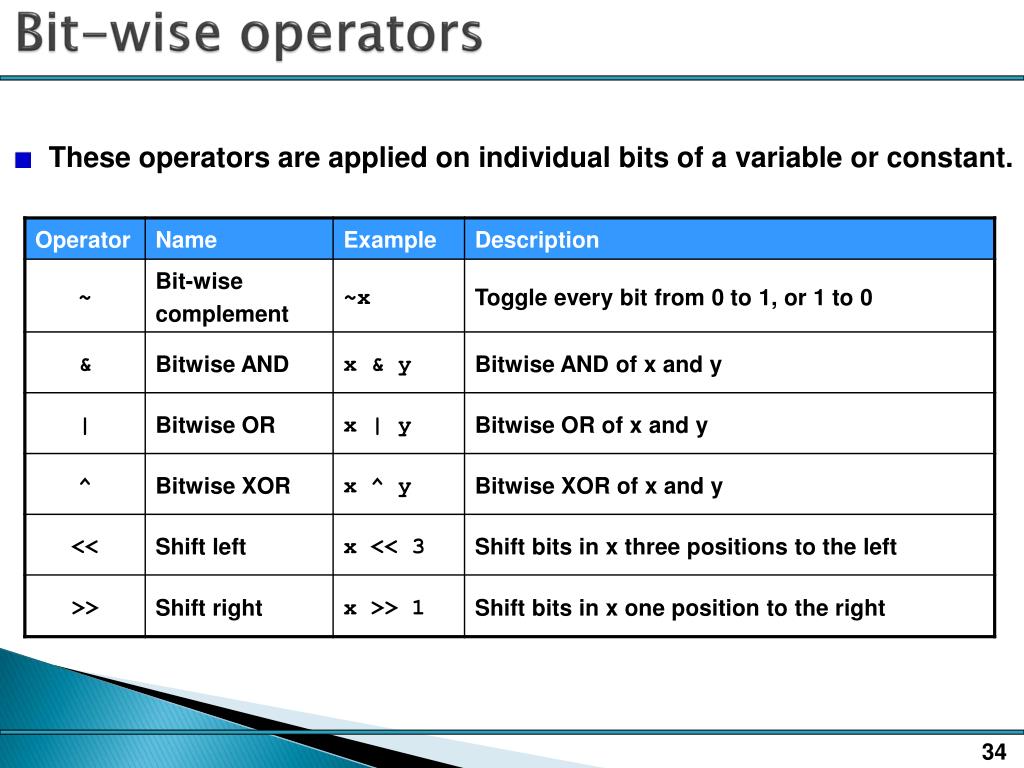

  33. Bit-wise operators These operators are applied on individual bits of a variable or constant.

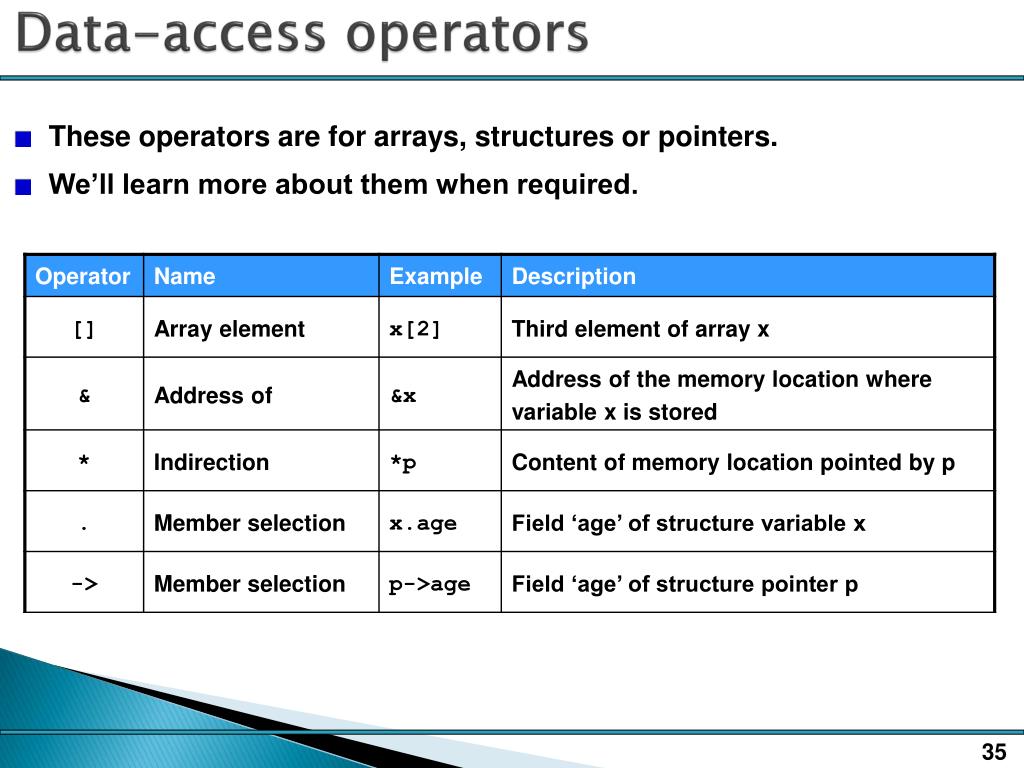

  34. Data-access operators These operators are for arrays, structures or pointers. We’ll learn more about them when required.

  35. Miscellaneous operators commonly used by C coders.

  36. Flow control in C • By default, C statements are executed sequentially. To change the program flow, there are six types of statements • if-else statement • switch statement • while statement • for statement • do statement • goto statement Conditional Iterative Should be avoided!

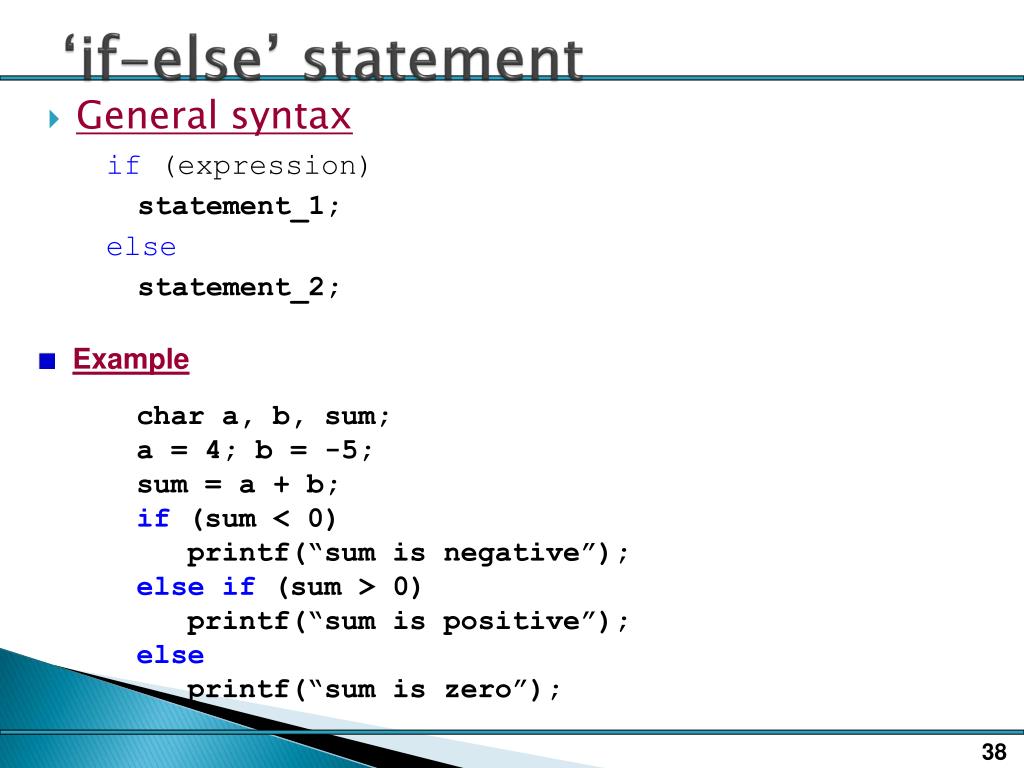

  37. ‘if-else’ statement • General syntax if (expression) statement_1; else statement_2; • Example char a, b, sum; a = 4; b = -5; sum = a + b; if (sum < 0) printf(“sum is negative”); else if (sum > 0) printf(“sum is positive”); else printf(“sum is zero”);

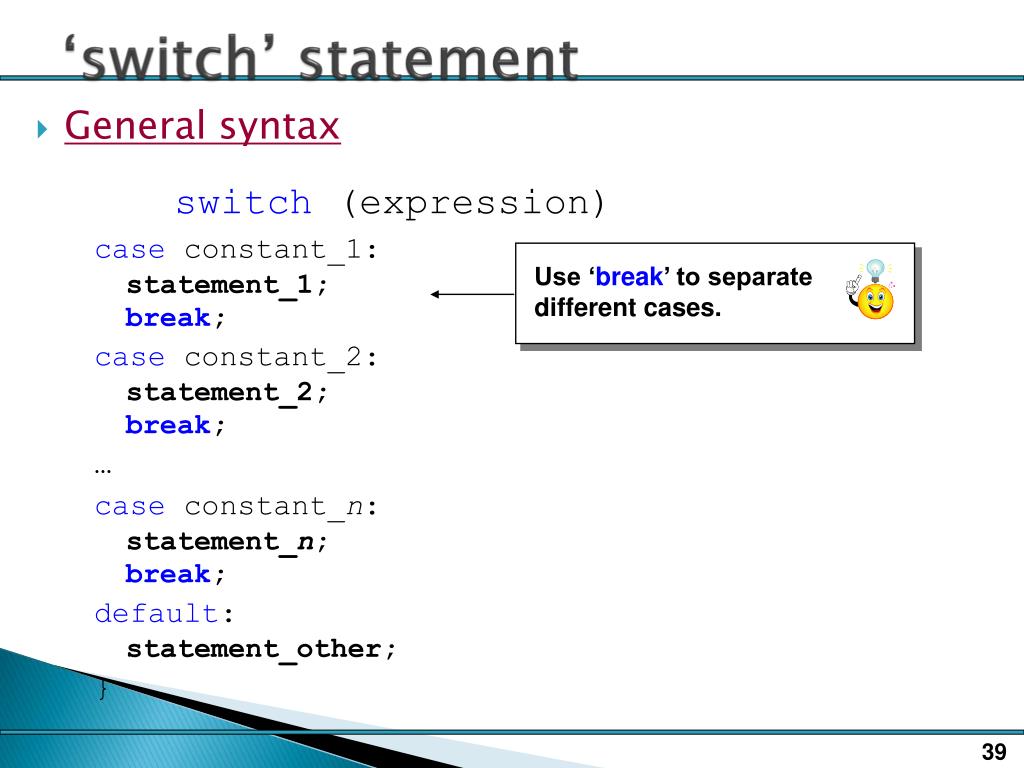

  38. ‘switch’ statement • General syntax switch (expression) case constant_1: statement_1; break; case constant_2: statement_2; break; … case constant_n: statement_n; break; default: statement_other; } Use ‘break’ to separate different cases.

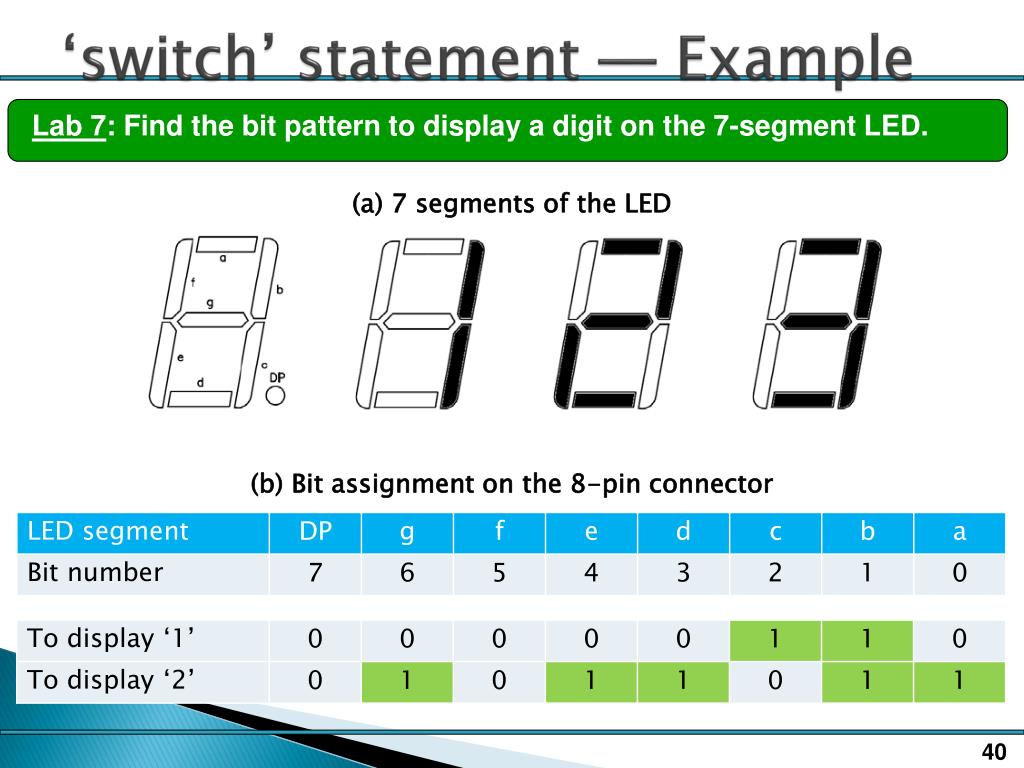

  39. ‘switch’ statement ─ Example Lab 7: Find the bit pattern to display a digit on the 7-segment LED. (a) 7 segments of the LED (b) Bit assignment on the 8-pin connector

  40. ‘switch’ statement ─ Example unsigned char digit; // input unsigned char led_pattern; // output switch (digit) case ‘0’: led_pattern = 0b00111111; break; case ‘1’: led_pattern = 0b00000110; break; case ‘2’: led_pattern = 0b01011011; break; //you can complete more cases here... default: } PORTB = led_pattern; // send to PORTB and 7-segment LED

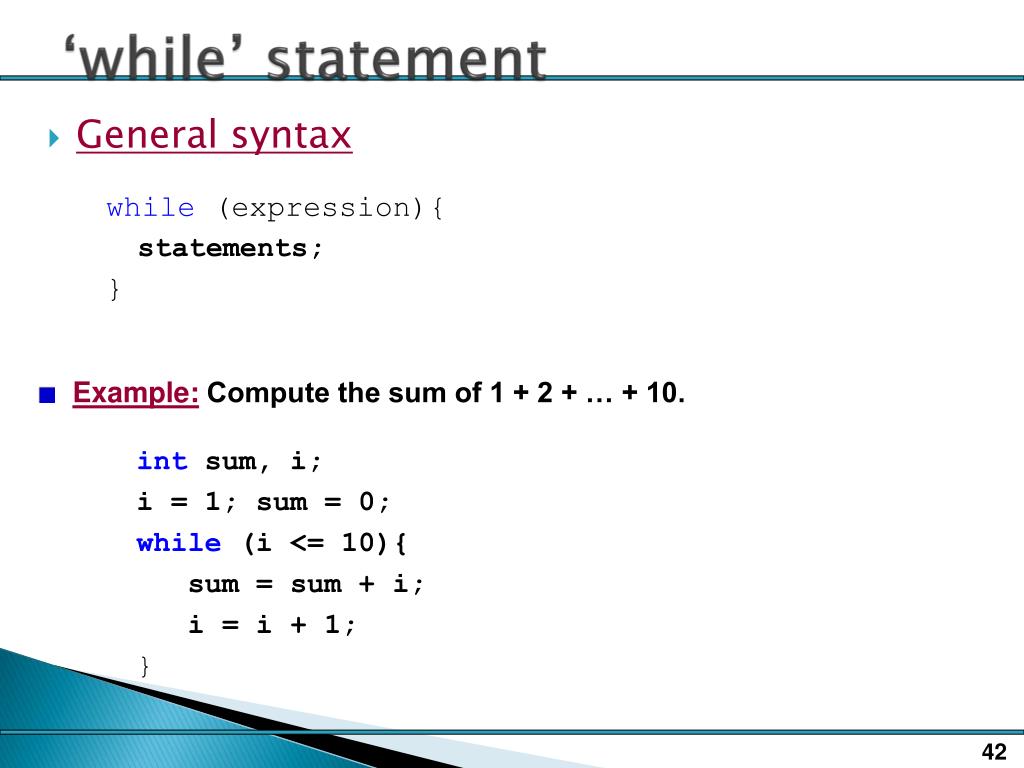

  41. ‘while’ statement • General syntax while (expression){ statements; } • Example: Compute the sum of 1 + 2 + … + 10. int sum, i; i = 1; sum = 0; while (i <= 10){ sum = sum + i; i = i + 1; }

  42. ‘for’ statement • General syntax for (expression1; expression2; expression3){ statements; } • expression1 is run before the loop starts. • expression2 is evaluated before each iteration. • expression3 is run after each iteration. • Example: Compute the sum of 1 + 2 + … + 10. int sum = 0; for (int i = 1; i <= 10; i++){ sum = sum + i; }

  43. ‘do’ statement • General syntax do { statements; } while (expression); • Example: Compute the sum of 1 + 2 + … + 10. int sum, i; i = 1; sum = 0; // Initialization do{ sum = sum + i; i = i + 1; }while (i <= 10);

  44. ‘break’ statement in loop • The ‘break’ statement inside a loop forces early termination of the loop. • What is the value of ‘sum’ after the following code is executed? int sum, i; i = 1; sum = 0; while (i <= 10){ sum = sum + i; i = i + 1; if (i > 5) break; } sum = ?

  45. ‘continue’ statement in loop • The ‘continue’ statement skips the subsequent statements in the code block, and forces the execution of the next iteration. • What is the value of ‘sum’ after the following code is executed? int sum, i; i = 1; sum = 0; // Initialization while (i <= 10){ i = i + 1; if (i < 5) continue; sum = sum + i; } sum = ?

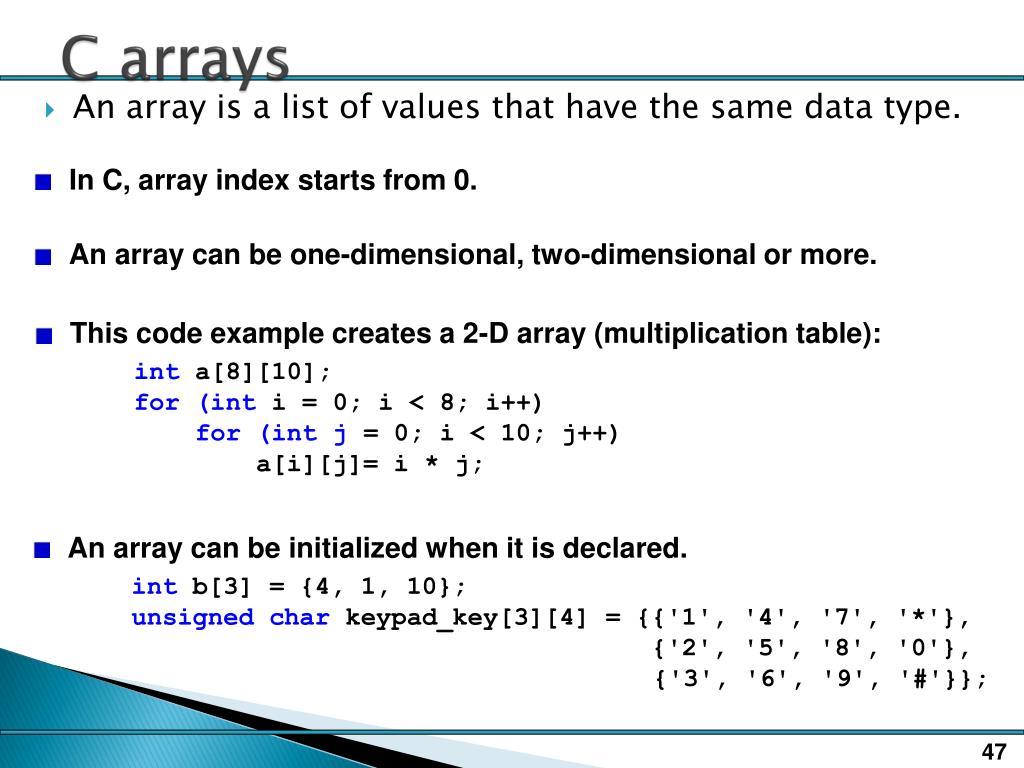

  46. C arrays In C, array index starts from 0. • An array is a list of values that have the same data type. An array can be one-dimensional, two-dimensional or more. • This code example creates a 2-D array (multiplication table): int a[8][10]; for (int i = 0; i < 8; i++) for (int j = 0; i < 10; j++) a[i][j]= i * j; • An array can be initialized when it is declared. int b[3] = {4, 1, 10}; unsigned char keypad_key[3][4] = {{'1', '4', '7', '*'}, {'2', '5', '8', '0'}, {'3', '6', '9', '#'}};

  47. C functions • C functions are sub-routines that can be called from the main program or other functions. Functions enable modular designs, code reuse, and hiding of complex implementation details. A C function can have a list of parameters and produce a return value. Let us study C functions through examples.

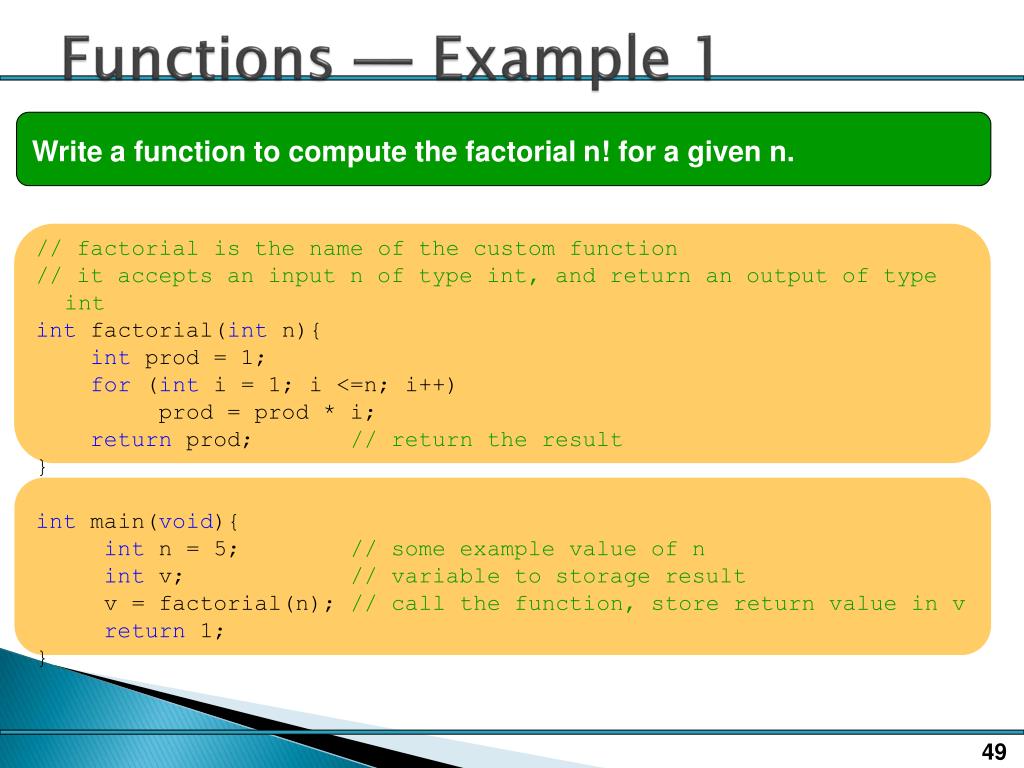

  48. Functions ─ Example 1 Write a function to compute the factorial n! for a given n. // factorial is the name of the custom function // it accepts an input n of type int, and return an output of type int int factorial(int n){ int prod = 1; for (int i = 1; i <=n; i++) prod = prod * i; return prod; // return the result } int main(void){ int n = 5; // some example value of n int v; // variable to storage result v = factorial(n); // call the function, store return value in v return 1; }

  49. Functions ─ Example 2 Write a function to compute the factorial n! for a given n. // factorial is the name of the custom function // it accepts an input n of type int, // it stores output at memory location by int pointer p voidfactorial(int n, int* p){ int prod = 1; for (int i = 1; i <=n; i++) prod = prod * i; *p = prod;// store output at memory location pointed by p } int main(void){ int n = 5; // some example value of n int v; // variable to storage result factorial(n, &v); // call the function, store return value in v }
