Modeling rotational Raman scattering in the Earth’s atmosphere

Rutger van Deelen

Jochen Landgraf

Otto Hasekamp

Ilse Aben

September 13, 2006, KNMI

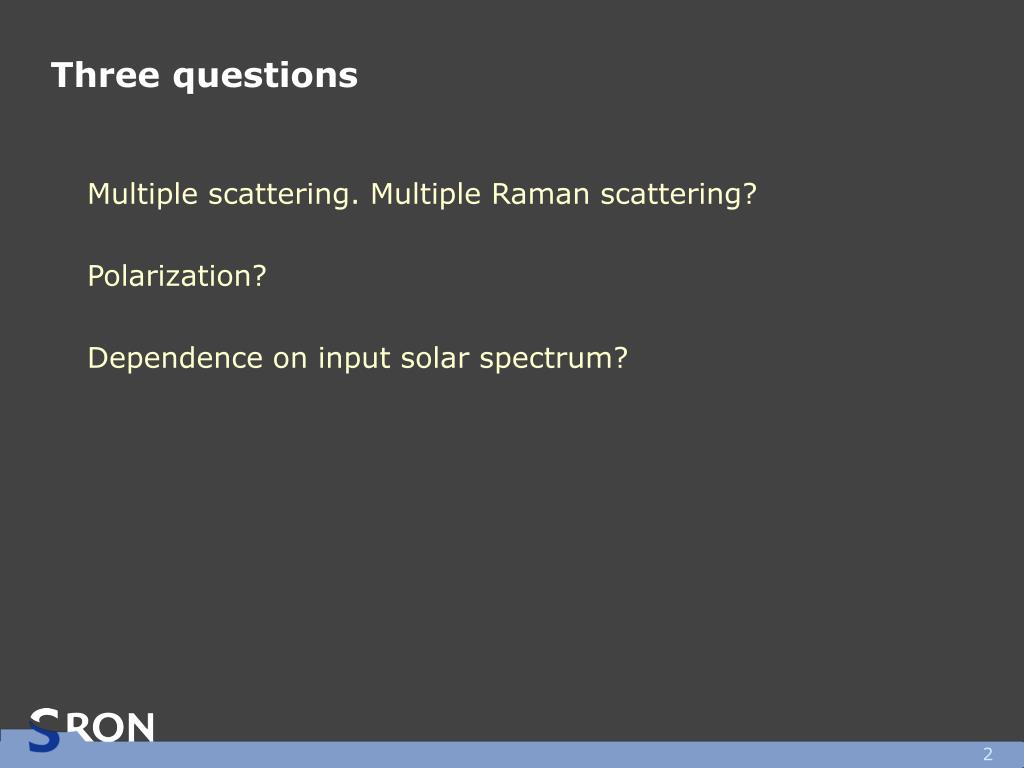

Three questions
Three questions atmosphere

Multiple scattering. Multiple Raman scattering?

Polarization?

Dependence on input solar spectrum?


Measured gome spectra
Measured GOME spectra atmosphere

solar irradiance spectrum

Earth radiance spectrum




Rotational raman scattering

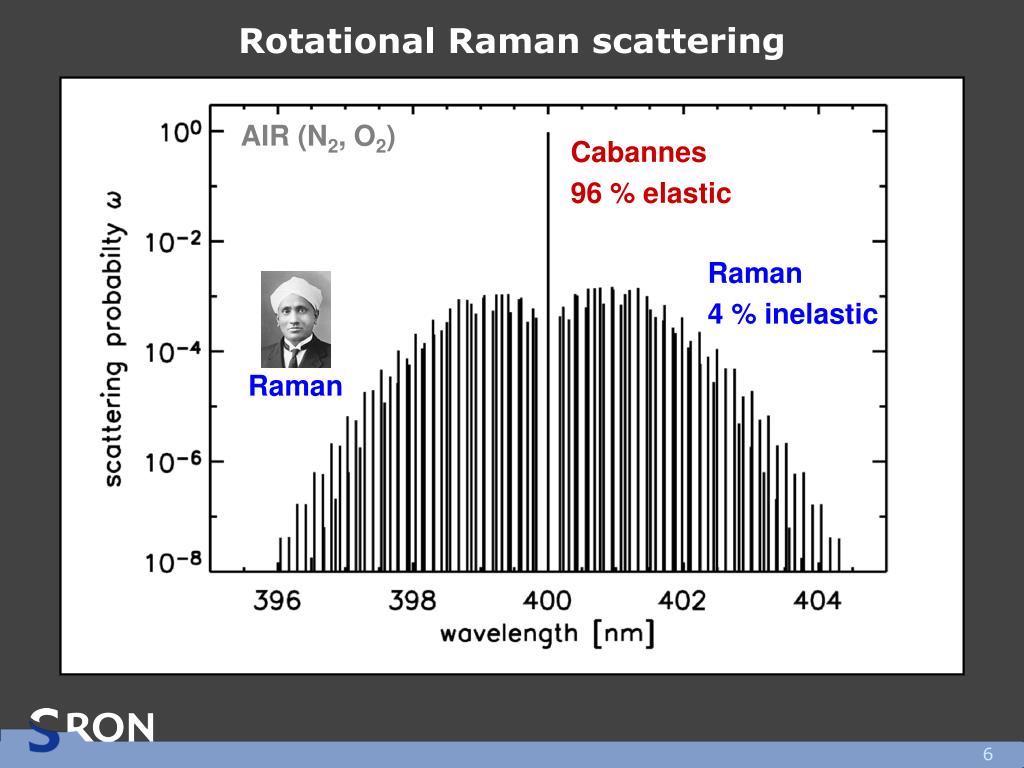

Rotational Raman scattering atmosphere

AIR (N2, O2)

Cabannes

96 % elastic

Raman

4 % inelastic

Raman

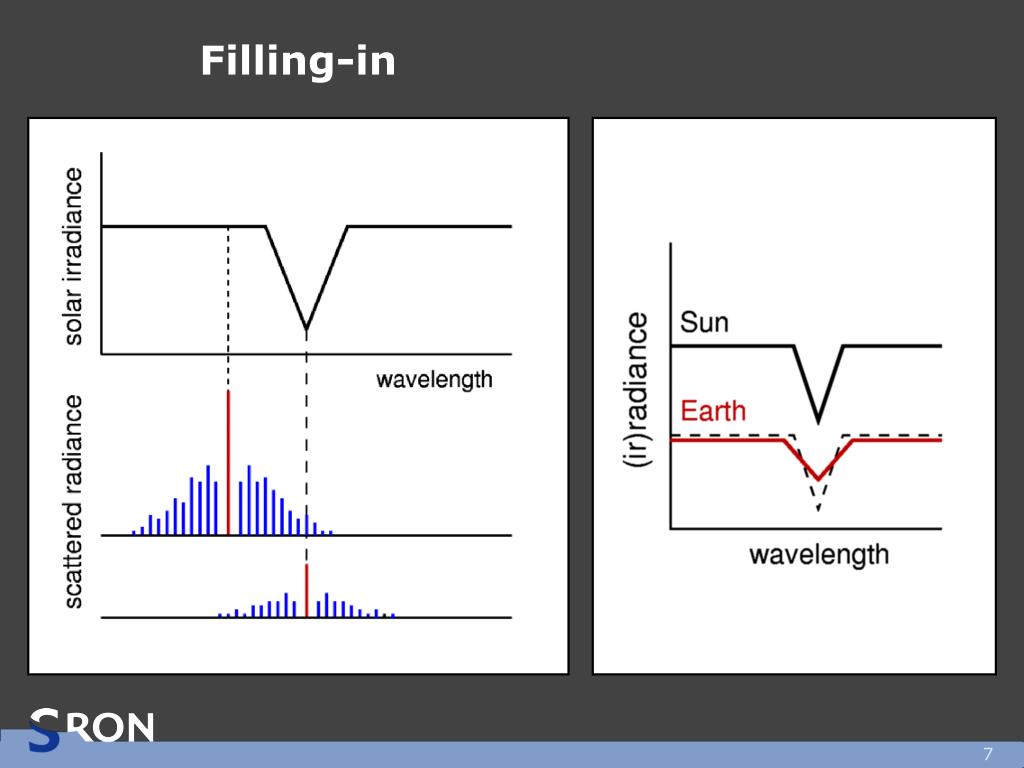

Filling in
Filling-in atmosphere


Filling in1
Filling-in atmosphere


Doubling adding approach

Perturbation theory approach atmosphere

Doubling-addingapproach

multiple orders of Raman scattering,

comes out naturally,

scalar

one order of Raman scattering,

fast,

vector

wP

wP

wP

wP

wP

A


Rayleigh
Rayleigh atmosphere

optical

thickness

tray(l)

single

scattering

albedo

wray(l)

Pray

phase

function

Q


Rayleigh1
Rayleigh atmosphere

Cabannes + Raman

optical

thickness

tray(l)

tray(l’) = tcab(l’) + S tram(l,l’)

l

total

elastic

inelastic

wcab(l)

inelastic

single

scattering

albedo

wram(l,l’)

wray(l)

w(l,l’)

Pray

Pcab

phase

function

Q

Q

Pram


Doubling adding approach1

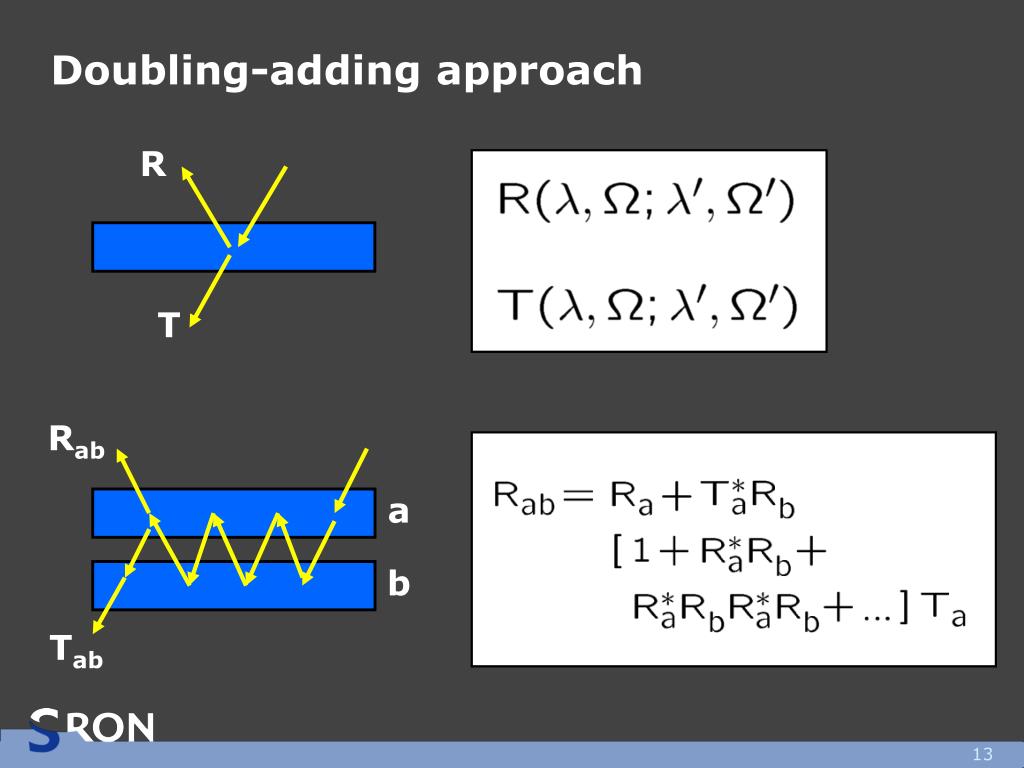

Doubling-adding approach atmosphere

R

T


Doubling adding approach2
Doubling-adding approach atmosphere

R

T

Rab

a

b

Tab


Perturbation theory approach based on the green s function

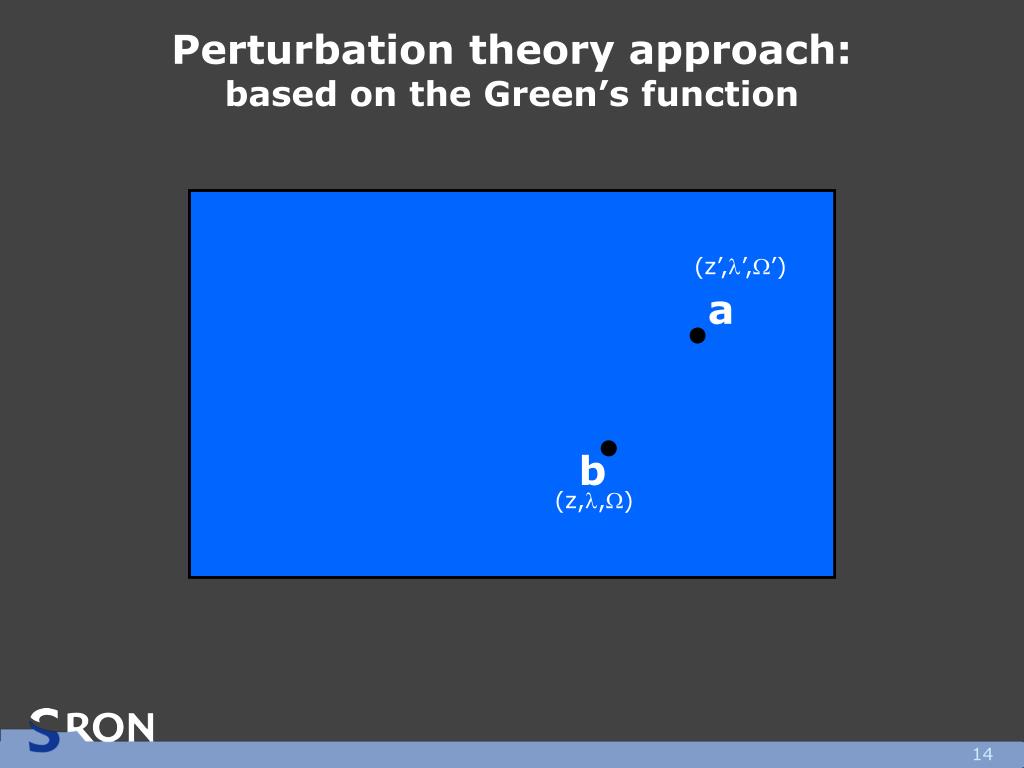

Perturbation theory approach: atmospherebased on the Green’s function

(z’,l’,W’)

a

b

(z,l,W)


Perturbation theory approach based on the green s function1
Perturbation theory approach: atmospherebased on the Green’s function

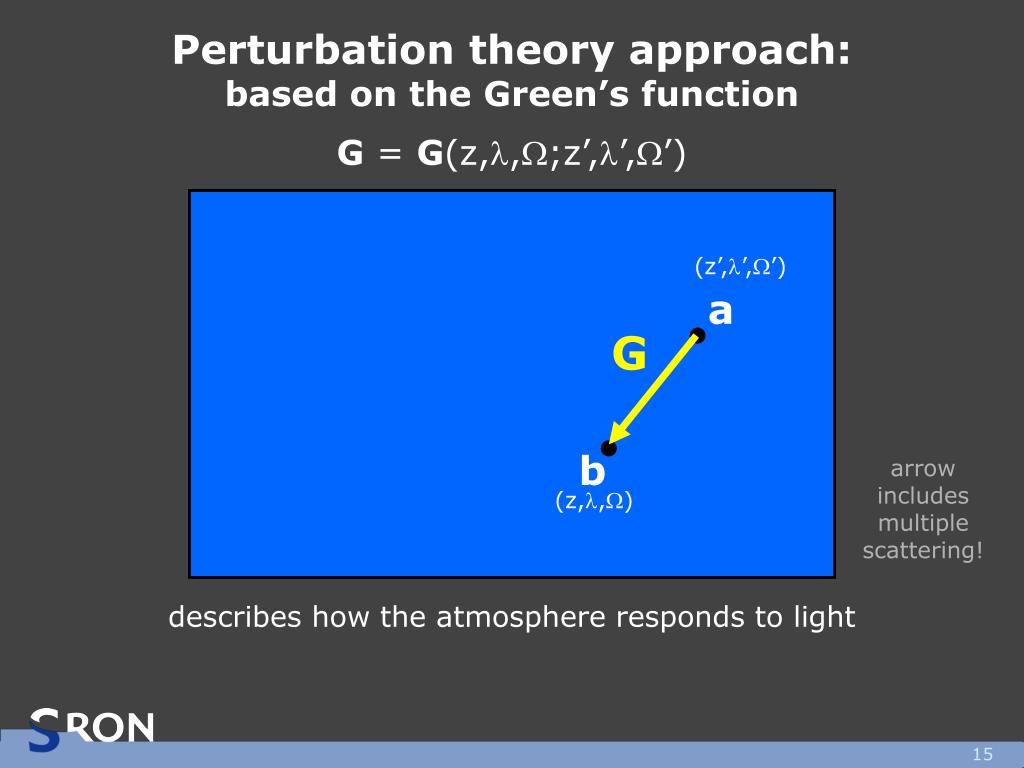

G = G(z,l,W;z’,l’,W’)

(z’,l’,W’)

a

G

b

arrow includes multiple scattering!

(z,l,W)

describes how the atmosphere responds to light


Perturbation theory approach based on the green s function2
Perturbation theory approach: atmospherebased on the Green’s function

b

a

source and

target are

fixed

G

arrow includes multiple scattering!

Dyson series

G = Gray – Gray [ D Gray ] + Gray [ D Gray ]2 – Gray [ D Gray ]3+ …


Perturbation theory approach expansion of the green s function
Perturbation theory approach: atmosphereexpansion of the Green’s function

b

a

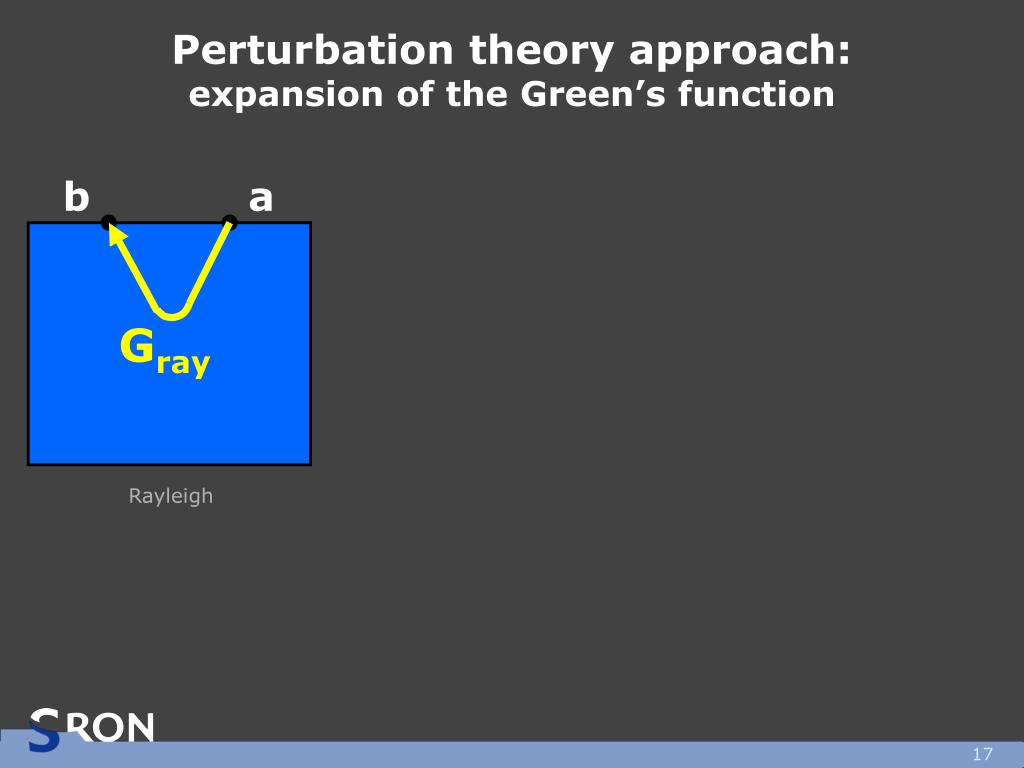

Gray

Rayleigh


Perturbation theory approach expansion of the green s function1
Perturbation theory approach: atmosphereexpansion of the Green’s function

b

a

b

a

Gray

Gray

Gray

-

D

for all

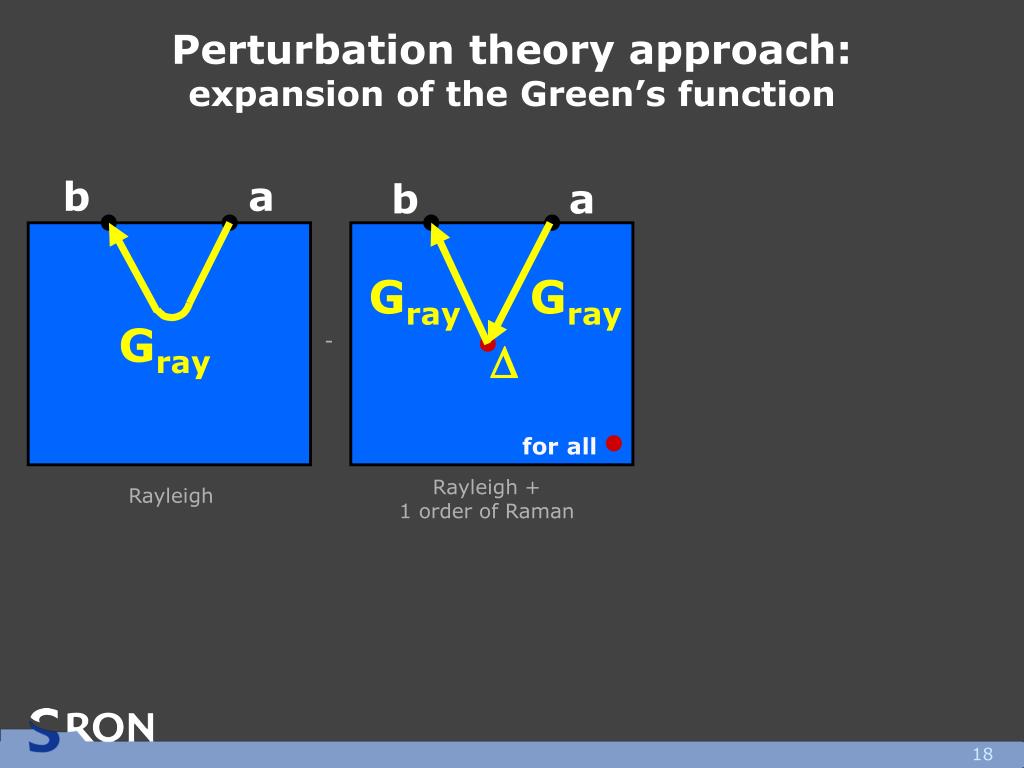

Rayleigh +

1 order of Raman

Rayleigh


Perturbation theory approach expansion of the green s function2
Perturbation theory approach: atmosphereexpansion of the Green’s function

b

a

b

a

b

a

Gray

Gray

Gray

Gray

D

Gray

- ...

-

D

+

D

Gray

for all

for all

Rayleigh +

1 order of Raman

Rayleigh +

2 orders of Raman

Rayleigh


Perturbation theory approach expansion of the green s function3
Perturbation theory approach: atmosphereexpansion of the Green’s function

b

a

b

a

b

a

Gray

Gray

Gray

Gray

D

bw

Gray

- ...

+

D

+

D

Gray

for all

for all

Rayleigh +

1 order of Raman

Rayleigh +

2 orders of Raman

Rayleigh


Comparison pert da

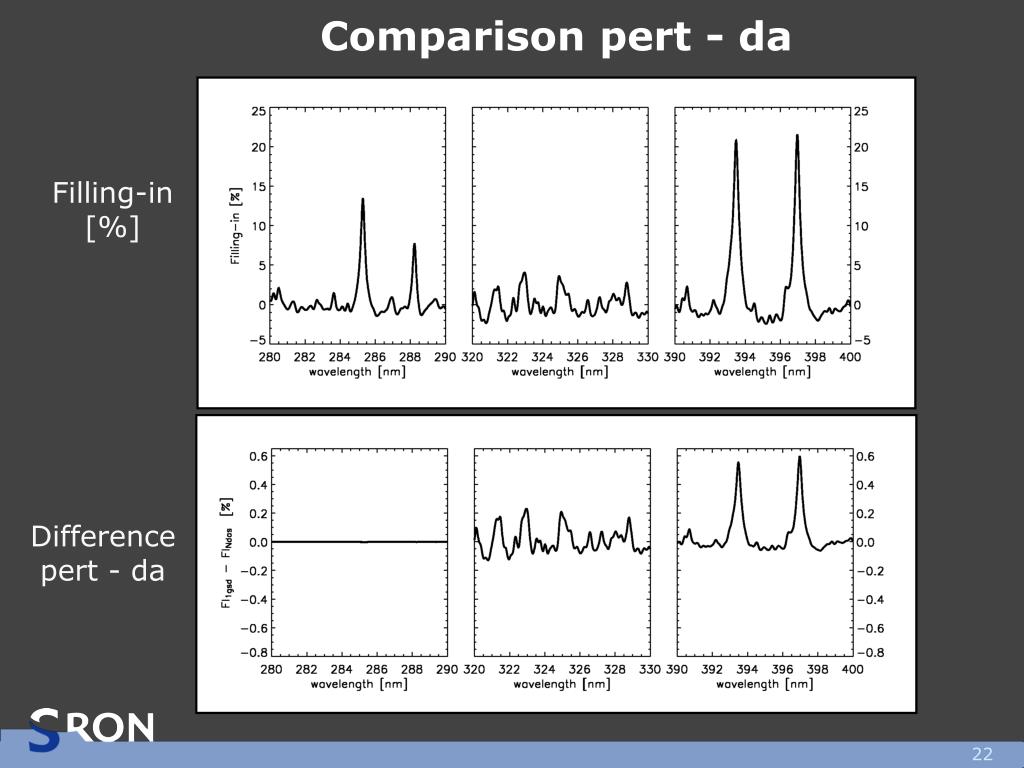

Comparison pert - da atmosphere

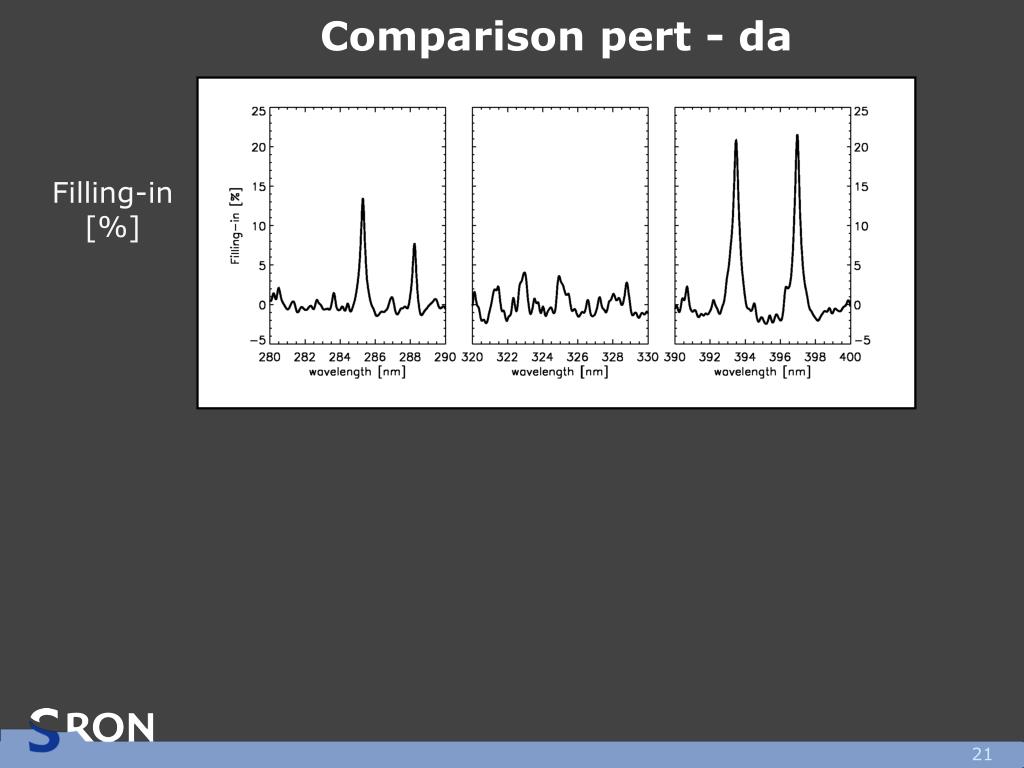

Filling-in

[%]


Comparison pert da1
Comparison pert - da atmosphere

Filling-in

[%]

Difference

pert - da


Polarization
Polarization atmosphere

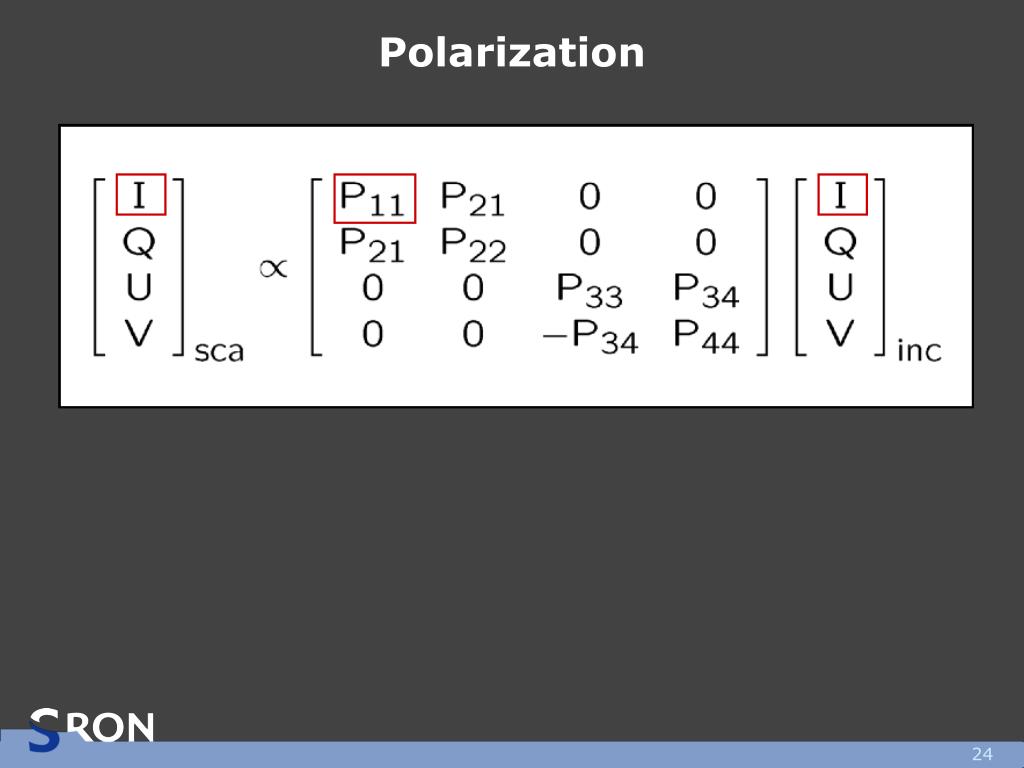

Stokes vector


Polarization1
Polarization atmosphere


Neglect of polarization

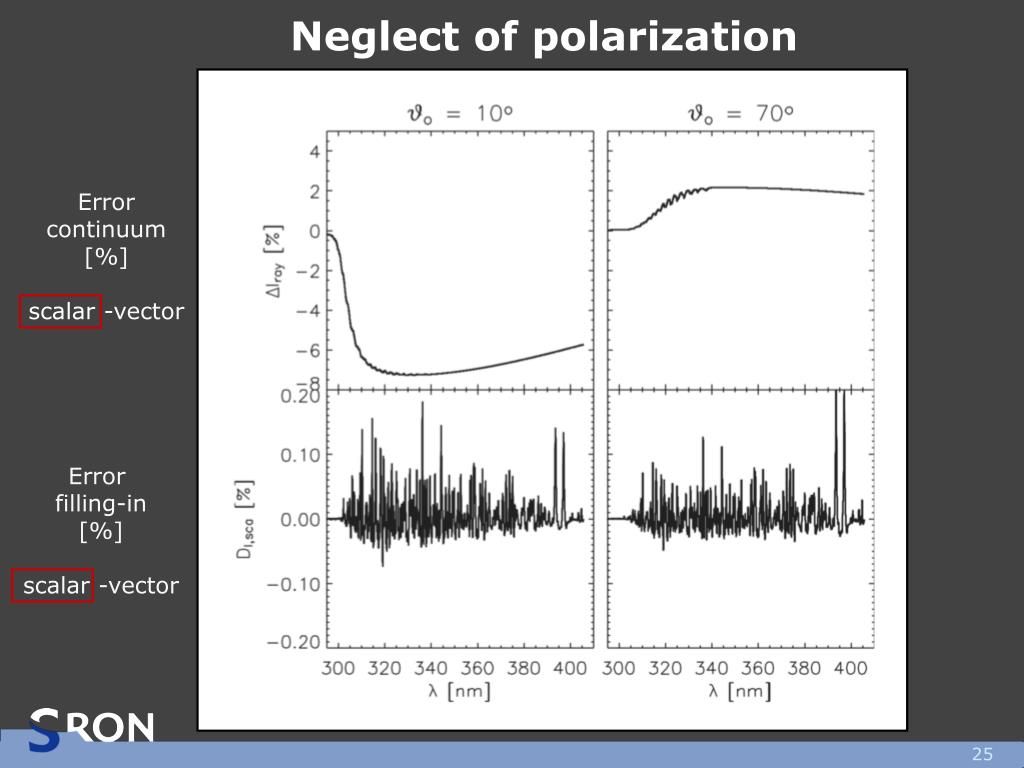

Neglect of polarization atmosphere

Error

continuum

[%]

scalar -vector

Error

filling-in

[%]

scalar -vector


The simulated ring effect depends on the input solar spectrum
The simulated Ring effect depends atmosphereon the input solar spectrum

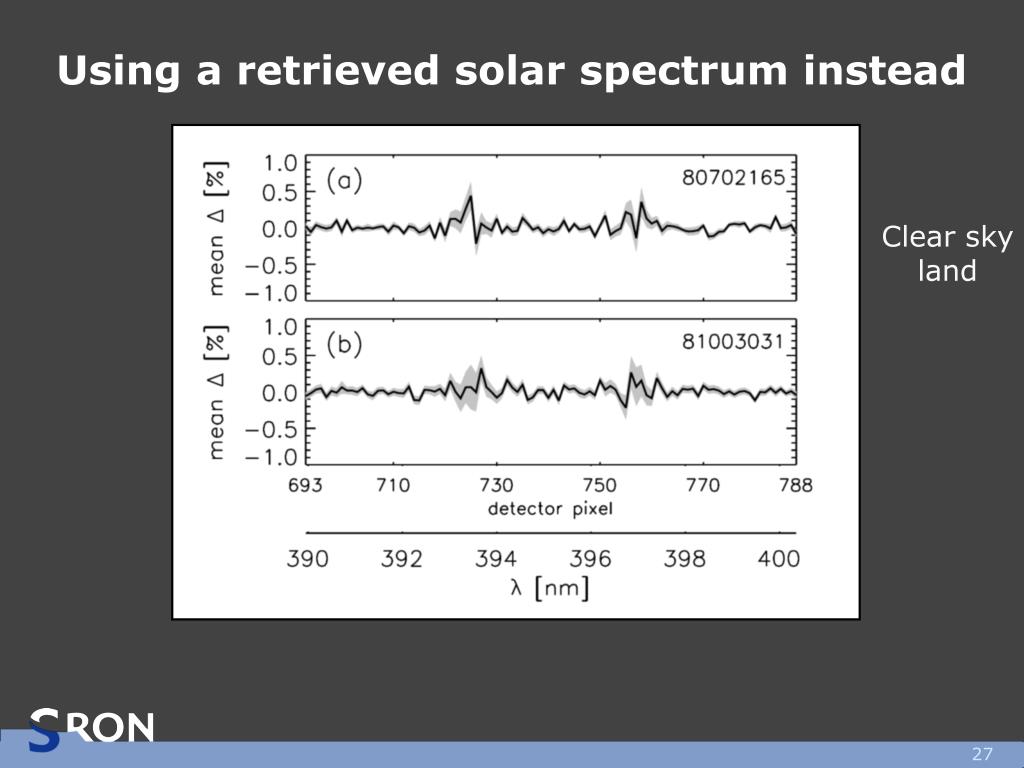

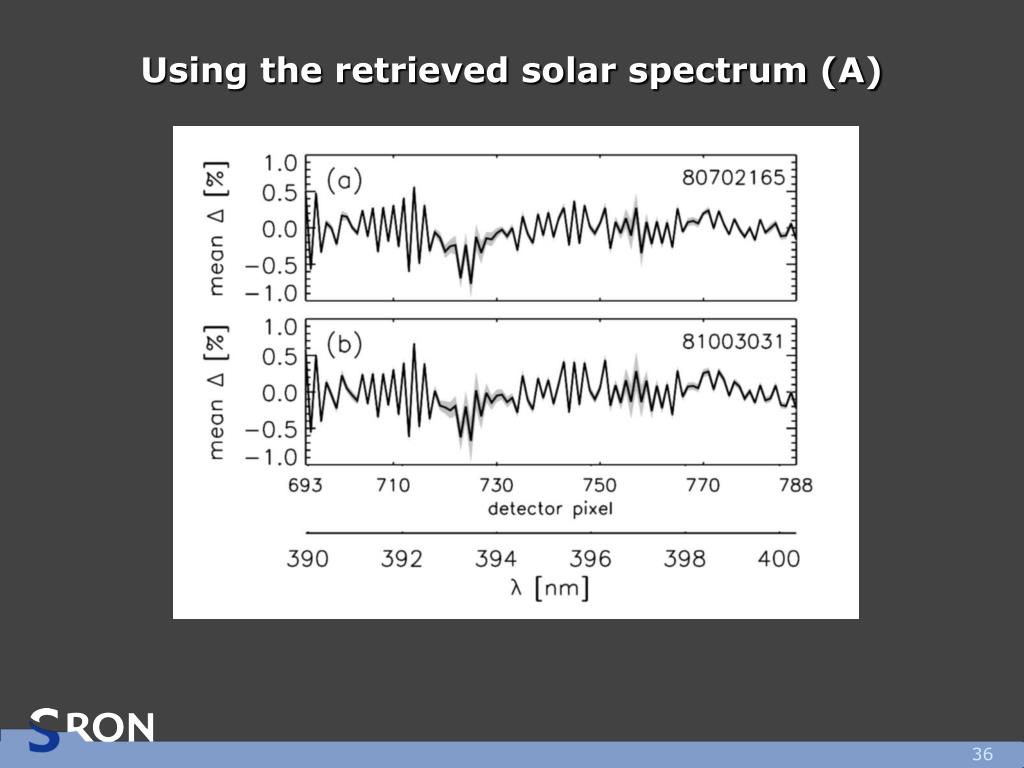

Using a retrieved solar spectrum instead
Using a retrieved solar spectrum instead atmosphere

Clear sky

land


Conclusion
Conclusion atmosphere

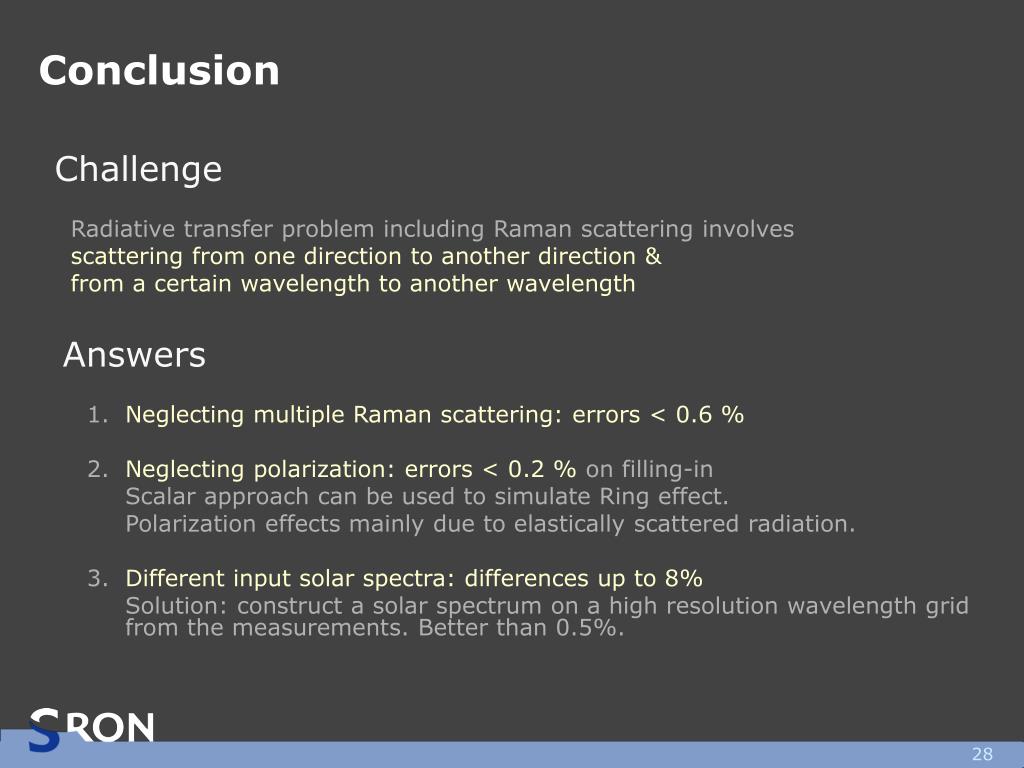

Radiative transfer problem including Raman scattering involves

scattering from one direction to another direction &

from a certain wavelength to another wavelength

Challenge

Answers

1.Neglecting multiple Raman scattering: errors < 0.6 %

2.Neglecting polarization: errors < 0.2 % on filling-in

Scalar approach can be used to simulate Ring effect.

Polarization effects mainly due to elastically scattered radiation.

3. Different input solar spectra: differences up to 8%

Solution: construct a solar spectrum on a high resolution wavelength grid from the measurements. Better than 0.5%.


Thank you for your attention

Thank you for your attention atmosphere

www.sron.nl/raman

[email protected]


Backup slides
Backup slides atmosphere

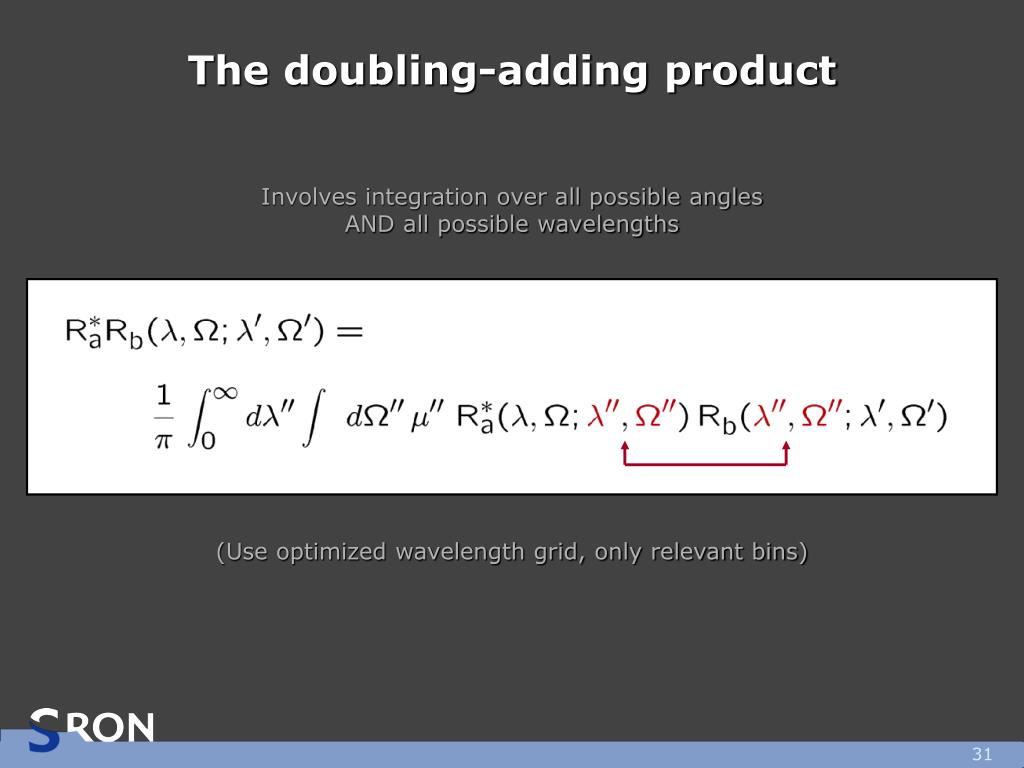

The doubling adding product
The doubling-adding product atmosphere

Involves integration over all possible angles

AND all possible wavelengths

(Use optimized wavelength grid, only relevant bins)


Optimizing the wavelength grid
Optimizing the wavelength grid atmosphere

w

w

(w+ww)/2

order

of

scattering

(w+ww+www)/3

wavenumber shift [cm-1]


Optimizing the wavelength grid1
Optimizing the wavelength grid atmosphere

w

w

threshold

(w+ww)/2

order

of

scattering

(w+ww+www)/3

wavenumber shift [cm-1]

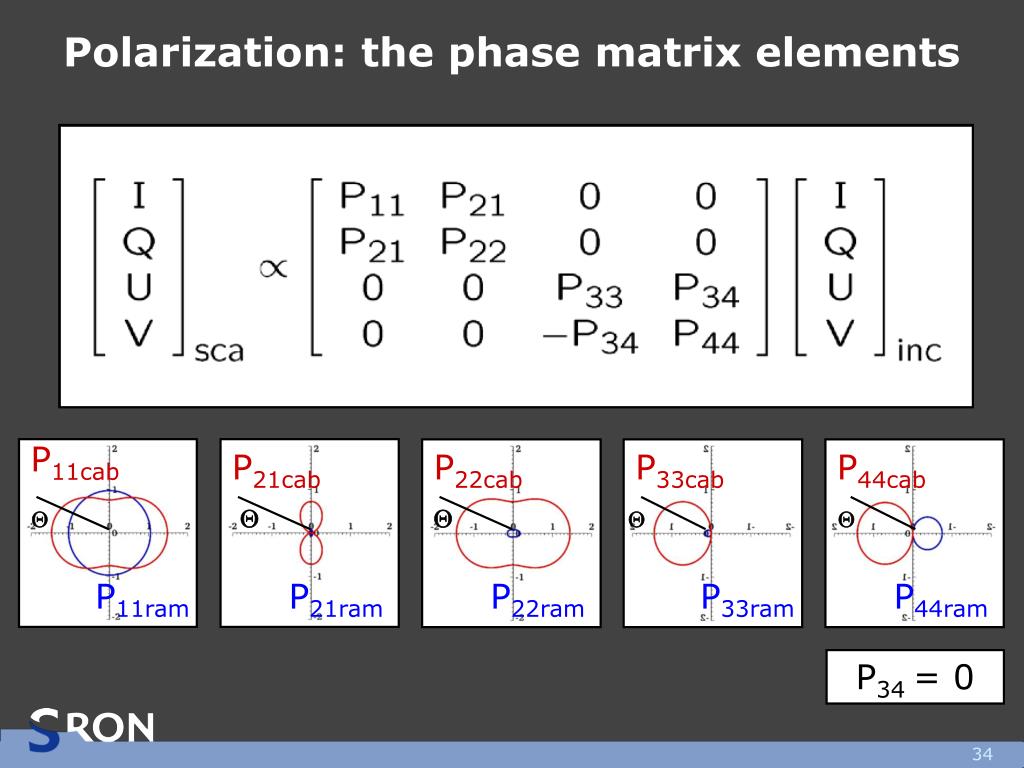

Polarization the phase matrix elements
Polarization: the phase matrix elements atmosphere

P11cab

P21cab

P22cab

P33cab

P44cab

Q

Q

Q

Q

Q

P11ram

P21ram

P22ram

P33ram

P44ram

P34 = 0

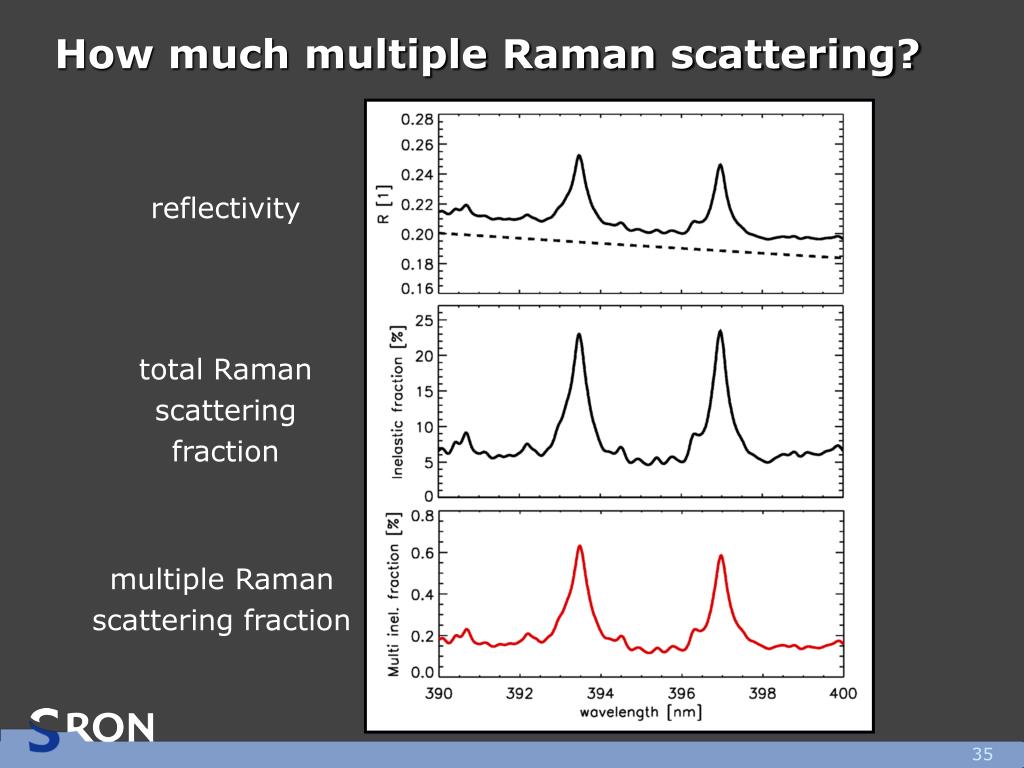

How much multiple raman scattering
