  1. Independent Component Analysis (ICA)and Factor Analysis(FA) Amit Agrawal ENEE 698A Seminar

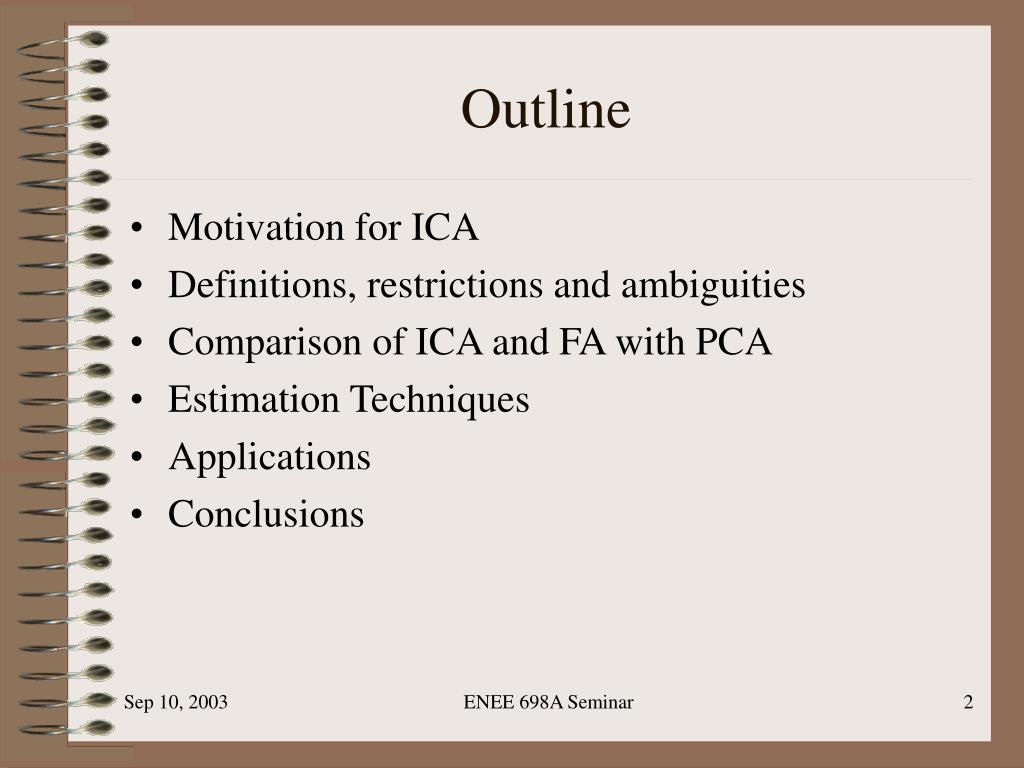

  2. Outline • Motivation for ICA • Definitions, restrictions and ambiguities • Comparison of ICA and FA with PCA • Estimation Techniques • Applications • Conclusions ENEE 698A Seminar

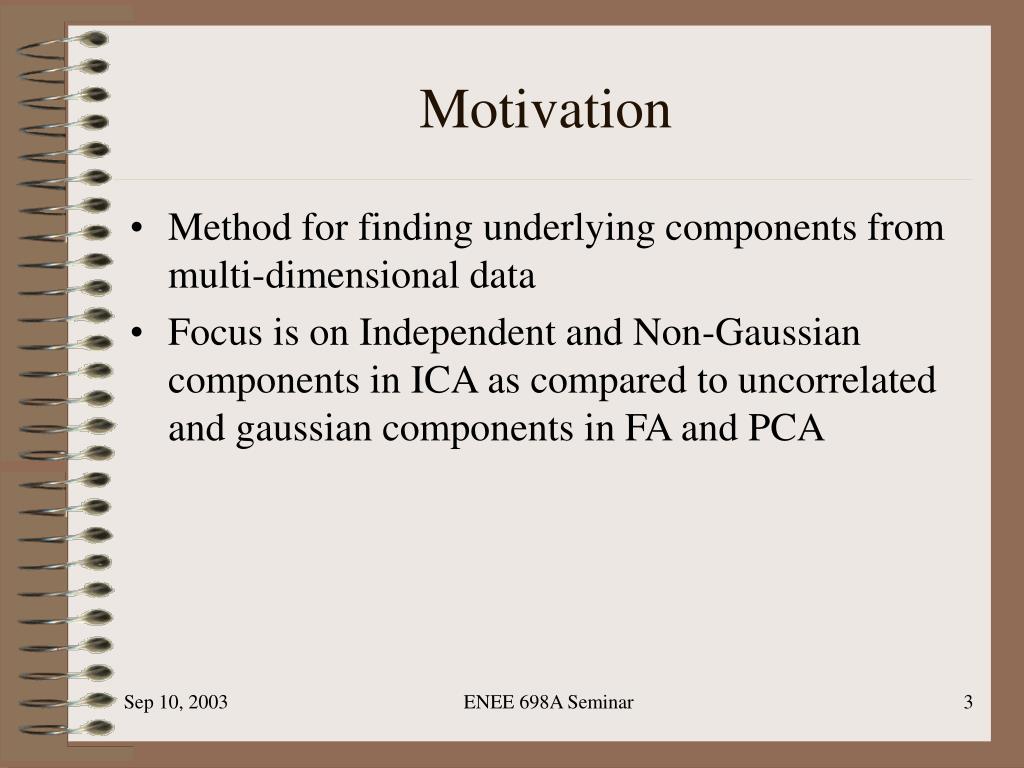

  3. Motivation • Method for finding underlying components from multi-dimensional data • Focus is on Independent and Non-Gaussian components in ICA as compared to uncorrelated and gaussian components in FA and PCA ENEE 698A Seminar

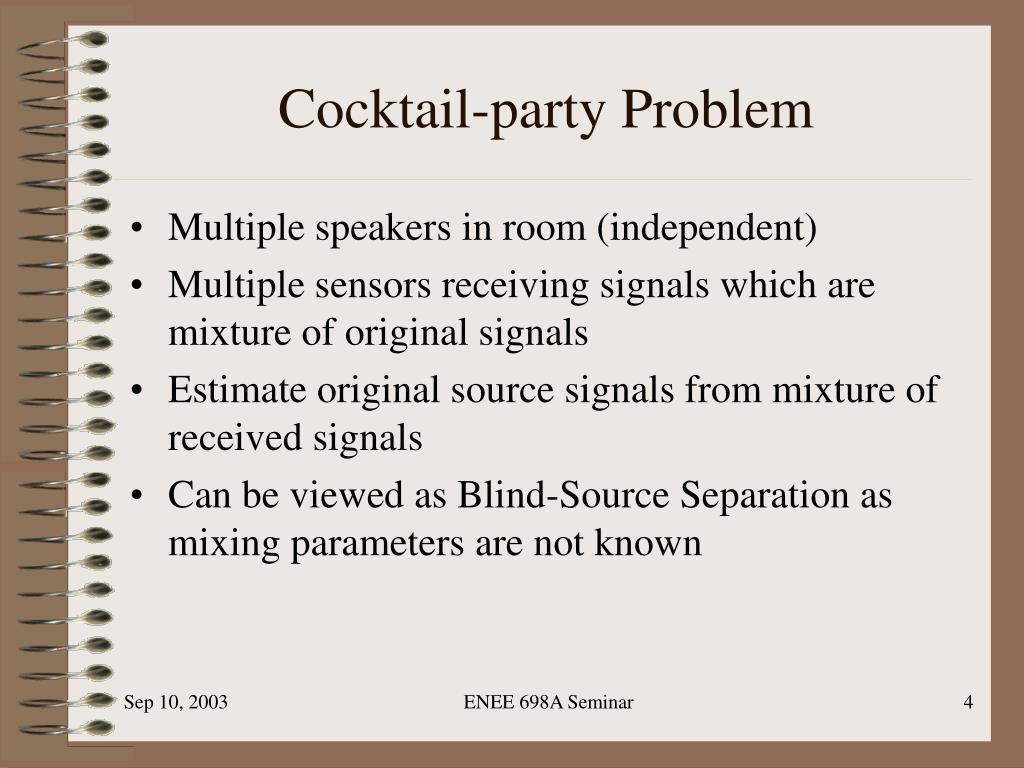

  4. Cocktail-party Problem • Multiple speakers in room (independent) • Multiple sensors receiving signals which are mixture of original signals • Estimate original source signals from mixture of received signals • Can be viewed as Blind-Source Separation as mixing parameters are not known ENEE 698A Seminar

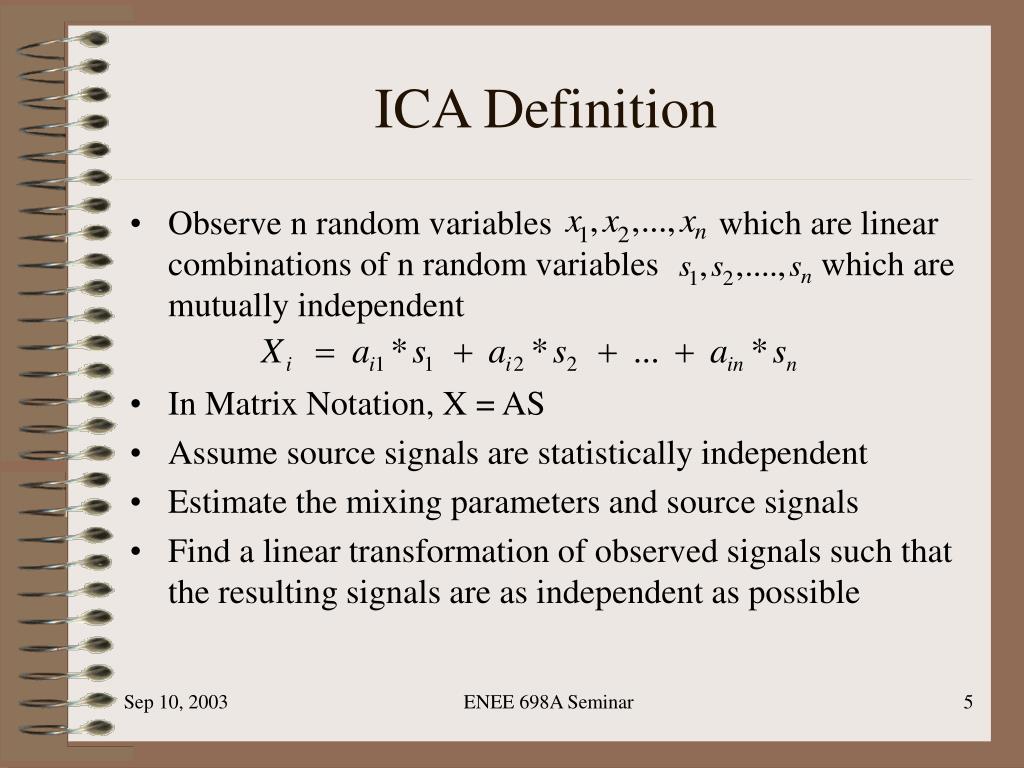

  5. ICA Definition • Observe n random variables which are linear combinations of n random variables which are mutually independent • In Matrix Notation, X = AS • Assume source signals are statistically independent • Estimate the mixing parameters and source signals • Find a linear transformation of observed signals such that the resulting signals are as independent as possible ENEE 698A Seminar

  6. Restrictions and Ambiguities • Components are assumed independent • Components must have non-gaussian densities • Energies of independent components can’t be estimated • Sign Ambiguity in independent components ENEE 698A Seminar

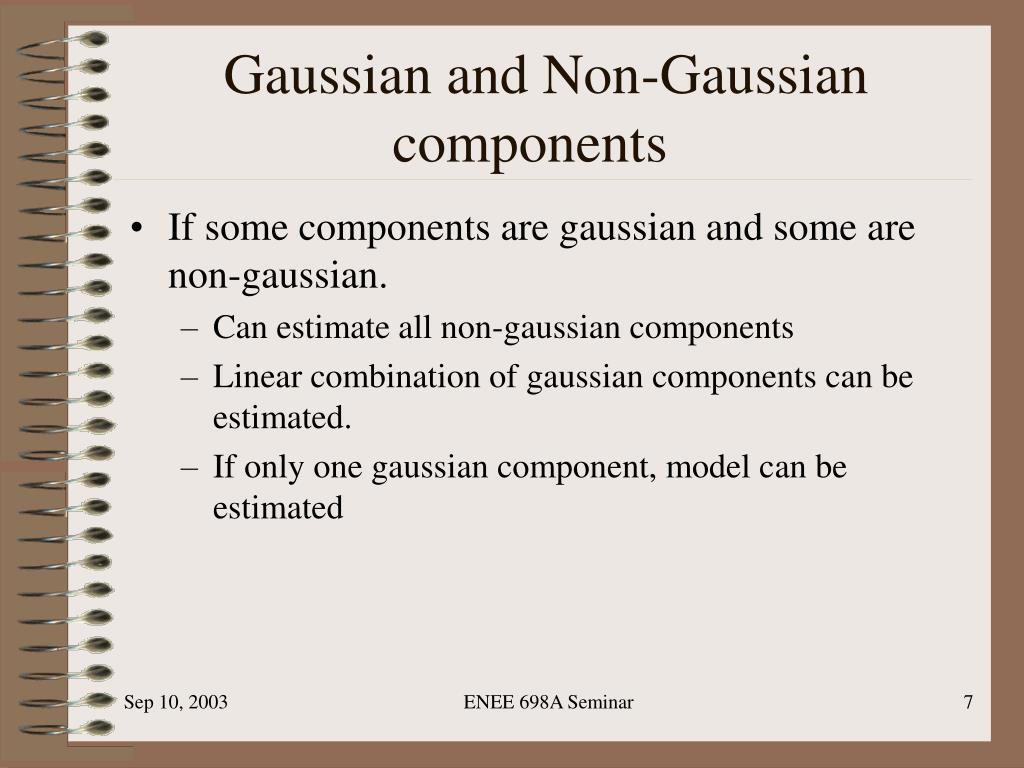

  7. Gaussian and Non-Gaussian components • If some components are gaussian and some are non-gaussian. • Can estimate all non-gaussian components • Linear combination of gaussian components can be estimated. • If only one gaussian component, model can be estimated ENEE 698A Seminar

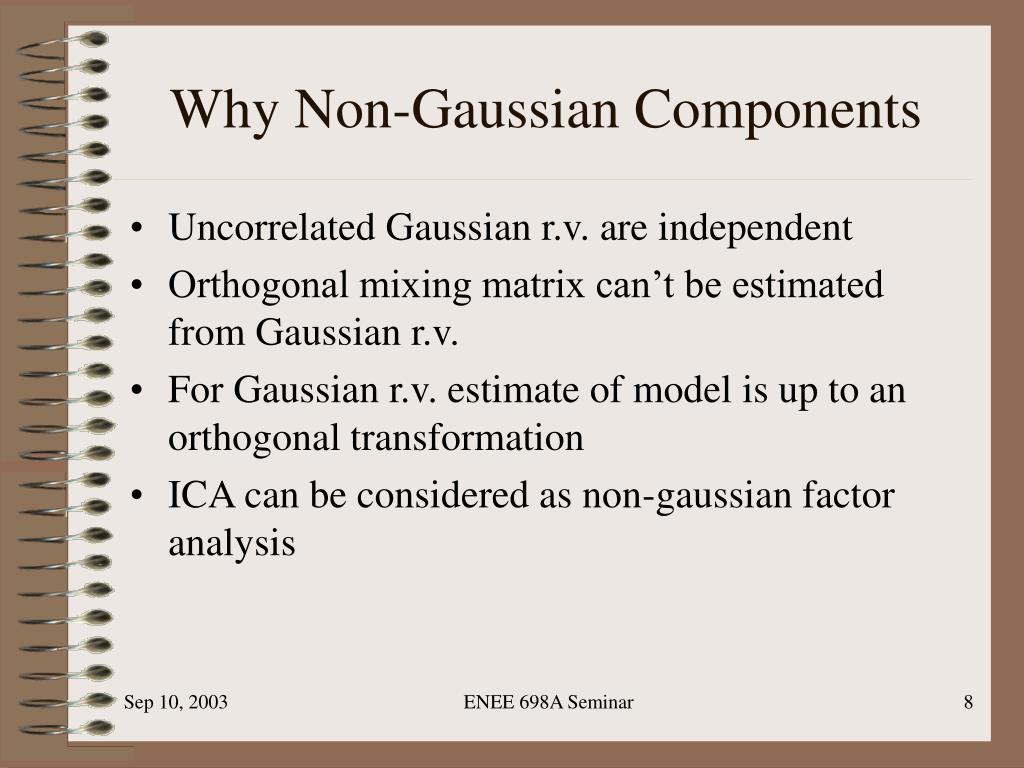

  8. Why Non-Gaussian Components • Uncorrelated Gaussian r.v. are independent • Orthogonal mixing matrix can’t be estimated from Gaussian r.v. • For Gaussian r.v. estimate of model is up to an orthogonal transformation • ICA can be considered as non-gaussian factor analysis ENEE 698A Seminar

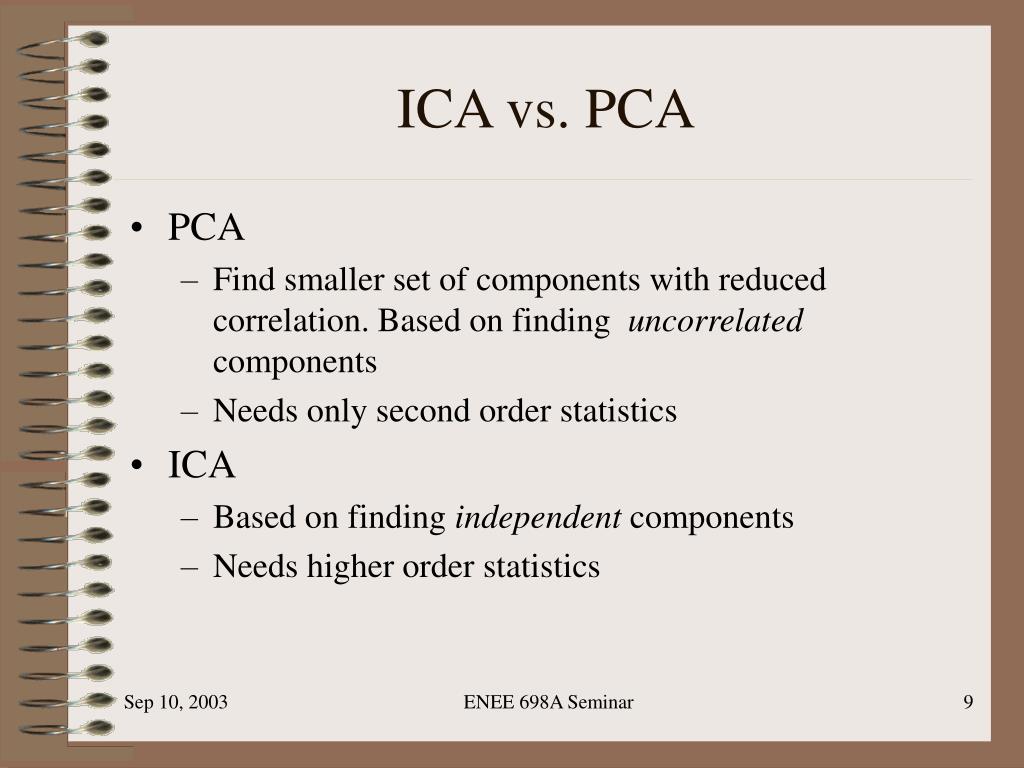

  9. ICA vs. PCA • PCA • Find smaller set of components with reduced correlation. Based on finding uncorrelated components • Needs only second order statistics • ICA • Based on finding independent components • Needs higher order statistics ENEE 698A Seminar

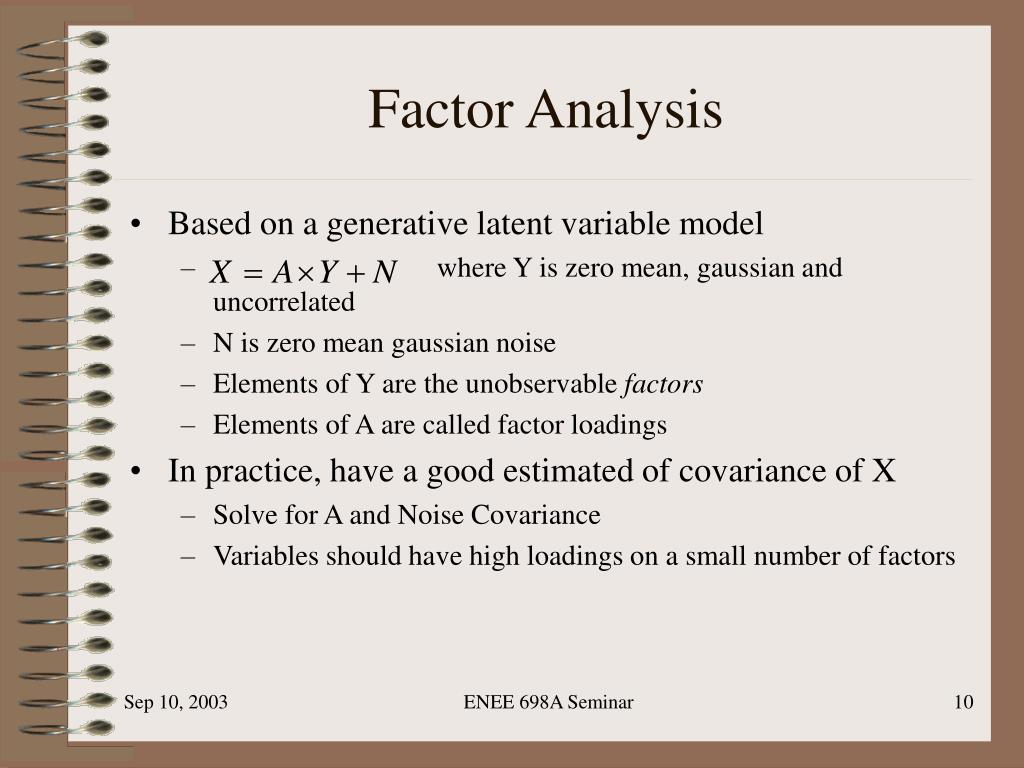

  10. Factor Analysis • Based on a generative latent variable model • where Y is zero mean, gaussian and uncorrelated • N is zero mean gaussian noise • Elements of Y are the unobservable factors • Elements of A are called factor loadings • In practice, have a good estimated of covariance of X • Solve for A and Noise Covariance • Variables should have high loadings on a small number of factors ENEE 698A Seminar

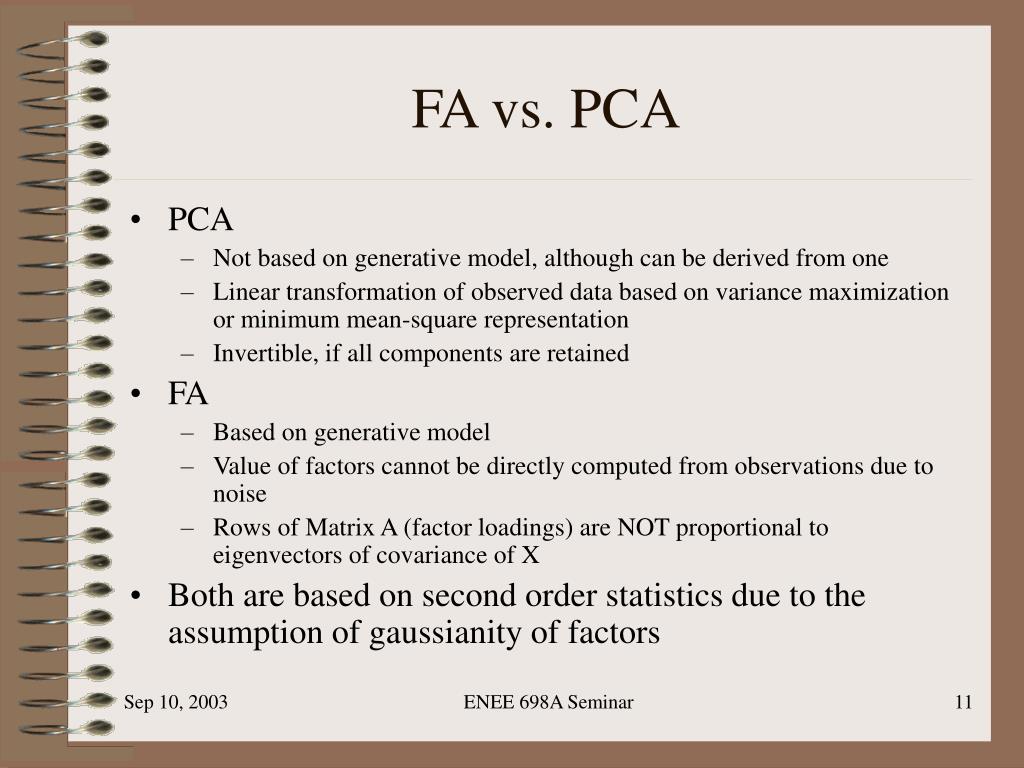

  11. FA vs. PCA • PCA • Not based on generative model, although can be derived from one • Linear transformation of observed data based on variance maximization or minimum mean-square representation • Invertible, if all components are retained • FA • Based on generative model • Value of factors cannot be directly computed from observations due to noise • Rows of Matrix A (factor loadings) are NOT proportional to eigenvectors of covariance of X • Both are based on second order statistics due to the assumption of gaussianity of factors ENEE 698A Seminar

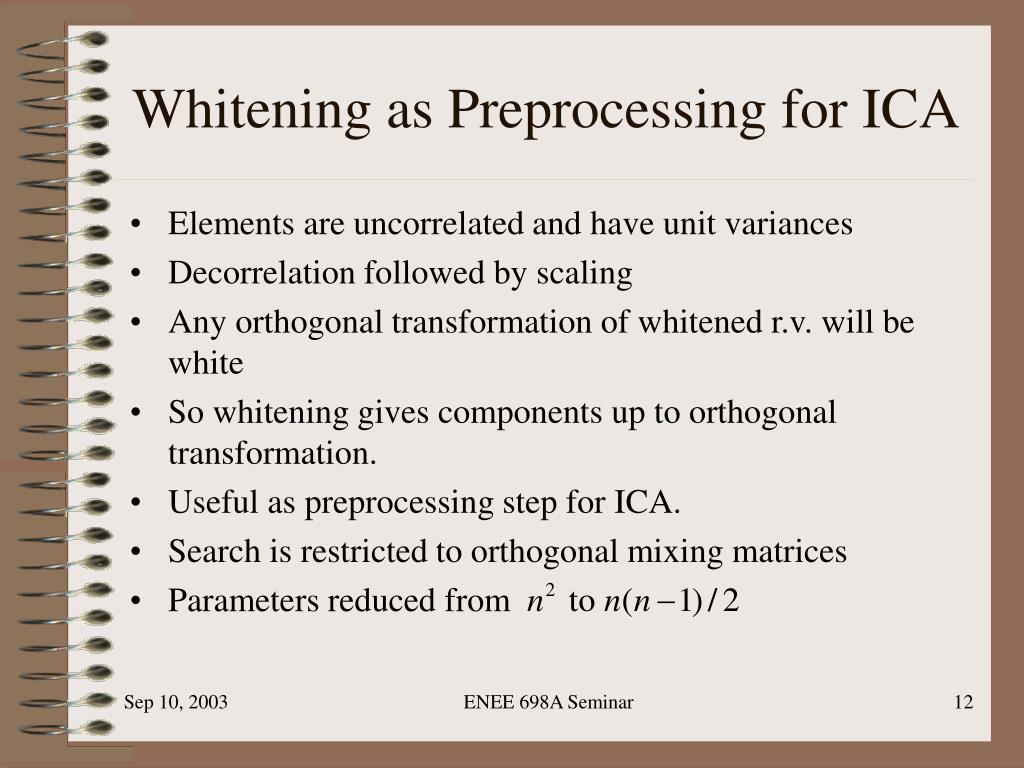

  12. Whitening as Preprocessing for ICA • Elements are uncorrelated and have unit variances • Decorrelation followed by scaling • Any orthogonal transformation of whitened r.v. will be white • So whitening gives components up to orthogonal transformation. • Useful as preprocessing step for ICA. • Search is restricted to orthogonal mixing matrices • Parameters reduced from ENEE 698A Seminar

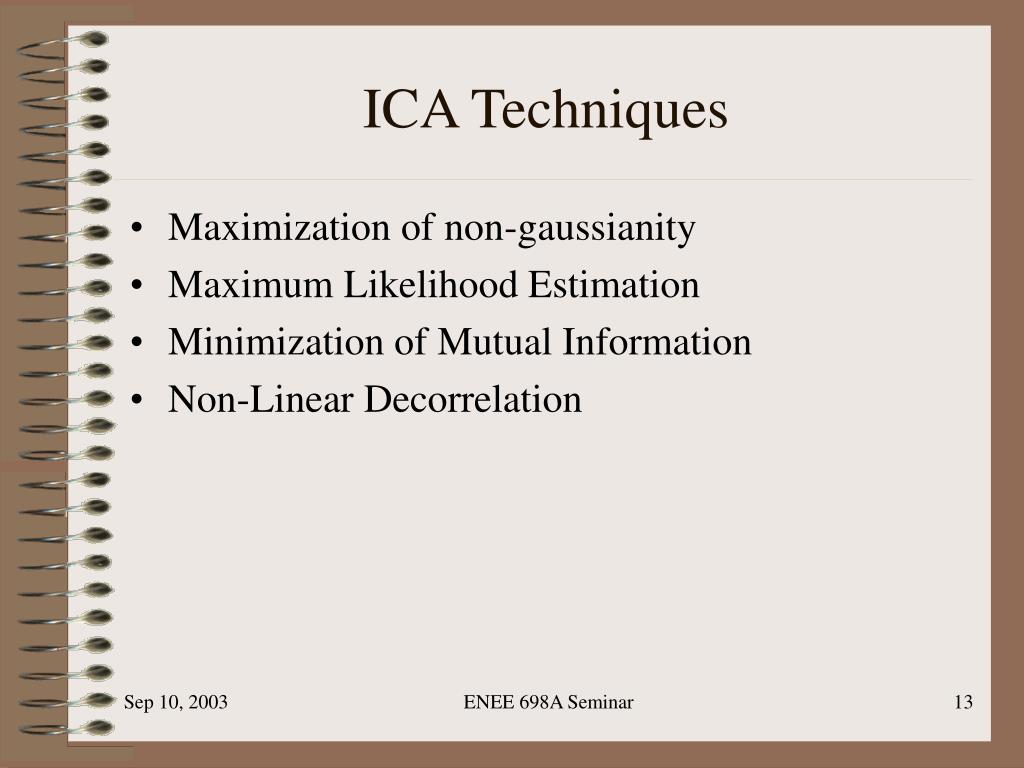

  13. ICA Techniques • Maximization of non-gaussianity • Maximum Likelihood Estimation • Minimization of Mutual Information • Non-Linear Decorrelation ENEE 698A Seminar

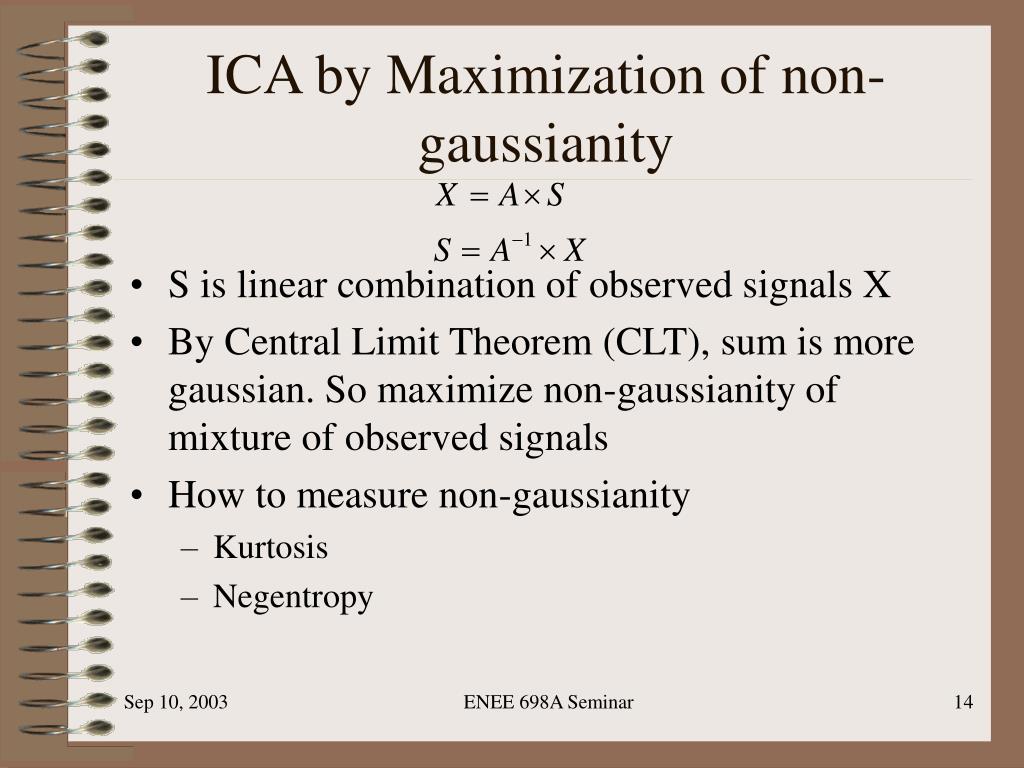

  14. ICA by Maximization of non-gaussianity • S is linear combination of observed signals X • By Central Limit Theorem (CLT), sum is more gaussian. So maximize non-gaussianity of mixture of observed signals • How to measure non-gaussianity • Kurtosis • Negentropy ENEE 698A Seminar

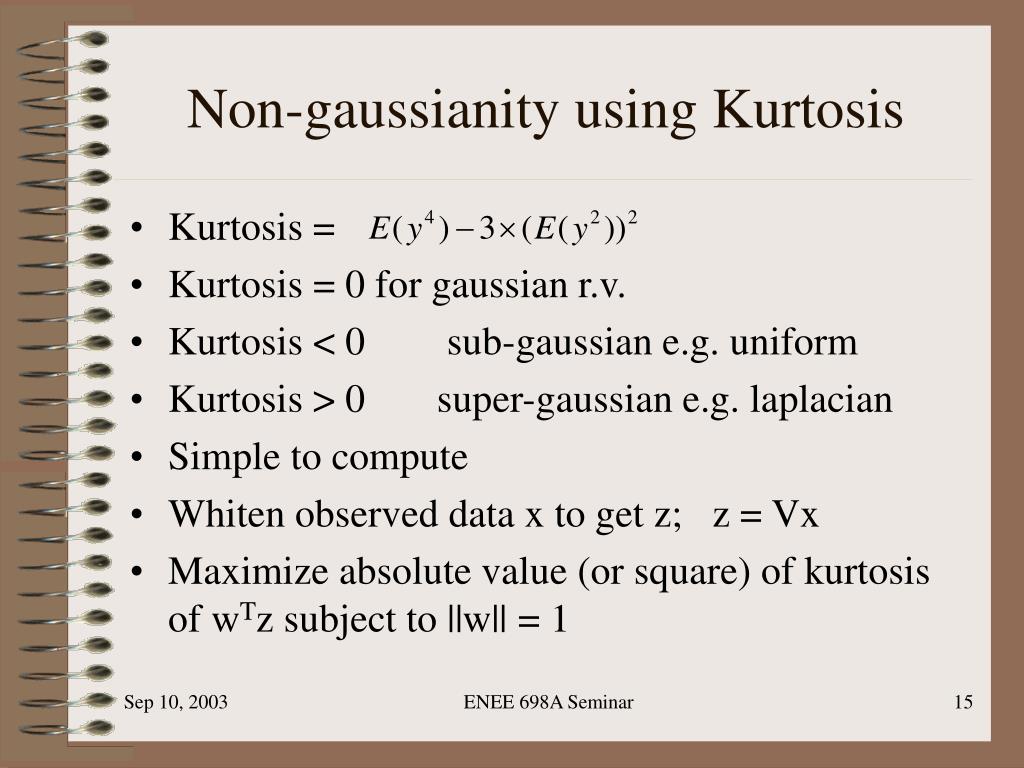

  15. Non-gaussianity using Kurtosis • Kurtosis = • Kurtosis = 0 for gaussian r.v. • Kurtosis < 0 sub-gaussian e.g. uniform • Kurtosis > 0 super-gaussian e.g. laplacian • Simple to compute • Whiten observed data x to get z; z = Vx • Maximize absolute value (or square) of kurtosis of wTz subject to ||w|| = 1 ENEE 698A Seminar

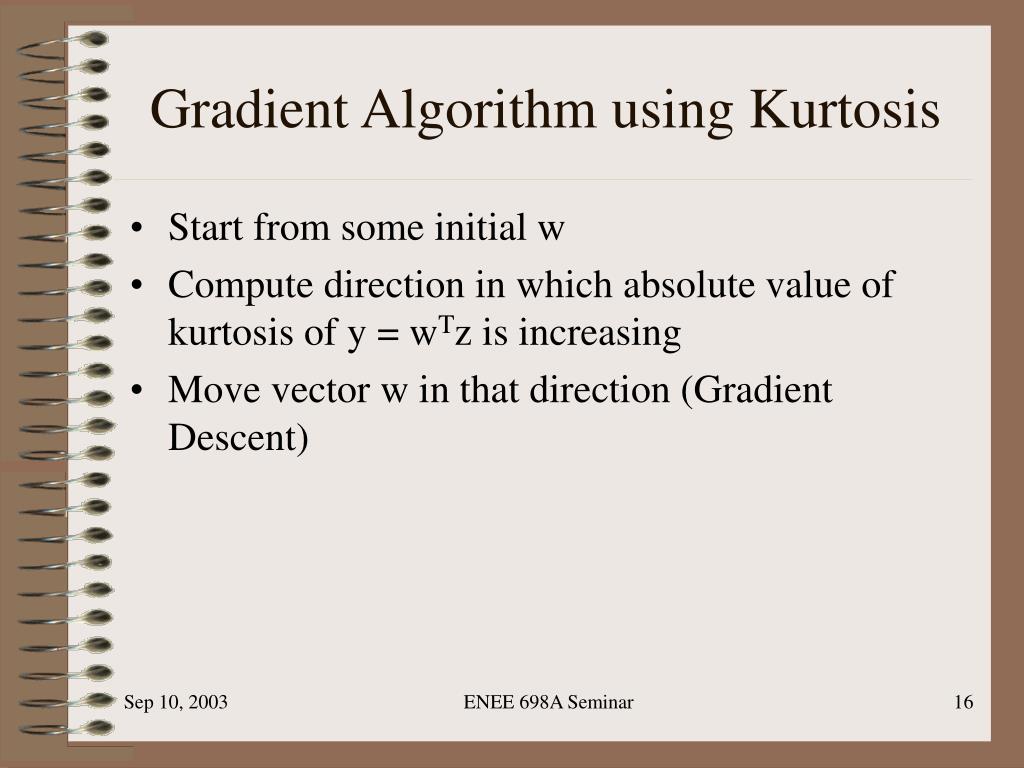

  16. Gradient Algorithm using Kurtosis • Start from some initial w • Compute direction in which absolute value of kurtosis of y = wTz is increasing • Move vector w in that direction (Gradient Descent) ENEE 698A Seminar

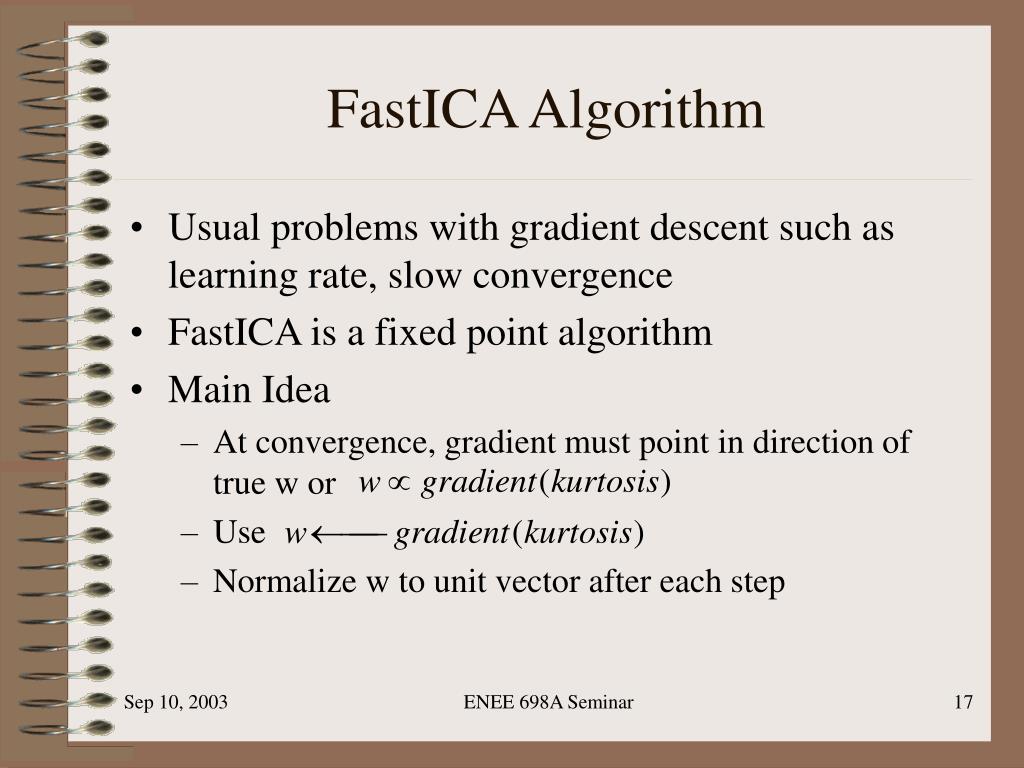

  17. FastICA Algorithm • Usual problems with gradient descent such as learning rate, slow convergence • FastICA is a fixed point algorithm • Main Idea • At convergence, gradient must point in direction of true w or • Use • Normalize w to unit vector after each step ENEE 698A Seminar

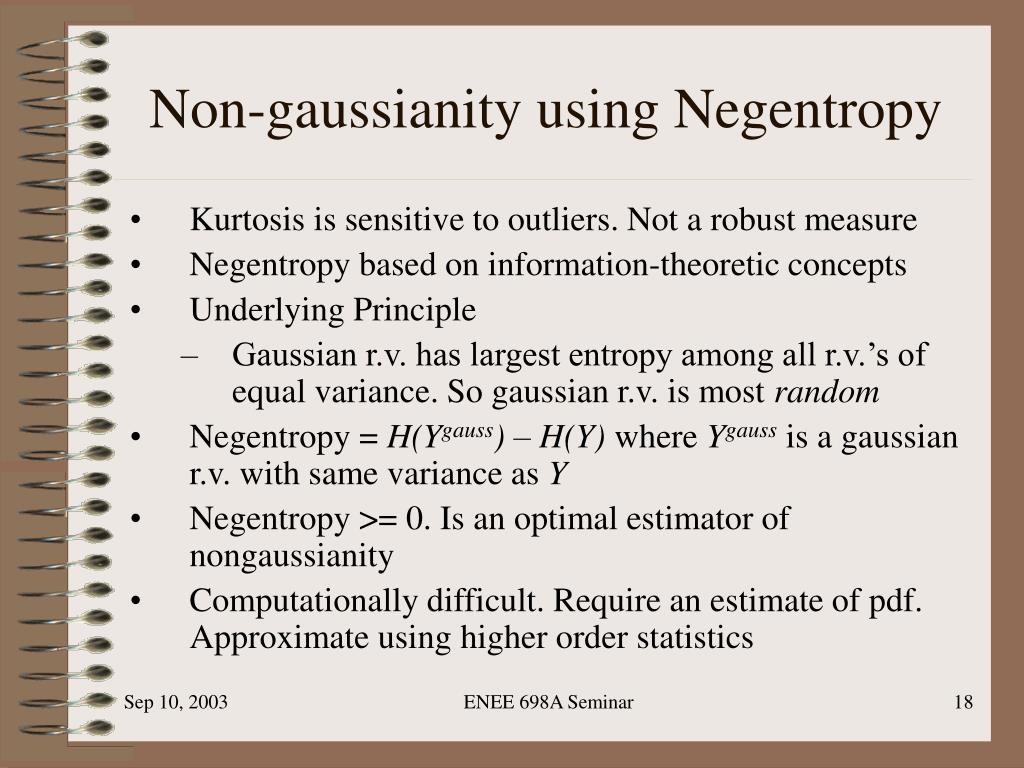

  18. Non-gaussianity using Negentropy • Kurtosis is sensitive to outliers. Not a robust measure • Negentropy based on information-theoretic concepts • Underlying Principle • Gaussian r.v. has largest entropy among all r.v.’s of equal variance. So gaussian r.v. is most random • Negentropy = H(Ygauss) – H(Y) where Ygauss is a gaussian r.v. with same variance as Y • Negentropy >= 0. Is an optimal estimator of nongaussianity • Computationally difficult. Require an estimate of pdf. Approximate using higher order statistics ENEE 698A Seminar

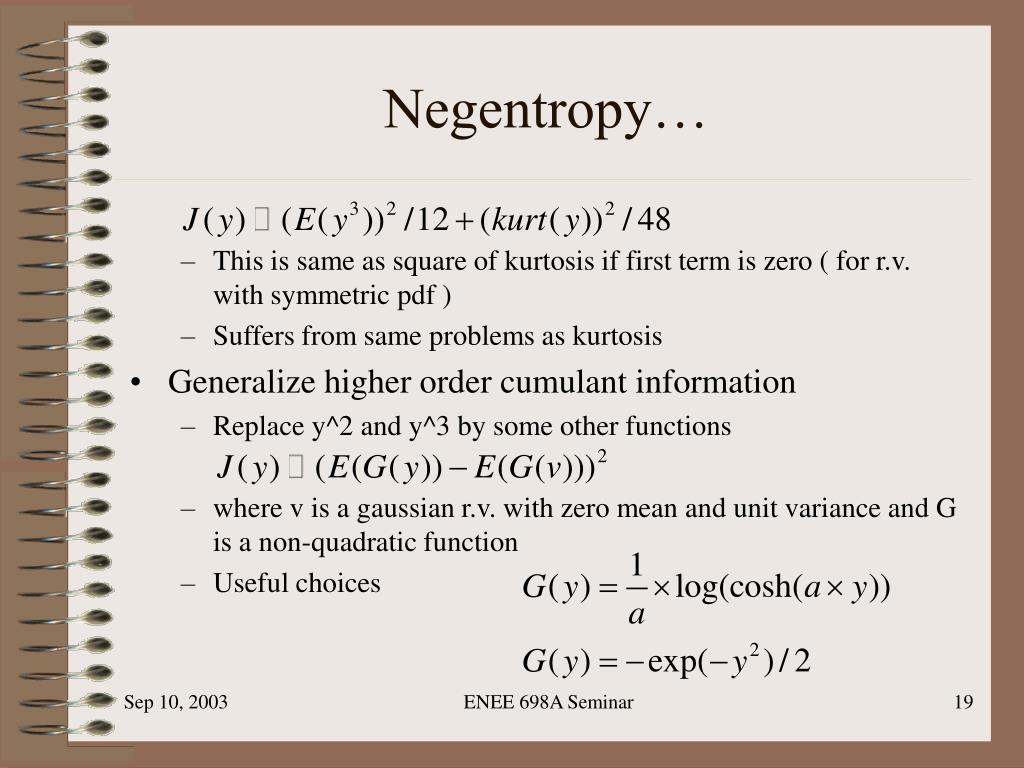

  19. Negentropy… • This is same as square of kurtosis if first term is zero ( for r.v. with symmetric pdf ) • Suffers from same problems as kurtosis • Generalize higher order cumulant information • Replace y^2 and y^3 by some other functions • where v is a gaussian r.v. with zero mean and unit variance and G is a non-quadratic function • Useful choices ENEE 698A Seminar

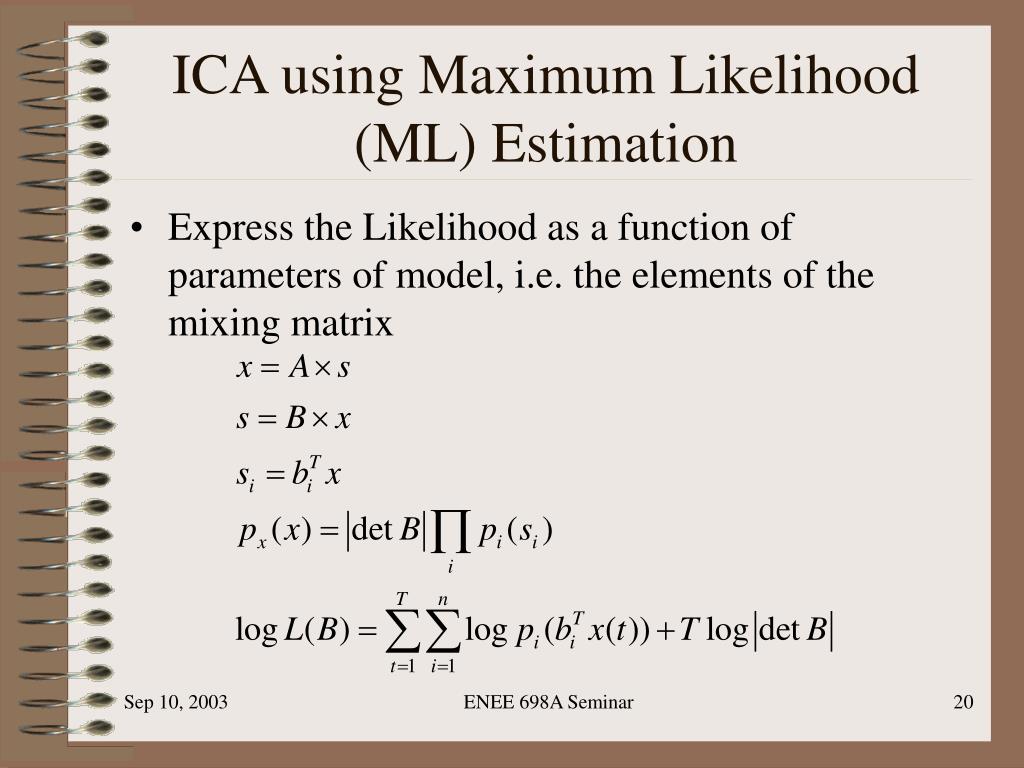

  20. ICA using Maximum Likelihood (ML) Estimation • Express the Likelihood as a function of parameters of model, i.e. the elements of the mixing matrix ENEE 698A Seminar

  21. ML estimation • But the likelihood is also a function of densities of independent components. Hence semi-parametric estimation. • Estimation is easier • If prior information on densities is available. • Likelihood is a function of mixing parameters only • If the densities can be approximated by a family of densities which are specified by a limited no. of parameters ENEE 698A Seminar

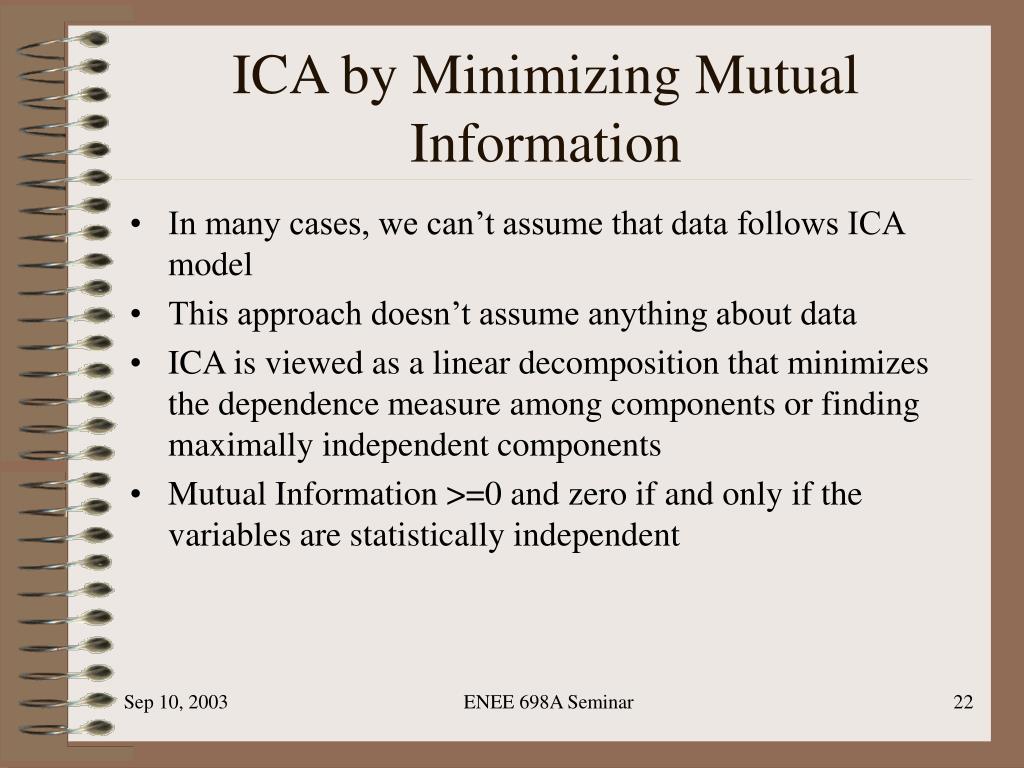

  22. ICA by Minimizing Mutual Information • In many cases, we can’t assume that data follows ICA model • This approach doesn’t assume anything about data • ICA is viewed as a linear decomposition that minimizes the dependence measure among components or finding maximally independent components • Mutual Information >=0 and zero if and only if the variables are statistically independent ENEE 698A Seminar

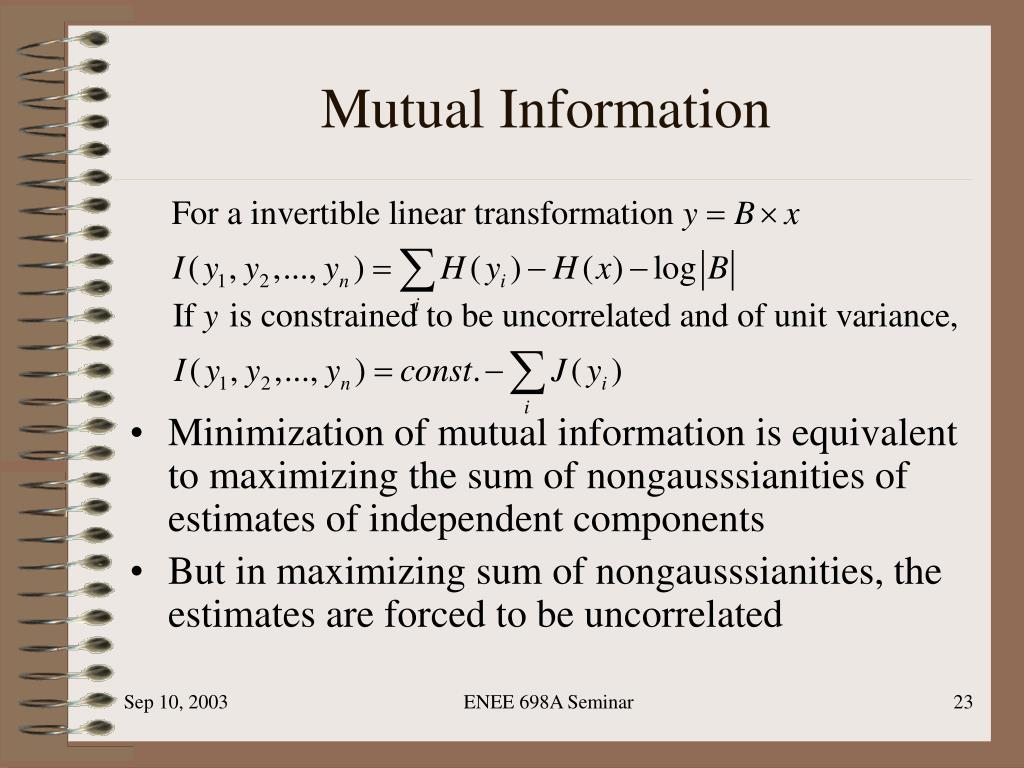

  23. Mutual Information • Minimization of mutual information is equivalent to maximizing the sum of nongausssianities of estimates of independent components • But in maximizing sum of nongausssianities, the estimates are forced to be uncorrelated ENEE 698A Seminar

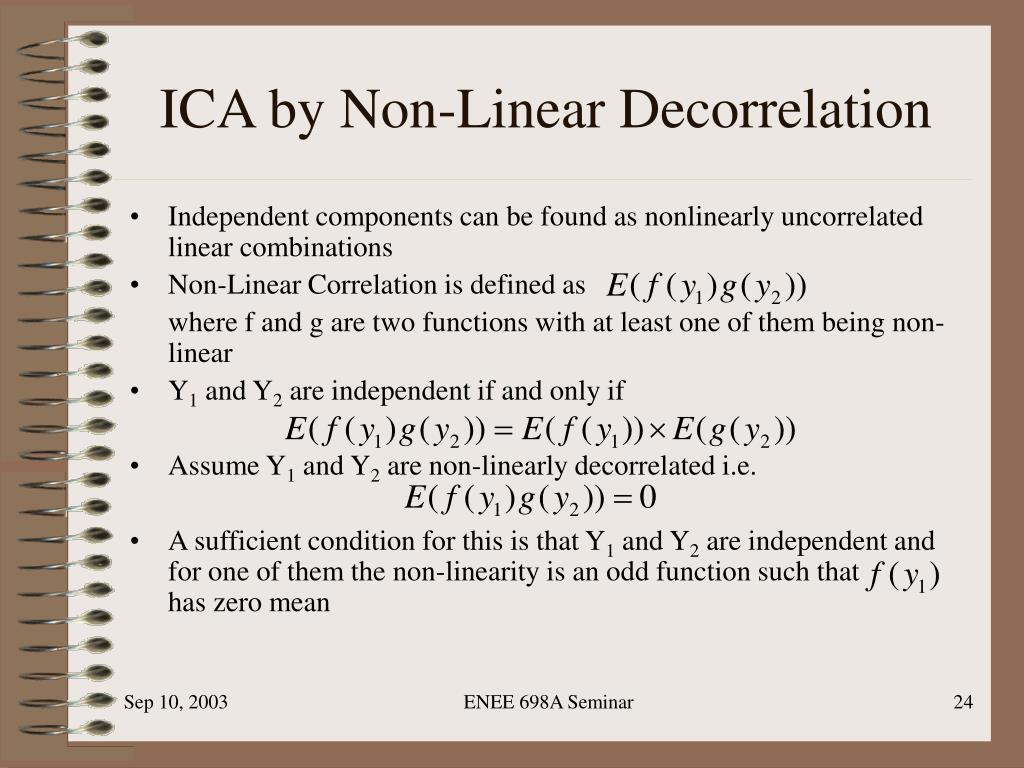

  24. ICA by Non-Linear Decorrelation • Independent components can be found as nonlinearly uncorrelated linear combinations • Non-Linear Correlation is defined as where f and g are two functions with at least one of them being non-linear • Y1 and Y2 are independent if and only if • Assume Y1 and Y2 are non-linearly decorrelated i.e. • A sufficient condition for this is that Y1 and Y2 are independent and for one of them the non-linearity is an odd function such that has zero mean ENEE 698A Seminar

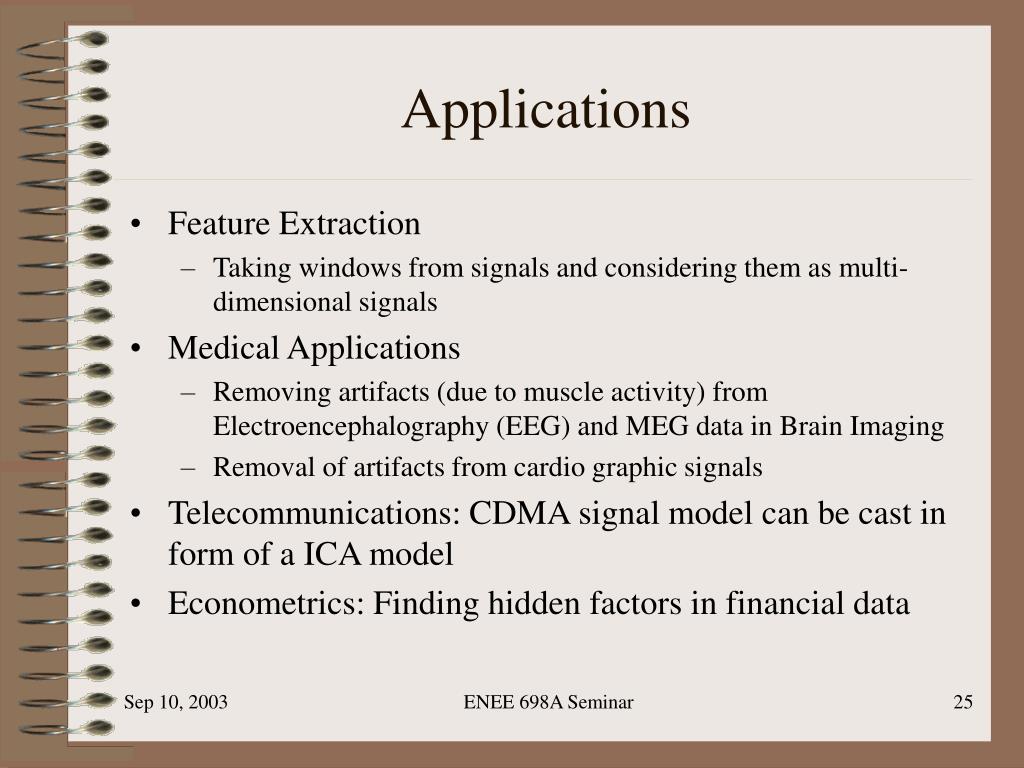

  25. Applications • Feature Extraction • Taking windows from signals and considering them as multi-dimensional signals • Medical Applications • Removing artifacts (due to muscle activity) from Electroencephalography (EEG) and MEG data in Brain Imaging • Removal of artifacts from cardio graphic signals • Telecommunications: CDMA signal model can be cast in form of a ICA model • Econometrics: Finding hidden factors in financial data ENEE 698A Seminar

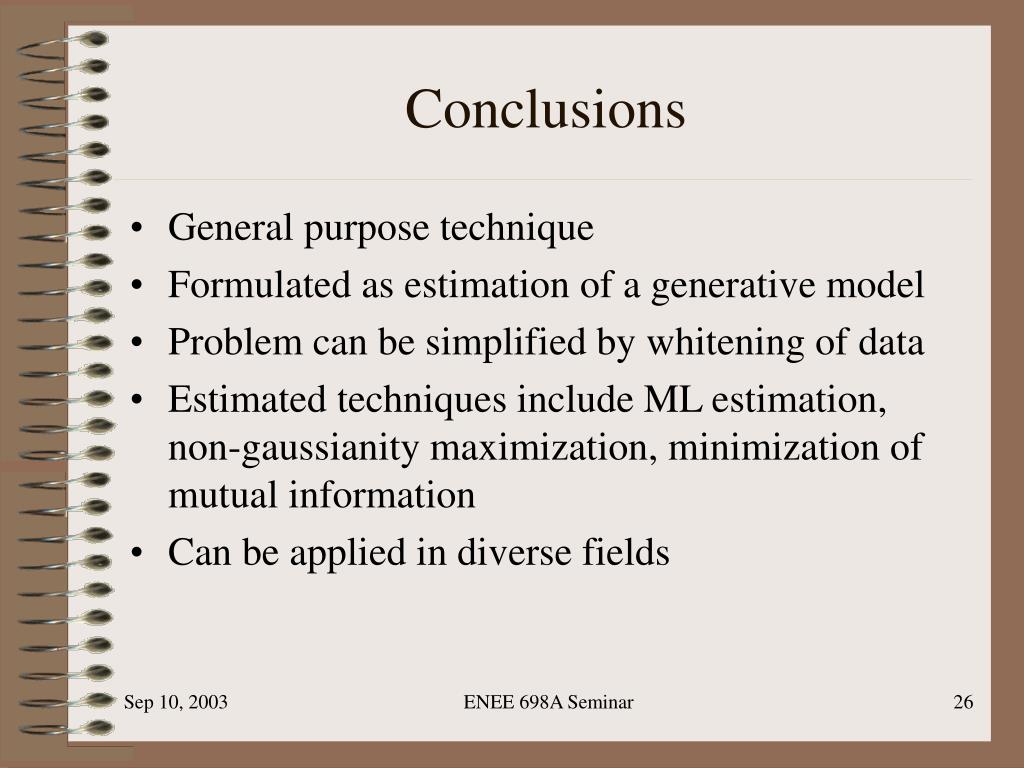

  26. Conclusions • General purpose technique • Formulated as estimation of a generative model • Problem can be simplified by whitening of data • Estimated techniques include ML estimation, non-gaussianity maximization, minimization of mutual information • Can be applied in diverse fields ENEE 698A Seminar

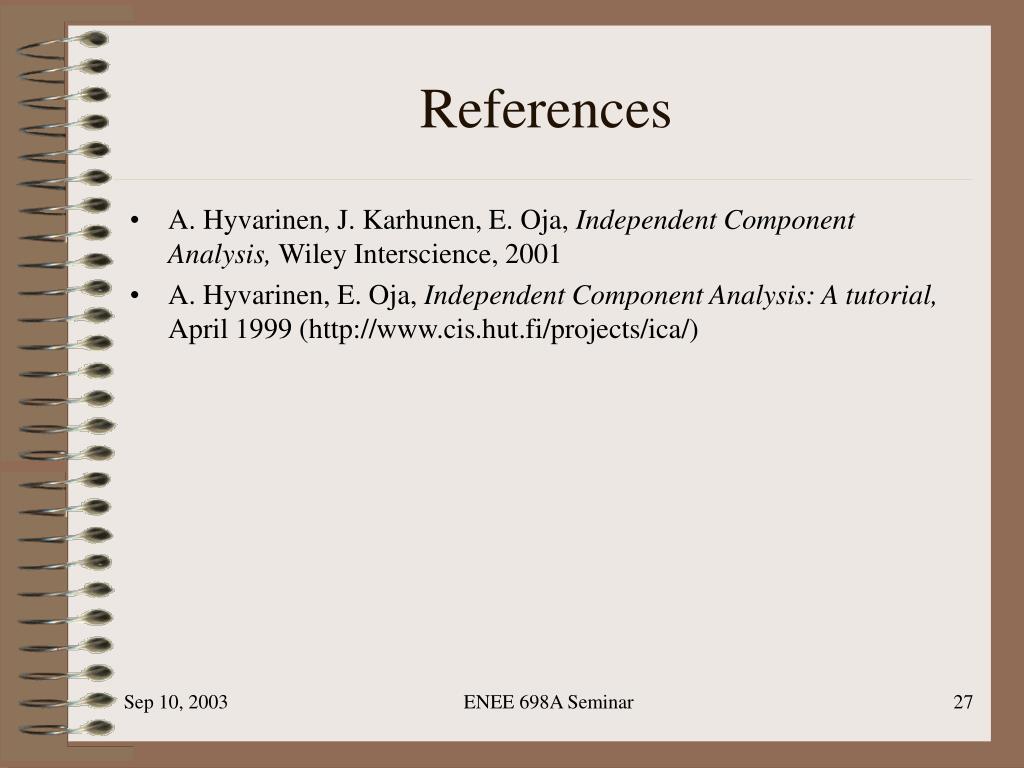

  27. References • A. Hyvarinen, J. Karhunen, E. Oja, Independent Component Analysis, Wiley Interscience, 2001 • A. Hyvarinen, E. Oja, Independent Component Analysis: A tutorial, April 1999 (http://www.cis.hut.fi/projects/ica/) ENEE 698A Seminar

  28. Thank You ENEE 698A Seminar
