Caged Across – I IV and V

Caged Across – I IV and V. Main chords. Working across rather than up the neck. Will start in the key of G major. The 3 principle chords in any key are the I, IV and V Chords. Scale in the key of G major is: G, A, B, C, D, E, F#, and G.

vesna
Download Presentation

Caged Across – I IV and V

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Caged Across – I IV and V Main chords

  2. Working across rather than up the neck • Will start in the key of G major. • The 3 principle chords in any key are the I, IV and V Chords. • Scale in the key of G major is: G, A, B, C, D, E, F#, and G. • The Chord build off of I is G major, chord build off the IV (4th note of the scale) is C Major and the chord build off of the V (D note) is a D7 or for this we will just use a D. • In each of these examples the to move from one chord to the next you don’t have to move more than 1 fret up or down the neck. • While the examples are in the key of G major, it is important to eventually try them in every key!!!

  3. First place to start. G (E Form – I Chord) C (A Form – IV chord) D (C form – V chord) 1 1 1 1 1 1 1 1 1 2 1 3 2 4 3 4 3 3 3 D F# A D F# R 3 5 R 3 X X G D G B D G R 5 R 3 5 R See how this is the E form to the A form to the C form. You hand does not move more than 1 fret to make any of the changes!! Very key to this. Also the F# on the 1st string 2nd fret on the D chord will lead right up to the G on the G chord when you play a V chord to a I chord. Try this to the following: 4/4||: G | C | G | C : ||

  4. Let’s talk a bit about voice leading • This is most important in the melody of a song or from one chord to the other in the highest voice. • For example, in the previous chords the D chord has an F# as the highest note. That is the 3rd of the D major chord (or even the D7 chord). The 3rd of a V chord wants to resolve to the 1st of the I chord so the F# in D wants to resolve to the G in the G chord. • Also in this progression the B in the G chord (3rd of the I chord) moves very smoothly to the C in the C chord (1st of the IV chord), (notes on the 3rd string). And then when the C chord or IV chord goes back to the I chord this is just reversed. • Notice in this that in all cases from one chord to the next the notes (other than the bass notes) move very smoothly. • This will always sound good in any music. This is referred to as good voice leading.

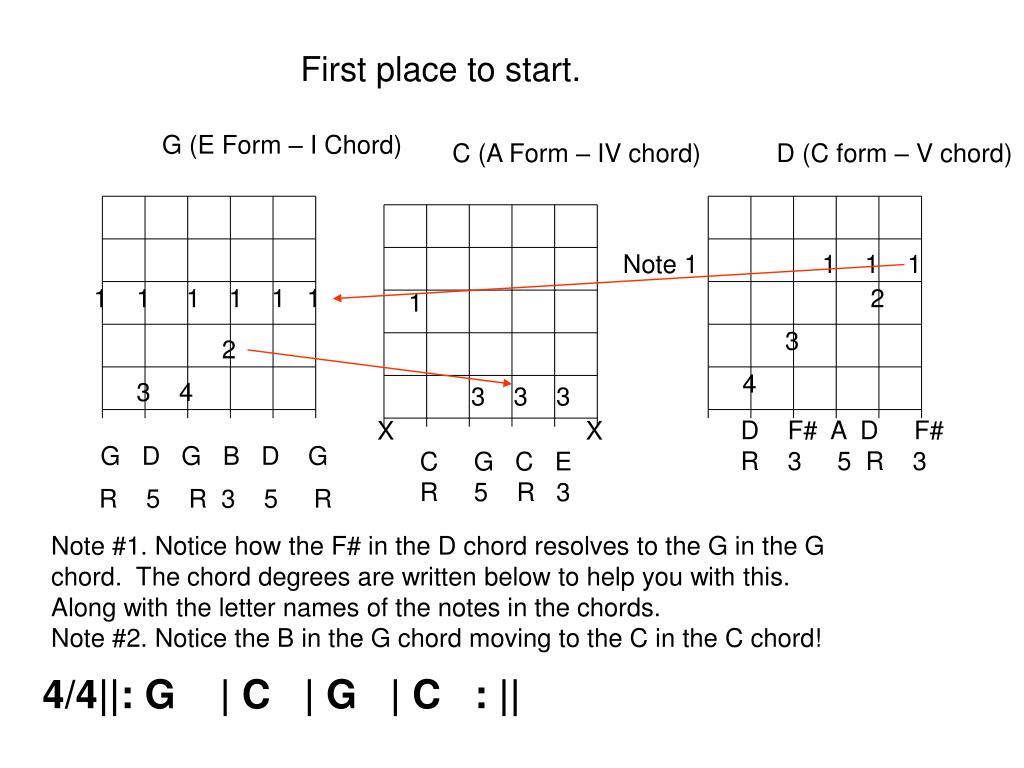

  5. First place to start. G (E Form – I Chord) C (A Form – IV chord) D (C form – V chord) Note 1 1 1 1 1 1 1 1 1 1 2 1 3 2 4 3 4 3 3 3 D F# A D F# R 3 5 R 3 X X C G C E R 5 R 3 G D G B D G R 5 R 3 5 R Note #1. Notice how the F# in the D chord resolves to the G in the G chord. The chord degrees are written below to help you with this. Along with the letter names of the notes in the chords. Note #2. Notice the B in the G chord moving to the C in the C chord! 4/4||: G | C | G | C : ||

  6. Move this to other keys • Do the same pattern and you will have the I IV and V chord up the neck. • For example, at the 4th fret it is Ab Major, 5th fret is A major, 6th fret is Bb major, 7th fret is B major etc. Think of the I – IV and V at each fret. Write out the names of the chords in each key so that you really learn them!

  7. See how this form works below. I personally like this form quite a bit and like to go from the E form to this when going to a IV chord (G to C for example). This will be used for the next example! D Form (E Major) D Major 1 2 1 3 2 3 4 X X 0 0 Note you can more the F# on the 1st string 2nd fret to The 6th string 2nd fret (both strings are the same letter Name – it works out better for most cases. As you can see with this form you don’t have to barre. Now you can learn it as a barre based entirely off of the first position D and I would recommend that you try that once this is mastere.

  8. Now to do the same progression but in 5th position. Lots of things to notice here. To start notice that the C form is now the V chord. G (D form) 5th fret! I Chord C (G Form) 5th fret IV Chord D(A form) 5th fret V Chord 5th Fret 5th fret. 1 1 1 1 1 5th fret 2 3 3 4 3 3 3 X X X X X X 4/4||: G | C | G | C : || Apply to the same progression.

  9. Move this to other keys just like before • Do the same pattern and you will have the I IV and V chord up the neck. • For example, at the 4th fret it is Ab Major, 5th fret is A major, 6th fret is Bb major, 7th fret is B major etc. Think of the I – IV and V at each fret. Write out the names of the chords in each key so that you really learn them!

  10. Now to do the same progression but in 7th position. Lots of things to notice here. To start notice that the C form is now the V chord. C (E form – IV chord) 8th fret. G (C form – 1 chord) 7th fret D (G Form) 7th fret IV Chord 7th fret 1 1 1 1 1 1 7th fret 8th fret 2 1 1 1 1 1 1 3 2 3 4 3 4 R 3 5 R 3 R 5 R 3 5 R X X 4/4||: G | C | G | C : || Apply to the same progression. Note how you have already done these forms earlier. So it is just learning where to play them and how they relate to each other. We did the G above in the C form as a D (2nd position) and the C as a G 3rd position and the D in the G form as a C.

  11. At this point the chords go high up on the neck • I will continue in G but realize that on a classical or even a steel string acoustic that this is difficult to impossible. But you can apply it to other keys. • Next page gives it in G major first and then in C major.

  12. G Major C(A form) 3rd fret I Chord F (D form) 3rd fret! IV Chord G (E form –V chord) 3rd fret. 3h Fret 1 3rd fret 1 1 1 1 1 1 1 3rd fret 2 3 2 4 3 3 3 3 4 X X X X R 5 R 3 5 R G(A form) 10th fret I Chord C (D form) 10th fret! IV Chord D (E form –V chord) 10th fret. 10th Fret 1 10th fret 1 1 1 1 1 1 1 10th fret 2 3 2 4 3 3 3 3 4 X X X X R 5 R 3 5 R C Major

  13. Last set!! • Again same as previous one – G is tough at the 12th fret but could also be done in 1st position.

  14. In G G (G Form) 12th fret 1 Chord C (C form – IV chord) 12th fret D (D form) 12th fret! V Chord 12th fret 12th Fret 12th fret. 1 1 1 1 1 1 1 2 3 3 2 3 4 4 R 3 5 R 3 X X X X In C C (G Form) 5th fret 1 Chord F (C form – IV chord) 5th fret G (D form) 5th fret! V Chord 12th fret 12th Fret 12th fret. 1 1 1 1 1 1 1 2 3 3 2 3 4 4 R 3 5 R 3 X X X X

  15. Now you have done all 5 moves • Not that you will never mix them up but this is the easiest way to play the I IV and V chords. • Learn each one and try to the progression. • Try songs that have the I IV V only. • Learn in every key. • You will see that the forms also follow the CAGED format. • We started with G in the E form, then the next set was G in the D form, the next G in the C form, next G in the A form and lastly G in the G form. • It also follows the same for the IV and the V chords.

  16. Now going up the neck in one key. • Now we have 3 forms of the D chord moving up the neck. • The C form of D to the A form of D to the G form of D. • The G form always follows the A form. Look closely at that relationship! Along with the fact that the A form always follows the C form you are 3/5ths of the way there. A Moveable Chord (D Major Chord) G Form (D Major Chord) Note the common tone! C Moveable Chord (D Major) 7th fret. 1 1 1 1 3 1 1 1 2 3 3 3 3 X X 4 X X

  17. From the G form to the E form. The E form of the D major chord. G Form (D Major Chord) 1 1 1 1 1 1 10th fret 2 7th fret. 1 1 1 3 4 1 5 1 3 5 1 2 (4) Really notice how the change in order of notes means a difference in the texture of the chord! Again listen. You can also practice singing the chord from bottom note to top or top to bottom. X X 1 3 5 1 3

  18. See how this form works below. I personally like this form quite a bit and like to go from the E form to this when going to a IV chord (G to C for example). D Form (E Major) D Major 1 2 1 3 2 3 4 X X 0 0 Note you can more the F# on the 1st string 2nd fret to The 6th string 2nd fret (both strings are the same letter Name – it works out better for most cases. As you can see with this form you don’t have to barre. Now you can learn it as a barre based entirely off of the first position D and I would recommend that you try that once this is mastere.

  19. A Moveable Chord (D Major Chord) 2 3 4 G Form (D Major Chord) C Moveable Chord (D Major) 7th fret. 1 1 1 1 3 1 1 1 (4) 3 3 3 X X X X D Form (D Major) The E form of the D major chord. 12th fret, could have also done in 1st position. 1 1 1 1 1 1 1 10th fret 2 3 2 4 Arrows are pointing to where the roots are and move to. 3 4 X X

  20. The G form This form is usually played without playing the 1st and 6th strings. Below is an example of the concept with the 1st and 6th strings in the 3rd diagram muted. Some bands such as the Doobie Brothers used this form as a basis for cool chord riffs. At this point notice that the root moves around by which voicing you are playing. Note that 1 = root. From here on 1 will refer to root rather than writing R. G Form (A Major Chord) G Major G Form (A Major Chord) 2 1 1 1 1 1 1 1 1 1 3 4 2 3 3 4 A C# E A C# A 1 3 5 1 3 1 X X C# E A C# 3 5 1 3

  21. E A 1 7th fret 7t Fret 1 1 1 1 1 2 3 3 0 X 0 X Chords for Listen To The Music. Note that on the E you will hammer on the 9th fret with the 3rd finger and on the A hammer the and and 3rd finger on. This is very cool and a good example of using these 2 forms. 4/4 ||: E | A : || Will do the whole song at a later date.

  22. A Moveable Chord (Bb Major Chord) G Form (Bb Major Chord) 1 3 3 3 1 1 1 3 X X X X So do Bb then move up to B – Next slide and continue.

  23. Goal for this term • Learn all the forms and how to find them up the neck in each position. • Make sure you can do the chords across like in this paper. • Start to visualize the guitar in the key of G major.
